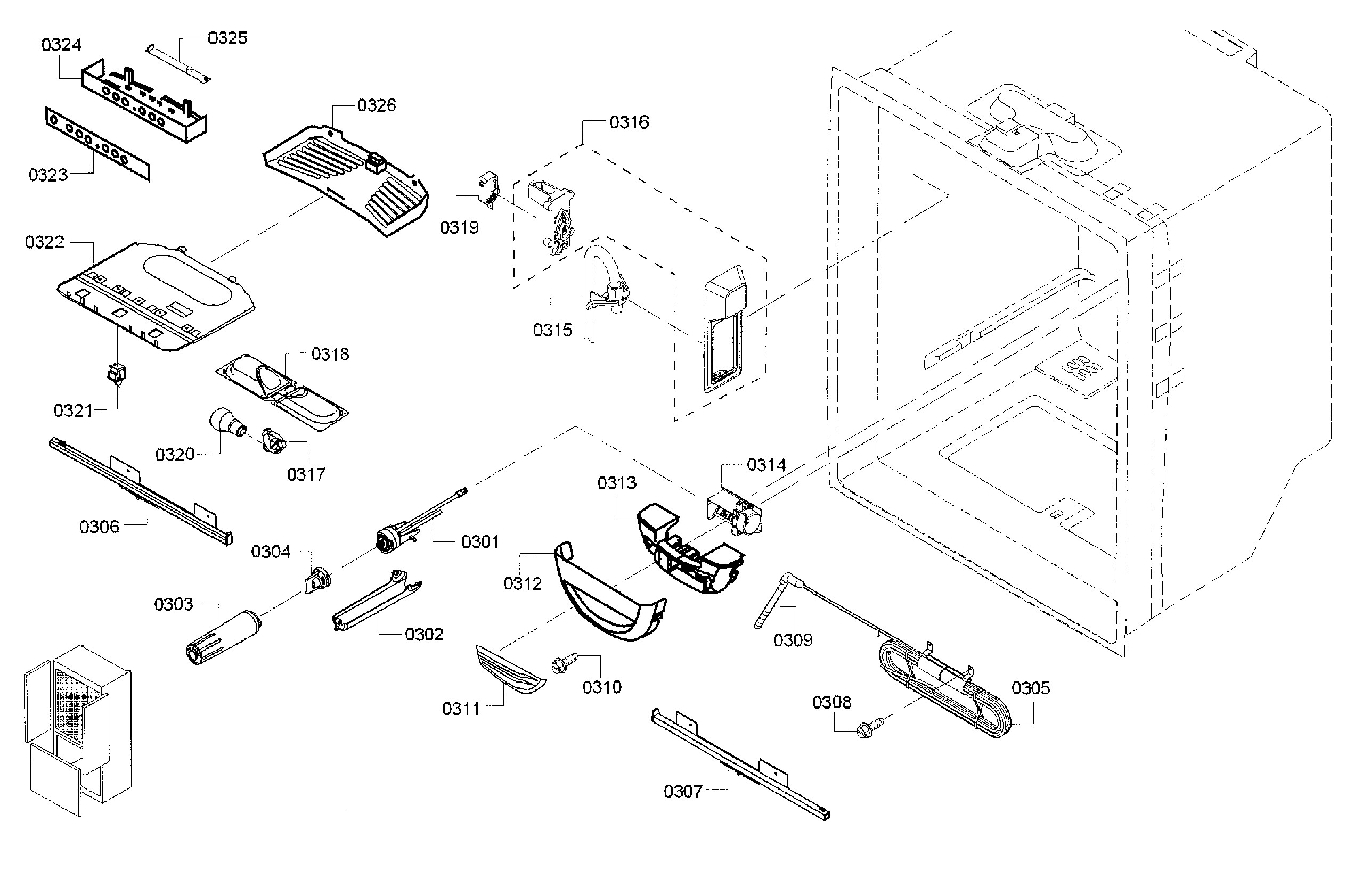

Bosch B22CT80SNS/01 refrigerator Parts

For Bosch refrigerators like model B22CT80SNS, the most common issues we see customers troubleshoot are cooling performance problems (too warm, freezing, or uneven temps) and ice maker or water dispensing problems. These usually trace back to airflow restrictions, door sealing issues, or water supply and filtration conditions.

Most common symptoms and what they usually point to

• Refrigerator not cold enough: blocked air vents, heavy door opening, or airflow control problems
• Freezer too warm or not making enough ice: freezer door not sealing, low water pressure, or a restricted filter
• Food freezing in the fresh-food section: airflow imbalance or damper control issues
• Moisture/condensation around doors: door not closing fully, gasket not sealing, or high humidity conditions
• Ice maker not producing: ice maker turned off, water line kinked, or water inlet/valve issue

For model-specific operating checks (recommended temps, control settings, and troubleshooting steps), use the B22CT80SNS manual.

Quick checks we recommend first (fast, no parts)

1. Confirm set points are near 38°F refrigerator and 0°F freezer.
2. Make sure air vents are not blocked by food packages.
3. Verify doors close fully and bins are not preventing closure.
4. If ice or water is slow, confirm household water pressure is adequate and the supply valve is fully open.
5. If you recently replaced a filter, flush the water system to clear air.

Common “problem to part” mapping for this model

Problem you notice	Often involved system	Example compatible part for B22CT80SNS
Ice maker not making ice	Ice maker assembly	Refrigerator ice maker 00798555
Doors not sealing, warm temps, moisture	Door sealing	Bosch refrigerator door gasket 00713448
Fresh-food temps uneven	Airflow/damper control	Refrigerator air damper control assembly 00798467

Why it matters

Cooling and ice maker complaints are often connected: poor airflow or a weak door seal can raise temperatures, which reduces ice production and can cause longer run times. Catching simple airflow or sealing issues early helps protect food quality and energy efficiency.

Last updated: January 2026

Water pooling in the bottom of your Bosch B22CT80SNS refrigerator is most often caused by a restricted defrost drain; defrost meltwater can’t flow to the drain pan and instead collects in the fresh-food compartment. We also check door sealing because warm, humid air can create excess condensation (see the B22CT80SNS use & care manual).

Most common causes on this model

• Defrost drain partially blocked by food debris or ice
• Door not sealing tightly, letting humid air in
• Air vents blocked by packages, increasing frost and meltwater
• Frequent door openings that temporarily raise condensation

What to do first (safe, no-parts checks)

1. Move food away from the rear wall and bottom of the fresh-food section.
2. Look for ice or debris near the drain area at the back/bottom of the compartment (exact placement can vary by interior configuration).
3. Melt any visible ice with warm water (not boiling) and wipe dry.
4. Monitor for 24 to 48 hours.

When the door seal is the real issue

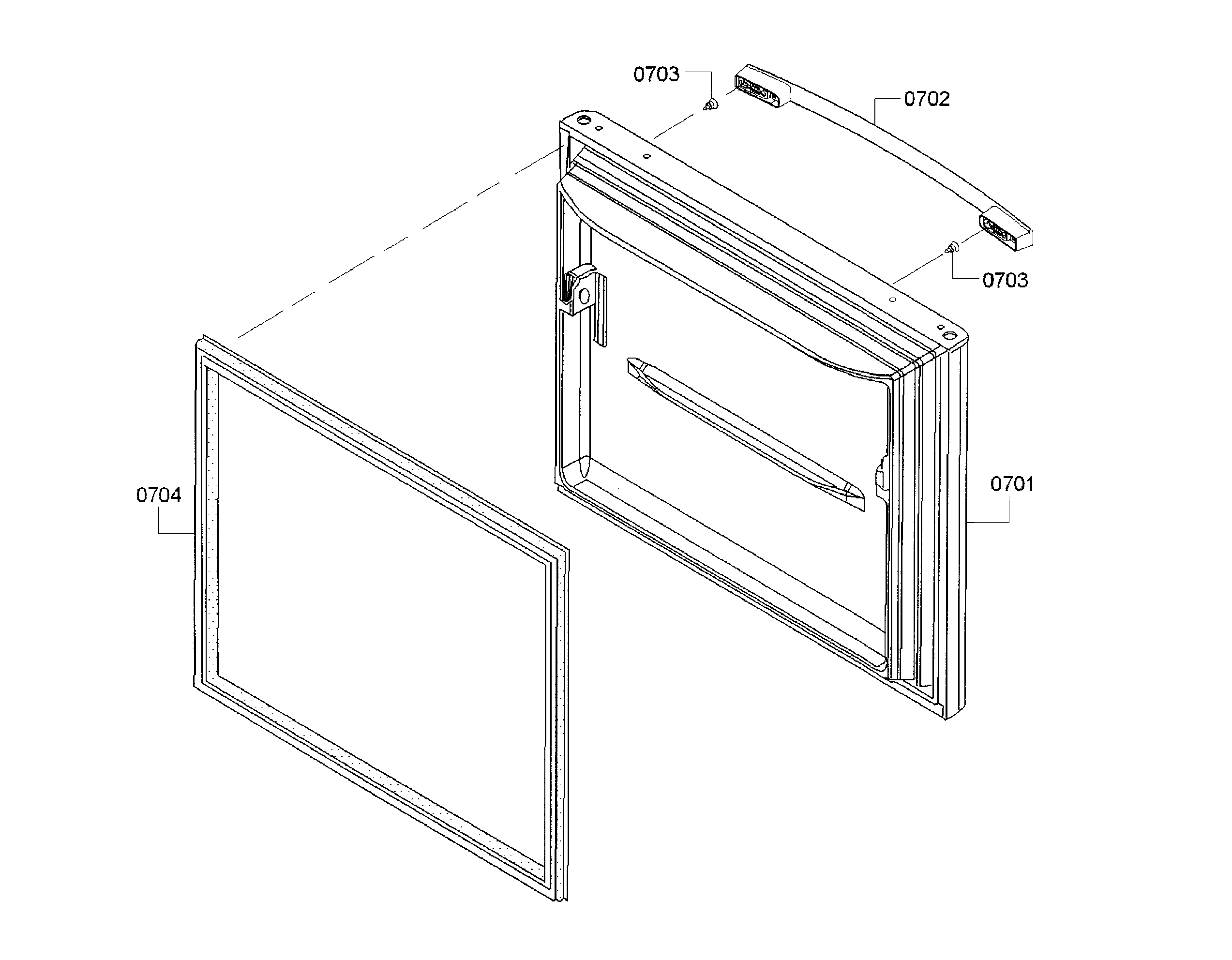

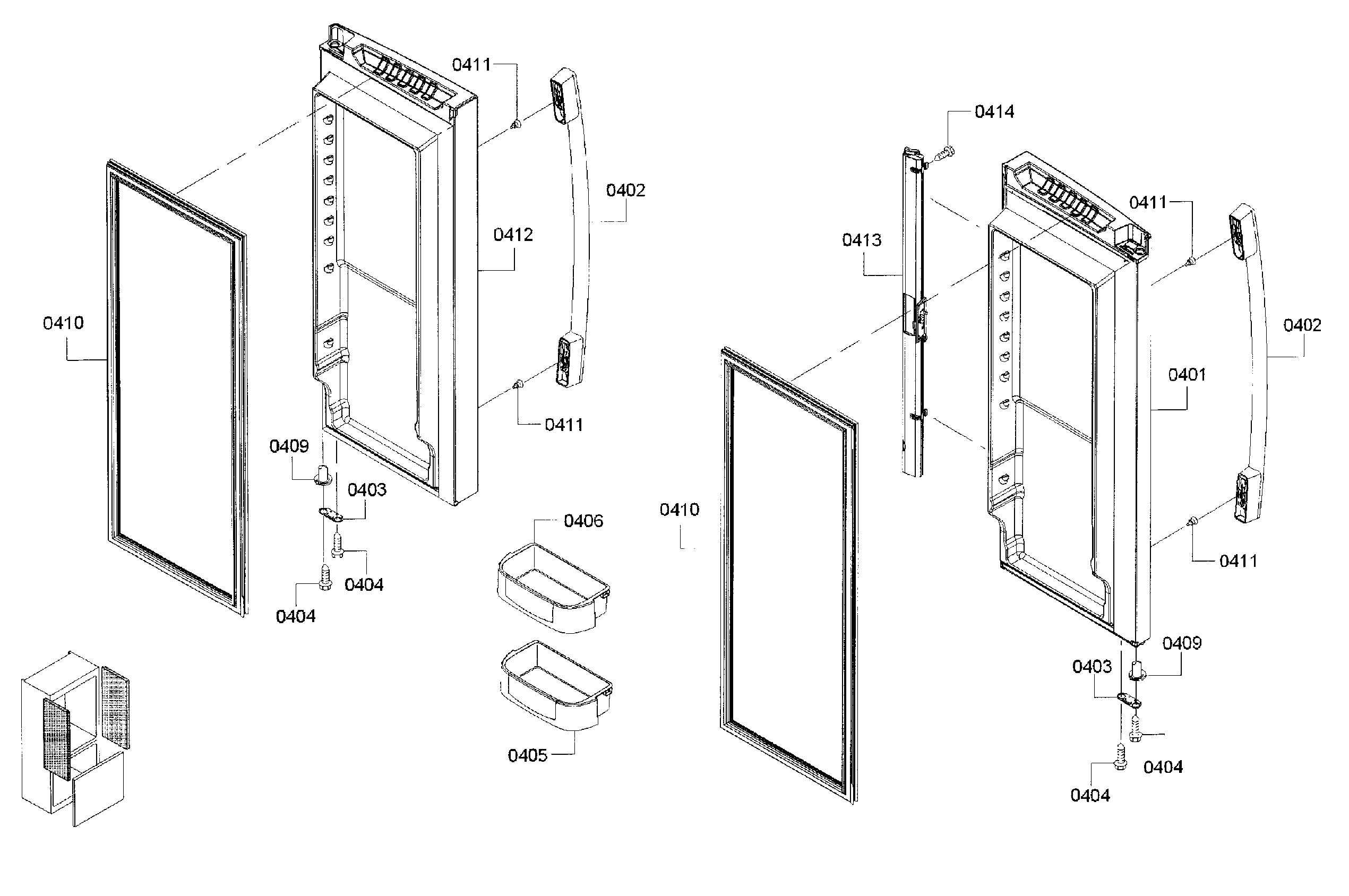

If you also notice fogging, moisture beads around the door edges, or the puddle returns quickly, inspect the gasket for gaps, tears, or stiffness.

• Clean the gasket with mild soap and warm water; rinse and dry.
• Check for areas that don’t contact the cabinet evenly.
• Replace the gasket if it’s torn or won’t seal after cleaning.

Helpful part for sealing issues: Bosch refrigerator door gasket 00713448.

Symptom guide

What you notice	Most likely cause	Best next step
Water mainly after defrost cycles	Drain restriction	Clear ice/debris; confirm drain flows
Fogging or moisture at door edges	Door sealing issue	Clean/inspect gasket; reduce door openings
Frost buildup then water later	Air leak or blocked vents	Check gasket and vent blockage

Why it matters

Standing water can lead to odors, mess, and recurring ice buildup. Restoring proper drainage and a tight door seal helps your Bosch refrigerator maintain stable temperature and humidity.

Last updated: January 2026

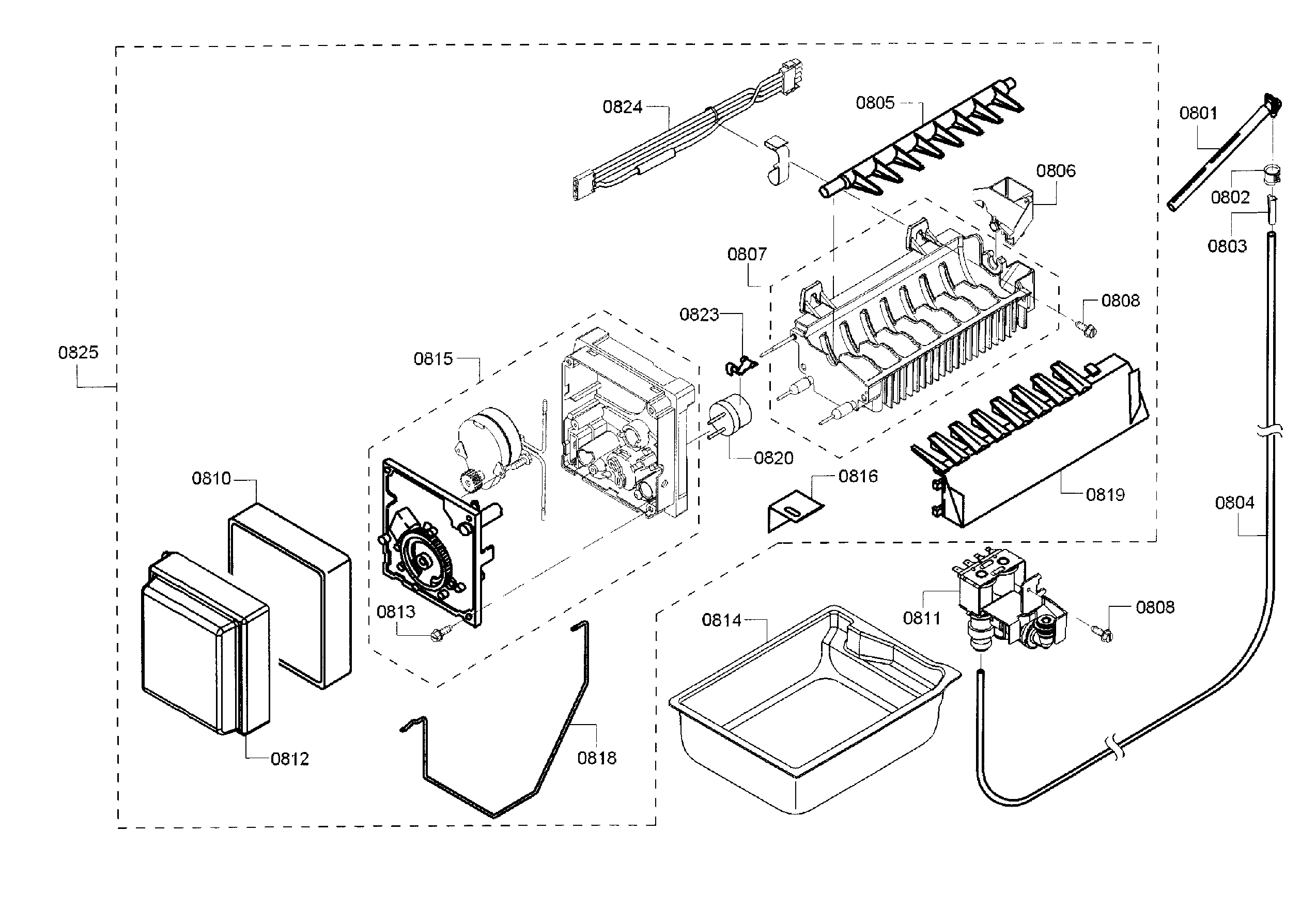

On the Bosch B22CT80SNS, the ice maker uses a wire shutoff arm; the most reliable “reset” is toggling that arm OFF (up) and back ON (down), then giving the unit time to start a new harvest cycle. A short power reset can also clear minor control glitches.

Quick reset steps (B22CT80SNS)

• Lift the wire shutoff arm to OFF (arm up); wait 10 seconds.
• Lower the arm to ON (arm down).
• Close the freezer drawer fully so the switch and seal engage.
• Wait for production: up to 24 hours for first ice, up to 72 hours for full output.
• After a new install or water reconnect, discard the first 3 batches.

Power reset (if the arm reset doesn’t help)

1. Press and hold Cooling On/Off for 3 seconds to turn cooling OFF.
2. Unplug the refrigerator (or switch off the breaker) for 5 minutes.
3. Restore power and turn cooling back ON.
4. Confirm the shutoff arm is down (ON).

For control locations and ice maker operation details, use the B22CT80SNS manual.

Checks that often matter more than “resetting”

• Water shutoff valve is fully open.
• Water pressure is 35 to 120 psi.
• Water line behind the refrigerator is not kinked.
• Ice jam in the ejector area; clear with a plastic utensil.
• Water filter is seated correctly; if flow is low, replace the filter.

Symptom guide

Symptom	Likely cause	First step
No ice	Ice maker OFF or drawer not closed	Arm down; close drawer
Slow ice	New install or heavy use	Wait 24 hours
Small/hollow cubes	Low pressure or restricted filter	Check supply; service filter

When a part is likely involved

If the ice maker won’t cycle or keeps jamming after these steps, the assembly may need replacement; use the refrigerator ice maker 00798555.

Why it matters

On this model, “resetting” mainly restores the ON/OFF state and clears minor electronic hiccups; most no-ice problems trace back to water supply, filter flow, or a freezer drawer that isn’t sealing.

Last updated: January 2026
