Whirlpool TU4100XTP1 compactor Parts
Here are the diagrams and repair parts for Whirlpool TU4100XTP1 compactor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

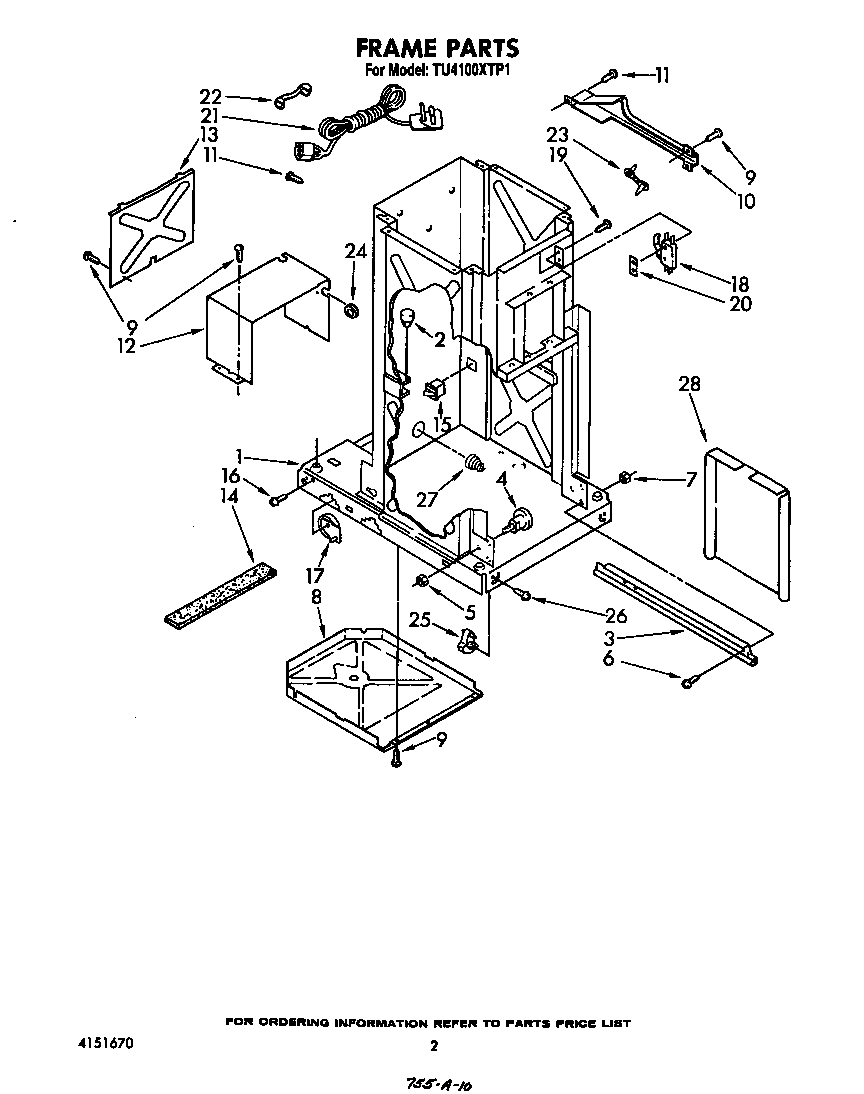

Browse Parts for TU4100XTP1 Compactor

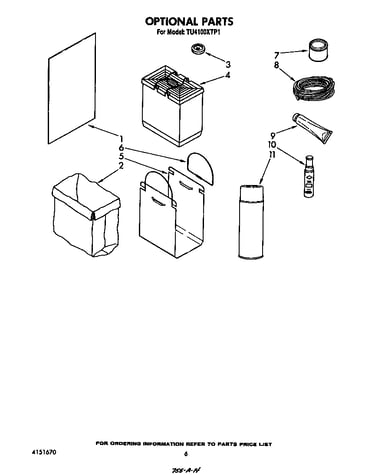

Lit/optional diagram
Adhesive
Part #279368Replaced by #WP279368
Manufacturer substitutionThis part replaces 279368. Substitute parts can look different from the original.In Stock$52.1810% OFF Phone Price : $58.18
Qty

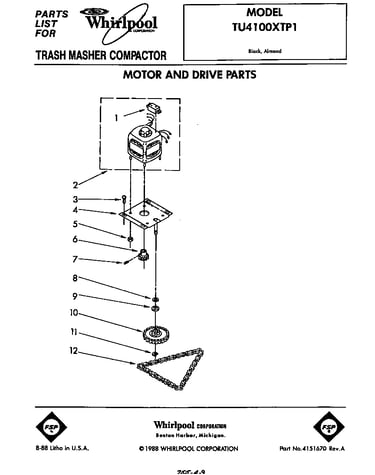

Motor and drive diagram
Motor
Part #780360Replaced by #W10439651
Manufacturer substitutionThis part replaces 780360. Substitute parts can look different from the original.In Stock$197.446% OFF Phone Price : $209.44QtyMotor and drive diagram
Switch
Part #777710Replaced by #W10439651

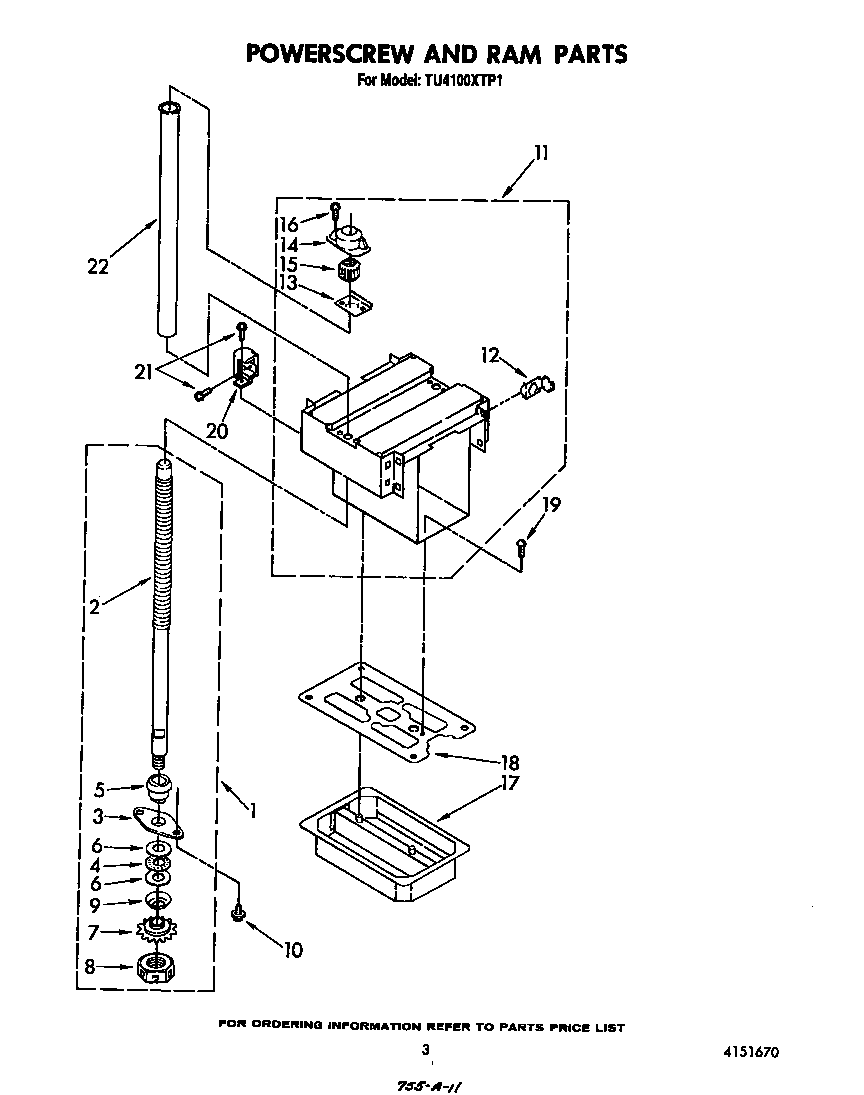

Manufacturer substitutionThis part replaces 777710. Substitute parts can look different from the original.In Stock$197.446% OFF Phone Price : $209.44QtyPowerscrew and ram diagram
Screw
Part #777444Replaced by #WP90767
Manufacturer substitutionThis part replaces 777444. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyLit/optional diagram
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock$8.4611% OFF Phone Price : $9.46QtyPowerscrew and ram diagram
Screw
Part #777595Replaced by #WP681414
Manufacturer substitutionThis part replaces 777595. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyLit/optional diagram
Carrier
Part #776989Replaced by #13030RP

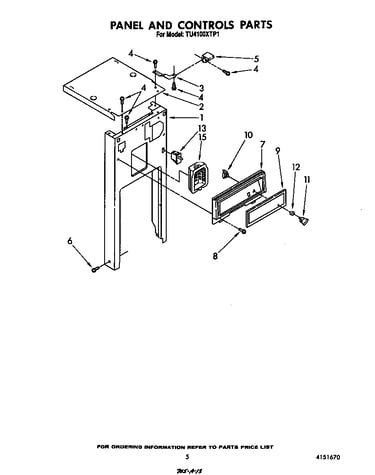

Manufacturer substitutionThis part replaces 776989. Substitute parts can look different from the original.This item is not returnableIn Stock$35.6714% OFF Phone Price : $41.67QtyPanel and controls diagram
Screw
Part #780138Replaced by #WP302868

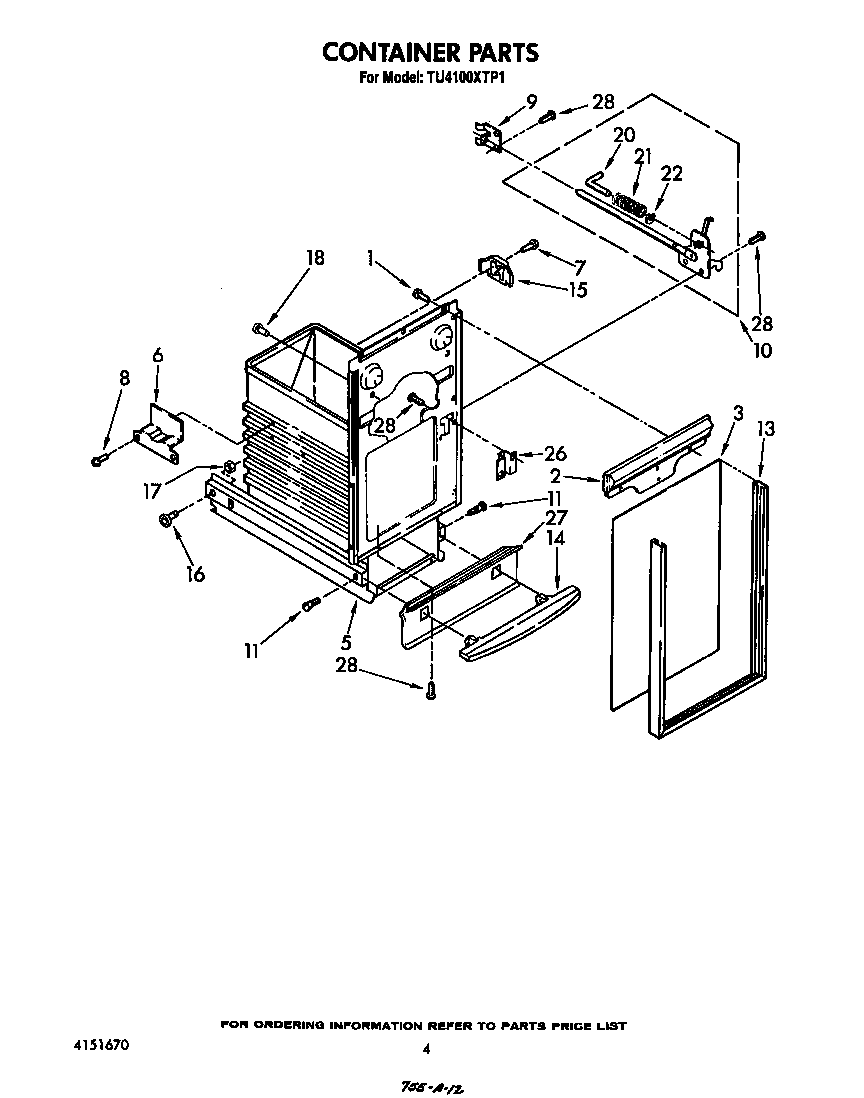

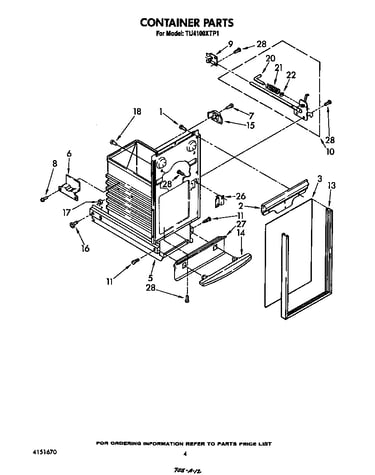

Manufacturer substitutionThis part replaces 780138. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyContainer diagram
Bearing
Part #776261Replaced by #WP9871602
Manufacturer substitutionThis part replaces 776261. Substitute parts can look different from the original.This item is not returnableIn Stock$11.6515% OFF Phone Price : $13.65QtyPowerscrew and ram diagram
Trash Compactor Power Nut
Part #777533Replaced by #WP777533
Manufacturer substitutionThis part replaces 777533. Substitute parts can look different from the original.In Stock$26.0319% OFF Phone Price : $32.03Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08
Qty
Most common symptoms to help you fix your trash compactors
Choose a symptom to see related trash compactor repairs.
Main cause: faulty drawer tilt switch …
Main cause: broken top limit and directional switch…
Main causes: bent drawer support rollers, damaged trash container…
Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…
Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…
Main causes: stuck foot pedal, bad momentary start switch, power switch failure…
Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…
Most common repair guides to help fix your trash compactors
These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.
How to replace a trash compactor power switch
If the trash compactor won’t power up, use the steps in this repair guide to replace the power switch.…
Repair time and Difficulty
30 minutes or less
How to replace a trash compactor motor centrifugal switch
If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…
Repair time and Difficulty
45 minutes or less
How to replace a trash compactor momentary start switch
The momentary start switch starts the motor when you lift the foot pedal. This repair guide shows how to replace the swi…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your trash compactors
Use the advice and tips in these articles and videos to get the most out of your trash compactor.
Find out what’s wrong with your appliance by following a circuit.…
Learn what to check if you are having problems with the drawer sticking on your trash compactor.…
See what questions our experts most often get about trash compactors.…
