Whirlpool SC8630EXW3 gas cooktop Parts
Here are the diagrams and repair parts for Whirlpool SC8630EXW3 gas cooktop, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for SC8630EXW3 Cooktops
Screw
Part #816666Replaced by #WP9419621
Manufacturer substitutionThis part replaces 816666. Substitute parts can look different from the original.In Stock$25.86
Qty

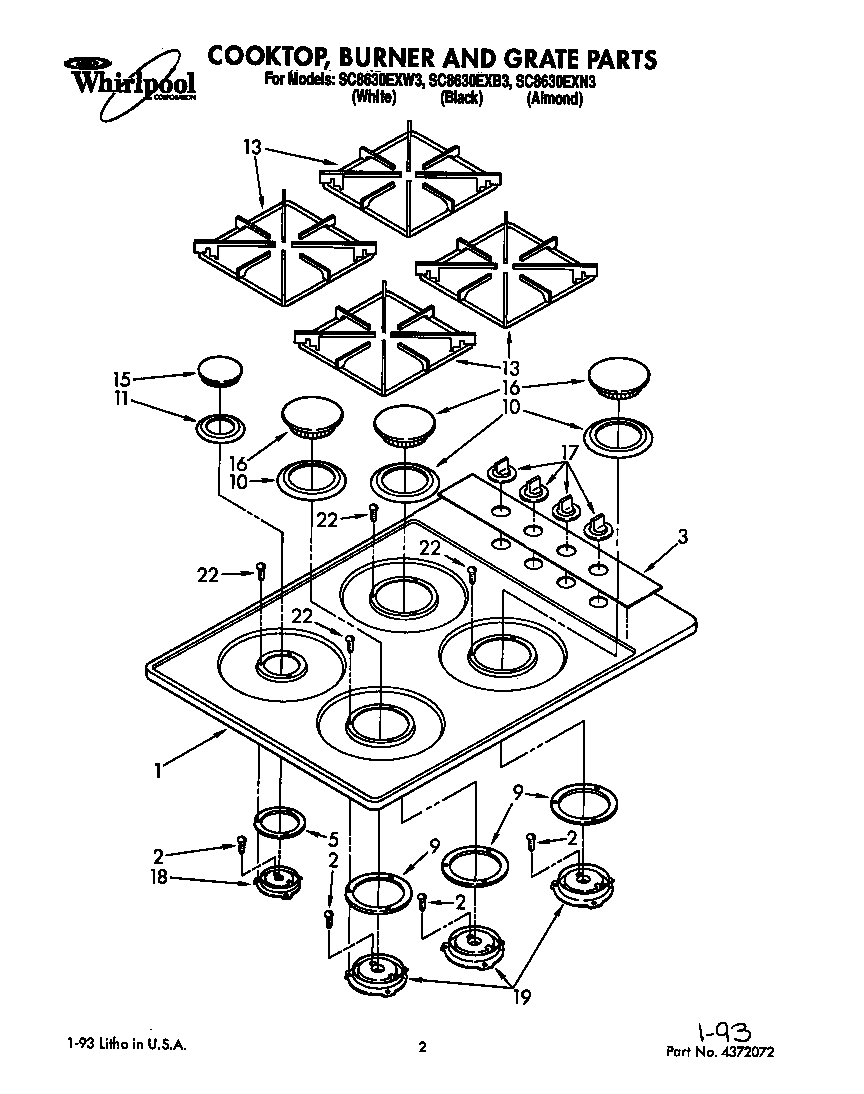

Cooktop, burner, grate parts diagram
Wire
Part #816803
The manufacturer no longer makes this part, and there's no substitute part

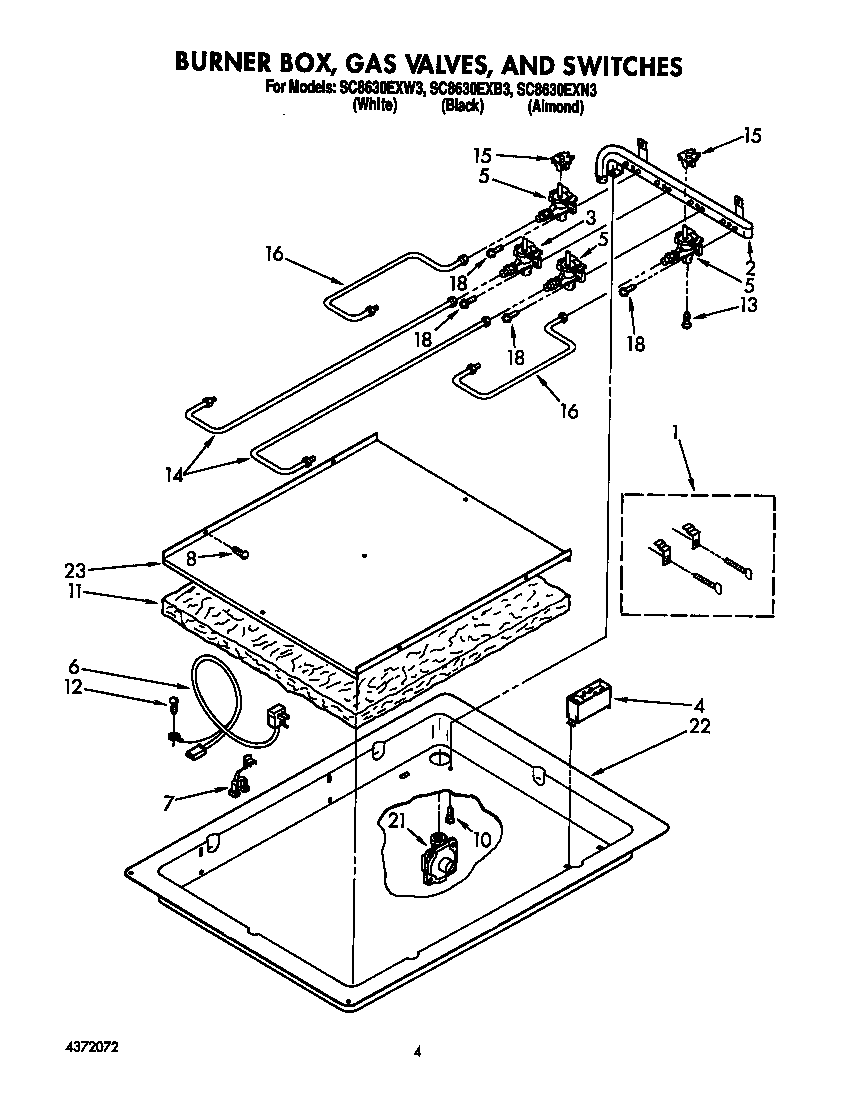

Burner box, gas valves, switches diagram
Gas Tubing
Part #816562
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner, grate parts diagram
Wire
Part #816808
The manufacturer no longer makes this part, and there's no substitute part
Complete sealed gas burner parts diagram
Orifce-plt
Part #816567
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, switches diagram
Insulation
Part #816542
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #816568
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner, grate parts diagram
Surface Knob
Part #4371635
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner, grate parts diagram
Gasket
Part #816560
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, switches diagram
Manifold Pipe
Part #4371636
The manufacturer no longer makes this part, and there's no substitute part
