Kenmore
Gas Cooktop

Model #79033033100 Kenmore gas cooktop

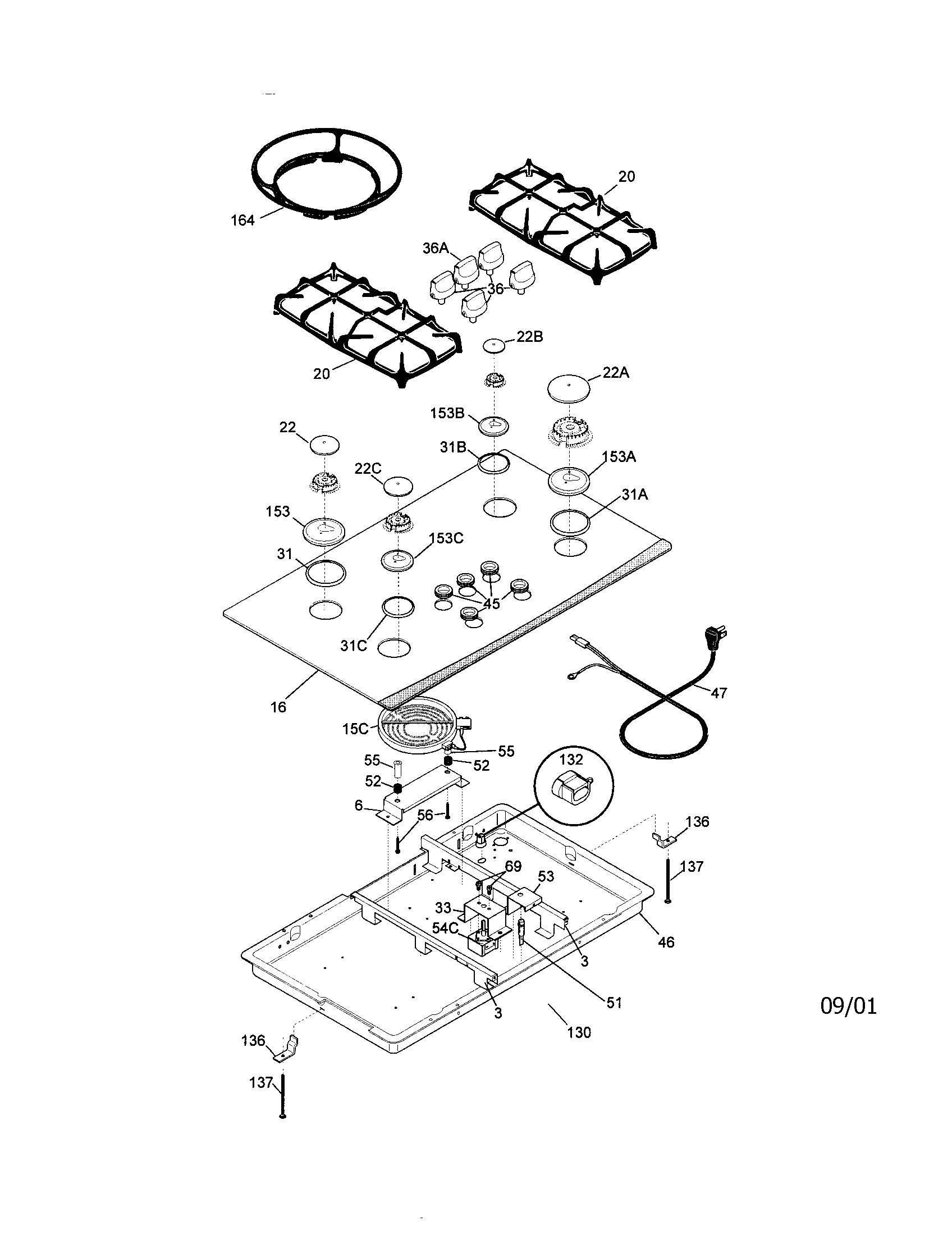

Here are the repair parts and diagrams for your Kenmore 79033033100 gas cooktop.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 92 parts

Range Screw

#NI

All parts Diagram

Range screw

Part #316240600

$8.62

In Stock

Cooktop Burner Knob

#36

Cooktop Diagram

Cooktop burner knob

Part #316121822

$36.40

In Stock

Cooktop Igniter Switch

#3

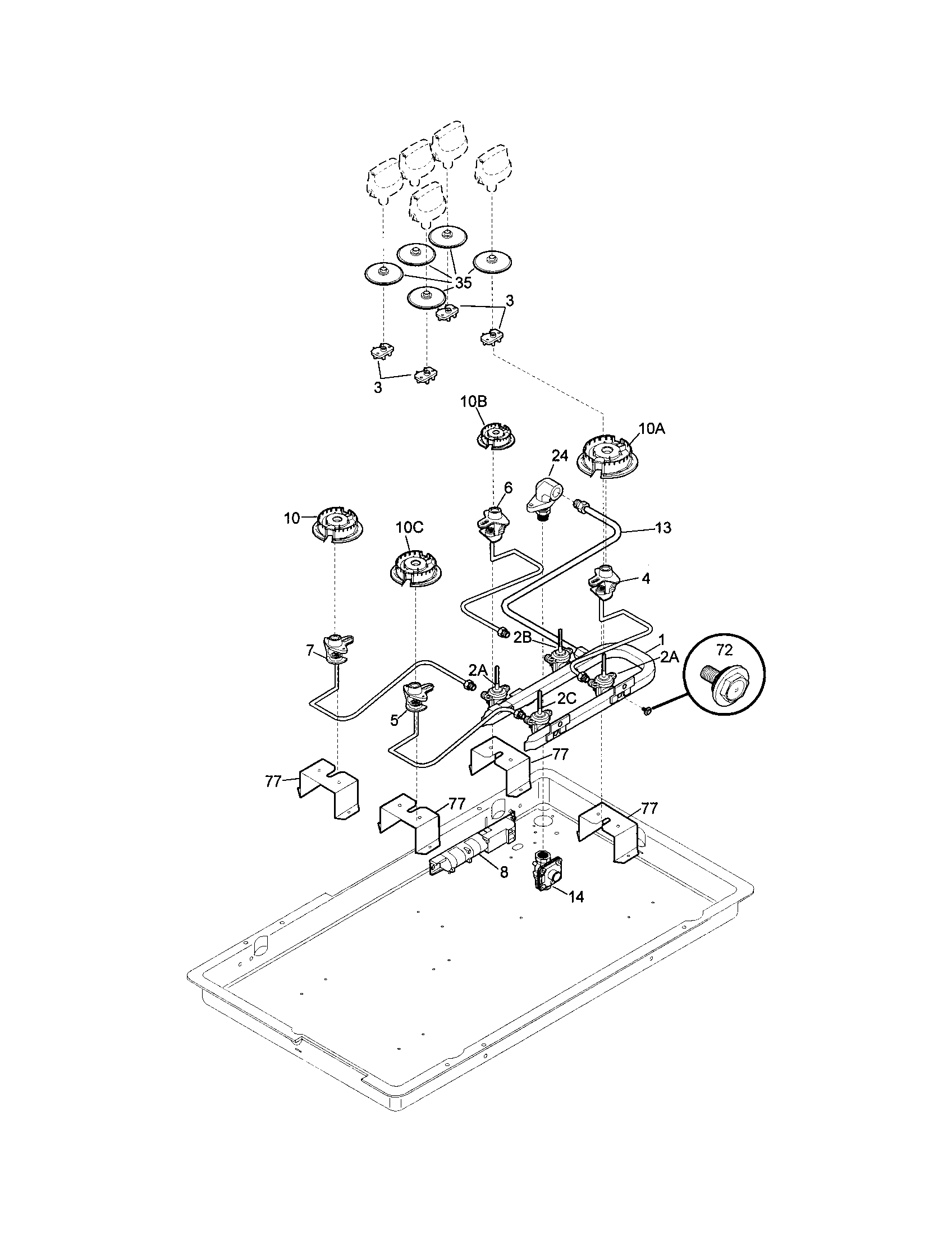

Burner Diagram

Cooktop igniter switch

Part #318163400

$37.34

In Stock

Range Surface Burner Seal

#31A

Cooktop Diagram

$50.06

In Stock

Range Surface Burner Seal

#31B

Cooktop Diagram

$32.42

In Stock

Cooktop Burner Cap (Black)

#22A

Cooktop Diagram

$97.46

In Stock

Range Surface Burner Cap

#22B

Cooktop Diagram

Range surface burner cap

Part #316206500

$74.91

In Stock

Cooktop Burner Skirt

#153B

Cooktop Diagram

Cooktop burner skirt

Part #316241901

$61.70

In Stock

Cooktop Burner Skirt

#153BB

Cooktop Diagram

Cooktop burner skirt

Part #316241903

$35.63

In Stock

Range Screw

#69

Cooktop Diagram

Range screw

Part #5303323134

$7.74

In Stock

Symptoms common to all cooktops

Choose a symptom to see related cooktop repairs.

Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure

Repair guides for gas cooktops

November 20, 2014
By Lyle Weischwill
How to replace a spark module on a gas cooktop

No flame on your gas cooktop? Installing a new spark module could be the fix you need.

Repair difficulty
Time required
 30 minutes or less
How to replace a spark igniter switch on a gas cooktop

Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the spark igniter switches.

Repair difficulty
Time required
 45 minutes or less
