Frigidaire PLD4375RFC2 dishwasher Parts

A Frigidaire dishwasher like model PLD4375RFC2 typically lasts 10 years. With consistent cleaning, correct detergent use, and proper water temperature and pressure, many units reach 10 to 13 years before major repairs (pump, heater, control) become more common.

Typical lifespan and what to expect

Most built-in residential dishwashers fall into these ranges:

Usage and care level	Typical lifespan	What usually fails first
Light use, good maintenance	12 to 13 years	Door seals, rack rollers, inlet valve
Average use (most homes)	10 years	Drain pump, heater, control board
Heavy use, hard water, minimal cleaning	7 to 9 years	Sump/pump wear, leaks, heating issues

What extends the life of PLD4375RFC2

We see the longest life when these basics are handled consistently:

• Keep incoming water temperature at least 120°F for best cleaning and to reduce rewash strain.
• Confirm home water pressure is in the 20 to 120 psi range.
• Clean the filter and sump area regularly to prevent pump load and drain problems.
• Load racks to avoid blocking spray arms and reduce motor strain.
• Use fresh dishwasher detergent and refill rinse aid as needed.

For model-specific operating and care steps, follow the PLD4375RFC2 owner’s manual.

Parts that commonly affect longevity

When a dishwasher is “wearing out,” it is often a few serviceable parts causing symptoms (leaks, poor drying, not draining) rather than the tub itself:

• Leaks at the door: inspect the gasket 809006501 and door alignment
• Not drying or water not heating: check the heating circuit and heater 154825001
• Slow or no drain: inspect the drain path and hose 807117001

Why it matters

Knowing the expected lifespan helps you decide whether to maintain, repair, or replace. If your PLD4375RFC2 is near the 10-year mark, routine maintenance (filter cleaning, correct water temp, proper loading) often prevents the most expensive failures.

Last updated: February 2026

In a Frigidaire dishwasher like model PLD4375RFC2, the most commonly replaced parts are the ones that seal, fill, heat, drain, and move water: door seals and gaskets, inlet valves, heating elements, drain hoses/pumps, and rack hardware. These parts wear out from heat, detergent, vibration, and clogs.

Most common dishwasher parts that get replaced

These are the parts we see replaced most often when a dishwasher leaks, won’t drain, won’t dry, or won’t clean well:

• Door seals and gaskets (stop leaks around the door)
• Heating element (helps heat water and improves drying)
• Water inlet valve (controls filling)
• Drain hose and drain pump (moves water out)
• Filters and sump components (prevent recirculating debris)

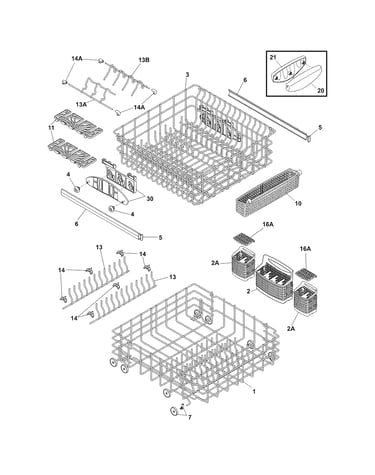

• Rack rollers and rack assemblies (wear, crack, or stop rolling smoothly)
• Electronic control board (cycle, fill, heat, and drain timing issues)

Model PLD4375RFC2 examples you can match to symptoms

If you’re troubleshooting PLD4375RFC2, these model-matched parts are common fixes:

Symptom	Parts to check first	Example model-matched part
Water on floor at the door	Door seal, tub gasket area	Gasket 809006501
Dishes not drying well	Heat dry setting, heating circuit	Heater 154825001
Dishwasher not filling	Water supply, inlet valve, float/overfill system	Dishwasher water inlet valve 154637401
Not draining	Drain path, hose routing, drain pump	Hose 807117001
Lower rack won’t roll	Rollers, brackets, rack alignment	Dishwasher dishrack roller, lower 5304532229

Why these parts fail (and what you can do to reduce repeat problems)

A few habits and checks prevent many repeat failures:

• Keep the tub gasket area wiped clean so the door can seal properly.
• Make sure spray arms can rotate freely; avoid tall items blocking them.
• Use fresh detergent and the right cycle for heavy soil.
• Confirm home water pressure is in a normal range (the manual notes 20 to 120 psi).
• Confirm incoming water temperature is hot enough for good cleaning (the manual notes at least 120°F).

For model-specific operating and care guidance, use the PLD4375RFC2 owner’s manual.

Why it matters

Replacing the correct “root cause” part saves time and prevents secondary damage. For example, a restricted drain hose can mimic a bad drain pump, and a dirty sealing surface can mimic a failed door gasket.

Last updated: February 2026

On the Frigidaire PLD4375RFC2 dishwasher, the most common problems we see are performance issues caused by basic conditions: poor cleaning from blocked spray action or low water temperature, and drainage problems from a kinked drain path. These show up as food left on dishes, standing water, or cycles that seem to stall.

Most common symptoms and what they usually mean

• Food soils left on dishes: spray arms blocked by loading, low incoming water temperature, or low water pressure
• Not draining: disposer knockout plug not removed, drain hose kinked, disposer clogged, or cycle paused
• Won’t run: door not fully latched, delay start selected, breaker tripped, or water supply off
• Long cycle times: water-heating delay, sanitize option selected, or delay start enabled
• Odor: dishes sitting too long, or poor draining leaving water in the sump

For model-specific operating checks and cycle options, use the PLD4375RFC2 owner’s manual.

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes and latches firmly; start a normal cycle with no delay.
2. Run hot water at the sink until it is hot, then start the dishwasher (incoming water should be at least 120°F).
3. Verify the water supply valve is fully open.
4. Check the drain hose routing for kinks and confirm the disposer inlet knockout plug was removed (if connected).
5. Load so nothing blocks spray arm rotation; avoid nesting bowls and pans.

When a part is the likely fix

If the basics check out, these parts commonly relate to the same “most common” complaints:

Symptom	Common part area	Example part for PLD4375RFC2
Leaks at the bottom of the door	Door seal	Gasket 809006501
Not draining or weak drain	Drain path / pump	Hose 807117001
Poor drying or no heat	Heating circuit	Heater 154825001
Won’t fill	Water inlet	Dishwasher water inlet valve 154637401

Why it matters

Most “common problems” are really water flow, temperature, and loading issues. Fixing those first prevents unnecessary part replacement and restores normal wash pressure, heating performance, and draining.

Last updated: February 2026

Yes, for the Frigidaire PLD4375RFC2 dishwasher, we can replace many common parts ourselves if we shut off power and water first and follow the step-by-step procedures in the PLD4375RFC2 owner's manual and PLD4375RFC2 installation guide. Simple mechanical parts are usually DIY-friendly; wiring and leak-related repairs take more care.

Good DIY repairs vs. better left to a pro

Typically DIY-friendly

• Door sealing issues (inspect and replace the lower door seal such as the gasket 809006501)
• Cleaning and re-seating the filter and glass trap area
• Replacing rack rollers (for example, the dishwasher dishrack roller, lower 5304532229)
• Replacing a drain hose if it is split or kinked (match routing and clamps)

Often better for experienced DIYers or a technician

• Electrical diagnosis and control issues (for example, a dishwasher electronic control board 5304514670)
• Water fill problems involving the inlet valve and wiring
• Pump and motor repairs where leaks can occur if seals are mis-seated

Safety and prep checklist (do these every time)

• Disconnect electrical power at the breaker or fuse box before starting.
• Shut off the water supply valve.
• Protect hands from sharp metal edges; wear gloves.
• Keep water, drain, and electrical lines routed so they do not cross in front of the motor/frame.
• After reassembly, run a short cycle and check all joints for leaks.

Quick “difficulty guide” for common dishwasher parts

Repair type	What you’re doing	Typical DIY difficulty	Common risk
Door seal/rollers	Remove and reinstall fasteners/clips	Low	Door leaks if seal is misaligned
Drain hose	Swap hose and verify routing	Medium	Leaks or poor draining from kinks
Control board	Access console, move connectors	Medium-high	Miswiring, shock risk if power is on

Why it matters

Doing the right repair yourself can stop leaks, improve cleaning, and prevent repeat failures. On PLD4375RFC2, careful routing of drain, water, and electrical lines and a thorough leak check after the repair are key to a reliable result.

Last updated: February 2026
