Craftsman 917374352 lawn mower Parts

For Craftsman walk-behind mower model 917374352, the serial number format is not universal across all Craftsman mowers; we read it by first locating the serial tag, then using the date-code pattern shown for your specific unit in the 917374352 owner's manual.

The serial number is typically on a sticker or stamped tag on the mower housing or handle area. We use it to confirm the correct parts list, production run, and service details for your exact mower.

• Check the rear of the deck near the discharge opening
• Check the top of the deck near the engine mounting area
• Check the handle bracket area (left or right side)
• Wipe dirt and grass film off the label so every digit is readable

Many Craftsman mowers use a date-code style serial number where groups of digits represent a build date. A common pattern you may see is:

If your serial number follows that pattern, a serial starting with 072811 reads as July 28, 2011.

• Write the serial number down and double-check 0 vs O and 1 vs I
• Look for a separate model number; for this mower it is 917374352 (model and serial are different)
• If the label is damaged, take a clear photo and compare character shapes

Even when the model number matches, serial ranges can affect which blade, belt, cable, or handle parts fit. For example, when replacing wear items, we match by model first, then confirm by serial when needed.

If you are ordering common maintenance parts, these model-matched examples are often used on 917374352:

• Husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825

Last updated: February 2026

The model number for this Craftsman walk-behind gas lawn mower is 917.374352 (often written without the dot as 917374352). You’ll see it printed on the mower’s model label and on the cover page of the 917374352 owner's manual.

We recommend checking these common spots on Craftsman walk-behind mowers:

• On the rear of the deck near the discharge opening
• On the back flap area (near the grass bag opening)
• On the handle bracket area
• Near the engine mounting area on the deck
• On a sticker or metal tag that also lists serial information

Both formats refer to the same mower:

Using the exact model number helps us match the correct parts diagrams and assemblies for your mower, especially for items like the drive system, handle hardware, and cutting components.

If you’re ordering common wear items, matching by model number helps ensure fit for parts such as the husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825 and the drive belt.

Last updated: February 2026

A 42-inch Craftsman riding mower deck belt size depends on the exact tractor model, not the deck width alone. For your Craftsman walk-behind mower model 917374352, the drive belt is part ID 532421527 and it’s listed as 3/8 in x 35-3/8 in; confirm routing and fit in the 917374352 owner's manual.

“42-inch” almost always refers to a riding mower deck, while model 917374352 is a walk-behind mower. That’s why the belt size you need can be completely different.

Use this quick check:

• Riding mower: belt drives a 42-inch cutting deck under the tractor
• Walk-behind self-propelled: belt drives the transmission/wheels (shorter belt)
• Push mower (no drive): may have no drive belt at all
• Deck width is not a reliable identifier by itself

From the parts breakdown for model 917374352, the drive belt is:

• Lawn mower ground drive belt, 3/8 x 35-3/8-in 532421527

• Mower won’t move or moves intermittently
• Drive feels weak, especially uphill
• Belt squeals or smells like burning rubber
• Belt looks glazed, cracked, or stretched

Using the wrong belt size can cause slipping, poor self-propel performance, premature pulley wear, and repeated belt failures. Matching the belt to the exact model and routing keeps the drive system working correctly.

Last updated: February 2026

For a Craftsman walk-behind mower like model 917374352, it’s cheaper to repair when the fix is routine maintenance or a single worn part; it’s smarter to replace when repair costs approach half the price of a comparable new mower or when major engine or drive problems keep coming back. See the 917374352 owner's manual for maintenance guidance that helps prevent costly failures.

• Repair when the issue is a wear item (blade, belt, cable, bagging parts) and the mower is otherwise solid.
• Repair when the mower starts and runs well but cuts poorly (often a blade or deck issue).
• Repair when the self-propelled system slips once and the belt or cable is the likely cause.
• Replace when the engine has low compression, heavy smoking, or repeated no-start problems after proper tune-up.
• Replace when the drive system or engine needs multiple major parts and labor adds up quickly.
• Replace when the deck is severely rusted, cracked, or unsafe to use.

The 917374352 manual emphasizes routine upkeep and safety practices that reduce breakdowns:

• Replace/maintain wear items on schedule (oil, air filter, spark plug)
• Keep the blade sharp; replace a bent blade
• Clean under the deck (grass buildup strains performance)
• Keep rear drive wheels clean so they turn freely

Helpful parts commonly replaced for this model include the husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825 and the lawn mower ground drive belt, 3/8 x 35-3/8-in 532421527.

Repairing early (before a blade, belt, or wheel-drive issue causes extra strain) protects the engine and drive system, keeps cutting performance consistent, and helps you get the full value from seasonal maintenance.

Last updated: February 2026

On the Craftsman walk-behind mower model 917374352, we find the model and serial numbers on a decal on the rear of the lawn mower housing. Check that rear housing label first; it is the fastest way to match the correct parts list and owner information in the 917374352 owner's manual.

• Look at the rear of the mower deck housing (behind the engine area).
• Find a decal or sticker that lists Model and Serial.
• Wipe off grass, dust, and oil film; labels are often hard to read when dirty.
• Use a flashlight and take a photo; zooming in usually makes the numbers clearer.
• Record the serial number and date of purchase for future reference.

The model number identifies the mower assembly; the serial number helps confirm the exact production run. That matters when ordering common wear items like a blade, belt, or control cable.

Using the correct model number prevents ordering the wrong Craftsman walk-behind mower parts, especially for fit-sensitive items like the husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825 or drive components.

Last updated: February 2026

For a Craftsman walk-behind mower like model 917374352, typical service runs $75 to $250 for a tune-up and basic adjustments; repairs that involve drive components, carburetor-related issues, or multiple worn parts often land in the $200 to $400+ range once labor and parts are added.

A standard walk-behind mower tune-up commonly covers:

• Change engine oil and check oil level
• Clean or replace the air filter
• Replace the spark plug (often recommended at least yearly)
• Inspect the muffler and general fasteners
• Clean under the deck (grass buildup removal)

For model-specific maintenance intervals and seasonal checks, use the 917374352 owner's manual.

Costs vary by region and shop rates, but these ranges are common.

If the mower needs parts, the total cost rises quickly. On the 917374352, common wear items include:

• Blade (replace if bent, cracked, or badly worn), such as the husqvarna lawn mower 22-inch deck 3-in-1 blade 532421825
• Ground drive belt (loss of self-propel), such as the lawn mower ground drive belt, 3/8 x 35-3/8-in 532421527
• Drive cable (self-propel engagement issues)
• Wheels and small hardware (nuts, washers, E-rings)

Regular service helps the mower start easier, cut cleaner, and last longer. The manual also notes that expendable items (like blades, belts, air cleaners, and spark plugs) are normal wear items, so budgeting for them as part of maintenance prevents surprise downtime.

Last updated: February 2026

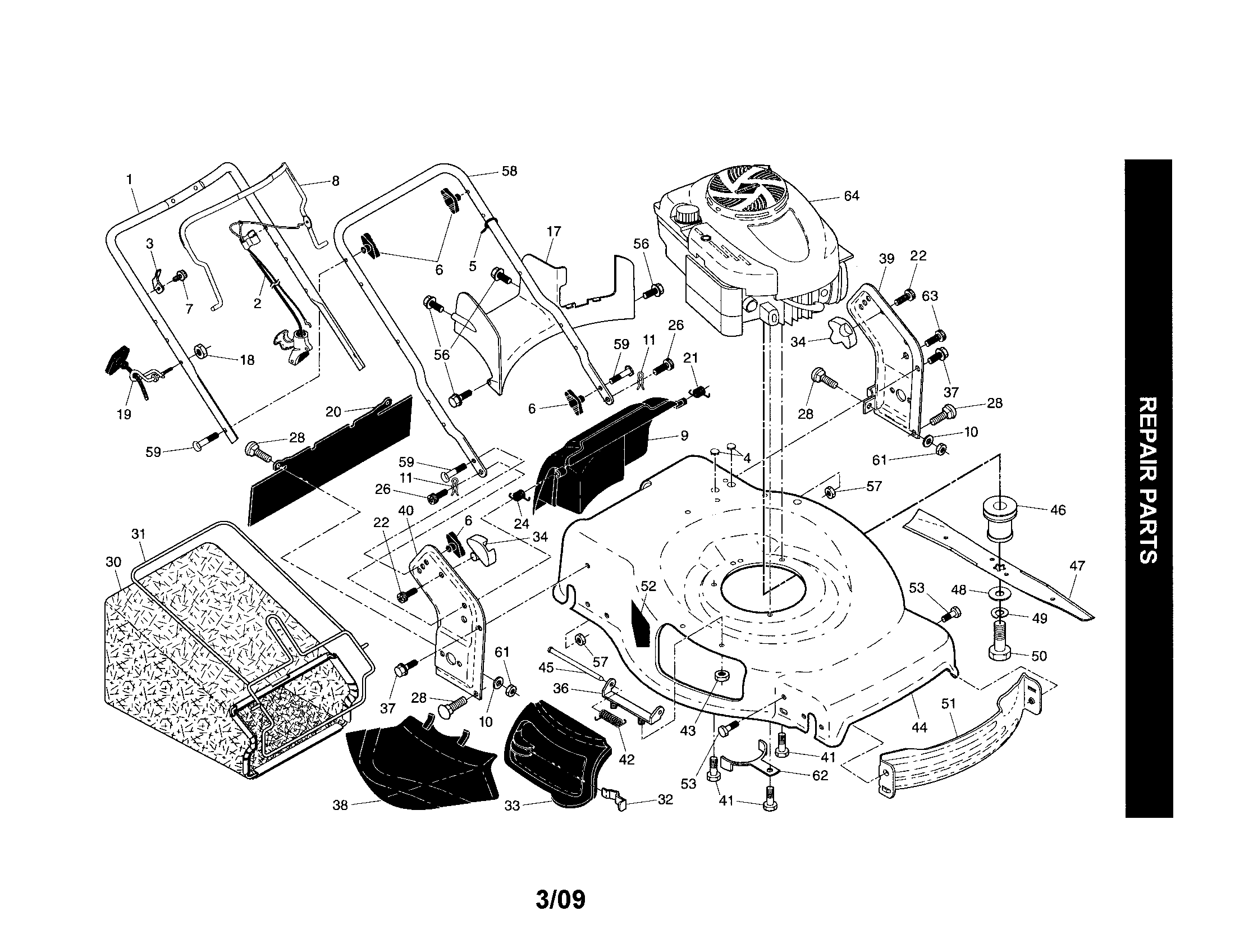

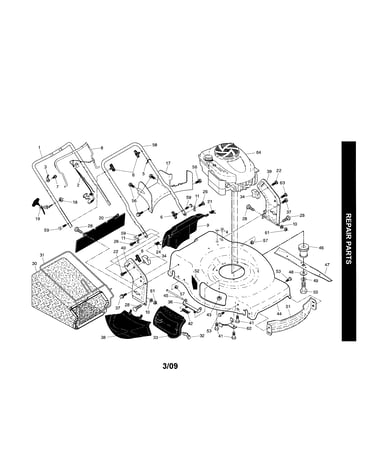

A gas walk-behind mower like the Craftsman 917374352 is built from a cutting system (blade and deck), a power system (engine and fuel/ignition), and control and safety parts (handles, cables, guards, and catcher/deflector). The exact part list for your mower is shown in the 917374352 owner's manual.

• Engine system: fuel tank, carburetor, air filter, muffler, recoil starter, governor linkages
• Ignition system: spark plug, ignition coil, flywheel, kill/stop switch wiring
• Cutting system: mower deck (housing), blade, blade adapter, discharge opening
• Controls and safety: upper/lower handle, operator presence control bar, zone control cable, safety labels

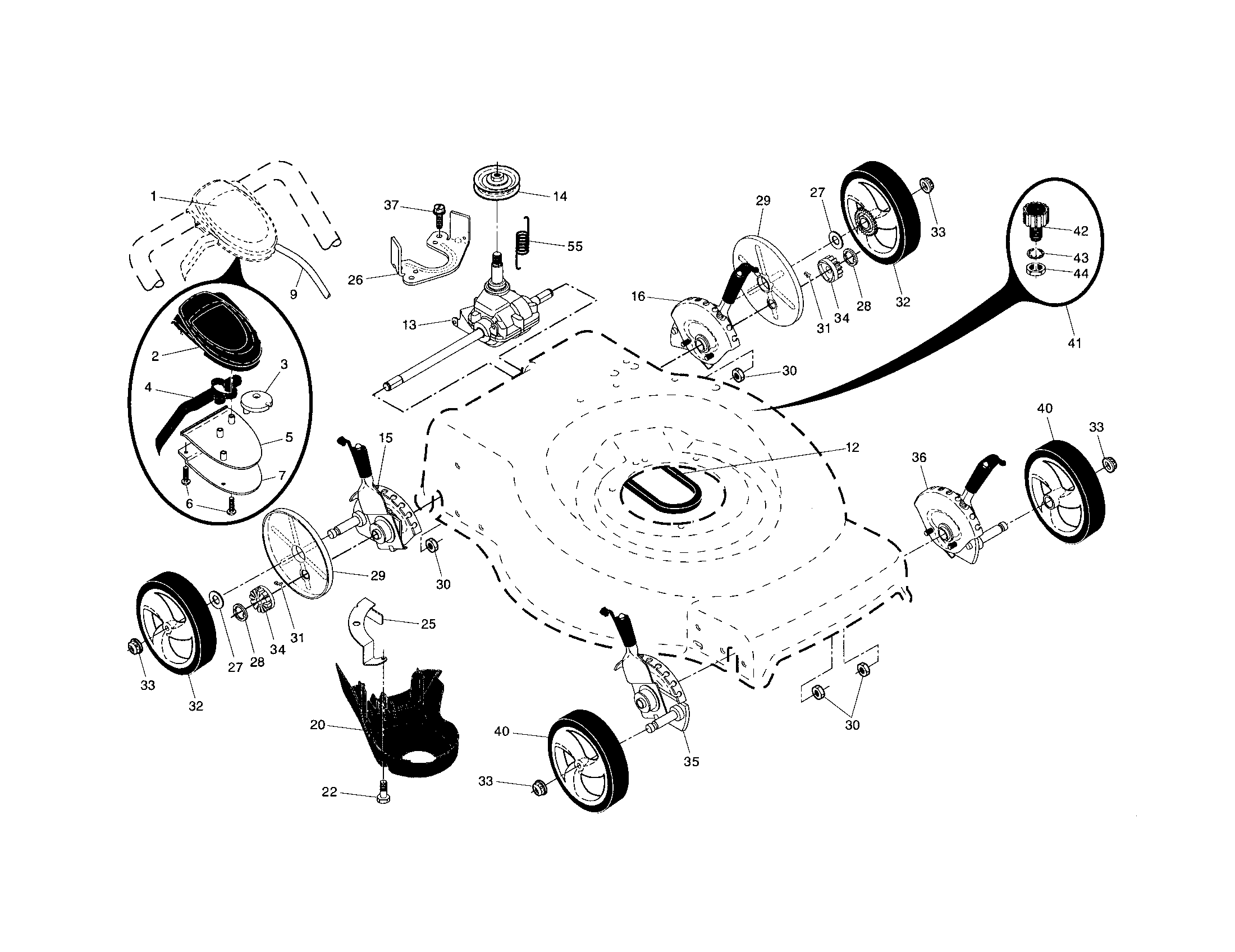

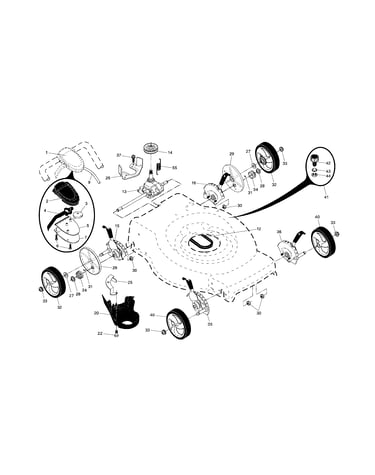

• Drive system (self-propelled models): drive belt, pulleys, drive cable, transmission/gearcase, drive pawls
• Wheels and height adjust: wheels/tires, wheel adjusters, springs, dust covers, fasteners
• Grass handling: clipping deflector, mulch door, grass bag and frame

These are frequent wear items on the 917374352 style of mower:

• Blade (bent, dull, or chipped)
• Drive belt (slipping or broken on self-propelled units)
• Drive cable or zone control cable (stretched or broken)
• Wheels and drive pawls (mower will not pull itself)
• Grass bag components (torn bag, broken frame, worn latch)

Knowing the part groups helps you troubleshoot faster. For example, a “won’t start” problem usually points to fuel or ignition parts, while a “won’t move” problem points to the drive belt, pulleys, drive cable, or drive pawls.

• Stop the mower and inspect it after striking an object; repair before restarting.
• Never adjust wheel height while the engine is running.
• Wear gloves when handling the blade; it is sharp.
• Check grass catcher and deflector parts often; worn parts can expose moving parts or allow objects to be thrown.

Last updated: February 2026
