Whirlpool RBD245PRB04 24" built-in double oven lower

Whirlpool RBD245PRB04 24" built-in double oven lower Parts

Here are the diagrams and repair parts for Whirlpool RBD245PRB04 24" built-in double oven lower, as well as links to manuals and error code tables, if available.

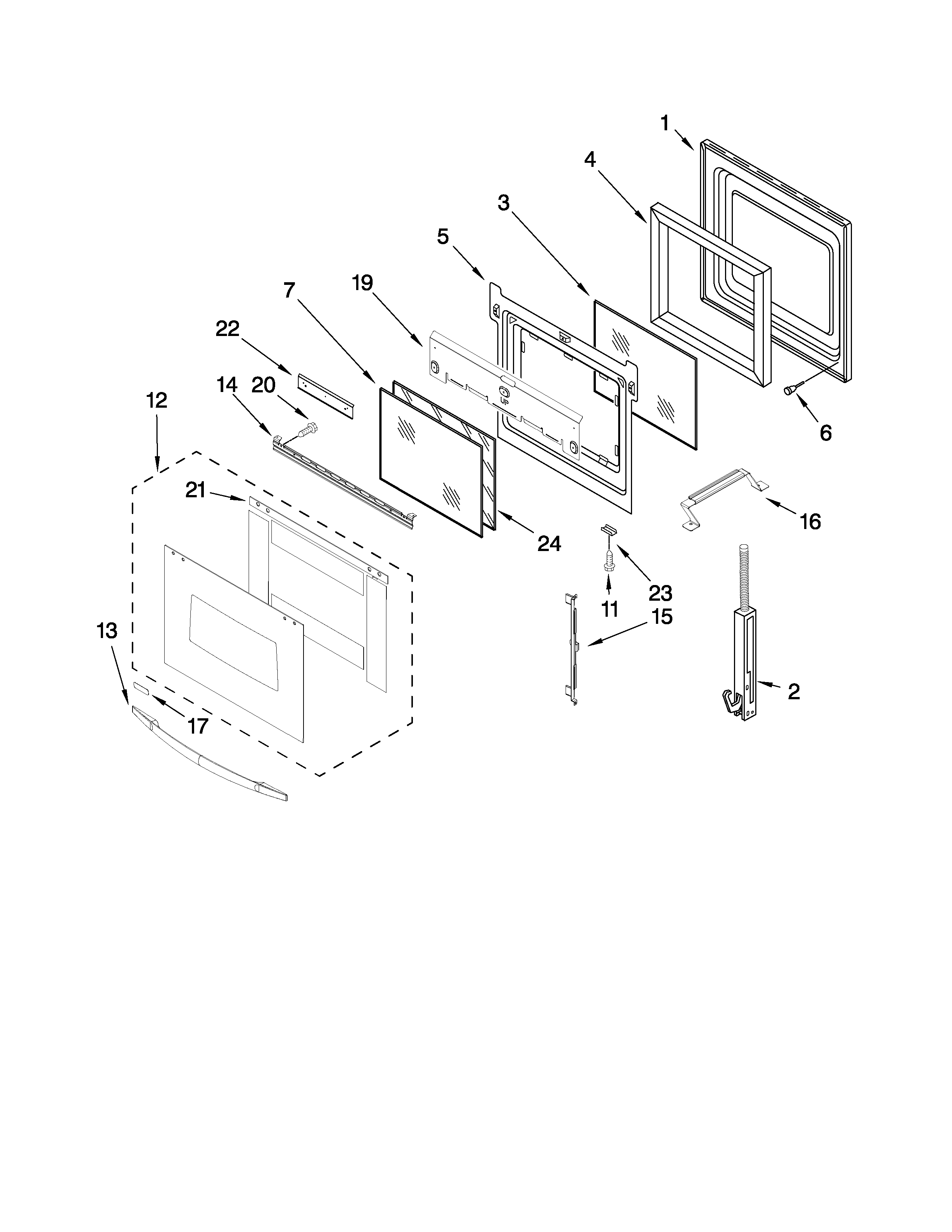

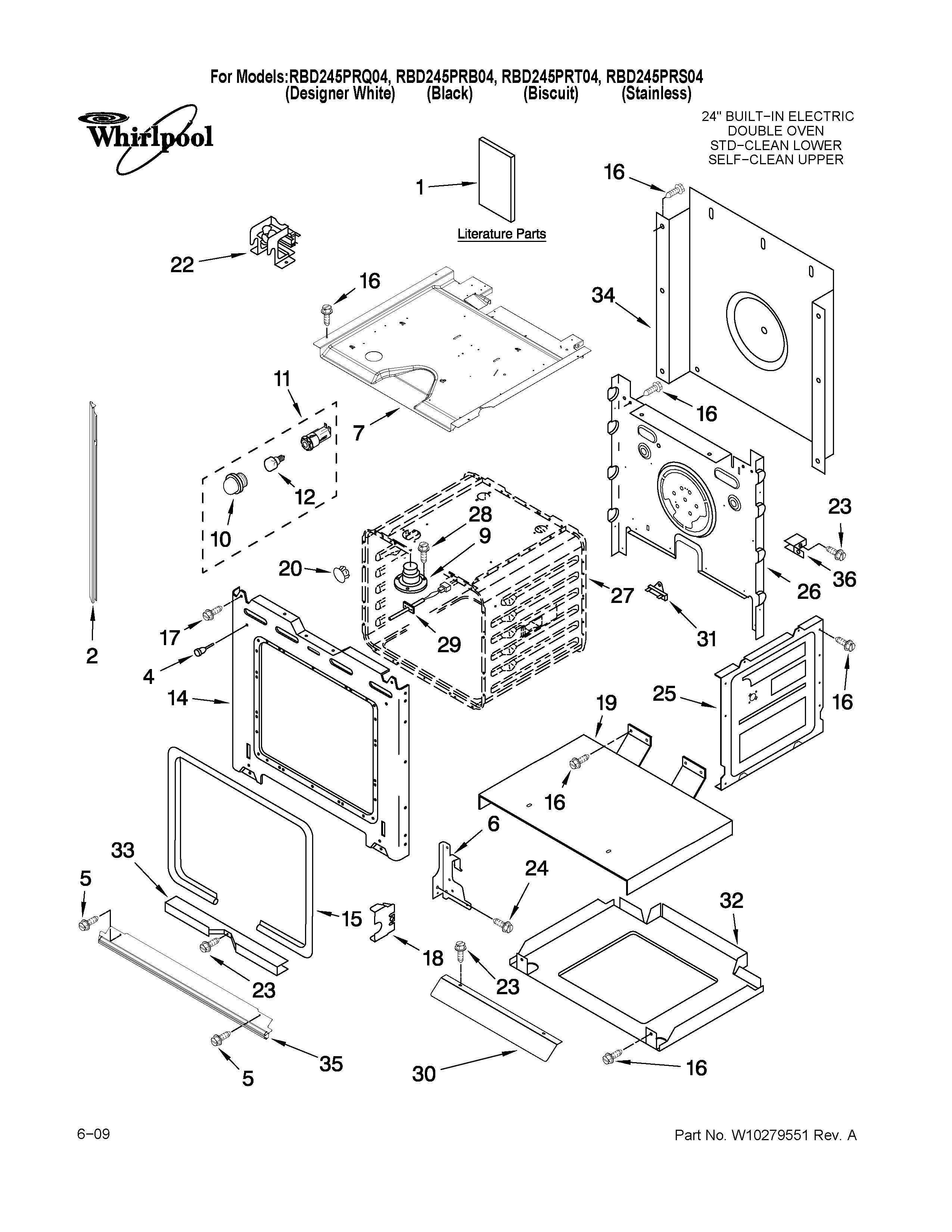

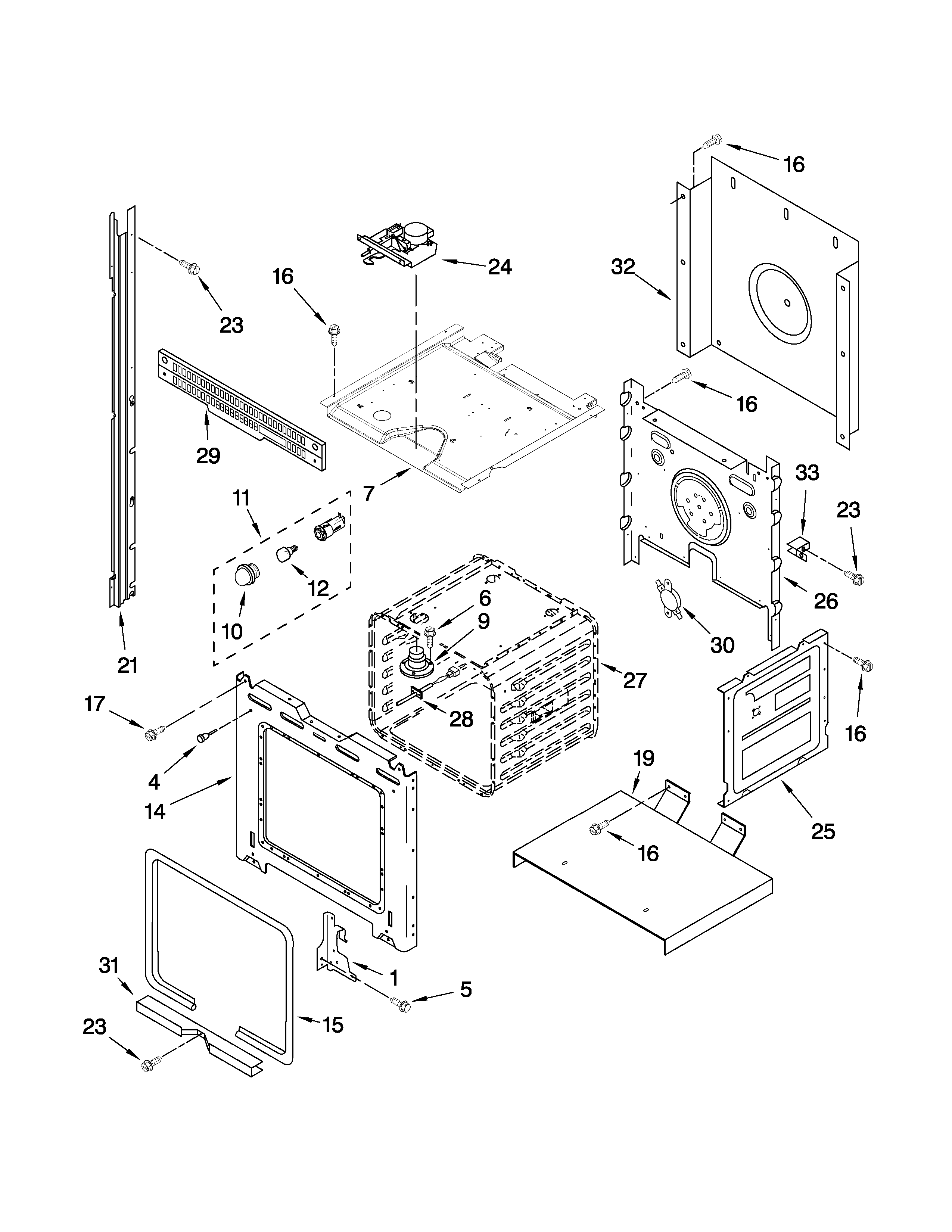

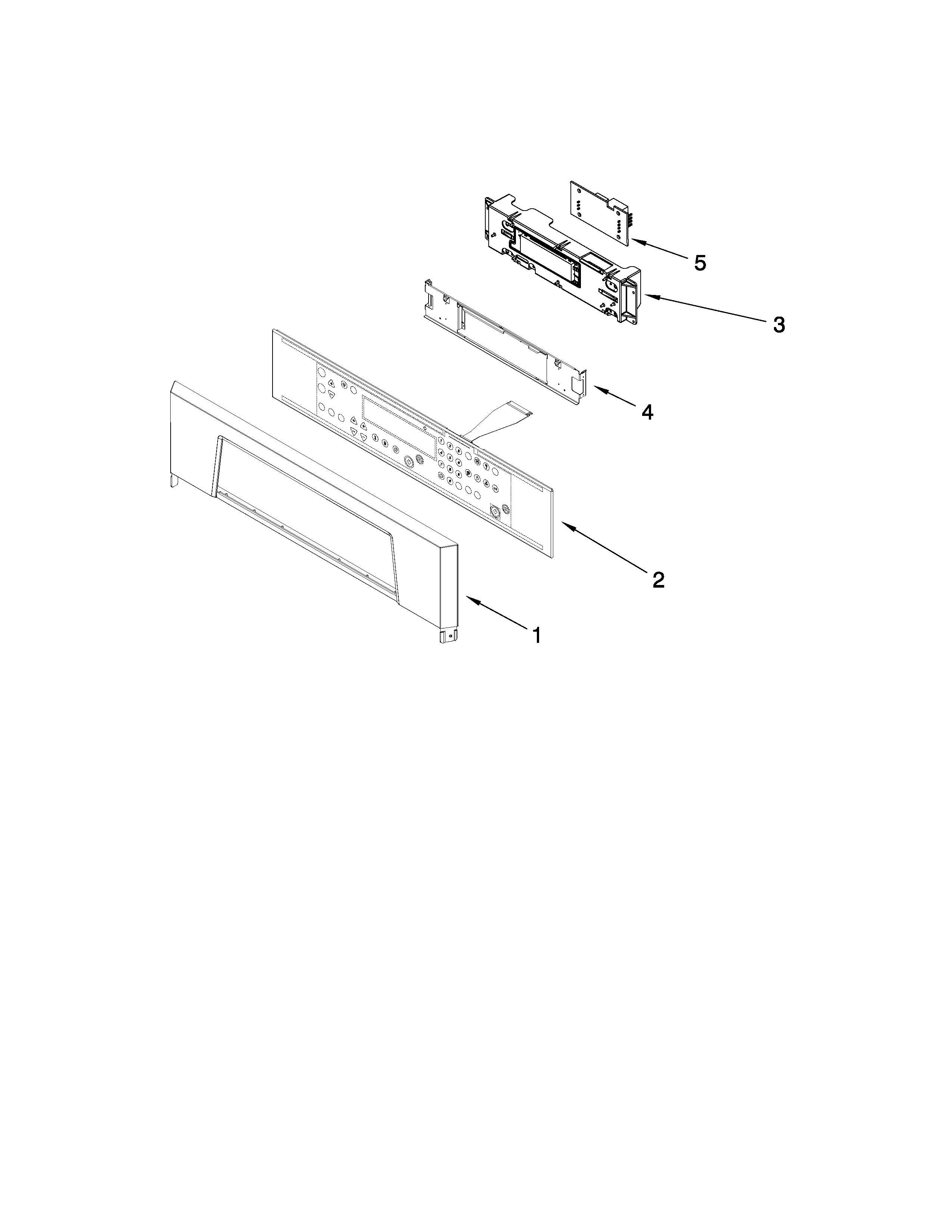

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RBD245PRB04 Wall Ovens

  • Whirlpool Wall Oven Temperature Sensor for Whirlpool RBD245PRB04 - Part WPW10131825

    Wall Oven Temperature Sensor

    Part #W10131825

    Replaced by #WPW10131825

    Info Icon
    Manufacturer substitution
    This part replaces W10131825. Substitute parts can look different from the original.
    In Stock
    $67.65
    8% OFF Phone Price : $73.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Range Broil Element for Whirlpool RBD245PRB04 - Part WP9760771

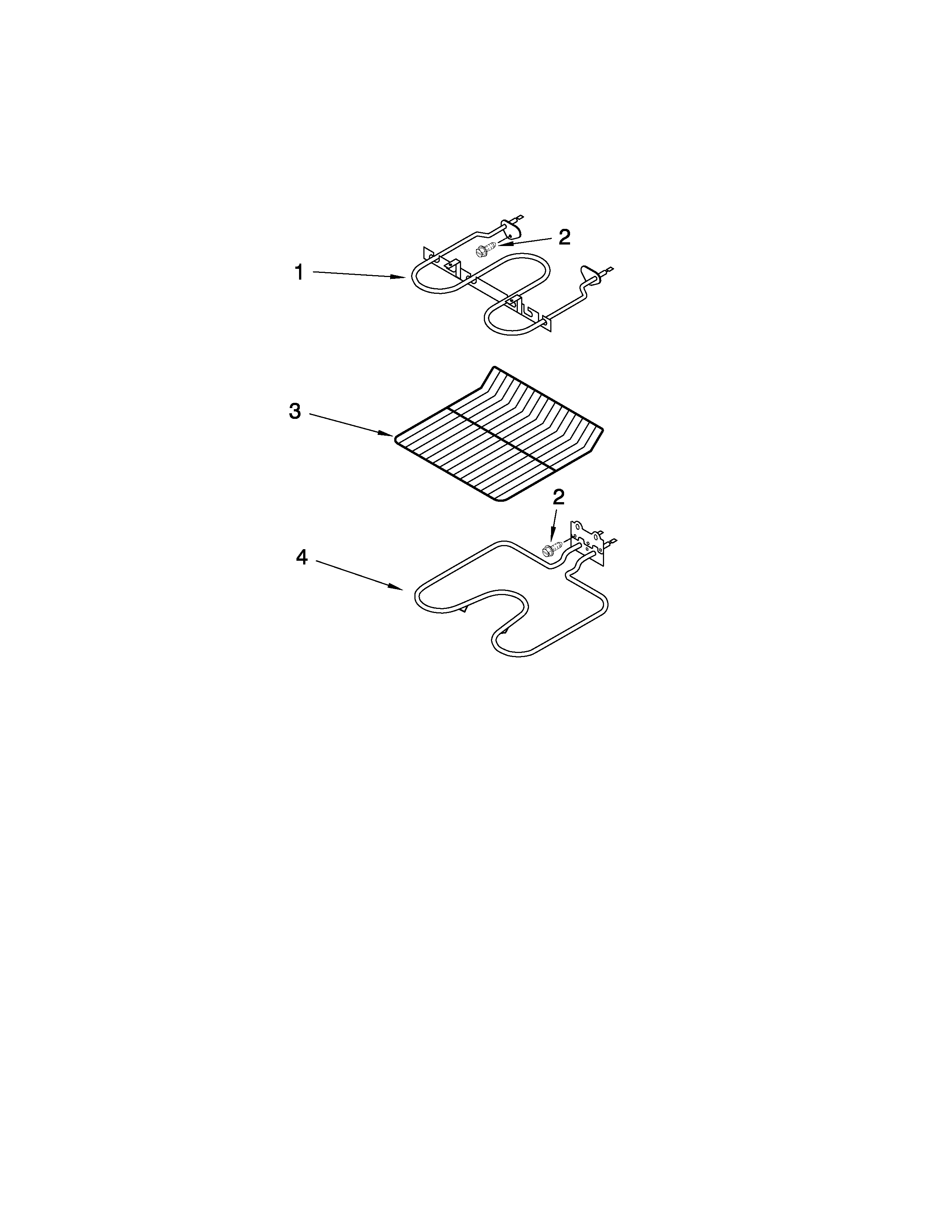

    Internal oven parts diagram

    Range Broil Element

    Part #9760771

    Replaced by #WP9760771

    Info Icon
    Manufacturer substitution
    This part replaces 9760771. Substitute parts can look different from the original.
    In Stock
    $80.95
    7% OFF Phone Price : $86.95Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Cooling Fan Assembly for Whirlpool RBD245PRB04 - Part WPW10176670

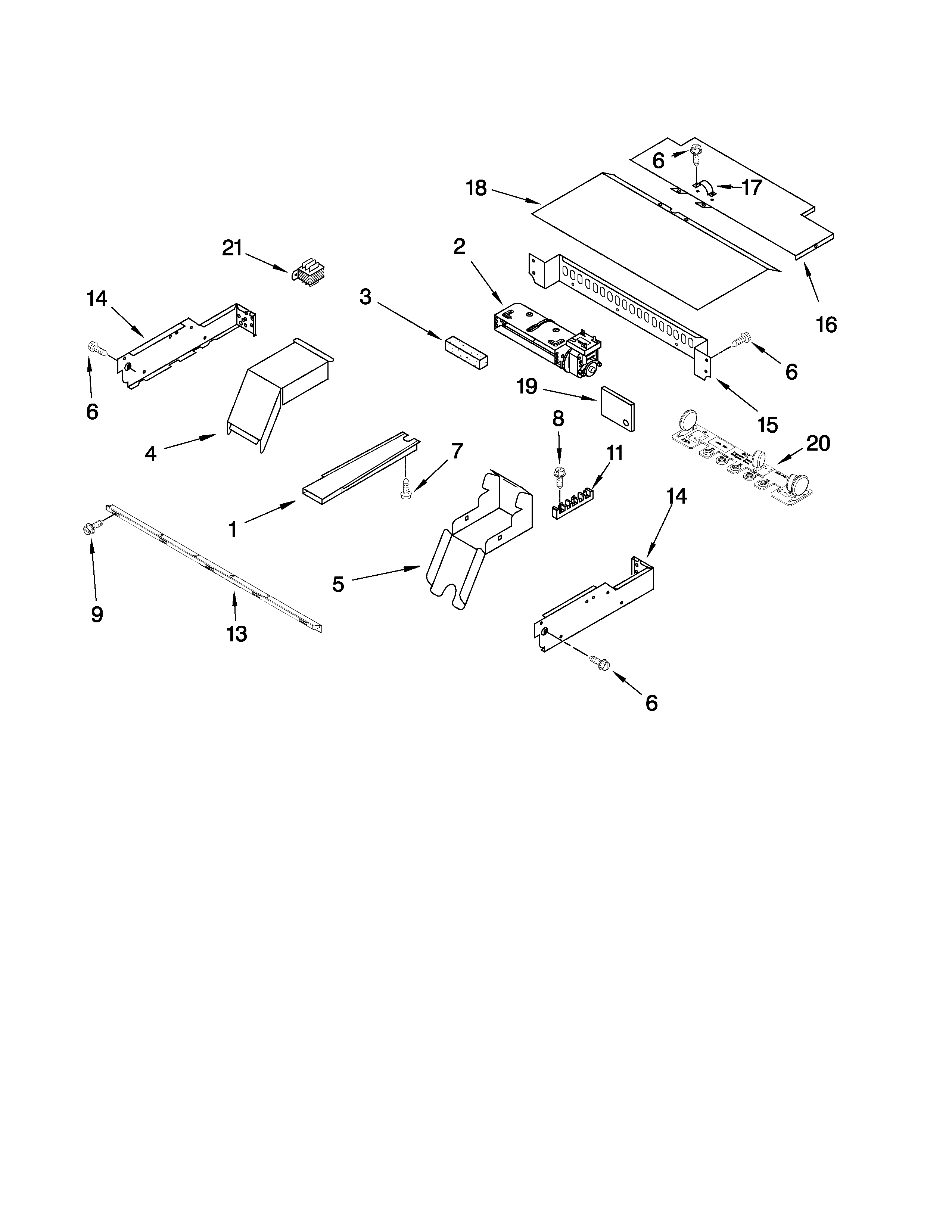

    Top venting parts diagram

    Oven Blower Assembly

    Part #W10176670

    Replaced by #WPW10176670

    Info Icon
    Manufacturer substitution
    This part replaces W10176670. Substitute parts can look different from the original.
    In Stock
    $185.77
    6% OFF Phone Price : $197.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Inner Glass for Whirlpool RBD245PRB04 - Part WP4449247

    Wall Oven Door Inner Glass

    Part #4449247

    Replaced by #WP4449247

    Info Icon
    Manufacturer substitution
    This part replaces 4449247. Substitute parts can look different from the original.
    In Stock
    $91.65
    6% OFF Phone Price : $97.65Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Screw for Whirlpool RBD245PRB04 - Part WP3400832

    Screw

    Part #3400832

    Replaced by #WP3400832

    Info Icon
    Manufacturer substitution
    This part replaces 3400832. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.14
    16% OFF Phone Price : $6.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Rack for Whirlpool RBD245PRB04 - Part 4448716

    Internal oven parts diagram

    Range Oven Rack

    Part #4448716
    In Stock
    $62.55
    9% OFF Phone Price : $68.55Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool RBD245PRB04 - Part WP4449809

    Range Screw

    Part #4449809

    Replaced by #WP4449809

    Info Icon
    Manufacturer substitution
    This part replaces 4449809. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.08
    16% OFF Phone Price : $6.08Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Door Bumper for Whirlpool RBD245PRB04 - Part 4448520

    Wall Oven Door Bumper

    Part #4448520
    This item is not returnable
    In Stock
    $40.01
    Minus Item
    Qty
    Plus Item
  • Door Hinge for Whirlpool RBD245PRB04 - Part 9760564

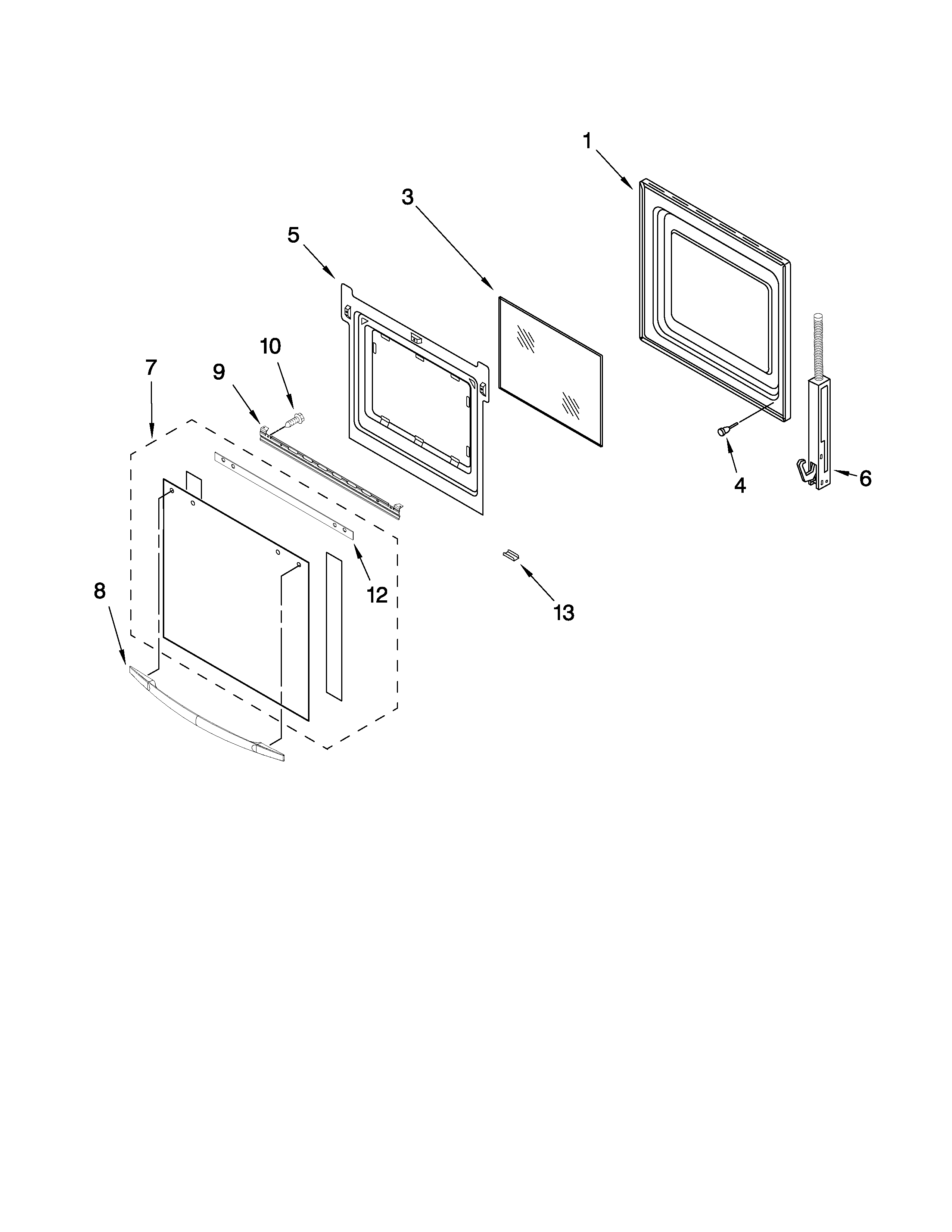

    Lower oven door parts diagram

    Door Hinge

    Part #9760564
    In Stock
    $67.16
    Minus Item
    Qty
    Plus Item
  • Wall Oven Light Bulb for Whirlpool RBD245PRB04 - Part WP4173175

    Light Bulb

    Part #4452166

    Replaced by #WP4173175

    Info Icon
    Manufacturer substitution
    This part replaces 4452166. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $43.20
    12% OFF Phone Price : $49.20Info Icon
    Minus Item
    Qty
    Plus Item
