KitchenAid KUIS155HPB2 ice cube maker Parts
Here are the diagrams and repair parts for KitchenAid KUIS155HPB2 ice cube maker, as well as links to manuals and error code tables, if available.
By Schematic
By Part

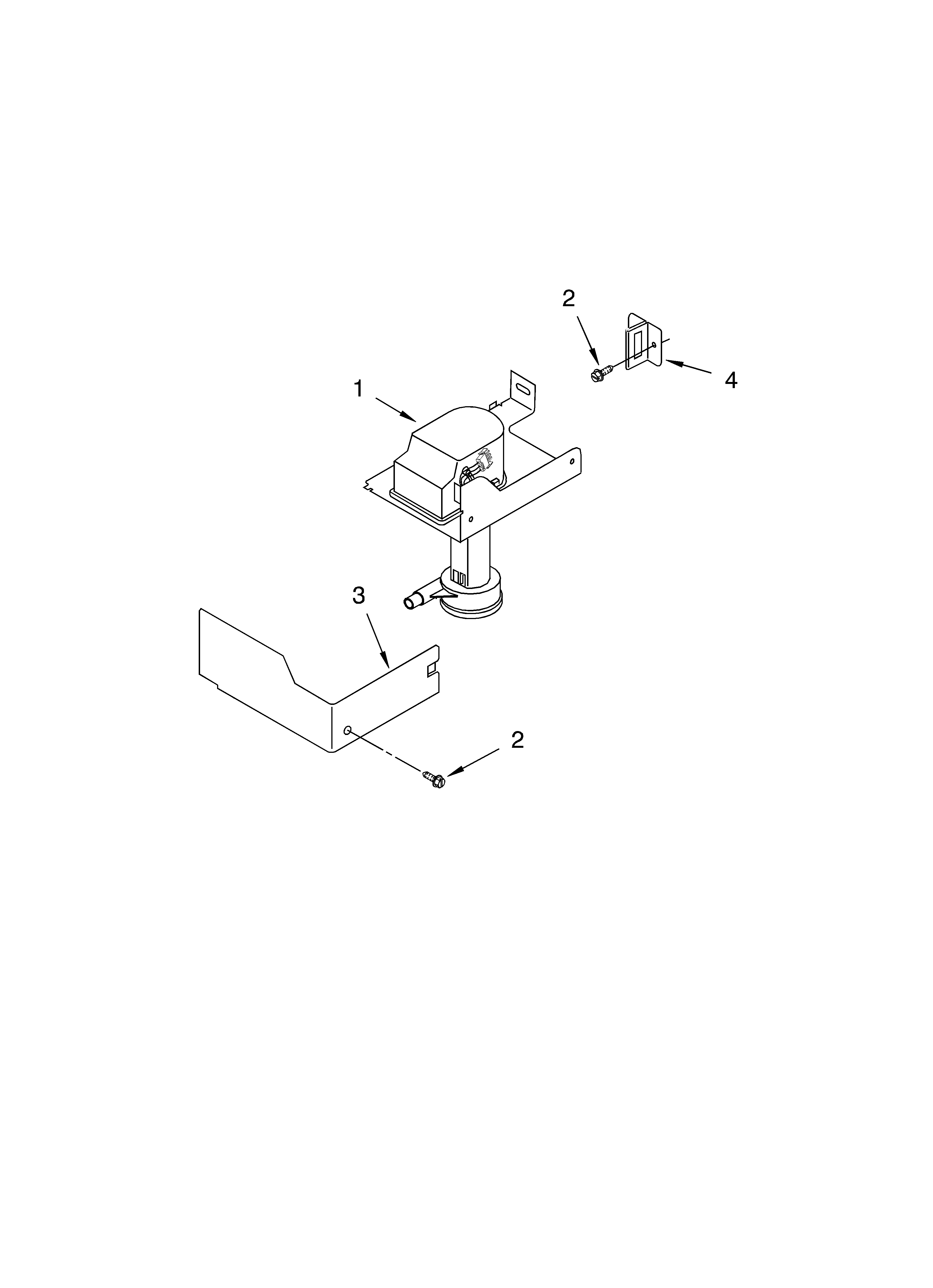

SELECT DIAGRAM
Browse Parts for KUIS155HPB2 Ice Cube Maker

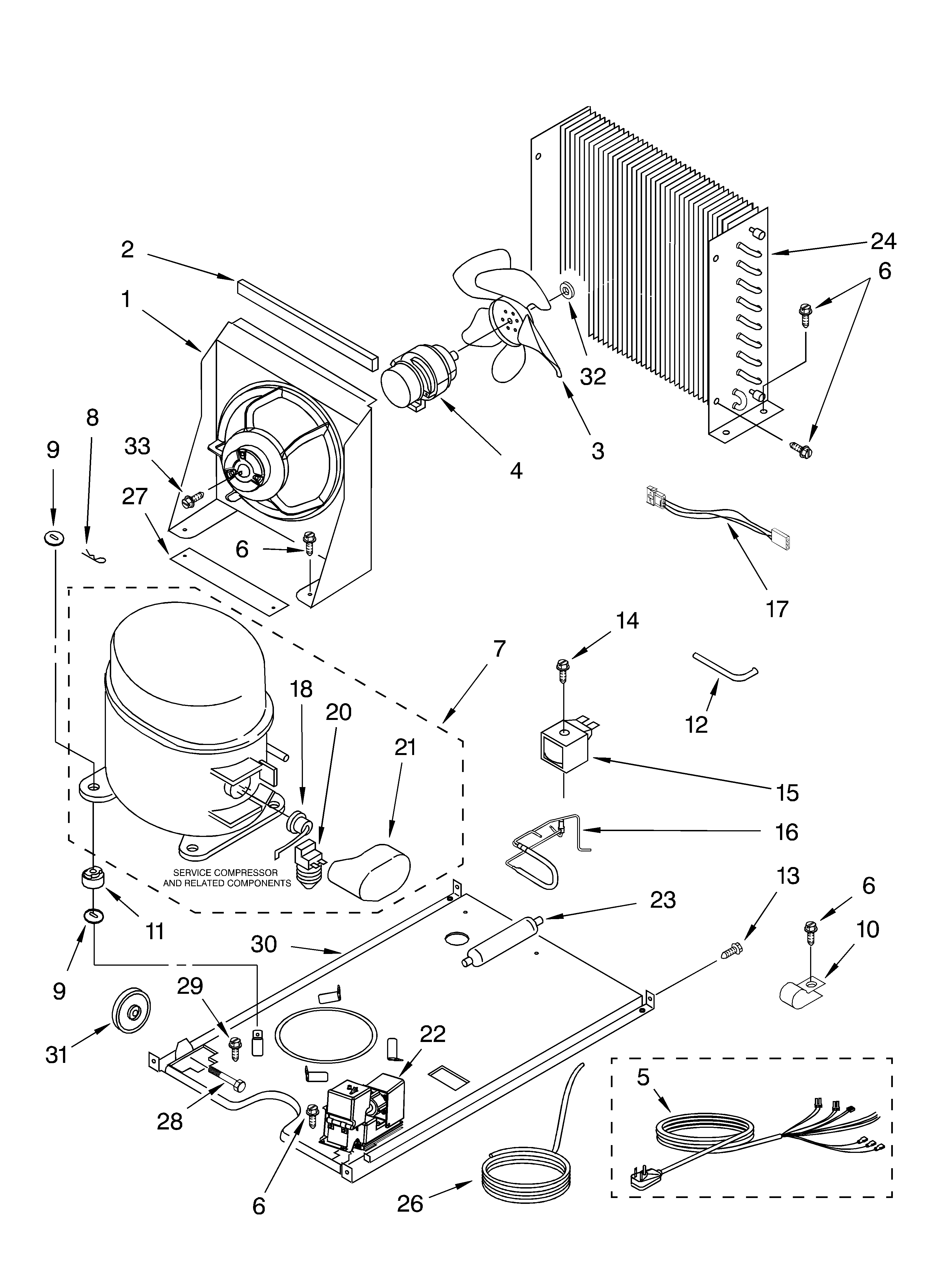

Unit diagram

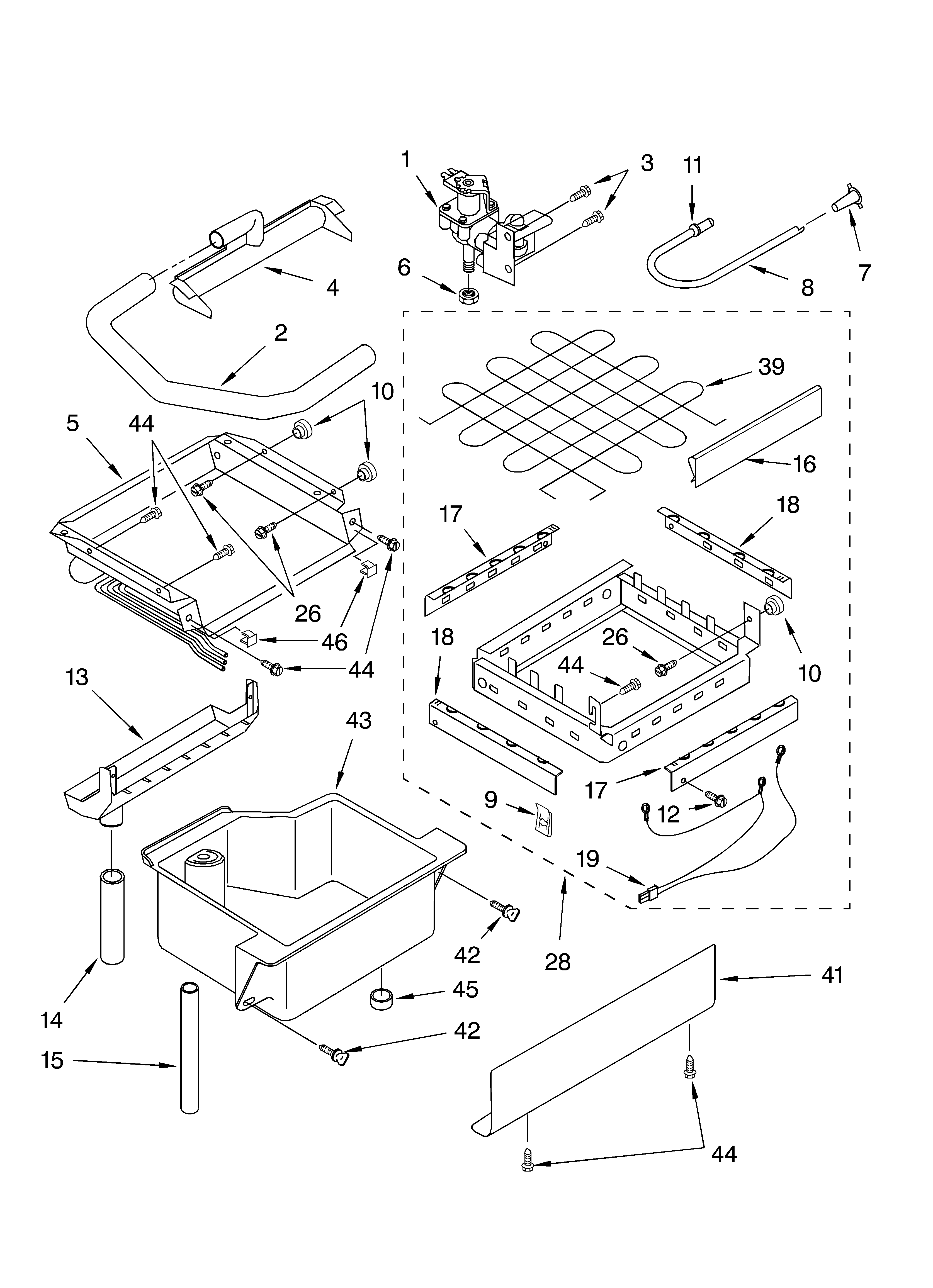

Tube
Part #2185548
The manufacturer no longer makes this part, and there's no substitute part

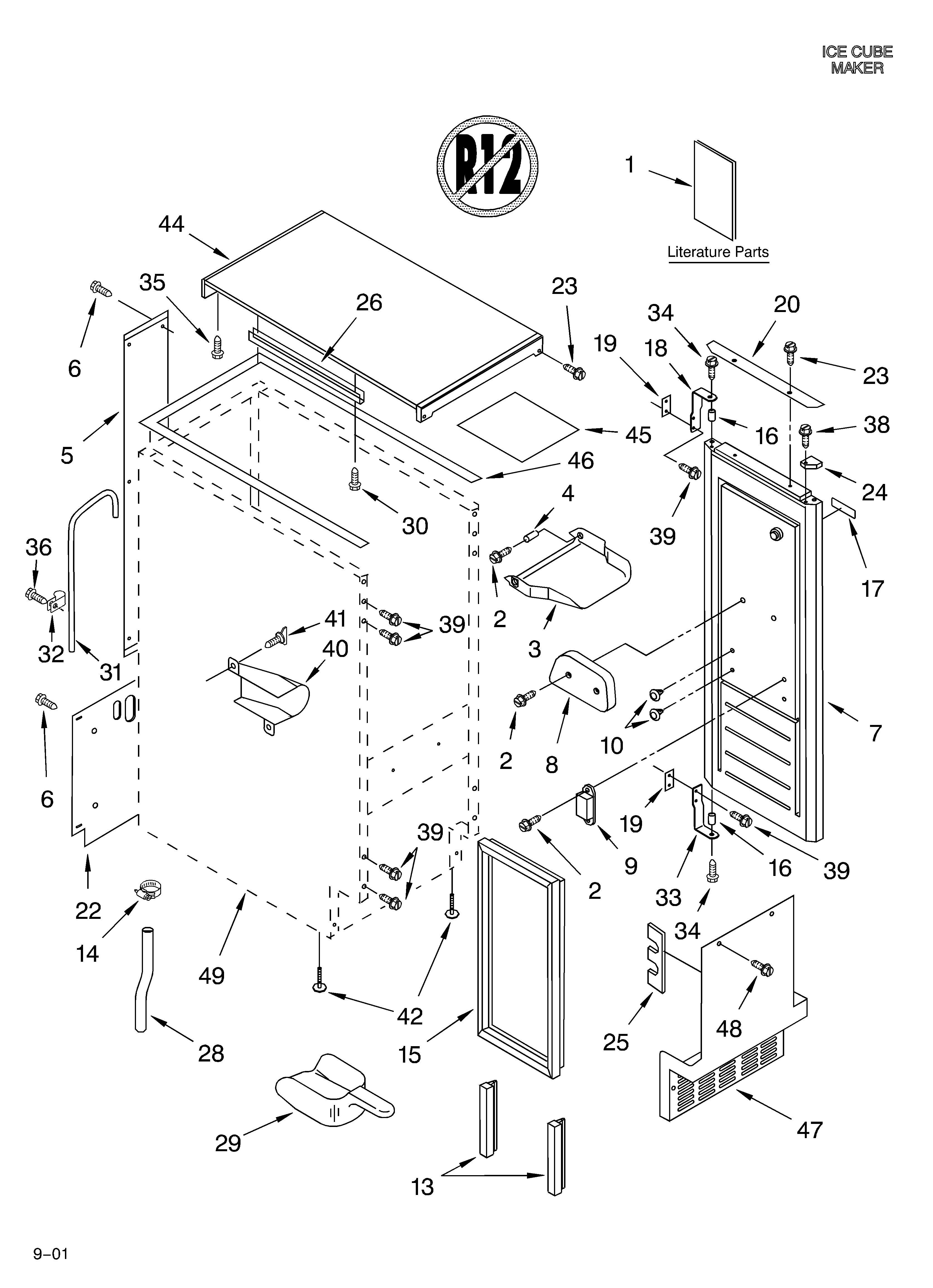

Cabinet liner and door/lit/optional diagram
Ice Maker Door Assembly (black)
Part #2932800B
The manufacturer no longer makes this part, and there's no substitute part

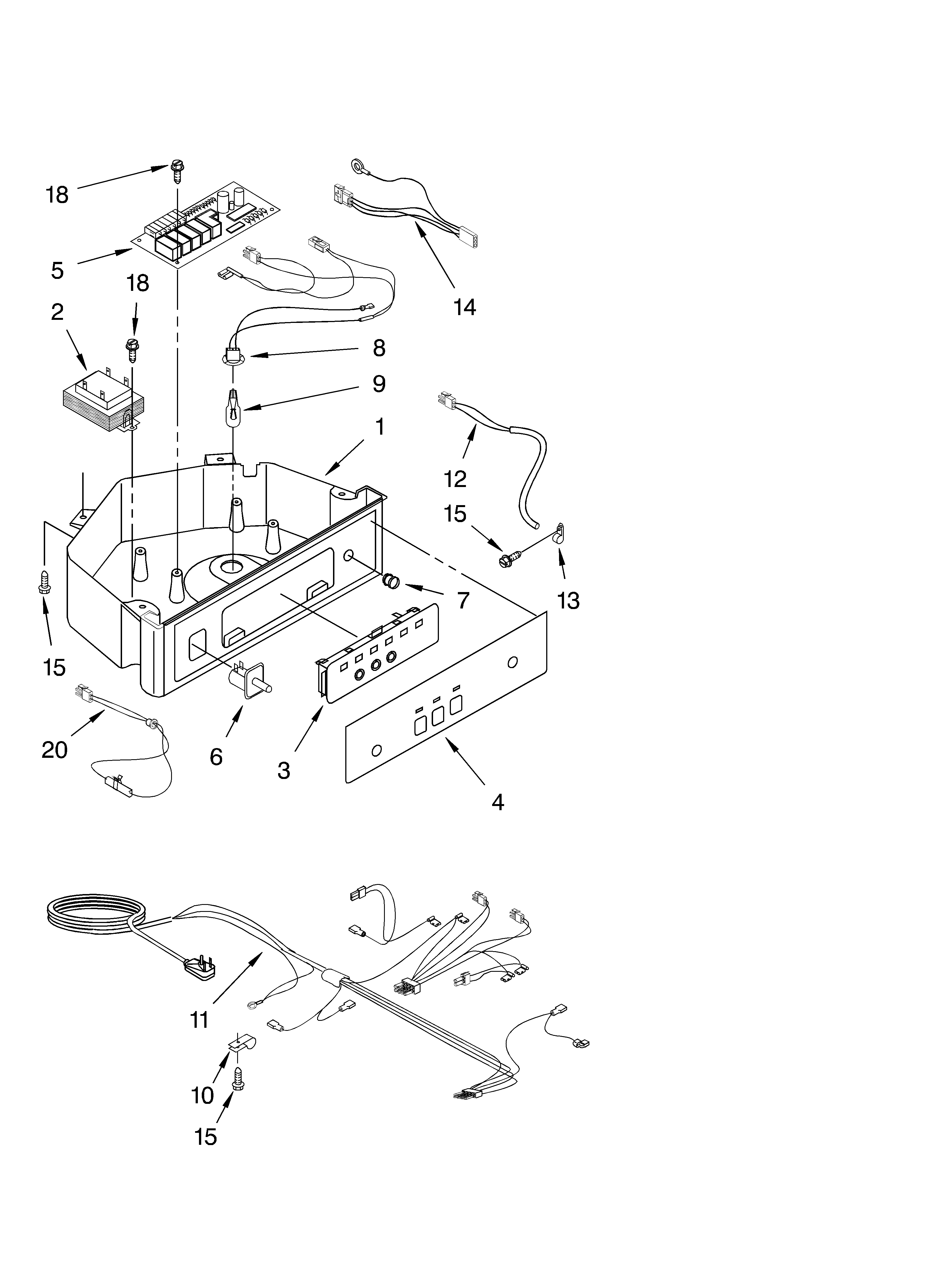

Control panel diagram
Screw
Part #3400850
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Ice Maker Solenoid Coil
Part #759112
The manufacturer no longer makes this part, and there's no substitute part
Unit diagram
Gas Valve
Part #2208467
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door/lit/optional diagram
Nameplate
Part #2188149
The manufacturer no longer makes this part, and there's no substitute part
Ice Maker Water Reservoir Thumbscrew
Part #681534
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Freestanding Ice Maker Electronic Control Board Housing
Part #2185738
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door/lit/optional diagram
Flr-endcap
Part #2185656W
The manufacturer no longer makes this part, and there's no substitute part
Cabinet liner and door/lit/optional diagram
End Cap
Part #2185655W
The manufacturer no longer makes this part, and there's no substitute part
