GE JB940AY2 electric range

GE JB940AY2 electric range Parts

Here are the diagrams and repair parts for GE JB940AY2 electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JB940AY2 Ranges

  • G.e. Range Oven Temperature Sensor for GE JB940AY2 - Part WB21X5301

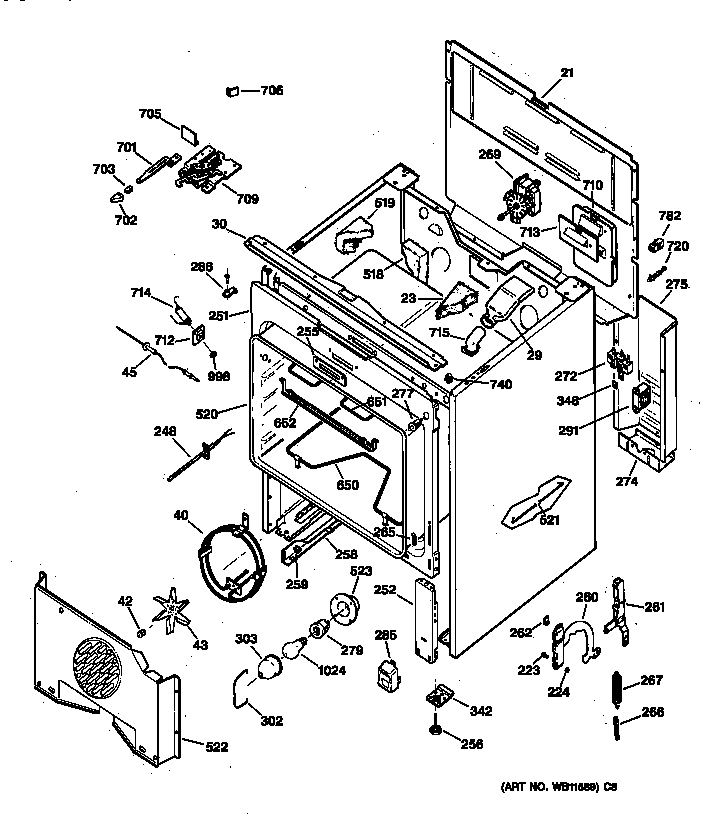

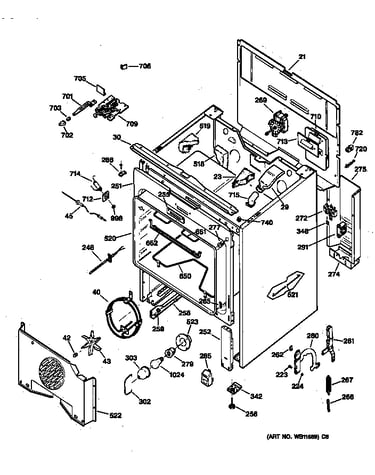

    Body parts diagram

    Sensor

    Part #WB21X5347

    Replaced by #WB21X5301

    Info Icon
    Manufacturer substitution
    This part replaces WB21X5347. Substitute parts can look different from the original.
    In Stock
    $128.50
    9% OFF Phone Price : $140.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch Kit for GE JB940AY2 - Part WB21X36771

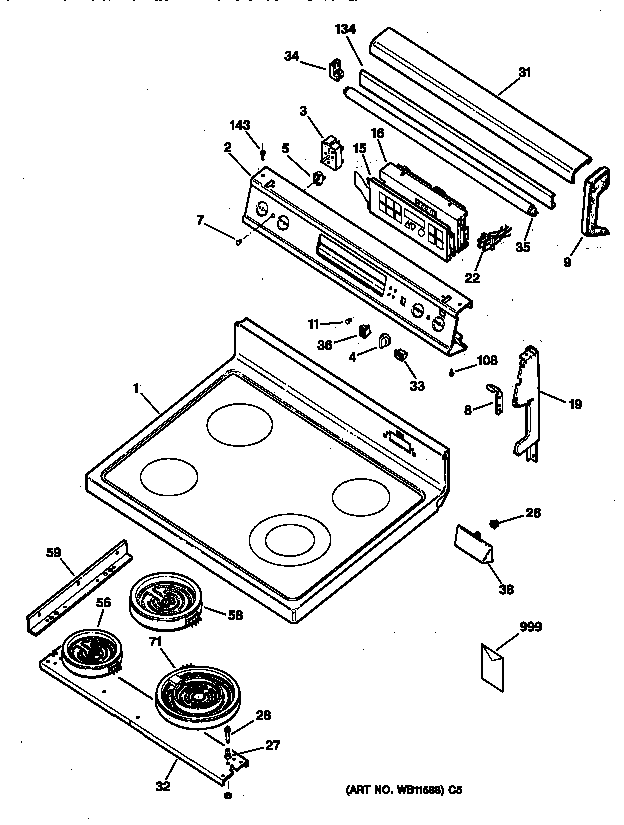

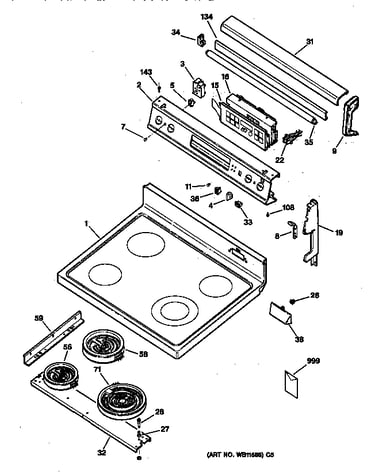

    Control panel & cooktop diagram

    Infinite Control Switch

    Part #WB23X5099

    Replaced by #WB21X36771

    Info Icon
    Manufacturer substitution
    This part replaces WB23X5099. Substitute parts can look different from the original.
    In Stock
    $36.00
    14% OFF Phone Price : $42.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch Kit for GE JB940AY2 - Part WB21X36771

    Control panel & cooktop diagram

    Range Surface Element Control Switch

    Part #WB21X5243

    Replaced by #WB21X36771

    Info Icon
    Manufacturer substitution
    This part replaces WB21X5243. Substitute parts can look different from the original.
    In Stock
    $36.00
    14% OFF Phone Price : $42.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch Kit for GE JB940AY2 - Part WB21X36771

    Control panel & cooktop diagram

    Infinite Control Switch

    Part #WB23X5092

    Replaced by #WB21X36771

    Info Icon
    Manufacturer substitution
    This part replaces WB23X5092. Substitute parts can look different from the original.
    In Stock
    $36.00
    14% OFF Phone Price : $42.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Dual Radiant Surface Element, 9-in for GE JB940AY2 - Part WB30T10099

    Control panel & cooktop diagram

    Halogen Element

    Part #WB30K5032

    Replaced by #WB30T10099

    Info Icon
    Manufacturer substitution
    This part replaces WB30K5032. Substitute parts can look different from the original.
    In Stock
    $104.93
    10% OFF Phone Price : $116.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Switch for GE JB940AY2 - Part WB24T10147

    Body parts diagram

    Oven Light Switch

    Part #WB24X5316

    Replaced by #WB24T10147

    Info Icon
    Manufacturer substitution
    This part replaces WB24X5316. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.54
    23% OFF Phone Price : $26.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Probe Thermistor for GE JB940AY2 - Part WB20X5064

    Body parts diagram

    Probe Thermistor

    Part #WB20X5064

    The manufacturer no longer makes this part, and there's no substitute part

  • Range Bake Element for GE JB940AY2 - Part WB44X10016

    Body parts diagram

    Range Bake Element

    Part #WB44X10016
    In Stock
    $89.96
    6% OFF Phone Price : $95.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Radiant Surface Element, 8-in for GE JB940AY2 - Part WB30T10045

    Control panel & cooktop diagram

    Halogen Element

    Part #WB30K5031

    Replaced by #WB30T10045

    Info Icon
    Manufacturer substitution
    This part replaces WB30K5031. Substitute parts can look different from the original.
    In Stock
    $211.76
    5% OFF Phone Price : $223.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Trim, Lower for GE JB940AY2 - Part WB07K10232

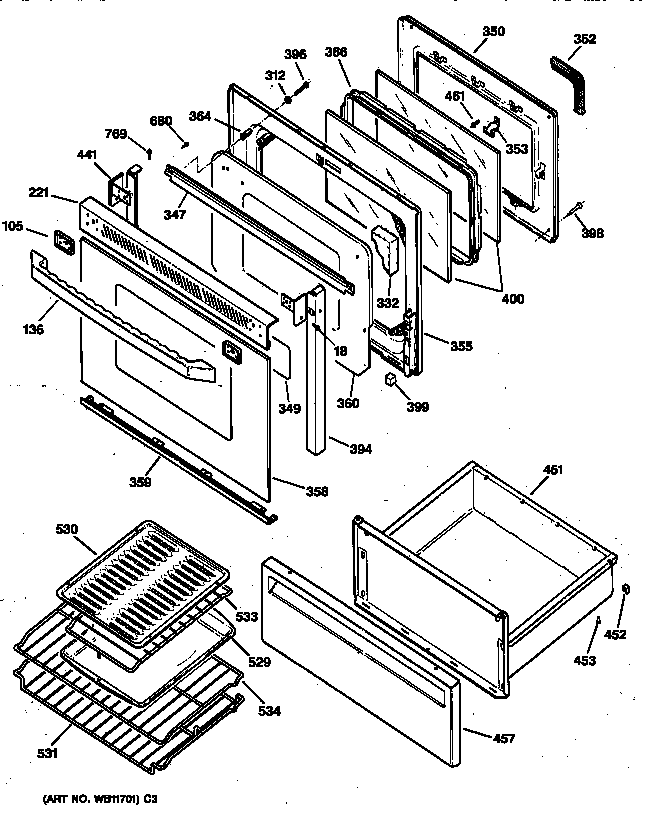

    Door & drawer parts diagram

    Trim

    Part #WB7X7195

    Replaced by #WB07K10232

    Info Icon
    Manufacturer substitution
    This part replaces WB7X7195. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.96
    19% OFF Phone Price : $31.96Info Icon
    Minus Item
    Qty
    Plus Item
