Kenmore
Gas Cooktop

Model # 79032532410 Official Kenmore cooktop

Here are the diagrams and repair parts for Official Kenmore 79032532410 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

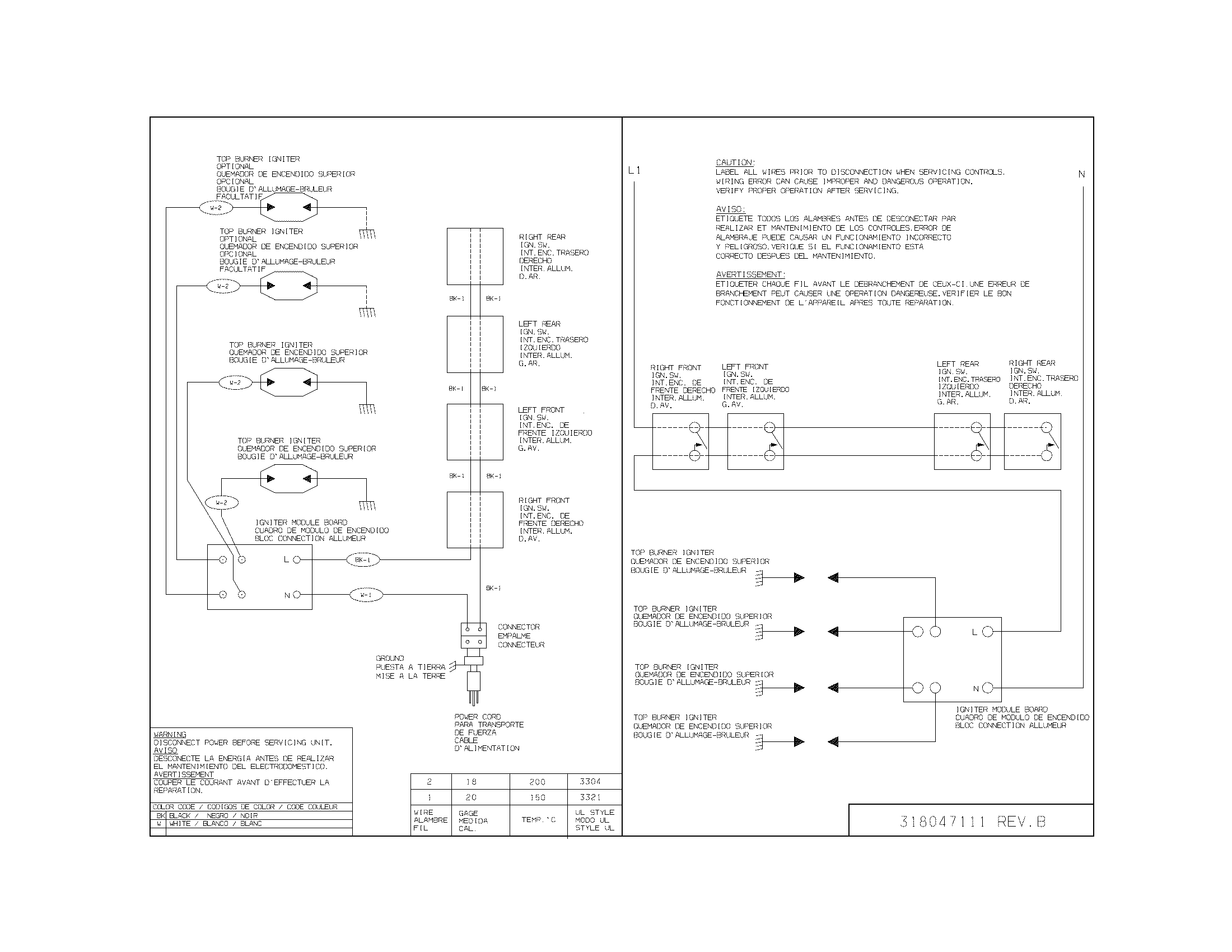

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

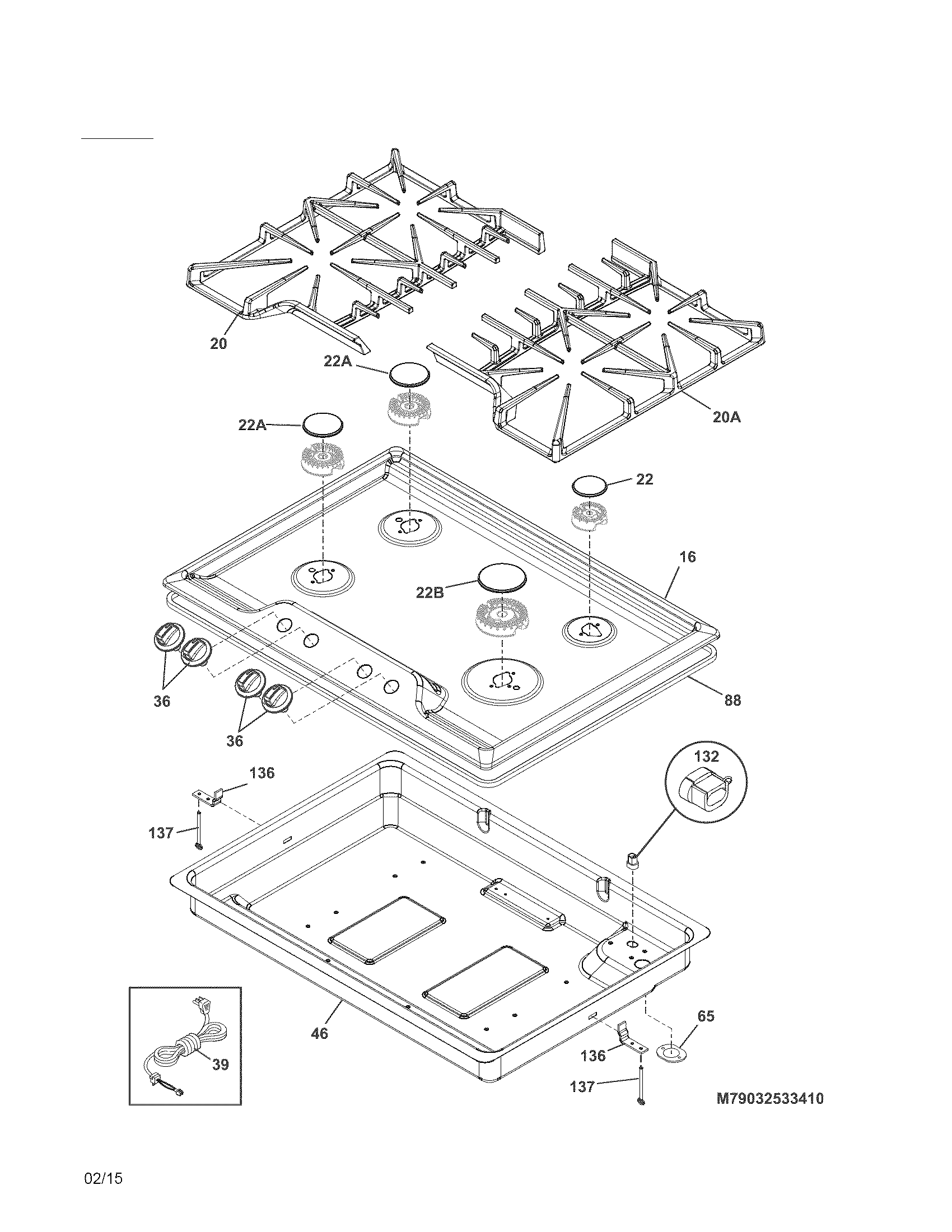

Main top diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
16% OFF Phone Price : $31.31
In Stock
Range Surface Burner Cap 316262004
#22B

Main top diagram

Range surface burner cap

Part #316262004

Replaced by #5304508443

?
Manufacturer substitution
This part replaces 316262004. Substitute parts can look different from the original.
BEST SELLER
$36.53 |
12% OFF Phone Price : $41.53
In Stock
Range Surface Burner Head (replaces 7316438600) 316438600
#10B

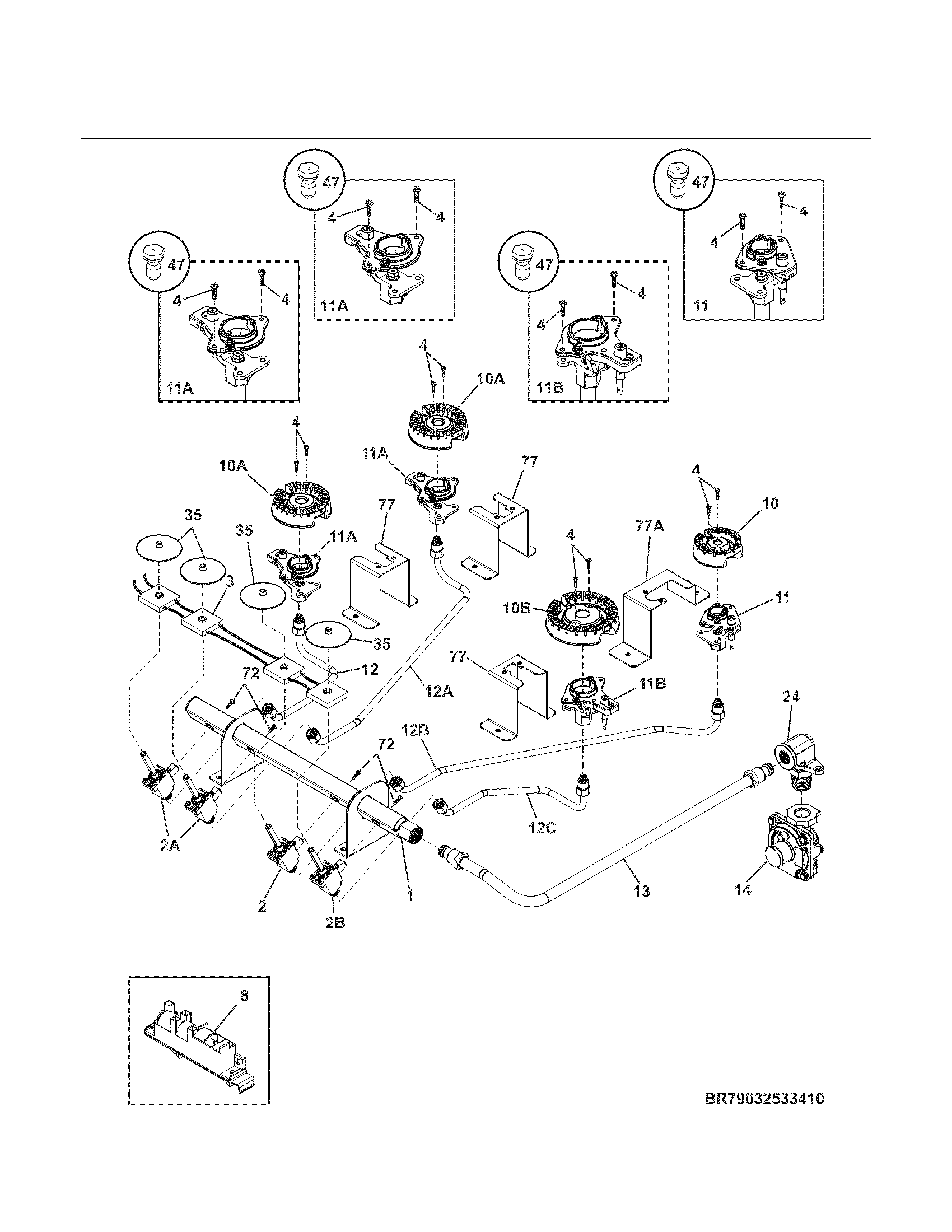

Burner diagram

Range surface burner head (replaces 7316438600)

Part #316438600

BEST SELLER
$66.51 |
7% OFF Phone Price : $71.51
In Stock
Cooktop Screw 305452400
#137

Main top diagram

Cooktop screw

Part #305452400

This item is not returnable
$11.89
In Stock
Tape 305424100
#NI

Main top diagram

Tape

Part #305424100

Replaced by #316574603

?
Manufacturer substitution
This part replaces 305424100. Substitute parts can look different from the original.
$19.57
In Stock
Cooktop Gas Pressure Regulator 5304498794
#14

Burner diagram

Cooktop gas pressure regulator

Part #5304498794

Replaced by #5304519943

?
Manufacturer substitution
This part replaces 5304498794. Substitute parts can look different from the original.
$95.29
In Stock
Range Surface Burner Valve 316536002
#2B

Burner diagram

Range surface burner valve

Part #316536002

$59.39 |
8% OFF Phone Price : $64.39
In Stock
Cooktop Manifold Supply Tube 5304498793
#13

Burner diagram

Cooktop manifold supply tube

Part #5304498793

$50.07
In Stock
Bracket 5304498800
#77A

Burner diagram

Bracket

Part #5304498800

$12.27
In Stock
Screw 305309701
#NI

Burner diagram

Screw

Part #305309701

This item is not returnable
$5.57
In Stock
