GE WJRE5550K2WW washer Parts

No. On a GE washer like model WJRE5550K2WW, a venting or air-circulation feature is designed to use low power compared with heating appliances; the main “cost” is that it can run for hours to dry out moisture and help prevent odors. For exact feature operation details, use the WJRE5550K2WW owner's manual.

What to expect for energy use

Most washer venting or fan-dry systems use a small fan and controls, not a heater. That means the wattage is typically low, even if the run time is long.

• Uses less electricity than running a clothes dryer cycle
• Can run for extended periods (hours) to keep air moving
• Helps reduce musty smells by drying residual moisture
• The washer’s biggest electrical loads are usually the motor and any pumps, not a vent fan
• If your washer is on a dedicated 15- or 20-amp circuit (typical per installation requirements), the vent system is a minor load on that circuit

How to estimate the cost at home

If you know your electricity rate and can find the feature’s wattage in the manual, you can estimate cost.

What you need	Example	How it affects cost
Power (watts)	30 W	Higher watts = higher cost
Run time (hours)	8 hours	Longer time = higher cost
Electric rate ($/kWh)	$0.16	Higher rate = higher cost

Formula: (Watts ÷ 1000) × hours × $/kWh

When “it seems like a lot” (but usually is not)

A long run time can look expensive, but low-watt devices often cost only pennies per hour.

• The feature runs after the wash is done, so it feels like “extra” usage
• If the lid is opened frequently, the system may run longer to dry out moisture
• High humidity laundry areas can extend drying time

Why it matters

Keeping the tub and interior drier helps prevent odor and mildew buildup, which can reduce the need for frequent deep cleaning and can help your washer stay fresher between loads.

Last updated: February 2026

For your GE WJRE5550K2WW washer, the most reliable way to confirm capacity is to check the capacity specification in the WJRE5550K2WW owner's manual. If you cannot find it there, you can estimate capacity by measuring the wash basket and calculating its volume in cubic feet.

Fast ways to identify washer capacity

• Check the manual specs: Capacity is typically listed in cubic feet in the specifications section.
• Look for basket size clues: Larger “extra large tub” style top-load washers are usually higher capacity than standard tubs.
• Measure and calculate: Use the basket diameter and depth to estimate cubic feet.
• Compare to load size behavior: High-efficiency top-load washers often use lower water levels than older models; that is normal and not a capacity indicator.

How to measure and calculate capacity (cubic feet)

1. Unplug the washer.
2. Measure the inside diameter of the basket (in inches).
3. Measure the usable depth from the bottom of the basket to the top rim (in inches).
4. Convert inches to feet (divide by 12).
5. Use this formula:

• Capacity (cu ft) = 3.14 × (radius in feet)² × (depth in feet)

Quick reference table

What you measure	What it means	Tip
Inside diameter	Basket width	Measure straight across the center
Usable depth	Basket height	Do not include the top lip/rim
Result (cu ft)	Estimated capacity	Round to 1 decimal for comparison

Why it matters

Capacity helps us choose the right load size, detergent amount, and cycle settings. On high-efficiency washers like this model, normal operation can include a lower water level while still cleaning effectively, especially when automatic load sensing is used (details are typically covered in the manual).

If you are trying to match parts to capacity

Capacity does not change which replacement parts fit, but the exact model number does. When ordering, match parts to GE WJRE5550K2WW; you can also search by model on Sears PartsDirect.

Last updated: February 2026

On the GE WJRE5550K2WW top-load washer, there is no routine, user-accessible “lint filter” like you’ll see on many front-load models. For normal maintenance, we focus on keeping the wash basket and water system clean; use the care and cleaning steps in the WJRE5550K2WW owner's manual.

What people mean by “filter” on this washer

On this style of GE top-load washer, “filter” usually refers to one of these items:

• The inlet screen filters inside the hot and cold water valve ports (where the fill hoses connect)
• A drain pump clean-out (many top-load designs do not provide a simple front access clean-out)
• A front-load pump filter (not applicable to this model)

How to check the most common “filter”: inlet screens

1. Unplug the washer.
2. Shut off both water supply faucets.
3. Remove the fill hoses from the back of the washer.
4. Look inside the valve ports for small mesh screens; rinse debris off gently.
5. Reconnect hoses, turn water back on, and check for leaks.

Symptoms that point to clogged inlet screens

• Slow fill or no fill
• Hot or cold water not entering
• Washer stops early because it cannot reach the selected water level

Quick maintenance checklist (safe, no disassembly)

• Leave the lid open after loads to help moisture evaporate.
• Wipe the basket with a soft cloth and mild detergent; rinse.
• Run an occasional cycle that includes bleach to help keep the interior clean.
• Replace fill hoses every 5 years.

Parts that relate to “no fill” or “won’t drain” problems

If cleaning the inlet screens does not help, these model-compatible parts are commonly involved:

Problem you see	Common part to check	What it does

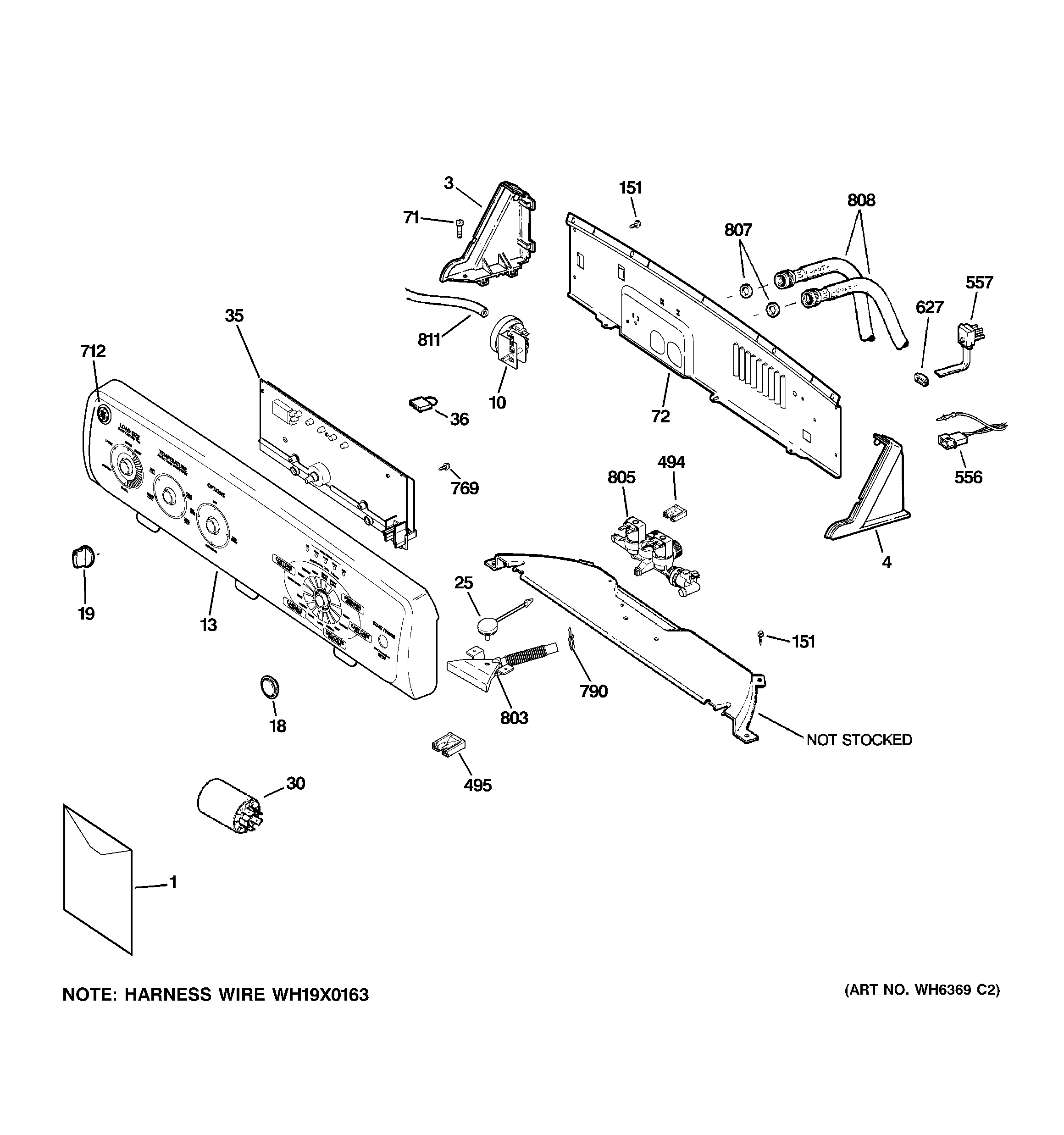

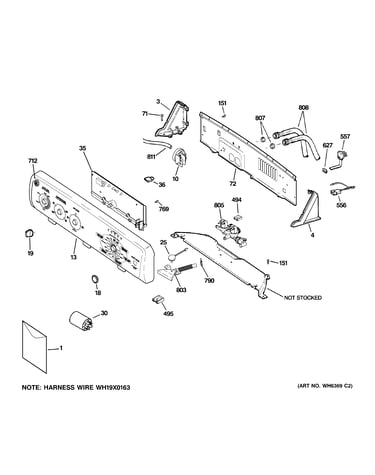

Won’t fill or fills incorrectly	Valve WH13X10024	Controls hot/cold water entering the washer

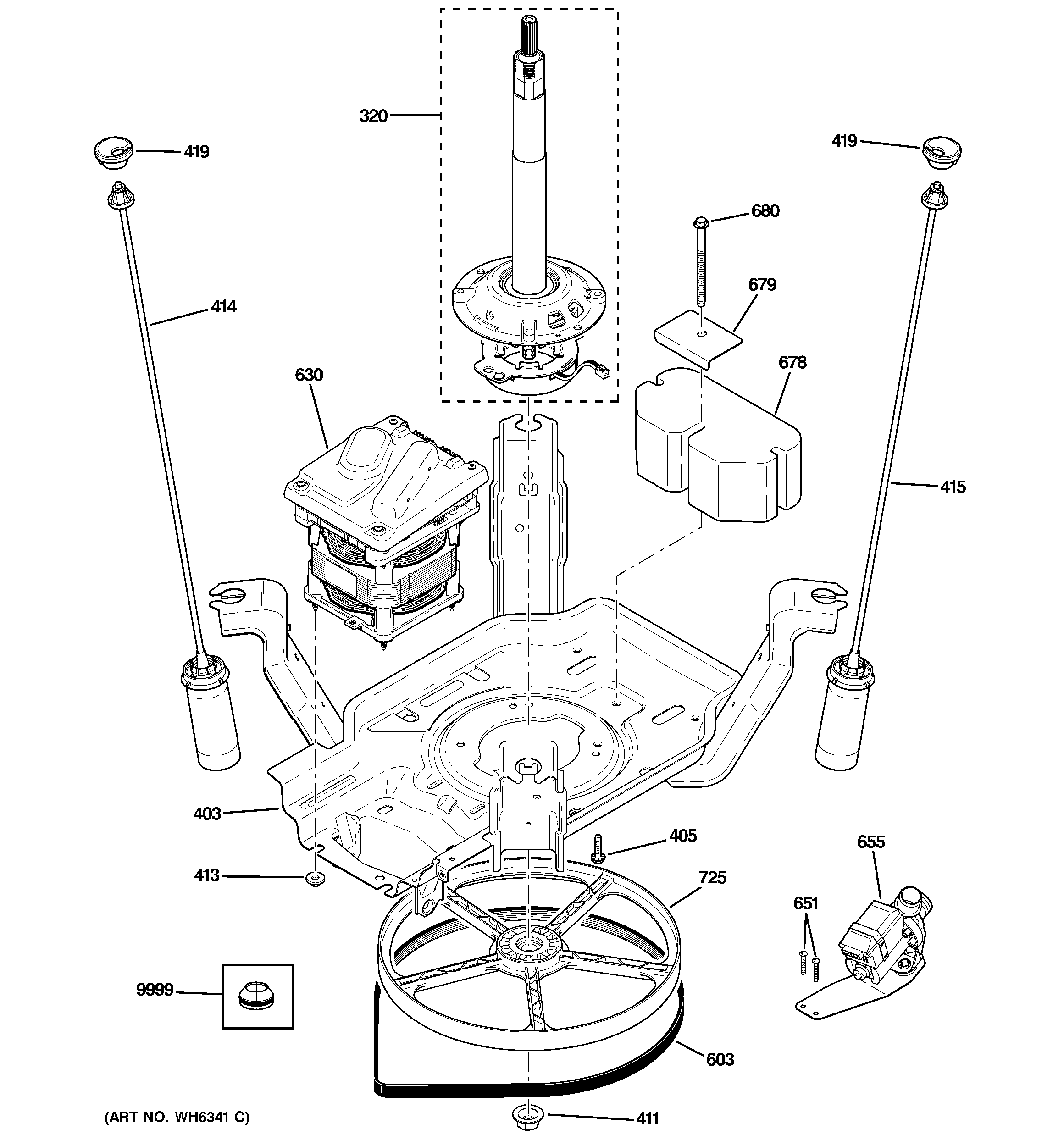

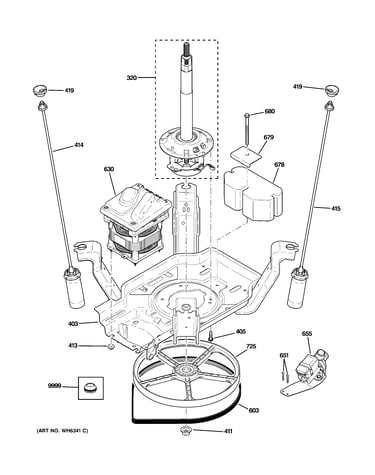

Won’t drain or drains slowly	Washer drain pump assembly WH23X10030	Pumps water out to the drain standpipe
Stops spinning with lid closed	Washer lid switch assembly WH12X10334	Confirms the lid is closed for spin/agitate

Why it matters

A “missing filter” is usually not a defect on the WJRE5550K2WW; it is simply a different design. Keeping inlet screens clear and following the cleaning routine prevents fill errors, poor rinsing, and odor.

You can order replacement parts for the GE WJRE5550K2WW from the parts list for this model, or search by model number on Sears PartsDirect.
