Model # MAH5500AWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAH5500AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

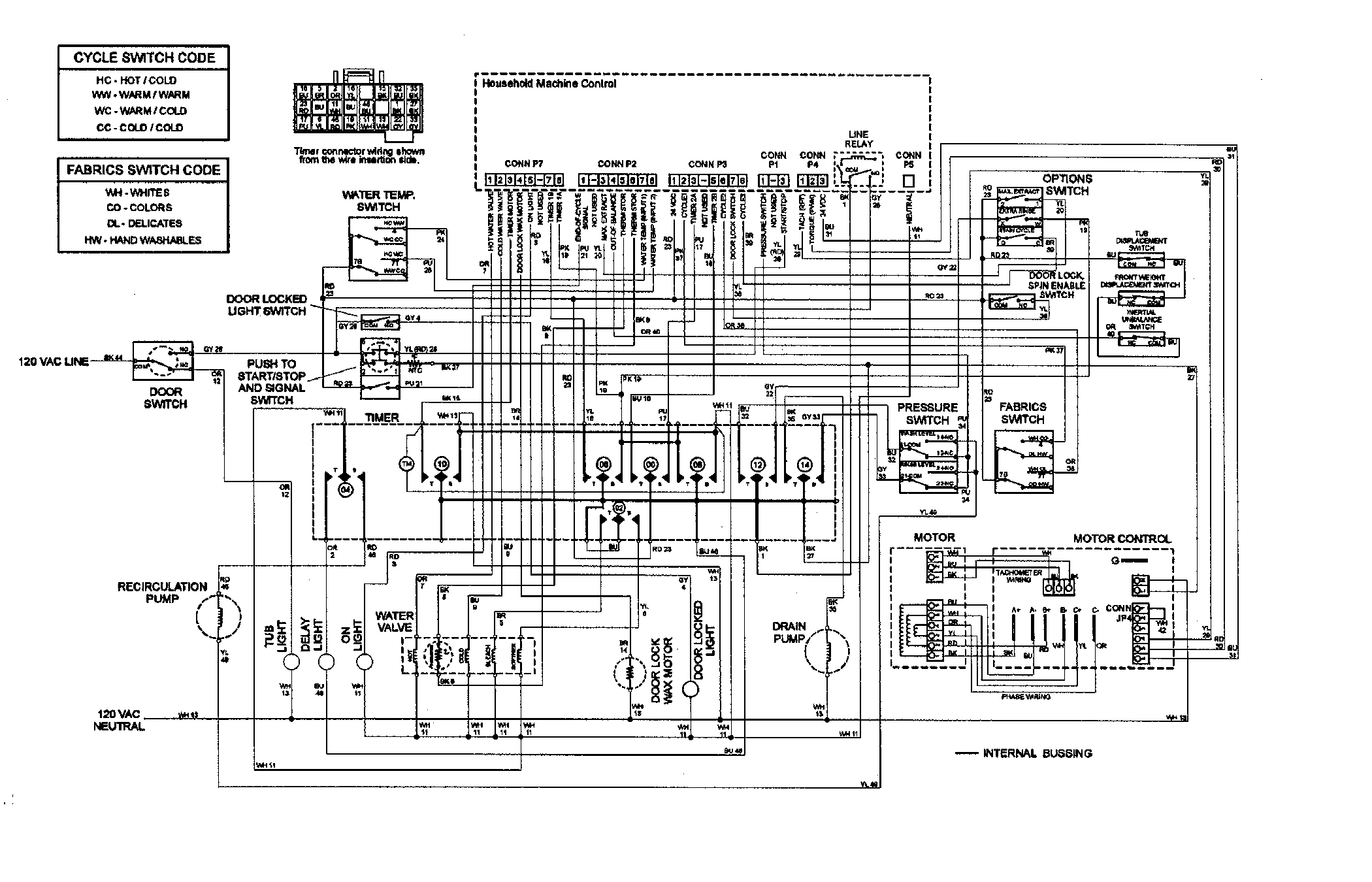

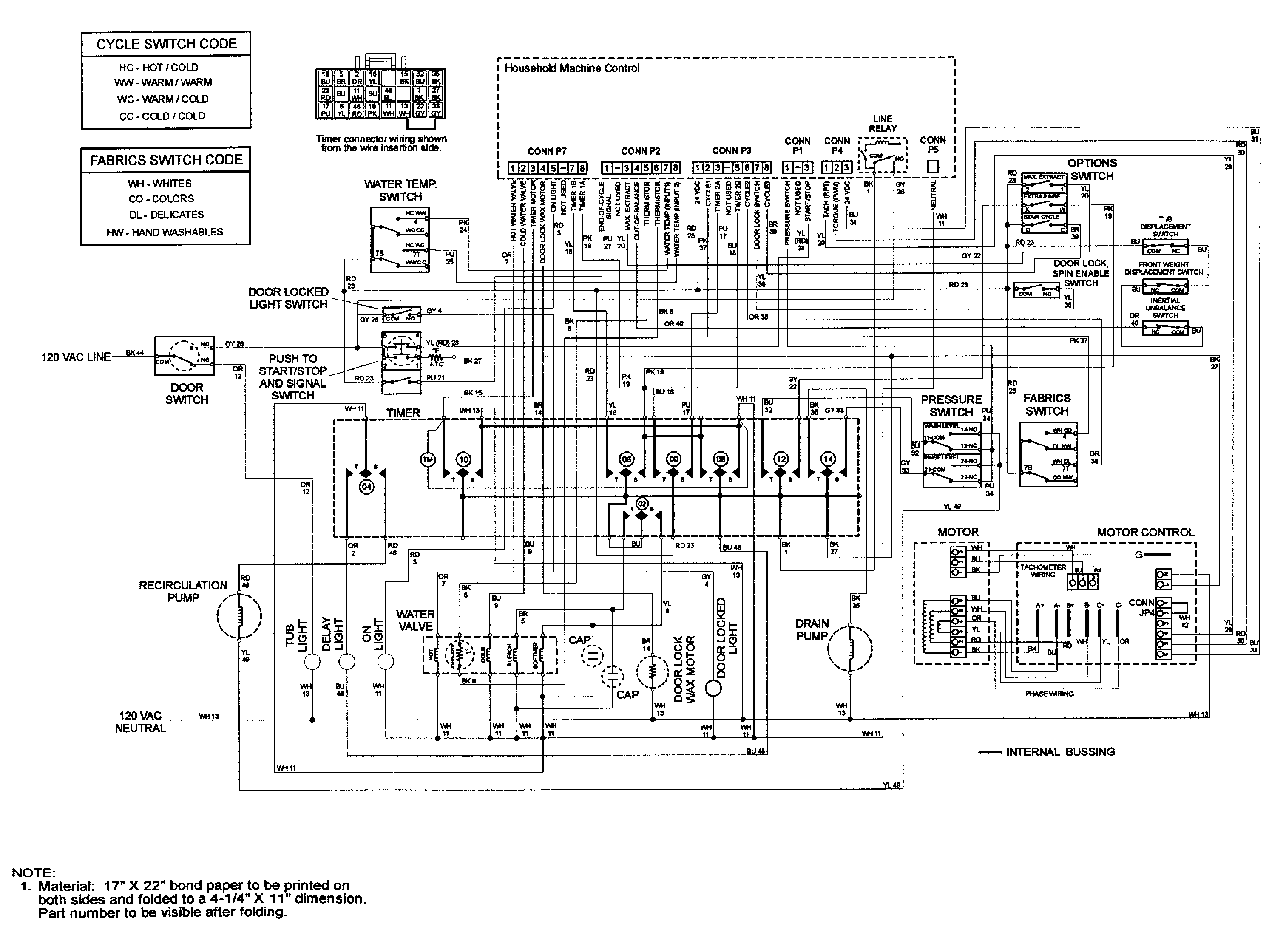

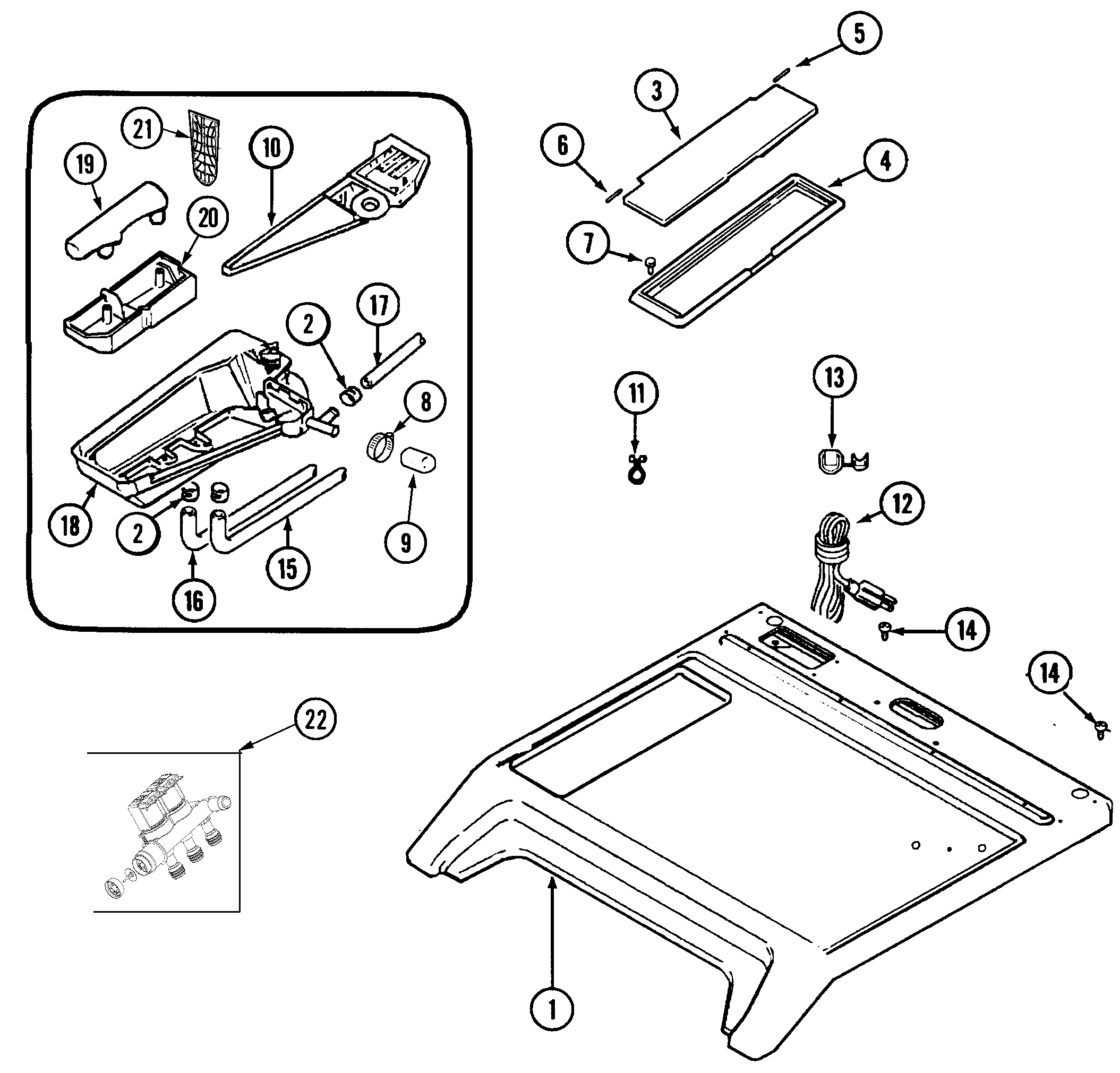

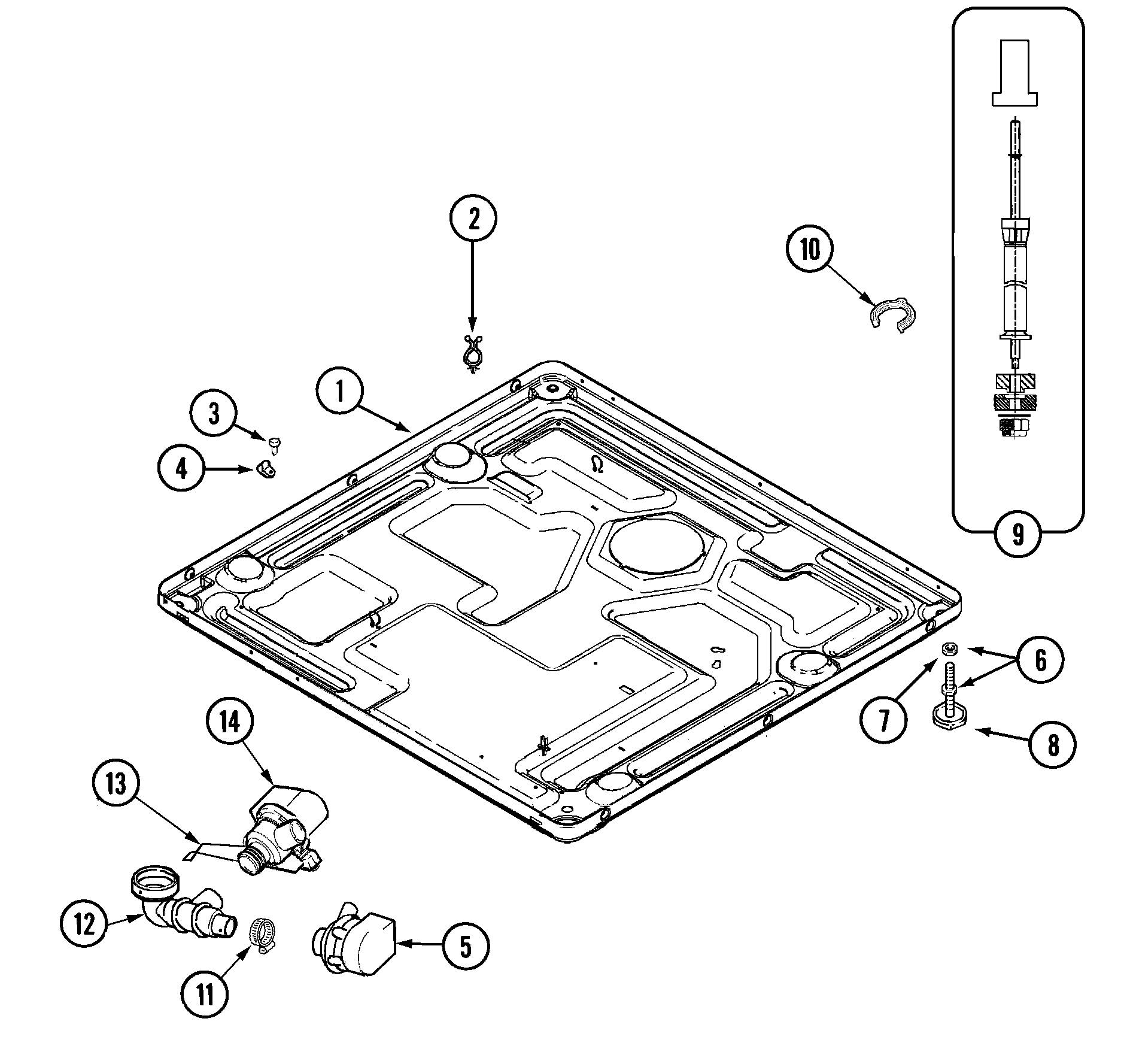

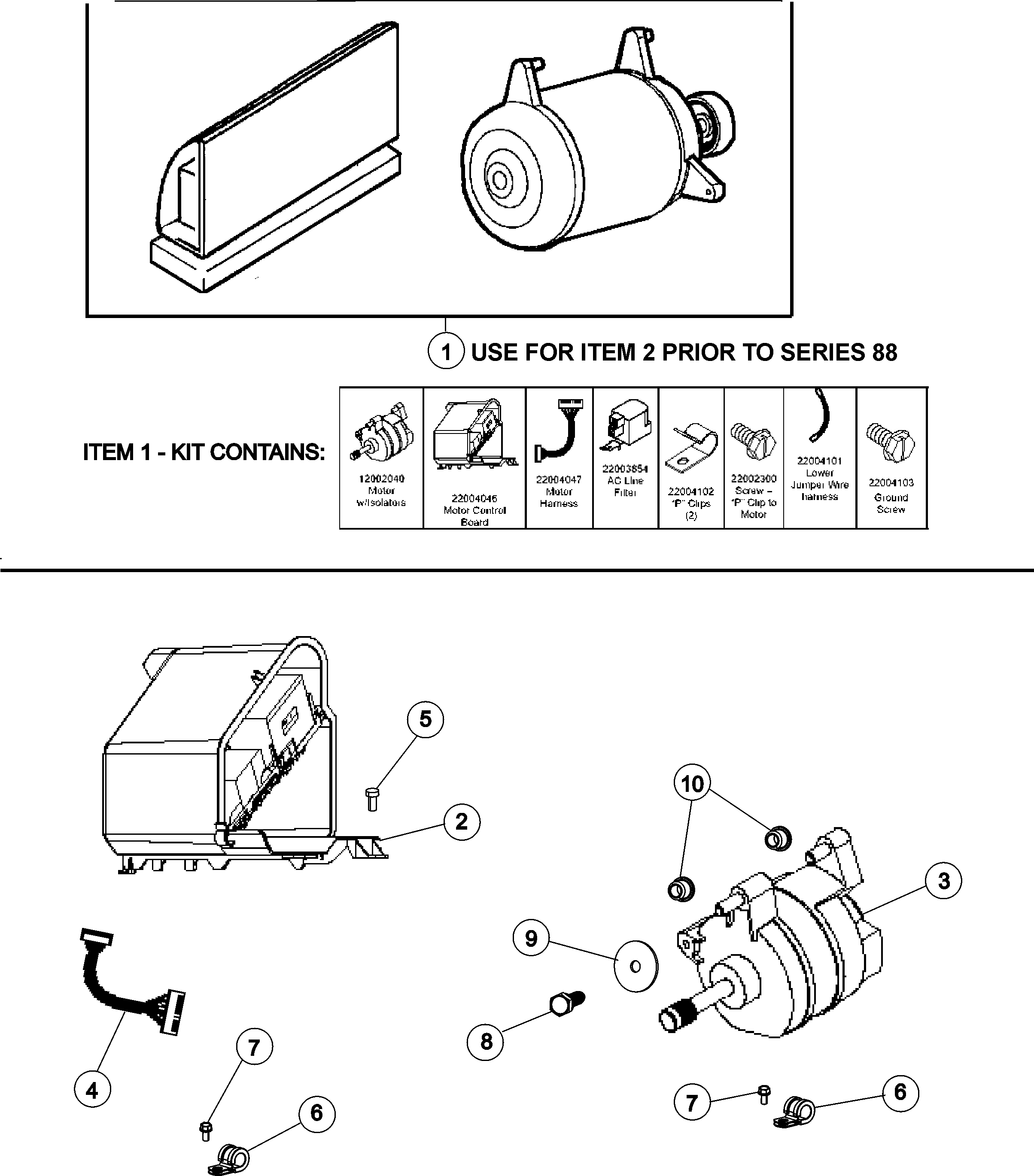

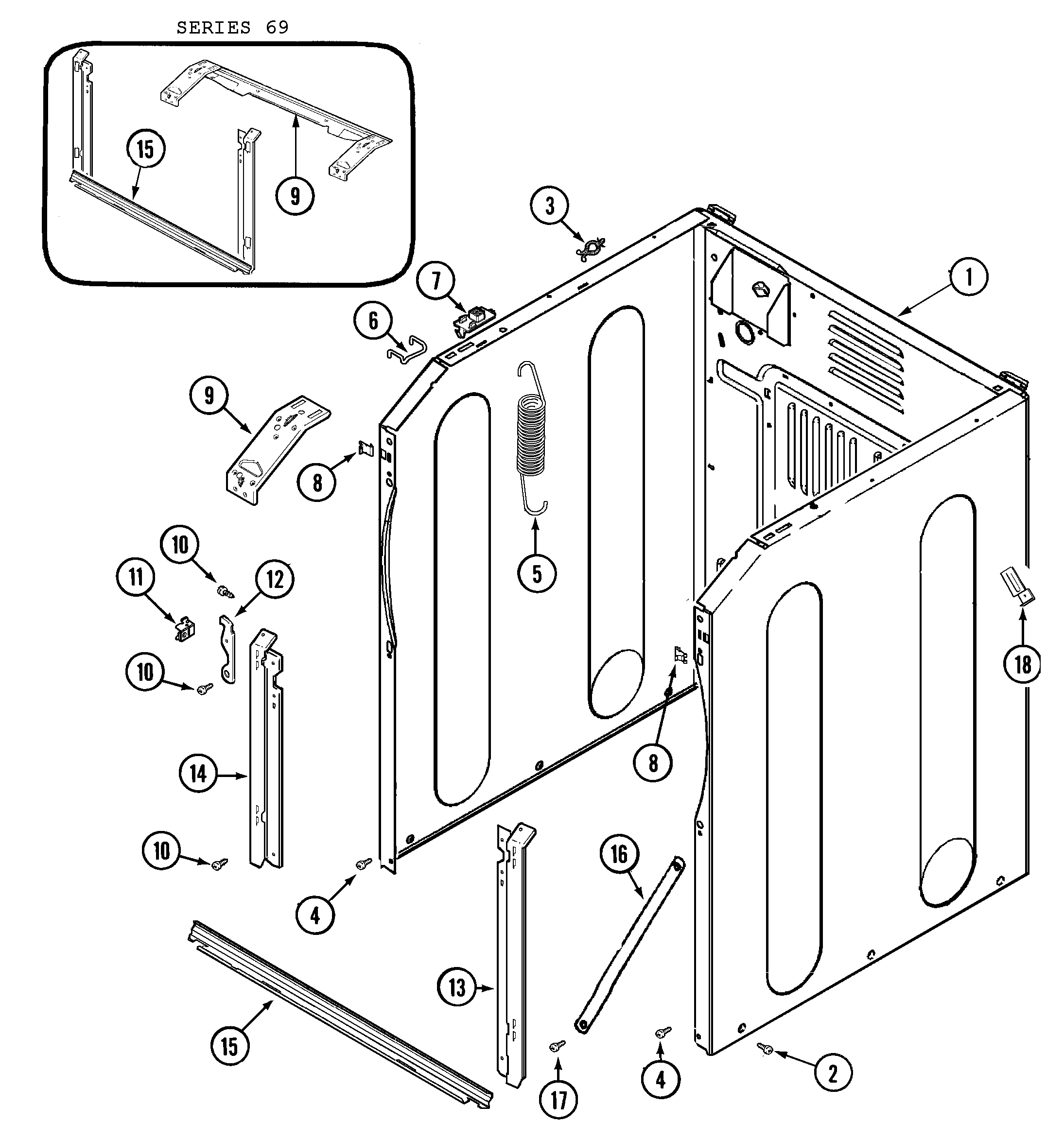

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Washer Screw 22001995
Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
$11.78
In Stock
Outer Screw 22002063
#14

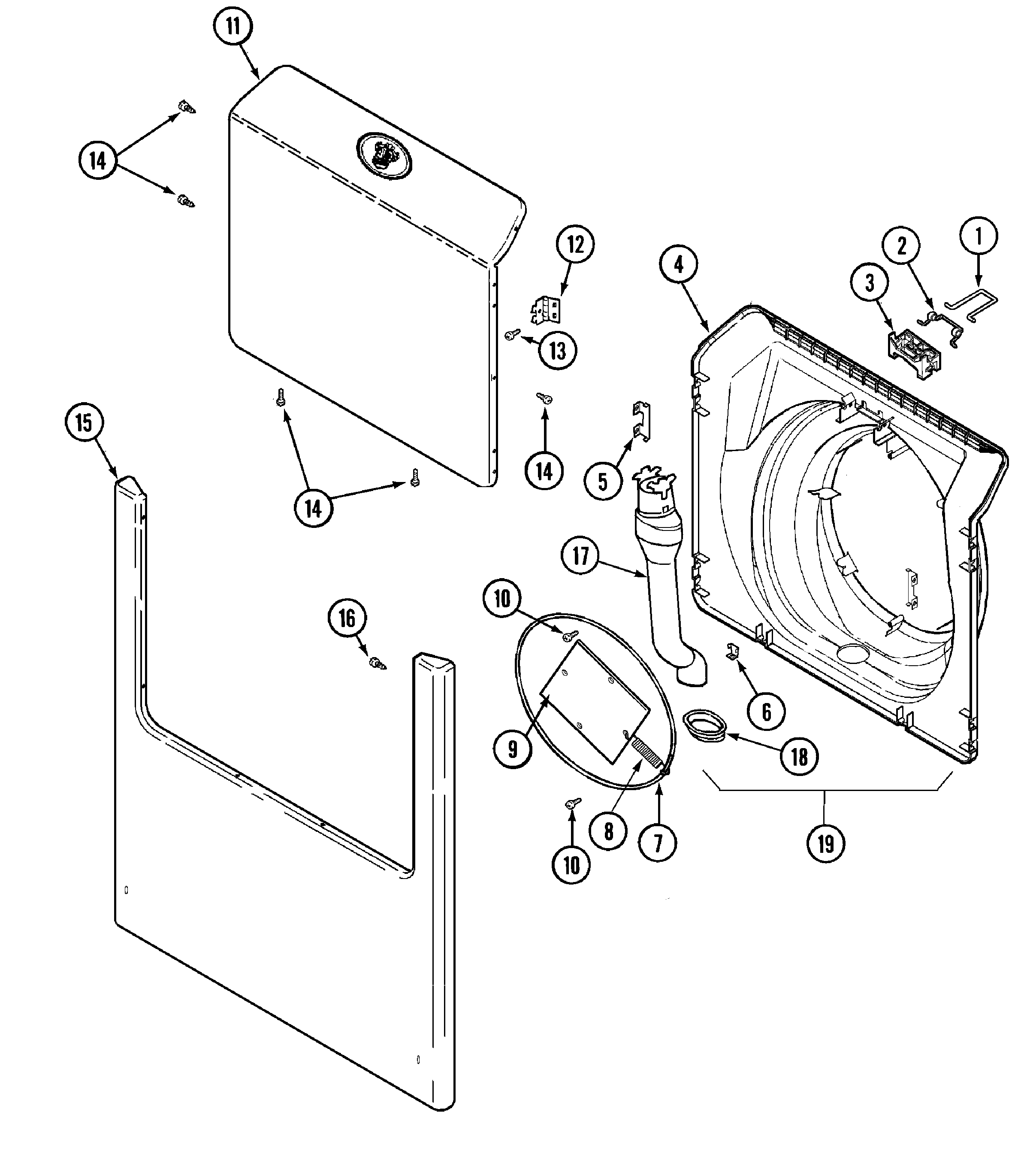

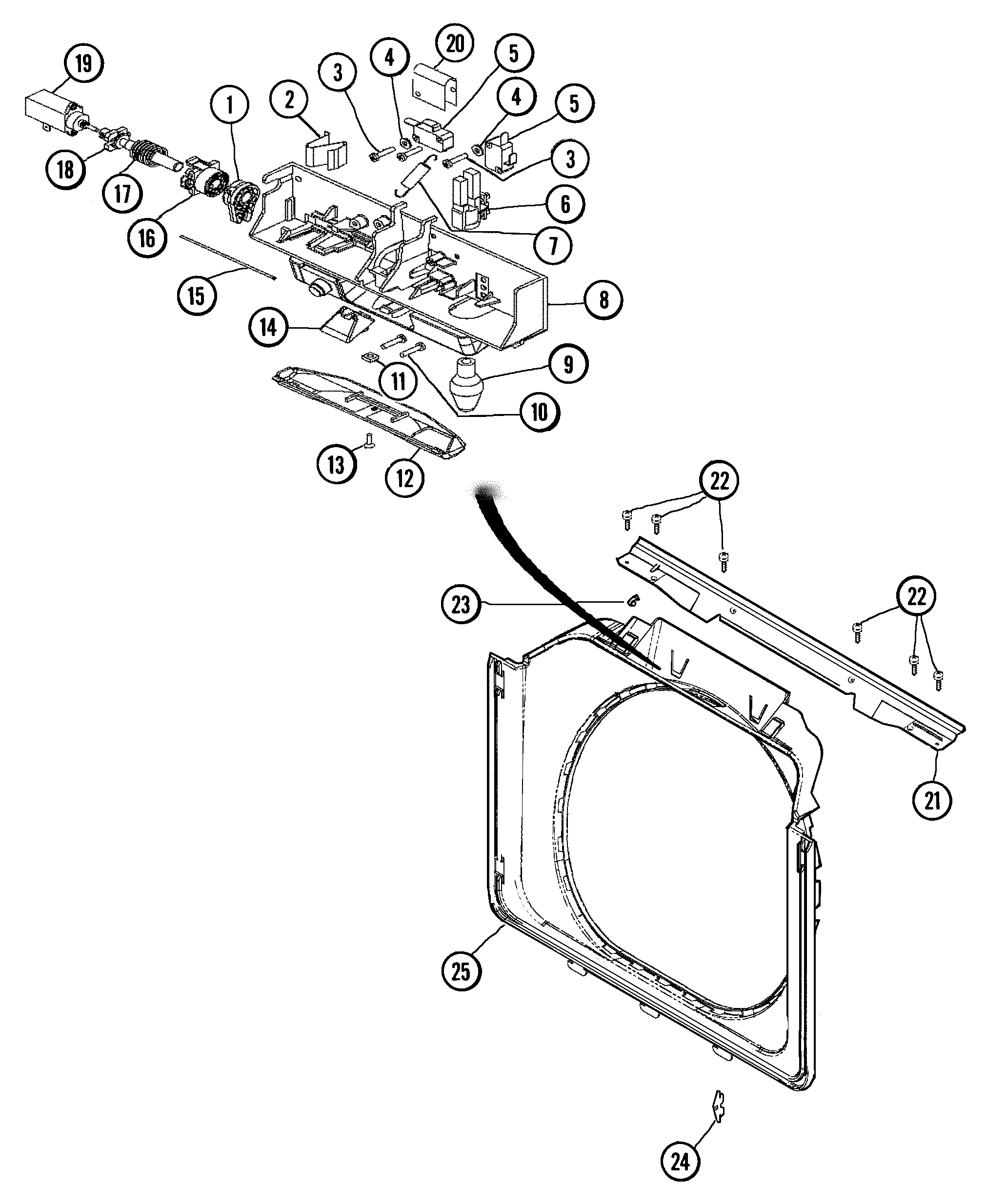

Door & front panel diagram

Outer screw

Part #22002063

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 22002063. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Sump Clamp 22002053
#22

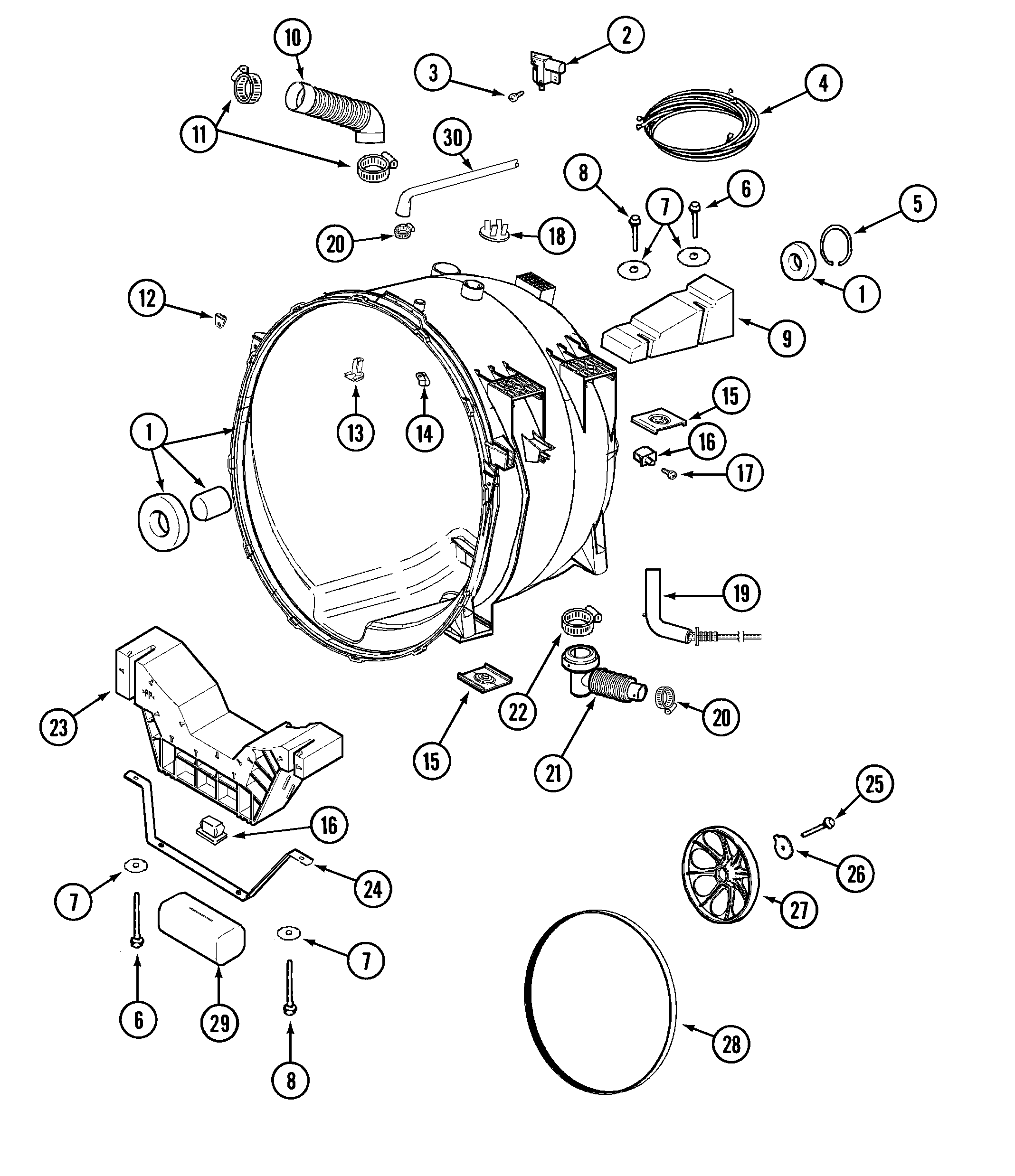

Outer tub diagram

Sump clamp

Part #22002053

Replaced by #WP696392

?
Manufacturer substitution
This part replaces 22002053. Substitute parts can look different from the original.
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Washer Lip Seal Kit (replaces 12001478) 12002022
Washer lip seal kit (replaces 12001478)

Part #12002022

$81.36 |
6% OFF Phone Price : $86.36
In Stock
Lip Seal Ser 12001478
#1

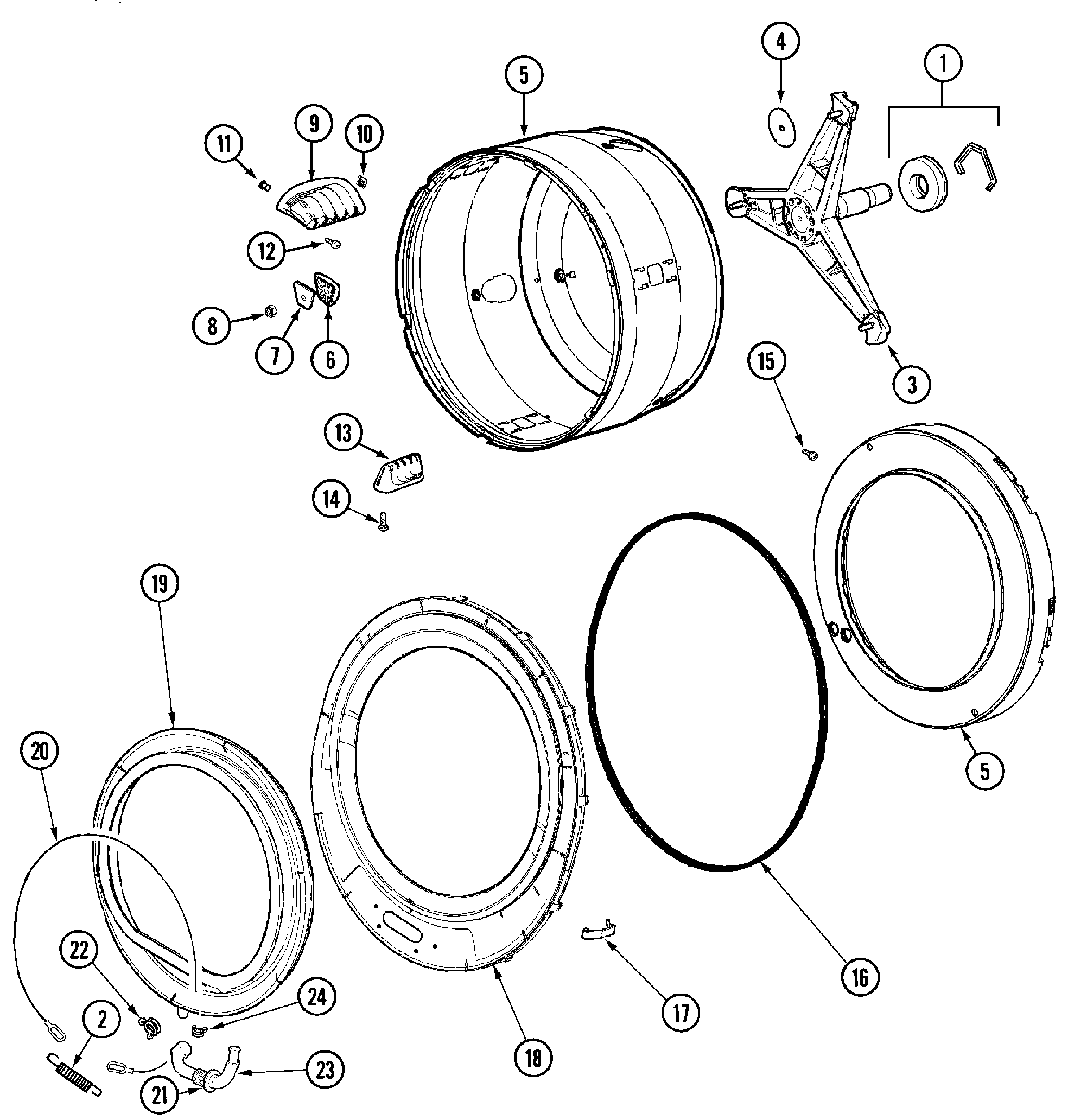

Spinner assembly & outer tub cover diagram

Lip seal ser

Part #12001478

Replaced by #12002022

?
Manufacturer substitution
This part replaces 12001478. Substitute parts can look different from the original.
$81.36 |
6% OFF Phone Price : $86.36
In Stock
Laundry Appliance Timer Knob Insert 22001664
#2

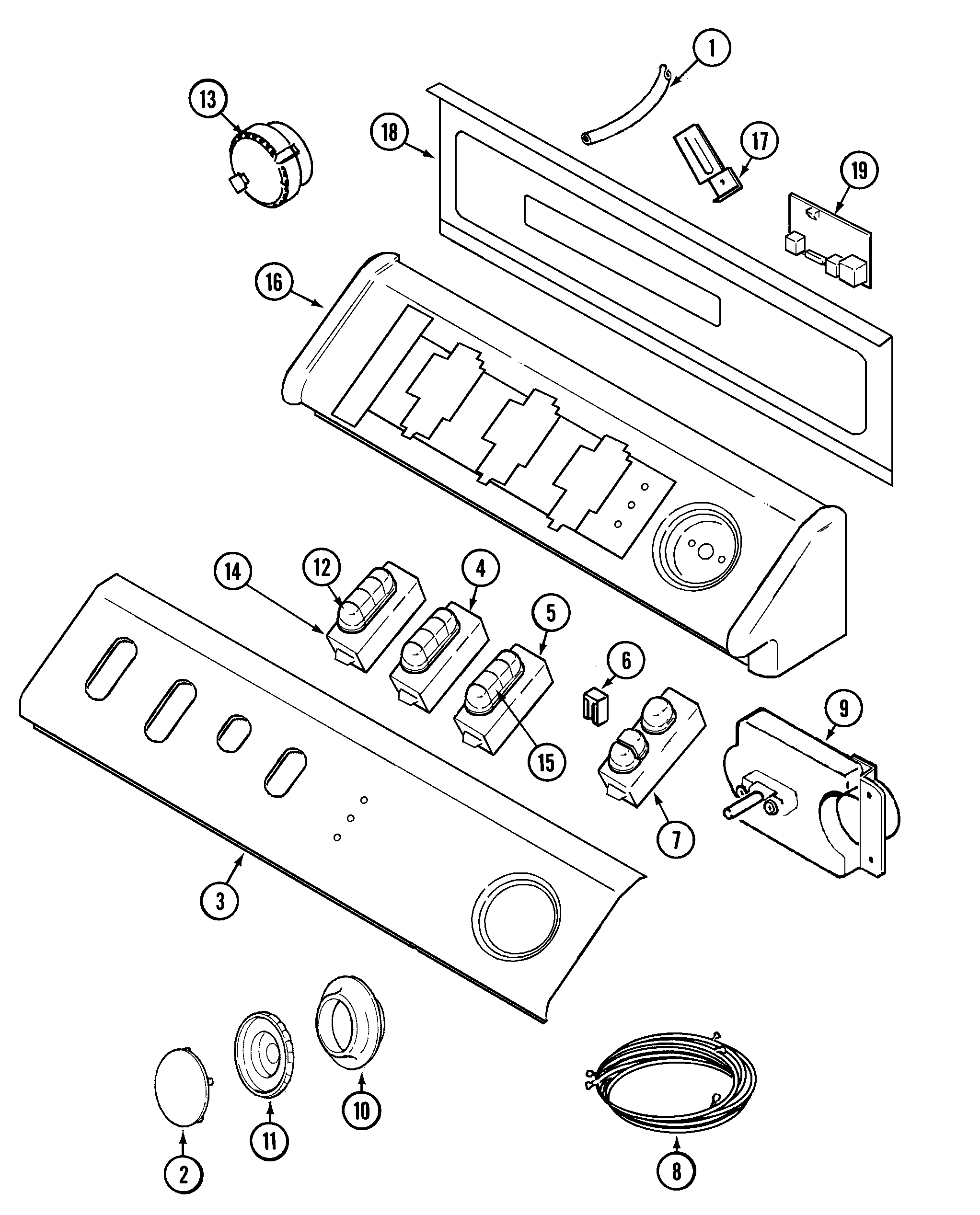

Control panel diagram

Laundry appliance timer knob insert

Part #22001664

Replaced by #WP22001664

?
Manufacturer substitution
This part replaces 22001664. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Dryer Timer Knob 22001659
#11

Control panel diagram

Dryer timer knob

Part #22001659

Replaced by #WP22001659

?
Manufacturer substitution
This part replaces 22001659. Substitute parts can look different from the original.
This item is not returnable
$25.39 |
16% OFF Phone Price : $30.39
In Stock
Drive Belt K 12001435
#28

Outer tub diagram

Drive belt k

Part #12001435

Replaced by #12001788

?
Manufacturer substitution
This part replaces 12001435. Substitute parts can look different from the original.
$27.39 |
15% OFF Phone Price : $32.39
In Stock
Insert Screw 22002300
#3

Outer tub diagram

Insert screw

Part #22002300

Replaced by #WP9740848

?
Manufacturer substitution
This part replaces 22002300. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 33001245
#22

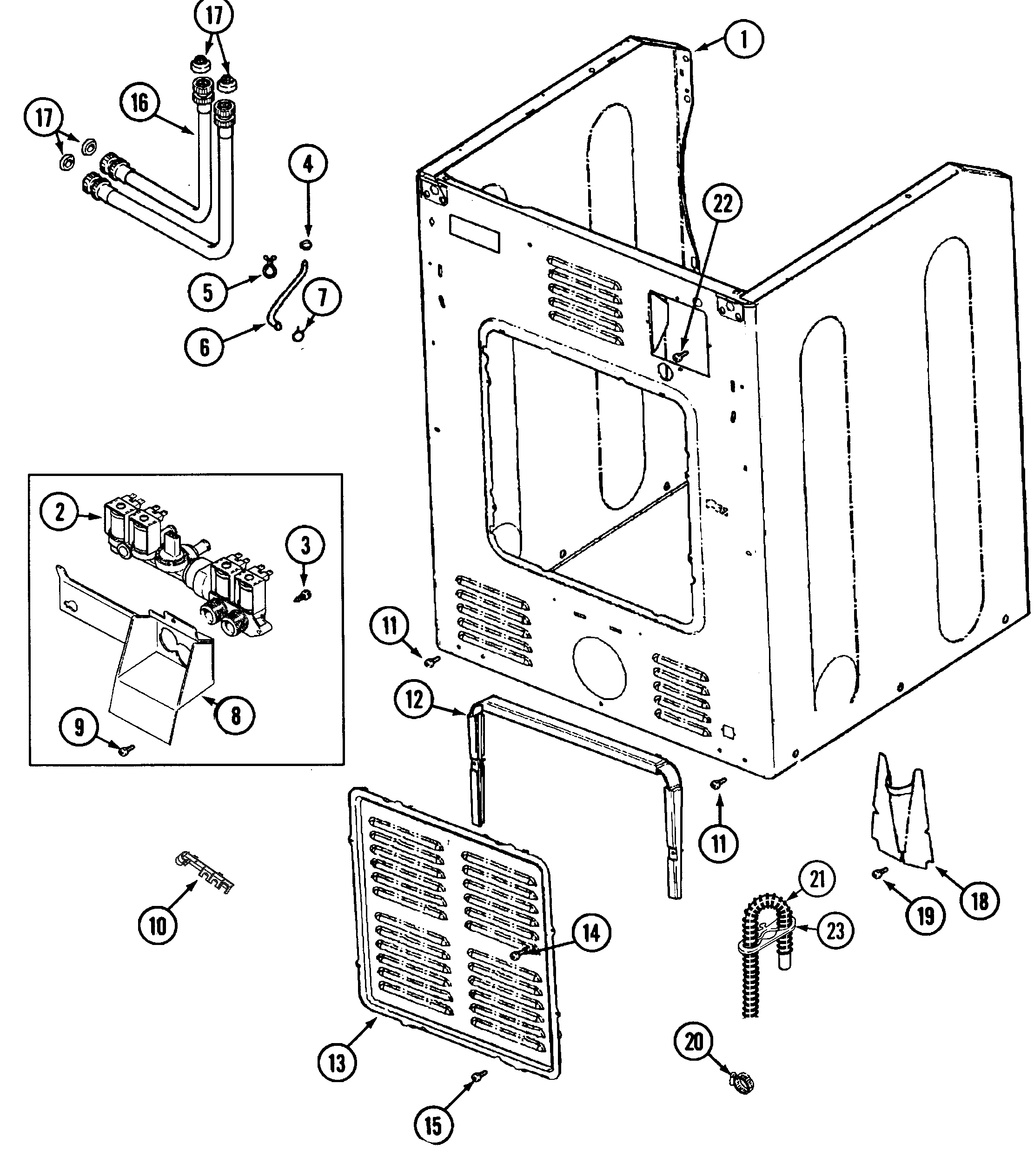

Cabinet-rear diagram

Screw

Part #33001245

Replaced by #W10850756

?
Manufacturer substitution
This part replaces 33001245. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
