Electric Cooktop

Model # LCE3610SB Official LG cooktop

Here are the diagrams and repair parts for Official LG LCE3610SB cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLCE3610SB Cooktops

  • Microwave Screw 1TTL0402618
    #W144

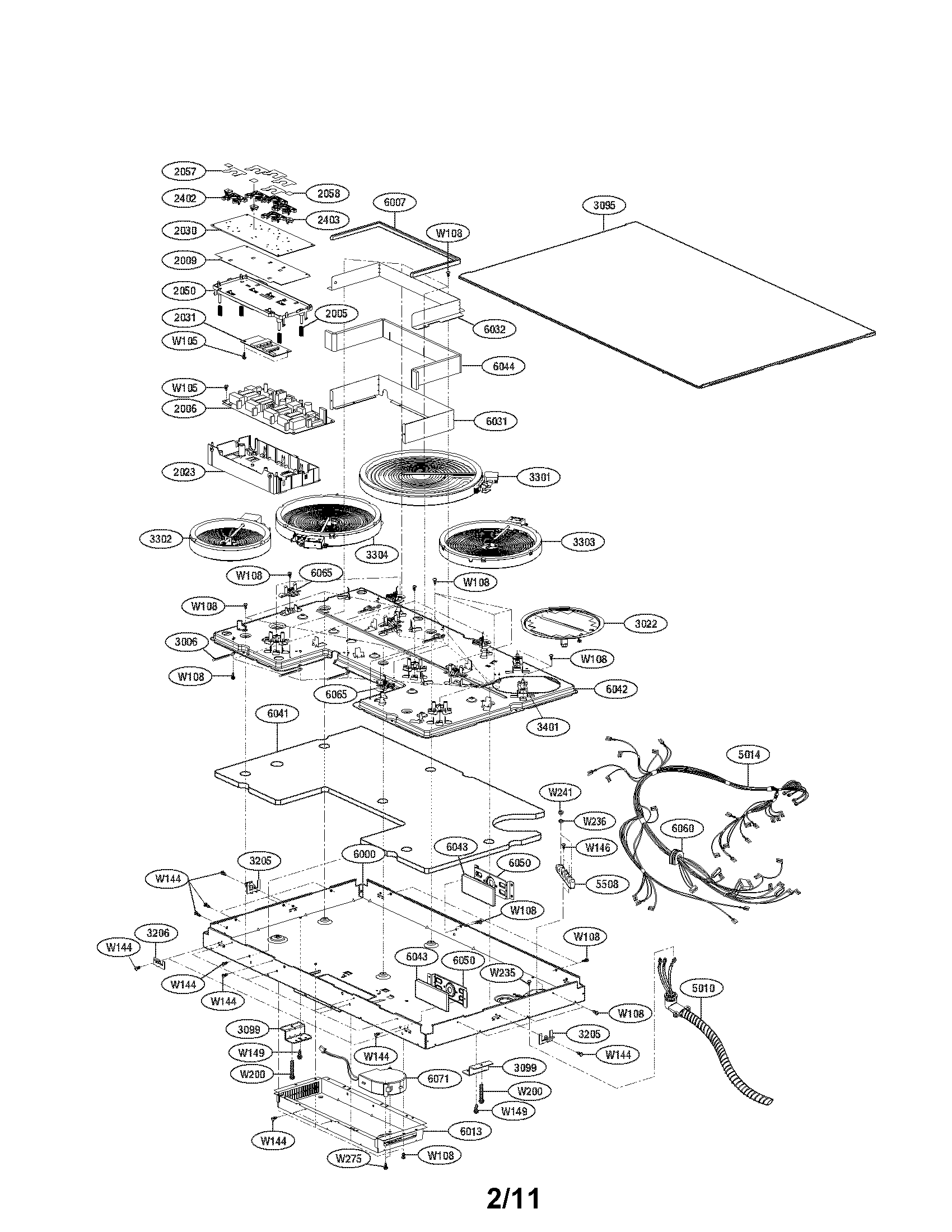

    Exploded view parts diagram

    Microwave screw

    Part #1TTL0402618

    $9.22
    10% OFF Phone Price : $10.22
    In Stock
  • Lg Cooktop Main Top AGU73228701
    #3095

    Exploded view parts diagram

    Lg cooktop main top

    Part #AGU73228701

    $436.19
    $12.00 OFF Phone Price : $448.19
    In Stock
  • Range Radiant Surface Element, 6-in 5300W1R004A
    #3302

    Exploded view parts diagram

    Range radiant surface element, 6-in

    Part #5300W1R004A

    $115.54
    9% OFF Phone Price : $127.54
    In Stock
  • Fan Module 5901W1N002A
    #6071

    Exploded view parts diagram

    Fan module

    Part #5901W1N002A

    $92.87
    6% OFF Phone Price : $98.87
    In Stock
  • Pcb EAX55273801
    #2009

    Exploded view parts diagram

    Pcb

    Part #EAX55273801

    In Stock
  • Lg Insulator MEV47148302
    #6042

    Exploded view parts diagram

    Lg insulator

    Part #MEV47148302

    In Stock
  • Bracket 4810W1A216A
    #6050

    Exploded view parts diagram

    Bracket

    Part #4810W1A216A

    In Stock
  • Barrier MAL47149601
    #6032

    Exploded view parts diagram

    Barrier

    Part #MAL47149601

    In Stock
  • Base Cover MCK47148801
    #6013

    Exploded view parts diagram

    Base cover

    Part #MCK47148801

    In Stock
  • Insulator MEV54159901
    #6044

    Exploded view parts diagram

    Insulator

    Part #MEV54159901

    In Stock
