GE GFWN1000L1WW washer Parts

If your GE GFWN1000L1WW front load washer is leaking from the bottom, the most common causes are a clogged pump filter, a loose or misrouted drain hose, oversudsing from too much detergent, or a door boot (gasket) issue that lets water run down the cabinet and drip underneath. Use the steps below to pinpoint the source.

Quick checks that solve most bottom leaks

• Unplug the washer and turn off both water faucets.
• Pull the washer forward and look for the wettest point (front center, back left, or under the pump area).
• Check the drain hose for kinks and make sure it is not being crushed by the washer.
• Confirm fill hoses are tight at both the faucets and the washer.
• If the back left area is wet, reduce detergent and use only HE detergent.

Clean the pump filter (common cause)

GE notes that small items can reach the pump and the washer uses a filter to catch debris; when it clogs, water can leak or drain poorly. Follow the cleaning steps in the GFWN1000L1WW owner’s manual. If you find the filter housing damaged or it will not seal, replace the washer drain pump filter WH11X34741.

What to expect when you open the filter

What you see	What it usually means	What to do
Coins, lint, hairpins	Filter was clogged	Clean filter, reinstall tightly
Water drips after reinstall	Filter not tightened or O-ring area dirty	Reseat and tighten securely
Cracks or stripped threads	Filter or housing damage	Replace filter or pump assembly

Other likely causes (and what to do)

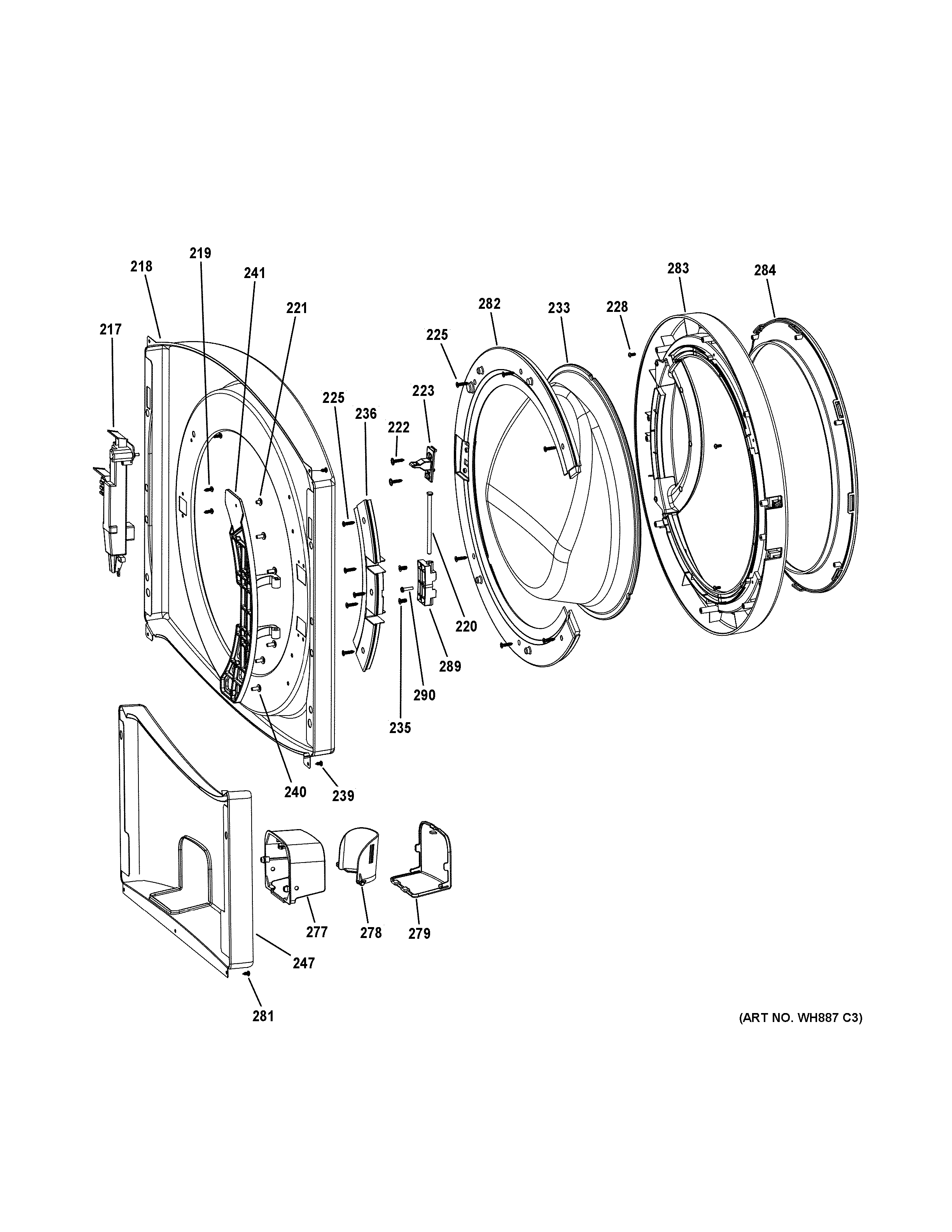

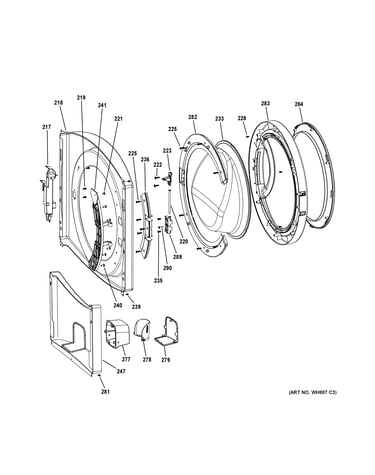

• Door boot/gasket leak: Wipe the rubber seal clean and inspect for tears or objects left in pockets that damaged it. If torn, replace the washer door boot WH08X10049.

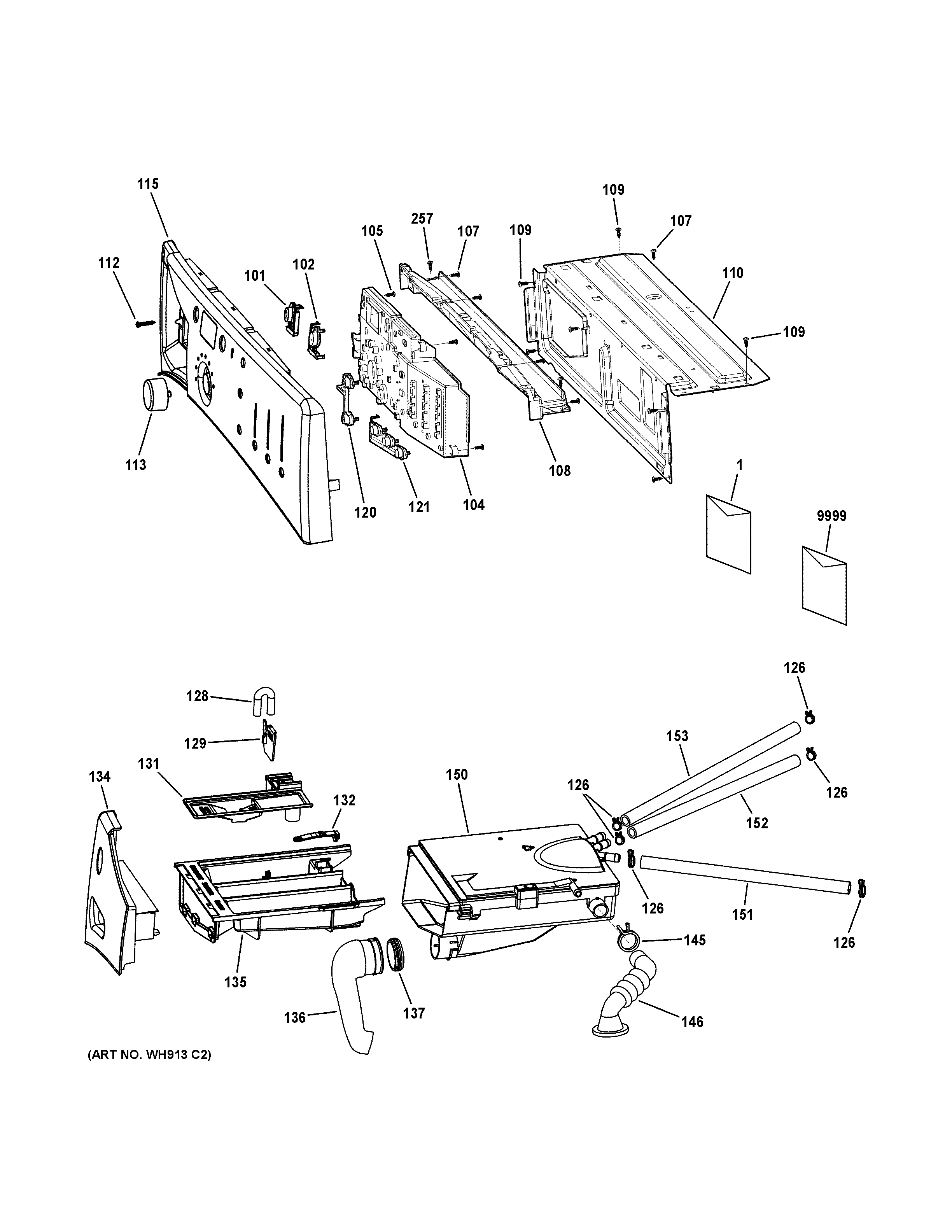

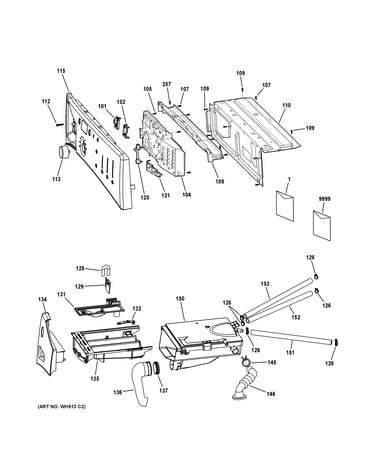

• Dispenser overflow: Powder detergent buildup can clog the dispenser and leak out the front; remove and clean the drawer and dispenser box.
• Drain hose siphoning: If the drain hose is pushed too far down the standpipe, ensure there is an air gap so it cannot siphon.

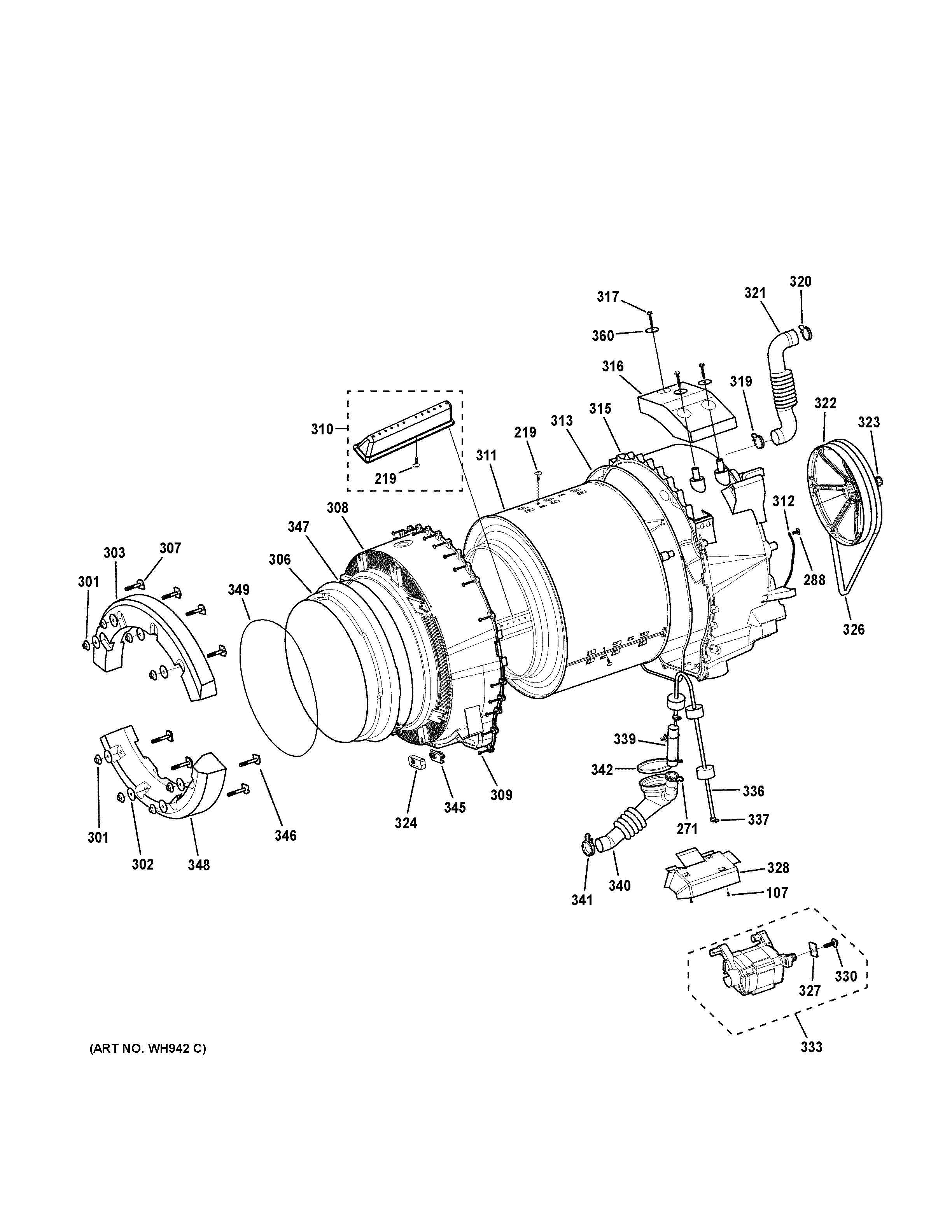

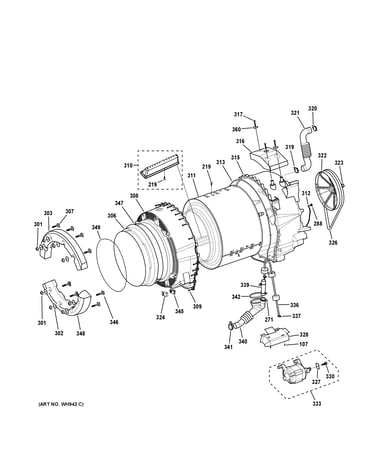

• Pump or hose connection leak: If water is coming from the pump area even with a clean filter, the pump or its connections may need service; the replacement part is the washer drain pump assembly WH23X10028.

Why it matters

A bottom leak can damage flooring and can also lead to drain errors, poor spinning, and recurring odors if water stays trapped in the cabinet.

Last updated: February 2026

A GE front-load washer like model GFWN1000L1WW is built around a wash basket and outer tub, a drive system (motor and controls), and a water handling system (inlet, drain pump, hoses, and filter). Our GFWN1000L1WW owner’s manual also highlights serviceable items like the pump filter and door gasket.

Main parts you will find in a front-load washer

• Wash basket (drum): Holds clothes and spins at high speed to extract water.
• Outer tub: Seals water around the basket during wash and rinse.
• Door and door lock: Keeps the door secured during operation.
• Door boot (gasket): Rubber seal between the front panel and tub opening.
• Water inlet system: Inlet valve, screens, and fill hoses that bring water in.
• Drain system: Drain pump, pump filter, and drain hose that move water out.
• Controls and wiring: Electronic control board, user interface, and wire harness.

Parts on this GFWN1000L1WW model that match those systems

System	Example part on this model	What it does
Drain system	Washer drain pump filter WH11X34741	Catches small items and debris before they reach the pump.
Drain system	Washer drain pump assembly WH23X10028	Pumps wash water out to the household drain.
Fill system	Washer water inlet valve WH13X10029	Opens to let hot and cold water into the dispenser/tub.
Door seal	Washer door boot WH08X10049	Prevents leaks around the door opening.
Controls	Washer electronic control board WH12X10457	Runs cycles and manages motor, fill, drain, and door lock.

Why it matters (how parts relate to common symptoms)

Knowing which system is involved helps you troubleshoot faster:

• Won’t drain, pauses, or door stays locked: drain pump or a clogged pump filter.
• Slow fill or no water: inlet valve screens, hoses, or the inlet valve.
• Leaks at the door: door boot (gasket) or clamps.
• Clothes too wet: out-of-balance load, drain restriction, or pump issue.

Quick maintenance tip for front-load washers

The manual for this GE washer describes cleaning the pump filter through the lower access door; expect a small amount of water when you open the filter. Keeping that filter clear helps prevent drain problems and protects the drain pump.

Last updated: February 2026

For the GE GFWN1000L1WW washer, replacing the door gasket (door boot) typically costs $250 to $650 total: about $150 to $350 for the part plus $100 to $300 for labor. DIY replacement usually costs the price of the gasket plus basic tools.

What you are paying for

A “gasket” on a front-load washer is the flexible door boot that seals the tub to the door opening. If it’s torn, moldy beyond cleaning, or leaking, replacement is the lasting fix.

Typical cost breakdown:

Cost item	Typical range	Notes
Door gasket (part)	$150 to $350	Model-specific fit matters for leak prevention
Labor (service call + install)	$100 to $300	Varies by area and access
Total installed	$250 to $650	Most common real-world range

Before you replace it: quick checks that can save money

We recommend checking these first because many “gasket problems” are actually debris or a drain issue.

• Clean and inspect the gasket folds for coins, hair pins, socks, or buildup (the manual shows how to press the gasket down and check behind it). See the GFWN1000L1WW owner's manual.
• Confirm the leak location: front door area vs. underneath the washer.
• Check for over-sudsing (too much HE detergent can force suds and water past the seal).
• Inspect the door glass and door alignment for chips or a door that doesn’t close evenly.
• If water is pooling and the washer struggles to drain, clean the pump filter; a restriction can contribute to leaks and odors. The manual includes pump filter cleaning steps.

Parts commonly involved with a door gasket replacement

If you are replacing the door boot, the retaining clamps are often the make-or-break items for a leak-free seal.

• Washer door boot WH08X10049 (the gasket itself)
• Washer door boot spring clamp, outer WH01X10279 (holds the boot to the front panel)
• Washer door boot spring clamp, inner WH01X10277 (holds the boot to the tub)

Why it matters

A leaking door gasket can cause floor damage, musty odors, and repeat leaks if the boot is installed with a twist or the clamps are not seated correctly. Using the correct GE parts for the GFWN1000L1WW helps the door seal evenly and prevents nuisance leaks.

Last updated: February 2026

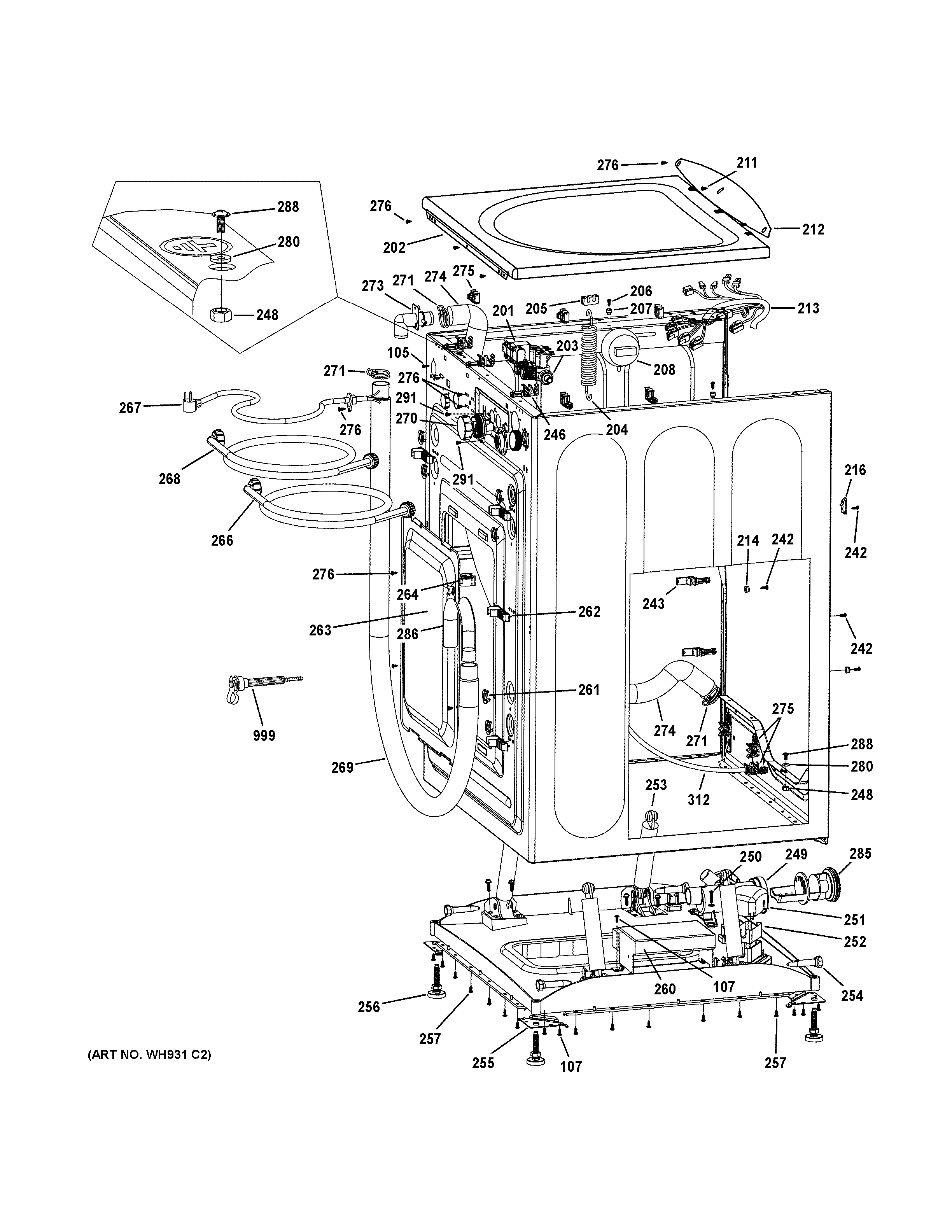

On the GE GFWN1000L1WW front-load washer, the model and serial number are printed on a label on the side of the washer (the location GE calls out in the documentation). Once you find it, copy both numbers exactly for parts and service.

Where to look on GFWN1000L1WW

Check these spots in this order:

• Left side cabinet panel (start near the front edge)
• Right side cabinet panel (start near the front edge)
• If the washer is installed tight in a closet, use a flashlight and look along the side seam

Fast way to find it (no disassembly)

• Open the washer door so you can safely move around the front corners
• Shine a flashlight down the left side first; look for a rectangular rating label
• Repeat on the right side
• Write down the model number and serial number exactly as shown (letters and numbers)

What you will see on the label

Label item	What we use it for	Example
Model number	Matches the correct diagrams and parts list	Ordering the correct drain pump or door boot
Serial number	Identifies the production run	Service scheduling and documentation reference

Why it matters

Using the exact model number prevents ordering the wrong GE washer parts. It is especially important for fit-critical items like the washer drain pump assembly WH23X10028 and the washer door boot WH08X10049. The label location is also noted in the GFWN1000L1WW owner’s manual.

Last updated: February 2026
