Kenmore
Washer

Model # 41744082400 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 41744082400 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

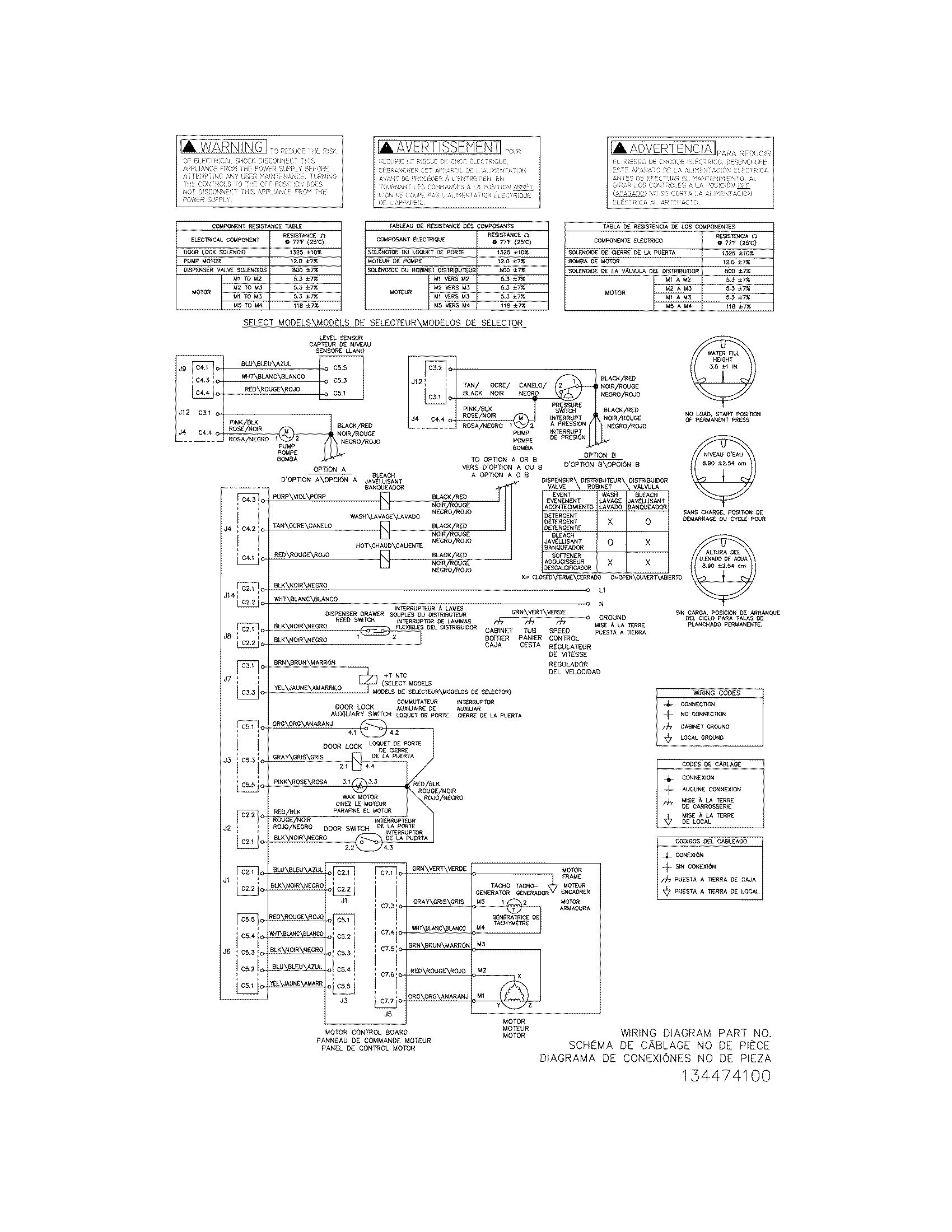

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |

Door Catch 131763200
#8

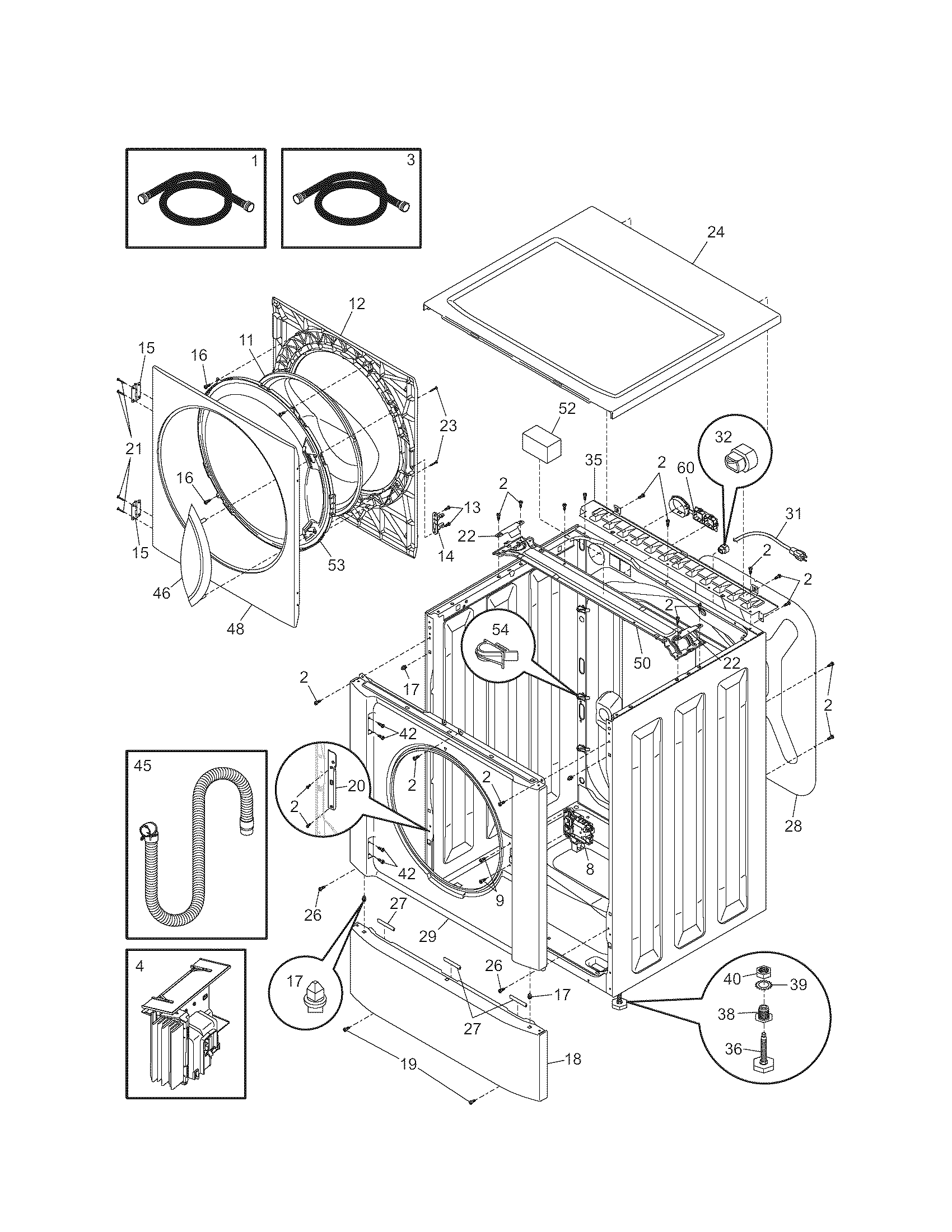

Cabinet/top diagram

Door catch

Part #131763200

Replaced by #131763256

?
Manufacturer substitution
This part replaces 131763200. Substitute parts can look different from the original.
BEST SELLER
$110.66
10% OFF Phone Price : $122.66
In Stock
Electrolux Washer Door Strike (replaces 134456600) 131763310
#14

Cabinet/top diagram

Electrolux washer door strike (replaces 134456600)

Part #131763310

BEST SELLER
$15.23
12% OFF Phone Price : $17.23
In Stock
Level Shock 131268200
#30

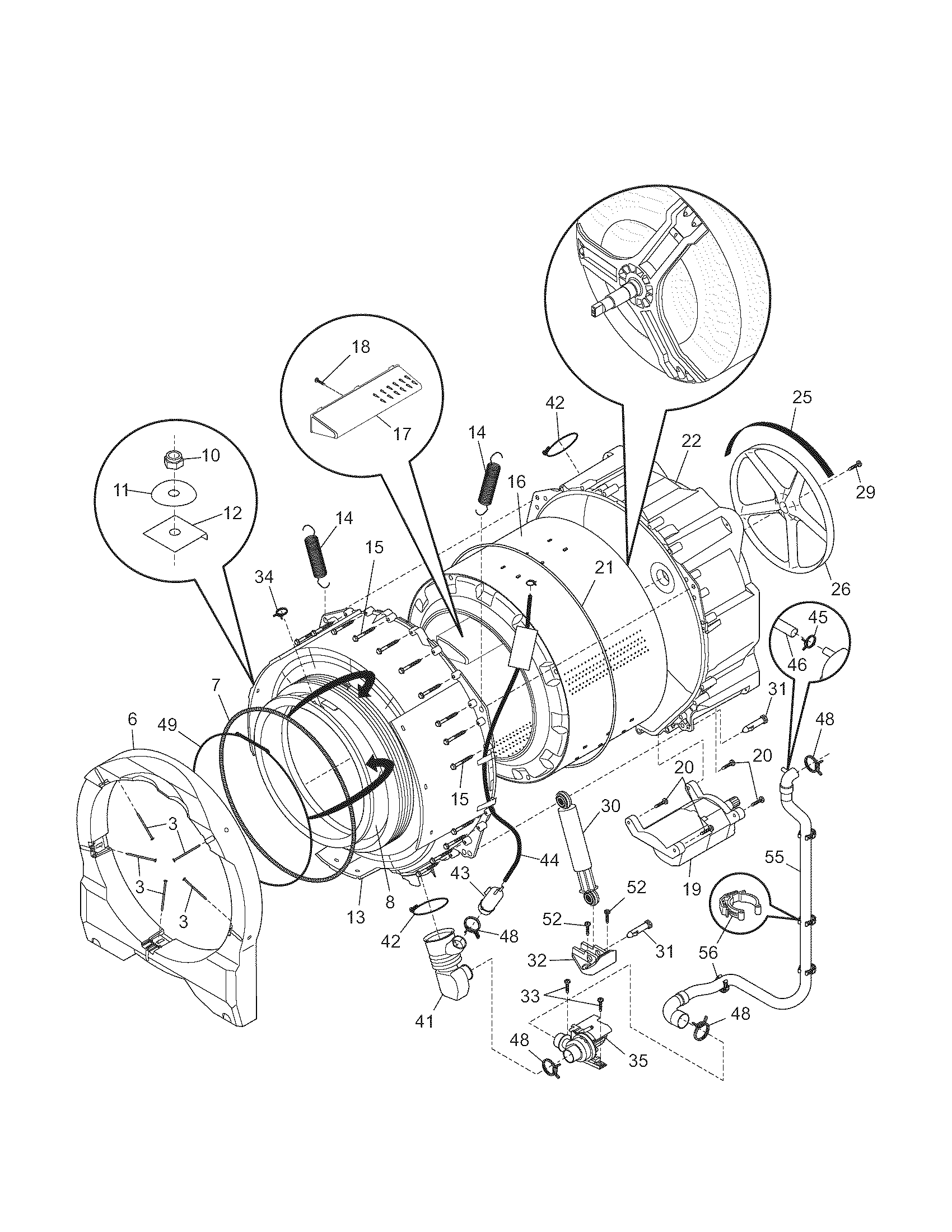

Motor/tub diagram

Level shock

Part #131268200

Replaced by #5304485917

?
Manufacturer substitution
This part replaces 131268200. Substitute parts can look different from the original.
BEST SELLER
$49.77
11% OFF Phone Price : $55.77
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87
16% OFF Phone Price : $12.87
In Stock
Clamp 134365400
#49

Motor/tub diagram

Clamp

Part #134365400

Replaced by #134527100

?
Manufacturer substitution
This part replaces 134365400. Substitute parts can look different from the original.
BEST SELLER
$34.85
15% OFF Phone Price : $40.85
In Stock
Washer Outer Tub Gasket 134361900
#21

Motor/tub diagram

Washer outer tub gasket

Part #134361900

Replaced by #5304520351

?
Manufacturer substitution
This part replaces 134361900. Substitute parts can look different from the original.
BEST SELLER
$80.82
7% OFF Phone Price : $86.82
In Stock
Washer Shock Absorber Mounting Pin (replaces 7131268300) 131268300
#31

Motor/tub diagram

Washer shock absorber mounting pin (replaces 7131268300)

Part #131268300

BEST SELLER
$17.99
10% OFF Phone Price : $19.99
In Stock
Washer Drive Belt 134051001
#25

Motor/tub diagram

Washer drive belt

Part #134051001

Replaced by #134051003

?
Manufacturer substitution
This part replaces 134051001. Substitute parts can look different from the original.
BEST SELLER
$34.40
15% OFF Phone Price : $40.40
In Stock
Washer Motor 134362500
#19

Motor/tub diagram

Washer motor

Part #134362500

Replaced by #137043000

?
Manufacturer substitution
This part replaces 134362500. Substitute parts can look different from the original.
$234.15
5% OFF Phone Price : $246.15
In Stock
Housing 134446120
#39

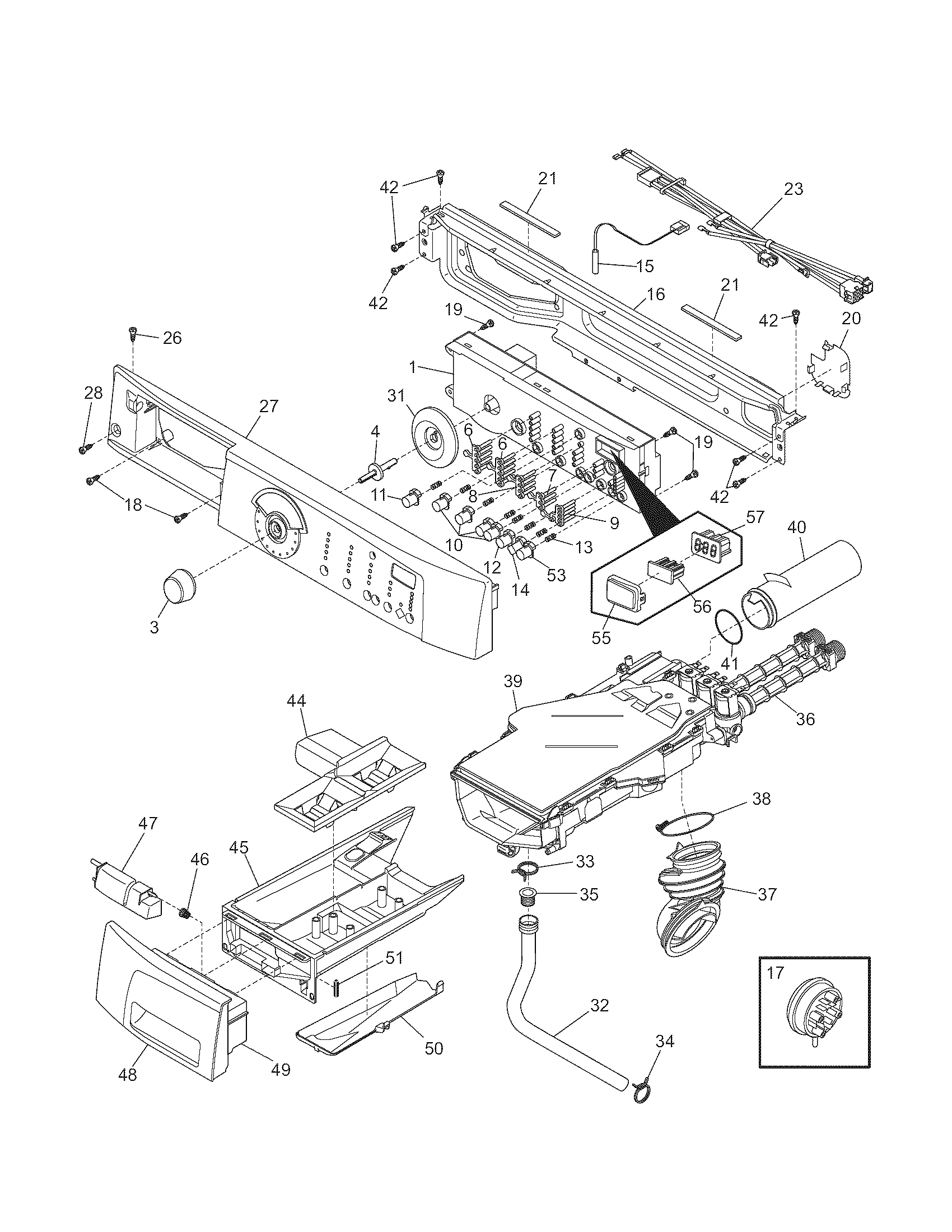

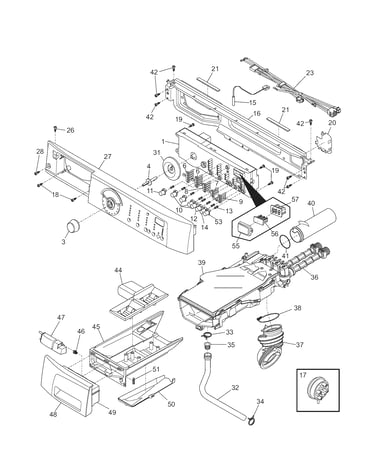

Control panel diagram

Housing

Part #134446120

Replaced by #134409320

?
Manufacturer substitution
This part replaces 134446120. Substitute parts can look different from the original.
$245.84
5% OFF Phone Price : $257.84
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
