Kelvinator RER302CF2 electric range - lk32089070

Kelvinator RER302CF2 electric range - lk32089070 Parts

Here are the diagrams and repair parts for Kelvinator RER302CF2 electric range - lk32089070, as well as links to manuals and error code tables, if available.

By Schematic
By Part

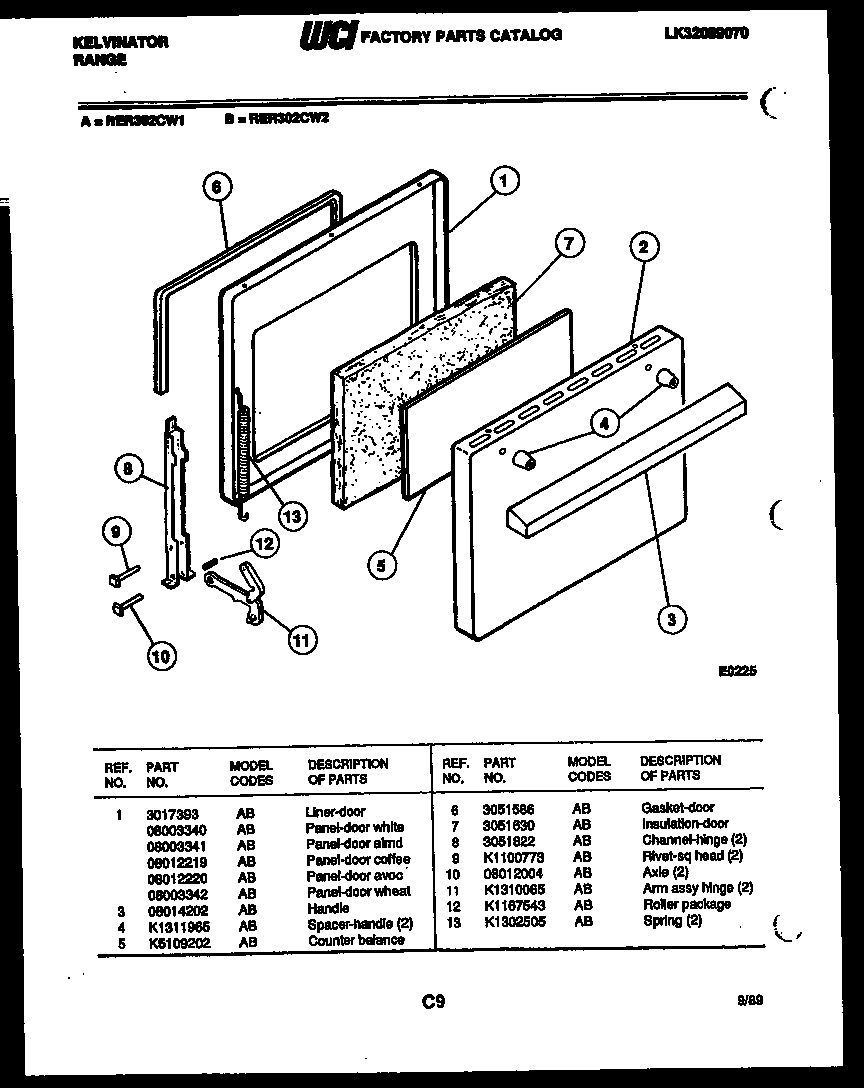

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RER302CF2 Ranges

  • Range Drip Pan, 6-in (chrome) for Kelvinator RER302CF2 - Part 316048414

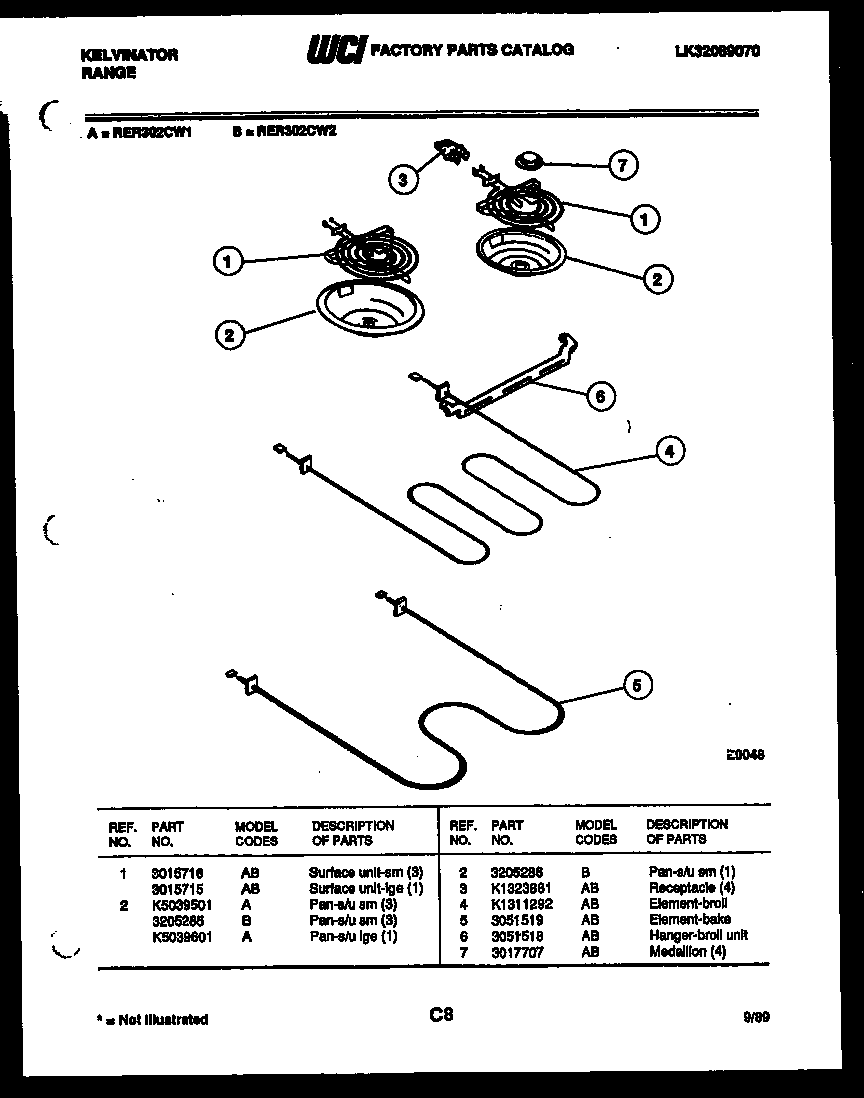

    Broiler parts diagram

    Pan

    Part #3205285

    Replaced by #316048414

    Info Icon
    Manufacturer substitution
    This part replaces 3205285. Substitute parts can look different from the original.
    In Stock
    $10.74
    16% OFF Phone Price : $12.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Drip Pan, 6-in (chrome) for Kelvinator RER302CF2 - Part 316048414

    Broiler parts diagram

    Pan

    Part #K5039501

    Replaced by #316048414

    Info Icon
    Manufacturer substitution
    This part replaces K5039501. Substitute parts can look different from the original.
    In Stock
    $10.74
    16% OFF Phone Price : $12.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Bake Element for Kelvinator RER302CF2 - Part 5303051519

    Broiler parts diagram

    Element

    Part #3051519

    Replaced by #5303051519

    Info Icon
    Manufacturer substitution
    This part replaces 3051519. Substitute parts can look different from the original.
    In Stock
    $31.93
    16% OFF Phone Price : $37.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Element Control Switch for Kelvinator RER302CF2 - Part 5303935086

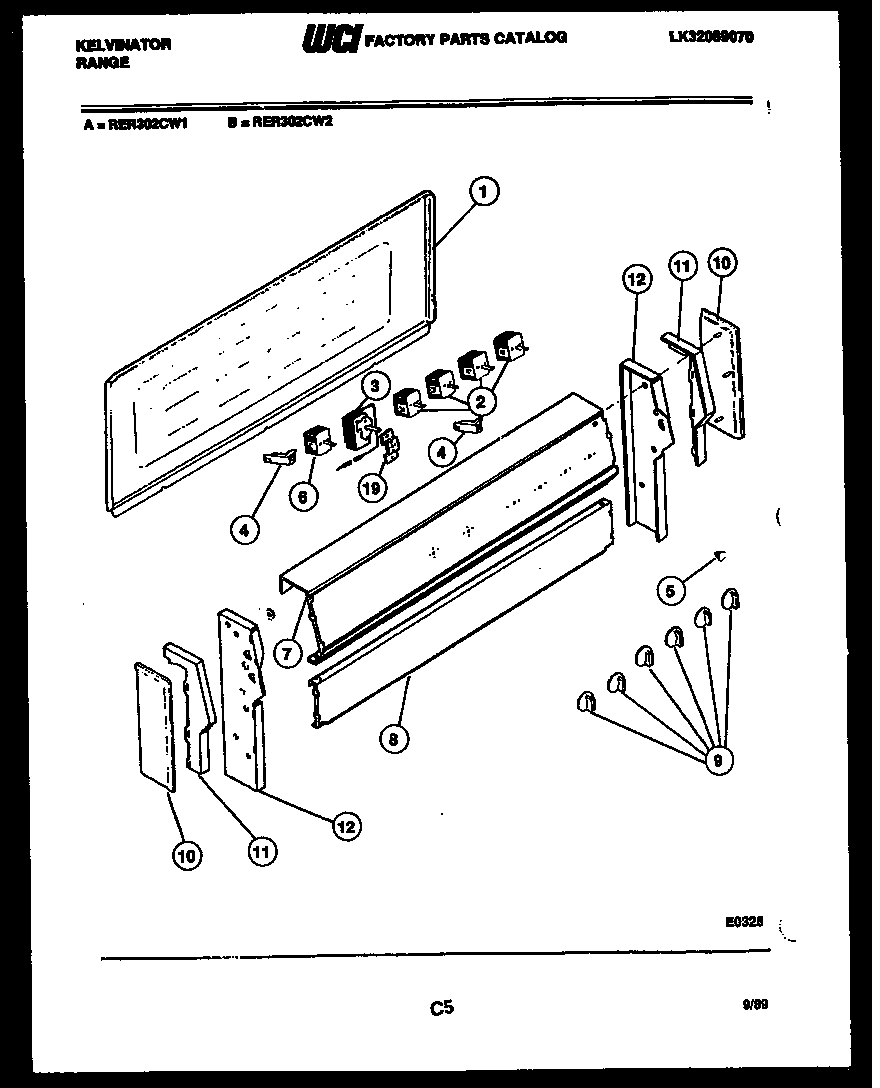

    Backguard parts diagram

    Switch

    Part #3051540

    Replaced by #5303935086

    Info Icon
    Manufacturer substitution
    This part replaces 3051540. Substitute parts can look different from the original.
    In Stock
    $42.19
    12% OFF Phone Price : $48.19Info Icon
    Minus Item
    Qty
    Plus Item
  • Bracket for Kelvinator RER302CF2 - Part 08003252

    Backguard parts diagram

    Bracket

    Part #08003252
    In Stock
    $41.49
    Minus Item
    Qty
    Plus Item
  • Handle for Kelvinator RER302CF2 - Part K1317823

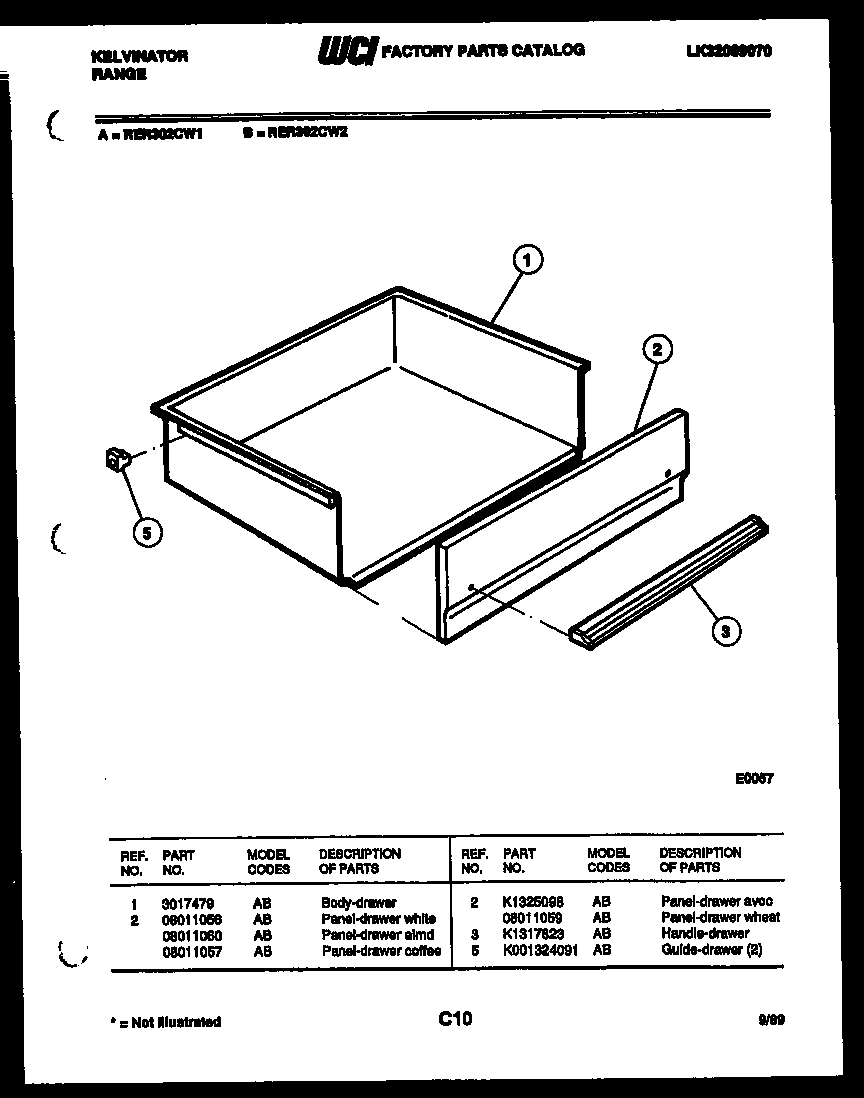

    Drawer parts diagram

    Handle

    Part #K1317823
    In Stock
    $39.63
    Minus Item
    Qty
    Plus Item
  • Panel for Kelvinator RER302CF2 - Part K5024610

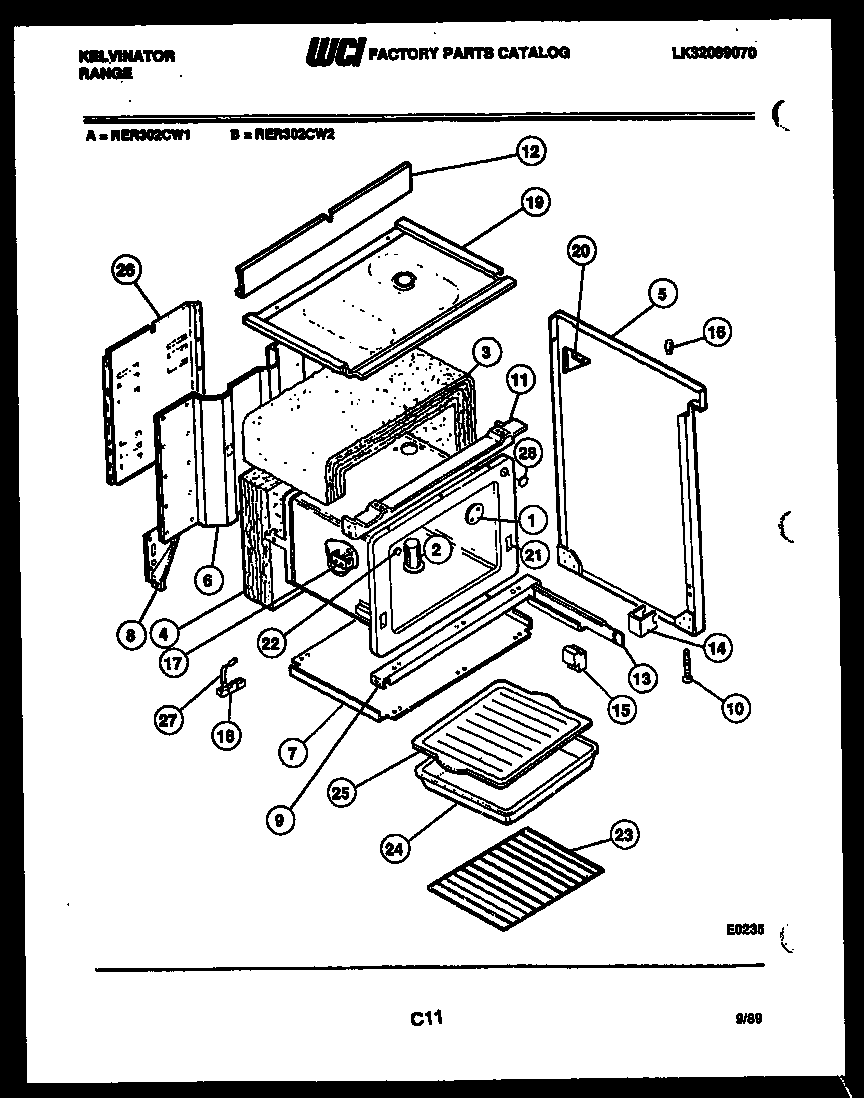

    Body parts diagram

    Panel

    Part #K5024610
    In Stock
    $63.11
    Minus Item
    Qty
    Plus Item
  • Oven Ve Tube for Kelvinator RER302CF2 - Part 08012541

    Body parts diagram

    Oven Ve Tube

    Part #08012541
    In Stock
    $35.79
    Minus Item
    Qty
    Plus Item
  • Cover for Kelvinator RER302CF2 - Part 3017529

    Backguard parts diagram

    Cover

    Part #3017529
    In Stock
    $43.11
    Minus Item
    Qty
    Plus Item
  • Pin for Kelvinator RER302CF2 - Part 3051658

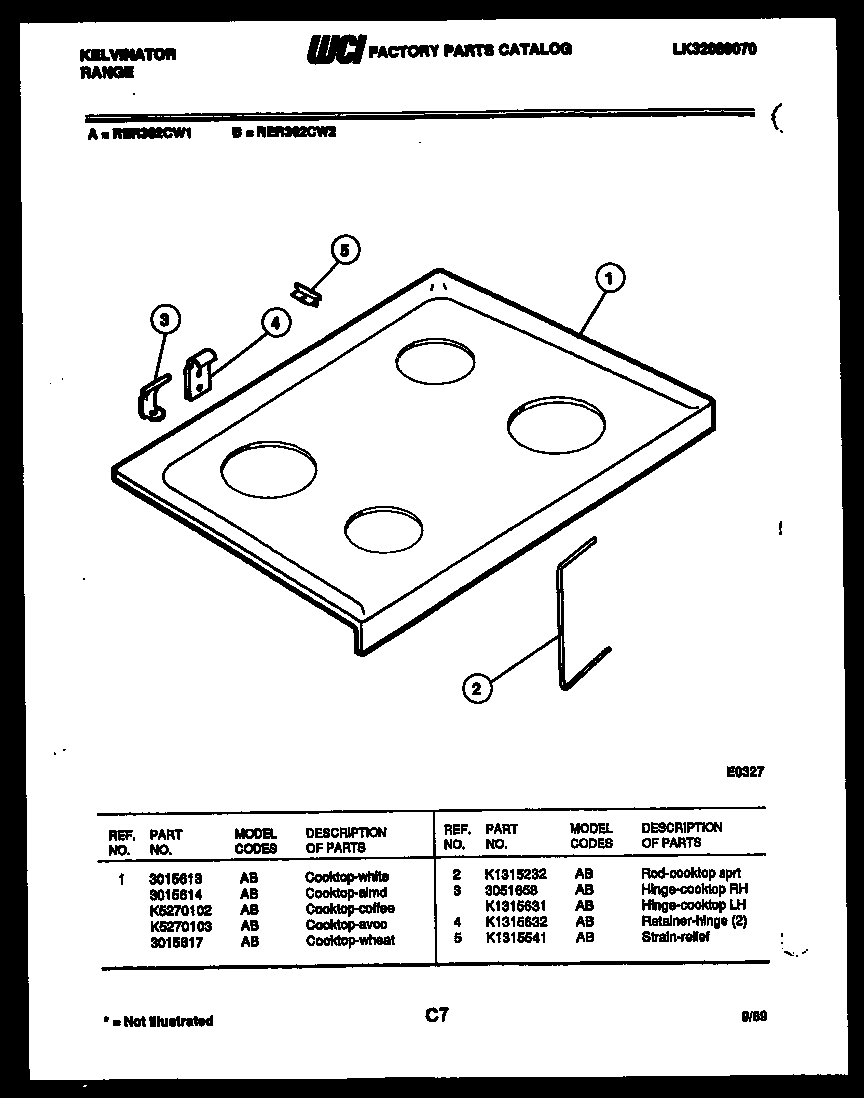

    Cooktop parts diagram

    Pin

    Part #3051658
    In Stock
    $28.17
    Minus Item
    Qty
    Plus Item
