Model #58714013408A Official Kenmore dishwasher

Here are the diagrams and repair parts for Kenmore 58714013408A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

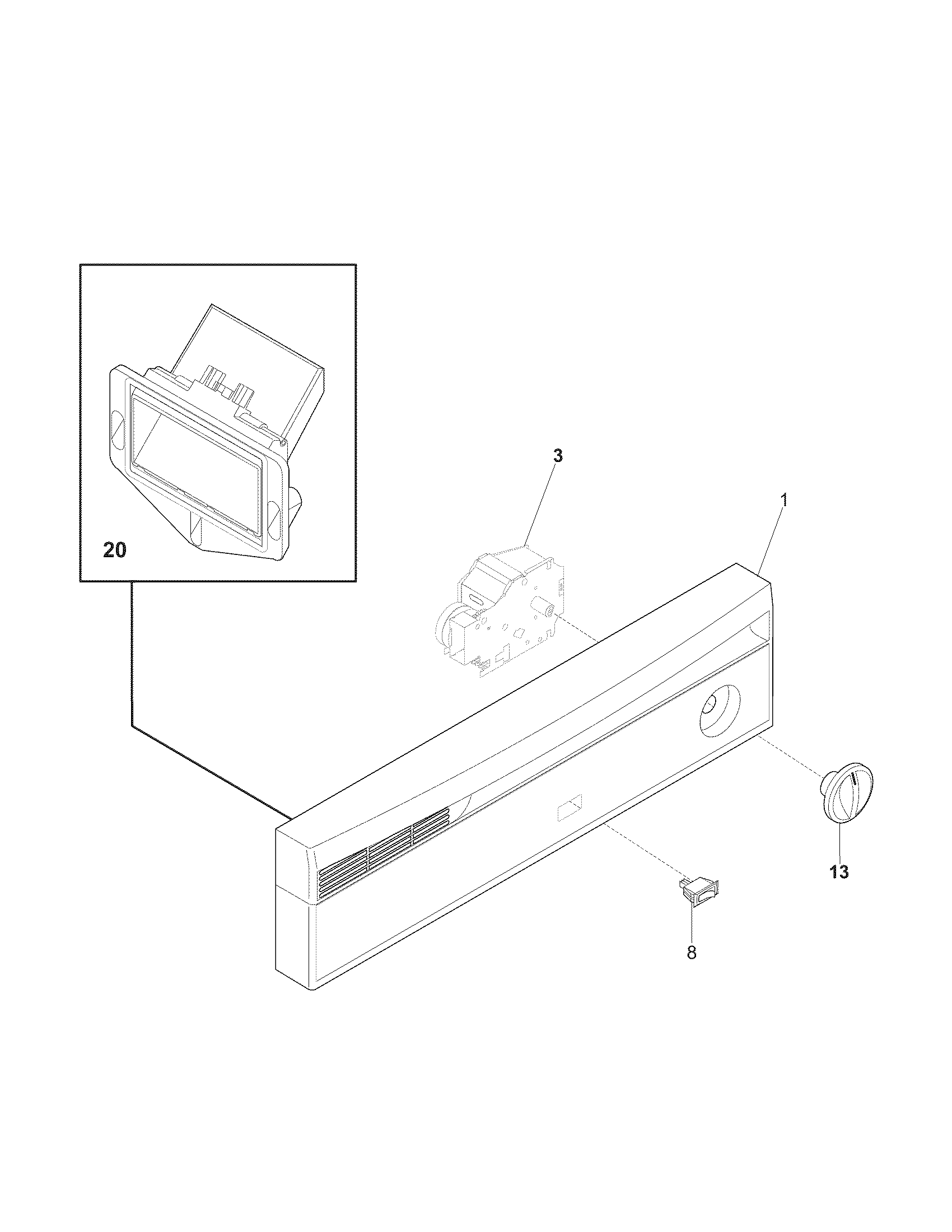

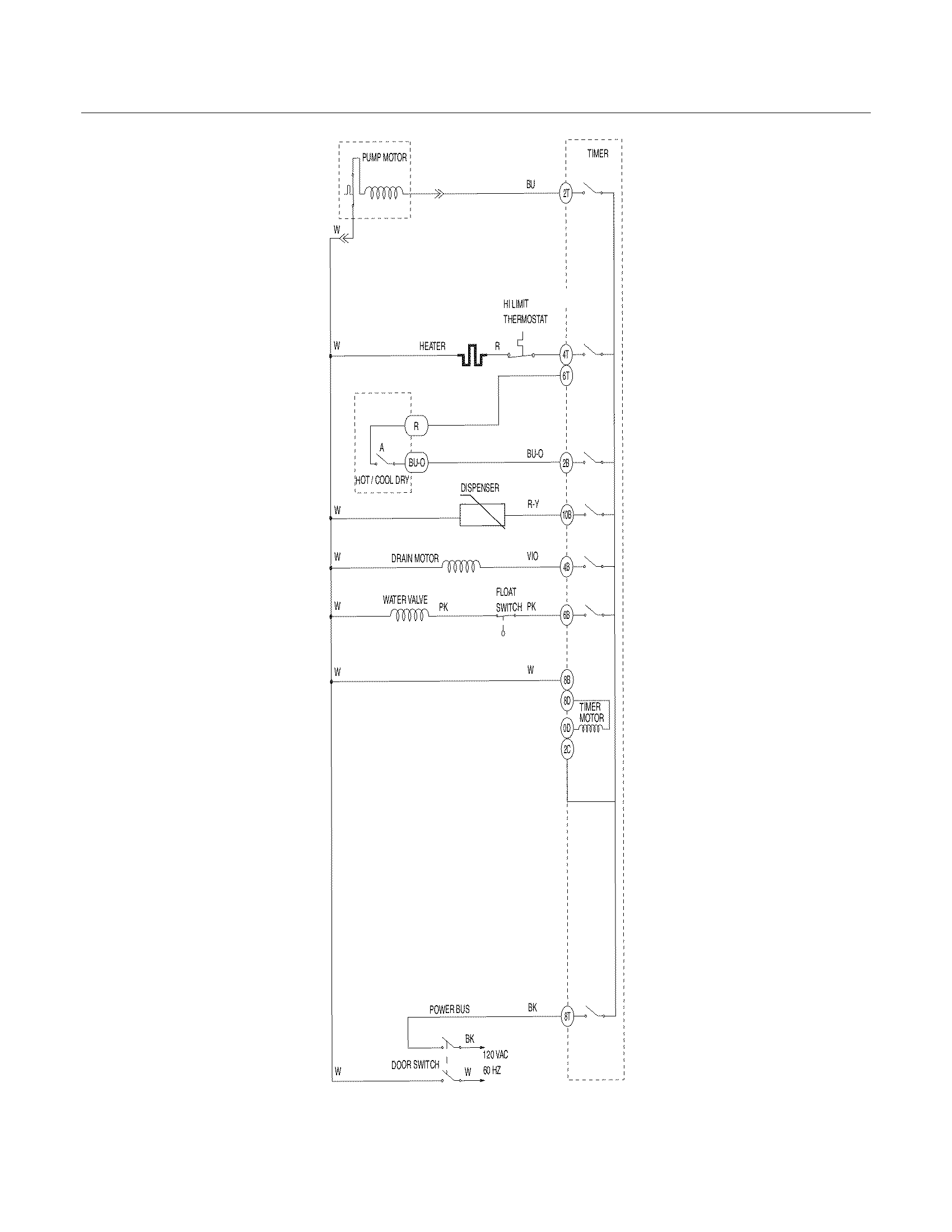

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 113 parts

Dishwasher Door Seal (replaces 154845301)#3

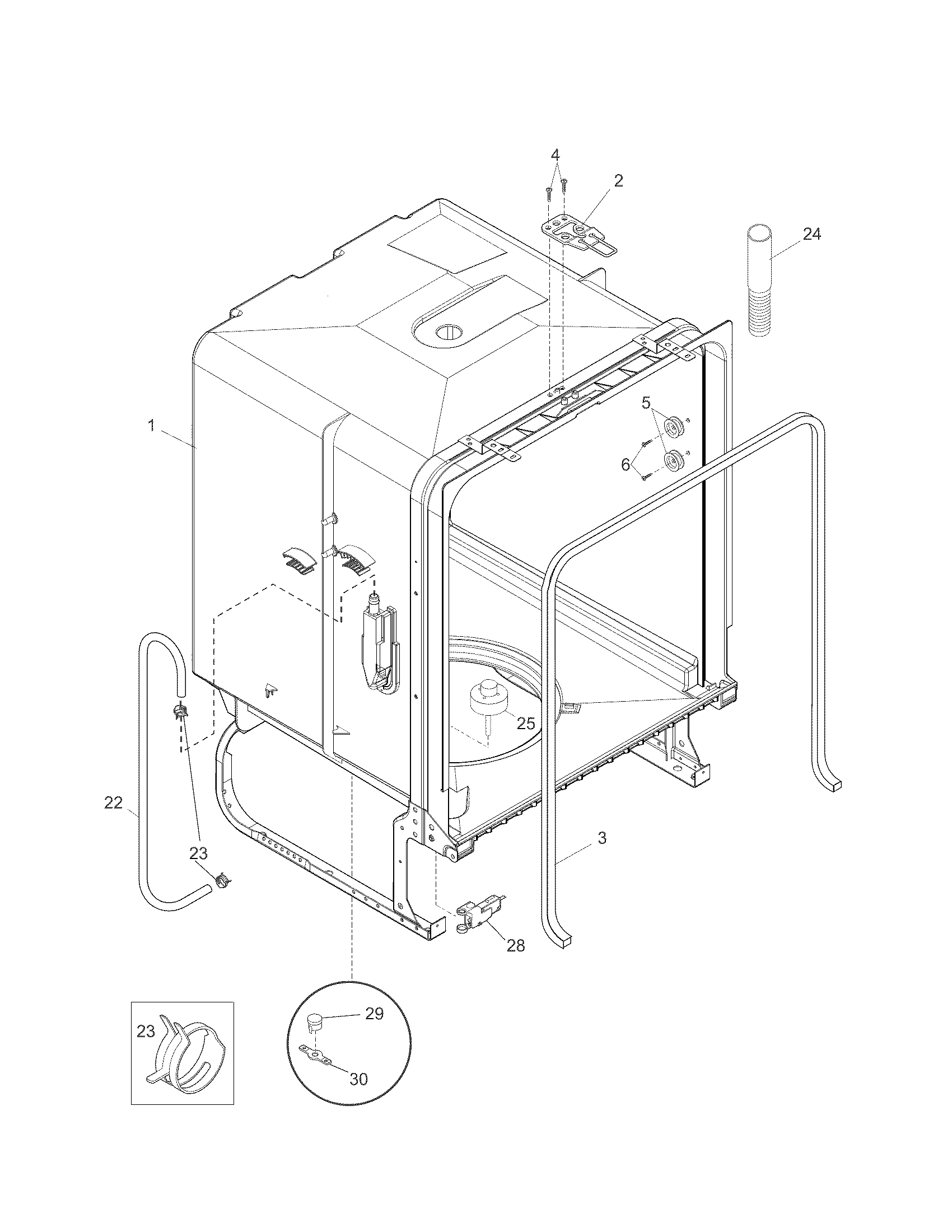

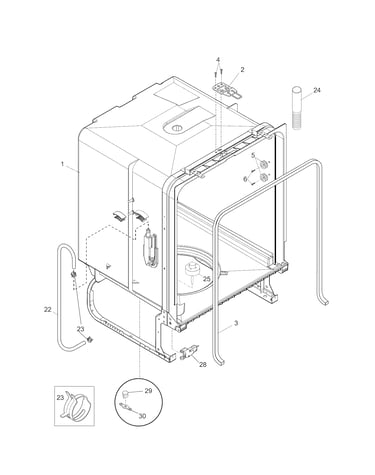

Tub Diagram

Dishwasher tub gasket

Part #154782401
Replaced by #154827601
?
Manufacturer substitution
This part replaces 154782401. Substitute parts can look different from the original.
BEST SELLER
In Stock
$21.98 |
29% OFF
MSRP: $31.00
Dishwasher Water Inlet Valve (replaces 154359802, 154476101)#3

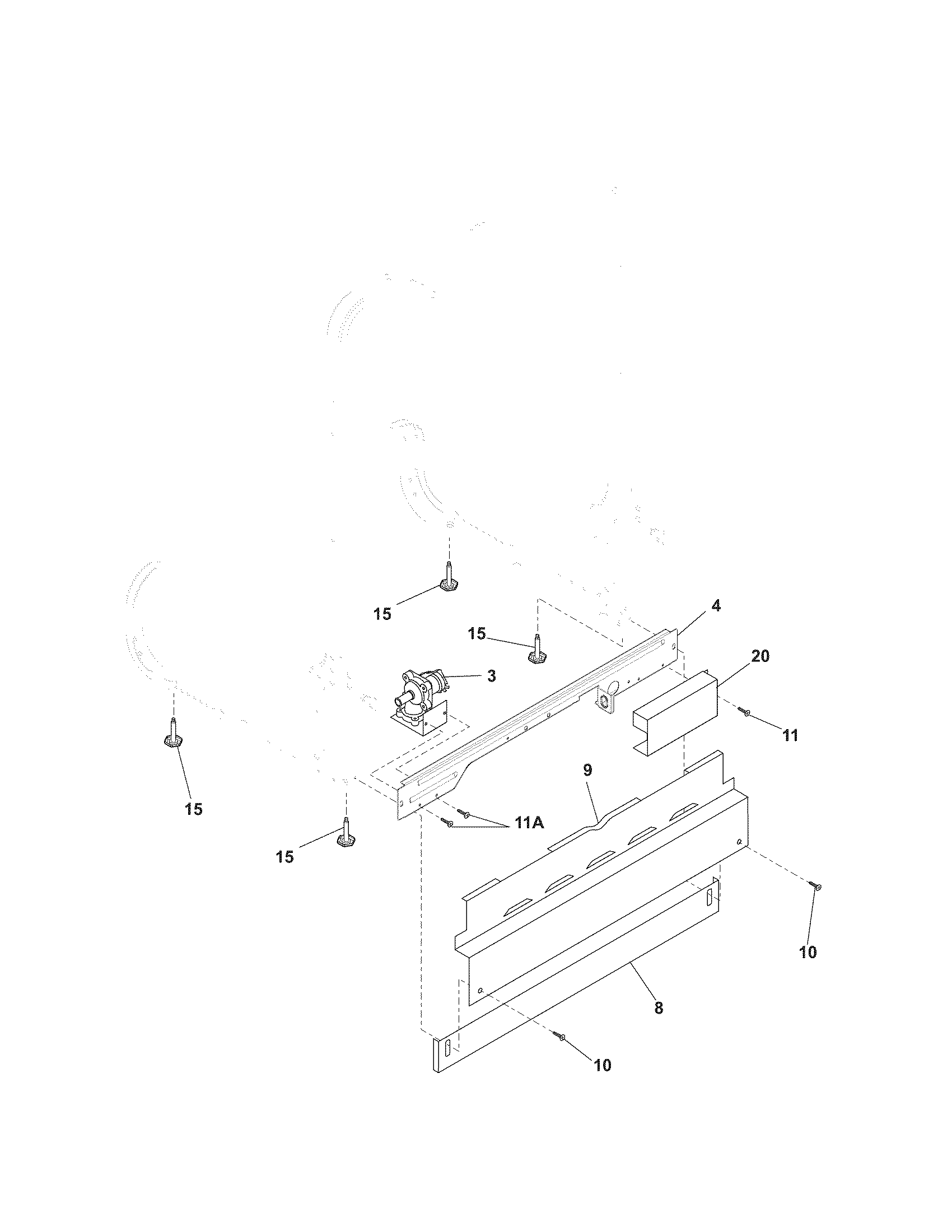

Frame Diagram

In Stock
$51.21 |
9% OFF
Phone Price: $56.21
Dishwasher Filter (replaces 154252401)#65

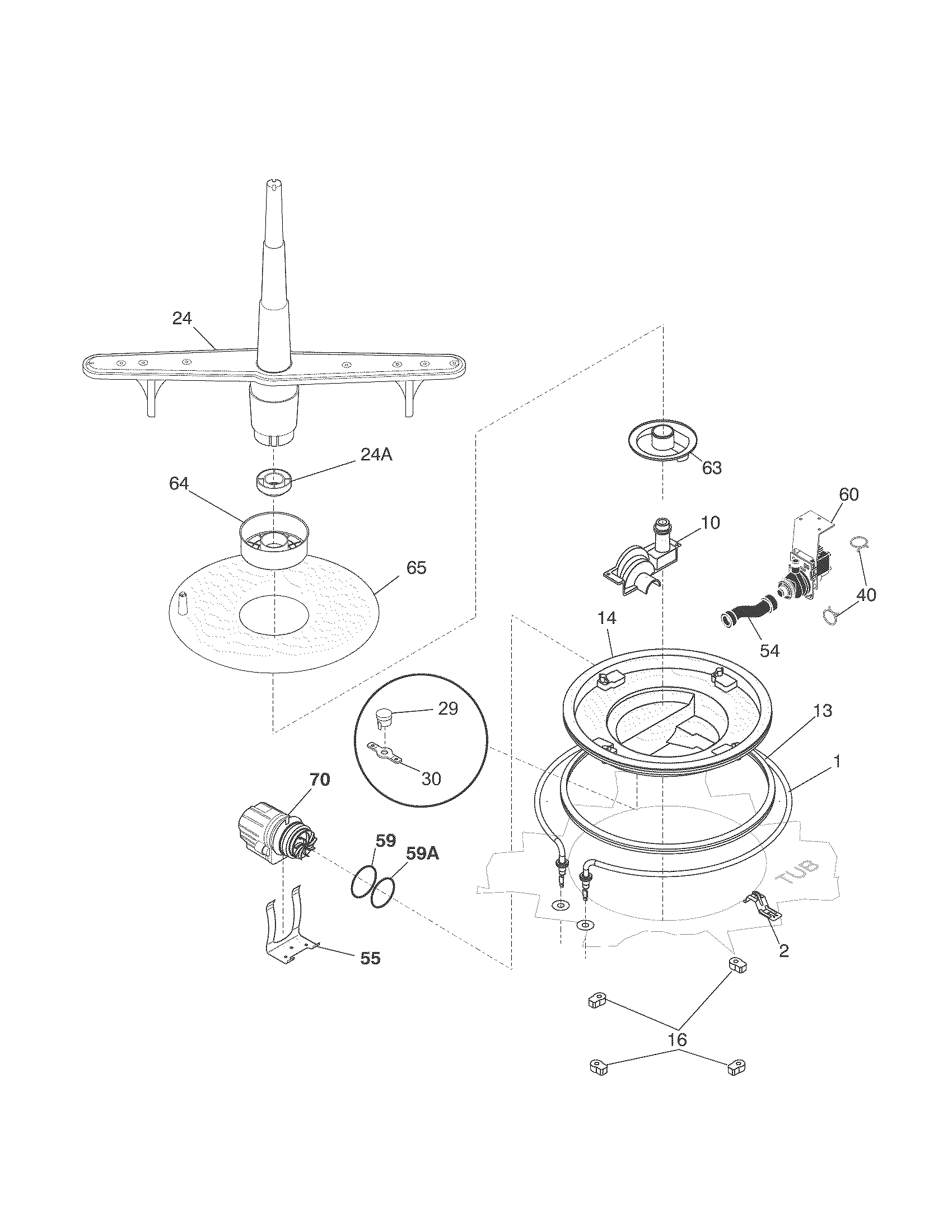

Motor & pump Diagram

Dishwasher filter

Part #154252401
Replaced by #5304506525
?
Manufacturer substitution
This part replaces 154252401. Substitute parts can look different from the original.
BEST SELLER
In Stock
$23.79 |
17% OFF
Phone Price: $28.79
Dishwasher Drain Hose (replaces 154753201)#24

Tub Diagram

Drain hose

Part #154753201
Replaced by #807117001
?
Manufacturer substitution
This part replaces 154753201. Substitute parts can look different from the original.
BEST SELLER
In Stock
$31.82 |
14% OFF
Phone Price: $36.82
Dishwasher Splash Shield Kit (replaces 154685101, 154685404)#NI

Tub Diagram

Gasket

Part #154685101
Replaced by #154701001
?
Manufacturer substitution
This part replaces 154685101. Substitute parts can look different from the original.
BEST SELLER
In Stock
$24.52 |
17% OFF
Phone Price: $29.52
Dishwasher Heating Element Nut (replaces 154106201, 5303351029)#NI

Motor & pump Diagram

In Stock
$7.99 |
11% OFF
Phone Price: $8.99
Dishwasher Door Spring (replaces 154226002, 154345901, 154345902, 154413301)#1

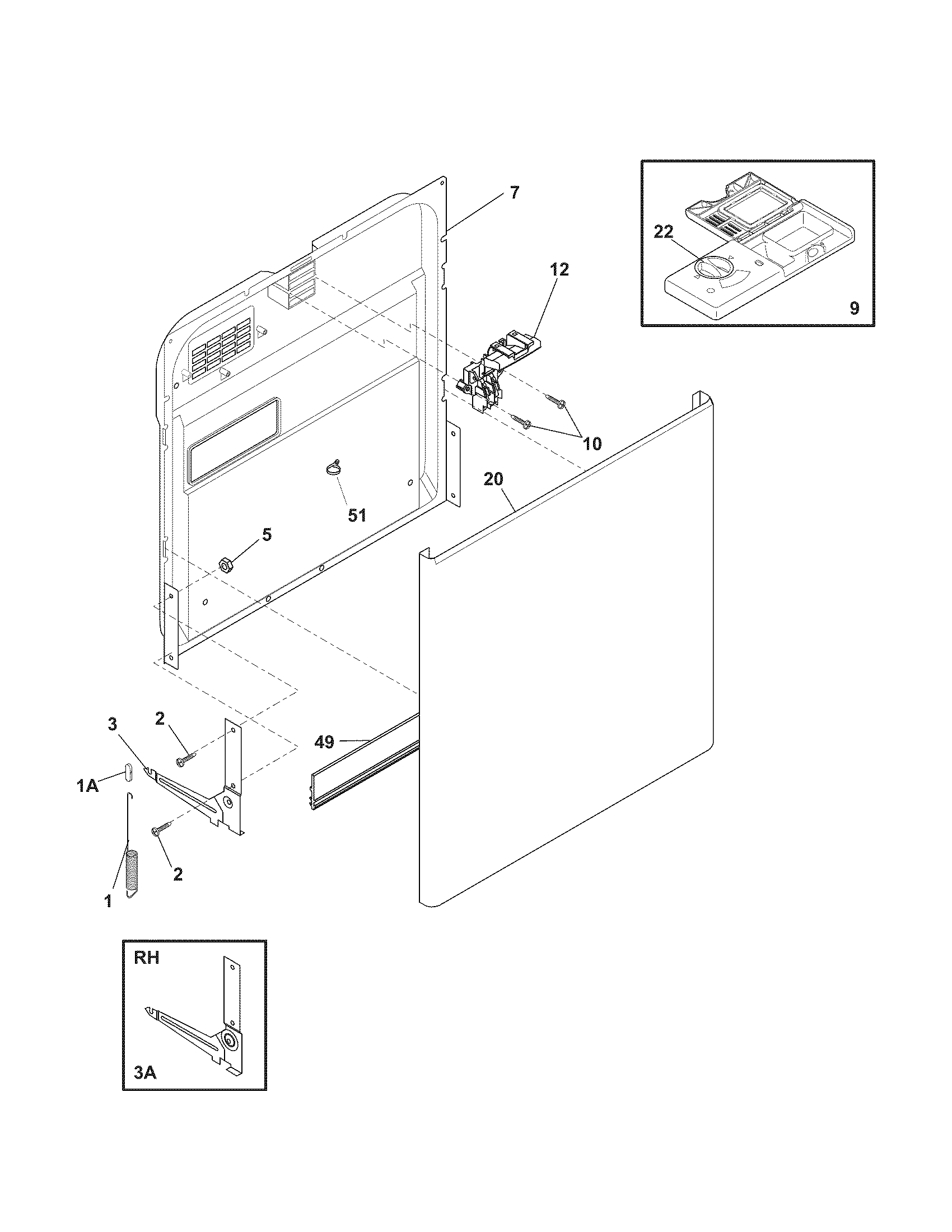

Door Diagram

In Stock
$26.55 |
20% OFF
Was: $33.19

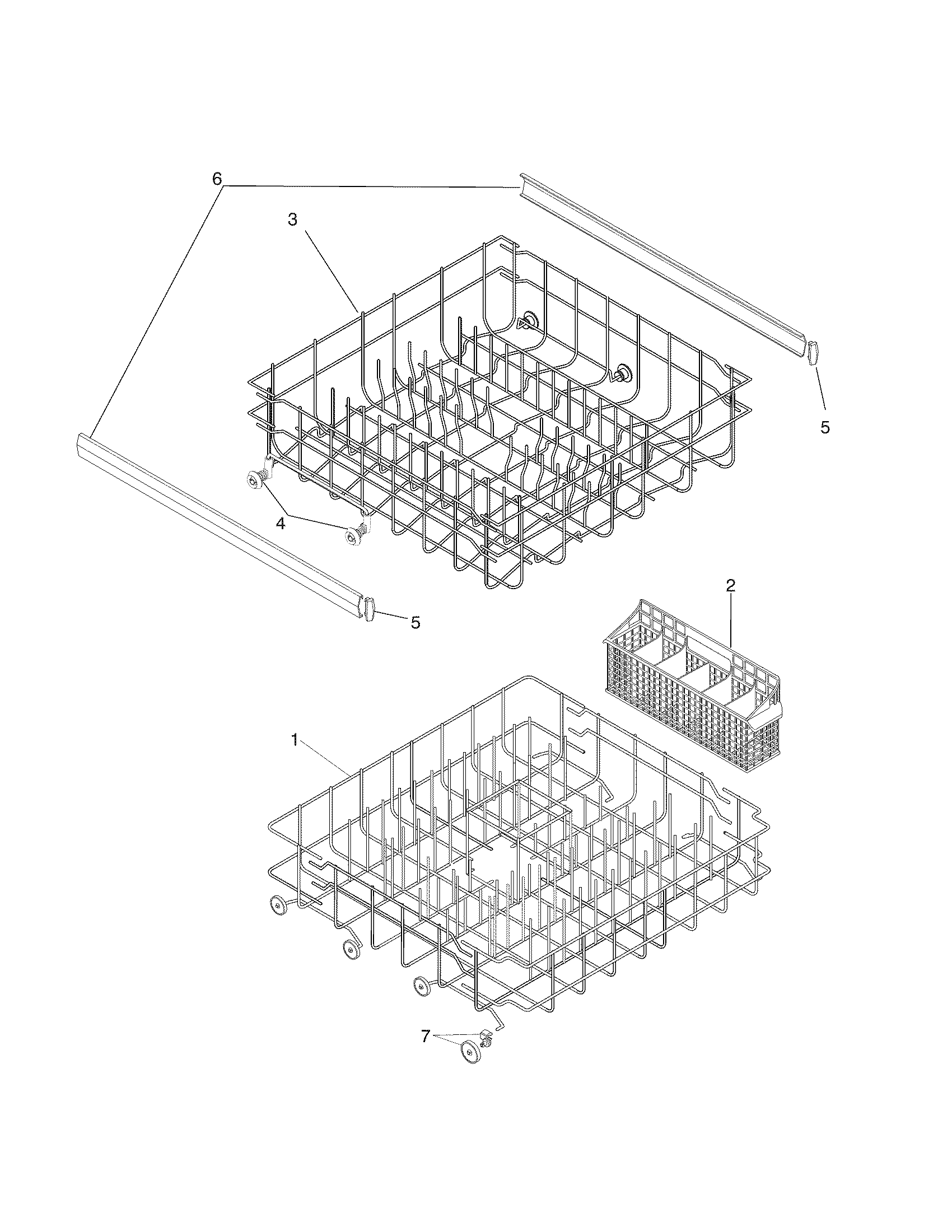

Dishwasher Dishrack Roller (replaces 154522901)#4

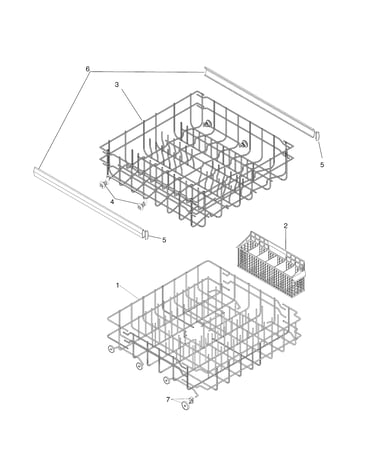

Racks Diagram

Dishwasher dishrack wheel, upper

Part #154522901
Replaced by #154522902
?
Manufacturer substitution
This part replaces 154522901. Substitute parts can look different from the original.
In Stock
$23.69 |
17% OFF
Phone Price: $28.69
Dishwasher Toe Panel (replaces 154322903, 154589403)#8

Frame Diagram

Toe plate

Part #154589403
Replaced by #154745503
?
Manufacturer substitution
This part replaces 154589403. Substitute parts can look different from the original.
This item is not returnable
In Stock
$17.19 |
10% OFF
Phone Price: $19.19
Dishwasher Detergent Dispenser Assembly (replaces 154230103, 154230105, 154542101)#9

Door Diagram

In Stock
$73.09 |
6% OFF
Phone Price: $78.09

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main cause: damaged rack height adjuster
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: broken door spring, damaged or broken door hinge
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
