Craftsman
Gas Pressure Washer

Model # 580752090 Official Craftsman pressure washer

Here are the diagrams and repair parts for Official Craftsman 580752090 pressure washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

O-ring Kit 7175116GS

#NI13

All parts diagram

O-ring kit

Part #7175116GS

Replaced by #705001

?
Manufacturer substitution
This part replaces 7175116GS. Substitute parts can look different from the original.
BEST SELLER
$26.82
16% OFF Phone Price : $31.82
In Stock
Relief Valve 194298GS
#14A

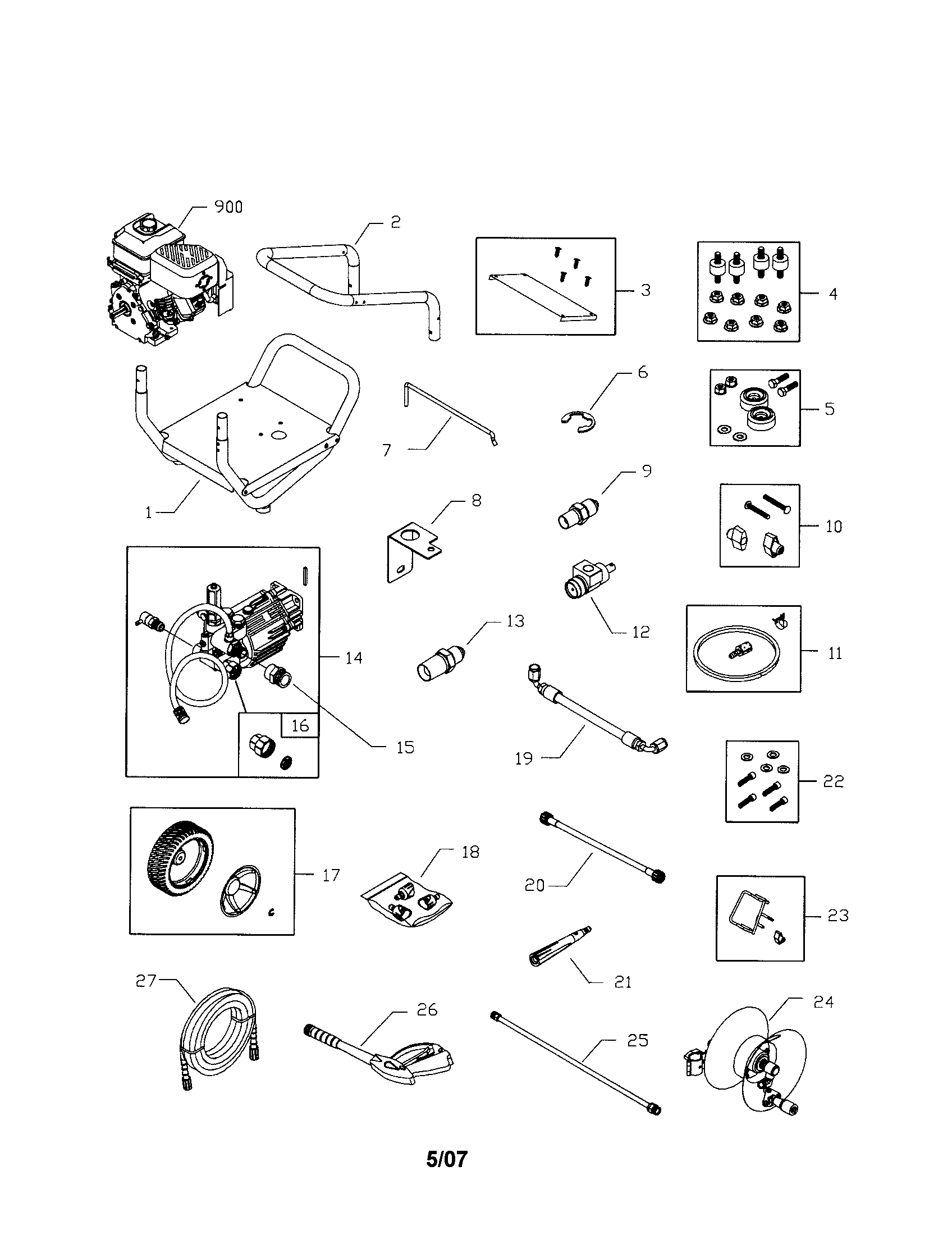

Main unit diagram

Relief valve

Part #194298GS

Replaced by #208673GS

?
Manufacturer substitution
This part replaces 194298GS. Substitute parts can look different from the original.
BEST SELLER
$20.84
19% OFF Phone Price : $25.84
In Stock
Pressure Washer Chemical Injection Kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs) 192914GS
#B

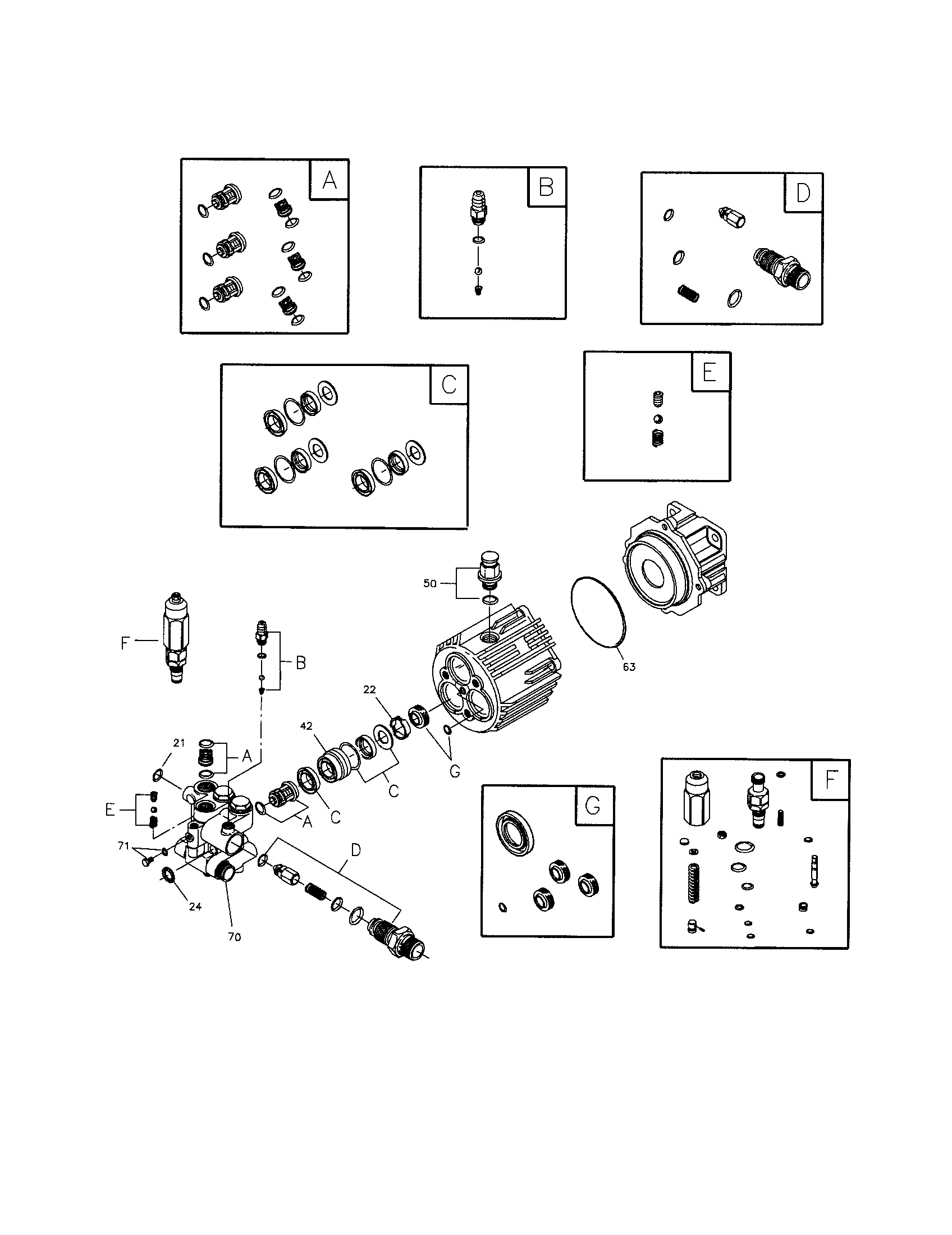

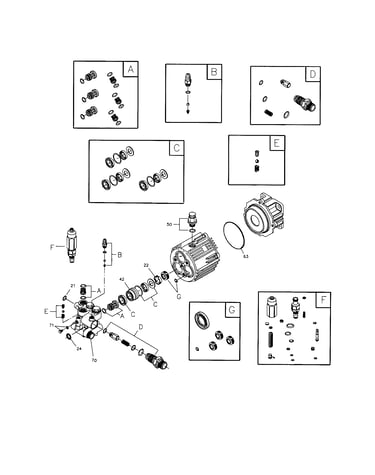

Pump diagram

Pressure washer chemical injection kit (replaces 11587628pgs, 1250280gs, 1560520gs, 1982520gs, 231b2327gs, 480480gs)

Part #192914GS

BEST SELLER
This item is not returnable
$22.89
18% OFF Phone Price : $27.89
In Stock
Pressure Washer Spray Nozzle (red) 201580AAGS
#18C

Main unit diagram

Pressure washer spray nozzle (red)

Part #201580AAGS

Replaced by #195983AAGS

?
Manufacturer substitution
This part replaces 201580AAGS. Substitute parts can look different from the original.
This item is not returnable
$16.28
11% OFF Phone Price : $18.28
In Stock
Pressure Washer Retainer Clip 192050GS
#17B

Main unit diagram

Pressure washer retainer clip

Part #192050GS

Replaced by #703976

?
Manufacturer substitution
This part replaces 192050GS. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Pressure Washer Garden Hose Adapter 95457GS
#15

Main unit diagram

Pressure washer garden hose adapter

Part #95457GS

$12.09
14% OFF Phone Price : $14.09
In Stock
Pressure Washer Quick-connect Nozzle 201580RGS
#18A

Main unit diagram

Pressure washer quick-connect nozzle

Part #201580RGS

This item is not returnable
$19.19
9% OFF Phone Price : $21.19
In Stock
Briggs & Stratton Pressure Washer Pump Saver (replaces 100515gs) 6039

#NI17

All parts diagram

Briggs & stratton pressure washer pump saver (replaces 100515gs)

Part #6039

$13.73
13% OFF Phone Price : $15.73
In Stock
Pressure Washer Gun Holder Kit 201661GS
#23

Main unit diagram

Pressure washer gun holder kit

Part #201661GS

$43.82
10% OFF Was : $48.69
In Stock
Pressure Washer Pump Shaft Key 23139DGS
#14B

Main unit diagram

Pressure washer pump shaft key

Part #23139DGS

This item is not returnable
$7.29
12% OFF Phone Price : $8.29
In Stock
