How to replace a pressure washer unloader valve

How to replace a pressure washer unloader valve

This step-by-step repair guide explains how to replace a pressure washer unloader valve.

When you let go of the trigger on the wand, the unloader valve opens to recirculate pressurized water to the pump, so the water won't overhead and damage the pump.

Common symptoms that indicate you need to replace the pressure washer unloader valve include:

  • The thermal release valve opens and sprays steam water from the pump. This happens when the unloader valve clogs or sticks shut.

  • Nozzle water pressure decreases quickly after you press the wand trigger. This symptom occurs when the unloader valve sticks open.

  • The engine stalls when you're not using the wand. When pressure builds up in the pump because the unloader valve isn't opening as it should, the engine can't continue to turn the pump shaft so the engine dies.

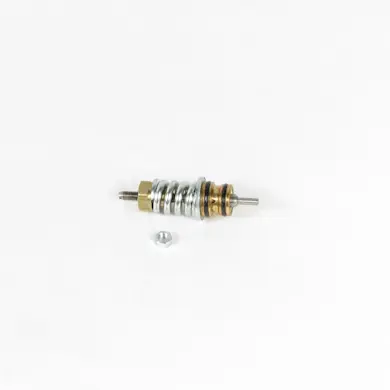

If the pressure washer unloader valve isn’t working, replace it using the manufacturer-approved gas pressure washer part. The unloader valve kit includes the O-ring and all parts needed for the repair.

Follow these steps to replace a Briggs & Stratton, Husqvarna, Troybilt, Snapper or Craftsman pressure washer unloader valve.

Quick links
Tools required
Wrench set
Silicone lubricant
Torque wrench (optional)
Work gloves
Repair difficulty
Time required
15 minutes or less
Repair difficulty
Time required
15 minutes or less

Instructions

  1. 01.

    Disconnect the spark plug

    Pull the spark plug wire off the spark plug on the pressure washer engine.

  2. 02.

    Remove the unloader valve

    Use an open-end wrench to turn the unloader valve counter-clockwise to remove.

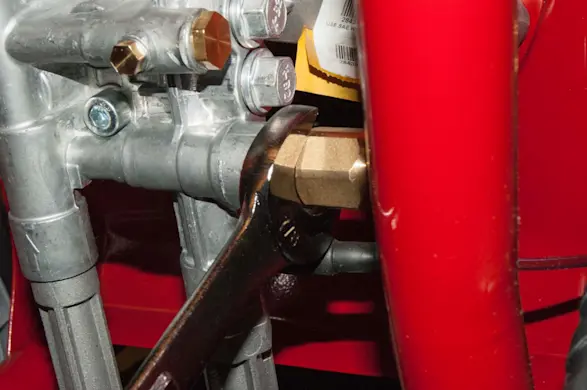

    PHOTO: Loosen the unloader valve.

    PHOTO: Loosen the unloader valve.

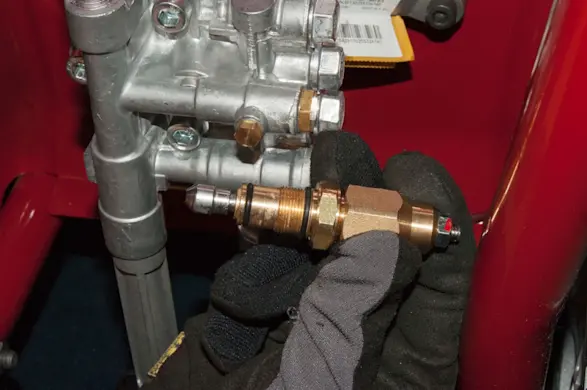

    PHOTO: Remove the unloader valve.

    PHOTO: Remove the unloader valve.

  3. 03.

    Install the new unloader valve

    Install the O-ring from the kit on the new unloader valve.

    Lubricate the O-ring on the new unloader valve with silicone lubricant.

    Thread the new unloader valve into the pump and tighten.

    Tip: : If you have a torque wrench, tighten the new unloader valve 10-12 ft.-lbs.

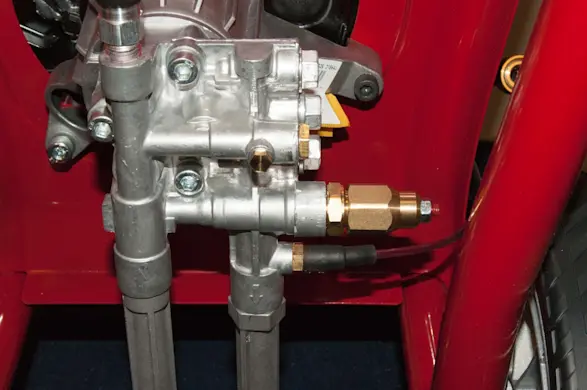

    PHOTO: Install the new unloader valve.

    PHOTO: Install the new unloader valve.

  4. 04.

    Reconnect the spark plug

    Reconnect the spark plug wire to the engine.

  5. 05.

    Check pressure washer operation

    Start the pressure washer and check for water leaks at the new unloader valve. Make sure that the new unloader valve works properly.

Warning: Undertaking repairs to appliances can be hazardous. Use the proper tools and safety equipment noted in the guide and follow all instructions. Do not proceed until you are confident that you understand all of the steps and are capable of completing the repair. Some repairs should only be performed by a qualified technician.
