GE GLD2800V00WW dishwasher Parts

A GE dishwasher typically lasts 10 to 12 years with normal household use. For your GE GLD2800V00WW, routine care (cleaning filters, keeping seals clean, and fixing small leaks early) is what most often determines whether it lands closer to 10 years or pushes beyond it; see the GLD2800V00WW owner’s manual for model-specific care steps.

• Average: 10 to 12 years
• Shorter life (8 to 10 years): heavy daily loads, hard water, poor draining, frequent overheating
• Longer life (12 to 15 years): consistent cleaning, correct detergent use, prompt repair of leaks and drain issues

• Keep the filter area clean; a clogged filter strains the wash system (see dishwasher not cleaning dishes video).
• Fix draining problems quickly; standing water can damage seals and pumps.
• Watch for leaks at the door and tub opening; replace worn seals when needed.
• Use hot water at the sink before starting a cycle; many built-in dishwashers perform best with hot incoming water.
• Avoid overloading; blocked spray arms reduce cleaning and increase run time.

These are common wear items that can help prevent bigger failures when replaced at the right time:

• Dishwasher filter WD22X10077 (helps prevent debris from recirculating)
• Dishwasher door seal, lower WD08X10059 (helps stop leaks at the bottom of the door)
• Dishwasher tub gasket WD08X10018 (helps seal the tub opening)

Once a dishwasher starts leaking, not draining, or washing poorly, the machine often runs longer and works harder. That extra strain can shorten the life of major components like the pump and motor, so basic maintenance usually pays off.

Last updated: February 2026

On your GE dishwasher model GLD2800V00WW, the model number is printed on the rating label located just inside the door opening, typically along the left side of the inner frame. Open the door fully and look for a sticker with both the model and serial numbers.

The rating label usually includes several identifiers. Use these to match parts and diagrams correctly.

• Model number (example: GLD2800V00WW)
• Serial number (helps confirm production details)
• Electrical ratings (volts/amps)
• Certification markings
• Sometimes a bar code

1. Open the dishwasher door.
2. Check the left inner door frame first.
3. If you do not see it there, scan the top edge of the tub opening and the right inner frame.
4. Wipe the area with a damp cloth if the print is hard to read.

We use the exact model number to ensure you get the correct GE dishwasher parts (for example, a control, pump, or rack component). Even small model-number differences can change the correct part fit.

For diagrams and identification help specific to this unit, use the GLD2800V00WW owner’s manual.

Last updated: February 2026

The most common GE dishwasher problem is a drain issue: the dishwasher finishes with water left in the tub because the filter area, drain path, or drain pump is restricted. On the GE GLD2800V00WW, leaks at the door seal and occasional start or control problems are also common.

• Standing water after a cycle: clogged filter area, blocked drain hose/air gap, or a weak drain pump
• Slow draining with gurgling: partial blockage in the drain tube or disposer connection
• Water on the floor at the front: worn door seal or lower door seal
• Not cleaning well: clogged filter, spray arm blockage, low water temperature
• Won’t start or stops mid-cycle: door not latching, control issue, or an error code

1. Cancel the cycle and run a drain function (if available on your control).
2. Check the sink/disposer connection for a plug or blockage.
3. Inspect the drain hose for kinks and make sure it is not rubbing the frame.
4. Confirm incoming hot water is 120°F to 150°F; 120°F minimum is needed for best wash performance.
5. If the unit was just installed or moved, follow the setup checks in the installation guide.

Drain restrictions and low wash temperature reduce cleaning performance and can leave odors behind. Fixing the root cause (filter, drain path, or pump) helps the dishwasher wash, drain, and dry more consistently.

For control-related issues, we use the GE dishwasher error codes guide to match symptoms to the right checks and parts.

Last updated: February 2026

Yes, for a GE GLD2800V00WW dishwasher we see many customers successfully replace common wear parts themselves (filters, racks, seals, and some pumps) by shutting off power and water, following the steps in the installation guide, and working carefully with basic hand tools.

Good DIY candidates (typical for this model style):

• Cleaning or replacing a dishwasher filter such as dishwasher filter WD22X10077

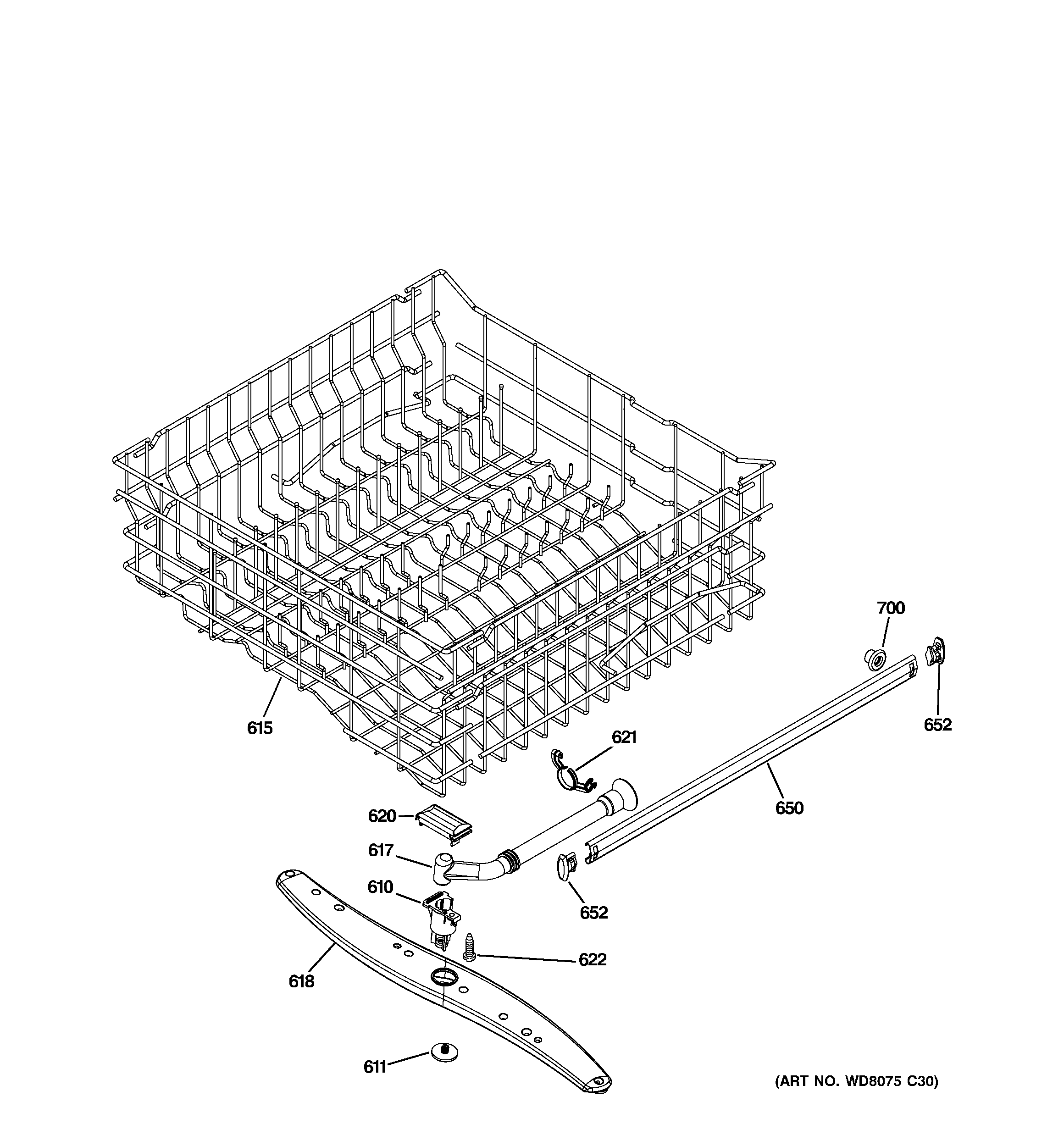

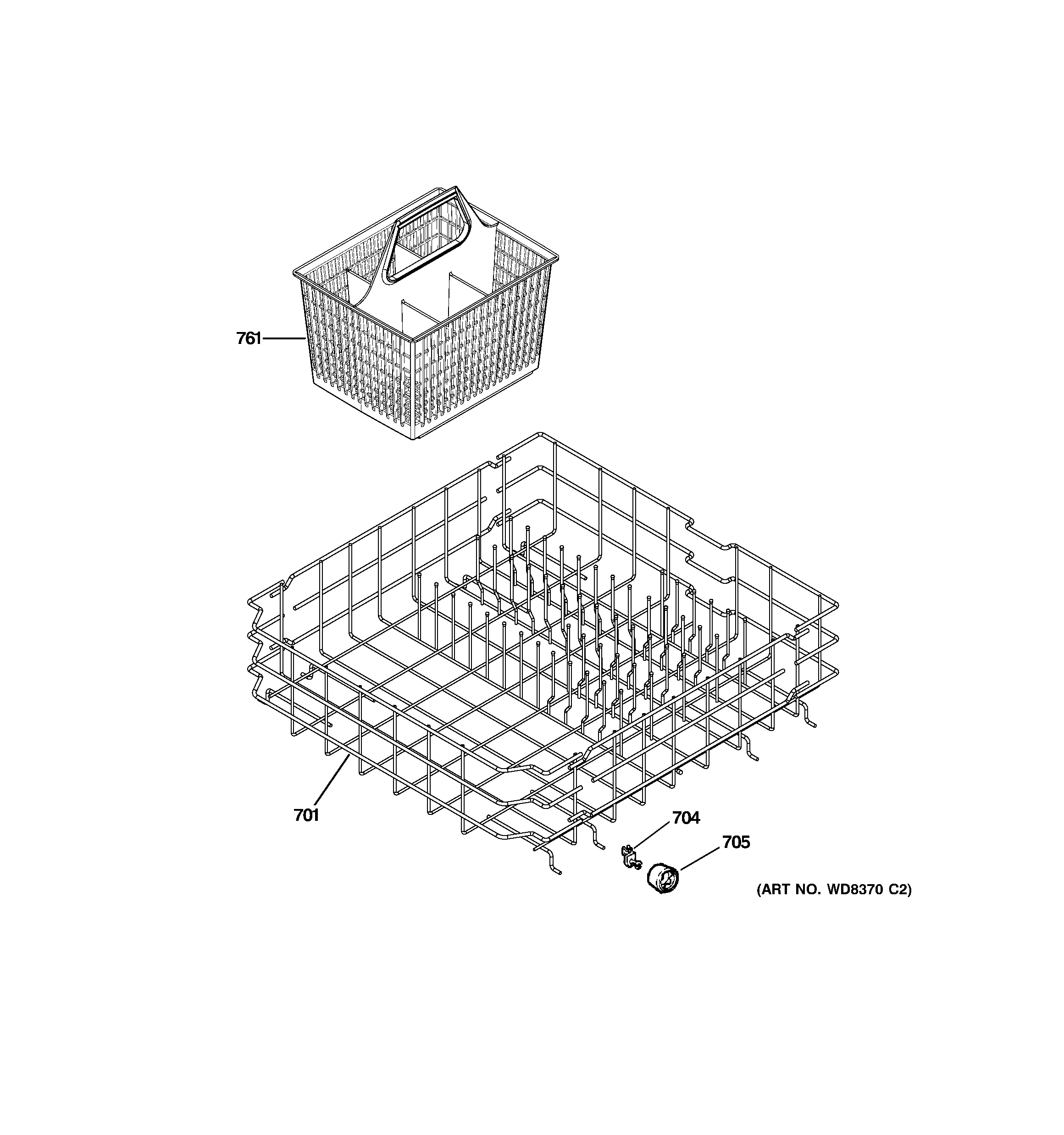

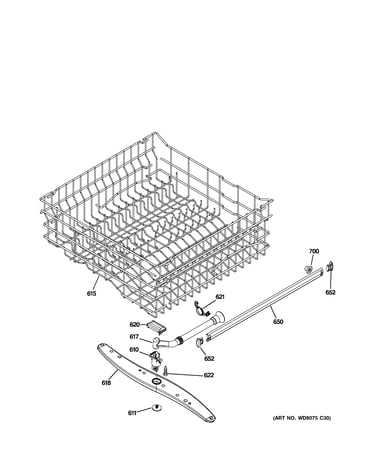

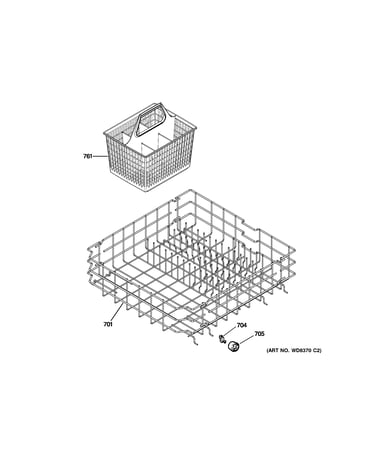

• Replacing a rack component like lower rack WD28X10385
• Replacing a drain component like drain tube WD24X10045

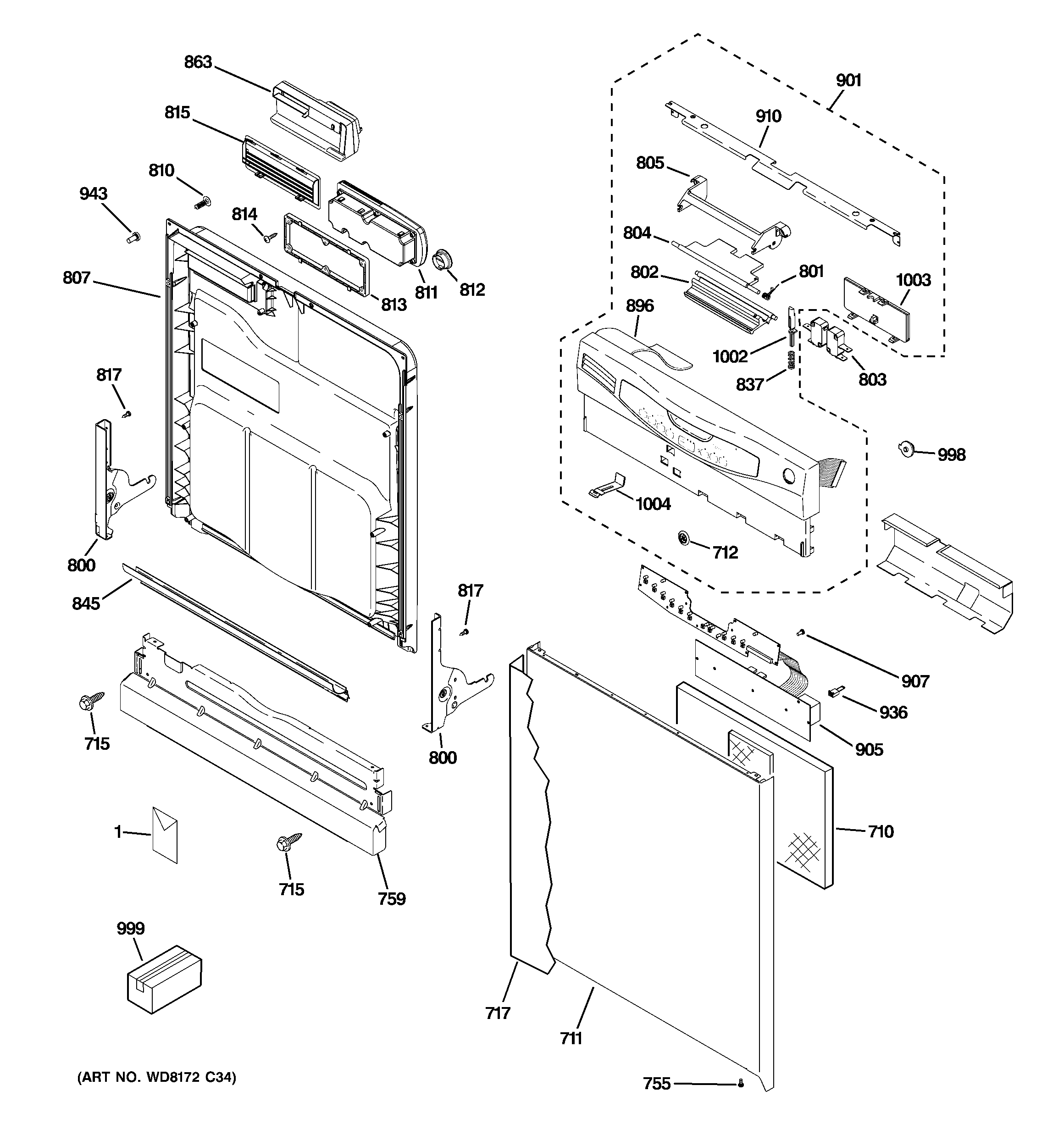

• Replacing a door sealing part such as dishwasher door seal, lower WD08X10059
• Replacing a drain pump such as dishwasher drain pump WD26X10046

Use extra caution (more time, more disassembly, higher leak risk):

• Water supply repairs, including the dishwasher water inlet valve WD15X10014

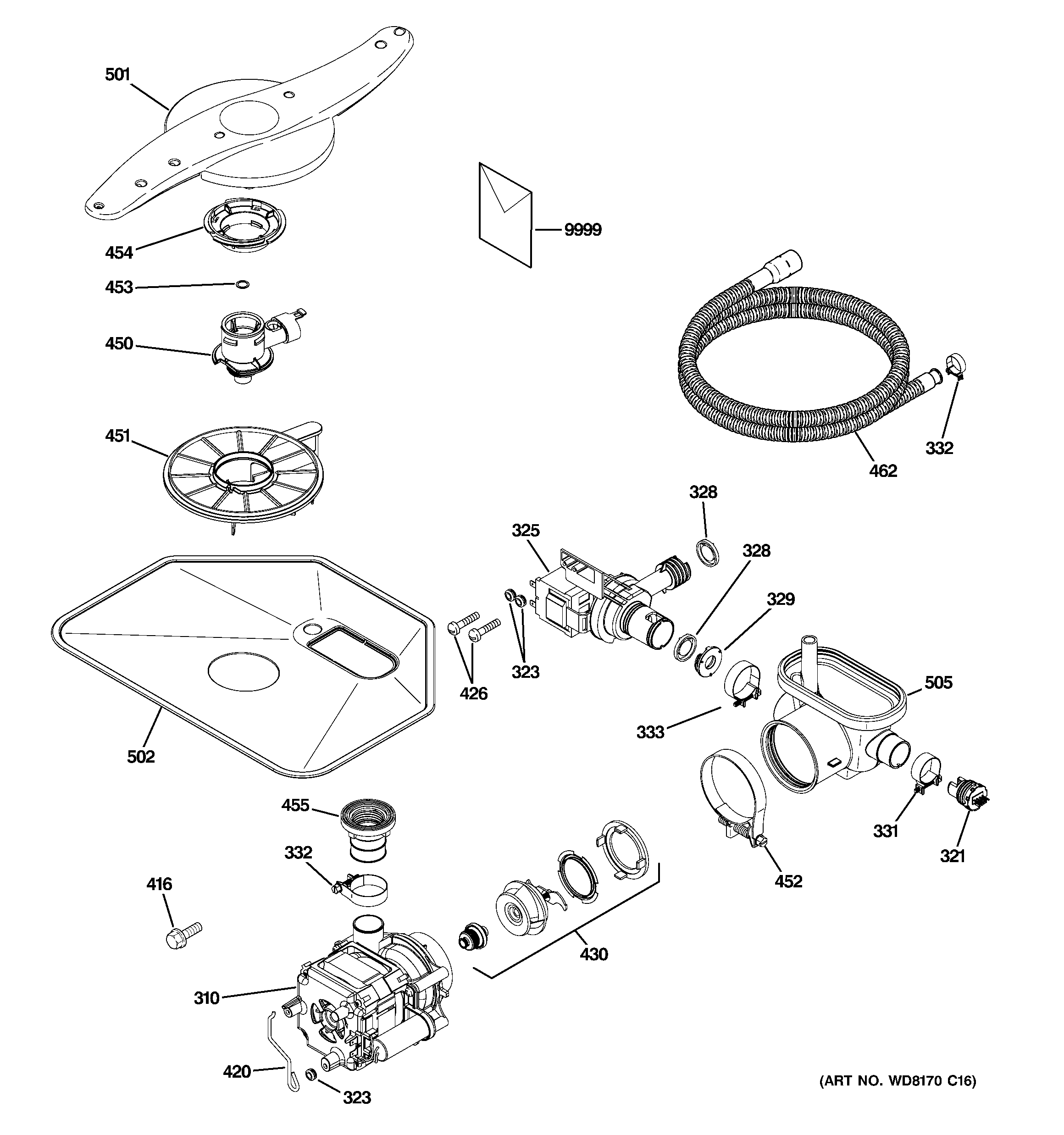

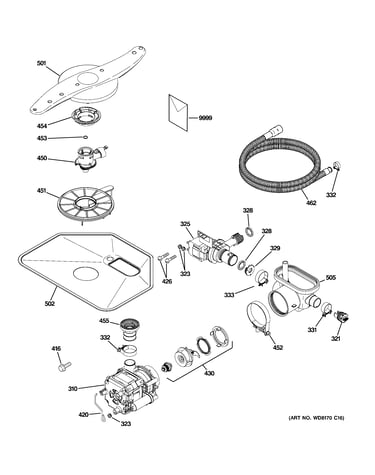

• Major pump/motor work such as mechanism assembly WD26X10053
• Control and wiring work such as tactile control WD21X10505

Before you start any repair:

• Turn off power at the breaker (not just the control panel).
• Shut off the dishwasher water supply valve.
• Protect floors; keep towels and a shallow pan ready for water.
• Wear gloves and safety glasses.
• Take photos of wire and hose routing before disconnecting anything.

The install instructions for this GE dishwasher include several points that also apply when you pull the unit for service:

Dishwasher repairs often fail for two avoidable reasons: the dishwasher is not level after reinstallation, or a hose/wire gets routed incorrectly. Following the same leveling and routing practices used during installation helps prevent leaks, poor cleaning, and door issues.

Last updated: February 2026
