Model #DWSR475GY2AA GE gas dryer

Here are the diagrams and repair parts for GE DWSR475GY2AA gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

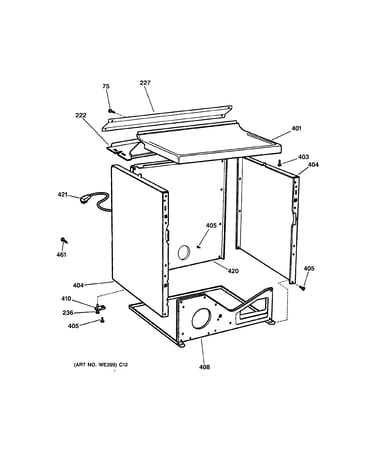

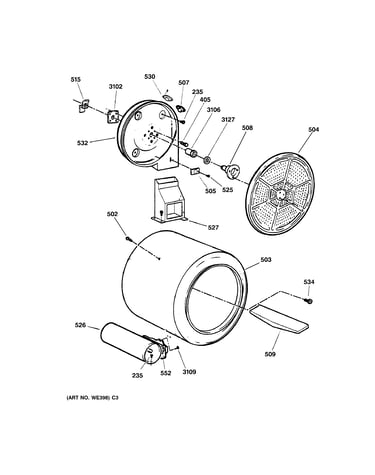

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 125 parts

    Dryer LP Conversion Kit#9999

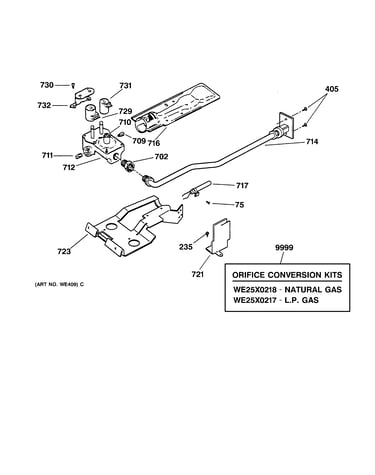

    Gas valve & burner assembly Diagram

    Conversion kit orifice

    Part #WE25X0217
    Replaced by #WE25X217
    ?
    Manufacturer substitution
    This part replaces WE25X0217. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $39.99
    Dryer Drum Belt#213

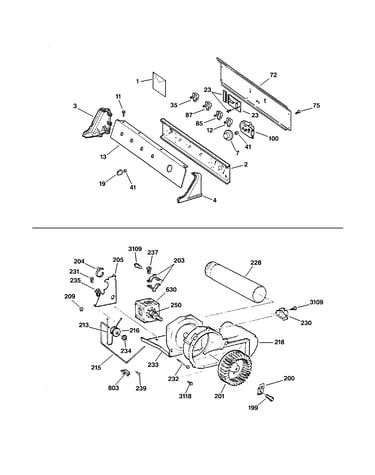

    Backsplash, blower & motor Diagram

    Drive belt

    Part #WE12M0022
    Replaced by #WE12M29
    ?
    Manufacturer substitution
    This part replaces WE12M0022. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $32.59
    Dryer Drum Front Glide Pad#316

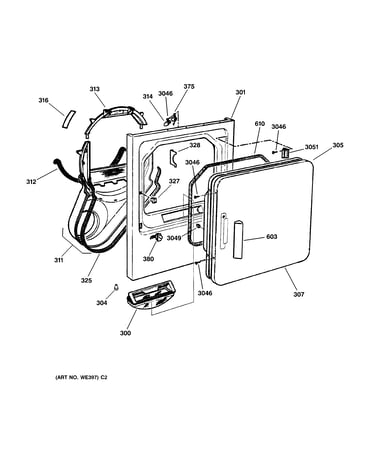

    Front panel & door Diagram

    Slide drum

    Part #WE01M0316
    Replaced by #WE1M1067
    ?
    Manufacturer substitution
    This part replaces WE01M0316. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $7.19
    Dryer Drum Felt Seal#312

    Front panel & door Diagram

    Felt

    Part #WE09M0015
    Replaced by #WE09X27634
    ?
    Manufacturer substitution
    This part replaces WE09M0015. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.00
    Dryer Lint Chute Assembly#311

    Front panel & door Diagram

    Air duct

    Part #WE14M0076
    Replaced by #WE14X25080
    ?
    Manufacturer substitution
    This part replaces WE14M0076. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $108.60
    Dryer Drum Bearing, Front#313

    Front panel & door Diagram

    Drum bearing

    Part #WE03M0020
    Replaced by #WE3M26
    ?
    Manufacturer substitution
    This part replaces WE03M0020. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $52.69
    Dryer Door Catch#327

    Front panel & door Diagram

    Latch clip

    Part #WE01X0903
    Replaced by #WE1M1011
    ?
    Manufacturer substitution
    This part replaces WE01X0903. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $10.29
    Dryer Idler Pulley#216

    Backsplash, blower & motor Diagram

    Idler pulley

    Part #WE12M0008
    Replaced by #WE12X83
    ?
    Manufacturer substitution
    This part replaces WE12M0008. Substitute parts can look different from the original.
    In Stock
    $30.29
    Dryer Door Switch#380

    Front panel & door Diagram

    Door switch

    Part #WE4M157
    Replaced by #WE4M415
    ?
    Manufacturer substitution
    This part replaces WE4M157. Substitute parts can look different from the original.
    In Stock
    $22.09
    Dryer Door Seal#325

    Front panel & door Diagram

    Gasket

    Part #WE01M0376
    Replaced by #WE1M825
    ?
    Manufacturer substitution
    This part replaces WE01M0376. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.79

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
