Maytag CDNS22V9/BR35E refrigerator

Maytag CDNS22V9/BR35E refrigerator Parts

Here are the diagrams and repair parts for Maytag CDNS22V9/BR35E refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

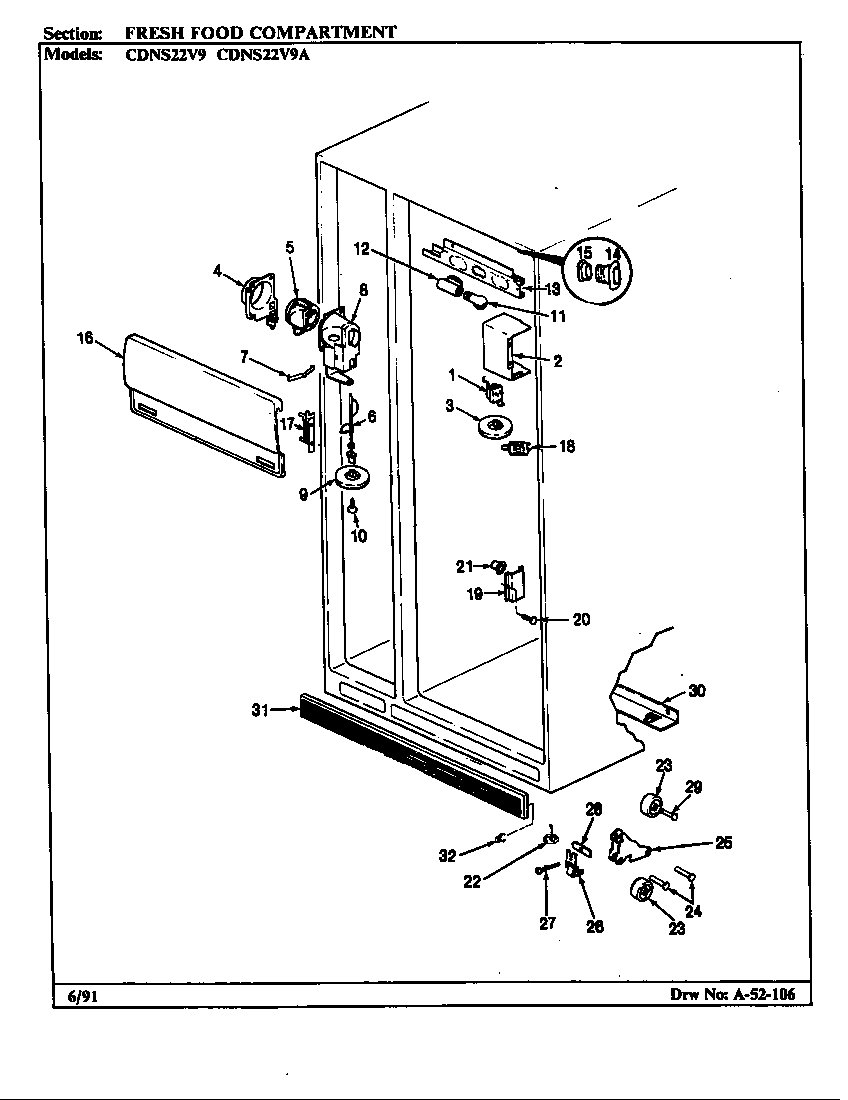

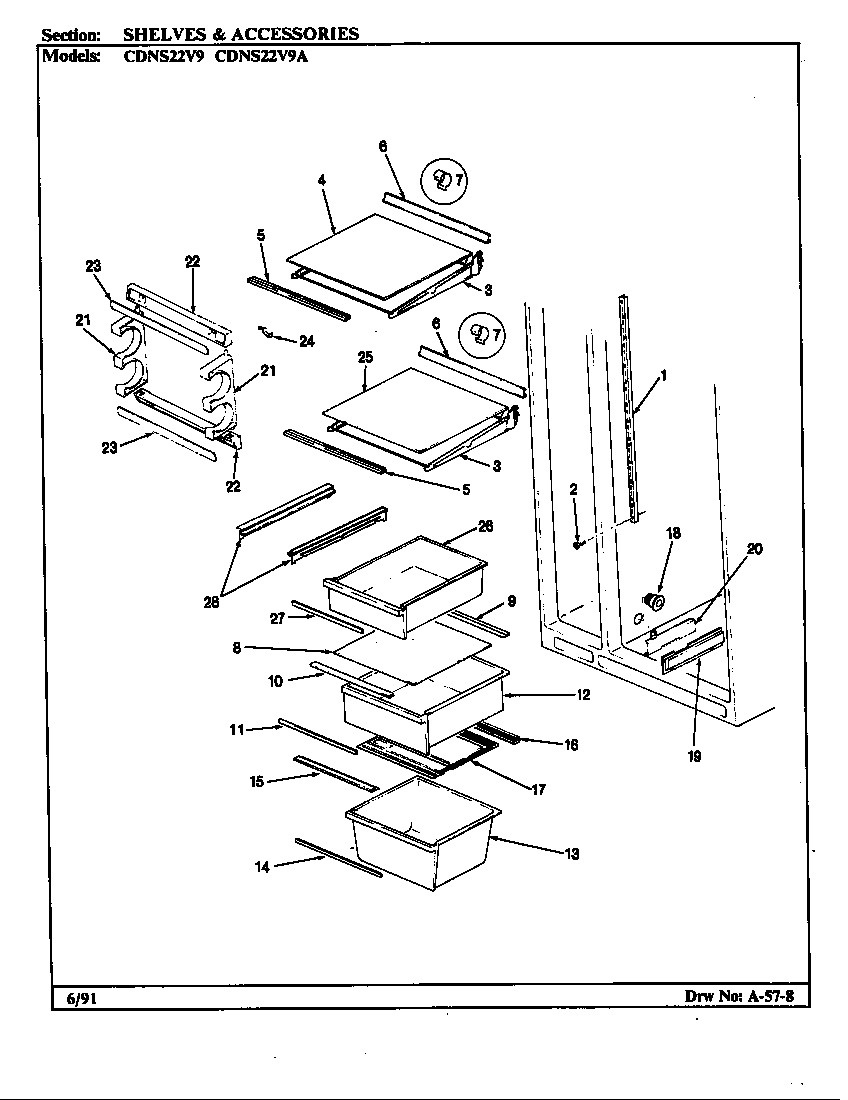

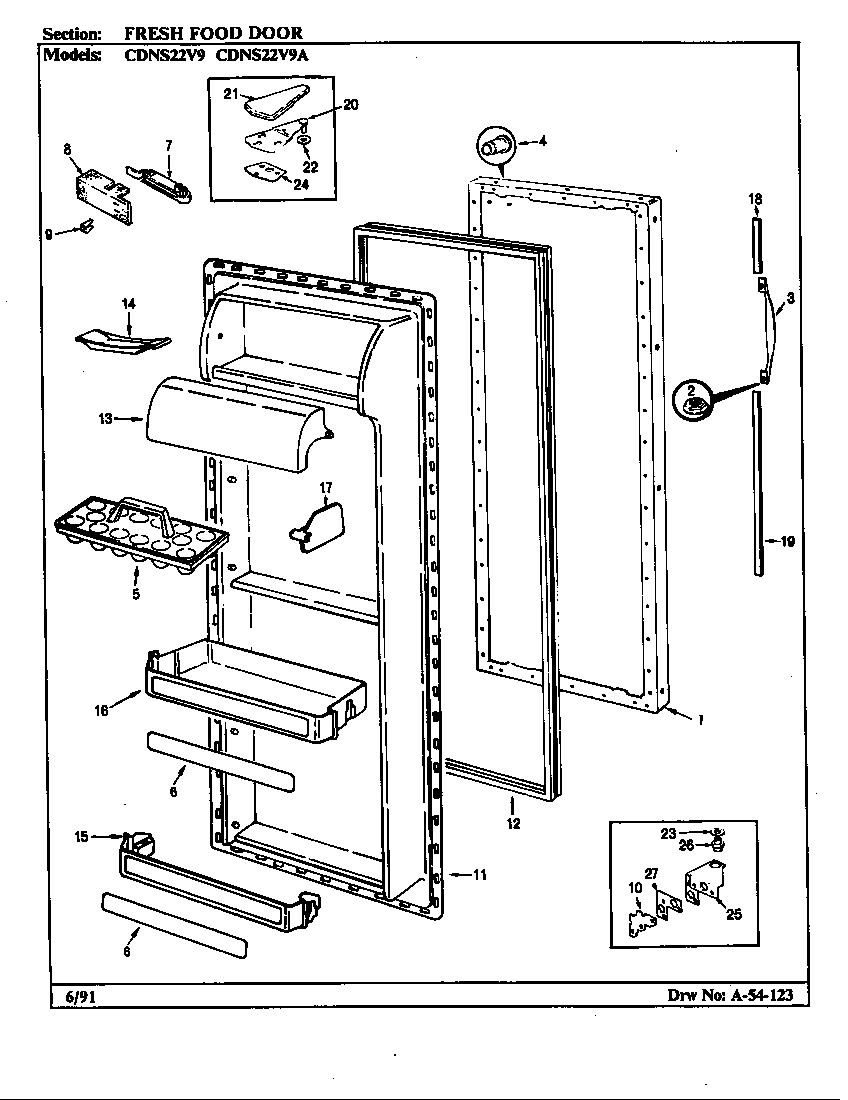

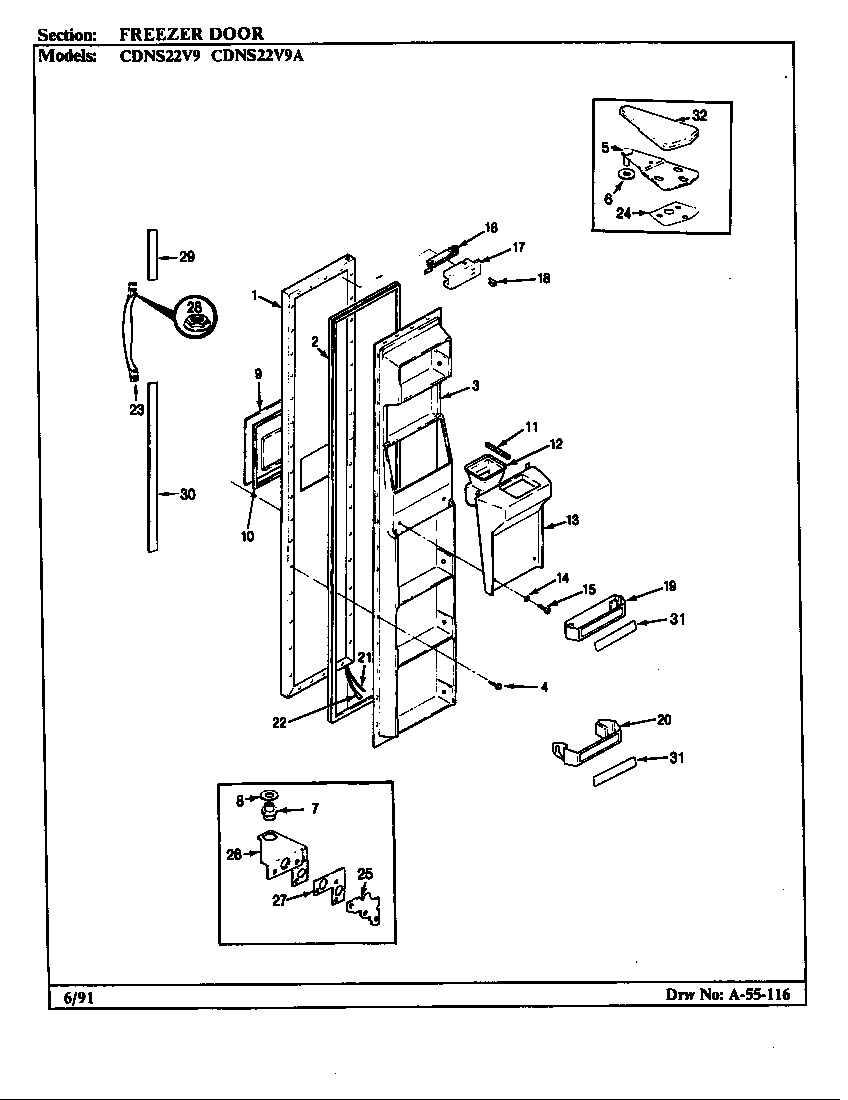

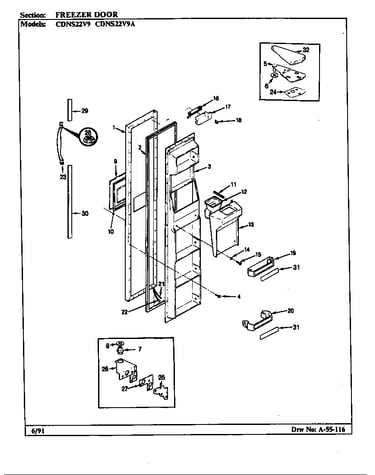

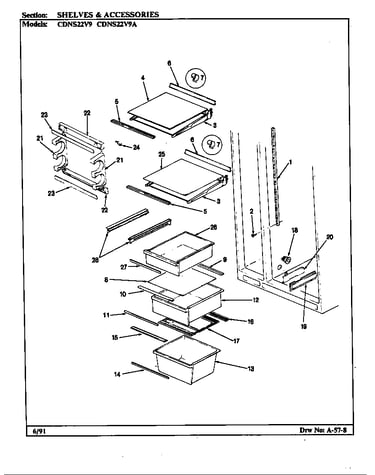

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CDNS22V9/BR35E Refrigerator

  • Refrigerator Uv Filter Dryer for Maytag CDNS22V9/BR35E - Part WPW10143759

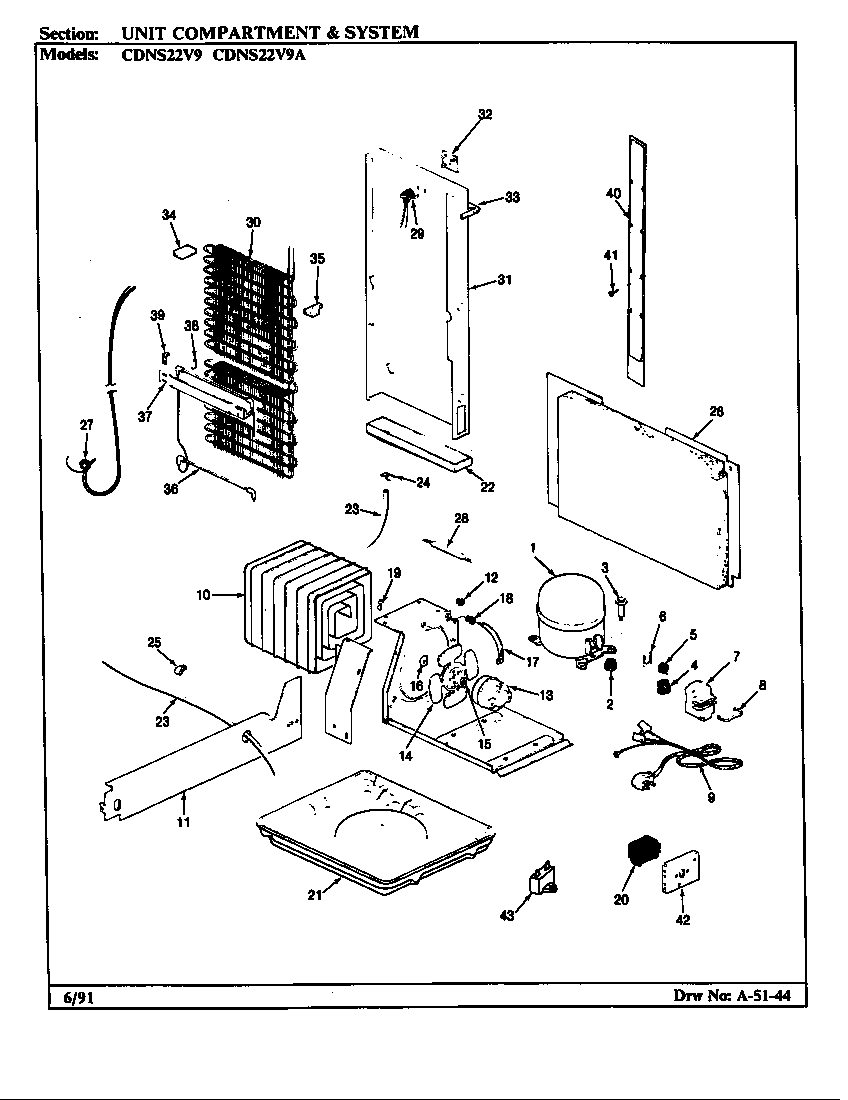

    Unit compartment & system (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Drier

    Part #13900

    Replaced by #WPW10143759

    Info Icon
    Manufacturer substitution
    This part replaces 13900. Substitute parts can look different from the original.
    In Stock
    $22.85
    21% OFF Phone Price : $28.85Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Run Capacitor for Maytag CDNS22V9/BR35E - Part WPW10662129

    Unit compartment & system (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Run Capacitor

    Part #65889-2

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 65889-2. Substitute parts can look different from the original.
    In Stock
    $45.09
    12% OFF Phone Price : $51.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Condenser Fan Motor for Maytag CDNS22V9/BR35E - Part 833697

    Unit compartment & system (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Condenser Fan Motor

    Part #68481-3

    Replaced by #833697

    Info Icon
    Manufacturer substitution
    This part replaces 68481-3. Substitute parts can look different from the original.
    In Stock
    $64.83
    8% OFF Phone Price : $70.83Info Icon
    Minus Item
    Qty
    Plus Item
  • 40 Watt Refrigerator Bulb for Maytag CDNS22V9/BR35E - Part W11679940

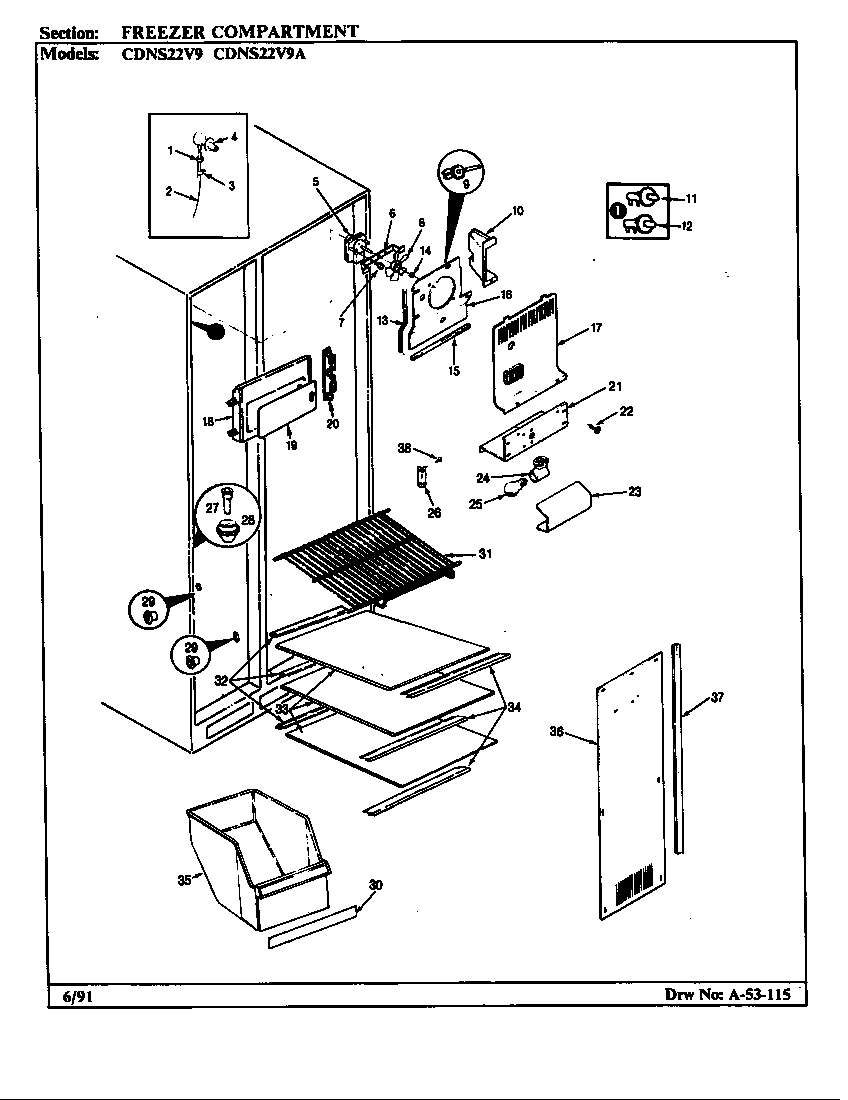

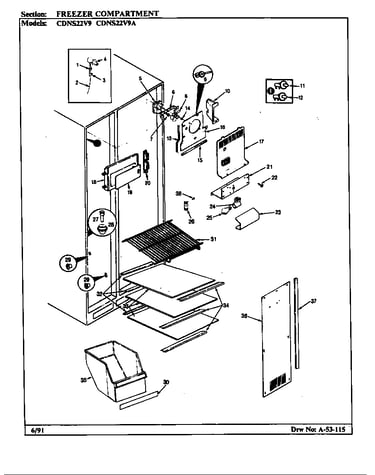

    Freezer compartment (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Light Bulb

    Part #31956-1

    Replaced by #W11679940

    Info Icon
    Manufacturer substitution
    This part replaces 31956-1. Substitute parts can look different from the original.
    In Stock
    $38.28
    14% OFF Phone Price : $44.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Appliance Screw for Maytag CDNS22V9/BR35E - Part WP488729

    Freezer compartment (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Screw

    Part #9986-45

    Replaced by #WP488729

    Info Icon
    Manufacturer substitution
    This part replaces 9986-45. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.93
    17% OFF Phone Price : $5.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Auger Motor Coupler for Maytag CDNS22V9/BR35E - Part WP63052-2

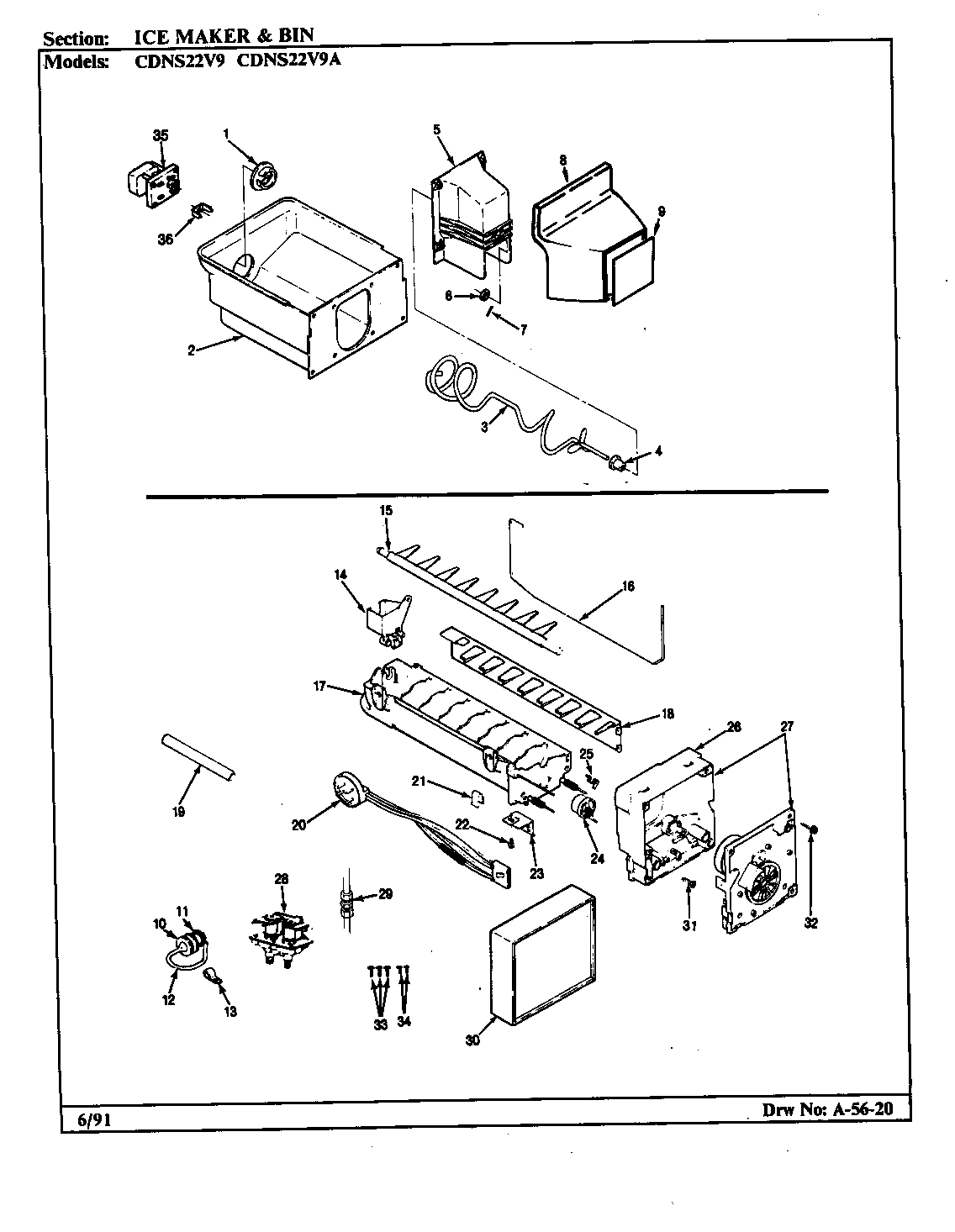

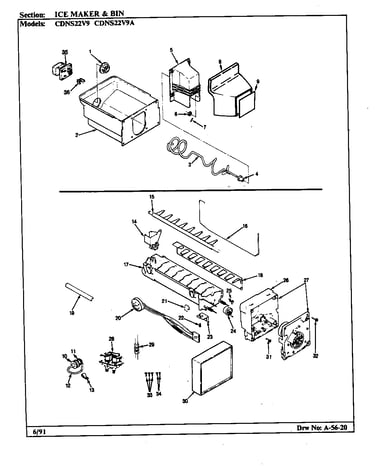

    Ice maker & bin (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Yoke,ice Dis

    Part #63052-1

    Replaced by #WP63052-2

    Info Icon
    Manufacturer substitution
    This part replaces 63052-1. Substitute parts can look different from the original.
    In Stock
    $41.25
    13% OFF Phone Price : $47.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Thermostat for Maytag CDNS22V9/BR35E - Part WP627985

    Ice maker & bin (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Thermostat

    Part #95092-1

    Replaced by #WP627985

    Info Icon
    Manufacturer substitution
    This part replaces 95092-1. Substitute parts can look different from the original.
    In Stock
    $62.64
    9% OFF Phone Price : $68.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Water Dispenser Hose Connector for Maytag CDNS22V9/BR35E - Part WP4373559

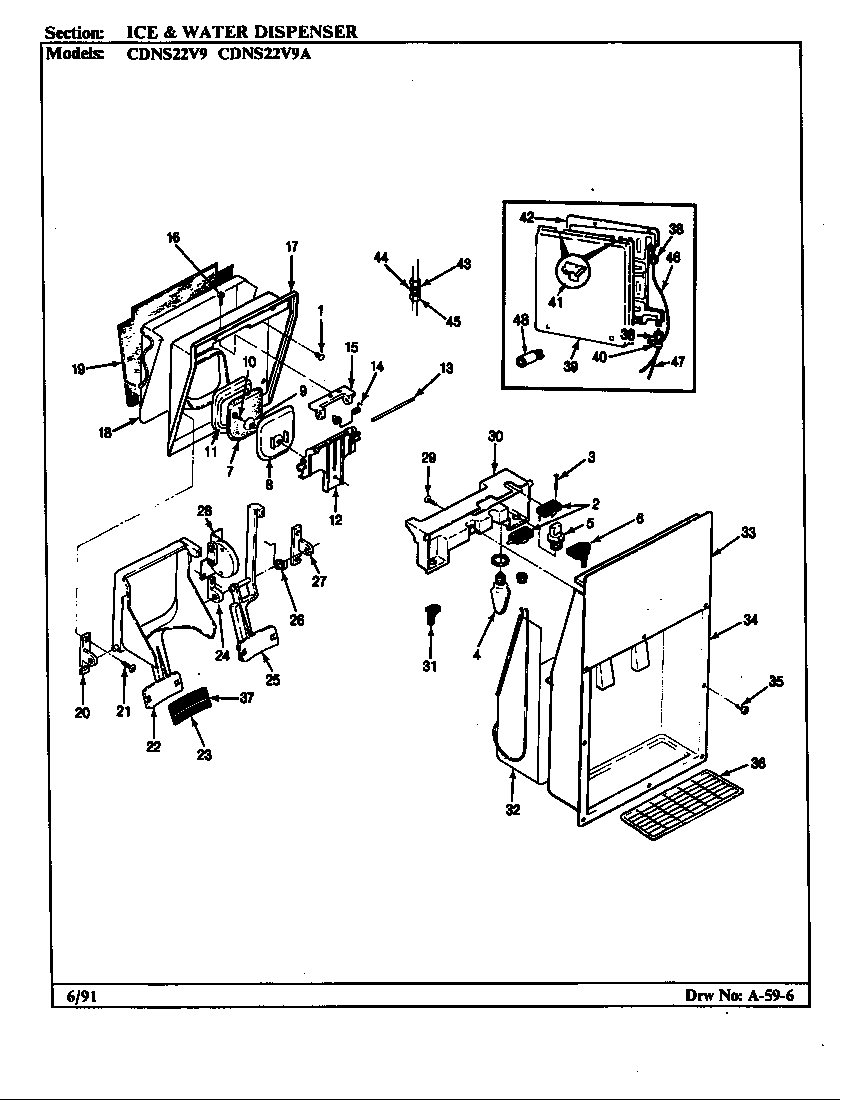

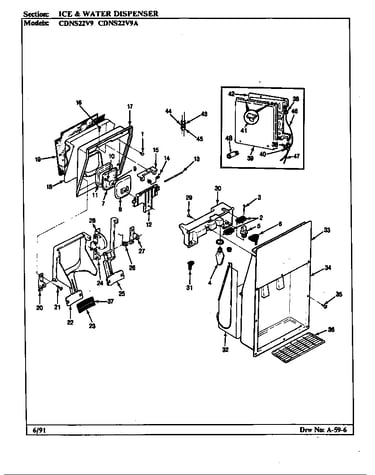

    Ice & water dispenser (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Union, Reduc

    Part #67612-1

    Replaced by #WP4373559

    Info Icon
    Manufacturer substitution
    This part replaces 67612-1. Substitute parts can look different from the original.
    In Stock
    $37.37
    14% OFF Phone Price : $43.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Fill Cup for Maytag CDNS22V9/BR35E - Part WP628356

    Ice maker & bin (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Ice Maker Fill Cup

    Part #95100-1

    Replaced by #WP628356

    Info Icon
    Manufacturer substitution
    This part replaces 95100-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.74
    18% OFF Phone Price : $32.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Maytag CDNS22V9/BR35E - Part WP681249

    Ice maker & bin (cdns22v9/br35e) (cdns22v9/br35f) (cdns22v9a/br36e) (cdns22v9a/br36f) diagram

    Refrigerator Screw

    Part #95106-1

    Replaced by #WP681249

    Info Icon
    Manufacturer substitution
    This part replaces 95106-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
