Kenmore 66516379301 dishwasher Parts

To tell what model dishwasher you have, we look for the model and serial number label on the dishwasher itself. On Kenmore dishwashers like model 66516379301, that label is typically located on the tub area around the door opening.

Check these common spots first (with the door open):

• Along the left or right inner door frame
• On the top edge of the tub opening
• On the side wall of the tub near the front
• Occasionally on the underside or side of the door itself

If you see a sticker or metal tag that lists both MODEL and SERIAL, write both down. You will need them for parts lookup and service.

Kenmore dishwasher model numbers are usually a long number string. For example:

Small label print can make a single digit look like another. We recommend:

• Copy the model number exactly as printed (all digits)
• Take a clear photo of the label for reference
• Avoid using numbers from the control panel or owner paperwork unless they match the label
• If the label is worn, clean it gently with a damp cloth and mild soap, then dry it

The model number is what ensures you get the correct Kenmore parts (such as a door seal, drain hose, or heater) and the right troubleshooting steps. Even small model changes can affect racks, pumps, and electrical components.

For diagrams and model identification details, use the 66516379301 owner's manual.

Last updated: January 2026

To reset a Kenmore Quiet Guard Deluxe dishwasher like model 66516379301, we recommend clearing the current cycle first: press CANCEL and let the dishwasher complete the 2-minute drain (door closed). This resets the cycle selection and clears most control issues. See the 66516379301 owner's manual.

• Press CANCEL once; the Cancel light should turn on.
• Close the door fully so the unit can drain.
• Wait about 2 minutes for the drain to finish and the light to turn off.
• Select your desired cycle and options.
• Press START.

These checks fix the most common “won’t respond” situations on Kenmore dishwashers:

• Make sure the door is fully latched; many models ignore keypad presses if the latch is not engaged.
• Press CANCEL to clear stuck options, then reselect the cycle.
• If you are within the first minute of a cycle, select a new cycle/options and close the door; the dishwasher resumes after a short pause.
• If the dishwasher is mid-cycle and you need to restart, use CANCEL and let it drain before starting a new cycle.
• If the dishwasher is completely dead (no lights), check the house breaker; if power is good, a failed fuse 8193762 is a common cause.

A proper reset prevents starting a new wash with the wrong options selected and ensures the dishwasher drains before restarting, which helps avoid poor cleaning, standing water, and repeated error conditions.

Last updated: January 2026

Common Kenmore dishwasher problems (including model 66516379301) usually fall into a few buckets: it will not start, it will not fill, it will not drain, it runs too long, it leaks, or it leaves dishes wet or dirty. Many of these trace back to power, door latch, water supply, drainage setup, or routine maintenance; see the 66516379301 owner's manual for model-specific checks.

• Will not start or stops mid-cycle: confirm the door is fully closed and latched; check the house breaker or fuse.

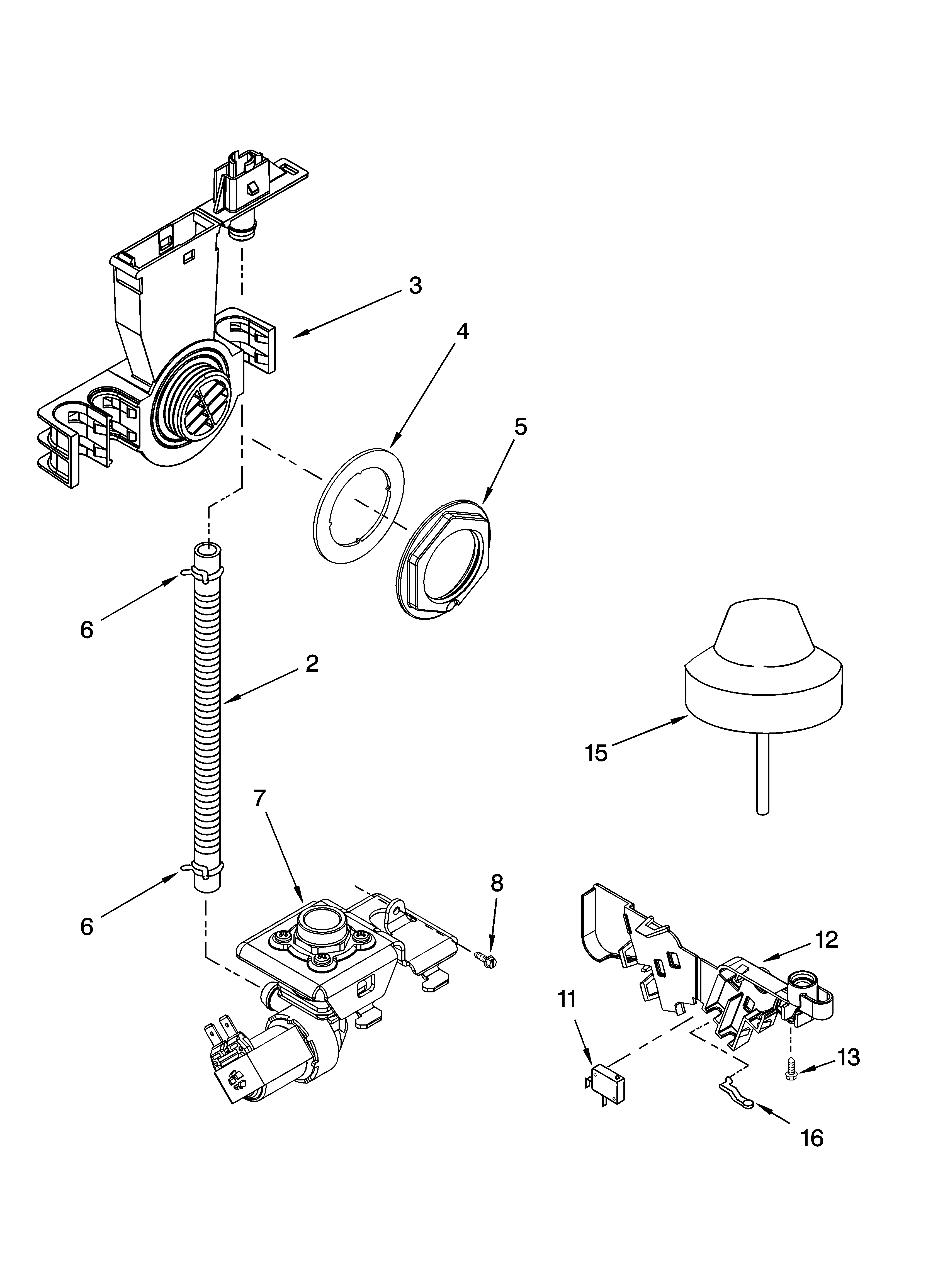

• Will not fill: make sure the water shutoff valve is open; verify the overfill protection float moves freely.
• Runs too long: some cycles pause repeatedly during the main wash; that can be normal.
• Poor cleaning or film on dishes: hard water minerals and detergent issues can cause white film; maintenance cleaning helps.
• Drain or odor issues: check the drain air gap (if your installation uses one) for buildup.

A lot of “not cleaning” complaints are really buildup or water chemistry. For this Kenmore model, a simple interior cleaning routine helps:

• Run an empty cycle with 2 cups of white vinegar in a dishwasher-safe cup on the bottom rack.
• Use an air-dry option; do not add detergent during the vinegar cycle.
• Avoid non-dishwasher cleansers inside the tub because they can cause foaming.

If troubleshooting points to a failed component, these are common suspects on many Kenmore dishwashers:

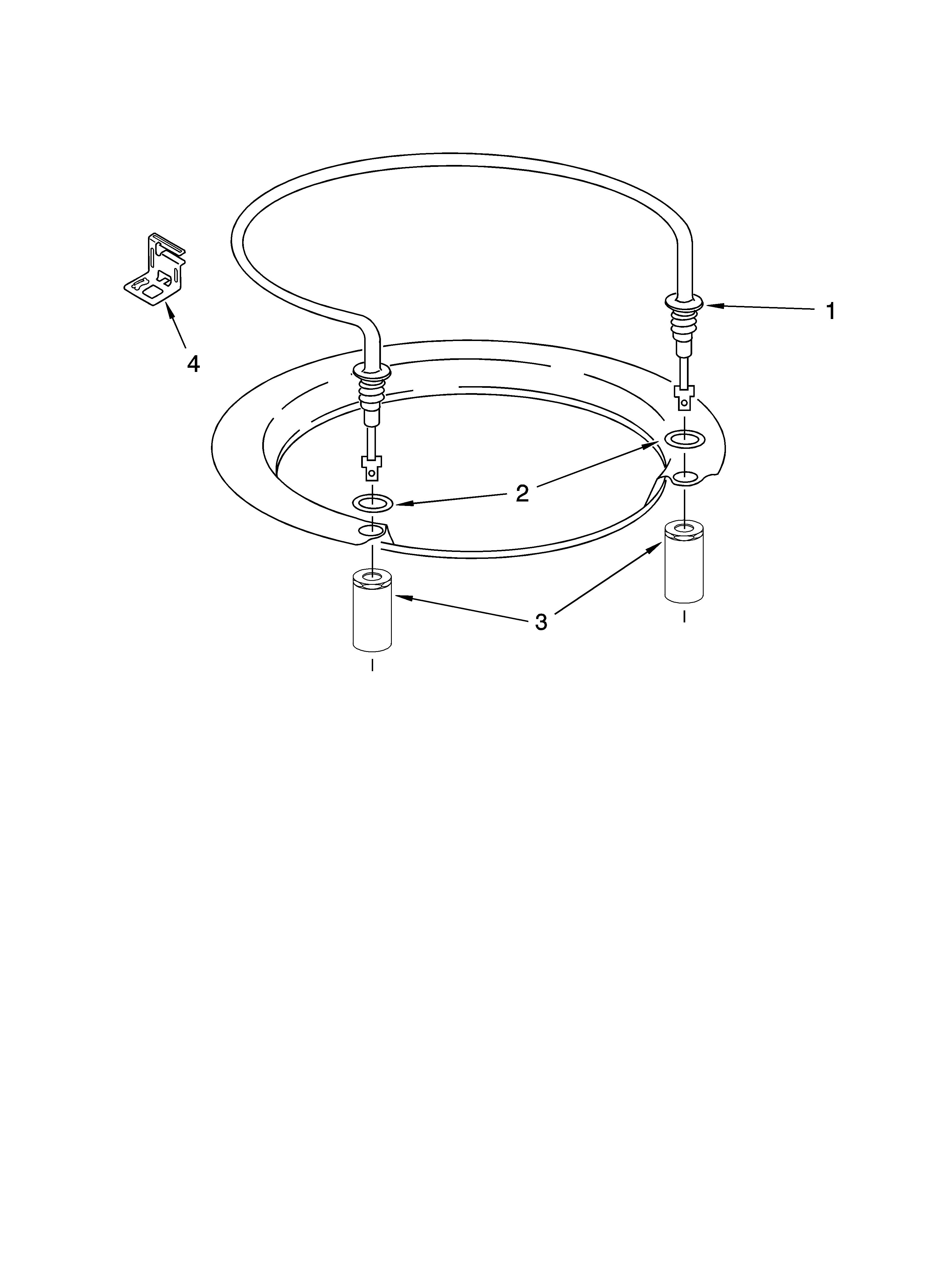

• Heating and drying issues: dishwasher heater W10518394

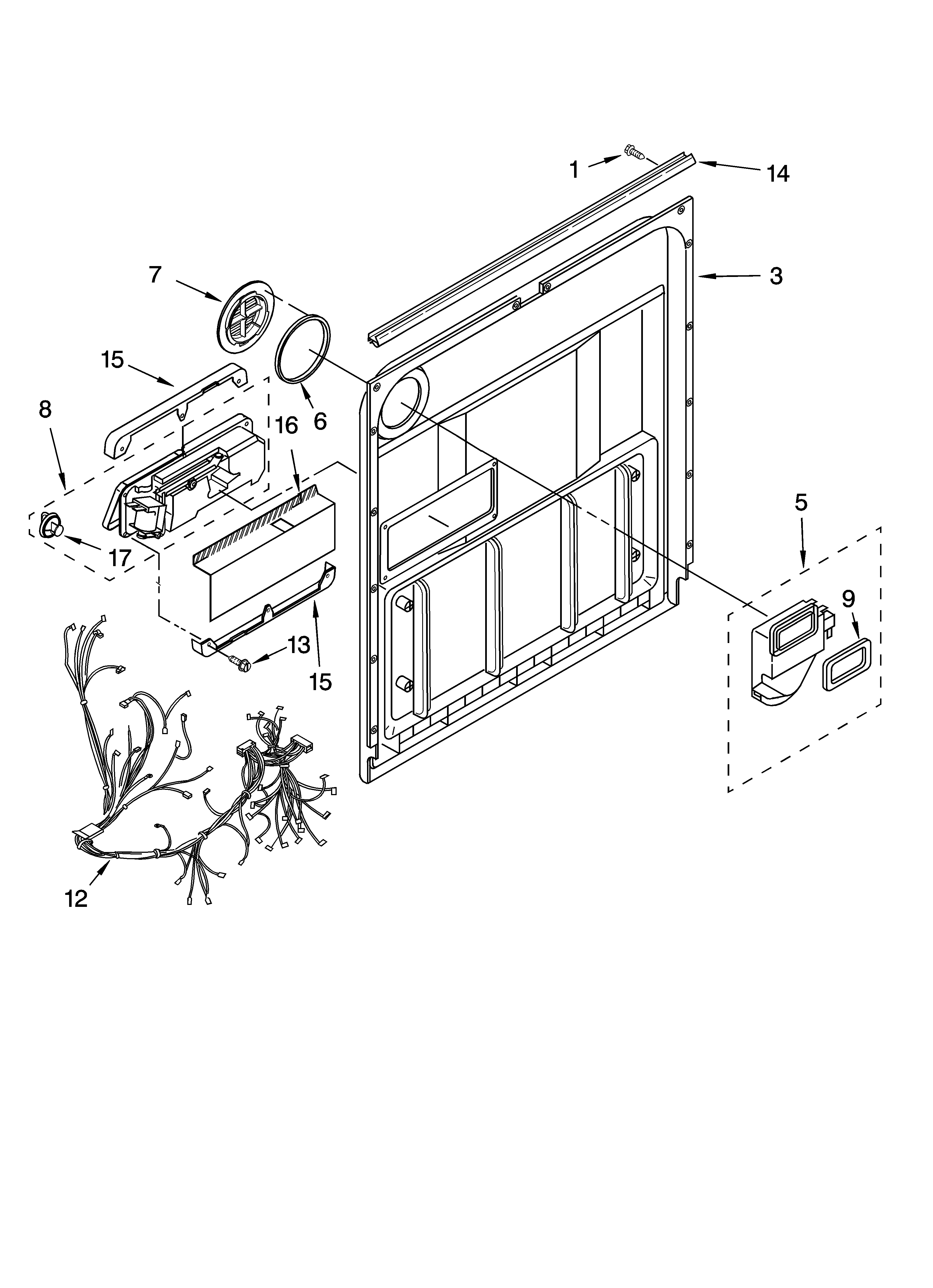

• Door leaks: dishwasher door seal W10542314
• Drain problems: dishwasher drain hose 8269144A

Catching the root cause early prevents repeat cycle failures, water damage from leaks, and poor wash results. It also helps you avoid replacing good parts when the real issue is a stuck float, a closed water valve, or a clogged air gap.

Last updated: January 2026

On the Kenmore 66516379301 dishwasher, the most commonly replaced parts are the ones that handle sealing, draining, heating, and wash circulation. When you see leaks, poor cleaning, standing water, or no heat, these parts are the first places we check using the diagrams in the 66516379301 owner's manual.

• Door seal and other seals: stop leaks around the door and tub opening.
• Drain hose and drain path parts: prevent clogs and help the unit empty correctly.
• Heating system parts: help dry dishes and maintain wash temperature.

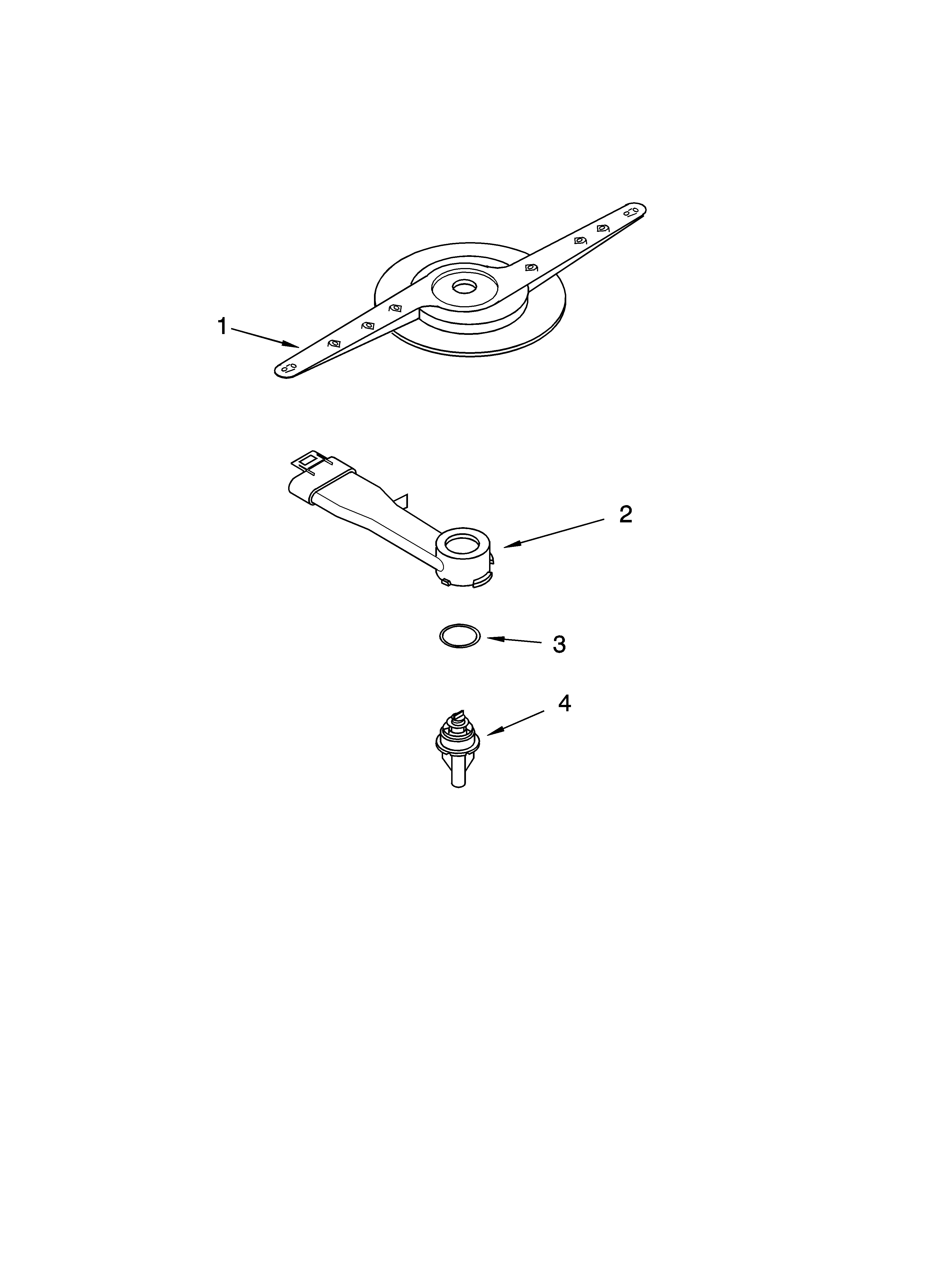

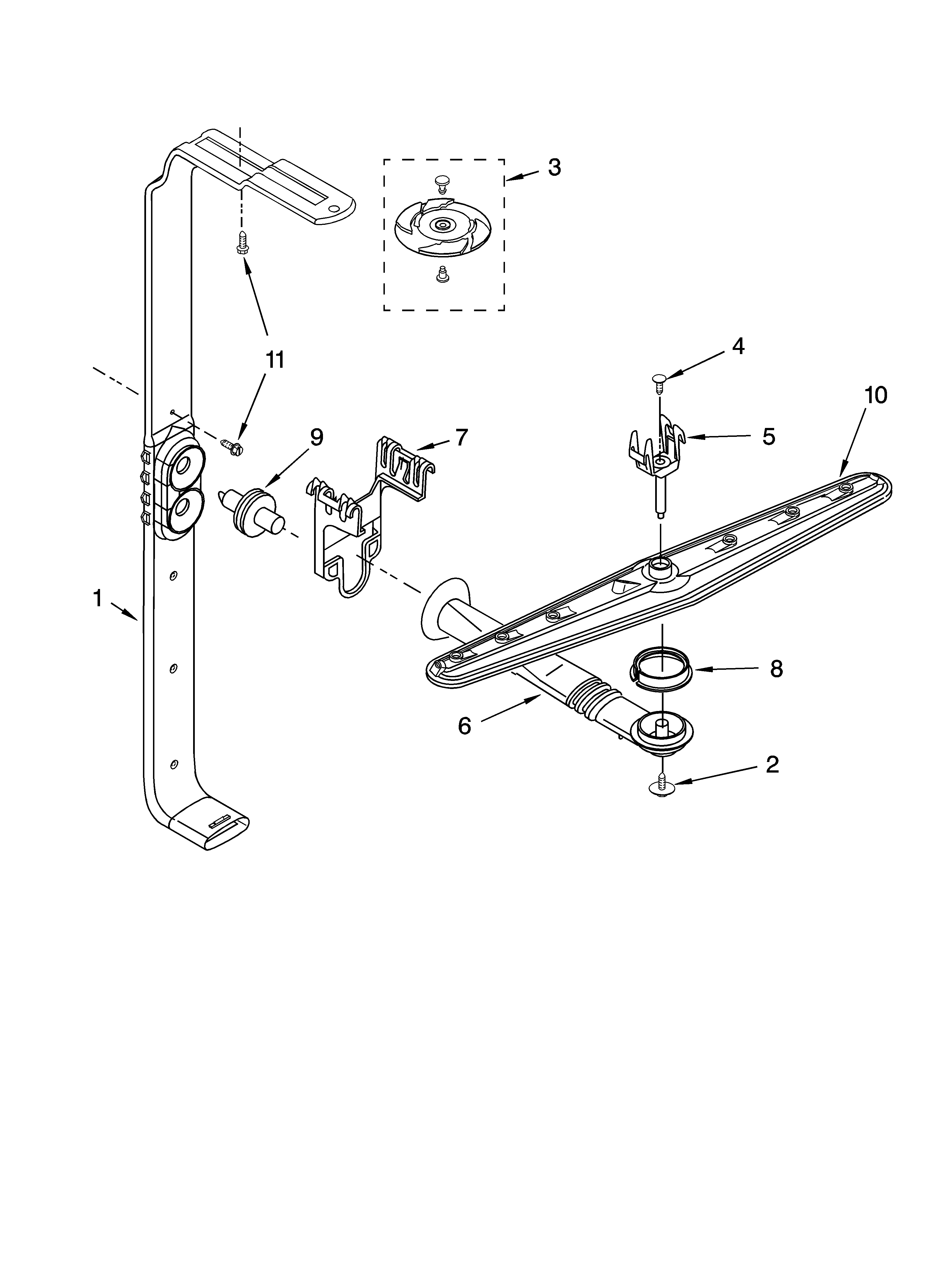

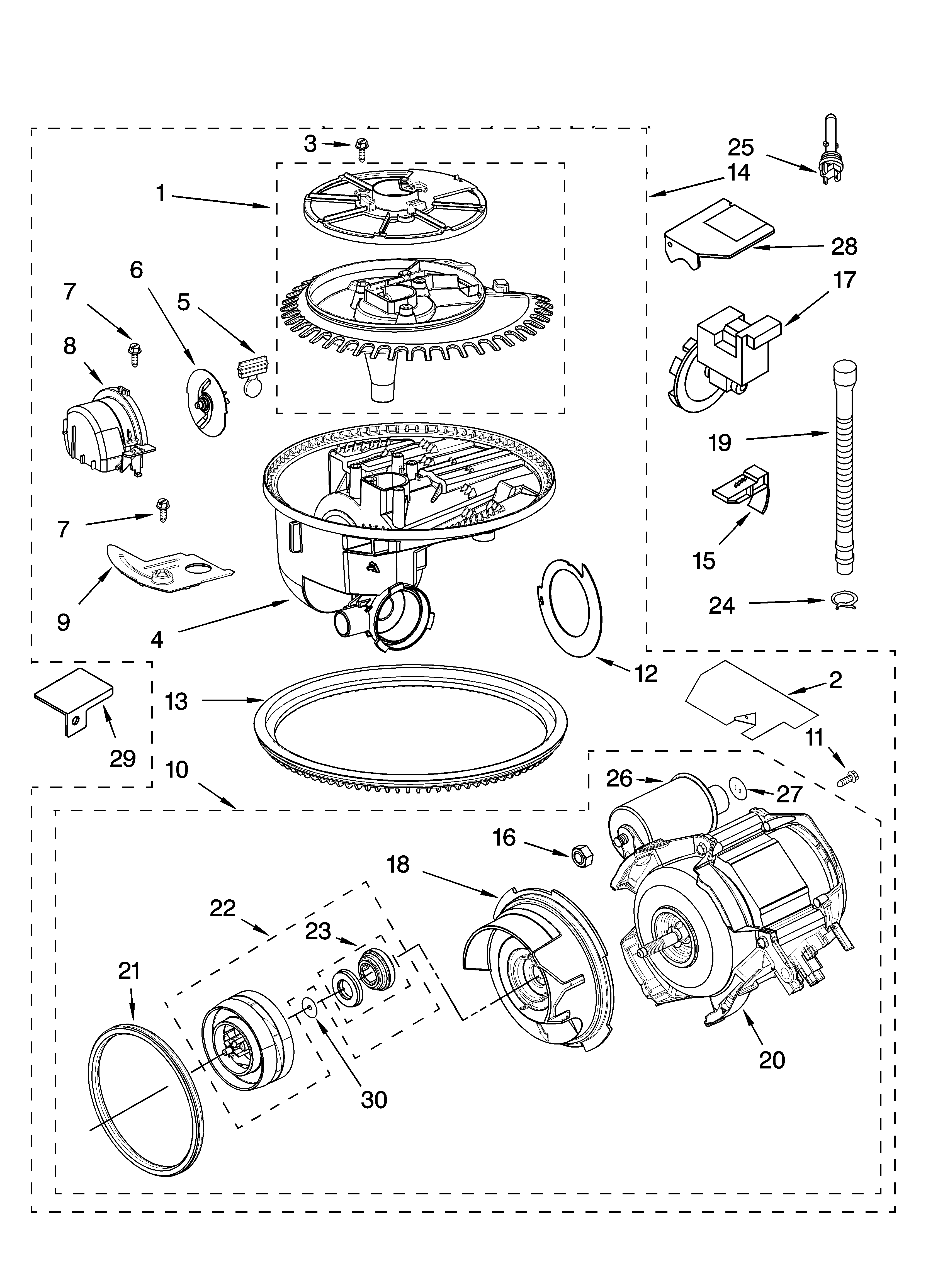

• Wash circulation parts (pump, motor, spray arms, feed tube): drive water pressure for cleaning.

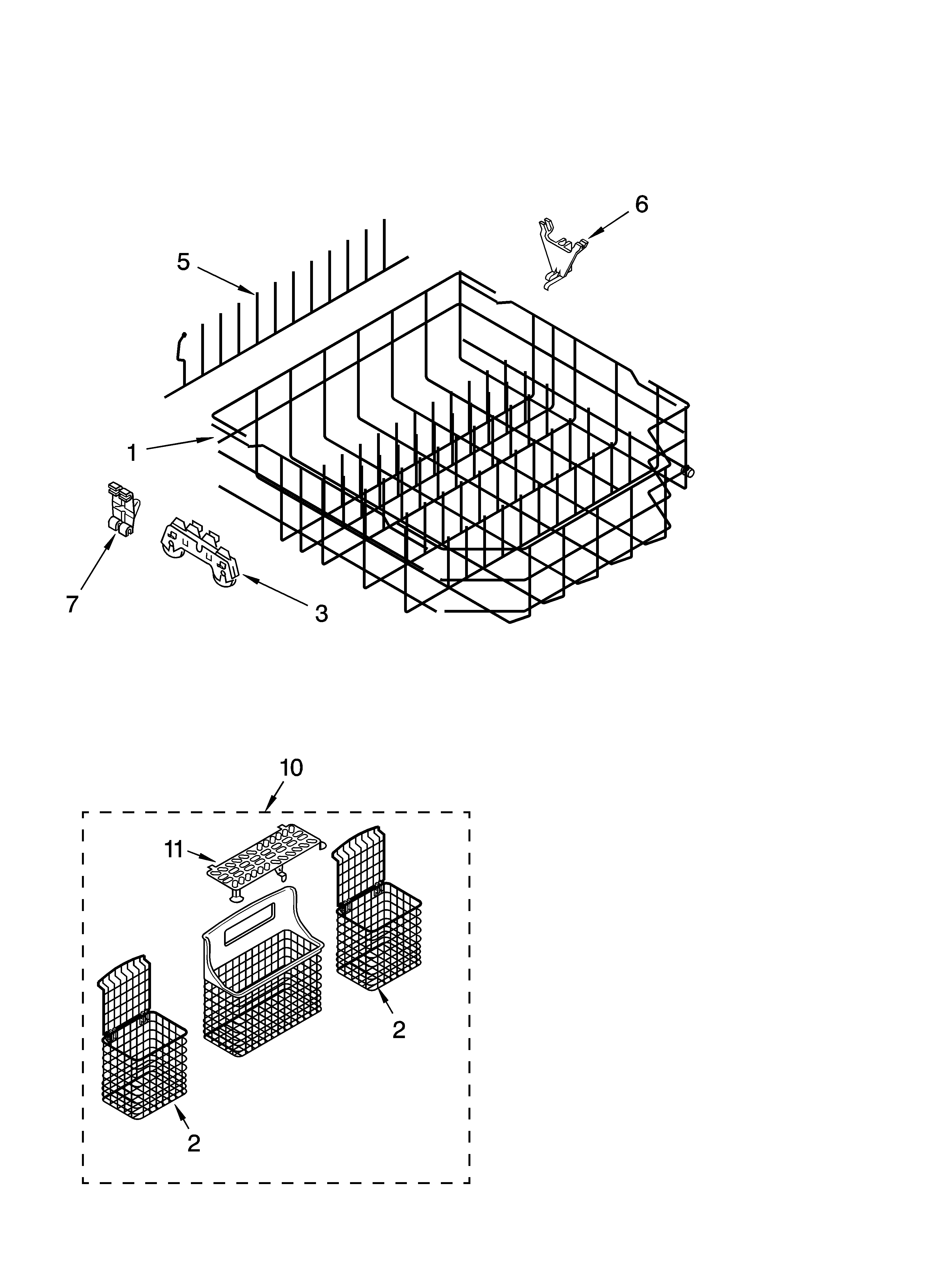

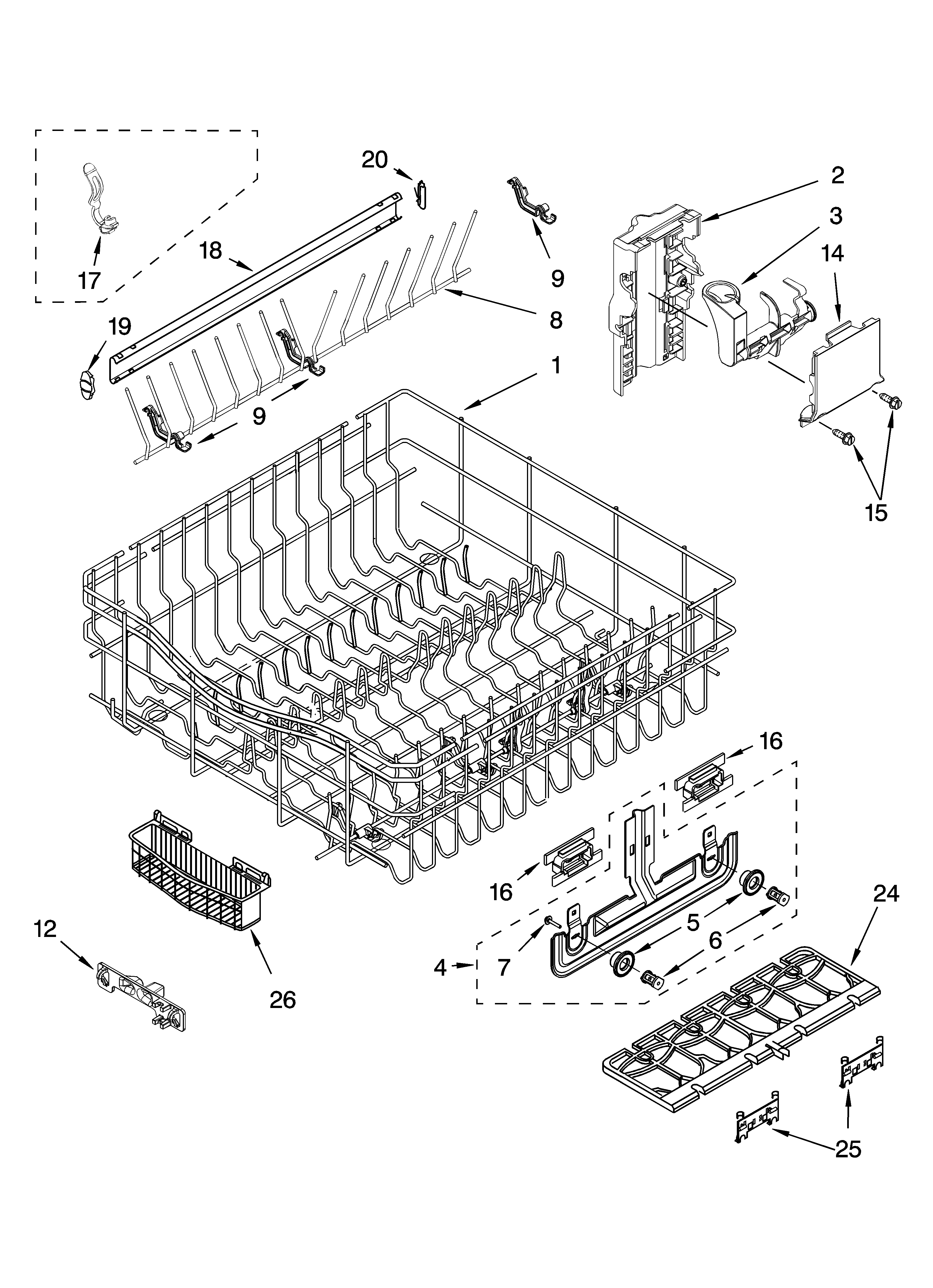

• Racks and rack hardware: restore smooth sliding and proper loading when racks rust or rollers break.

These are common replacements we see for this model when symptoms match:

1. Match the symptom to the system: leak, drain, heat/dry, or wash pressure.
2. Inspect the easy items first: door seal condition, hose kinks, obvious clogs, broken rack pieces.
3. Use the part diagrams and troubleshooting steps in the 66516379301 installation guide to confirm routing and clearances (especially for drain and water lines).
4. If you have an error code, use a Kenmore dishwasher error code chart to pinpoint the circuit.

Replacing the correct part the first time prevents repeat leaks, protects cabinets and flooring, and restores proper wash temperature and spray pressure so the Kenmore 66516379301 can clean and dry as designed.
