Jenn-Air JDRP436HM00 dual fuel range Parts
Here are the diagrams and repair parts for Jenn-Air JDRP436HM00 dual fuel range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JDRP436HM00 Dual Fuel Range

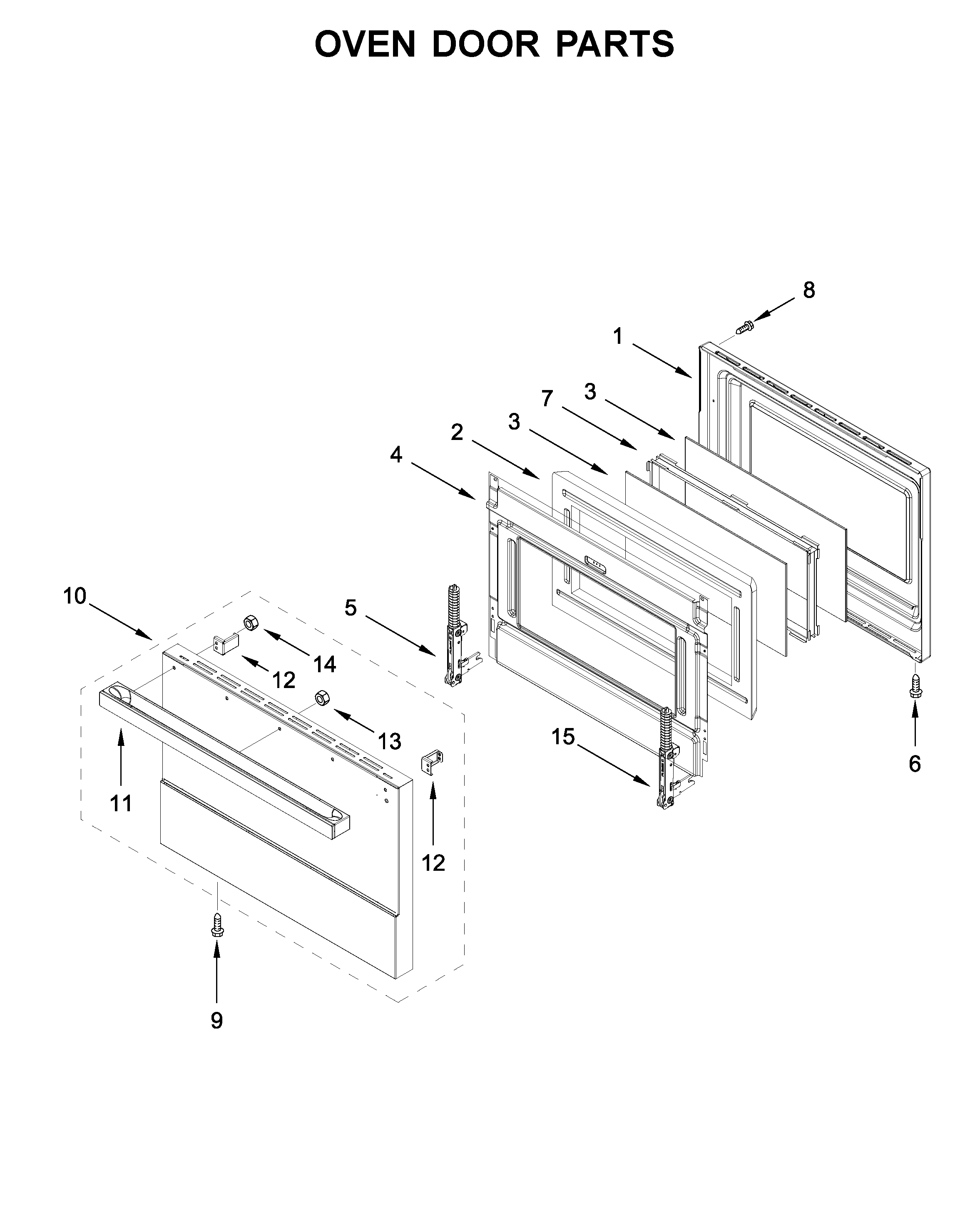

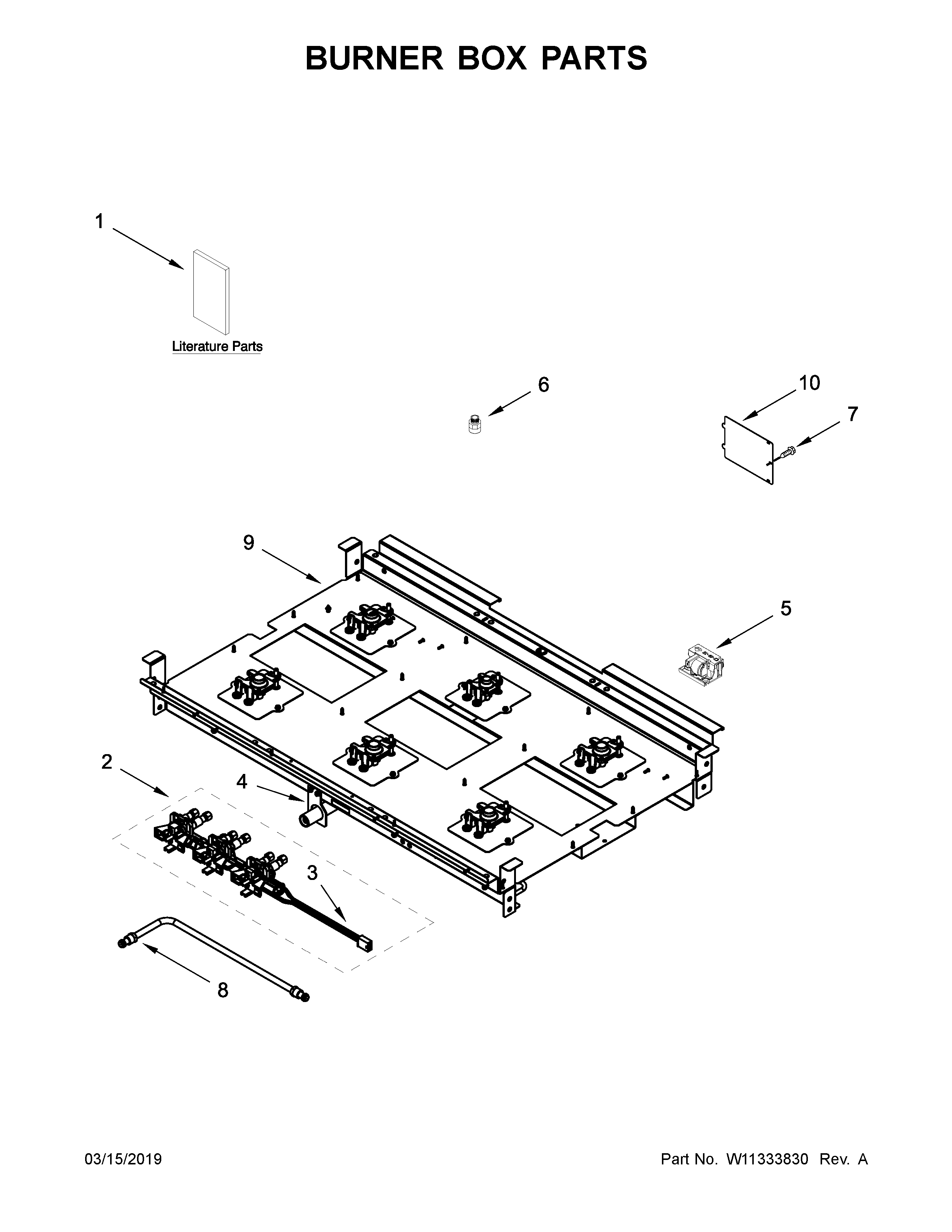

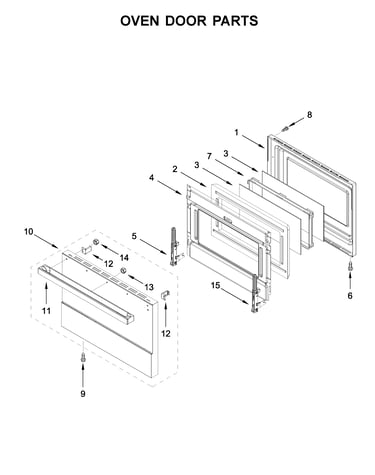

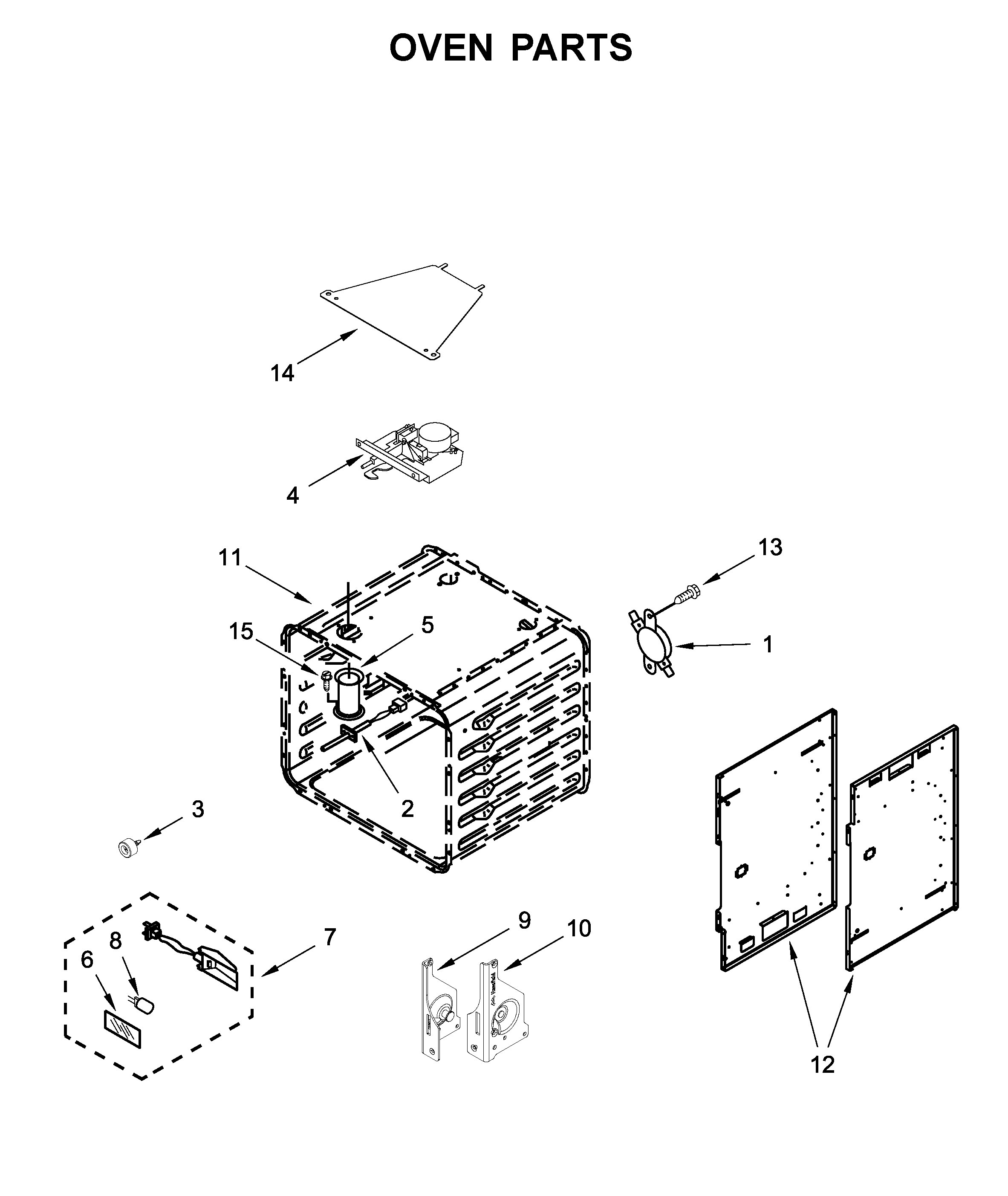

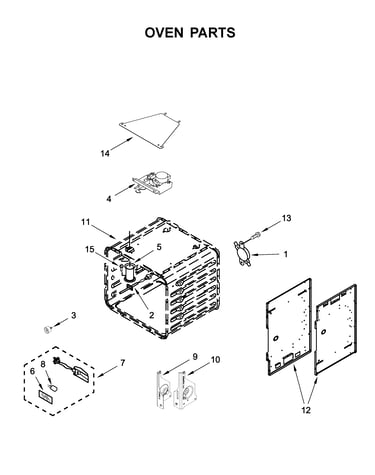

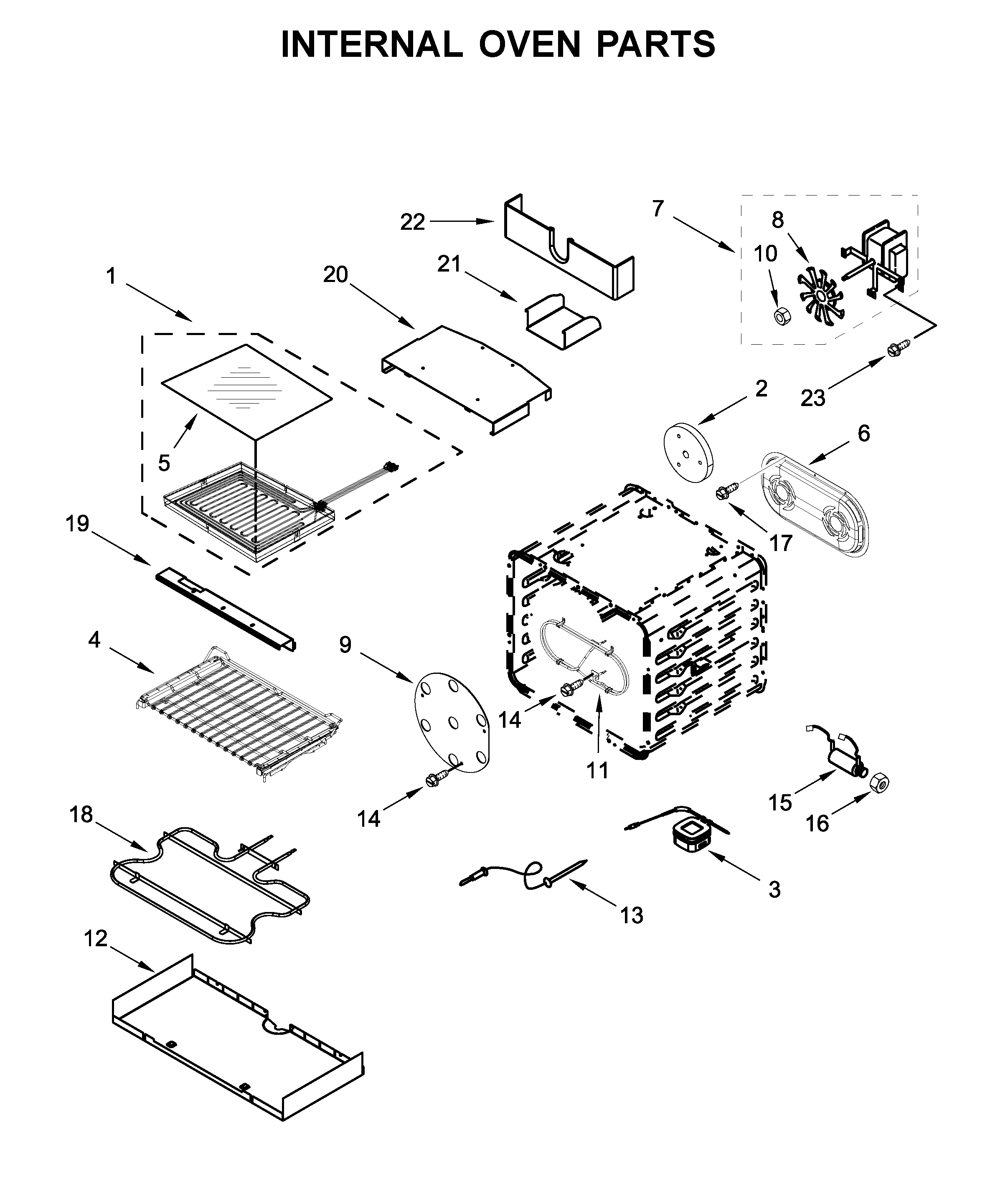

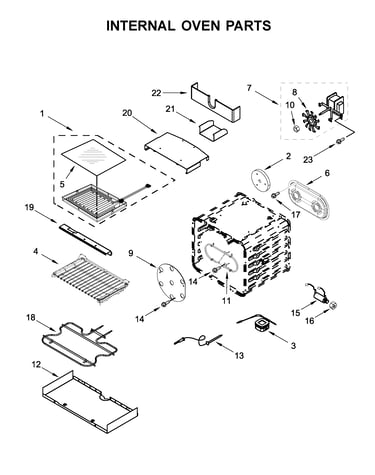

Oven parts diagram
Range High-limit Thermostat
Part #4449751Replaced by #WP4449751
Manufacturer substitutionThis part replaces 4449751. Substitute parts can look different from the original.In Stock$75.3939% OFF Was : $123.71
Qty
Screw
Part #7101P426-60Replaced by #WP90767
Manufacturer substitutionThis part replaces 7101P426-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyOven parts diagram
Wako Minerva
Part #W10622170Replaced by #W10859573
Manufacturer substitutionThis part replaces W10622170. Substitute parts can look different from the original.In Stock$109.0410% OFF Phone Price : $121.04QtyOven parts diagram
Motorized Latch
Part #W10830016Replaced by #W11029221

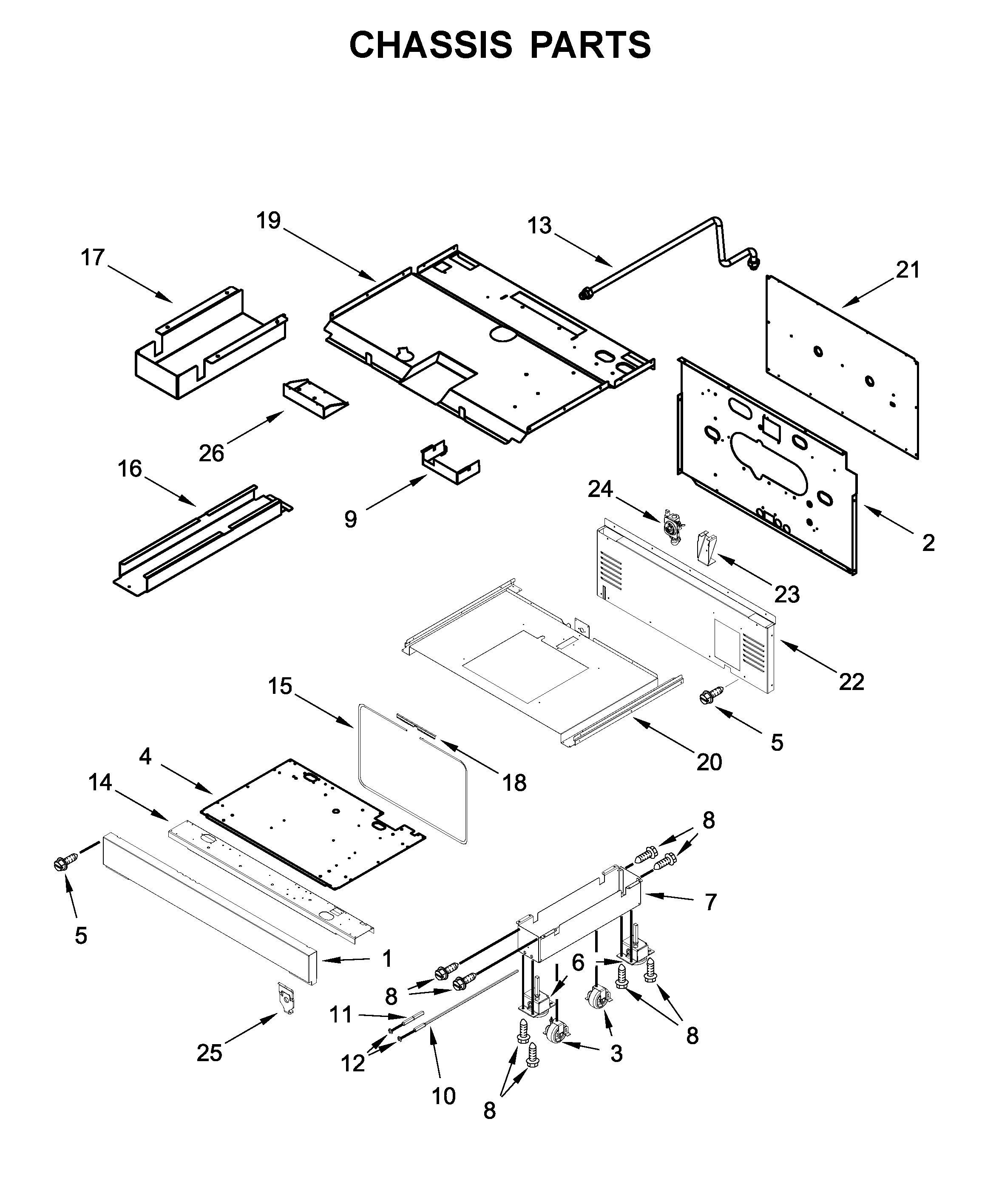

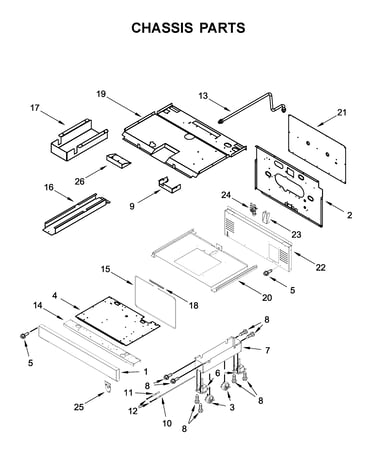

Manufacturer substitutionThis part replaces W10830016. Substitute parts can look different from the original.In Stock$116.4423% OFF Was : $151.31QtyChassis parts diagram
Screw (black)
Part #4449743Replaced by #WP4449743

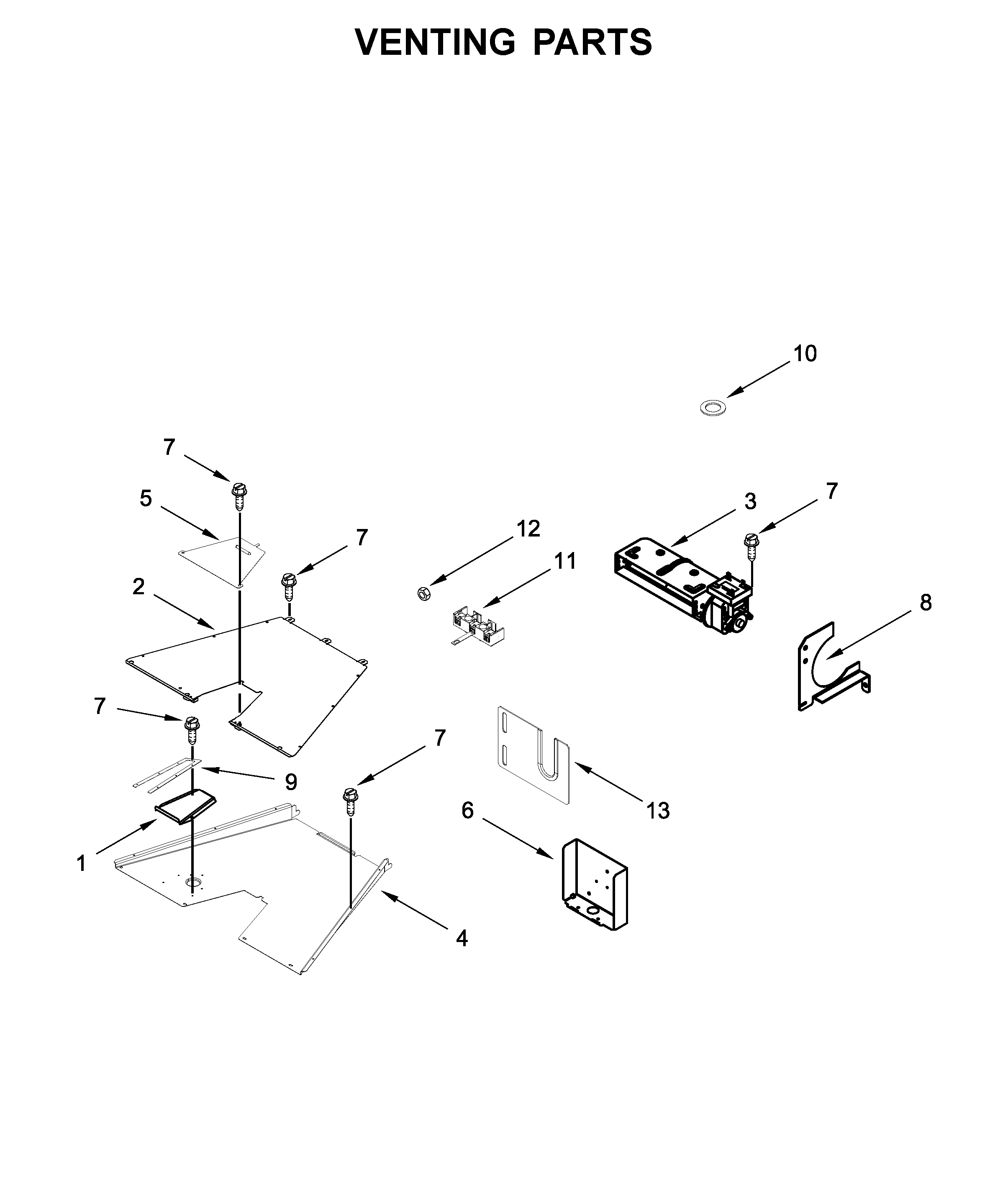

Manufacturer substitutionThis part replaces 4449743. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyVenting parts diagram
Nut
Part #112432Replaced by #WP112432

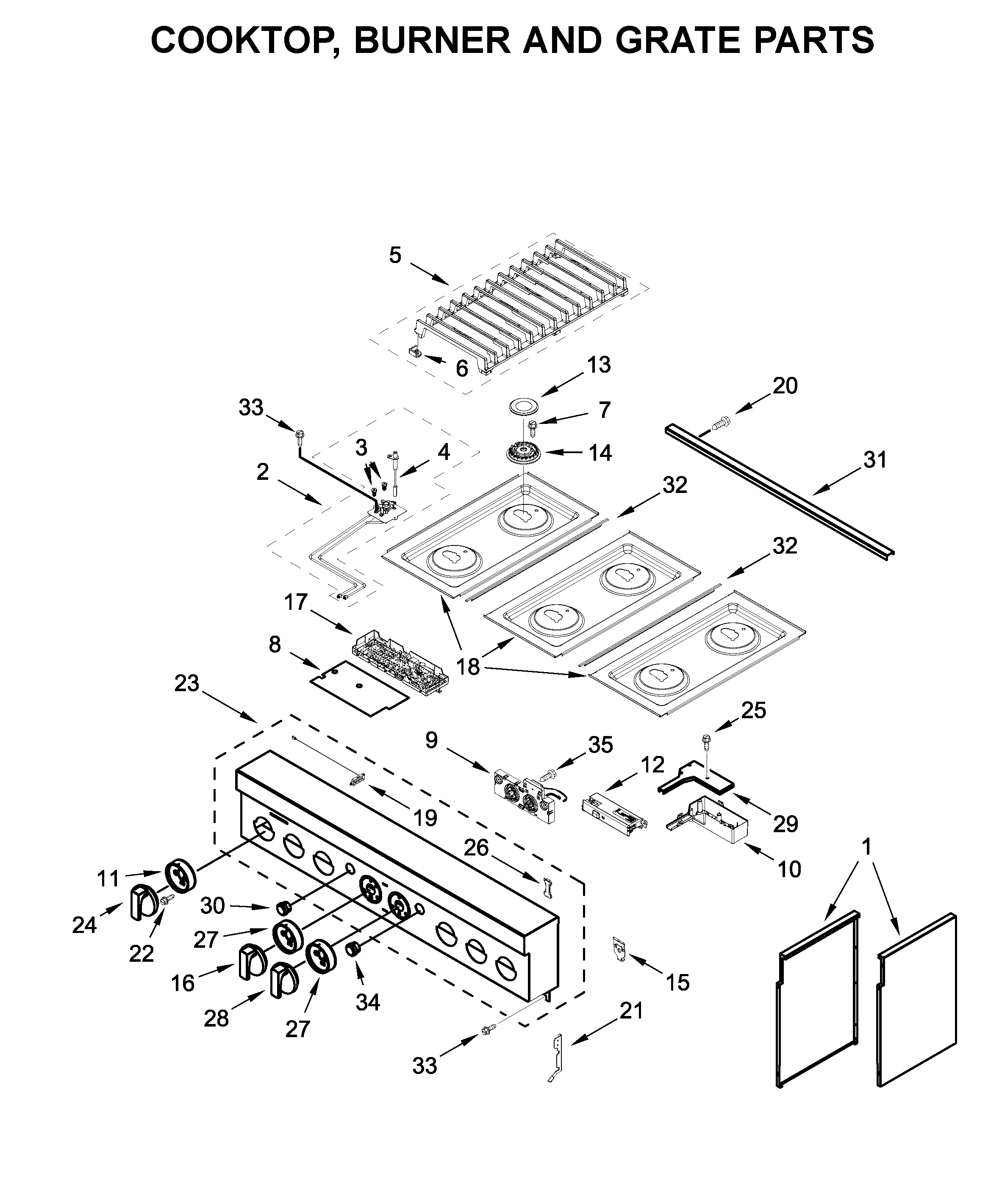

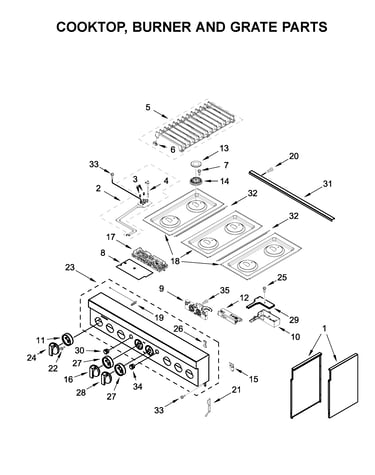

Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyCooktop, burner and grate parts diagram
Igniter-int
Part #W11238757Replaced by #W11573760
Manufacturer substitutionThis part replaces W11238757. Substitute parts can look different from the original.In Stock$14.5512% OFF Phone Price : $16.55QtyChassis parts diagram
Pressure Regulator
Part #W10449140Replaced by #W11106948
Manufacturer substitutionThis part replaces W10449140. Substitute parts can look different from the original.In Stock$138.778% OFF Phone Price : $150.77QtyCooktop, burner and grate parts diagram
Screw
Part #7101P338-60Replaced by #W11233072
Manufacturer substitutionThis part replaces 7101P338-60. Substitute parts can look different from the original.In Stock$17.63QtyOven parts diagram
Screw
Part #3196176Replaced by #W11233072
Manufacturer substitutionThis part replaces 3196176. Substitute parts can look different from the original.In Stock$17.63Qty
