Kenmore Elite 79048193000 wall oven Parts

On Kenmore Elite wall ovens like model 79048193000, the model and serial number plate is located along the interior side trim of the oven and is visible when you open the oven door. Write down the model and serial numbers before ordering parts or scheduling service.

Where to look on model 79048193000

Open the oven door and check these spots first:

• The vertical trim area just inside the oven frame (interior side trim)
• The left or right interior side trim (either side can be used depending on installation)
• The serial plate label that is visible with the door open (do not remove it)

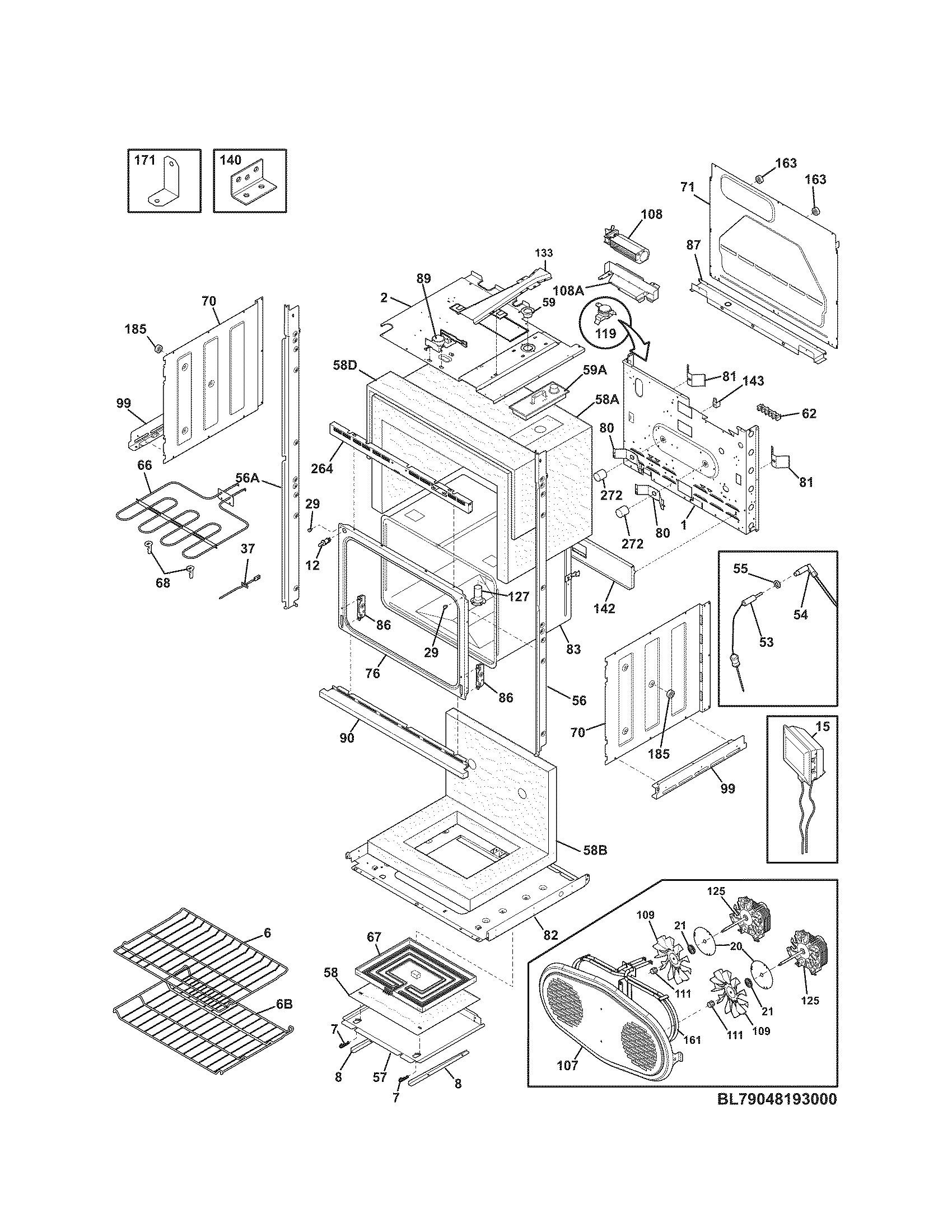

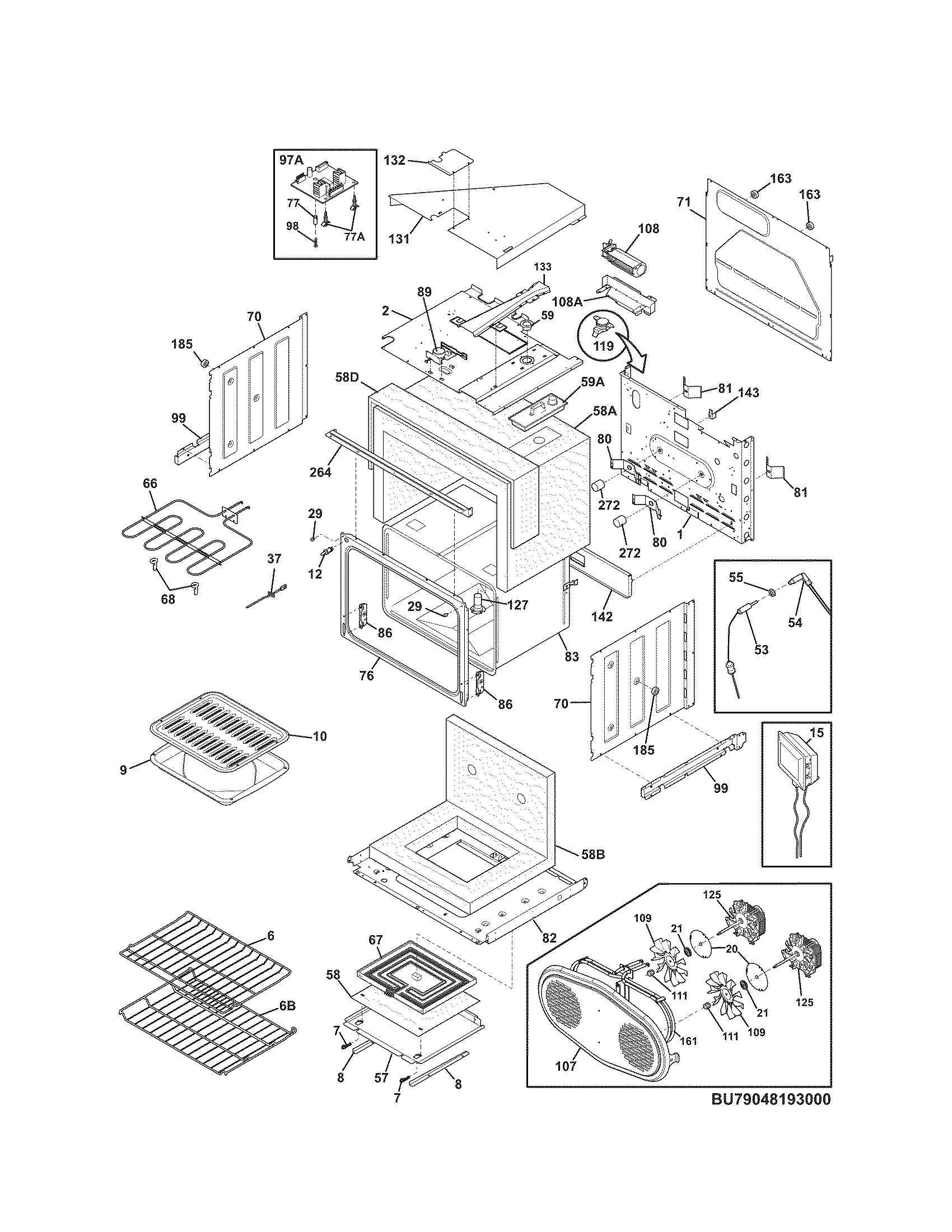

For diagrams and the exact label location illustrations, use the 79048193000 installation guide.

What to record from the serial plate

We recommend copying everything shown on the plate so parts lookup is accurate:

• Model number (example: 79048193000)
• Serial number
• Lot number or lot letter (if listed)
• Any revision or product code shown near the model/serial

Quick checklist: model number vs serial number

Item	What it’s used for	Example format
Model number	Identifies the exact oven design for parts	79048193000
Serial number	Identifies your specific unit build	Letters and numbers
Lot number/letter	Helps match production run details	Single letter/short code

Why it matters

Kenmore Elite wall ovens often have multiple versions that look similar. Using the model and serial plate information helps us match the correct wall oven parts (such as a control board, bake element, or temperature sensor) the first time.

Last updated: January 2026

For the Kenmore Elite wall oven model 79048193000, we recommend cleaning spills as soon as the oven is completely cool, using non-abrasive cleaners and soft cloths so you do not scratch the cavity, door glass, or stainless surfaces. Follow the cleaning and care steps in the 79048193000 owner's manual.

Safe, effective cleaning steps

• Turn the oven off and let it cool fully.
• Remove oven racks and any foil or cookware.
• Wipe loose crumbs with a damp microfiber cloth.
• Clean the interior with warm water plus a small amount of mild dish soap; rinse with clean water.
• For baked-on residue, use a non-scratch nylon pad and a baking soda paste (baking soda plus water); wipe and rinse.
• Clean the outer door glass with a glass cleaner sprayed onto a cloth (not directly onto the glass).

What to avoid (prevents damage)

• Abrasive powders, steel wool, or harsh scouring pads
• Oven cleaners on stainless trim or painted surfaces
• Spraying cleaner into vents, control areas, or around the door latch
• Excess water dripping into the bottom of the oven or behind the control panel

Quick reference: which cleaner to use

Area	Best choice	Notes
Oven cavity	Mild soap and water	Rinse and dry to prevent streaks
Baked-on spots	Baking soda paste	Let sit 10 to 20 minutes, then wipe
Door glass (outside)	Glass cleaner on cloth	Keeps overspray out of seams
Stainless exterior	Stainless-safe cleaner	Wipe with the grain

If the oven smokes or smells after cleaning

• Wipe out any leftover cleaner or baking soda residue.
• Run the oven empty at 350°F for 15 to 30 minutes to burn off moisture.
• If smoke continues, check for grease drips on the bottom or on the hidden edges of the door.

Why it matters

Gentle, low-moisture cleaning helps protect the door seal, finishes, and controls, and it reduces smoke and odors the next time you bake or broil.

Last updated: January 2026

To unlock your Kenmore Elite wall oven model 79048193000, press and hold the Control Lock (or Lock) key for about 3 seconds until the lock indicator turns off. If the door is locked after self-clean, wait until the oven cools and the latch releases before pulling on the door.

Unlock the control panel (Control Lock)

• Make sure the oven is not running Bake, Broil, or Self Clean.
• Press and hold Control Lock/Lock for about 3 seconds.
• Confirm the lock icon/light turns off.
• Try a normal key press (such as Bake) to confirm the keypad responds.
• If it beeps and stays locked, cancel the function and repeat the hold.

If the door is locked after self-clean

The door latch stays engaged until the oven temperature drops to a safe level.

• Set the oven to OFF/Cancel.
• Keep the door closed and allow the oven to cool completely.
• Watch for the lock indicator to go out; then open the door.
• Do not force the handle; forcing can damage hinges and trim.

If it still will not unlock

Use these checks to narrow down whether it is a control lock issue or a heat/latch issue.

• Verify the oven has steady power (reset a tripped breaker fully OFF, then ON).
• Listen for a click from the latch area when you hold the Lock key.
• If the oven overheats or shuts down, check the overheat protection circuit.
• If the displayed temperature seems inaccurate, the control may keep safety functions active.

What you see	What it usually means	What to check next
Lock icon on, keypad unresponsive	Control Lock is enabled	Hold Lock for 3 seconds
Lock icon on after self-clean	Latch is heat-protecting	Let oven cool completely
Oven overheats or stops heating	Safety device opened	Range high-limit thermostat 318004902
Temperature seems wrong	Sensor feedback issue	Range oven temperature sensor 5304504897

Why it matters

Unlocking the oven the right way prevents damage to the door latch and hinges and keeps you safe around high heat, especially after a self-clean cycle.

For the exact key name and indicator behavior on this model, use the 79048193000 owner's manual.

Last updated: January 2026
