Tappan DB700P1-00 24" built-in dishwasher - 5995222238

Tappan DB700P1-00 24" built-in dishwasher - 5995222238 Parts

Here are the diagrams and repair parts for Tappan DB700P1-00 24" built-in dishwasher - 5995222238, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for DB700P1-00 24" Built-In Dishwasher - 5995222238

  • Crosley Dishwasher Dishrack Roller, Lower for Tappan DB700P1-00 - Part 5304532229

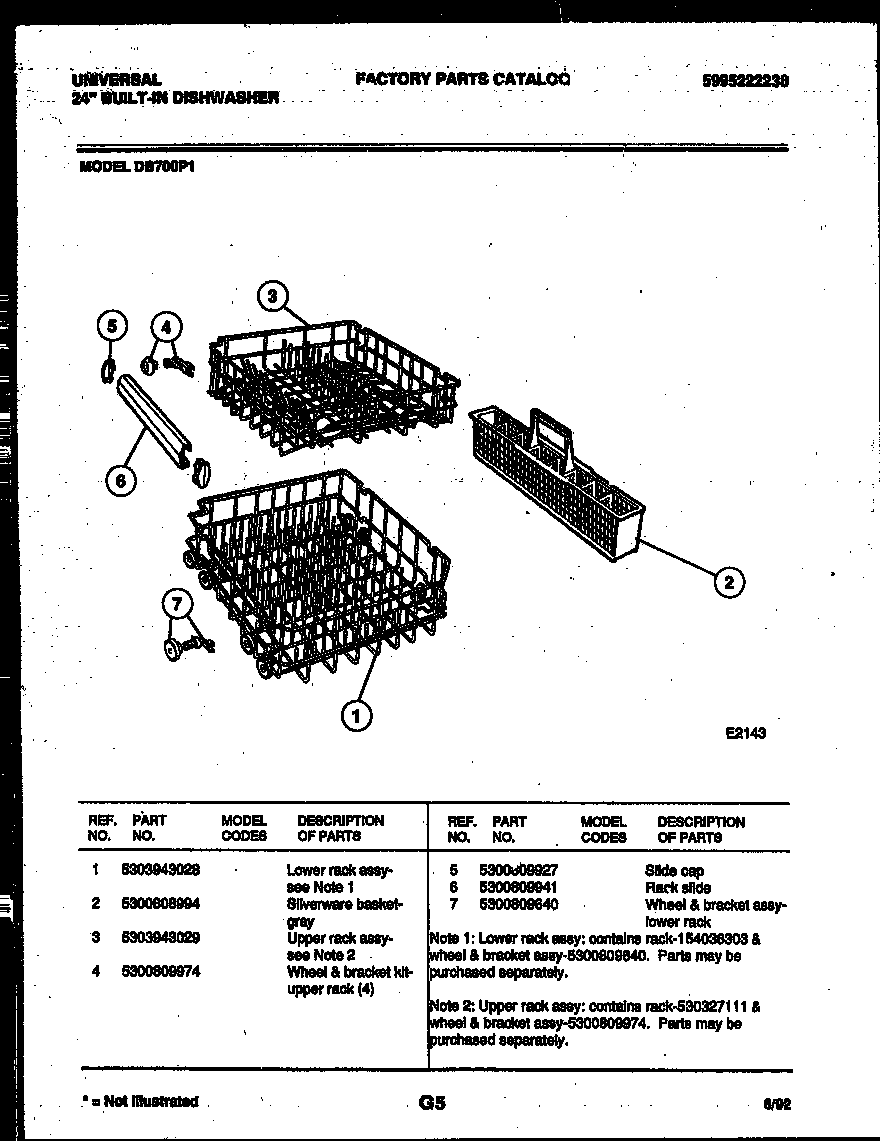

    Racks and trays diagram

    Dishwasher Dishrack Roller, Lower

    Part #5300809640

    Replaced by #5304532229

    Info Icon
    Manufacturer substitution
    This part replaces 5300809640. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.42
    16% OFF Phone Price : $6.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Wheel&bushin for Tappan DB700P1-00 - Part 5304535381

    Racks and trays diagram

    Dishwasher Dishrack Roller

    Part #5300809974

    Replaced by #5304535381

    Info Icon
    Manufacturer substitution
    This part replaces 5300809974. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.77
    21% OFF Phone Price : $4.77Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Tappan DB700P1-00 - Part 808690701

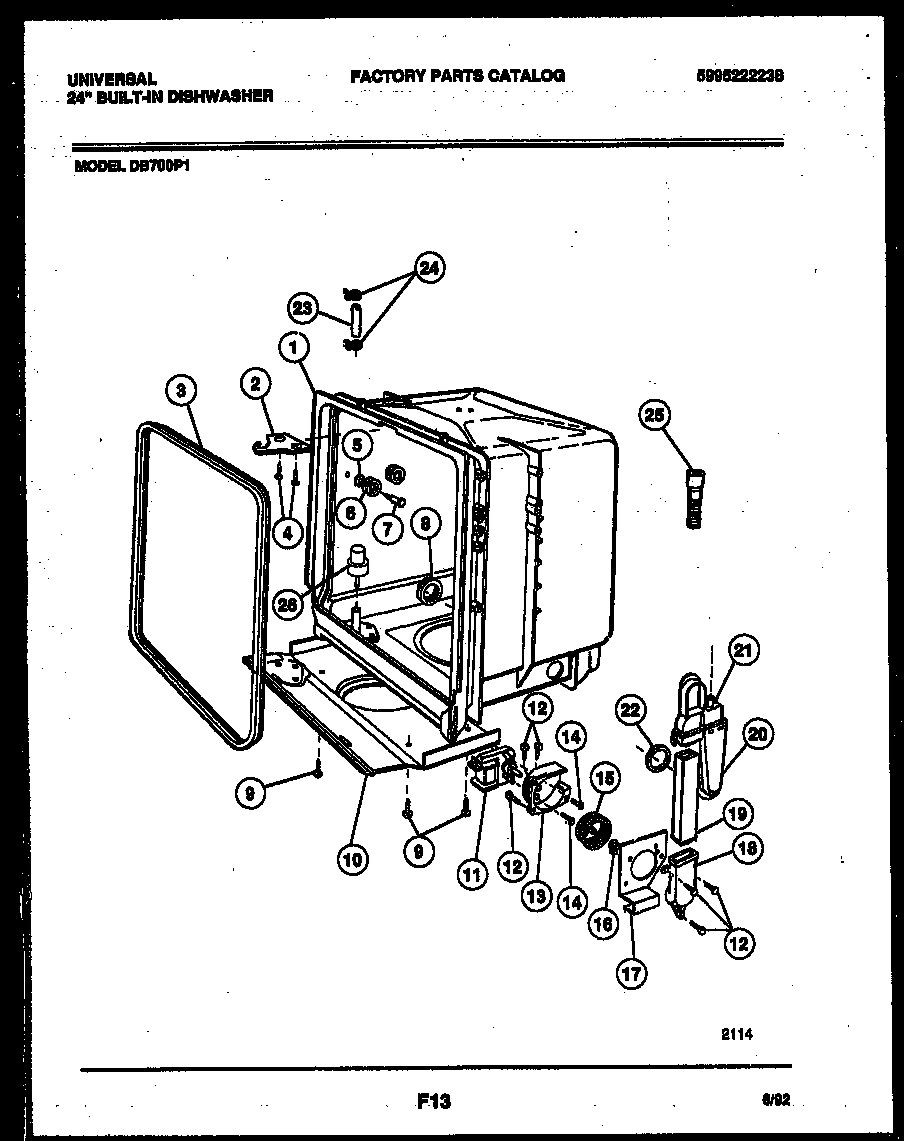

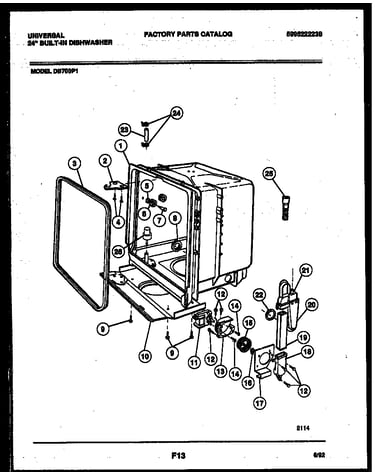

    Tub and frame parts diagram

    Screw

    Part #154041001

    Replaced by #808690701

    Info Icon
    Manufacturer substitution
    This part replaces 154041001. Substitute parts can look different from the original.
    In Stock
    $27.73
    Minus Item
    Qty
    Plus Item
  • Dishwasher Dishrack Track Roller Assembly for Tappan DB700P1-00 - Part 5304507405

    Tub and frame parts diagram

    Roller

    Part #154080001

    Replaced by #5304507405

    Info Icon
    Manufacturer substitution
    This part replaces 154080001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $41.35
    Minus Item
    Qty
    Plus Item
  • Plunger for Tappan DB700P1-00 - Part 5300809898

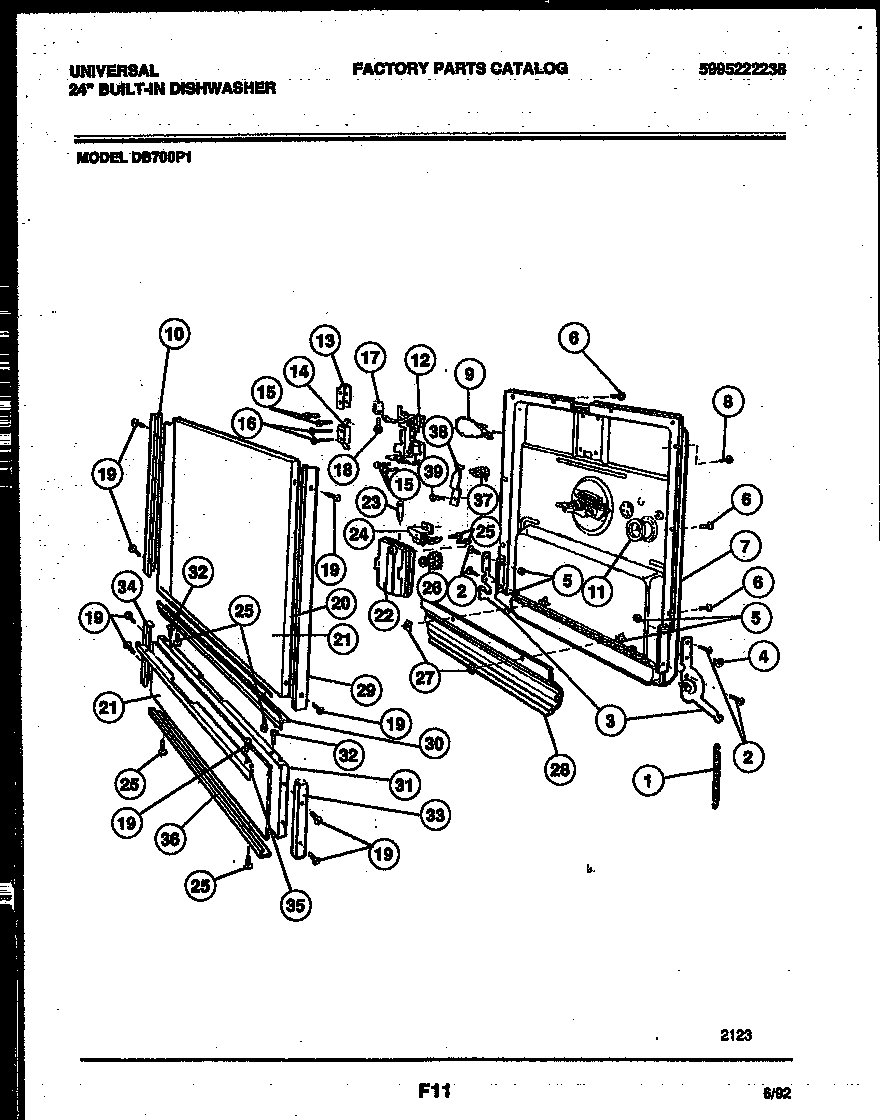

    Door parts diagram

    Plunger

    Part #5300809898
    In Stock
    $59.19
    Minus Item
    Qty
    Plus Item
  • Latch Knob for Tappan DB700P1-00 - Part 5300808712

    Door parts diagram

    Latch Knob

    Part #5300808712
    In Stock
    $52.24
    Minus Item
    Qty
    Plus Item
  • Heater Bracket for Tappan DB700P1-00 - Part 5300809585

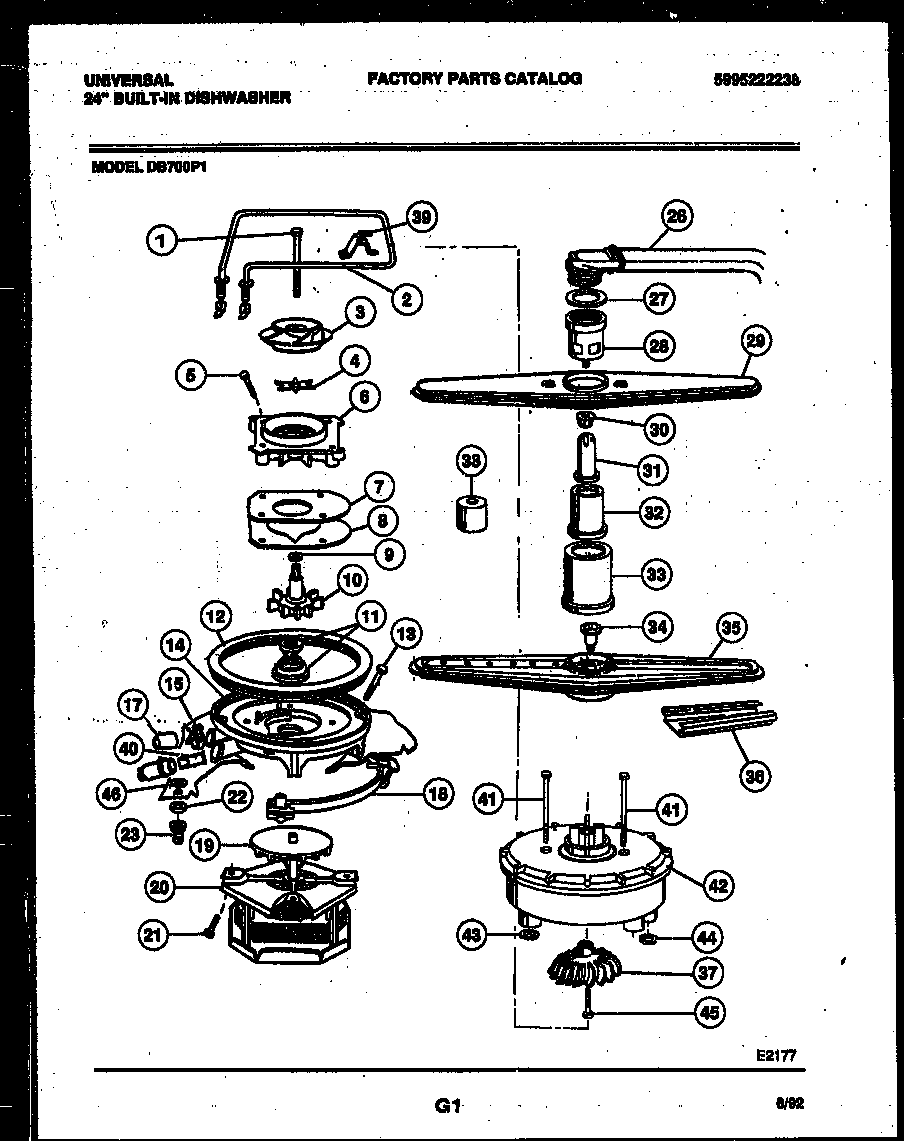

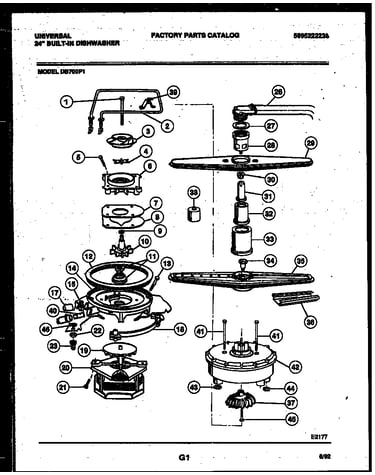

    Motor pump parts diagram

    Heater Bracket

    Part #5300809585
    In Stock
    $35.94
    Minus Item
    Qty
    Plus Item
  • Retainer for Tappan DB700P1-00 - Part 5300809097

    Door parts diagram

    Retainer

    Part #5300809097
    In Stock
    $44.07
    Minus Item
    Qty
    Plus Item
  • Screw for Tappan DB700P1-00 - Part 5300810094

    Motor pump parts diagram

    Screw

    Part #5300810094
    In Stock
    $27.59
    Minus Item
    Qty
    Plus Item
  • Dishwasher Blower Inlet for Tappan DB700P1-00 - Part 5300809616

    Tub and frame parts diagram

    Dishwasher Blower Inlet

    Part #5300809616
    In Stock
    $53.28
    Minus Item
    Qty
    Plus Item
