Amana ARH6700E-P1142686NE electric range Parts
Here are the diagrams and repair parts for Amana ARH6700E-P1142686NE electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

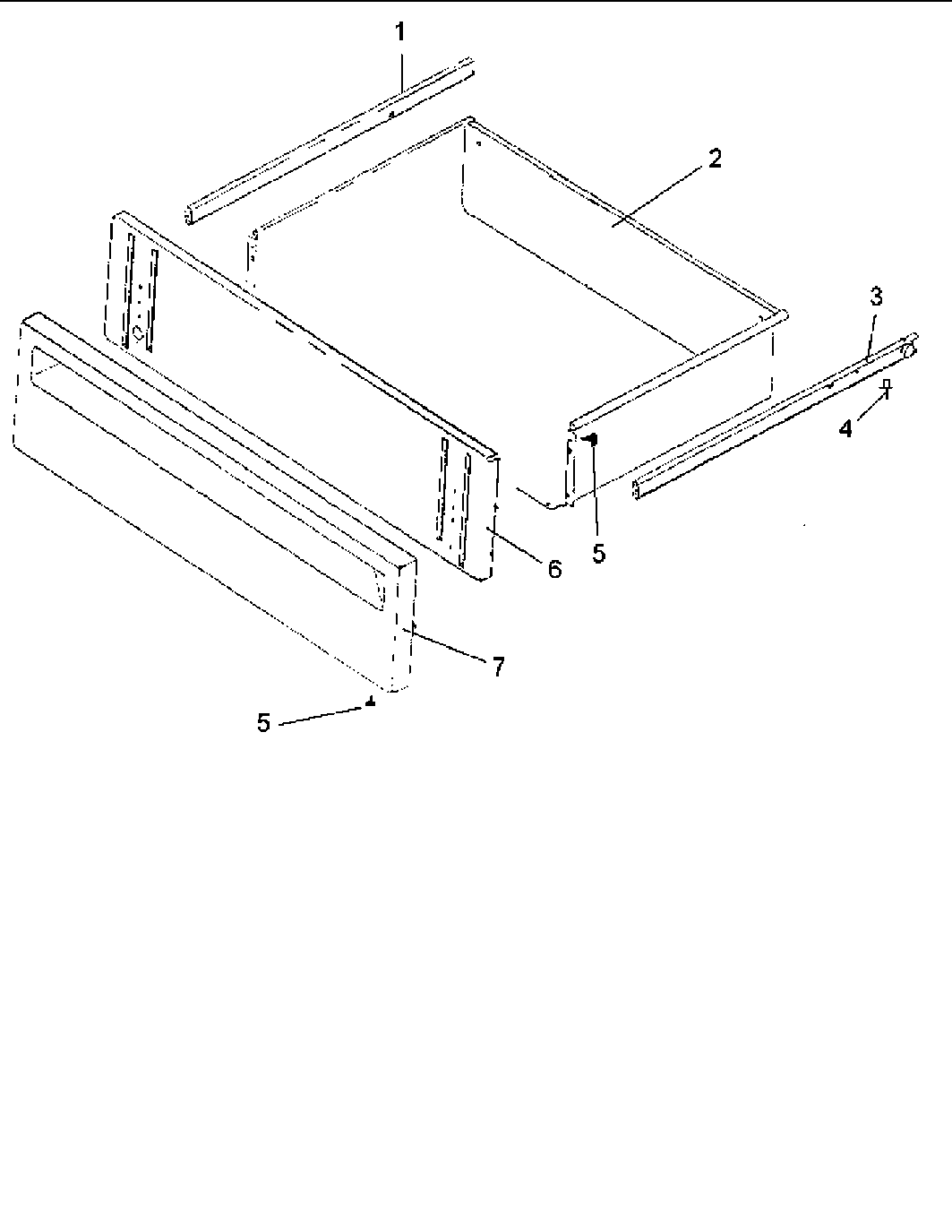

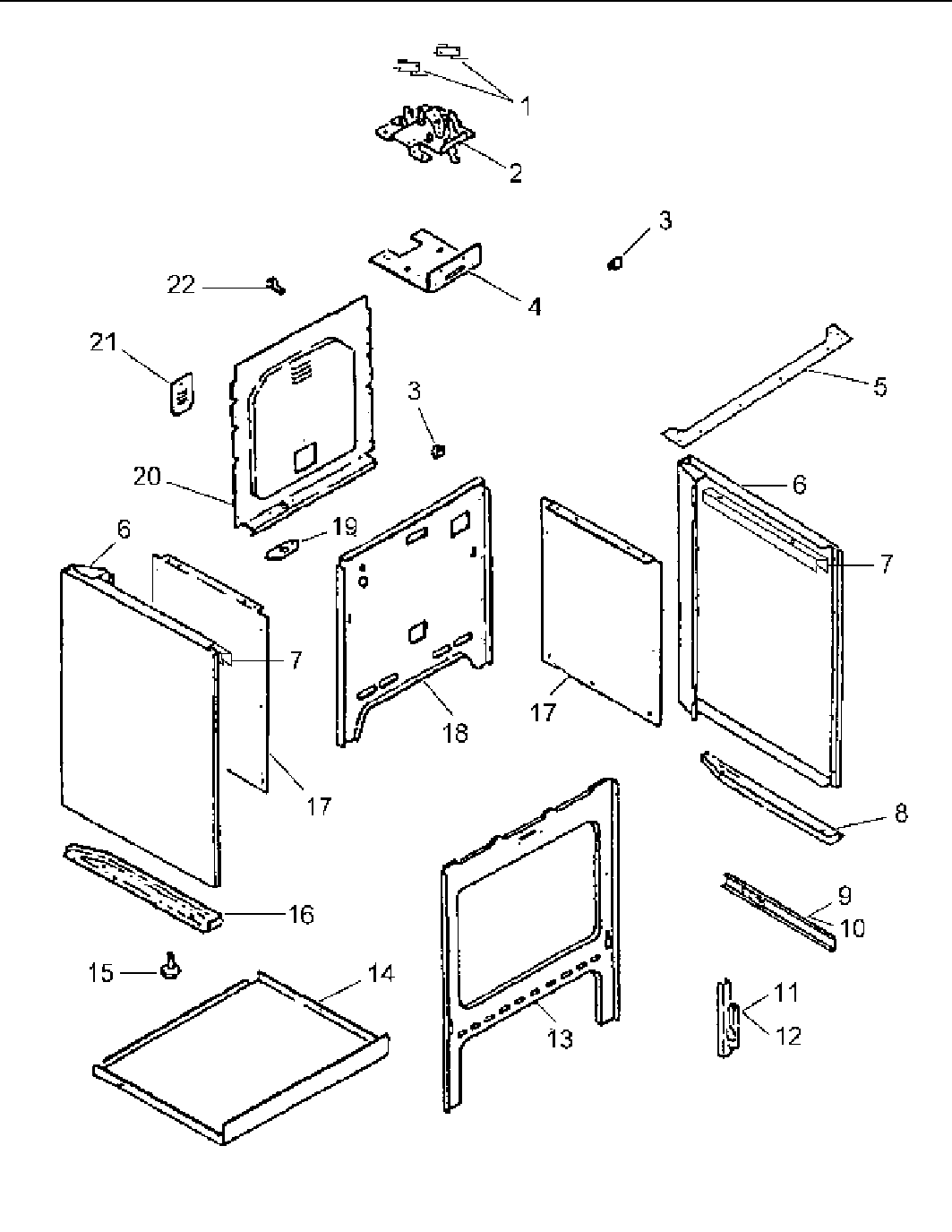

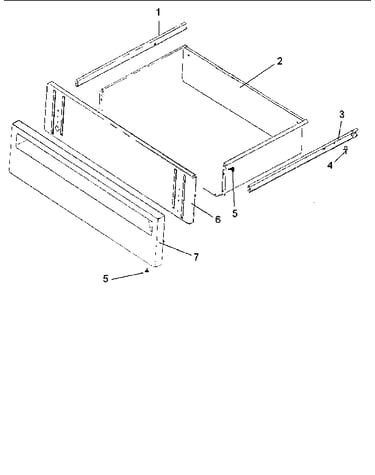

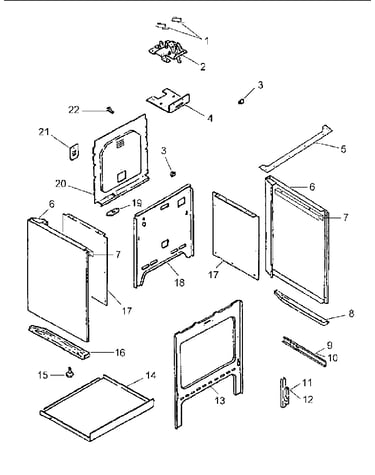

SELECT DIAGRAM
Browse Parts for ARH6700E-P1142686NE Ranges
Electric components diagram

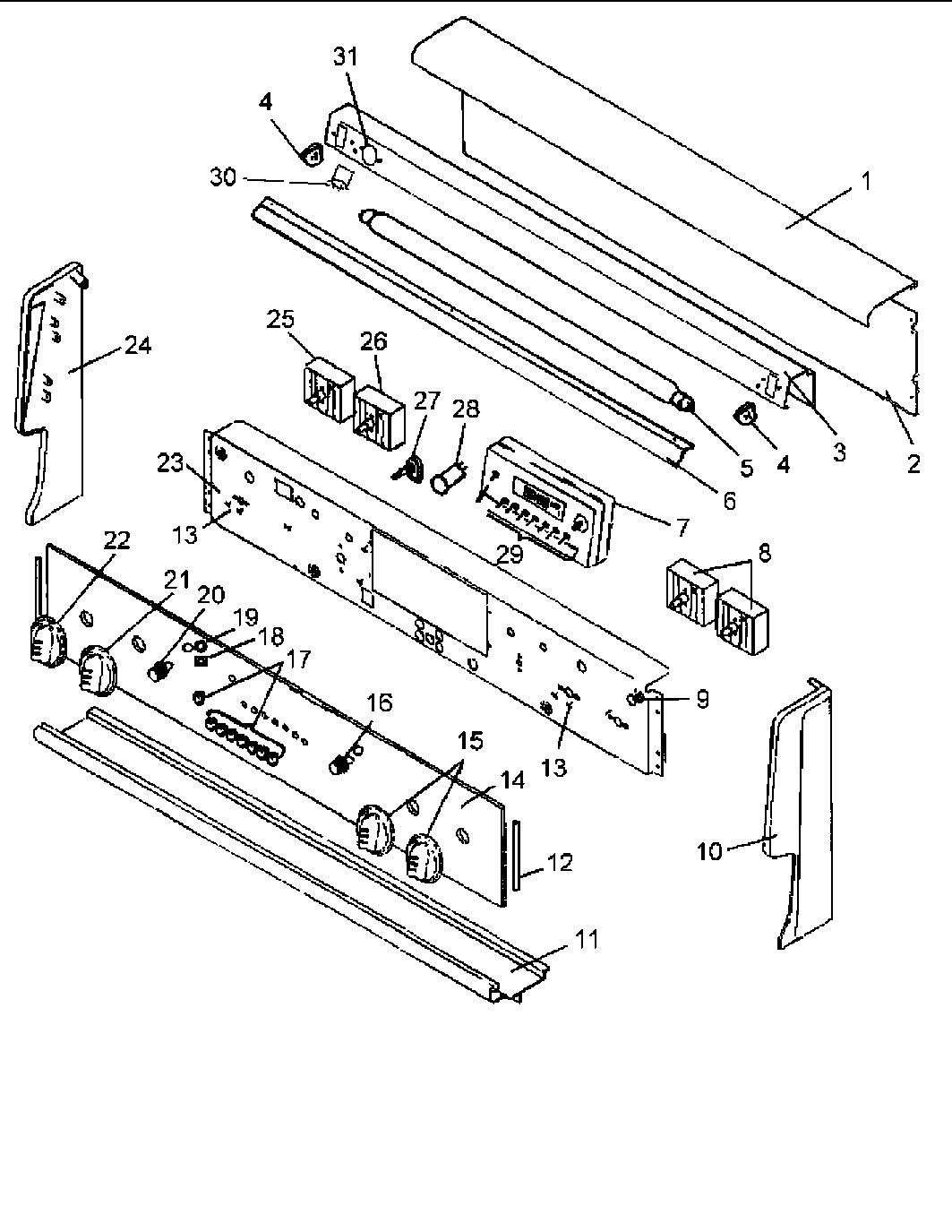

Cover,backgd
Part #0306379Replaced by #WPW10245259
Manufacturer substitutionThis part replaces 0306379. Substitute parts can look different from the original.In Stock$27.9118% OFF Phone Price : $33.91
Qty
Element-blk
Part #0059552
The manufacturer no longer makes this part, and there's no substitute part
Switch
Part #0309862Replaced by #W11121639

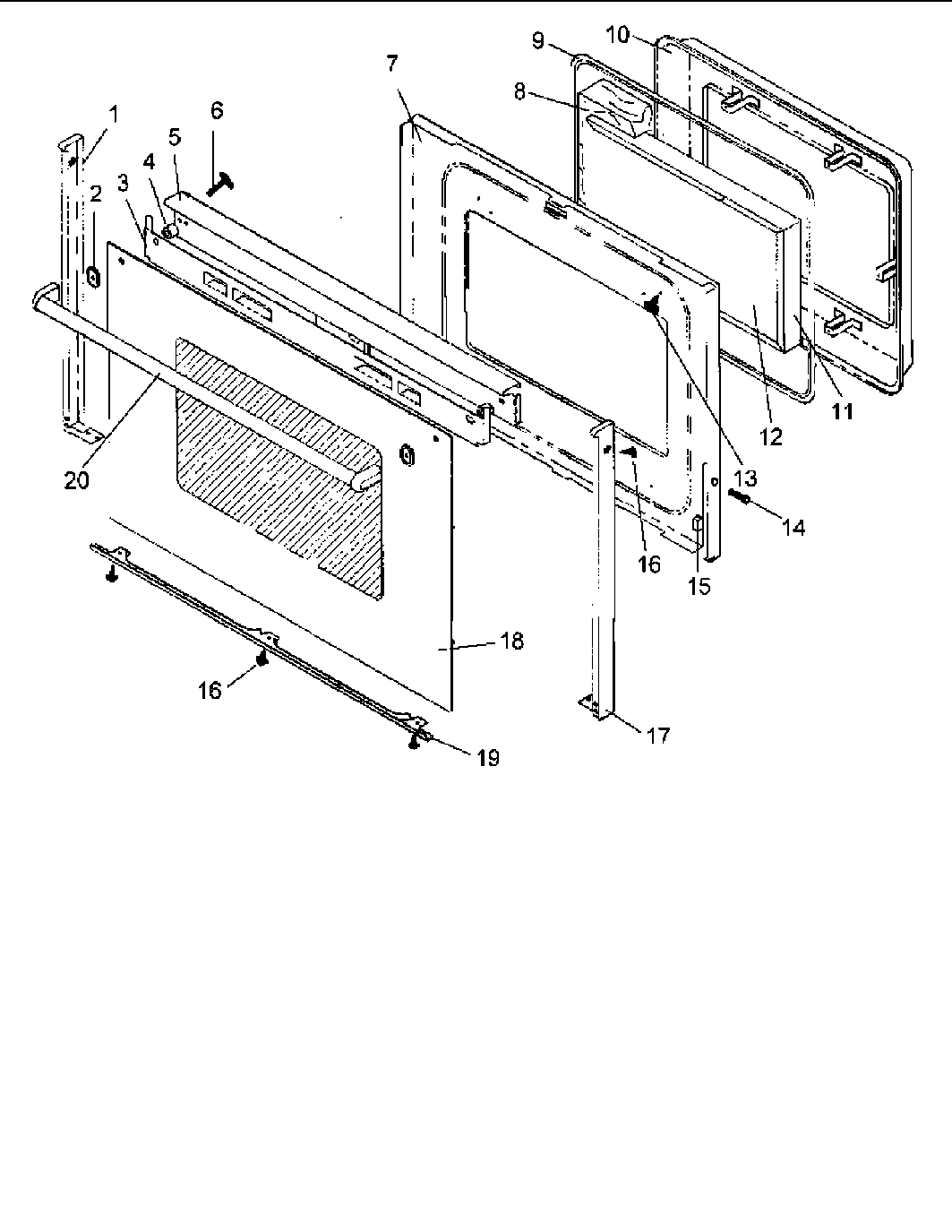

Manufacturer substitutionThis part replaces 0309862. Substitute parts can look different from the original.In Stock$100.1211% OFF Phone Price : $112.12QtyDoor assy diagram
Spacer
In Stock$67.02QtyElectric components diagram
Oven Sensor
Part #0314907
The manufacturer no longer makes this part, and there's no substitute part

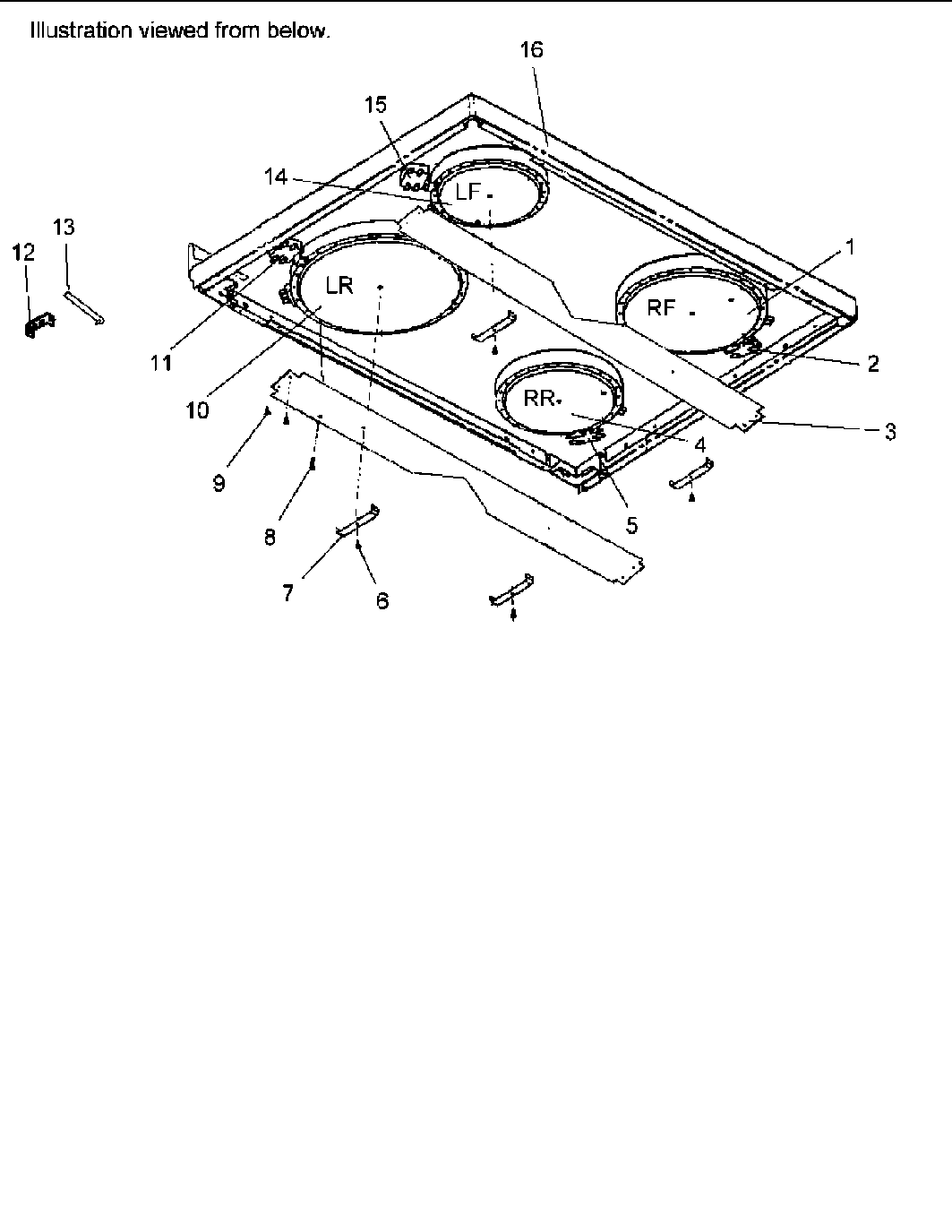

Main top assy diagram
Element Spring
Part #0306683Replaced by #74008213
Manufacturer substitutionThis part replaces 0306683. Substitute parts can look different from the original.In Stock$27.79QtyScrew

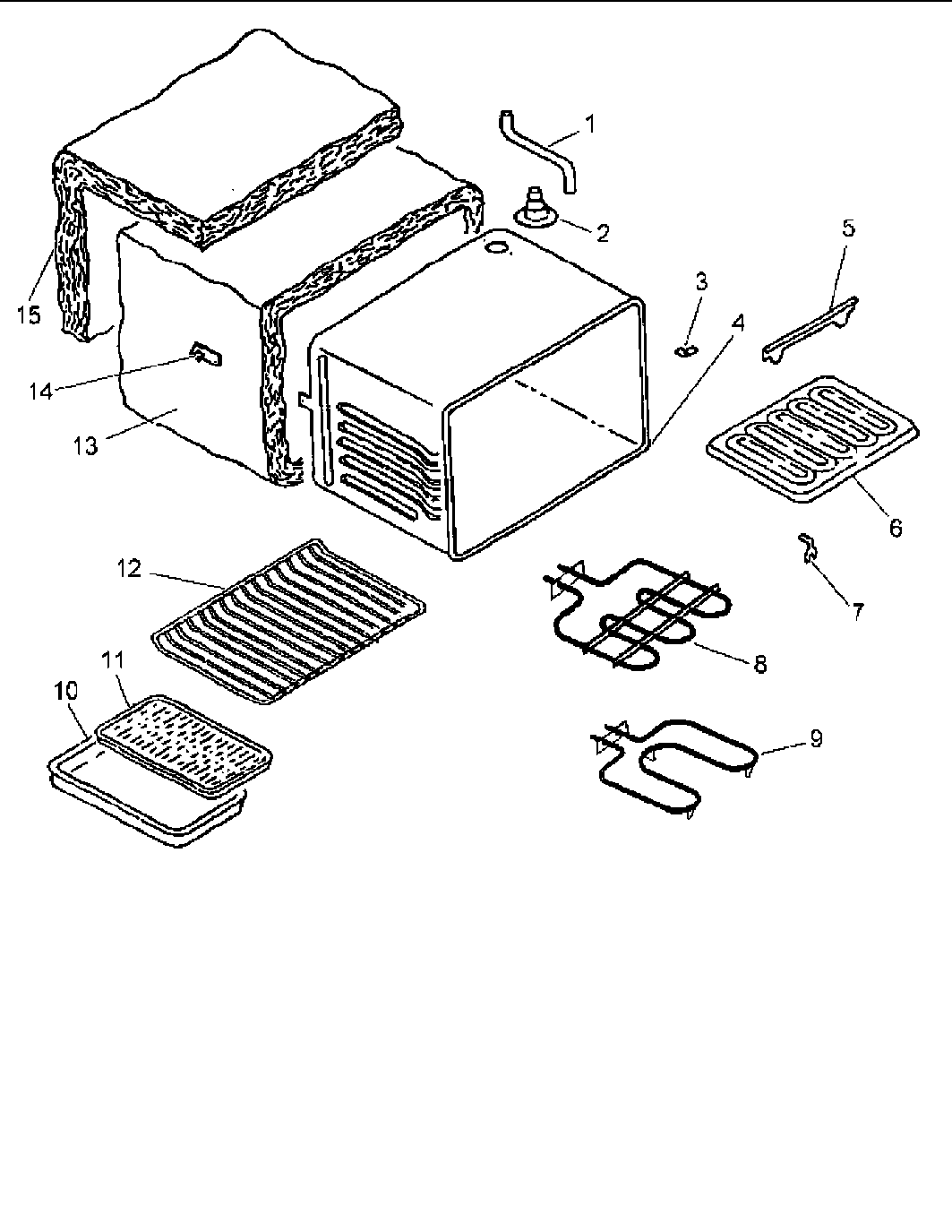

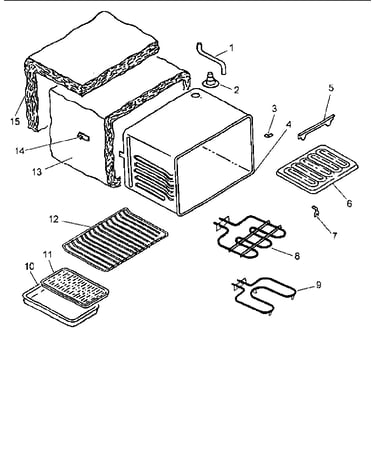

Part #0059445Replaced by #W11245710
Manufacturer substitutionThis part replaces 0059445. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61QtyOven assy diagram
"grid, Broile"
Part #304451CGReplaced by #4396923
Manufacturer substitutionThis part replaces 304451CG. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyElectric components diagram
Lamp
Part #0042175Replaced by #8009
Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.In Stock$35.61QtyBroil Element
Part #0061732
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
