Kenmore
Charcoal Grill

Model # 920108832 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 920108832 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

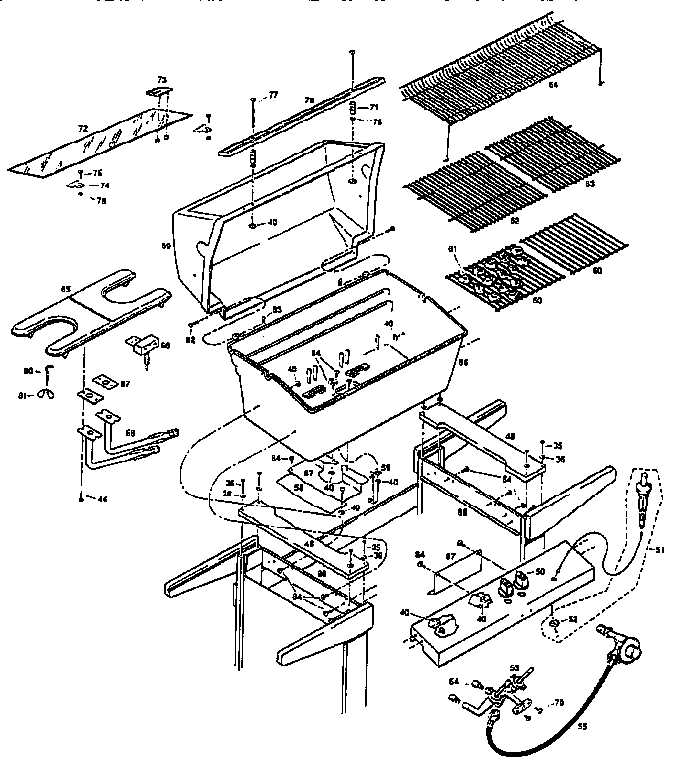

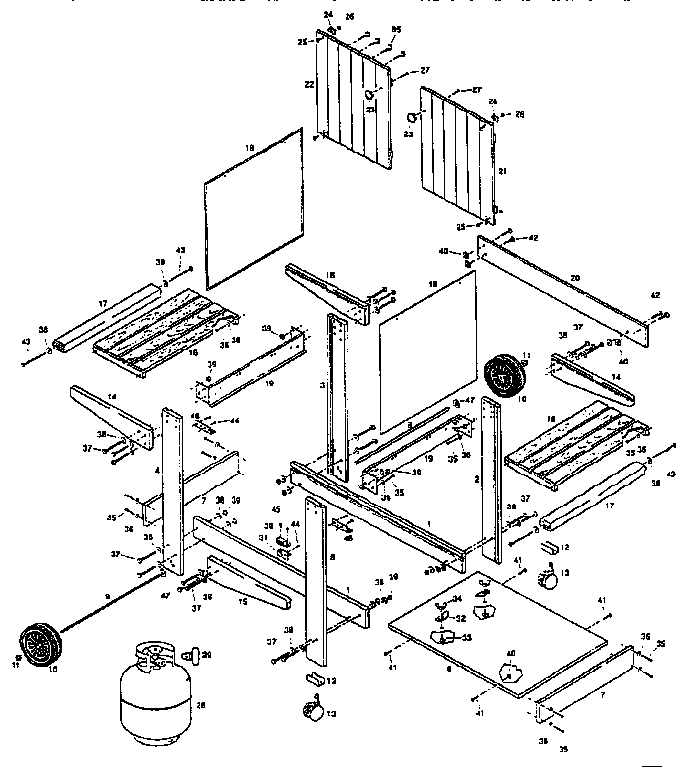

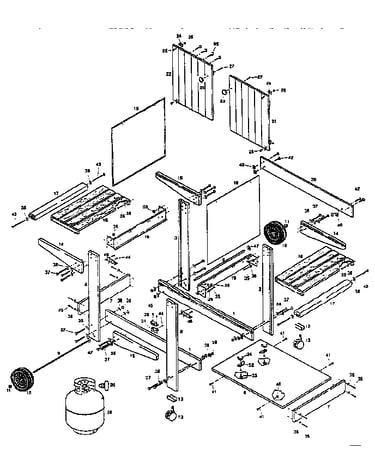

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Rack Grate 40-3327

#60

All parts diagram

Rack grate

Part #40-3327

Replaced by #91801

?
Manufacturer substitution
This part replaces 40-3327. Substitute parts can look different from the original.
$85.13
In Stock
Washer STD551031

#38

All parts diagram

Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610807

#44

All parts diagram

Screw

Part #STD610807

The manufacturer no longer makes this part, and there's no substitute part

Clip 4 Crner 23-9906

#74

All parts diagram

Clip 4 crner

Part #23-9906

The manufacturer no longer makes this part, and there's no substitute part

Caster Leg 40-3401

#5

All parts diagram

Caster leg

Part #40-3401

The manufacturer no longer makes this part, and there's no substitute part

Retainer 15-9450

#32

All parts diagram

Retainer

Part #15-9450

The manufacturer no longer makes this part, and there's no substitute part

Nut 40-2545

#52

All parts diagram

Nut

Part #40-2545

The manufacturer no longer makes this part, and there's no substitute part

Hose 40-2604

#55

All parts diagram

Hose

Part #40-2604

The manufacturer no longer makes this part, and there's no substitute part

Heat End 40-3107

#73

All parts diagram

Heat end

Part #40-3107

The manufacturer no longer makes this part, and there's no substitute part

Axle Leg 40-3169

#3

All parts diagram

Axle leg

Part #40-3169

The manufacturer no longer makes this part, and there's no substitute part
