Electric Cooktop

Model # PP9036SJ2SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE PP9036SJ2SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Range Surface Element, Right Front WB30T10126
#59

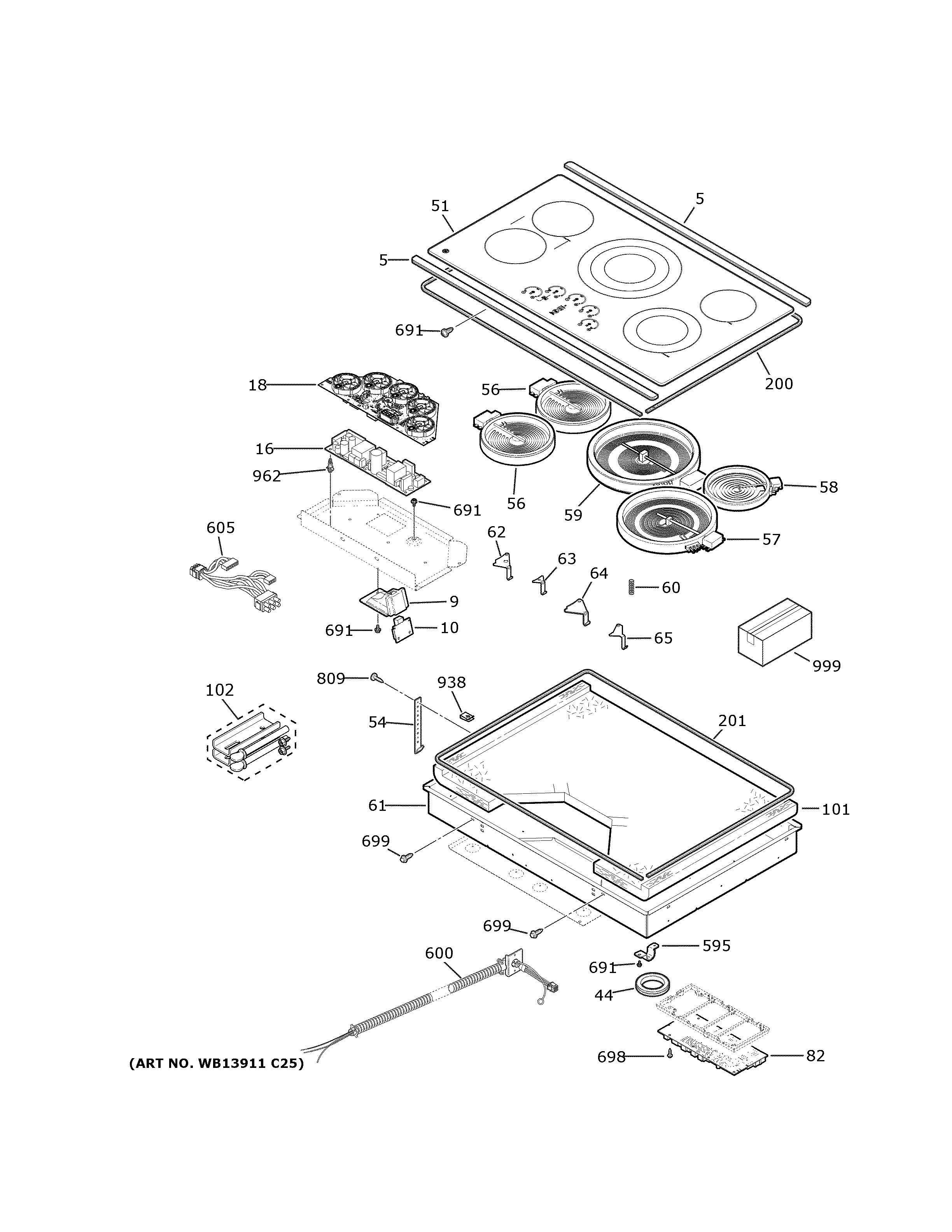

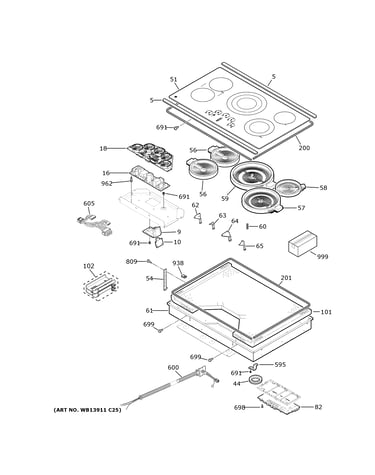

Control panel & cooktop diagram

Range surface element, right front

Part #WB30T10126

BEST SELLER
$180.45
5% OFF Phone Price : $190.45
In Stock
Cooktop Main Top Seal (replaces Wb2x9902) WB02X26088
#201

Control panel & cooktop diagram

Cooktop main top seal (replaces wb2x9902)

Part #WB02X26088

$51.24
9% OFF Phone Price : $56.24
In Stock
Range Radiant Surface Element, 6-in (replaces Wb30t10125) WB30T10129
#56

Control panel & cooktop diagram

Range radiant surface element, 6-in (replaces wb30t10125)

Part #WB30T10129

$112.74
8% OFF Phone Price : $122.74
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#58

Control panel & cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

$106.94
9% OFF Phone Price : $116.94
In Stock
Burner WB63X24178
#61

Control panel & cooktop diagram

Burner

Part #WB63X24178

In Stock
Radiant Bracket WB02X24199
#62

Control panel & cooktop diagram

Radiant bracket

Part #WB02X24199

In Stock
Scr 8-18x WB01X24096
#699

Control panel & cooktop diagram

Scr 8-18x

Part #WB01X24096

In Stock
Radiant Bracket WB02X24195
#63

Control panel & cooktop diagram

Radiant bracket

Part #WB02X24195

In Stock
Pcb Standoff WB02T10477
#962

Control panel & cooktop diagram

Pcb standoff

Part #WB02T10477

$7.80
11% OFF Phone Price : $8.80
In Stock
