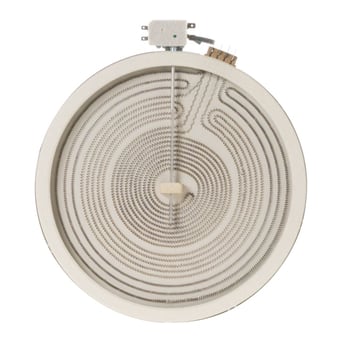

Range Surface Element, Right Front WB30T10126

5
4
4
3
3
0
2
0
1
2

Part #WB30T10126

Online Only Price
$181.49 |
5% OFF
Phone Price: $191.49
In Stock
For ZIP codes near Edit
60-day return policy

Only ground shipment is available for this item.

This part fits

Part Information

This surface element (part number WB30T10126) is for ranges.

Surface element WB30T10126 supplies the heat to a cooking area on top of the range.

Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.

Top models using the same part

Model NameModel NumberDiagram Name
Model #JS968TK4WW GE electric rangeJS968TK4WW
Cooktop
Model #PP962EH1ES GE electric cooktopPP962EH1ES
Control panel & cooktop
Model #PP945SM2SS GE electric cooktopPP945SM2SS
Control panel & cooktop
Model #ZEU36KWK2WW GE electric cooktopZEU36KWK2WW
Control panel & cooktop
Model #ZEU36KSK2SS GE electric cooktopZEU36KSK2SS
Control panel & cooktop
Model #PP972SM2SS GE electric cooktopPP972SM2SS
Control panel & cooktop
Model #PP975SM2SS GE electric cooktopPP975SM2SS
Control panel & cooktop
Model #JB968KK5CC GE electric rangeJB968KK5CC
Cooktop
Model #JB988KK6CC GE electric rangeJB988KK6CC
Cooktop
Model #PP945BM2BB GE electric cooktopPP945BM2BB
Control panel & cooktop

Reviews

Sam786
VirginiaReviews 1Votes 0
• 3 years ago
Sam786• 3 years ago
Easy to install

It was very easy to replace supposed to open two screws remove all install new

Response from Sears PartsDirect:
sm • 3 years ago

Hello. We are so glad to hear you had a positive experience with Sears!! We greatly appreciate your feedback. Thank you for choosing Sears!

Lorisara57
CaliforniaReviews 2Votes 0
• 3 years ago
Lorisara57• 3 years ago
Easy installation.

Was so easy to install. Just a few screws and you pull the wires. Replace Element, reverse steps and you are done.

Mrfixitlarry
Naples, FLReviews 1Votes 0
• 4 years ago
Mrfixitlarry• 4 years ago
Installation was not difficult.

I unscrewed the two screws that hold the glass top down. It swings right up and I used the burner box as a prop to hold it up. I took a photo of the wires before removing them to be sure I got it back together corectly.

bill73
Washington, ILReviews 1Votes 0
• 5 years ago
bill73• 5 years ago
Easy to install

It was easy to install with the small exception of trying to get the retainer clips installed.

Lawnmower Man Derry Maine
Derry, MEReviews 2Votes 0
• 2 years ago
Lawnmower Man Derry Maine• 2 years ago
No Instructions

Although I could look it up on YouTube, it's pretty annoying that there was absolutely zero instructions included. I ended up having to drill holes in the bottom of the burner in order to install it. Other than that, you really need to be a handyman, like myself, in order to install this properly. Also, make sure you unplug the range or shut of the circuit break before you do this.

Response from Sears PartsDirect:
CS OFFLINE • 2 years ago

We are sorry to hear we did not meet your expectations. Our products ship directly from the manufacturer and at times do not contain instructions. If you are needing further assistance obtaining instructions, please visit www.SearsPartsDirect.com and click the chat option on the bottom right corner to speak with a Parts Direct chat representative.

ChasCT
CTReviews 1Votes 0
• 5 years ago
ChasCT• 5 years ago
this install was straight forward

replaced a glass top electric filament ring. Looked at some You Tube videos to help it good faster. The $200 price for the heating element was high and I'd look for better pricing

mjcastronut
Torrington, CtReviews 1Votes 0
• 5 years ago
mjcastronut• 5 years ago
Easy to install once you figure out

These were very easy to install. Biggest issue was trying to figure out how to open the top of the stove. There are 2 screws underneath which when removed, the top pulls up. When you unplug them, just remember where the wires get put back in. The clips can be a little tricky taking off, but if you use a needle nose and pull out and up they pop off. I usually order from here because I never have an issue and usually comes pretty quick.

Annoyed
ConnecticutReviews 1Votes 0
• 2 years ago
Annoyed• 2 years ago
Wrong part

Can’t actually review this item since it wasn’t the right part. Triple checked Sears website to make sure it was correct. Every time I entered my model number the website stated it was the correct part for my cooktop. It cost me $10 to ship it to me and $6 to ship it back! Waste of $16! Thanks Sears!
