Model # REG638BDW4 Official Frigidaire electric range - lf32089030

Here are the diagrams and repair parts for Official Frigidaire REG638BDW4 electric range - lf32089030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

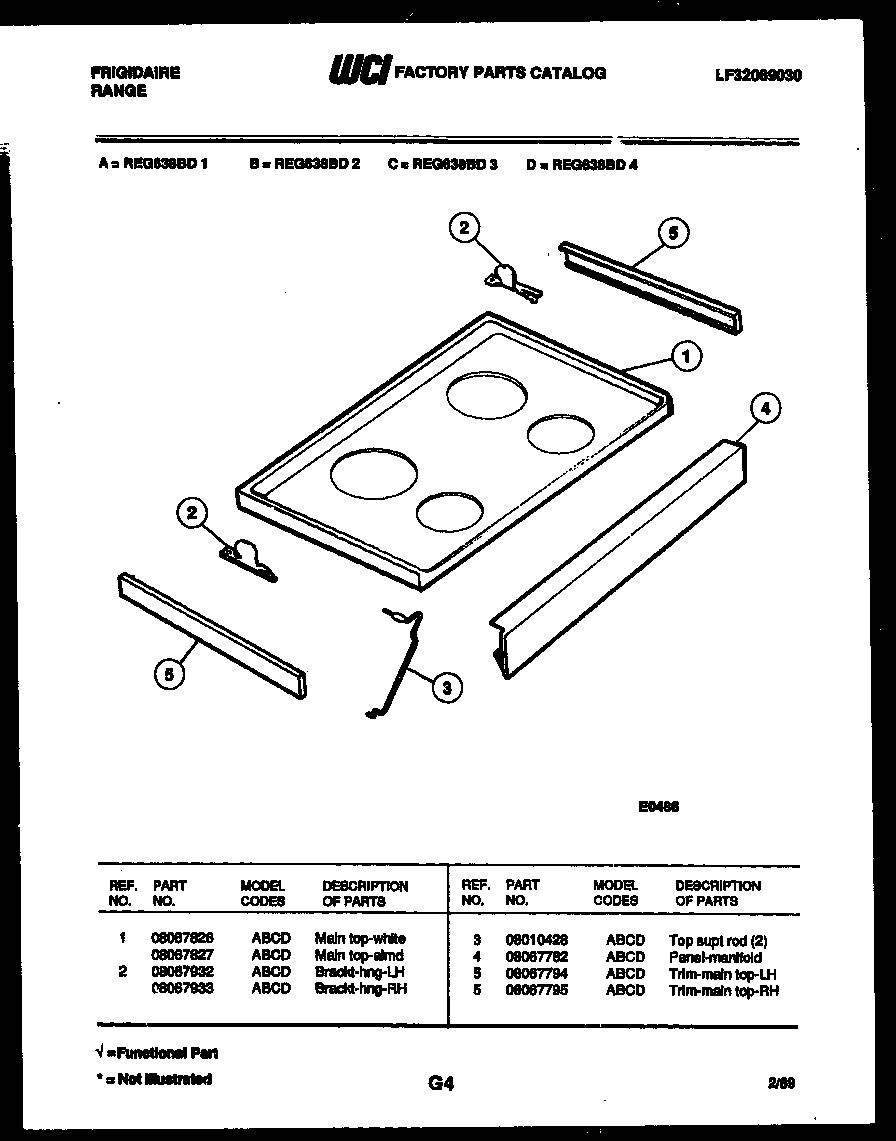

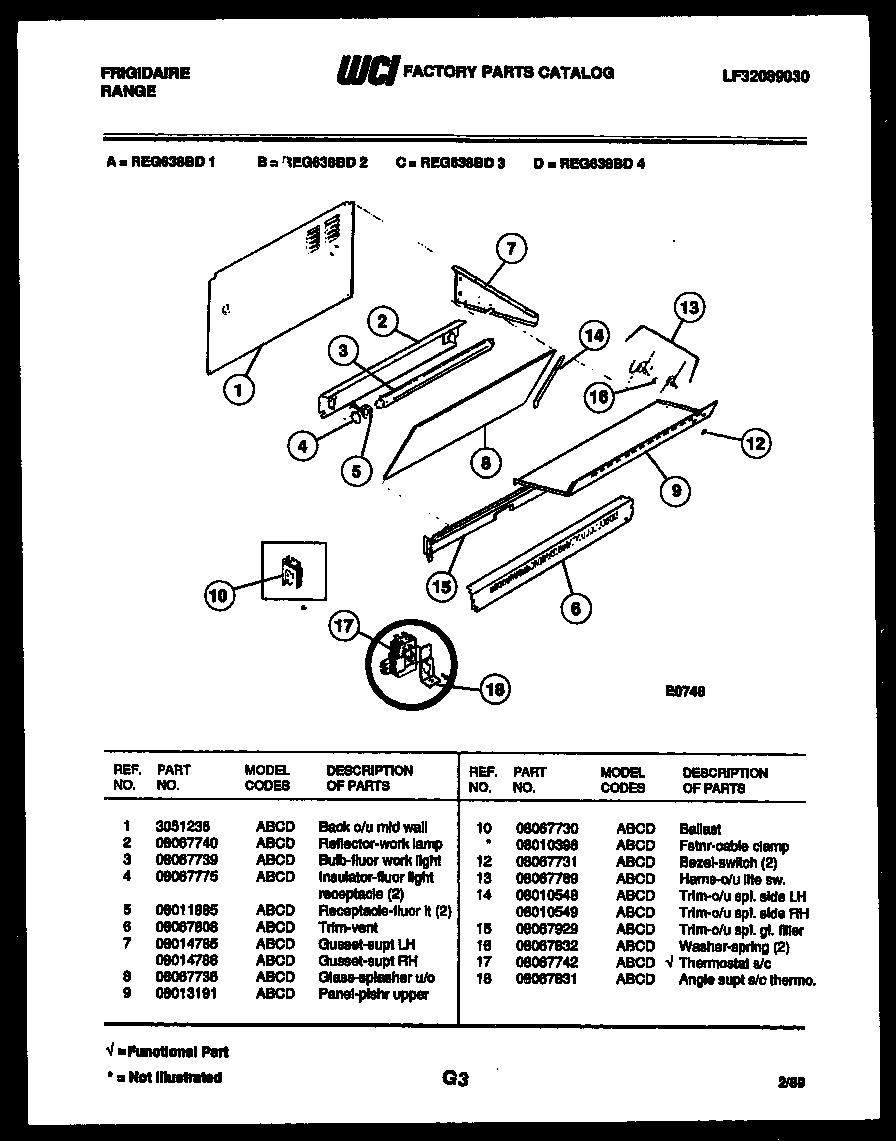

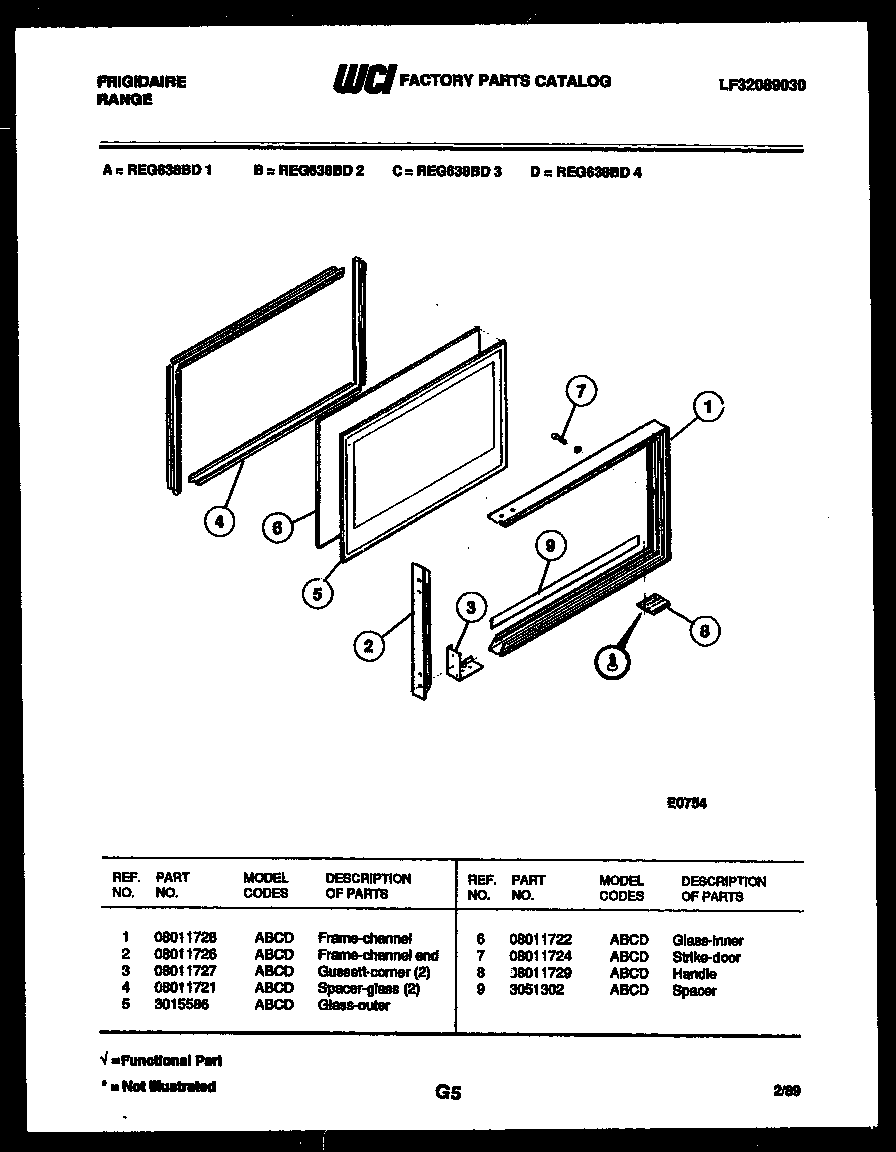

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Surface Element 08067763
#1

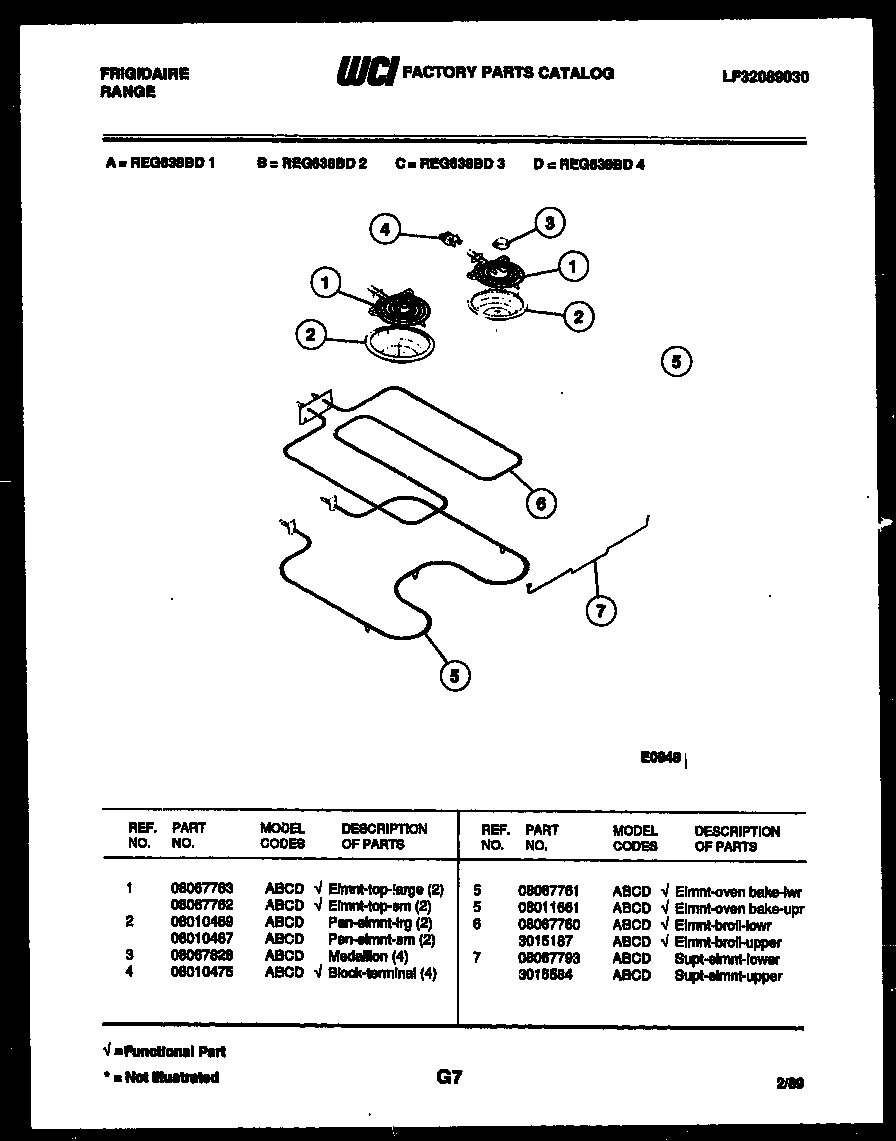

Broiler parts diagram

Surface element

Part #08067763

Replaced by #316442301

?
Manufacturer substitution
This part replaces 08067763. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Cooktop Surface Element 08067762
#1A

Broiler parts diagram

Cooktop surface element

Part #08067762

Replaced by #318372211

?
Manufacturer substitution
This part replaces 08067762. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Drawer Glide 08067766
#22

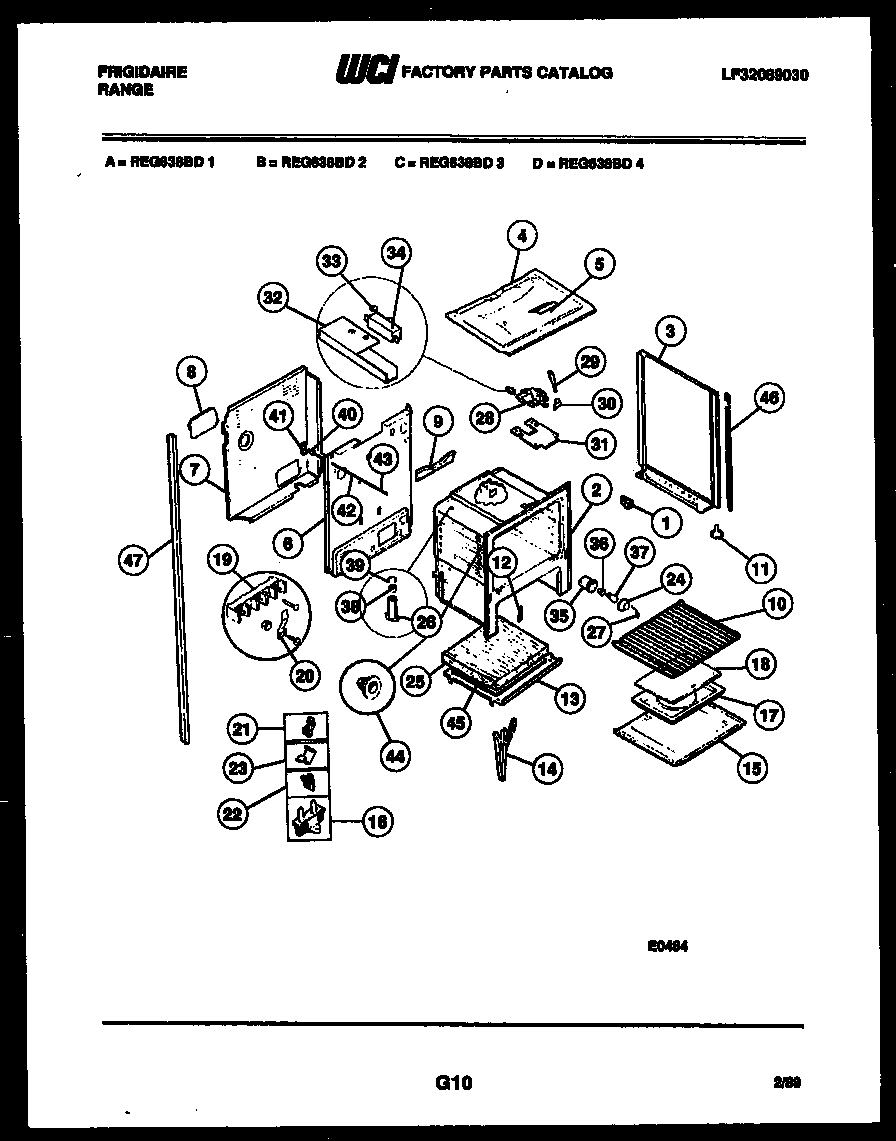

Lower body parts diagram

Drawer glide

Part #08067766

Replaced by #3051162

?
Manufacturer substitution
This part replaces 08067766. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.89 |
20% OFF Phone Price : $4.89
In Stock
Glide 08067822
#2

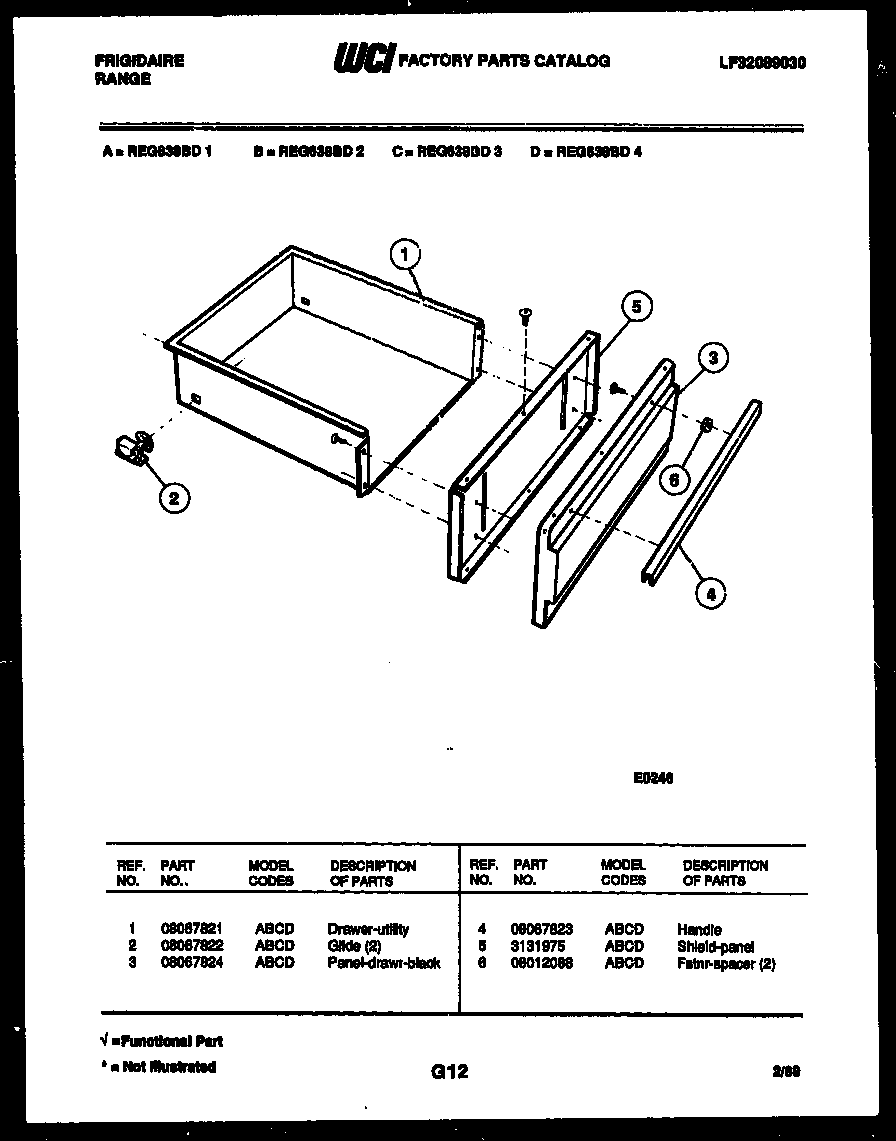

Drawer parts diagram

Glide

Part #08067822

Replaced by #3051163

?
Manufacturer substitution
This part replaces 08067822. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Switch 08012864
#4

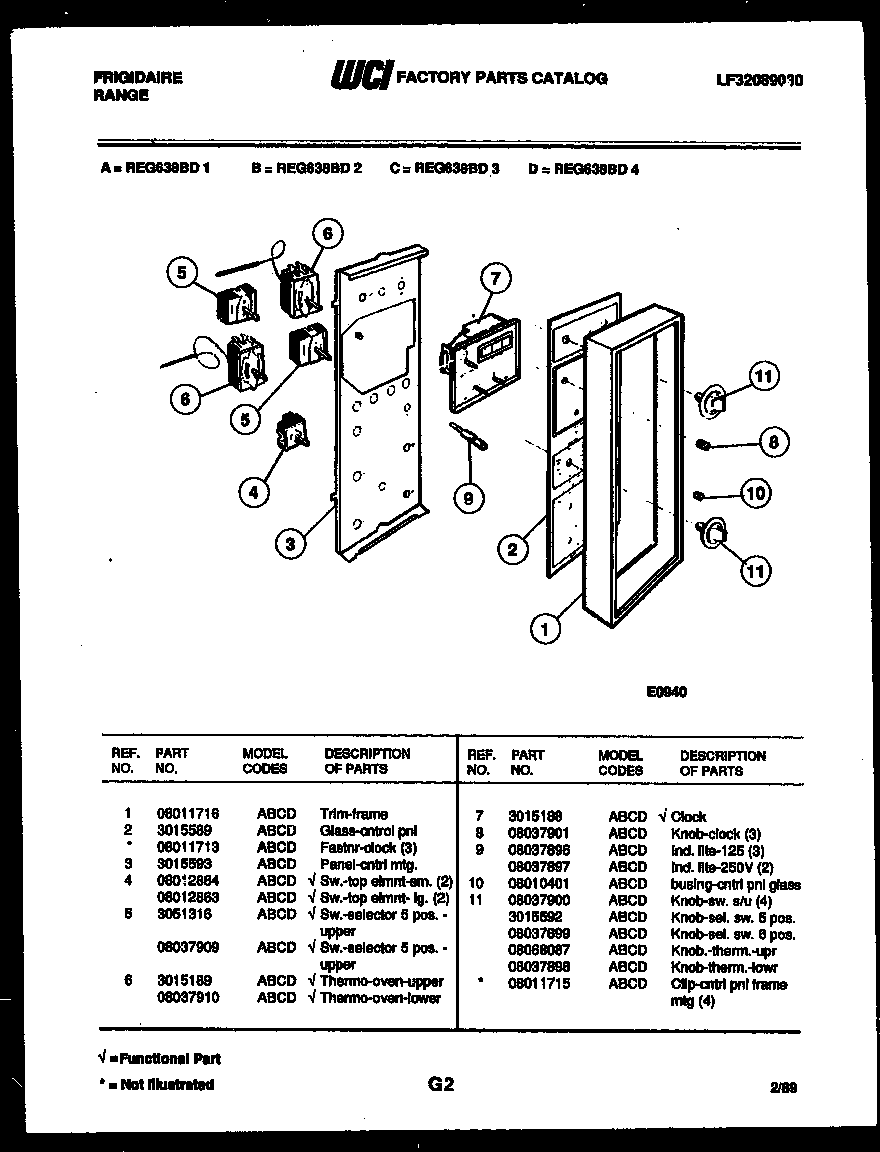

Control panel diagram

Switch

Part #08012864

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 08012864. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Switch-9" El 08012863
#4A

Control panel diagram

Switch-9" el

Part #08012863

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 08012863. Substitute parts can look different from the original.
$39.79 |
13% OFF Phone Price : $45.79
In Stock
Oven Rack 3131973
Oven rack

Part #3131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 3131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Handle Screw 08010391
#15B

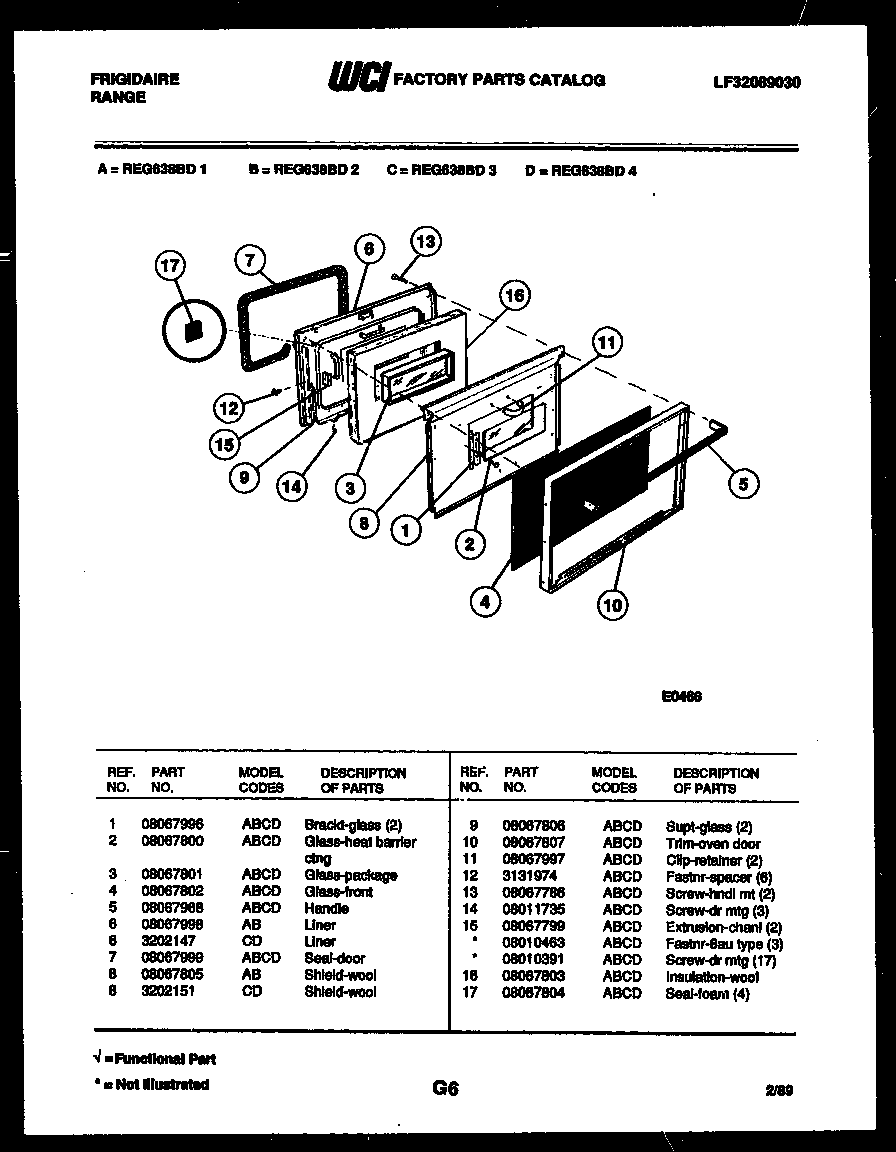

Lower oven door parts diagram

Handle screw

Part #08010391

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 08010391. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Pan 3015585
#26

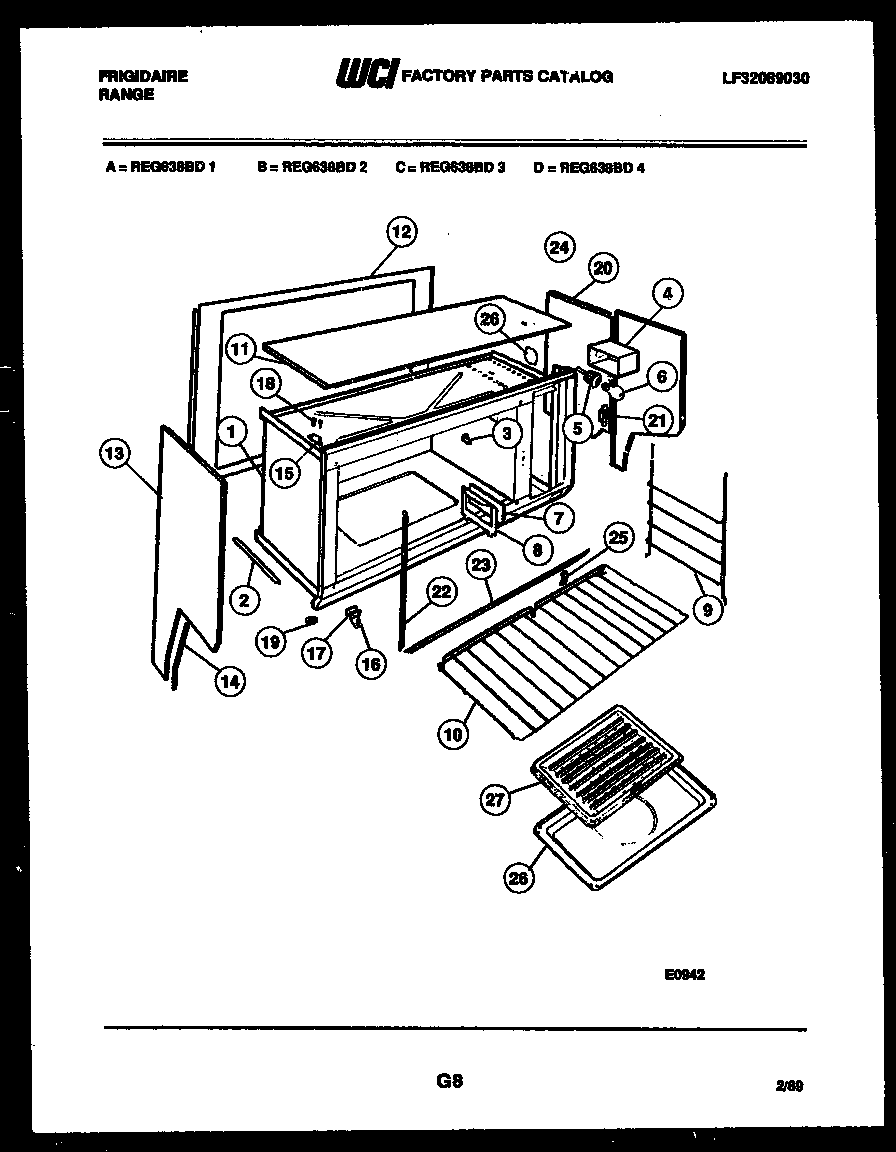

Upper body parts diagram

Pan

Part #3015585

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 3015585. Substitute parts can look different from the original.
$71.75 |
8% OFF Was : $77.99
In Stock
Seal 08067999
#7

Lower oven door parts diagram

Seal

Part #08067999

Replaced by #5303131601

?
Manufacturer substitution
This part replaces 08067999. Substitute parts can look different from the original.
$224.12 |
5% OFF Phone Price : $236.12
In Stock
