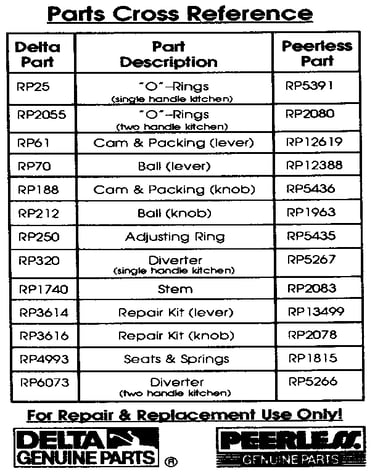

Delta FAUCET PARTS CROSS REFERENCE parts cross reference Parts

Most Delta FAUCETs use the same core part names: the handle(s) you turn, the spout where water exits, and the internal valve or cartridge that mixes hot and cold water and controls flow. Other common FAUCET parts include seals, mounting hardware, and the drain pieces on sink setups.

Common FAUCET parts (quick glossary)

• Handle or lever: turns water on and off; sets temperature on single-handle FAUCETs
• Spout: the outlet body that directs water into the sink
• Aerator: the small screen at the spout tip that shapes the stream and reduces splashing
• Cartridge or valve: the internal control that regulates flow and mixes hot/cold
• Bonnet nut / retaining nut: holds the cartridge or valve in place
• O-rings and seals: prevent leaks around moving parts and joints
• Escutcheon (trim plate): covers the mounting hole(s) and provides a finished look

Parts you may also see (by FAUCET style)

FAUCET type or feature	Parts commonly included	What they do
Two-handle FAUCET	Hot stem, cold stem, seats, washers	Separates hot and cold control
Pull-down / pull-out	Spray head, hose, weight, diverter	Switches stream/spray and retracts hose
Tub/shower valve	Diverter, pressure-balance spool, trim sleeve	Routes water to tub or shower; stabilizes temperature
Bathroom sink drain	Pop-up rod, lift rod, stopper, pivot ball	Opens and closes the drain

How we recommend matching the right replacement part

• Identify whether it is single-handle or two-handle
• Note the FAUCET location (kitchen, bathroom, tub/shower)
• Check what is failing: drip, low flow, loose handle, sprayer not switching
• Remove the aerator or handle to confirm the cartridge/valve style
• Use the cross-reference listing for model FAUCET to map old numbers to current replacements, then search by part number on Sears PartsDirect

Why it matters

FAUCET parts are named by function (control, sealing, mounting, or spray/diverting). Using the correct name helps you quickly find the right Delta replacement and avoid buying a cartridge, aerator, or seal that looks similar but will not fit.

Last updated: February 2026

Delta FAUCET replacement parts are sometimes available at no cost through warranty coverage, but the fastest way to match the correct part is to identify your exact Delta FAUCET model and then cross-reference the cartridge, seats/springs, O-rings, or aerator you need using our Delta FAUCET parts cross reference. For ordering, we recommend starting at Sears PartsDirect.

Steps to get the right replacement part (and avoid ordering the wrong one)

• Find the FAUCET series and trim details (single-handle vs. two-handle; kitchen vs. bath).
• Note key identifiers: handle style, spout shape, finish, and any markings under the sink.
• Identify the failing area: drip at spout, leak at handle, low flow, or loose handle.
• Cross-reference the most common wear parts: cartridge, cam/packing, seats and springs, O-rings, aerator.
• Shut off water at the stops before disassembly; open the FAUCET to relieve pressure.

Common “free parts” situations (what typically qualifies)

Warranty coverage usually applies to defects in materials or workmanship for the original purchaser. In practice, the parts most often requested for leaks and handle issues include cartridges and seal kits.

Symptom	Most likely part type	What you’ll notice
Drip from spout	Cartridge or seats/springs	Drip continues when handle is off
Leak at handle	O-rings, packing, bonnet seal	Water appears around handle base
Low flow	Aerator	Flow reduced but valve still works
Handle hard to turn	Cartridge, lubrication issue	Stiff movement or squeak

Why it matters

Delta FAUCETs use multiple cartridge and seal designs across generations. Matching by appearance alone often leads to the wrong cartridge; using a parts cross reference based on your FAUCET’s identifiers saves time and prevents repeat leaks.

Last updated: February 2026

To identify your Delta FAUCET model, we look for the model number on the original box (near the UPC) or on the FAUCET itself. Many Delta sink FAUCETs made since 2012 have a small ID tag attached to one of the supply lines under the sink.

Where to check first

• Original packaging: near the UPC code or along the top/side panel
• Under the sink: check both hot and cold supply lines for a hanging tag
• Mounting area: look around the shank, mounting nut, or bracket (use a flashlight)
• Spout base and handle area: check for tiny stamped or printed markings
• Paperwork: installation sheet, receipt, or contractor notes (often lists the model)

What the model number usually looks like

Delta FAUCET model IDs are typically a short mix of letters and numbers (often 4 to 7 characters). Once you find it, use that exact model to cross-reference repair parts like a cartridge, aerator, handle kit, or spray head.

What you find	What it tells you	What to do next
Model number on box	Best match for the FAUCET	Use it to search parts by model
Tag on supply line	Common on many models since 2012	Write it down exactly (letters and numbers)
No tag or markings	Common on older installs	Identify by features (handle count, spray type, finish)

If you cannot find a tag (common on older FAUCETs)

Use these details to narrow it down for a parts cross reference:

• 1-handle vs 2-handle
• Pull-down, pull-out, or standard spout
• Separate side sprayer or integrated sprayer
• Finish (chrome, stainless, bronze)
• Approximate install year

Why it matters

Delta FAUCET parts are not one-size-fits-all. The correct model number helps us match the right internal parts (especially the cartridge and seals) so you fix leaks, low flow, or handle issues without repeat repairs.

For help using our search tools to locate the right parts list, use how to find your appliance model number (and what it means for parts).

Last updated: February 2026

No. FAUCET supply lines are not all the same; they vary by connection size and type, length, inside diameter (flow), and material. For Delta cross-reference model FAUCET, the right supply line is the one that matches both your shut-off valve outlet and your FAUCET inlet so it seals without leaks.

What typically differs between FAUCET supply lines

• Connection size: most common are 3/8-inch and 1/2-inch (compression or pipe thread varies)
• End type: compression, FIP (female iron pipe), MIP, or specialty quick-connect
• Length: common ranges are 12 to 30 inches (longer options exist)
• Material: braided stainless steel, polymer-braided, or solid copper
• Bend radius and flexibility: affects how easily the line routes without kinking

Quick sizing checklist (what to verify before you buy)

1. Look at the shut-off valve under the sink and note the outlet type (often 3/8-inch compression).
2. Check the FAUCET tailpiece/inlet size and whether it needs a compression nut, FIP, or a quick-connect.
3. Measure the needed length with a gentle route (avoid tight bends); choose a line that reaches without tension.
4. Match hot and cold lines the same way; do not force mismatched threads.

Common configurations (examples)

Under-sink shut-off valve	FAUCET connection	Typical supply line you need
3/8-inch compression	1/2-inch FIP	3/8-inch comp x 1/2-inch FIP
3/8-inch compression	3/8-inch compression	3/8-inch comp x 3/8-inch comp
1/2-inch FIP	1/2-inch FIP	1/2-inch FIP x 1/2-inch FIP

Why it matters

Using the wrong connector type or size can strip threads, prevent the ferrule from sealing, or leave the line under stress. The correct match reduces leak risk and helps maintain steady water flow.

Helpful next step for cross-referencing

If you are using this Delta FAUCET cross-reference page to match parts, start by confirming your FAUCET’s exact model identification and then match the supply line ends to your valve and FAUCET. Our guide, how to find your appliance model number (and what it means for parts), helps you identify the right information to use when searching.

Last updated: February 2026

No. FAUCET parts are not universal; most items (especially cartridges, stems, and handles) are designed to fit a specific brand and FAUCET design. For Delta cross-referencing (model FAUCET), matching the original part by type and measurements is the most reliable way to get the correct replacement.

What is (and is not) interchangeable

Some FAUCET parts can cross over between similar designs, but many cannot.

• Not universal: cartridges, valve stems, pressure-balance units, diverters
• Sometimes interchangeable: aerators (if thread size matches), some O-rings and washers (if size matches)
• Often brand-specific: handle adapters, trim kits, escutcheons, bonnet nuts
• Finish and style parts: rarely cross-brand even if they physically fit

How we recommend matching a FAUCET part

Use a simple identification process before ordering.

1. Identify the FAUCET type: kitchen, bathroom, tub/shower, or utility.
2. Note the operation: single-handle, two-handle, pull-down, or thermostatic.
3. Measure key dimensions (cartridge length, stem spline count, seat diameter, aerator thread size).
4. Compare photos and descriptions in the cross-reference listing.
5. If you are unsure, use our model-number based search on Sears PartsDirect.

Quick compatibility guide

Part type	Typical compatibility	What must match
Cartridge	Low	Brand/design family, ports, length, tabs
Aerator	Medium	Thread size (male/female), diameter
O-ring/washer	Medium	Inside diameter, thickness, material
Handle/trim	Low	Spline/broach pattern, mounting style, finish

Why it matters

Using a “close enough” FAUCET cartridge or stem can cause leaks, poor temperature control, low flow, or a handle that will not seat correctly. Correct matching saves time and prevents repeat repairs.
