Kenmore 10650262993 side-by-side refrigerator Parts

On Kenmore side-by-side refrigerator model 10650262993, the model and serial number label is located inside the refrigerator compartment on an inside wall. Use that label to record the full model number and serial number exactly as shown; you will need it for parts lookup and service information in the 10650262993 owner's manual.

Where to look (fast checklist)

• Open the fresh food (refrigerator) door, not the freezer door
• Look on the inside wall of the refrigerator compartment
• Check near the upper side walls and around the crisper area
• Use a flashlight; the label can be small or partially shadowed
• Write down both the model number and serial number exactly

What you should copy from the label

Item on label	What it’s used for	Example for this unit
Model number	Ensures you get the right parts diagrams and parts	10650262993 (may also show a series like 106.)
Serial number	Identifies production details for your specific refrigerator	Varies by unit
Purchase date (your record)	Helpful for maintenance and warranty paperwork	Your date

Why it matters

The model number narrows your parts match to the correct Kenmore 106 platform. That prevents ordering the wrong items when you are replacing common parts such as an ice maker, water inlet valve, thermostat, or door gasket.

Next step: ordering the right parts

Once you have the model number, we recommend matching parts by the diagrams for 10650262993 first. If you are searching beyond the parts list, use the same model number at Sears PartsDirect so results stay accurate.

Last updated: February 2026

For the Kenmore side-by-side refrigerator model 10650262993, we set the freezer to 0°F (-18°C) for normal household use. If your unit has a numbered freezer control (not a temperature display), start at the factory mid-setting shown in the 10650262993 owner's manual, then fine-tune after the temperatures stabilize.

Recommended settings and what they mean

Many 106-series Kenmore side-by-side refrigerators use a Freezer Control that adjusts colder or less cold rather than showing an exact temperature. The manual guidance is to begin at the mid-setting and allow time for the cabinet to reach temperature.

• Target freezer temperature: 0°F (-18°C)
• Target fresh food temperature: 37°F (3°C)
• After changing controls, wait 24 hours before judging results
• Turning the control colder does not cool faster; it only changes the final temperature

How to dial it in (simple process)

1. Set the freezer control to the mid-setting.
2. Place an appliance thermometer between frozen packages (not in the door bin).
3. Check after 24 hours.
4. If above 0°F, move the freezer control one step colder.
5. Recheck after another 24 hours and repeat as needed.

Quick troubleshooting if the freezer will not hold 0°F

If temperatures swing warm, these common conditions matter most:

• Large amount of food was added recently; recovery can take several hours
• Doors are being opened often or not closing fully
• Shelves, bins, or the ice container are out of position and preventing proper door closure
• Controls were moved too far from the mid-setting
• Frost buildup or airflow issues are restricting cooling (fan and vents)

Common symptoms and the most likely adjustment

Symptom	What to do first	What to expect
Freezer is 5°F to 15°F	Move control 1 step colder	Improvement in 24 hours
Items are soft or thawing	Check door seal and airflow, then adjust colder	Stabilizes after recovery
Food is freezer-burned	Verify it is near 0°F, improve packaging	Less dehydration over time

Why it matters

Keeping the freezer at 0°F slows bacterial growth and preserves food quality. Starting at the mid-setting prevents overcooling, reduces frost issues, and helps the refrigerator and freezer balance airflow correctly.

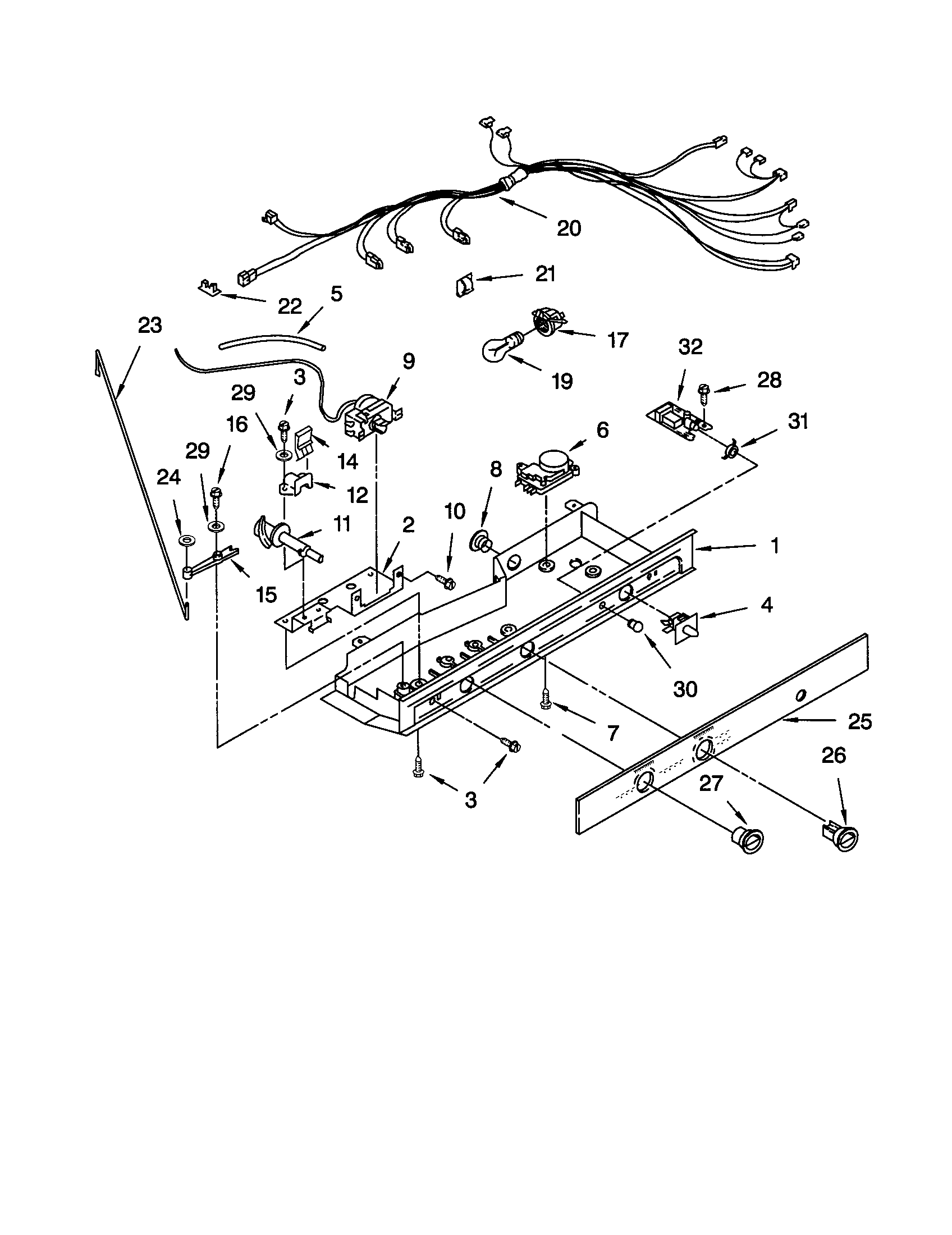

You can order model-specific replacement parts (like the refrigerator thermostat WP2198202 or refrigerator defrost bi-metal WPW10225581) from the parts list for model 10650262993, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problems we see on Kenmore refrigerators like model 10650262993 are cooling issues, water and ice dispenser troubles (drips or low flow), ice maker failures, leaks, and unusual noises. Many of these come down to airflow, defrost performance, or water-supply components; the 10650262993 owner's manual covers model-specific care and troubleshooting.

Common problems and what usually causes them

• Not cooling or weak cooling: dirty condenser coils, blocked vents, evaporator fan issues, or defrost system problems (ice buildup restricting airflow).
• Water dispenser drips: the glass is removed too soon, or the chute trap door is held open by an ice cube.
• Low water flow at the dispenser: a clogged or misinstalled water filter, or air in the water lines after a filter change.
• Ice maker not making ice: water supply restriction, inlet valve problems, or an ice maker assembly failure.
• Leaks or puddles: clogged defrost drain, cracked water tubing, or door seal problems letting in humid air.

Quick checks you can do first

1. Set temperatures to typical targets: 37°F fresh food and 0°F freezer.
2. Clean condenser coils and confirm the unit has good airflow around it.
3. If the dispenser drips, hold the cup under the spout 2 to 3 seconds after releasing the lever (water can continue briefly).
4. If water flow is slow, remove and reinstall the filter correctly; then flush several glasses of water to clear air.
5. Look for ice in the dispenser chute holding the trap door open; remove any stuck cube.

Parts that commonly solve dispenser and ice issues (when diagnosis points there)

Symptom	Common suspect part	Example part for 10650262993

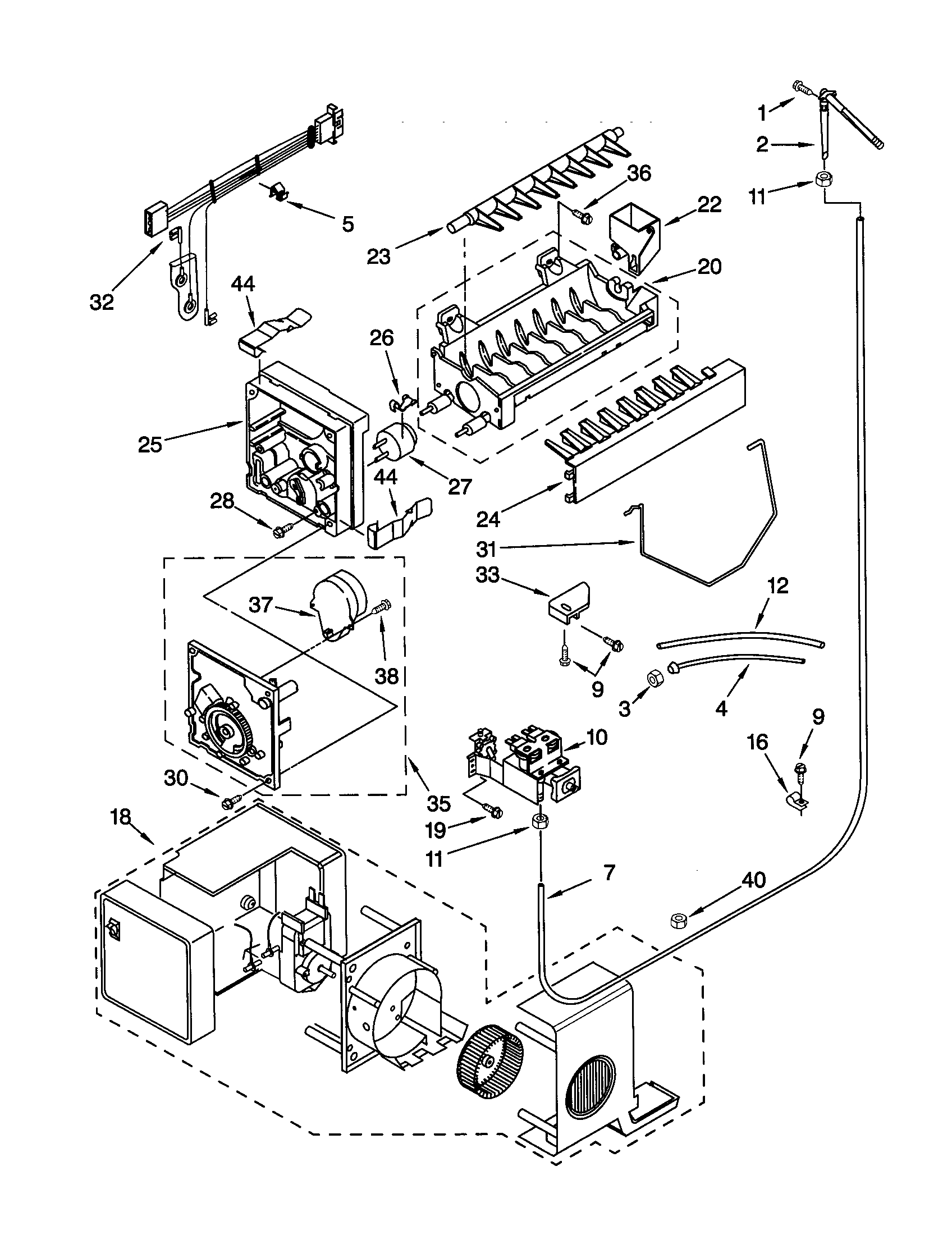

No ice or intermittent ice	Ice maker assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
No water to dispenser/ice maker	Water inlet valve	Refrigerator inlet valve W10408179
Drips, leaks, or cracked line	Water tubing	Refrigerator water tube 8201597

Why it matters

Cooling, ice, and water problems often share the same root causes: restricted airflow or restricted water flow. Fixing the underlying cause protects food temperatures, reduces frost buildup, and prevents repeat leaks.

For ordering model-matched replacement parts, use the parts list for 10650262993, or search by model on Sears PartsDirect.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 33 to 36 inches wide; your Kenmore 10650262993 is in that common range. For the exact cabinet width and required clearances for your specific unit, use the dimensions and installation section in the owner's manual.

Typical width ranges (what you can expect)

Side-by-side refrigerator widths vary mainly by capacity and whether the model is standard-depth or counter-depth.

• Most standard-depth side-by-sides: about 33 to 36 in. wide
• Many counter-depth side-by-sides: about 32 to 36 in. wide
• Width is usually measured at the cabinet; handles and hinges can add extra

Don’t forget clearance space (it affects the “real” width you need)

Even if the cabinet fits, you still need room for airflow and door swing. The Kenmore 10650262993 manual calls out these common installation clearances:

• Allow 1/2 in. space on each side and at the top for ventilation
• If installed next to a fixed wall, allow 2 in. minimum on each side (depending on model) so doors can swing open
• If you have an ice maker, leave extra space at the back for the water line

Quick planning table

What you’re measuring	What to include	Why it matters
Cabinet width	Refrigerator body only	Confirms it fits the opening
“Fits in my space” width	Cabinet width + side clearances	Prevents overheating and rubbing
Door swing space	Clearance near walls/cabinets	Lets doors open fully for bins and shelves

Why it matters

If the refrigerator is too tight in the opening, doors may not open fully, airflow can be restricted (leading to warmer temps), and water line routing for an ice maker can get kinked.

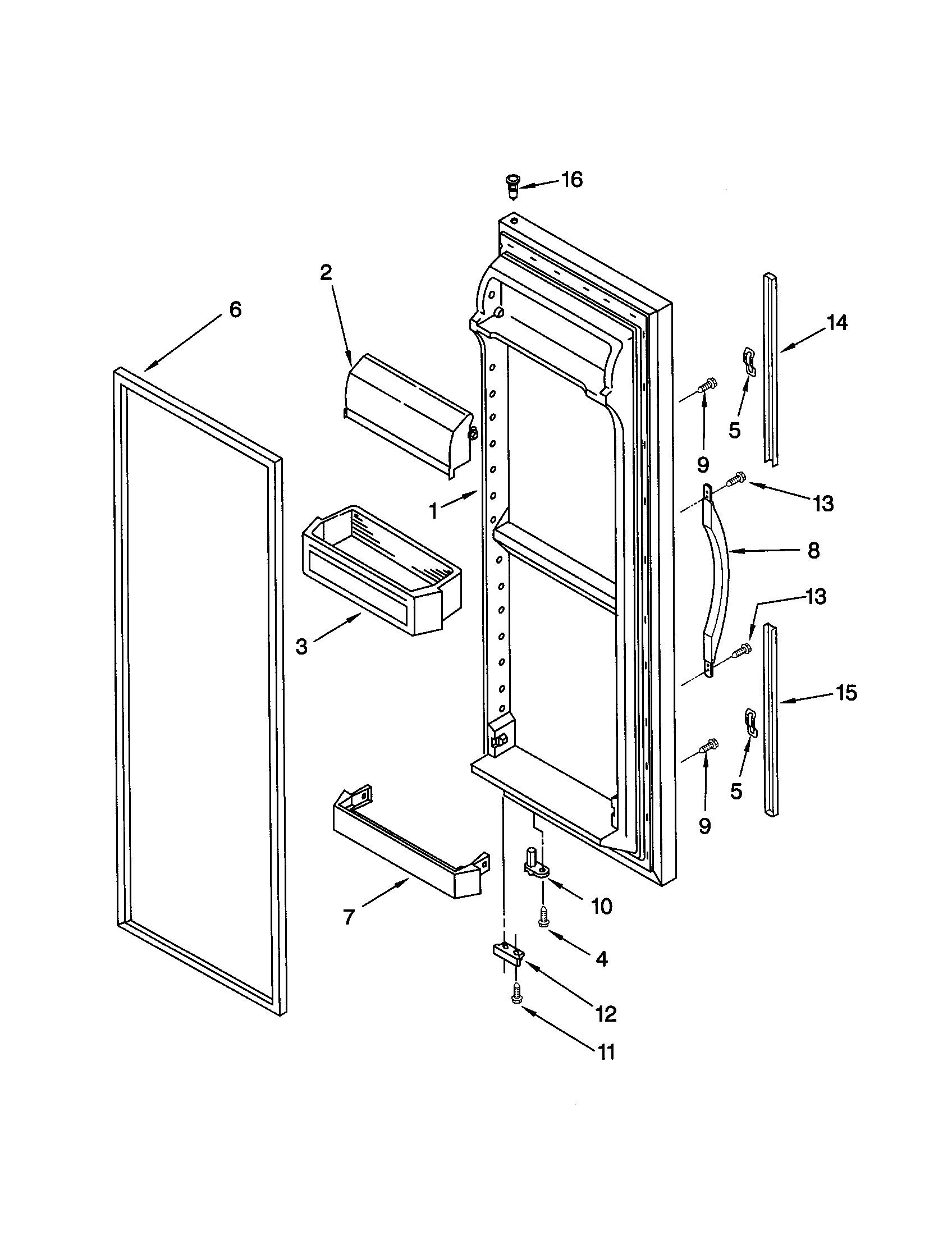

If you’re shopping for replacement parts while you measure, we list model-matched items like the refrigerator door cam (black) WP2182179 and refrigerator door gasket (black) 2159081 on this model’s parts list, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Water leaking from the bottom of your Kenmore 10650262993 side-by-side refrigerator is usually caused by defrost water not draining correctly (a clogged or frozen defrost drain) or by a water supply issue that slowly leaks and runs down to the floor. Use the troubleshooting steps in the 10650262993 owner's manual to narrow it down safely.

Quick checks that solve most leaks

• Look for ice or debris in the defrost drain area; a frozen drain can force water into the base and onto the floor.
• Check the drain pan for cracks, overflow, or being out of position.
• Inspect the water line behind the refrigerator for kinks or rubbing.
• If you have a dispenser, hold the cup under the chute 2 to 3 seconds after releasing the lever; dripping can look like a leak over time.
• If a filter is installed, confirm it is seated correctly; air in the lines can cause dripping for 24 to 72 hours after changes.

Most common causes and what to do

What you notice	Most likely cause	What we recommend
Water appears after a defrost cycle	Defrost drain clogged or frozen	Thaw the drain area with warm water; clear the drain tube so water reaches the drain pan
Water near the back/bottom	Water supply line leak or kink	Straighten the line; check fittings for seepage; replace damaged tubing if needed
Water near the front, under dispenser side	Dispenser dripping or ice chute not closing fully	Clear ice in the chute; use proper “hold-after-dispense” technique
Slow leak that worsens after filter change	Filter not seated or air in lines	Reinstall filter; flush water; allow 24 to 72 hours of normal use

Parts that commonly relate to bottom leaks on this model

If you confirm the leak is tied to the water supply or dispenser system, these model-compatible parts are common fixes:

• Refrigerator inlet valve W10408179 (controls water flow to the ice maker and dispenser)
• Refrigerator water tube 8201597 (can crack, loosen, or leak at connections)
• Refrigerator water reservoir WP2256126 (can leak if damaged or split)

For ordering, use the parts list for model 10650262993 or search by model number on Sears PartsDirect.

Why it matters

A defrost drain problem can lead to recurring puddles and ice buildup, while a small water line seep can damage flooring and cause intermittent ice maker or dispenser performance issues. Fixing the source early prevents repeat leaks.

Last updated: February 2026
