GE GSE25GYPBCFS refrigerator

GE GSE25GYPBCFS refrigerator Parts

Here are the diagrams and repair parts for GE GSE25GYPBCFS refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GSE25GYPBCFS Refrigerators

GE Refrigerator GSE25GYPBCFS FAQs

Yes. GE Café is a high-end (premium) appliance line within the GE family; it sits above standard GE offerings and focuses on upgraded styling, finishes, and feature sets. Your GE GSE25GYPBCFS is a separate GE refrigerator model; use the model-specific information in the GSE25GYPBCFS owner's manual when comparing features or buying parts.

How GE Café fits in the GE lineup

GE generally positions its lines by design and feature level. This is the typical way shoppers compare them:

GE line Typical positioning Typical focus
GE (standard) Mainstream Core features and value
GE Profile Premium More features and upgraded styling
GE Café High-end Design-forward, premium finishes, pro-style look
Monogram Luxury Built-in options, top-tier materials, customization

What “high end” usually means in real use

When we describe a line as high end, it usually comes down to these differences:

  • More premium exterior finishes and coordinated hardware options
  • More advanced convenience features (varies by model)
  • More emphasis on design and matching suites
  • Higher price point than mainstream models
  • More model-specific electronics and user-interface features

Why it matters for parts and accessories

“Café” is a product line name, but repairs and replacements depend on the exact model number. For your GE GSE25GYPBCFS, always match parts by model and diagram callouts so the fit, connectors, and mounting points are correct.

If you are replacing the refrigerator water filter for this model, use the model’s parts listing and instructions; the GE refrigerator water filter XWFE is one of the compatible filter parts shown for GSE25GYPBCFS.

Why it matters

Choosing parts by the exact model number prevents common issues like leaks, poor water flow, dispenser problems, and installation mismatches.

Last updated: February 2026

The most common problem we see with GE refrigerators like model GSE25GYPBCFS is a cooling complaint (warm fridge, warm freezer, or temperature swings). In many cases, the root cause is airflow or heat-transfer related, such as dirty condenser coils, blocked vents, or an evaporator fan issue.

Most common symptoms customers notice

  • Fresh food section is warm but freezer seems OK
  • Freezer is warm and ice cream is soft
  • Temperature varies day to day
  • Frost buildup on the back wall of the freezer
  • Louder-than-normal fan noise or no fan sound

Quick checks that fix many “not cooling” calls

Start with these basics before replacing parts:

  • Clean condenser coils (dust buildup makes the sealed system work harder)
  • Confirm door seals close tightly and doors are not held open by bins or food
  • Avoid overpacking; keep air vents clear so cold air can circulate
  • Set temperatures correctly and allow 24 hours for stabilization after changes
  • Listen for the evaporator fan when the compressor is running (freezer door switch held closed)

Common parts involved when cooling is inconsistent

If the basics check out, these parts are frequently involved in cooling and temperature control:

Symptom Common suspect Example part for GSE25GYPBCFS
Warm temps, fan noisy or not running Evaporator fan motor Motor dc evap fan asm WR60X10307
Temps swing, unit runs too long/too short Temperature sensor GE profile refrigerator temperature sensor WR55X10025
Frost buildup, poor airflow Defrost system issue Refrigerator defrost heater WR51X10055 and refrigerator defrost bi-metal thermostat WR50X10065

Why it matters

Cooling problems usually get worse over time. Catching airflow issues early can prevent food spoilage and reduce strain on major components like the compressor and evaporator.

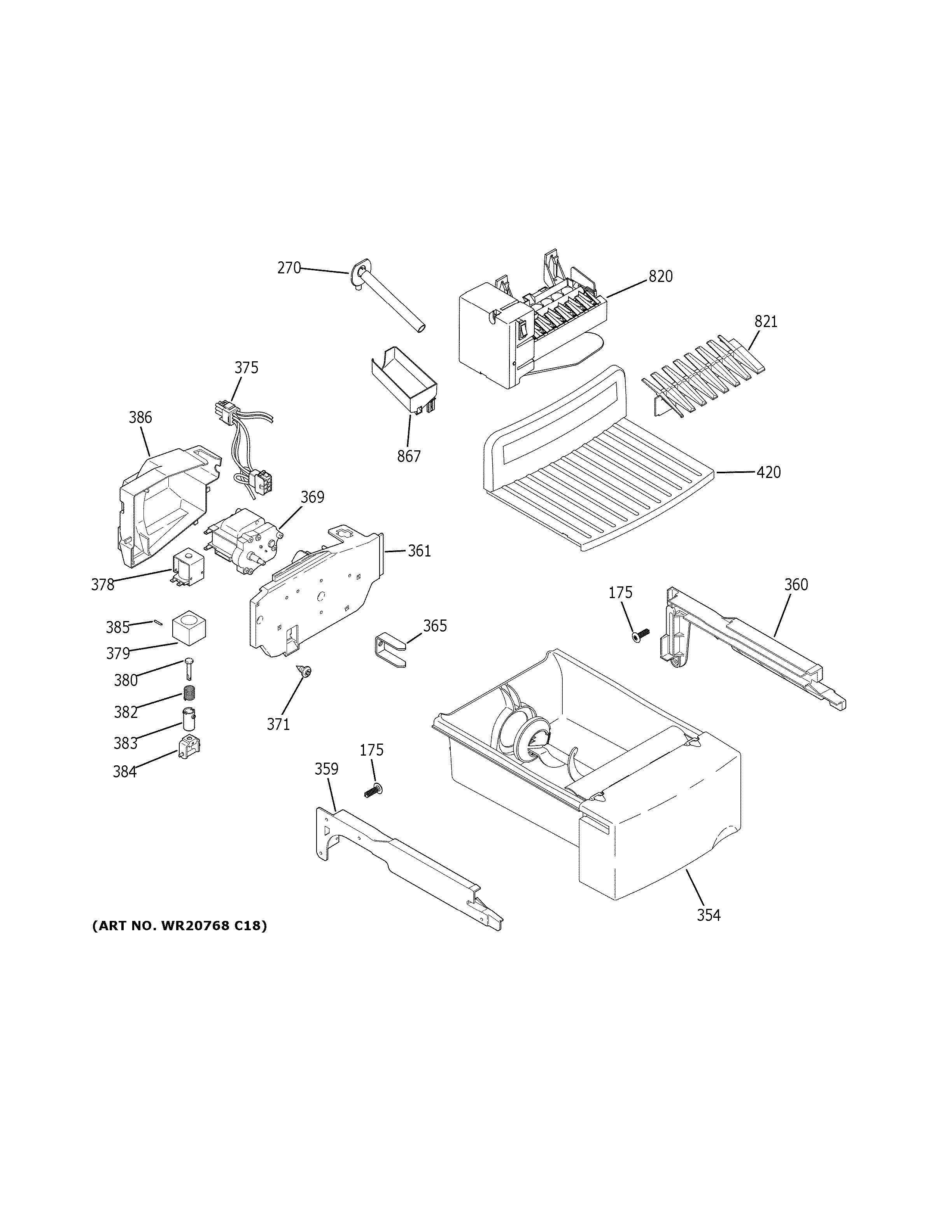

GE side-by-sides also commonly have ice and dispenser complaints. The manual notes that items in the ice storage area can jam the icemaker or auger, and that dripping or “snow” in the chute can occur after repeated crushed-ice use. For model-specific operating tips and care steps, use the GSE25GYPBCFS owner's manual.

Last updated: February 2026

For your GE GSE25GYPBCFS side-by-side refrigerator, the model number is printed on the rating label inside the fresh food (refrigerator) compartment; it’s located at the top right side behind the controls. We recommend writing down both the model and serial number for parts and service.

Where to look (exact location)

Open the refrigerator door and check for a label:

  • Inside the refrigerator compartment (not the freezer)
  • At the top right side
  • Behind the control area (you may need to look up and slightly behind the controls)
  • The label lists both Model # and Serial #

If you’re ordering parts like a water filter or troubleshooting an ice maker issue, having the full model number ensures the correct fit.

What the label information is used for

Here’s how the numbers typically help:

Label item What it’s used for When you’ll need it
Model number Identifies the exact refrigerator design and compatible parts Ordering bins, filters, valves, boards
Serial number Identifies production details for your unit Service history, warranty paperwork

Tips to make it easier

  • Use a flashlight; the label is often in a shadowed spot.
  • Take a clear photo of the label so you can zoom in later.
  • Copy the model number exactly as shown (letters and numbers).
  • Keep it with your owner's manual for quick reference.

Why it matters

GE side-by-side refrigerators can look similar across model series, but parts like the GE refrigerator water filter XWFE and dispenser components can vary by model. Using the exact model number prevents ordering the wrong part and saves time.

Last updated: March 2026
