Samsung
Upright Vacuum

Model # VCC96P0H1G/XAA Official Samsung vacuum

Here are the diagrams and repair parts for Official Samsung VCC96P0H1G-XAA vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Vacuum Wand (replaces Dj97-00812a, Dj97-00936a) DJ97-00936C
#3

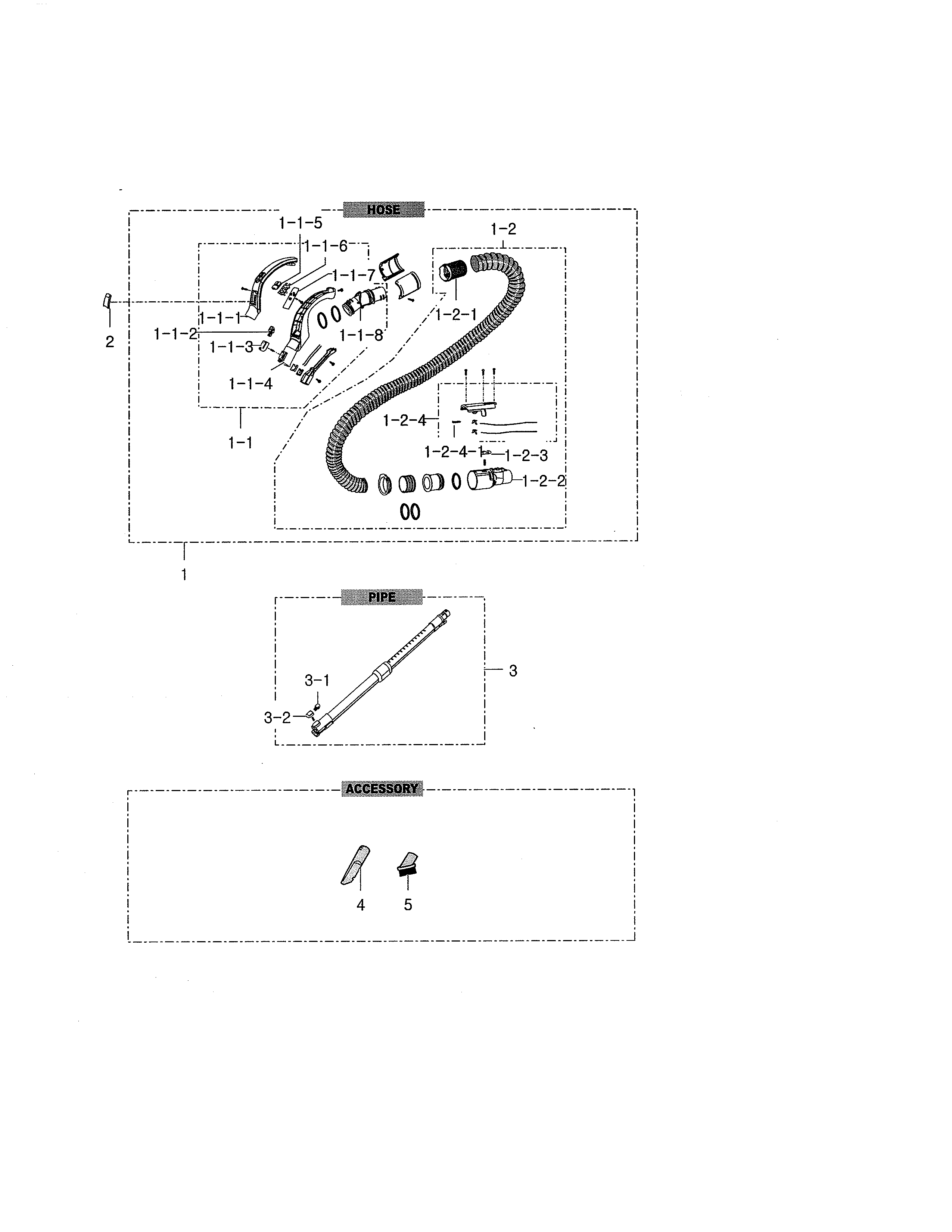

Hose/pipe/accessory diagram

Vacuum wand (replaces dj97-00812a, dj97-00936a)

Part #DJ97-00936C

$180.89 |
5% OFF Phone Price : $190.89
In Stock
Clamper DJ63-00687C
#1-2-4-1

Hose/pipe/accessory diagram

Clamper

Part #DJ63-00687C

$9.69
In Stock
Cap DJ67-00498A
#3-2

Hose/pipe/accessory diagram

Cap

Part #DJ67-00498A

$24.00
In Stock
Motor DJ31-00067F
#11

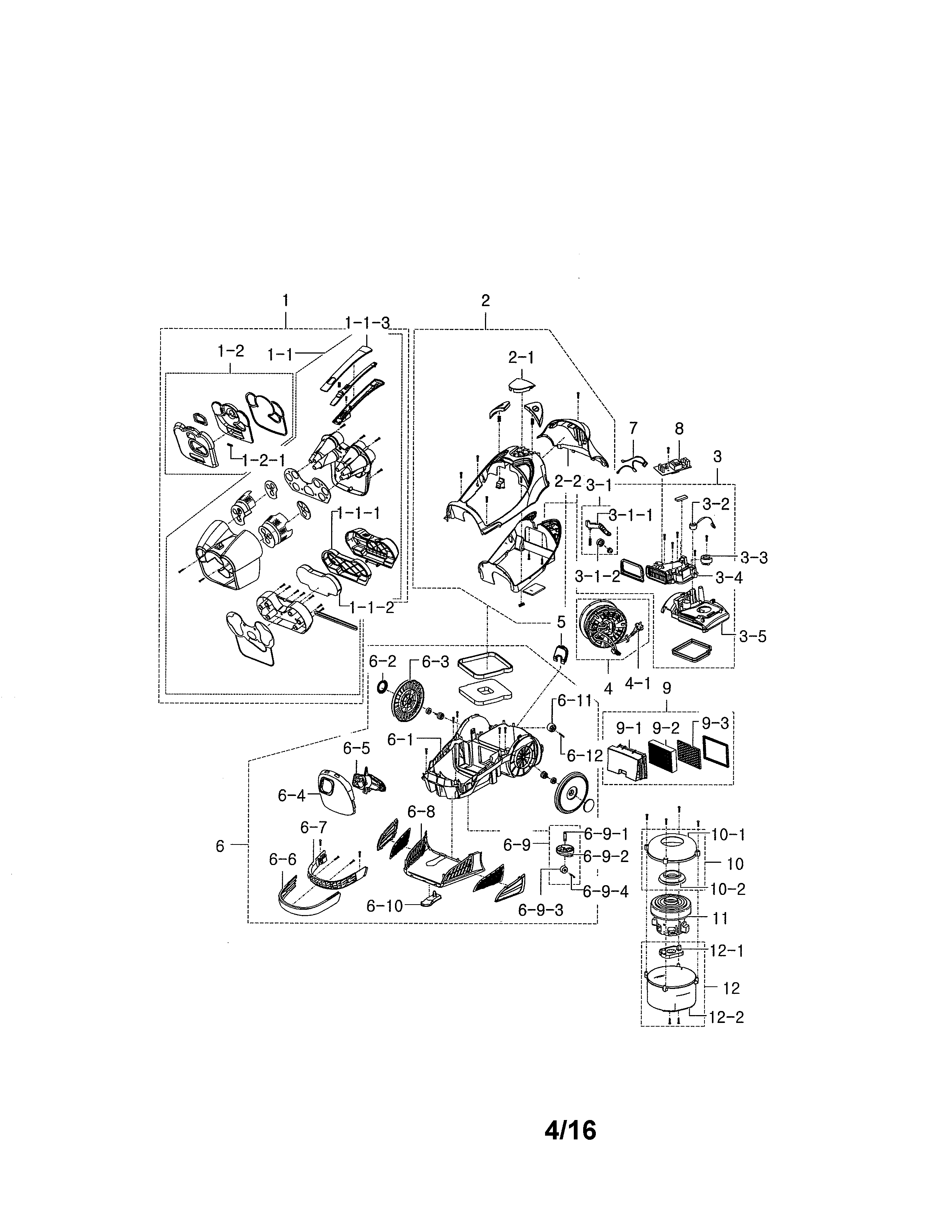

Body diagram

Motor

Part #DJ31-00067F

$160.90
In Stock
Vacuum Hose DJ97-00815B
#1-2

Hose/pipe/accessory diagram

Vacuum hose

Part #DJ97-00815B

$156.34
In Stock
Motor DJ31-00094C
#3-7

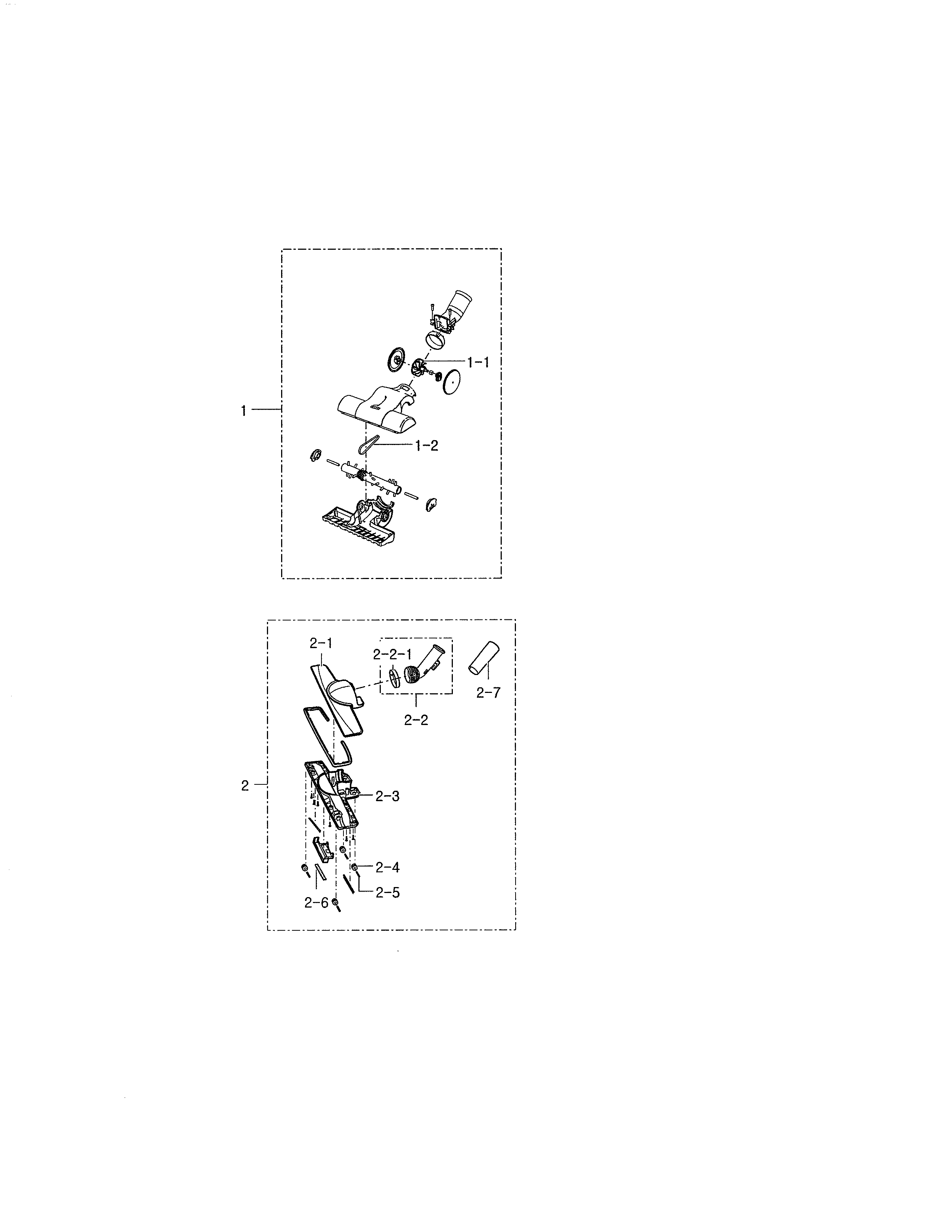

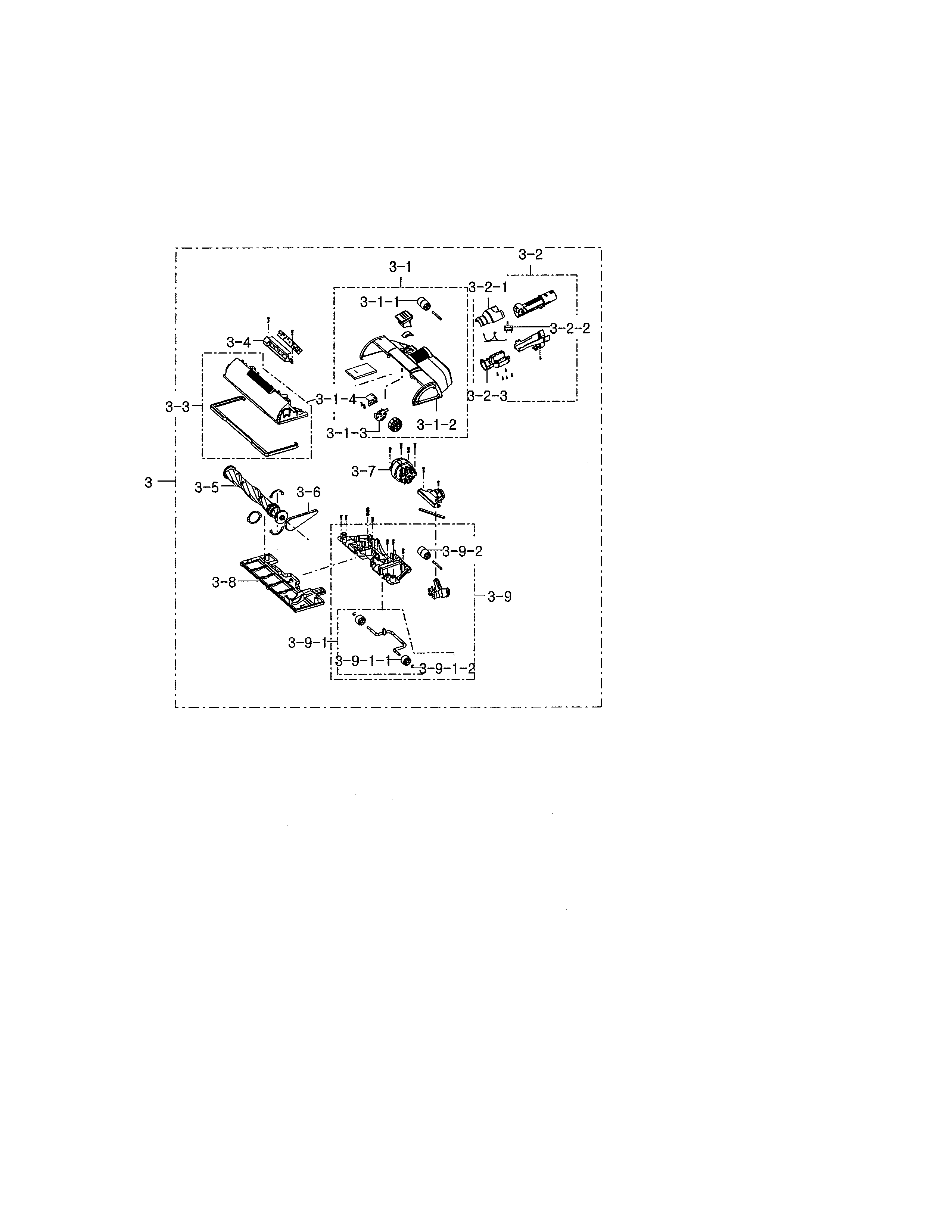

Brush 2 diagram

Motor

Part #DJ31-00094C

$141.22
In Stock
Stopper DJ73-00016A
#3-1-2

Body diagram

Stopper

Part #DJ73-00016A

This item is not returnable
$2.16
In Stock
Case DJ61-01871A
#1-1-1

Body diagram

Case

Part #DJ61-01871A

$12.71
In Stock
Pcb DJ41-00641A
#1-1-7

Hose/pipe/accessory diagram

Pcb

Part #DJ41-00641A

$92.09
In Stock
Case DJ61-01389C
#1-2-1

Hose/pipe/accessory diagram

Case

Part #DJ61-01389C

This item is not returnable
$4.83
In Stock
