Model # GDG336RBD1 Official Gibson 27" gas dryer - 5995262903

Here are the diagrams and repair parts for Official Gibson GDG336RBD1 27" gas dryer - 5995262903, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

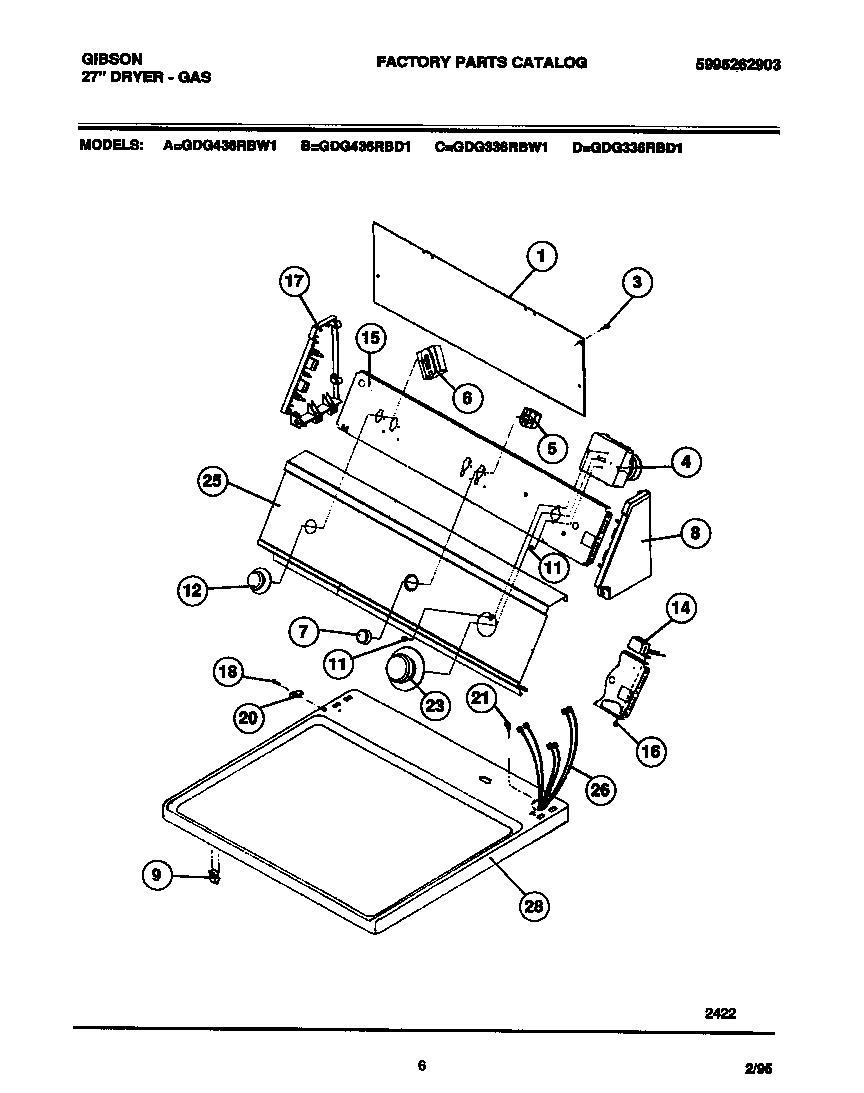

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |

Belt 5303283471
#17

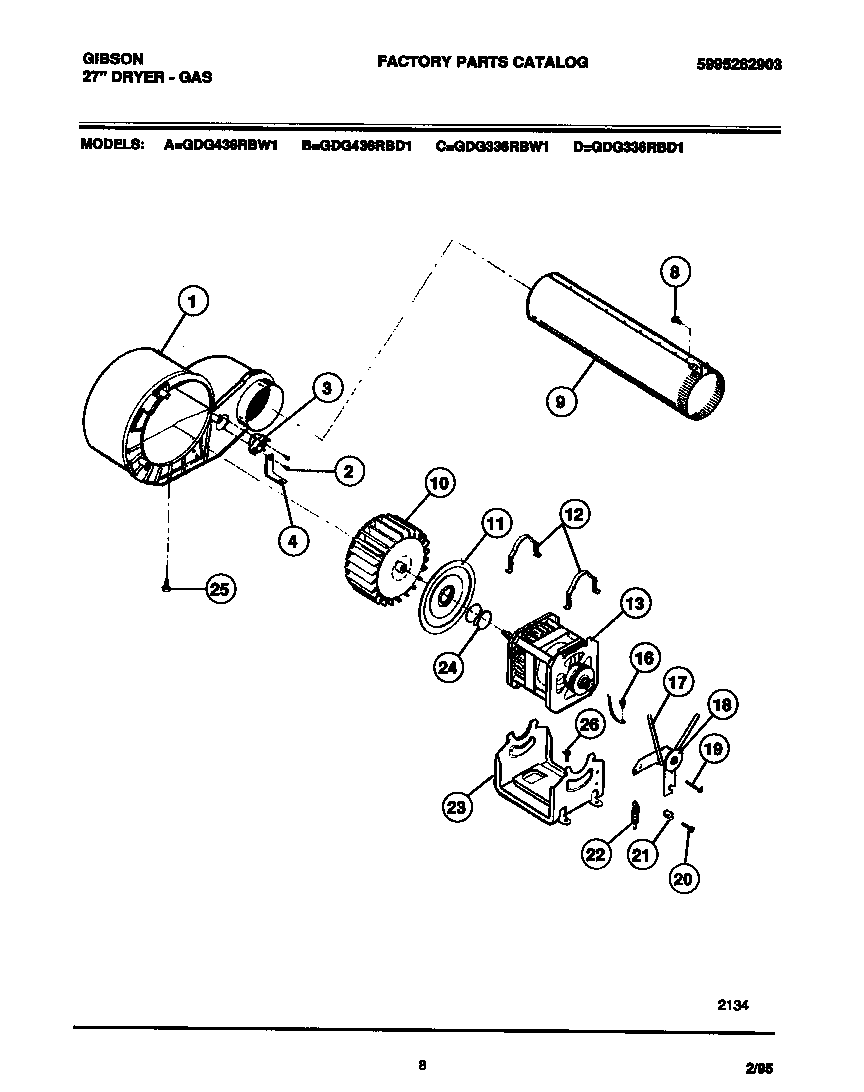

Motor, fan hsg., exhaust duct diagram

Belt

Part #5303283471

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
BEST SELLER
$14.48
12% OFF Phone Price : $16.48
In Stock
Bearing 5303281008
#13

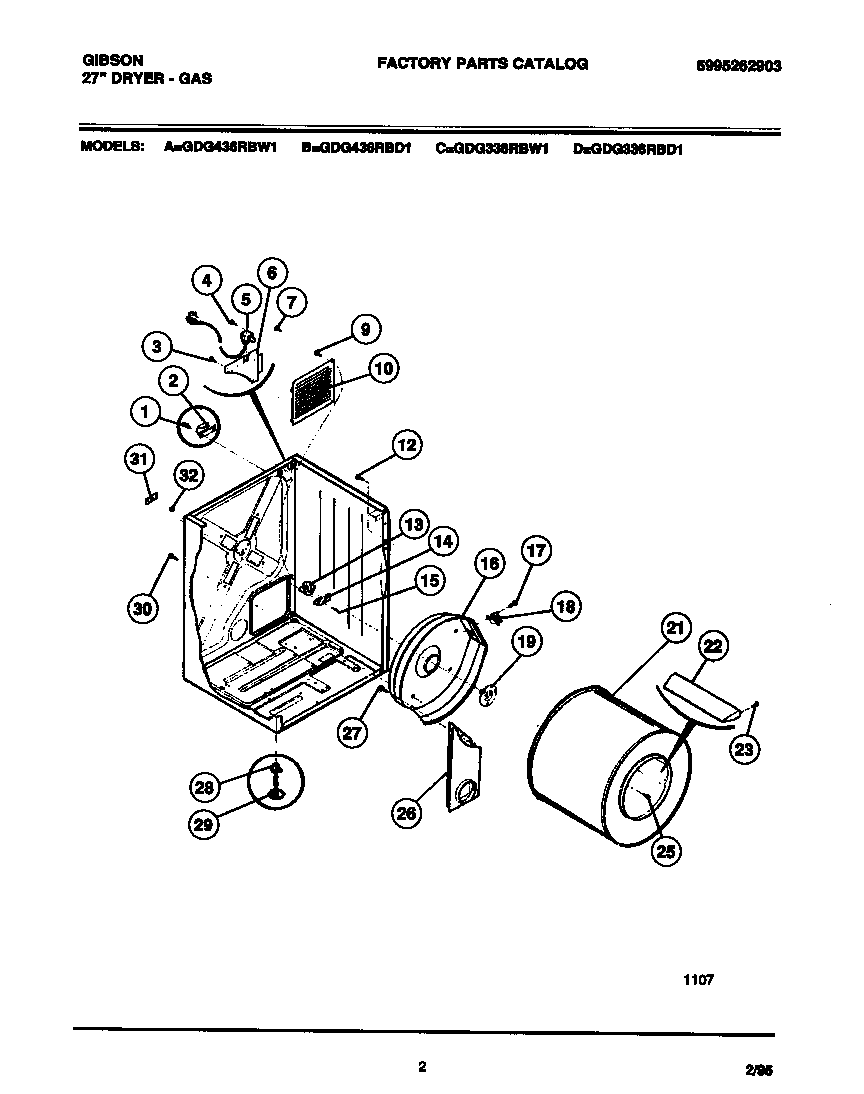

Cabinet, drum, heat duct diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
$7.54
12% OFF Phone Price : $8.54
In Stock
Shaft Drum 131378400
#19

Cabinet, drum, heat duct diagram

Shaft drum

Part #131378400

Replaced by #131777700

?
Manufacturer substitution
This part replaces 131378400. Substitute parts can look different from the original.
BEST SELLER
$58.75
9% OFF Phone Price : $64.75
In Stock
Catch 5307521419
#8

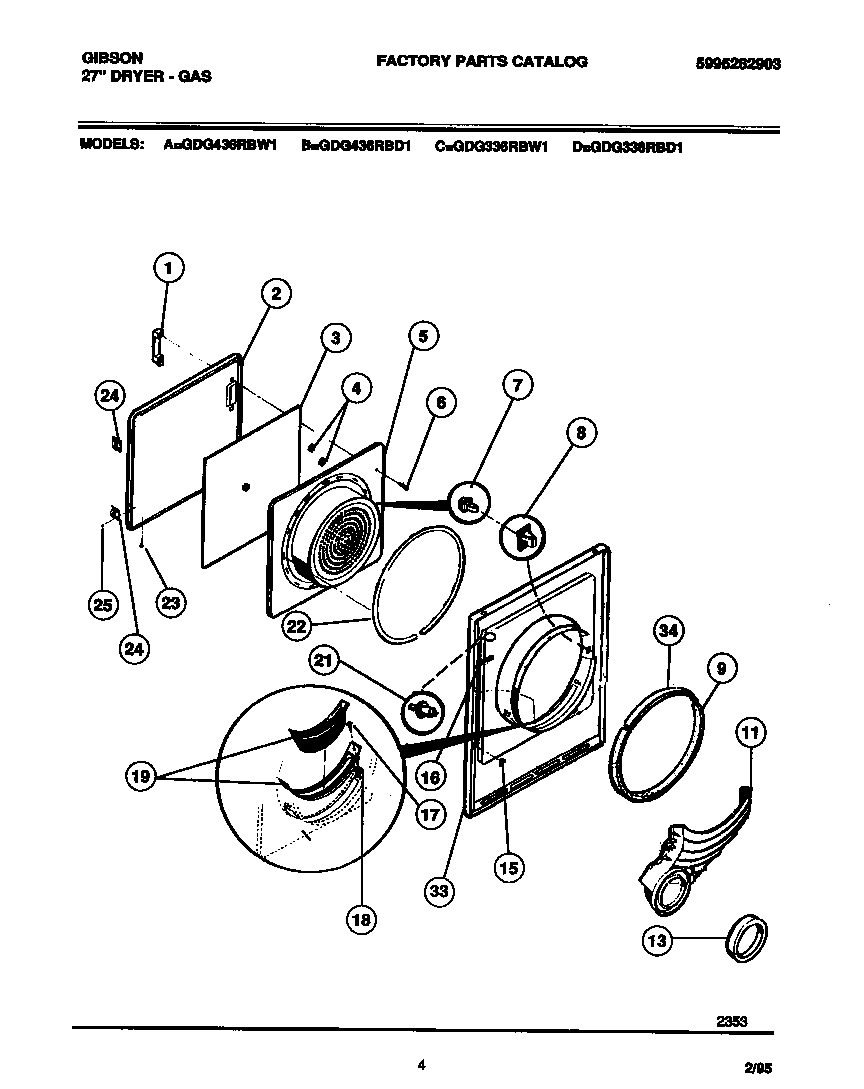

Door, front panel, lint filter diagram

Catch

Part #5307521419

Replaced by #131658800

?
Manufacturer substitution
This part replaces 5307521419. Substitute parts can look different from the original.
BEST SELLER
$49.64
11% OFF Phone Price : $55.64
In Stock
Glide 131154800
#34

Door, front panel, lint filter diagram

Glide

Part #131154800

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 131154800. Substitute parts can look different from the original.
BEST SELLER
$39.38
13% OFF Phone Price : $45.38
In Stock
Coil 5300622602
#28

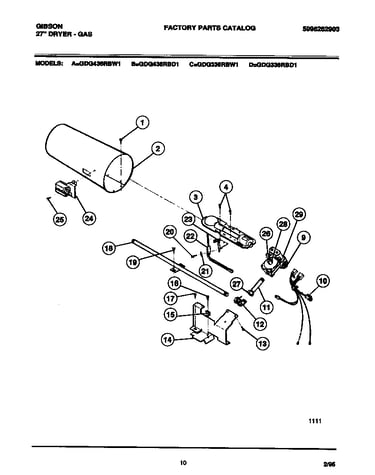

Gas valve, burner asmy. diagram

Coil

Part #5300622602

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5300622602. Substitute parts can look different from the original.
BEST SELLER
$37.09
14% OFF Phone Price : $43.09
In Stock
Coil 5308015680
#29

Gas valve, burner asmy. diagram

Coil

Part #5308015680

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5308015680. Substitute parts can look different from the original.
BEST SELLER
$37.09
14% OFF Phone Price : $43.09
In Stock
Bracket 5303281023
#14

Cabinet, drum, heat duct diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.29
13% OFF Phone Price : $15.29
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#32

Cabinet, drum, heat duct diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49
9% OFF Phone Price : $21.49
In Stock
Dryer Radiant Sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, F000078913, F078913-000, F78913, Fl00078913, Q000600651, Wq600651) 5303281135
#24

Gas valve, burner asmy. diagram

Dryer radiant sensor (replaces 000078913, 000600651, 00078913, 00635993, 078913-000, 08001684, 08015393, 08015688, 3281135, 600651, 75303281135, 78913, f000078913, f078913-000, f78913, fl00078913, q000600651, wq600651)

Part #5303281135

BEST SELLER
$53.99
10% OFF Phone Price : $59.99
In Stock
