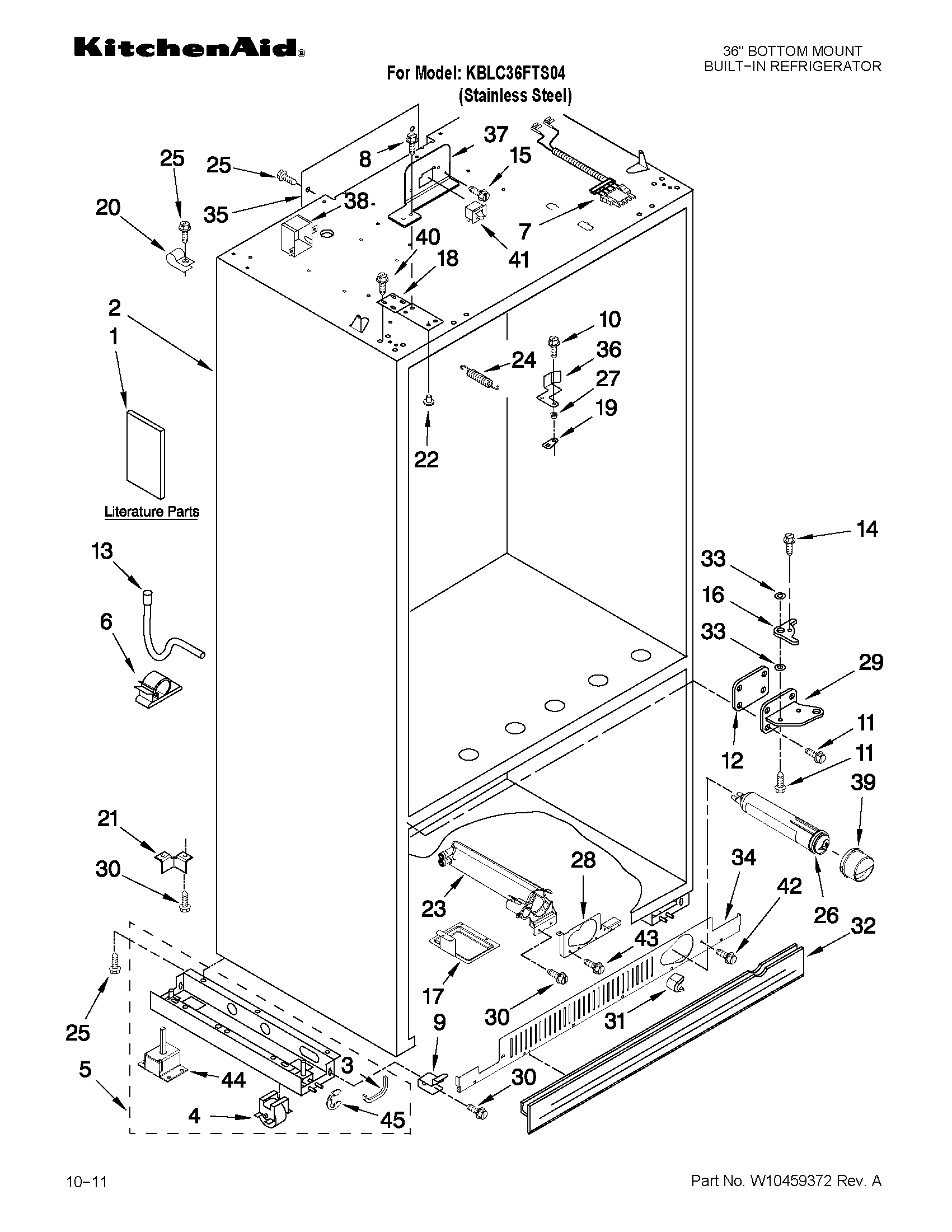

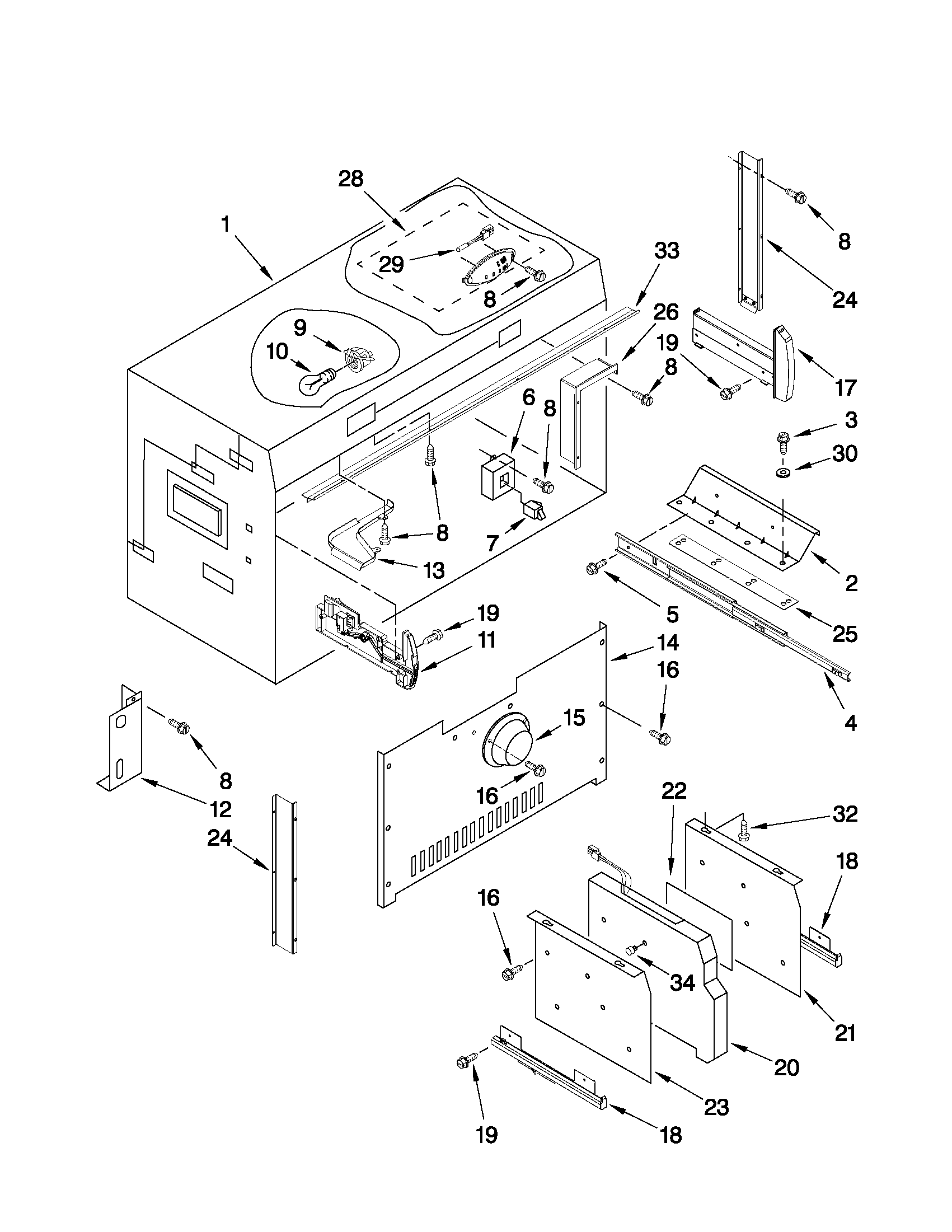

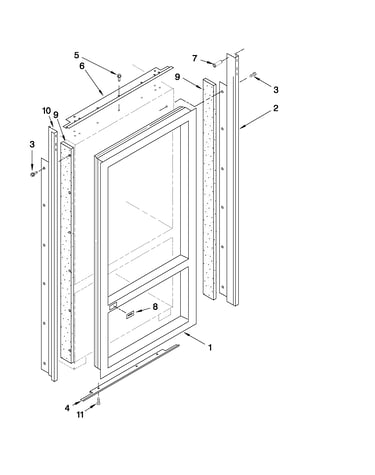

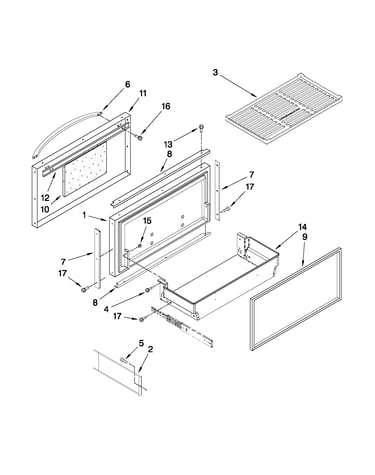

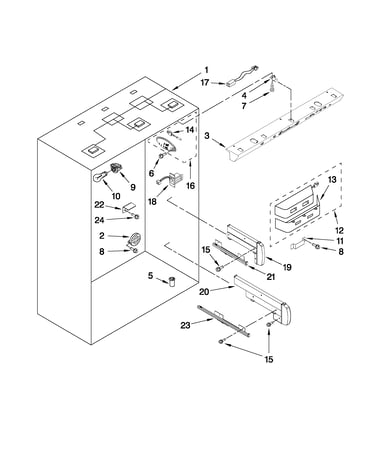

KitchenAid KBLC36FTS04 36" built-in refrigerator Parts

A bottom-mount refrigerator like the KitchenAid KBLC36FTS04 keeps fresh-food shelves at eye and waist level, so we reach everyday items with less bending. The freezer stays below, which works well when we use the refrigerator section more often than the freezer.

Key advantages in day-to-day use

• Better ergonomics for fresh food: less stooping for milk, produce, and leftovers.

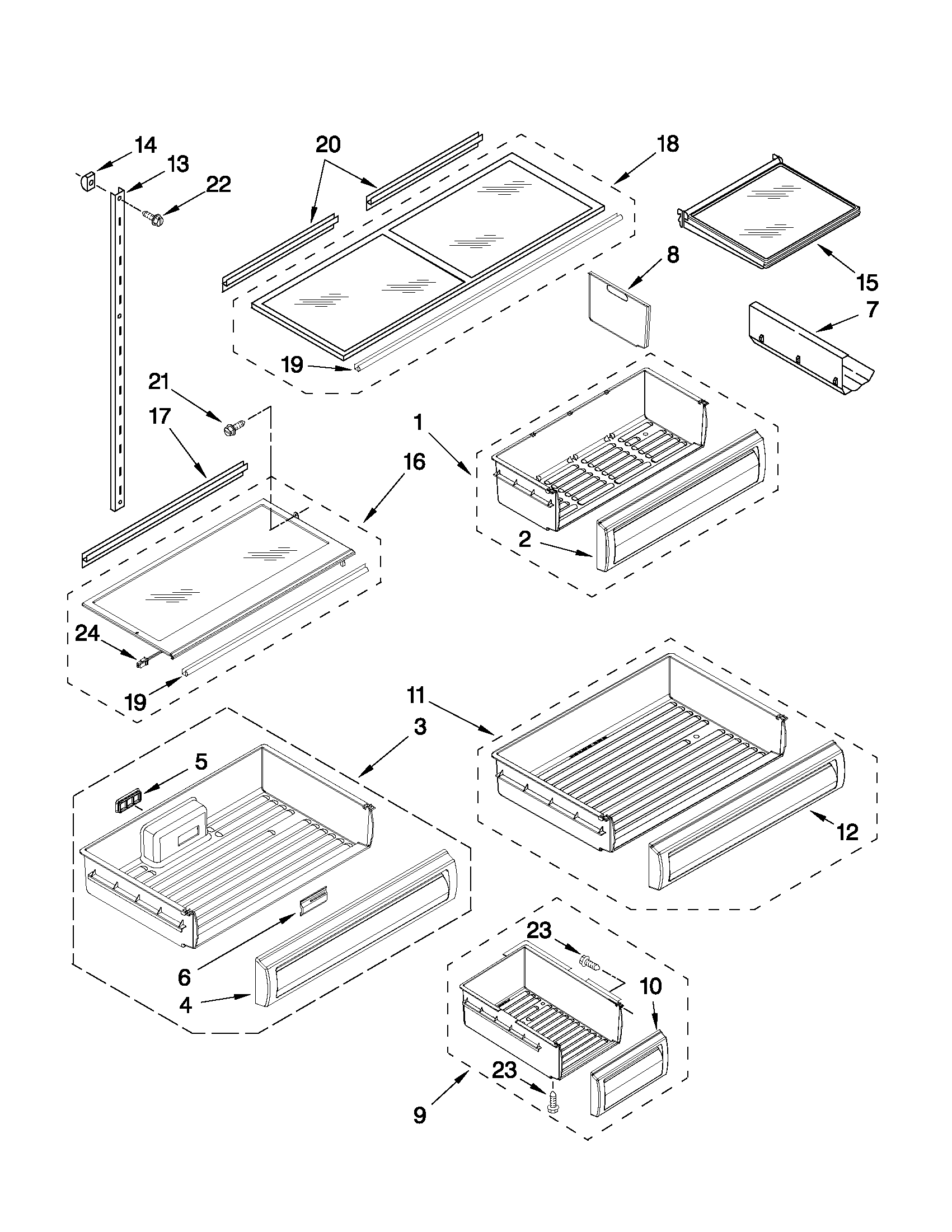

• More convenient organization: refrigerator shelves and bins are easier to see and sort.

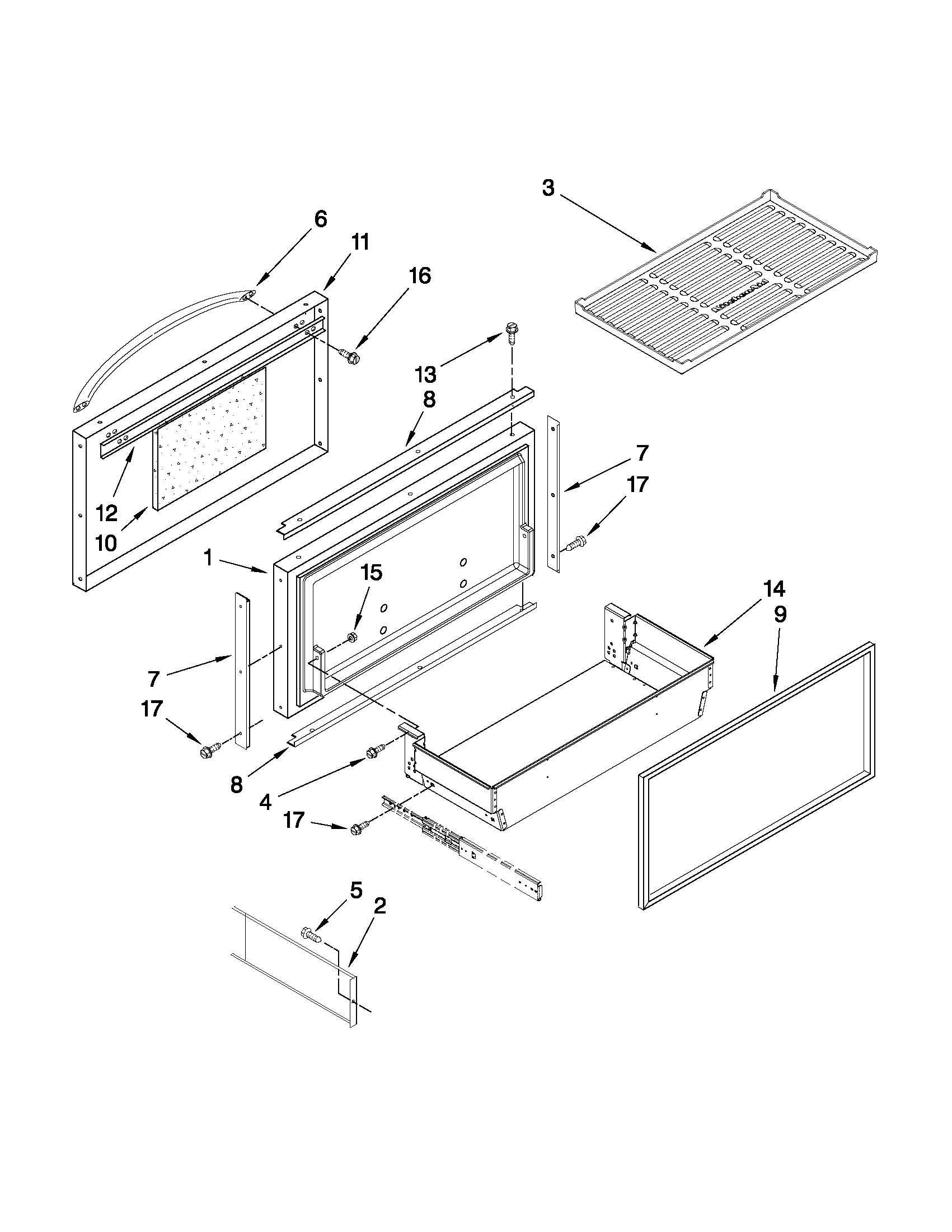

• Freezer access when needed: the lower freezer compartment is still easy to open for bulk items.

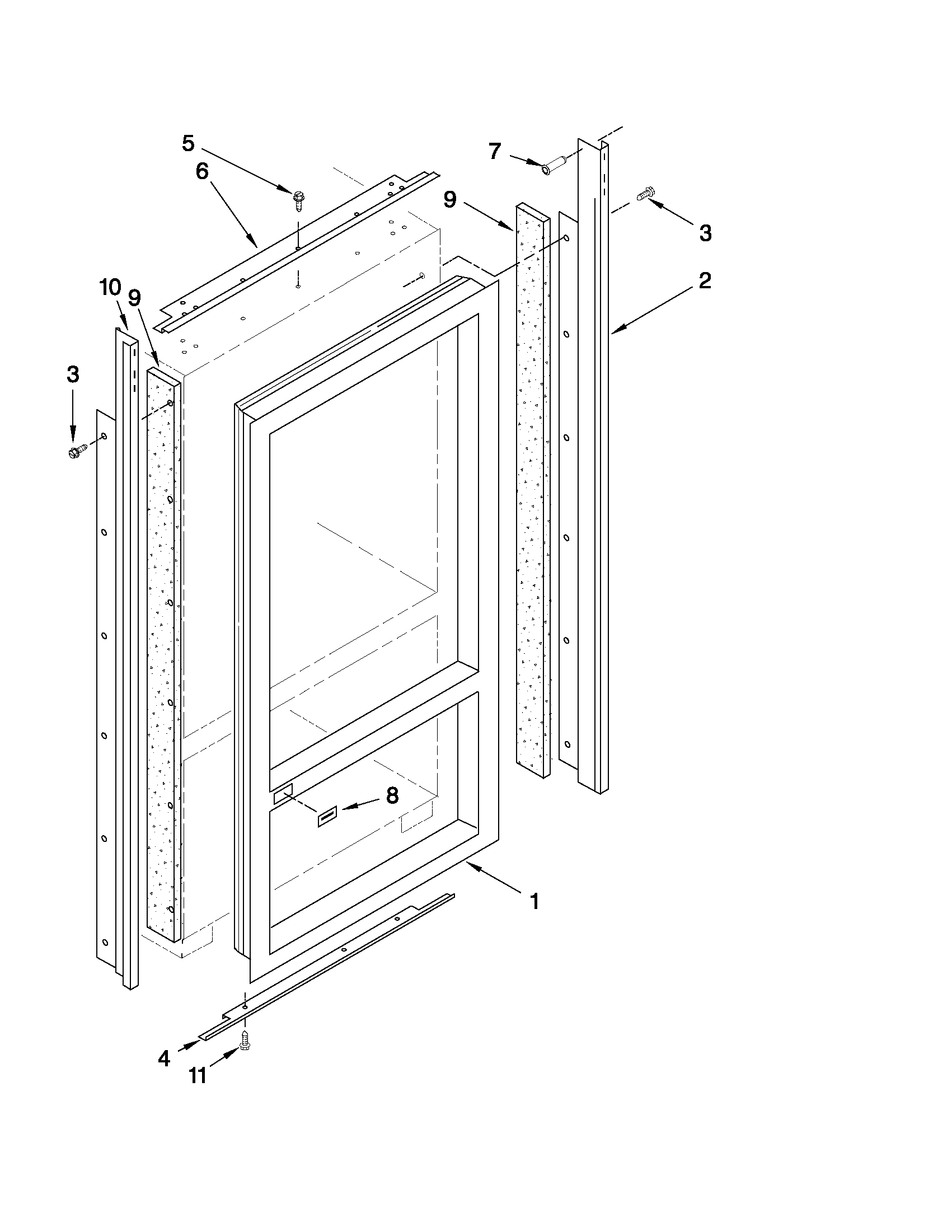

• Built-in design flexibility: this model supports design-forward installs, including custom overlay panels for a seamless kitchen look (details are in the installation guide).
• Good fit for frequent cooks: we spend more time in the fresh-food section than the freezer in most households.

Bottom-mount vs. top-freezer: quick comparison

Feature	Bottom-mount refrigerator	Top-freezer refrigerator
Fresh-food access	Higher, easier reach	Lower, more bending
Freezer access	Lower compartment	Higher compartment
Best for	Frequent fresh-food use	Frequent freezer use
Typical feel	More “kitchen workflow” friendly	More traditional layout

Why it matters

Refrigerator layout affects comfort and efficiency every day. With a bottom-mount design, we naturally spend less time bending for the items we use most, and we can plan an installation that matches the kitchen’s style and clearances.

Installation note for built-in bottom-mount models

Built-in units are heavy and clearance-sensitive. For this KitchenAid built-in refrigerator, installation requires two or more people, and proper leveling is important so the cabinet is stable and doors align correctly (see the installation guide).

You can also order common maintenance items for this model, such as the refrigerator water filter EDR3RXD1, directly from the parts list for KBLC36FTS04 or search by model on Sears PartsDirect.

Last updated: February 2026

A KitchenAid refrigerator like model KBLC36FTS04 typically lasts 14 to 17 years. Consistent maintenance (cleaning condenser coils, keeping door gaskets sealing, and replacing the water filter on schedule) helps you reach the upper end of that range.

Typical lifespan and what affects it

Most premium built-in refrigerators last longer when airflow and temperatures stay stable. The biggest factors are usage, installation quality, and routine care.

• Keep condenser coils clean so the compressor runs cooler and less often

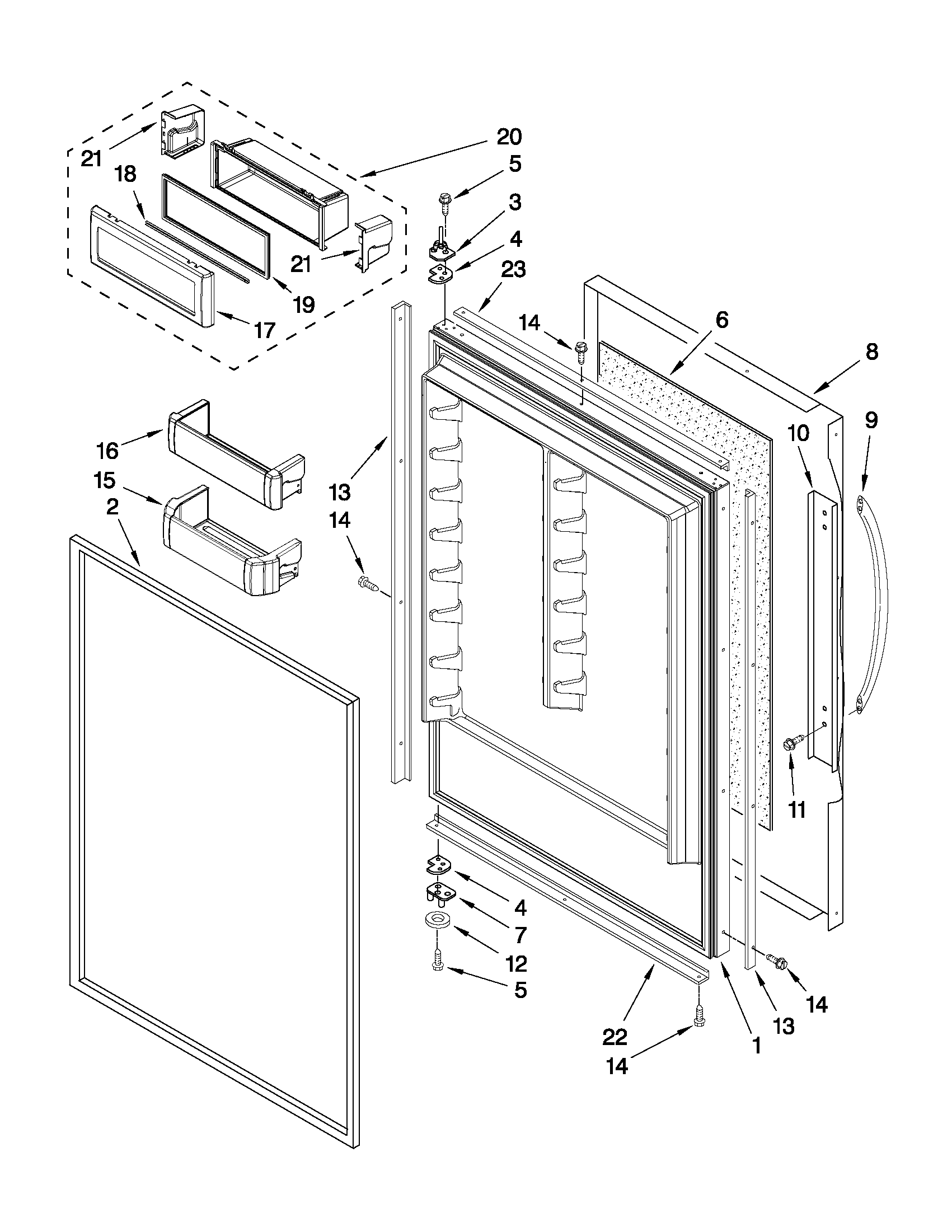

• Confirm doors close and seal fully to prevent constant run time
• Replace the water filter regularly to protect water flow and ice maker performance
• Keep vents inside the fresh food section and freezer clear
• Maintain steady settings (avoid frequent extreme temperature changes)

Maintenance checklist for longer life

Use these as practical, high-impact steps for KBLC36FTS04:

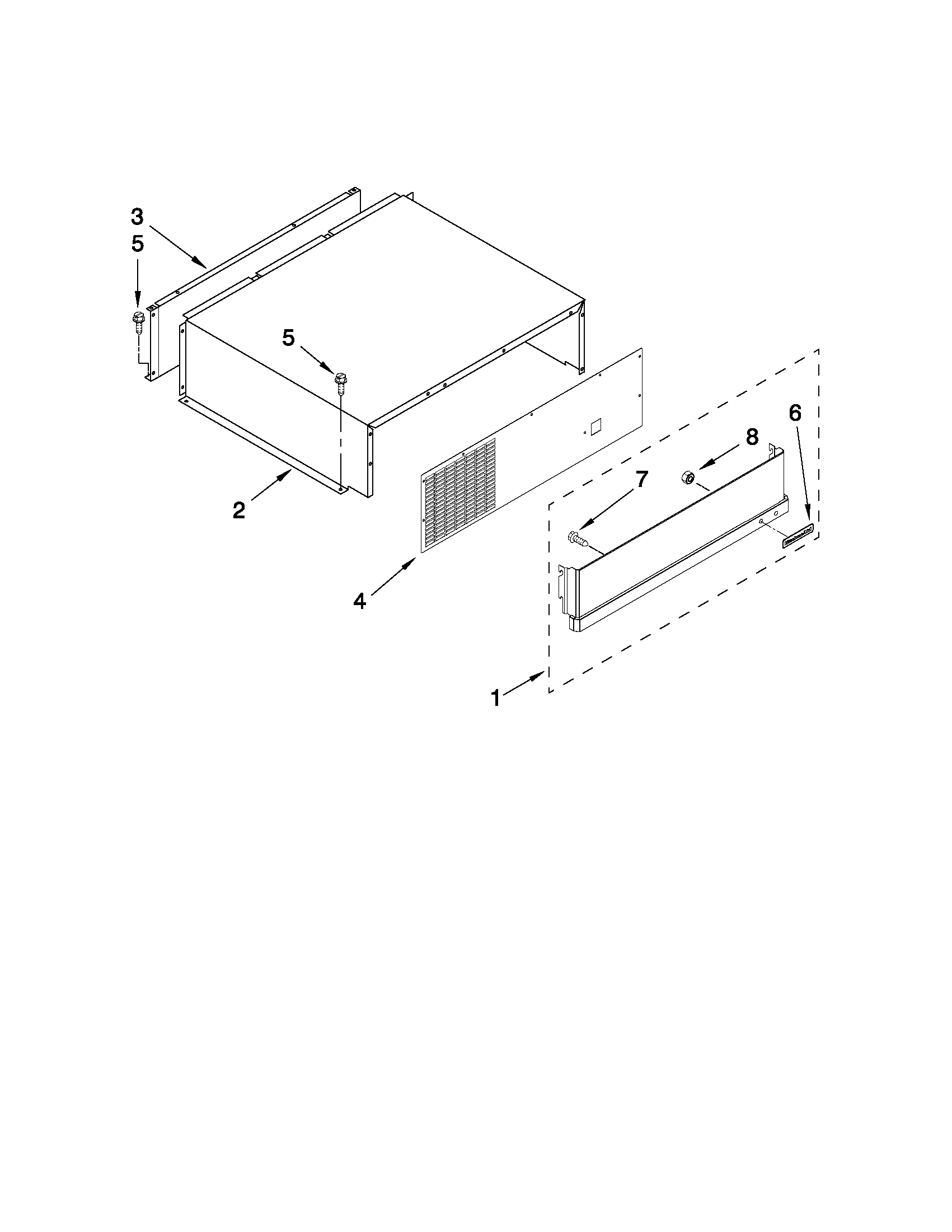

• Every 3 to 6 months: inspect and clean the condenser area (more often with pets)
• Monthly: check door alignment and listen for the evaporator fan running smoothly

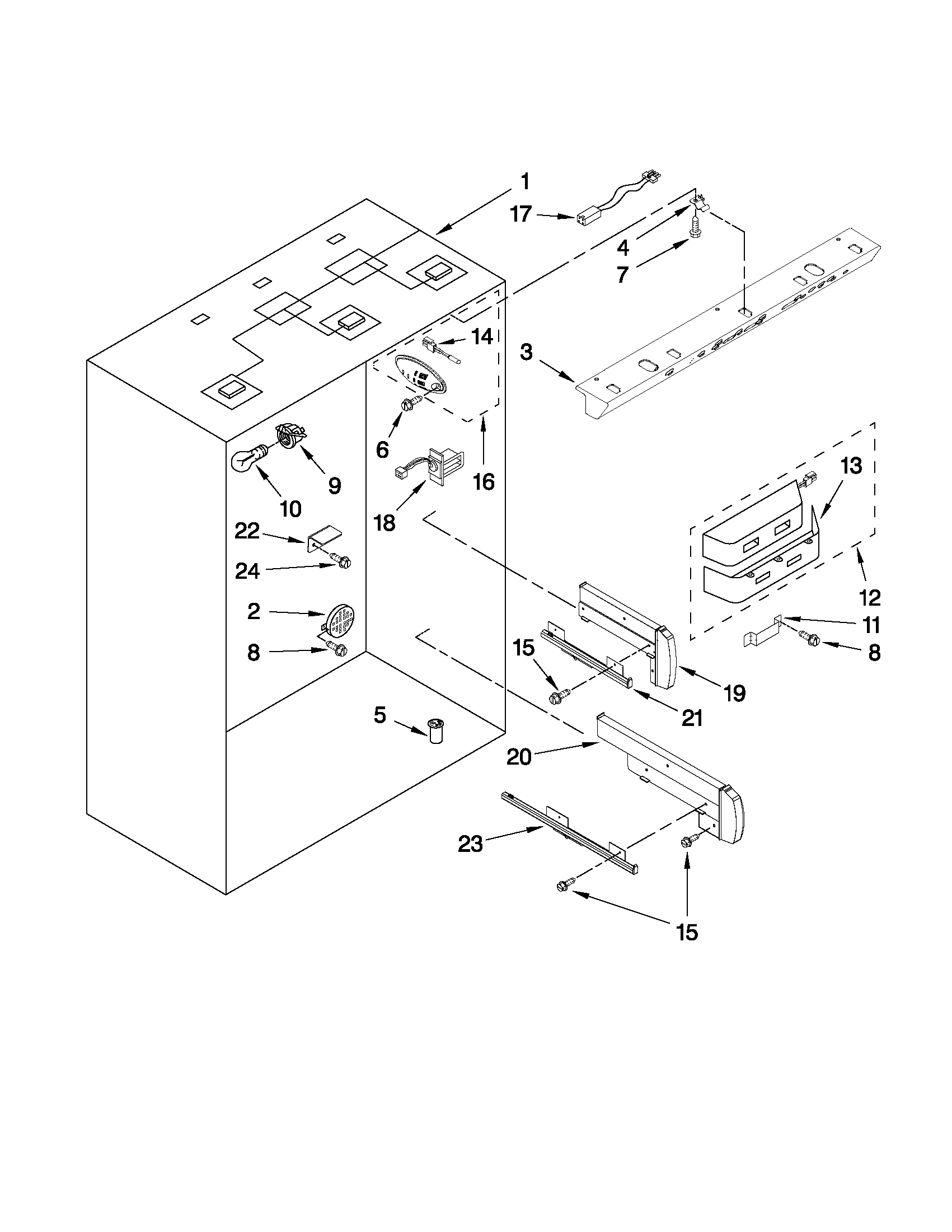

• As needed: replace a worn light switch if the interior lights stay on with the door closed
• On schedule: replace the water filter and confirm the cap seats correctly

Helpful parts for common wear items

What you maintain	What it helps prevent	Example part for this model
Water filtration	Low water flow, poor ice quality, valve strain	Refrigerator water filter EDR3RXD1
Filter fit and sealing	Leaks at the filter head, hard-to-remove filter	Refrigerator water filter cap (black) WP2260518B
Door closed detection	Lights staying on, extra heat load	Refrigerator light switch W11384469

Why it matters

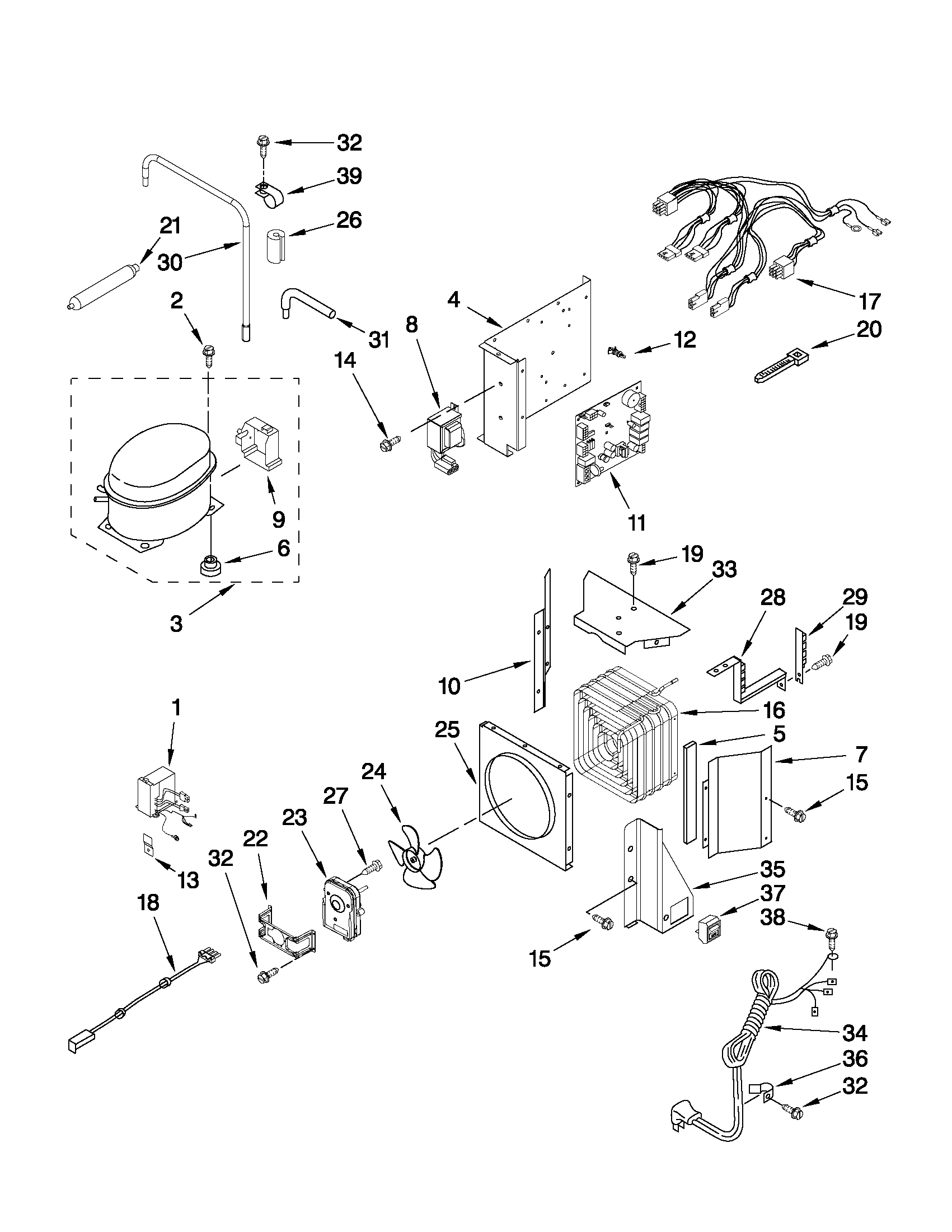

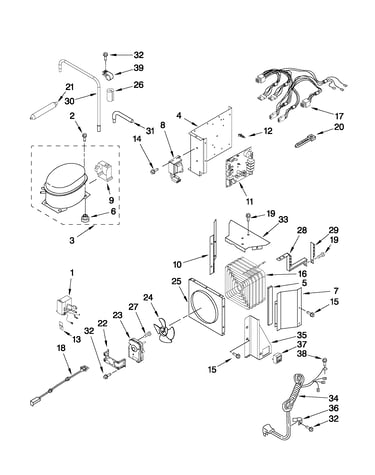

When a built-in refrigerator runs longer to hold temperature, it puts extra wear on the sealed system (compressor, evaporator, condenser fan) and can shorten overall service life. Proper installation and leveling also reduce door and seal problems; we cover those basics in the installation guide.

If you need additional parts beyond the list for KBLC36FTS04, we recommend searching by model number on Sears PartsDirect.

Last updated: February 2026

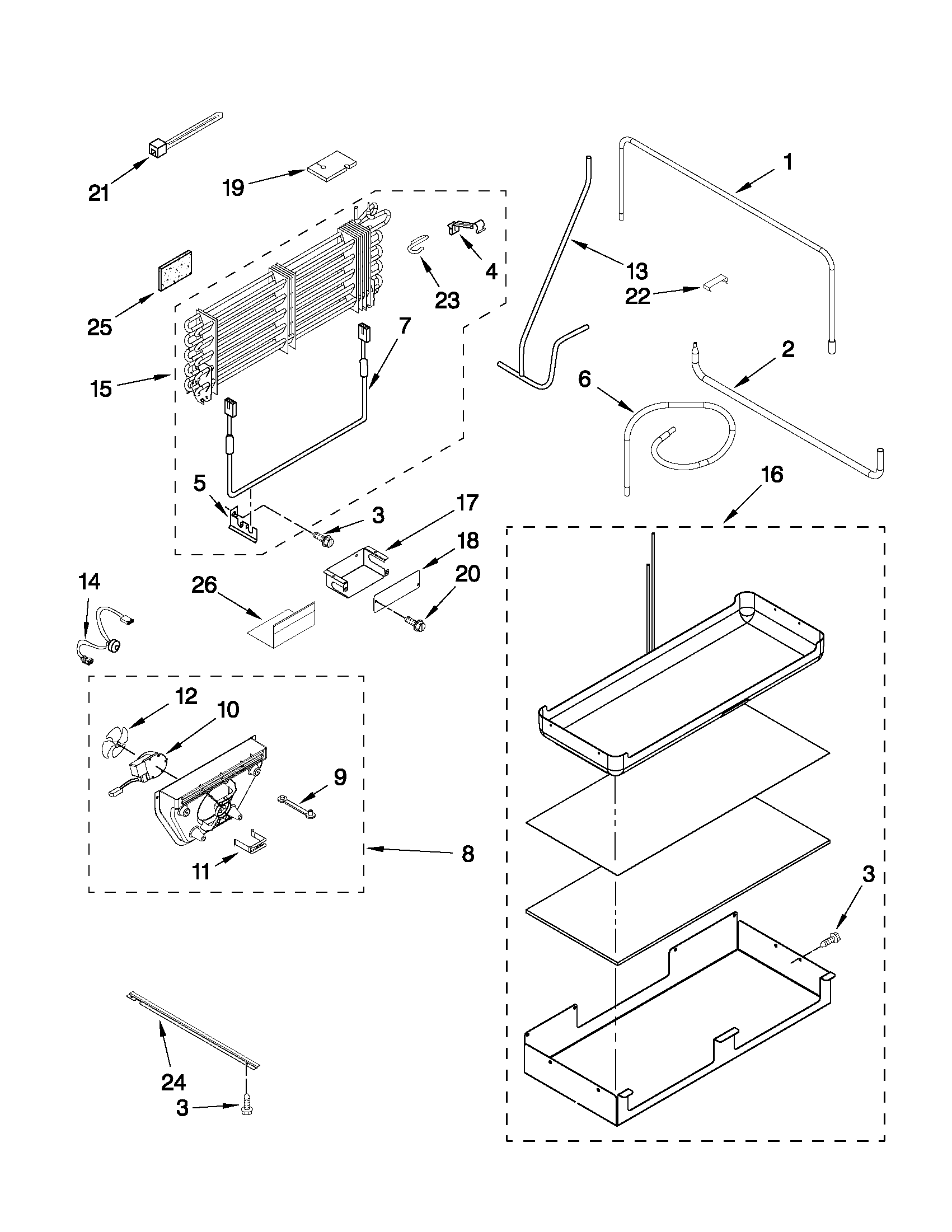

Water collecting in the bottom of your KitchenAid KBLC36FTS04 refrigerator is usually caused by a clogged or frozen defrost drain, which forces defrost water to overflow into the fresh food compartment instead of draining to the pan underneath.

Most common causes (and what to check first)

• Defrost drain clogged with food debris or sludge
• Defrost drain frozen from repeated door openings or warm air leaks
• Drain trough misaligned so water misses the drain hole
• Drain pan shifted or cracked (less common, but possible)
• Door not sealing well, creating excess frost that later melts

Quick fix steps you can do safely

1. Move food away from the back wall and remove any bins/shelves blocking access.
2. Look for ice or standing water at the bottom rear of the refrigerator compartment.
3. Melt ice with warm (not boiling) water; then flush the drain hole with warm water using a turkey baster.
4. Feed a flexible plastic tube or pipe cleaner a short distance into the drain to clear buildup.
5. Verify water flows freely to the drain pan underneath.

For model-specific access points and panel removal details, follow the KBLC36FTS04 installation guide.

Parts that can be involved

If the drain issue is caused by heavy frost from airflow problems, inspect the evaporator area and fan operation. A damaged fan blade can reduce airflow and contribute to icing.

Symptom you see	Most likely issue	What to do next
Water puddle under crisper drawers	Clogged/frozen defrost drain	Thaw and flush drain; clear debris
Sheet of ice on refrigerator floor	Frozen drain or warm air leak	Thaw drain; check door seal and closing
Water appears after filter change	Filter not seated or housing leak	Reseat filter; inspect cap/housing
Dripping near filter area	Cap or housing issue	Inspect/replace as needed

Relevant replacement parts for this model include the refrigerator evaporator fan blade WP2169142, the refrigerator water filter cap (black) WP2260518B, and the refrigerator water filter housing WPW10121140.

Why it matters

Standing water can lead to ice buildup, blocked airflow, and warmer refrigerator temperatures. Clearing the drain restores normal defrost water flow and helps protect components like the evaporator fan and temperature sensor.

Ordering the right parts

We recommend matching parts by the full model number KBLC36FTS04 and using the parts list for this model. You can also search by model number on Sears PartsDirect to find additional diagrams and replacement parts.

Last updated: February 2026

For the KitchenAid KBLC36FTS04 36-inch built-in bottom-mount refrigerator, the most common problems are ice maker issues, temperature swings, water leaks around the filter area, and fan-related noises. These symptoms usually come from restricted airflow, water supply restrictions, or a failing ice maker or sensor.

Most common symptoms and what they usually mean

• Ice maker not making ice or slow ice: warm freezer temps, restricted water flow, or ice maker failure
• Fresh food section warm: airflow restriction or baffle not directing cold air correctly
• Water leaking near filter: filter not seated, cap not sealing, or housing issue
• Buzzing or rattling: condenser fan area vibration or evaporator fan blade contact
• Lights not working: door/light switch not actuating

Quick checks we recommend first

• Set temps to about 37°F (fridge) and 0°F (freezer); allow 24 hours to stabilize
• Keep vents clear; avoid packing items tightly against air returns
• Reseat the water filter and cap; check for cracks and confirm a firm lock-in
• Listen for noise changes when doors open; that often points to an internal fan
• Confirm the unit is level and secured; follow the leveling steps in the installation guide

Parts that commonly fix these symptoms on KBLC36FTS04

Symptom	Part to check	What it does
Slow water flow, slow ice fill	Refrigerator water filter EDR3RXD1	Improves water flow to ice maker/dispenser
Leaks at filter area	Refrigerator water filter cap (black) WP2260518B	Helps seal and retain the filter
No ice production	Refrigerator ice maker WPW10277450	Runs the ice harvest and fill cycle
Erratic temperatures	Refrigerator temperature sensor WP2188820	Sends temperature feedback to controls

Why it matters

Built-in refrigerators like KBLC36FTS04 rely on steady airflow and correct water pressure; small restrictions can quickly show up as warm temps, slow ice, or leaks.

You can order model-matched parts from the parts list for KBLC36FTS04, or search by model number on Sears PartsDirect.

Last updated: February 2026

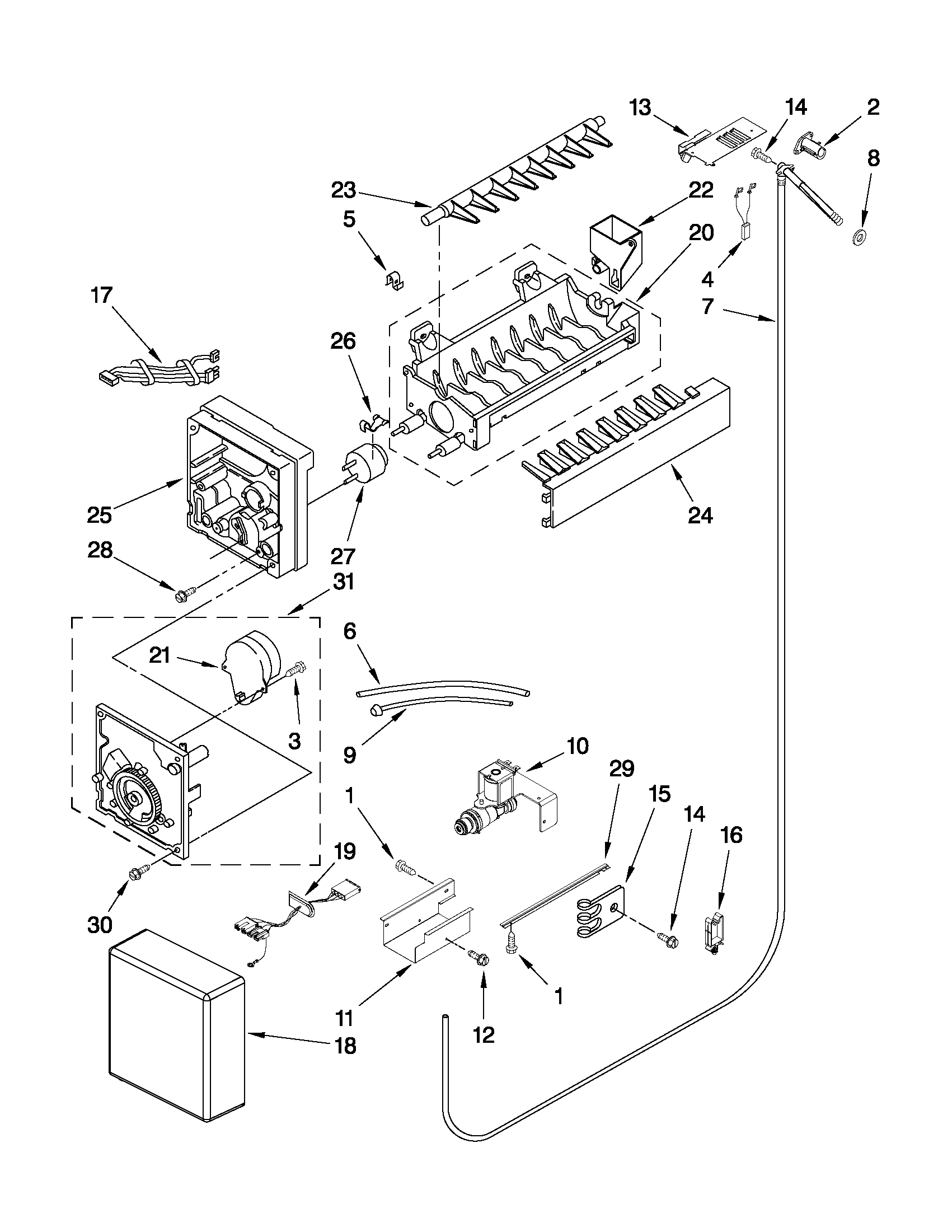

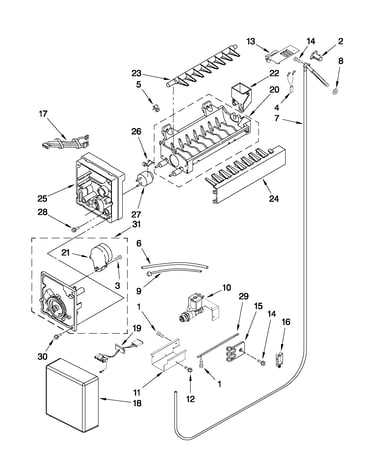

If your KitchenAid KBLC36FTS04 is not making ice, the most common causes are the ice maker being turned off, the refrigerator being powered on before the water line was connected, or restricted water flow from a clogged or mis-seated filter. Start with water supply, temperature, and filter checks.

Quick checks that fix most no-ice problems

• Confirm the ice maker switch or arm is in the ON position.
• Make sure the household shutoff valve is fully open and the supply line is not kinked.
• If the refrigerator was turned on before the water line was connected, turn the ice maker OFF, connect the water line, then turn it back ON (this is called out in the installation guide).
• Verify freezer temperature is cold enough; most ice makers need about 0°F to cycle.
• After reconnecting water or changing a filter, purge air by dispensing water (if equipped) and wait 12 to 24 hours for normal ice.

Water filter and housing issues

A clogged filter or a filter that is not fully seated can reduce flow enough to stop the ice maker from filling.

• Correct filter for this model: refrigerator water filter EDR3RXD1
• If the filter will not lock in or leaks at the filter area: refrigerator water filter housing WPW10121140

Symptom-to-cause guide

What you notice	Likely cause	What to do
No ice, no fill sound	Water supply off, kinked line, air in line	Open valve, straighten line, purge air
Small or hollow cubes	Restricted flow (filter)	Reseat or replace filter
Ice maker on, still no ice after 24 hours	Freezer too warm or airflow blocked	Set colder, clear vents
Cycles but no cubes	Ice maker fill or internal failure	Check fill tube for freezing; replace ice maker if needed

Why it matters

Ice makers need steady water pressure and a cold freezer. A small restriction at the filter or a water line that was not connected at startup can prevent the mold from filling, so the unit never completes an ice-making cycle.

You can order replacement parts for KBLC36FTS04 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
