Model # ALW210RMC Official Amana washer

Here are the diagrams and repair parts for Official Amana ALW210RMC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

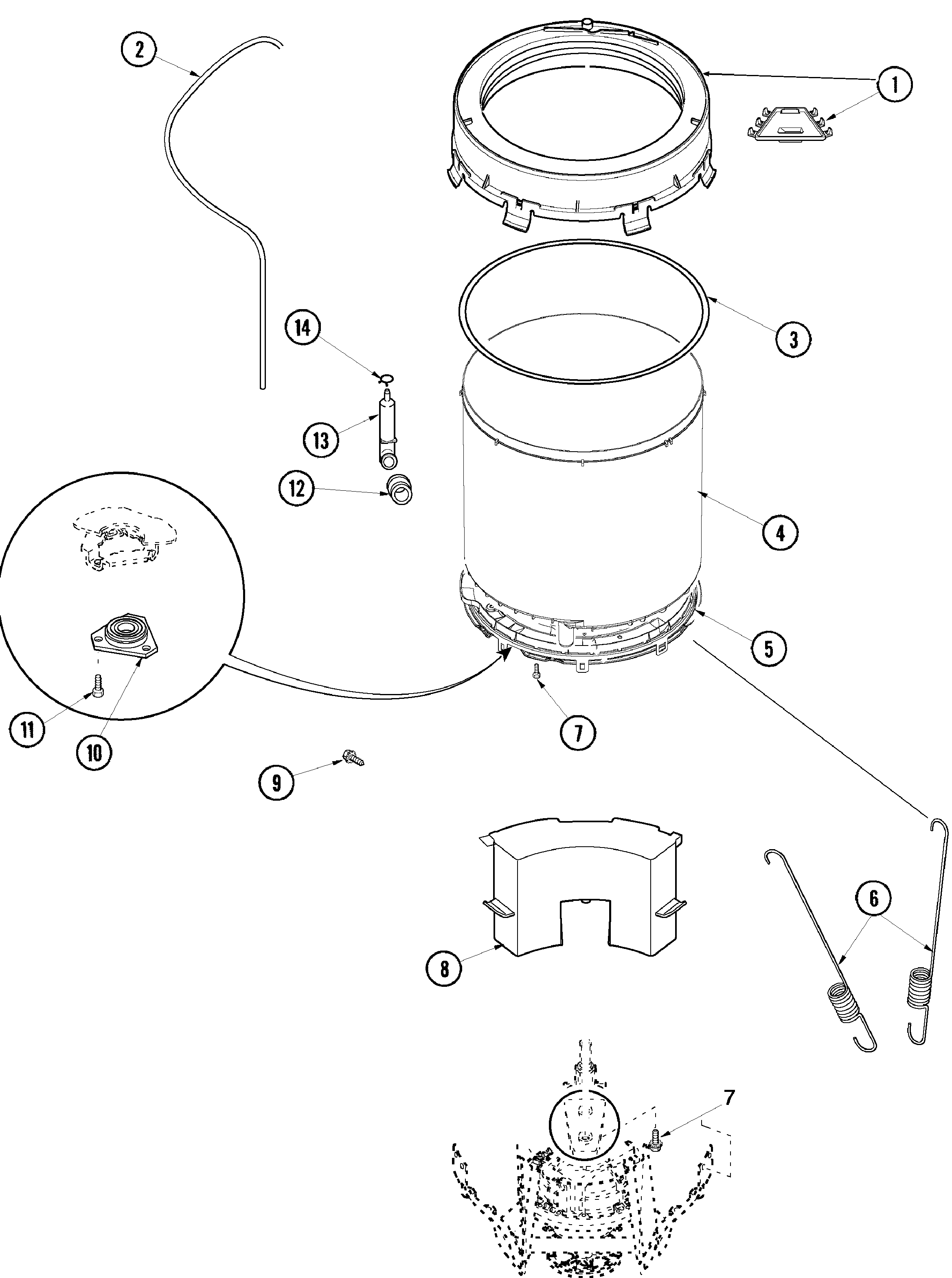

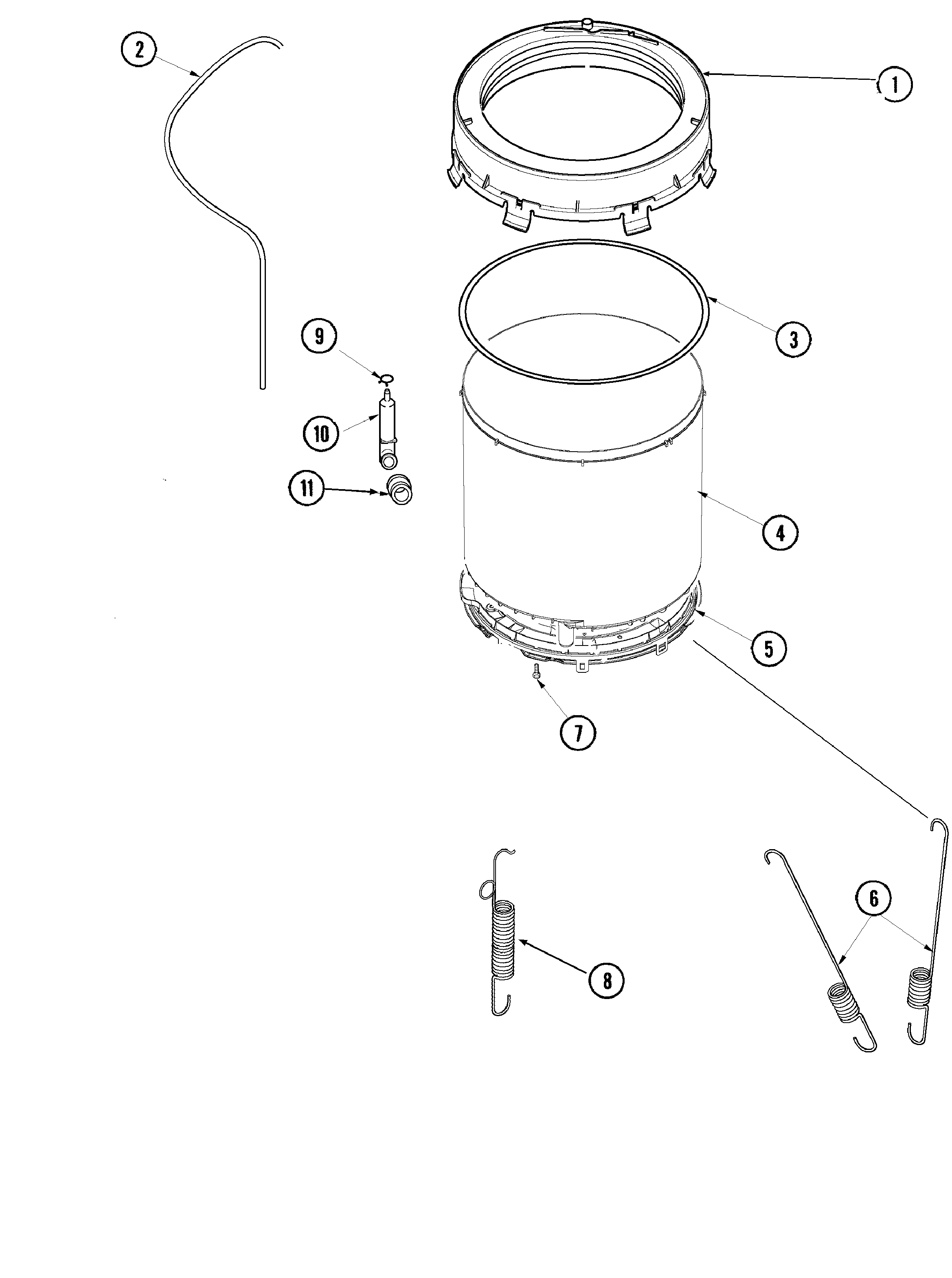

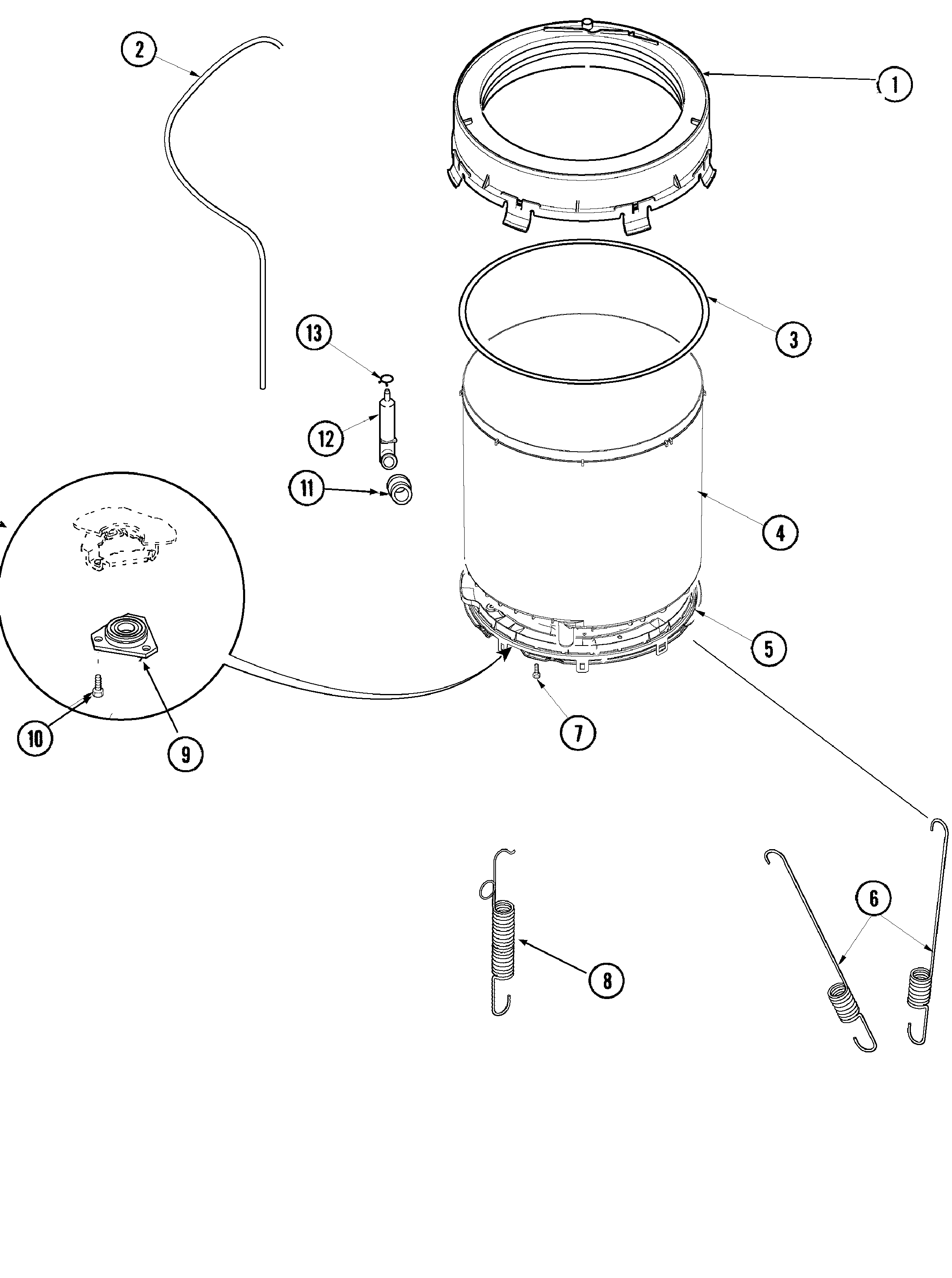

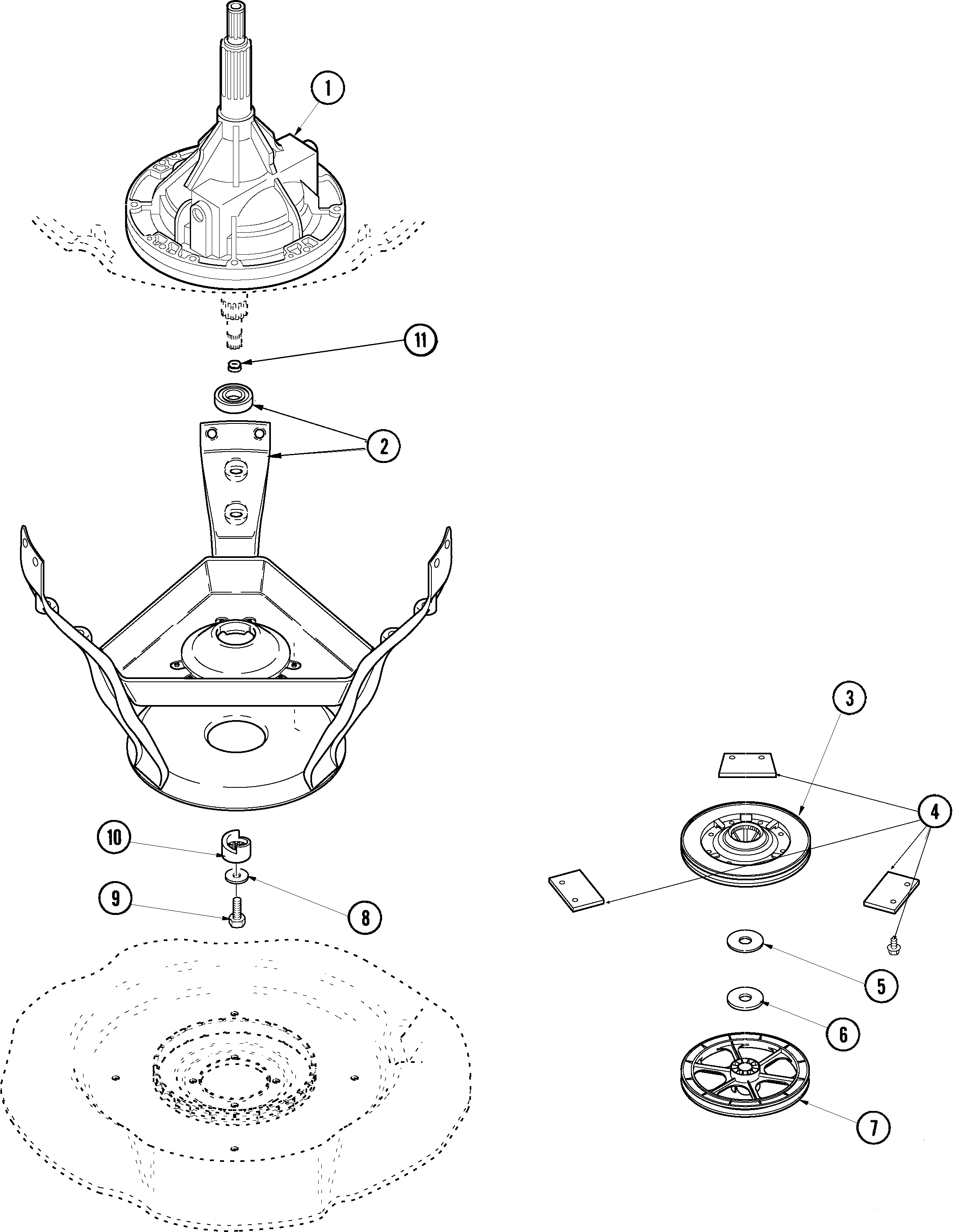

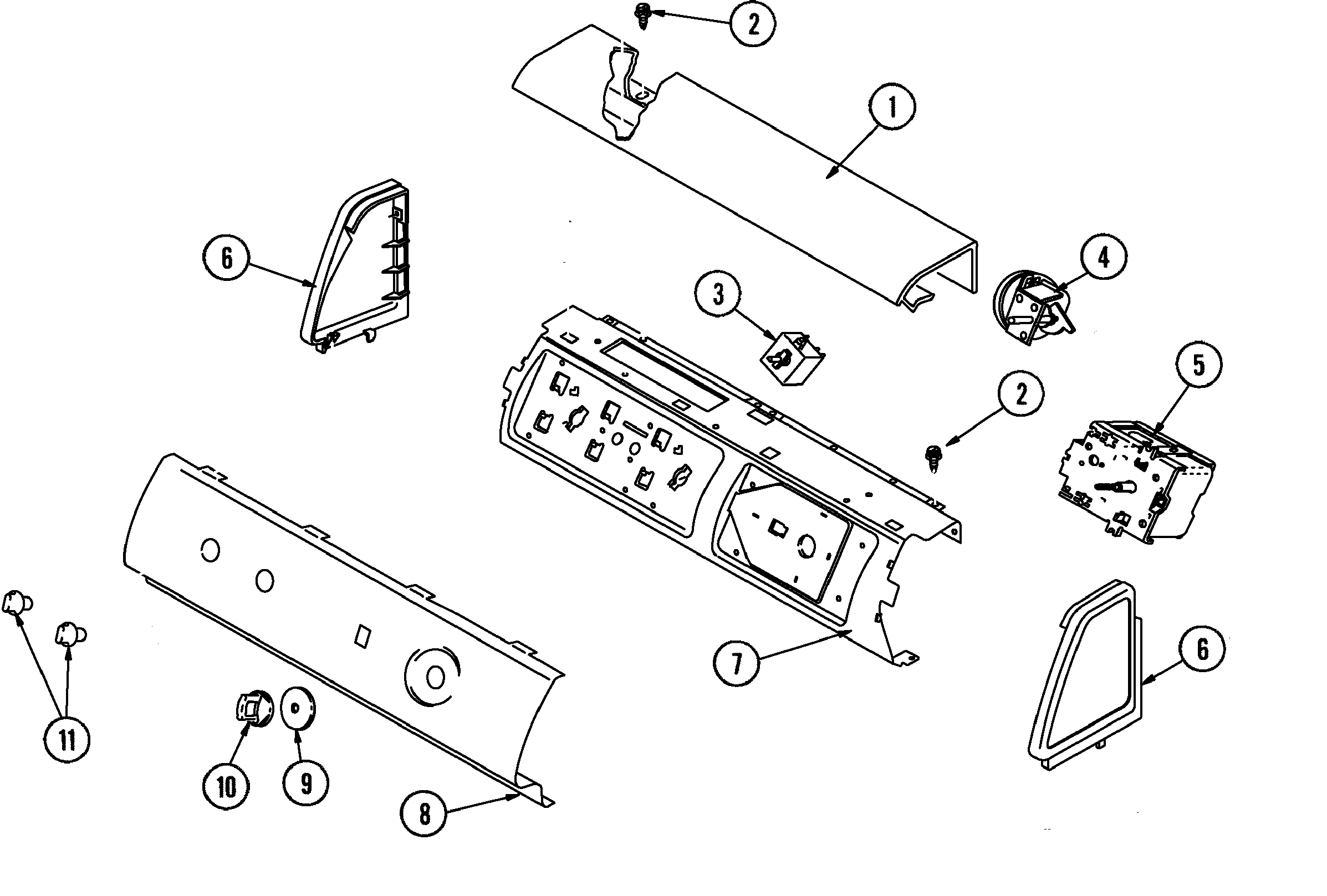

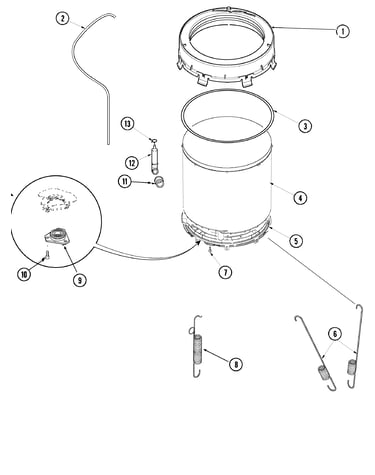

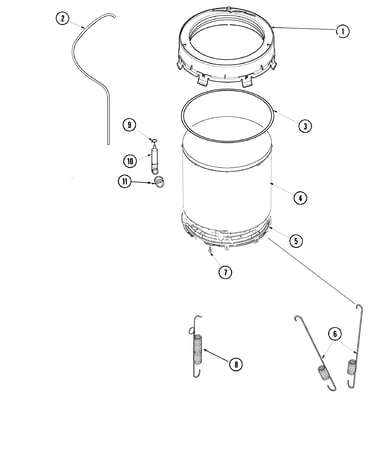

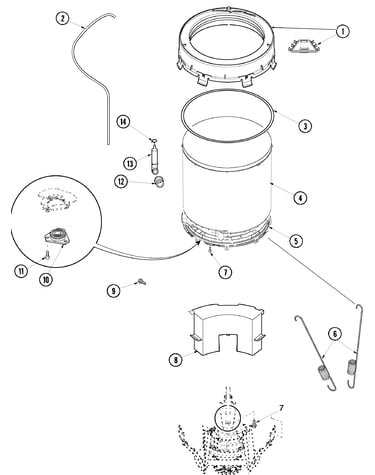

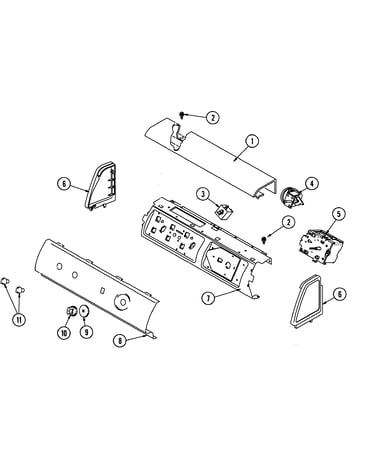

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Screw 40039201
#5

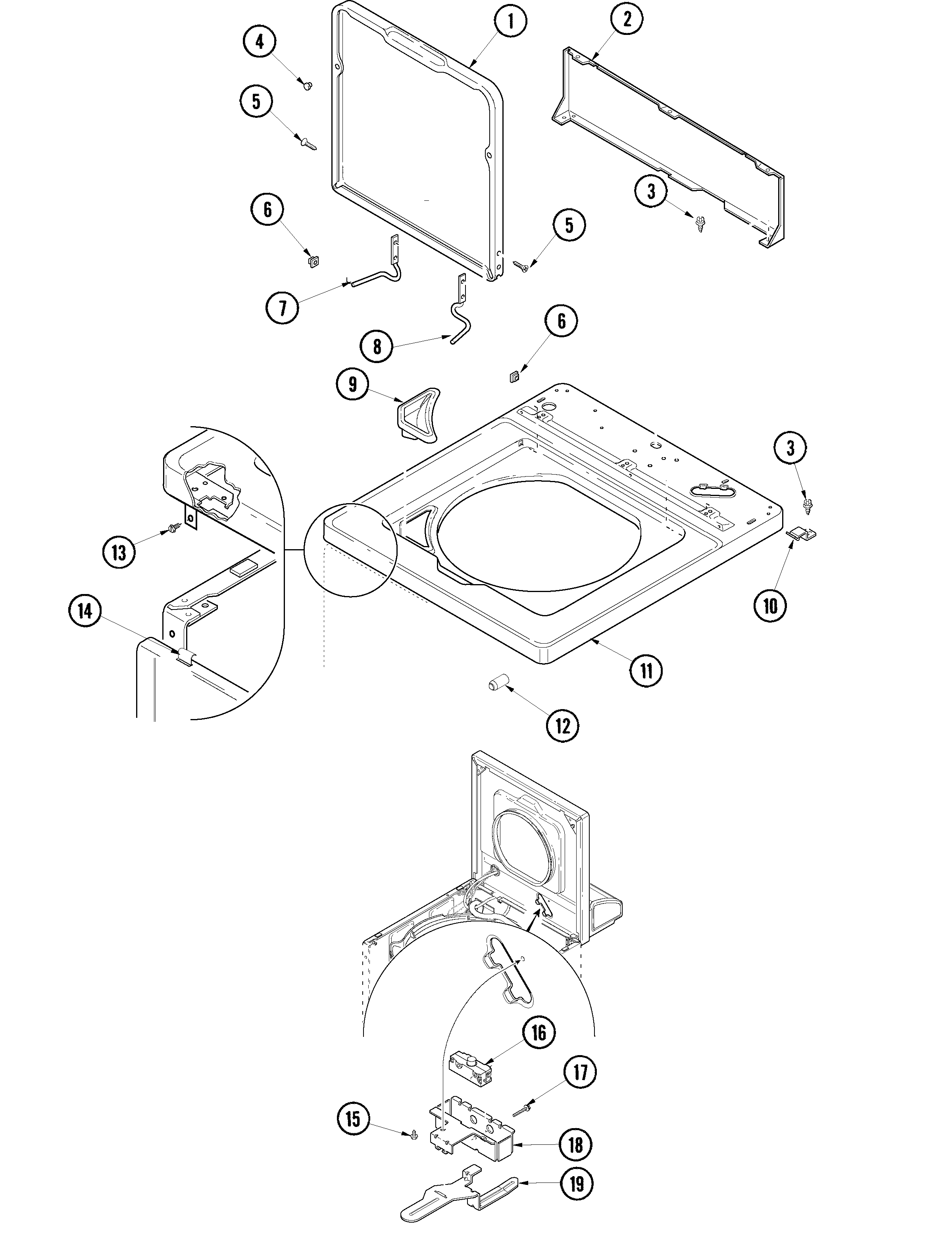

Top, lid and lid switch diagram

Screw

Part #40039201

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 40039201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.09 |
76% OFF MSRP : $13.00
In Stock
Seal Nut Assembly 21001533
#9

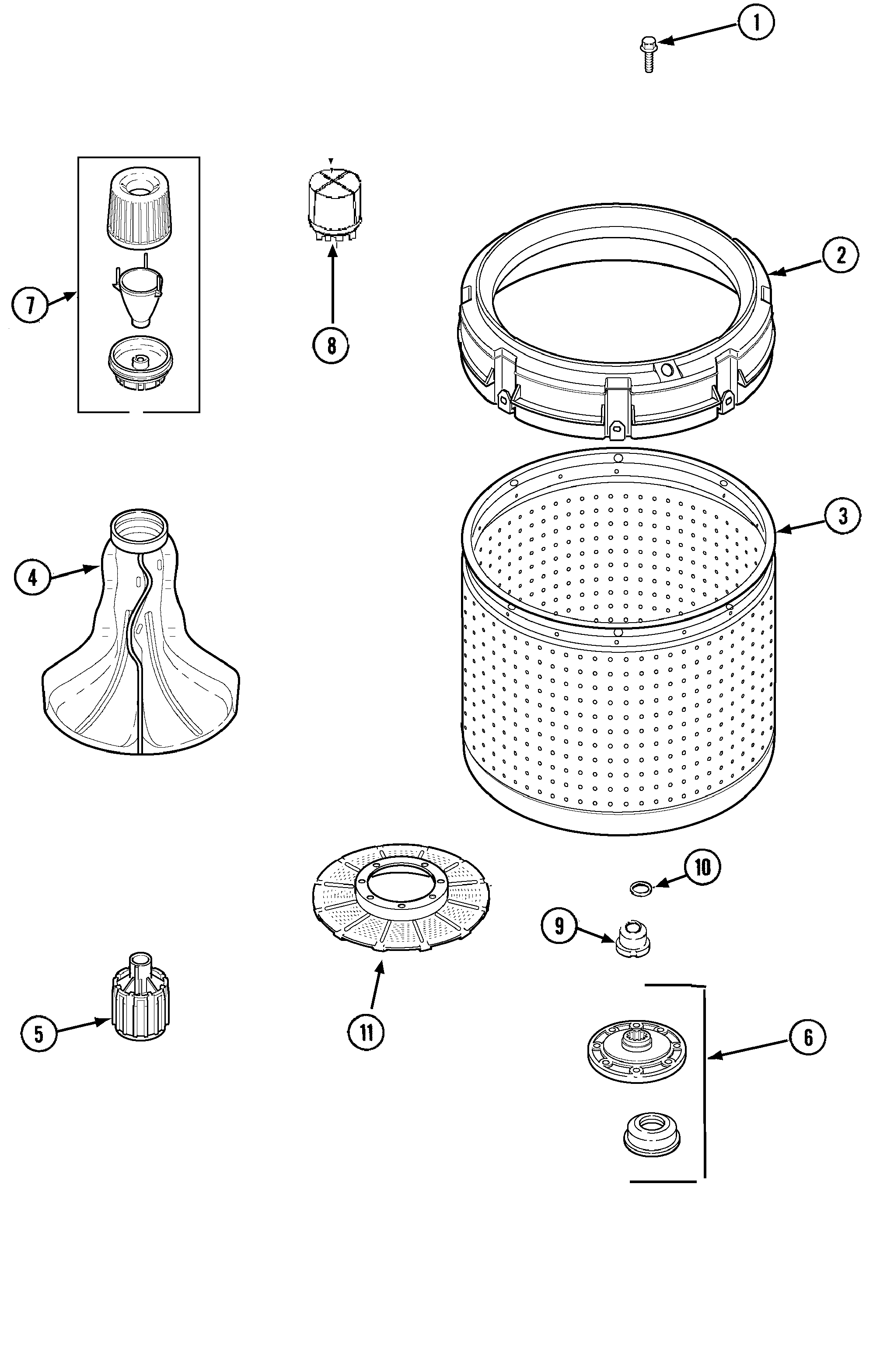

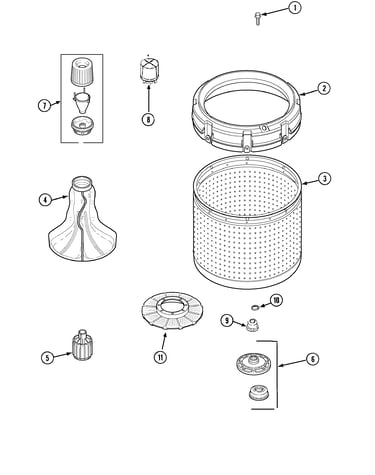

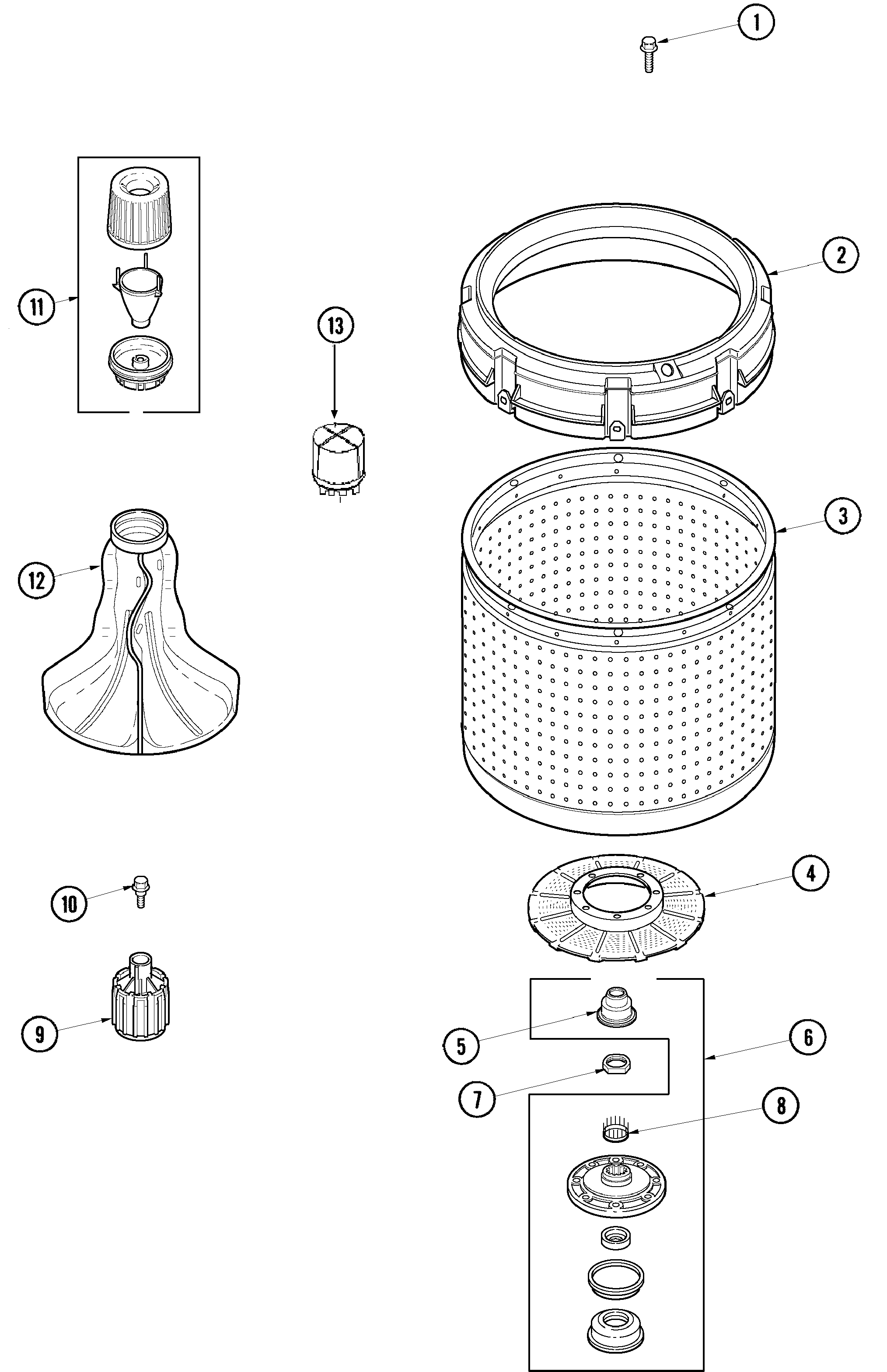

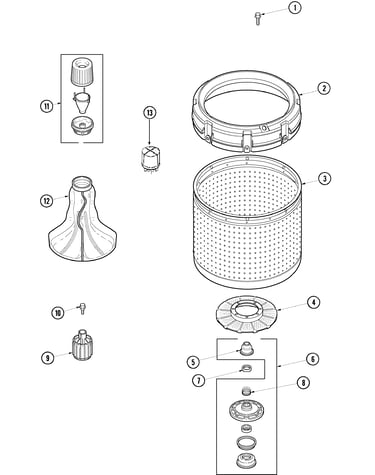

Inner tub (series 15) diagram

Seal nut assembly

Part #21001533

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 23748
#11

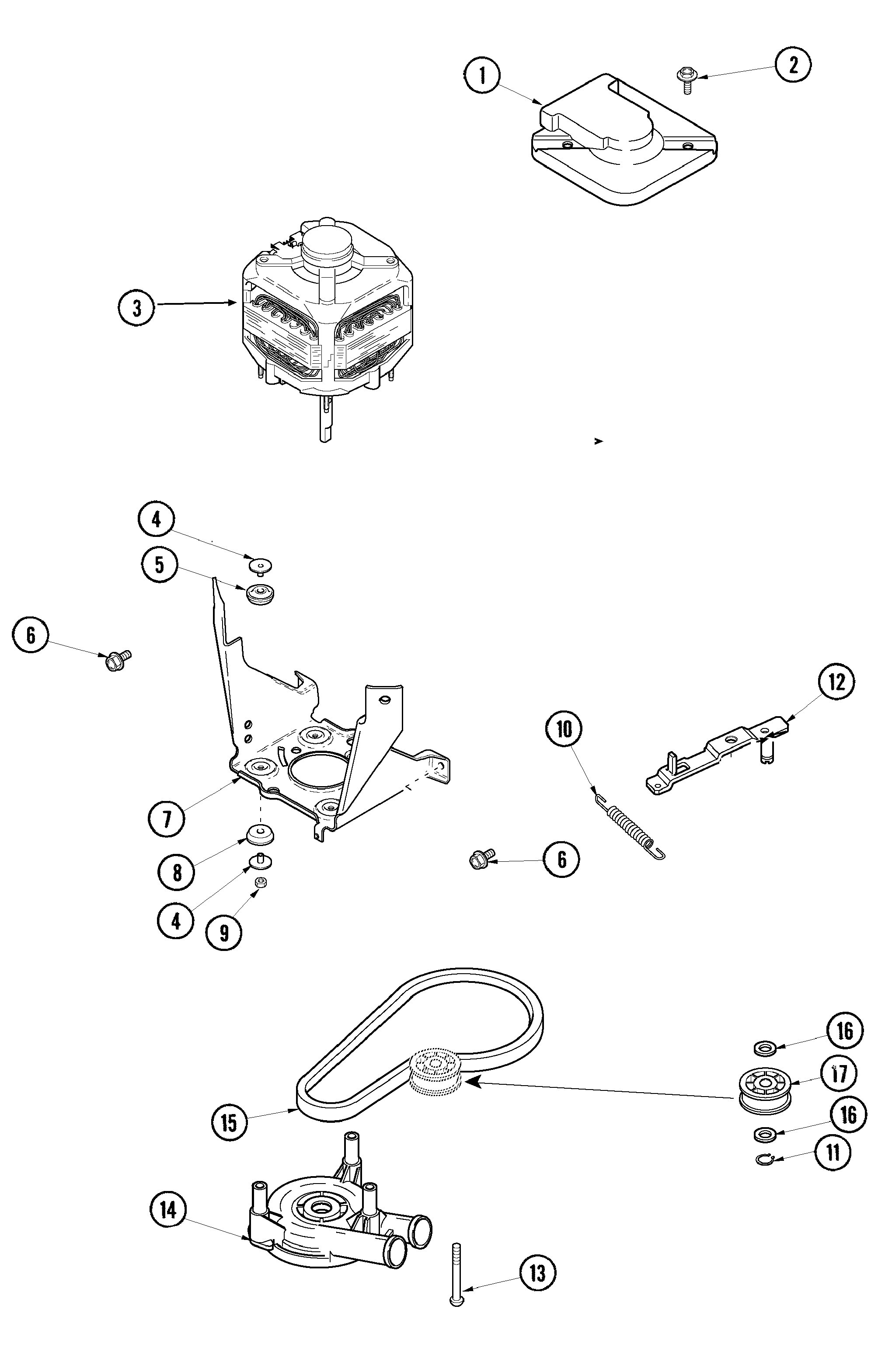

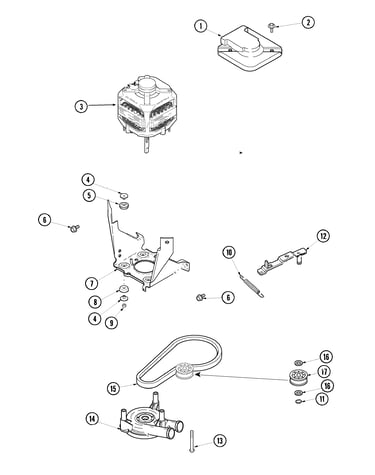

Motor, pump and idler assembly diagram

Retainer ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Clip 56080
Clip

Part #56080

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 56080. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 40039001
#12

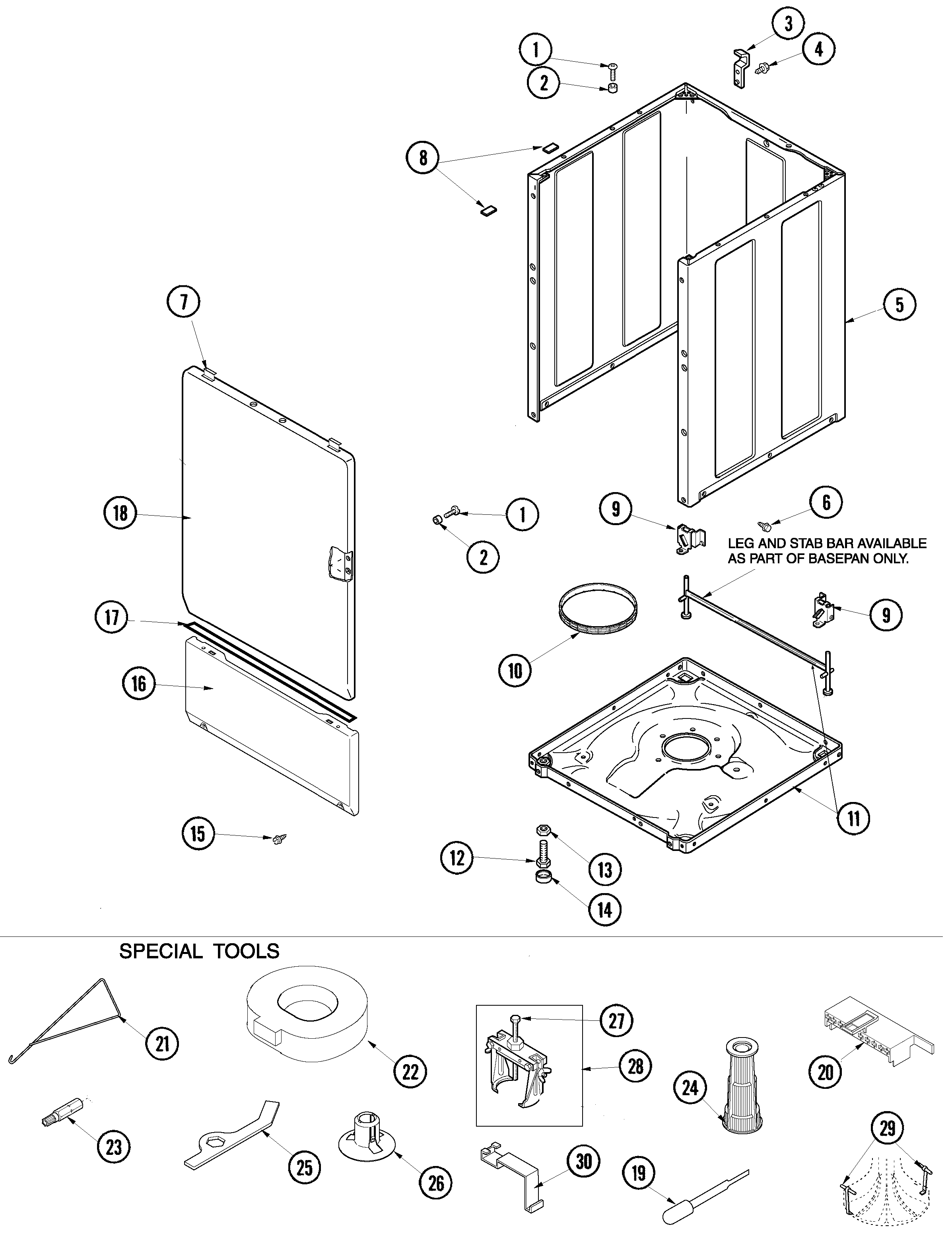

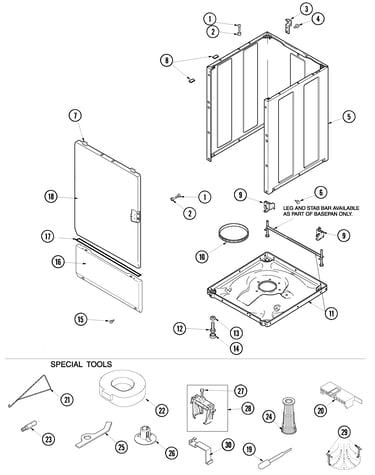

Cabinet, base & special tools diagram

Screw

Part #40039001

Replaced by #22003428

?
Manufacturer substitution
This part replaces 40039001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Washer 20290
#8

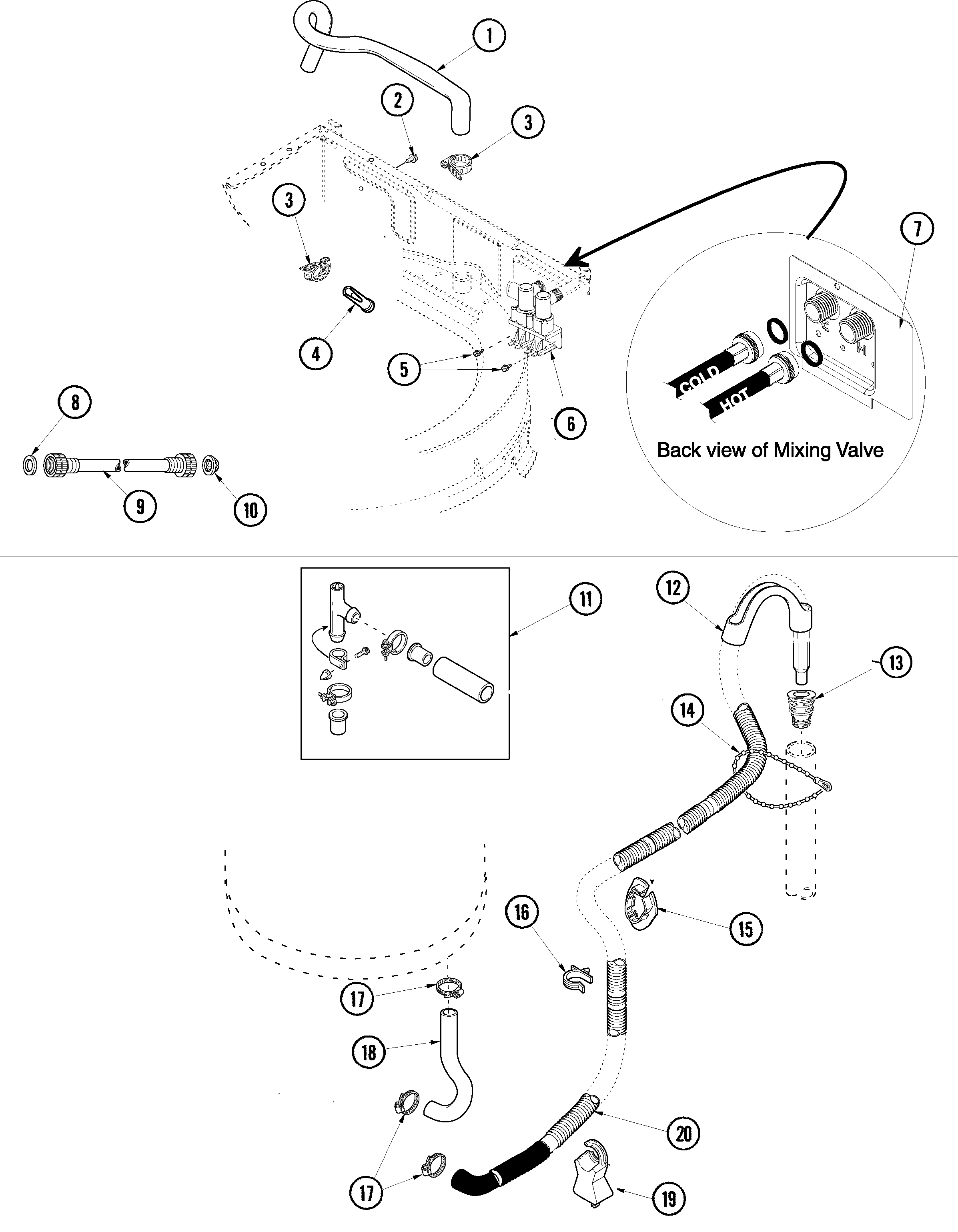

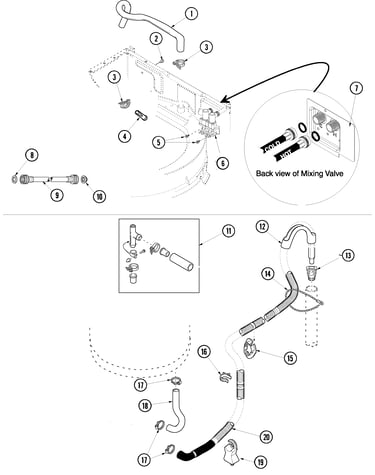

Mixing value & hoses diagram

Washer

Part #20290

Replaced by #Y013783

?
Manufacturer substitution
This part replaces 20290. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Pulley 40045001
#17B

Motor, pump and idler assembly diagram

Pulley

Part #40045001

Replaced by #WP40045001

?
Manufacturer substitution
This part replaces 40045001. Substitute parts can look different from the original.
$37.68 |
12% OFF Phone Price : $42.68
In Stock
Screw 503661
Screw

Part #503661

Replaced by #WP27001200

?
Manufacturer substitution
This part replaces 503661. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer 28605
#10

Mixing value & hoses diagram

Washer

Part #28605

Replaced by #WP22002960

?
Manufacturer substitution
This part replaces 28605. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Belt 27001006
#15

Motor, pump and idler assembly diagram

Washer belt

Part #27001006

$18.13
In Stock
