Model #KECG260SWH4 KitchenAid 36" electric cooktop

Here are the diagrams and repair parts for KitchenAid KECG260SWH4 36" electric cooktop, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 54 parts

Range Coil Surface Element, 8-in

#2

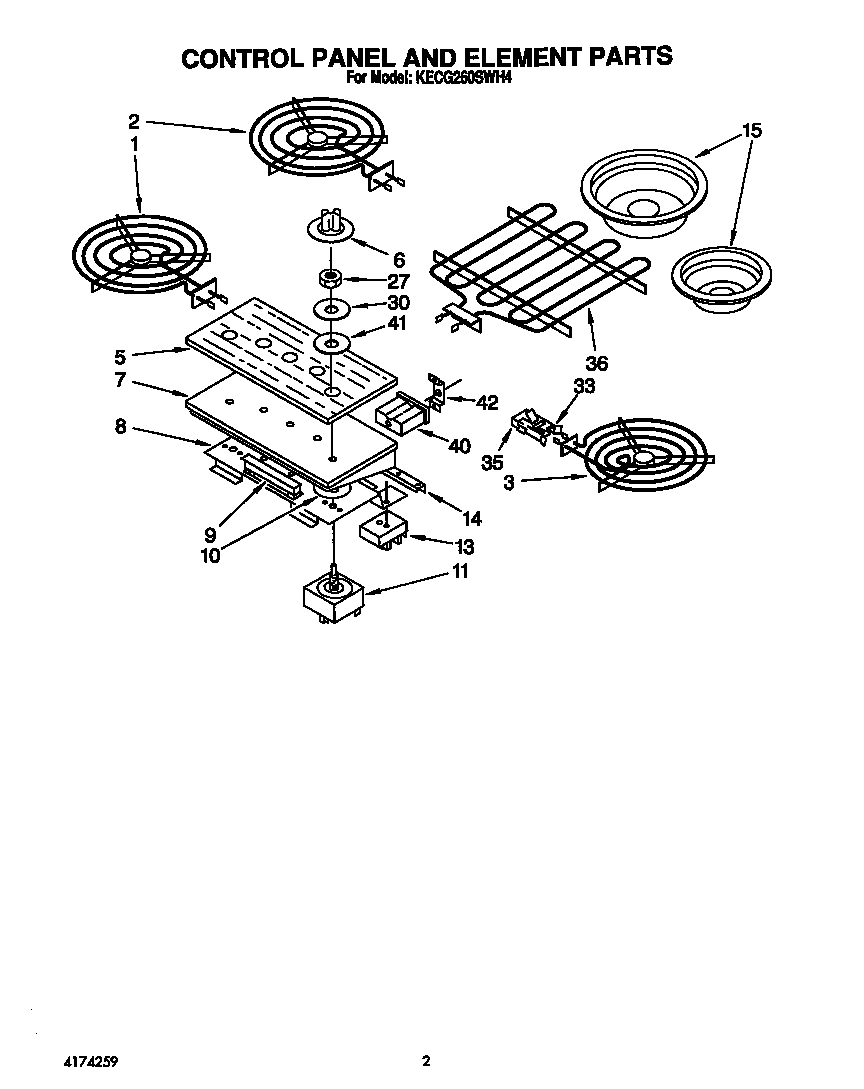

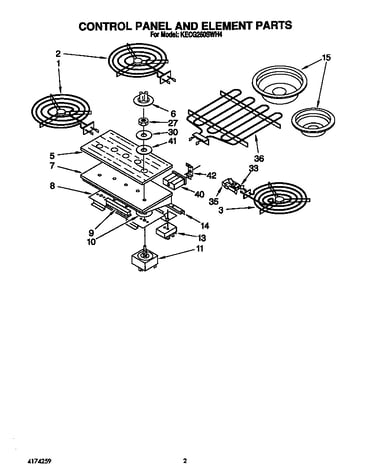

Control panel and element Diagram

Range coil surface element, 8-in

Part #326789
?
Manufacturer substitution
This part replaces 3177567. Substitute parts can look different from the original.
This part replaces 3177567
$62.98

In Stock

Range Drip Pan

#15A

Control panel and element Diagram

Range drip pan

Part #W10196406RW
?
Manufacturer substitution
This part replaces 4164315. Substitute parts can look different from the original.
This part replaces 4164315
$8.13

In Stock

Nut

#27

Control panel and element Diagram

Nut

Part #4159114

The manufacturer no longer makes this part, and there's no substitute part

Screw

#6A

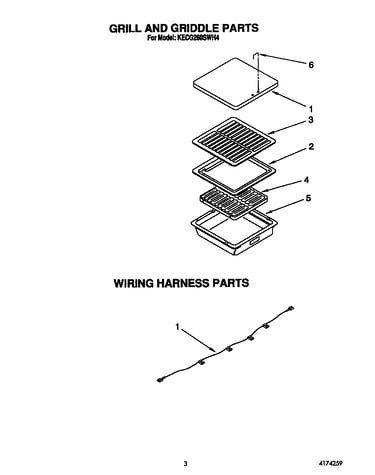

Grill , griddle and wiring harness Diagram

Screw

Part #4159201

The manufacturer no longer makes this part, and there's no substitute part

Range Surface Burner Valve Seal

#41

Control panel and element Diagram

Range surface burner valve seal

Part #WP3188425
?
Manufacturer substitution
This part replaces 4166436. Substitute parts can look different from the original.
This part replaces 4166436
$25.77 |
26% OFF MSRP:$35.00

In Stock

Range Drip Pan

#15B

Control panel and element Diagram

Range drip pan

Part #W10196405RW
?
Manufacturer substitution
This part replaces 4164314. Substitute parts can look different from the original.
This part replaces 4164314
This item is not returnable
$7.32 |
10% OFF MSRP:$8.10

In Stock

Range Surface Element Receptacle

#35

Control panel and element Diagram

Range surface element receptacle

Part #330031
?
Manufacturer substitution
This part replaces 4164317. Substitute parts can look different from the original.
This part replaces 4164317
This item is not returnable
$6.37

In Stock

Cooktop Coil Element, 6-in

#3

Control panel and element Diagram

Cooktop coil element, 6-in

Part #WP3191455
?
Manufacturer substitution
This part replaces 3177638. Substitute parts can look different from the original.
This part replaces 3177638
$47.87 |
23% OFF MSRP:$62.00

In Stock

Cooktop Coil Element, 8-in

#1

Control panel and element Diagram

Cooktop coil element, 8-in

Part #WP3177565
?
Manufacturer substitution
This part replaces 3177565. Substitute parts can look different from the original.
This part replaces 3177565
$64.31 |
15% OFF MSRP:$76.00

In Stock

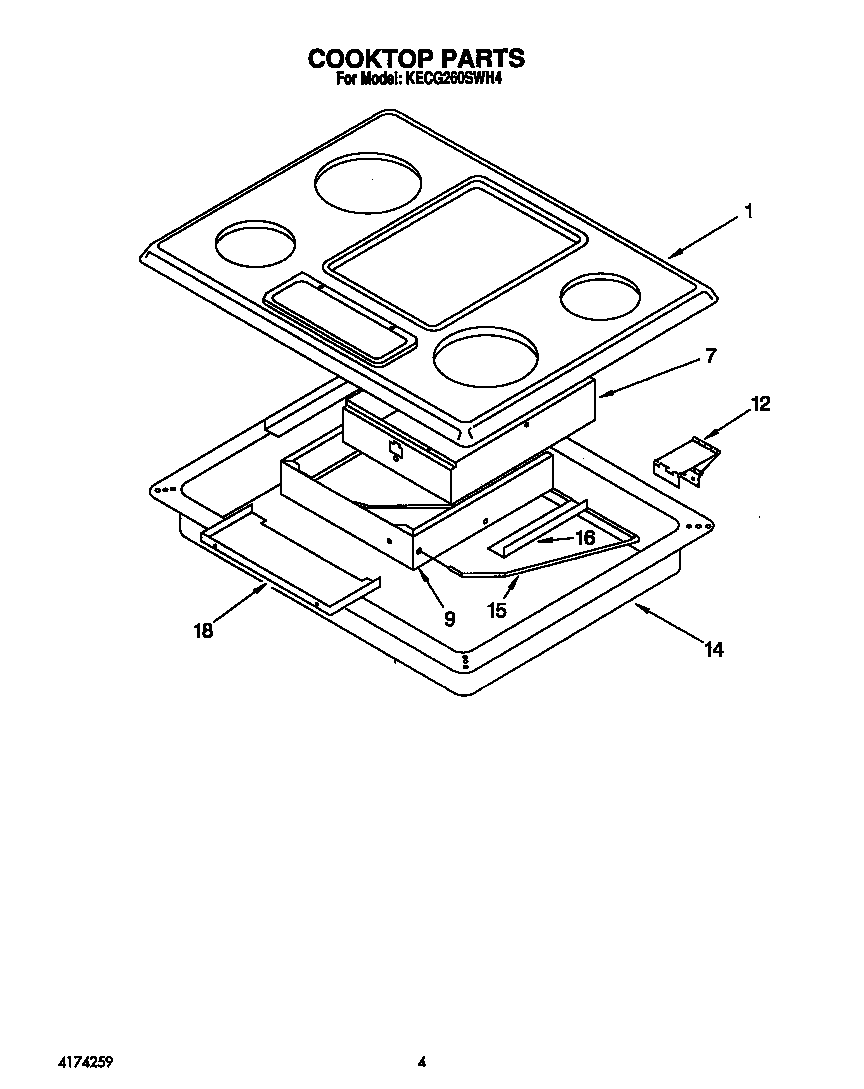

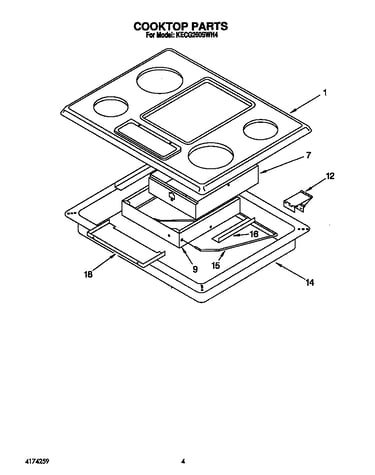

Cktop Wh

#1B

Cooktop parts Diagram

Cktop wh

Part #3185434

The manufacturer no longer makes this part, and there's no substitute part
