KitchenAid KTRS19KDAL01 refrigerator

KitchenAid KTRS19KDAL01 refrigerator Parts

Here are the diagrams and repair parts for KitchenAid KTRS19KDAL01 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

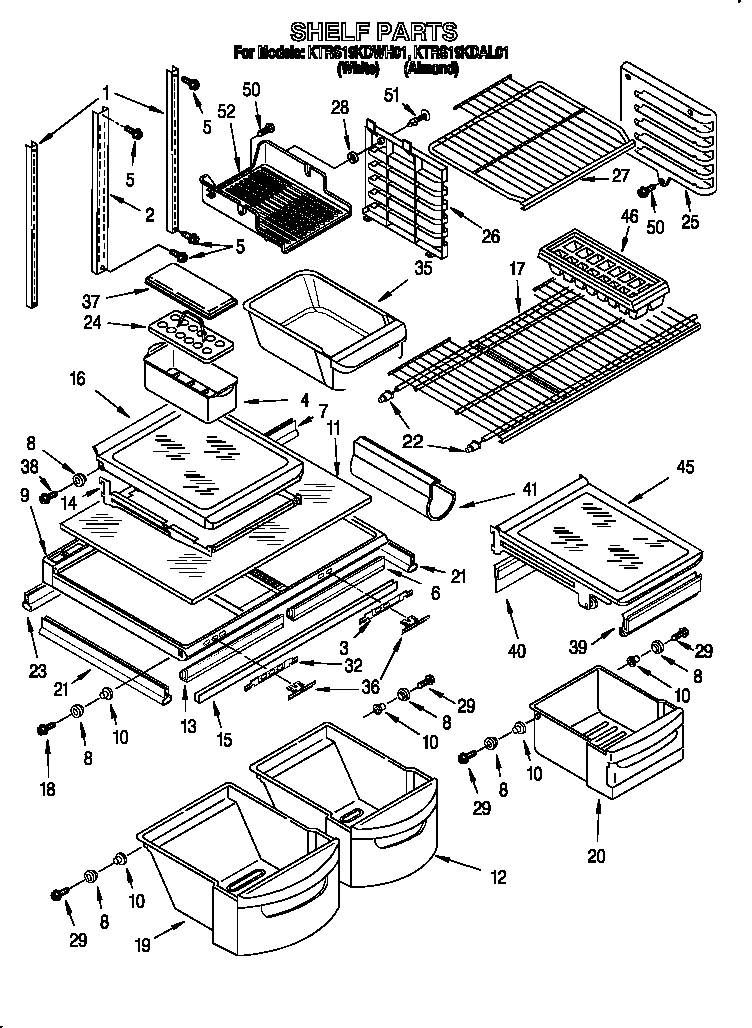

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KTRS19KDAL01 Refrigerators

  • Refrigerator Defrost Heater for KitchenAid KTRS19KDAL01 - Part WP2315531

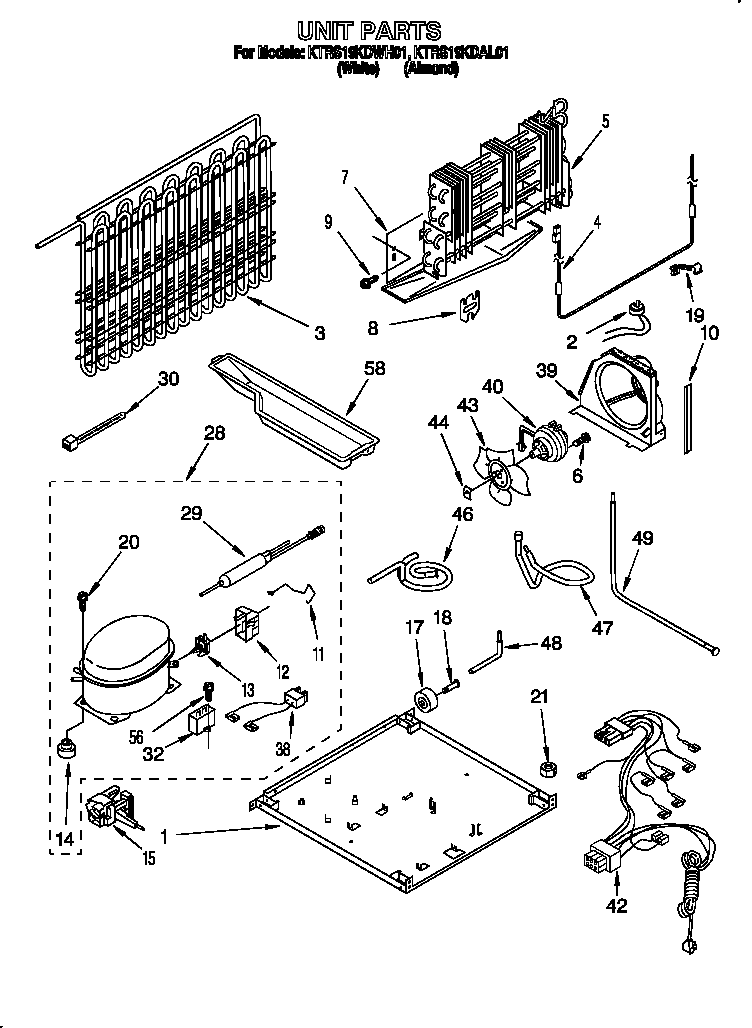

    Unit diagram

    Refrigerator Heater

    Part #2176300

    Replaced by #WP2315531

    Info Icon
    Manufacturer substitution
    This part replaces 2176300. Substitute parts can look different from the original.
    In Stock
    $79.73
    7% OFF Phone Price : $85.73Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Hinge, Center for KitchenAid KTRS19KDAL01 - Part WP2254618

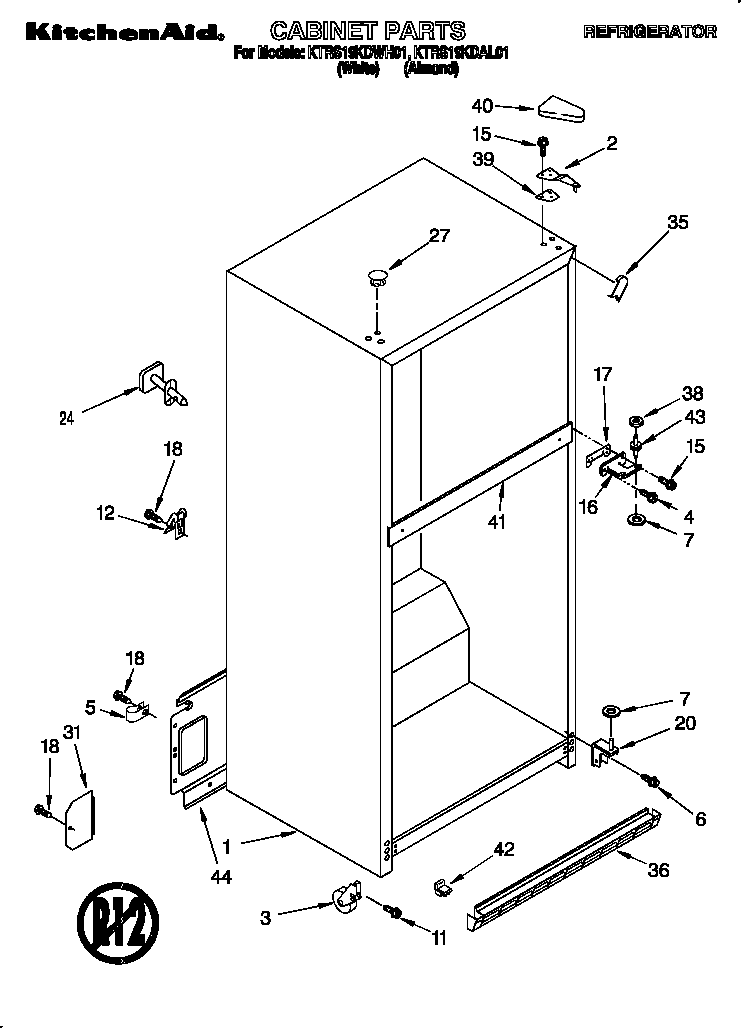

    Cabinet diagram

    Refrigerator Hinge Pin

    Part #2183063

    Replaced by #WP2254618

    Info Icon
    Manufacturer substitution
    This part replaces 2183063. Substitute parts can look different from the original.
    In Stock
    $41.18
    13% OFF Phone Price : $47.18Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Light Socket for KitchenAid KTRS19KDAL01 - Part 4387478

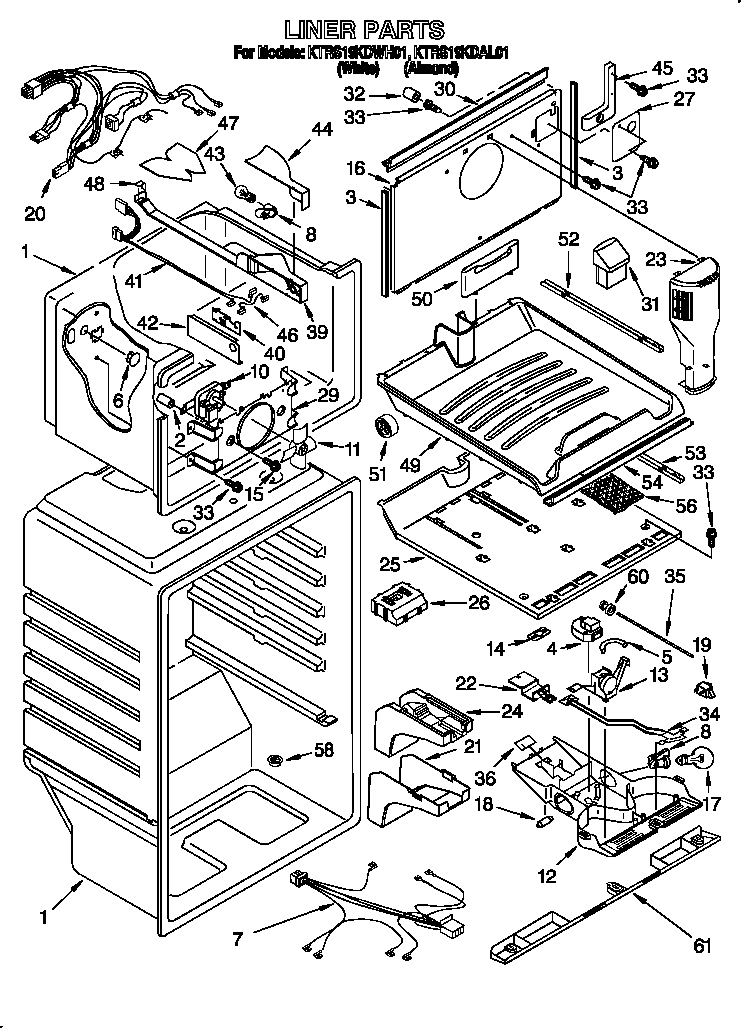

    Liner diagram

    Light Socket

    Part #2162085

    Replaced by #4387478

    Info Icon
    Manufacturer substitution
    This part replaces 2162085. Substitute parts can look different from the original.
    In Stock
    $49.71
    11% OFF Phone Price : $55.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Thermostat Sensor Barrier for KitchenAid KTRS19KDAL01 - Part WP2196003

    Liner diagram

    Refrigerator Barrier

    Part #549512

    Replaced by #WP2196003

    Info Icon
    Manufacturer substitution
    This part replaces 549512. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.97
    14% OFF Phone Price : $6.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Timer for KitchenAid KTRS19KDAL01 - Part WP2183400

    Liner diagram

    Refrigerator Defrost Timer

    Part #2183400

    Replaced by #WP2183400

    Info Icon
    Manufacturer substitution
    This part replaces 2183400. Substitute parts can look different from the original.
    In Stock
    $60.05
    9% OFF Phone Price : $66.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Silicone Lubricant for KitchenAid KTRS19KDAL01 - Part WP542638

    #NI

    All parts diagram

    Appliance Silicone Lubricant

    Part #542638

    Replaced by #WP542638

    Info Icon
    Manufacturer substitution
    This part replaces 542638. Substitute parts can look different from the original.
    In Stock
    $37.39
    14% OFF Phone Price : $43.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Shelf Rail for KitchenAid KTRS19KDAL01 - Part WPW10421484

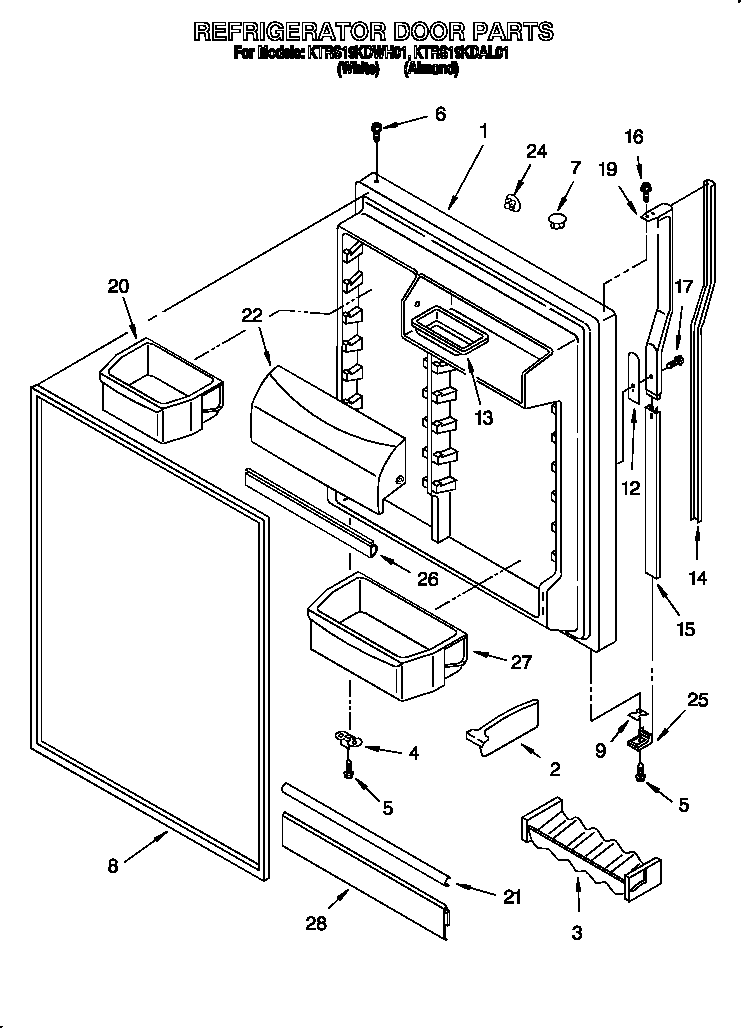

    Refrigerator door diagram

    Trim Trivet

    Part #2177250

    Replaced by #WPW10421484

    Info Icon
    Manufacturer substitution
    This part replaces 2177250. Substitute parts can look different from the original.
    In Stock
    $66.03
    8% OFF Phone Price : $72.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Shelf Rail for KitchenAid KTRS19KDAL01 - Part WPW10421484

    Refrigerator door diagram

    Refrigerator Trivet

    Part #2171249

    Replaced by #WPW10421484

    Info Icon
    Manufacturer substitution
    This part replaces 2171249. Substitute parts can look different from the original.
    In Stock
    $66.03
    8% OFF Phone Price : $72.03Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for KitchenAid KTRS19KDAL01 - Part WP489478

    Unit diagram

    Screw

    Part #489242

    Replaced by #WP489478

    Info Icon
    Manufacturer substitution
    This part replaces 489242. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.06
    17% OFF Phone Price : $6.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Roller Wheel Axle Clip for KitchenAid KTRS19KDAL01 - Part W11594405

    Unit diagram

    Refrigerator Rivet

    Part #981126

    Replaced by #W11594405

    Info Icon
    Manufacturer substitution
    This part replaces 981126. Substitute parts can look different from the original.
    In Stock
    $38.31
    Minus Item
    Qty
    Plus Item
