How do I remove the base grille on my Whirlpool refrigerator?
To remove the base grille on your Whirlpool WRV986FDEM00 bottom-mount refrigerator, open the freezer drawer, grasp the grille firmly with both hands, and pull it straight toward you. This exposes the brake feet and front rollers for leveling and cleaning (see the WRV986FDEM00 owner's manual).
Steps to remove and reinstall the base grille
- Open the freezer drawer for access.
- Stand centered in front of the grille.
- Grip the grille with both hands near the ends.
- Pull the grille straight toward you to pop it off.
- After you finish, align the grille ends with the leveling assemblies.
- Snap the grille back into place.
When you typically remove the base grille
| Task | Why you remove it | What you can access |
|---|---|---|
| Leveling and door closing adjustments | To reach the adjustment points | Brake feet and front rollers |
| Condenser area cleaning | To vacuum dust and pet hair | Open areas behind the grille and condenser front |
| Moving the refrigerator into position | To raise/lower brake feet so it rolls | Brake feet and rollers |
Why it matters
The base grille covers the adjustable brake feet and roller assemblies. Removing it lets us level the refrigerator so doors and drawers close properly, and it also lets us clean the condenser area for efficient cooling.
Last updated: February 2026
What is the lifetime of a Whirlpool refrigerator?
A Whirlpool refrigerator like model WRV986FDEM00 typically lasts 13 years with normal household use. Keeping temperatures set correctly, cleaning condenser areas, and replacing filters on schedule helps you reach that expected service life.
Typical lifespan and what affects it
Most refrigerators fail early because of airflow, sealing, or cooling-system strain. These factors make the biggest difference:
- Condenser airflow: dust buildup forces longer run times
- Door sealing: warm air leaks create frost and compressor wear
- Ice maker and water system use: mineral buildup and low water flow add stress
- Filter maintenance: clogged filters reduce flow and can cause valve issues
- Room conditions: hot garages and tight cabinets shorten life
For model-specific care and maintenance intervals, follow the WRV986FDEM00 owner's manual.
Maintenance schedule we recommend
Use this as a practical baseline for WRV986FDEM00-STYLE French door/bottom-mount refrigerators.
| Item | What to do | Typical interval |
|---|---|---|
| Air filter | Replace to reduce odors and keep airflow fresh | Every 6 months |
| Water filter | Replace to maintain dispenser and ice maker flow | About every 6 months |
| Door gaskets | Clean and check for gaps/tears | Every 3 months |
| Coils/airflow areas | Vacuum dust and pet hair | Every 6 to 12 months |
If you need the correct replacement air filter for this model, use the refrigerator air filter W10311524.
Why it matters
A refrigerator that is running longer to hold temperature uses more energy and wears out key components faster (compressor, evaporator fan, control board). Simple upkeep often prevents “not cooling,” “ice maker not working,” and odor complaints.
When replacement is usually the better choice
These are common end-of-life signs:
- Sealed-system cooling problems (warm fridge and freezer despite running)
- Repeated control or cooling failures
- Heavy frost return shortly after defrosting
- Persistent temperature swings that spoil food
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
No. On Whirlpool model WRV986FDEM00, the cardboard-like panel at the bottom/rear area is a protective cover for the condenser and other components; it should stay in place for proper airflow and protection. For handling and care details, follow the WRV986FDEM00 owner's manual.
What cardboard you can remove vs. what you should keep
Some packaging is meant to come off, but service covers are not.
- Remove: shipping tape, foam blocks, plastic wrap, and any cardboard used only as packing spacers
- Keep installed: any factory-attached bottom/rear cover (often looks like heavy cardboard or fiberboard)
- Keep installed: base grille and toe-kick style covers (unless you are leveling/servicing)
- Do not remove: panels that are screwed in place and cover wiring, tubing, or the condenser area
Quick check: is it packaging or a protective cover?
Use this simple guide before pulling anything off.
| What you see | Usually means | What to do |
|---|---|---|
| Loose cardboard under the unit, not attached | Shipping protection | Remove it |
| Panel is screwed/clipped on and fits the cabinet | Protective service cover | Leave it installed |
| Panel blocks access to coils/fan area | Airflow and safety barrier | Leave it installed |
Why it matters
That bottom cover helps protect components and supports correct airflow across the condenser area. Removing it can lead to poor cooling performance, overheating, extra noise, or dust buildup on critical parts.
If you need to move the refrigerator
When pulling the refrigerator out for cleaning or service, we recommend protecting your floor with cardboard or hardboard and pulling the unit straight out (do not “walk” it). The WRV986FDEM00 owner's manual covers safe moving guidance.
Last updated: February 2026
What is the biggest problem in a Whirlpool refrigerator?
The biggest problem we see in Whirlpool refrigerators like model WRV986FDEM00 is loss of cooling performance (food not staying cold, freezer warming, or temperatures swinging). Cooling issues often trace back to airflow restrictions, dirty condenser coils, door sealing problems, or a defrost system fault; the WRV986FDEM00 owner's manual troubleshooting section walks through the most common checks.
Most common “big problems” and what they look like
- Not cooling or weak cooling: warm fresh food section, soft ice cream, or thawing food
- Ice maker not making ice or small/hollow cubes: low water flow, shutoff valve not fully open, or a kinked water line
- Water leaks or puddles: often tied to drainage issues or door sealing/closing problems
- Frost buildup: points to a defrost problem or air leaks at the doors
- Noisy operation: fans working harder when airflow is restricted
Quick checks we recommend first (before replacing parts)
- Confirm the refrigerator is plugged into a grounded 3-prong outlet and cooling is turned on.
- After a new install or power interruption, allow 24 hours for temperatures to stabilize.
- Make sure vents inside the compartments are not blocked by food containers.
- Check doors close fully; a poor seal can cause temperature swings and frost.
- For ice issues, verify the water shutoff valve is fully open and the supply line is not kinked.
Parts that commonly relate to these symptoms on WRV986FDEM00
| Symptom | Common system involved | Example part on this model page |
|---|---|---|
| Warm temps, frost, erratic cooling | Defrost/control sensing | Refrigerator thermistor W11724692 |
| Frost buildup, poor cooling | Defrost heat circuit | Refrigerator defrost heater WP12729128 |

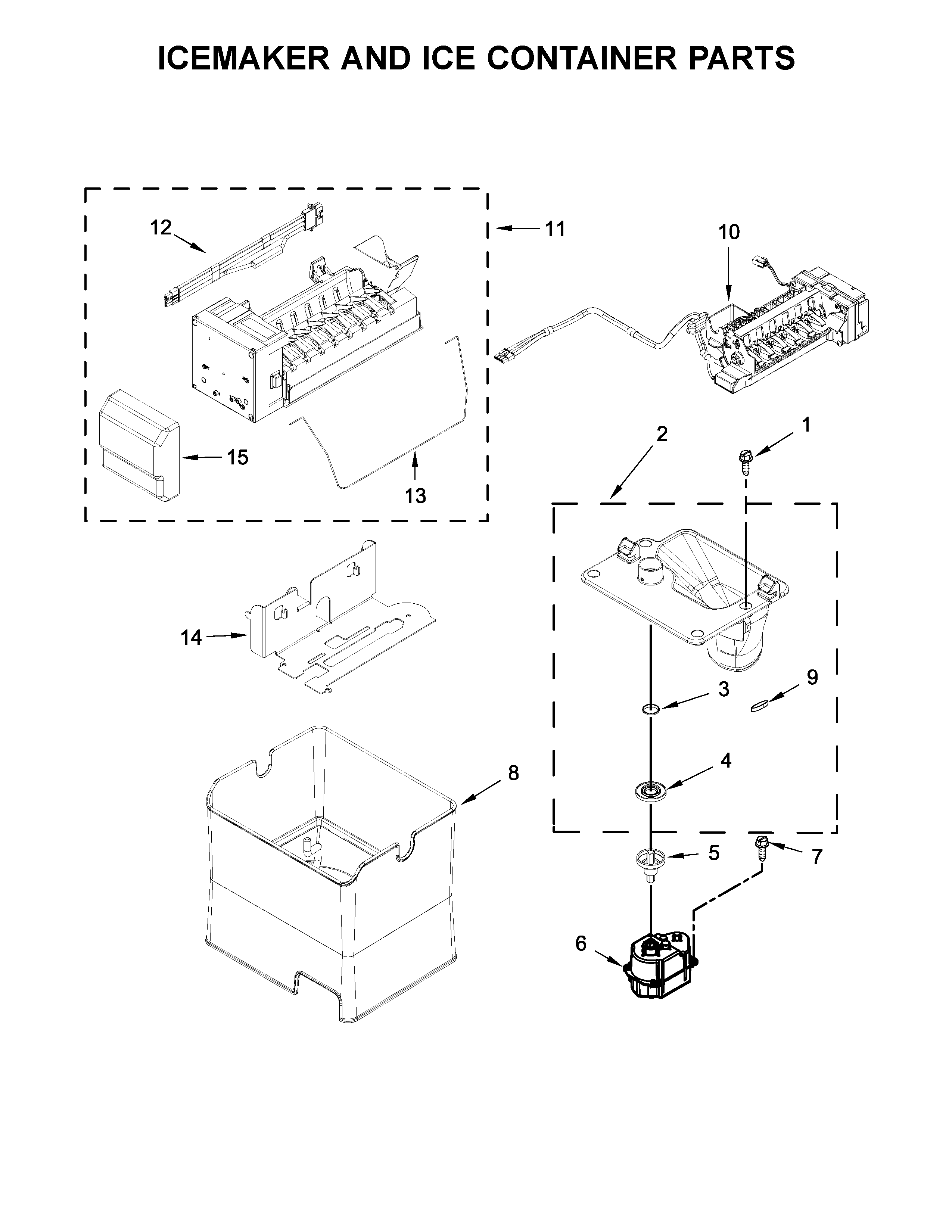

| Ice maker not producing | Ice maker assembly | Refrigerator ice maker W11577195 |
| Water dispenser or ice fill issues | Water supply control | Refrigerator water inlet valve assembly WPW10341329 |
Why it matters
Cooling problems are the “biggest” issue because they can affect both compartments at once and can also trigger secondary complaints like frost, noise, and ice maker trouble. Catching airflow, door seal, and water supply issues early prevents bigger performance drops.
Helpful DIY reference
If your display shows a fault or you suspect an electronic issue, use our Whirlpool refrigerator error codes guide to match the code to the most likely cause.
Last updated: February 2026
