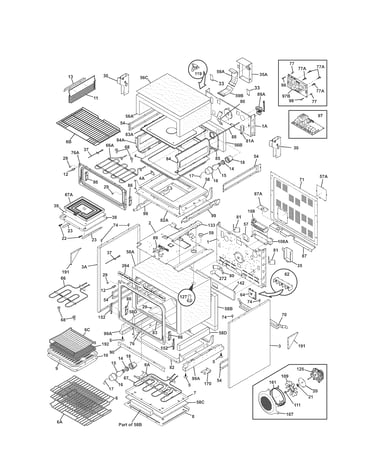

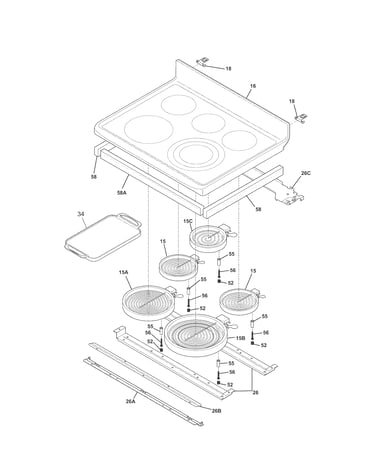

Kenmore Elite 79097503002 electric range Parts

To reset your Kenmore Elite electric range model 79097503002, turn the range off by cutting power at the breaker for a few minutes, then restore power. This clears many control glitches and is the safest “reset” method for the oven control.

Quick reset steps (power cycle)

• Turn OFF the range circuit breaker (or unplug the range if it uses a cord and you can access it safely).
• Wait 3 to 5 minutes.
• Turn the breaker ON (or plug the range back in).
• Set the clock if it flashes or shows a power interruption.
• Test Bake at 350°F to confirm normal operation.

If the display is still acting up

Some symptoms point to a condition that a reset will not fix.

• If the oven will not heat or heats erratically, check the oven temperature sensor circuit and connections; a failed sensor can cause incorrect temperatures.
• If the oven overheats or shuts down, a safety device such as a high-limit thermostat can be involved.
• If the control panel is blank or unresponsive after power is restored, the control board or power supply wiring may need inspection.

Helpful parts commonly involved on this model:

• Range oven temperature sensor 5304504897
• Range high-limit thermostat 318004902

What to check before and after resetting

Check	What you are looking for	Why it matters
Breaker	Fully OFF then ON (not half-tripped)	A half-tripped breaker can cause low or missing power
Time/clock	Resets or flashes	Confirms the control saw the power cycle
Bake test	Reaches set temp and cycles normally	Verifies the heating system and control response
Error codes	Any code that returns immediately	Helps narrow the failure to a sensor, latch, or control

Why it matters

A breaker reset clears temporary software lockups and power-glitch states in the electronic oven control. If the same problem returns quickly, the issue is usually a failing component (sensor, thermostat, wiring, or control) rather than a one-time glitch.

For model-specific operating details (including any special key sequences), use the 79097503002 owner's manual.

Last updated: January 2026

For Kenmore Elite range model 79097503002, the most common problems we see involve uneven oven temperatures, surface elements not heating correctly, the oven not heating or overheating, and the oven light or cooling fan issues. Many of these symptoms trace back to a sensor, heating element, relay/control, or a wiring connection shown in the 79097503002 owner's manual.

Common symptoms and likely causes

• Oven temperature is off (too hot, too cool, long preheat): failing oven temperature sensor or control issue; see range oven temperature sensor 5304504897.
• Bake not heating but broil works (or vice versa): failed heating element; see oven element 318601604.
• Surface element not heating or stuck on high: surface element, infinite switch, or control/relay problem; on some versions this involves the frigidaire range surface unit power relay board 316442119.
• Oven shuts down or trips during use: overheating protection can open; check the range high-limit thermostat 318004902 and airflow.
• Oven light not working: burned-out bulb, bad socket, or lens issue; start with appliance light bulb, 40-watt 316538904.

Quick checks we recommend first

1. Confirm power: ranges typically need a solid 240V supply; a tripped breaker can leave you with partial heat.
2. Try a simple reset: turn the breaker off for 1 minute, then back on.
3. Inspect the terminal block for heat damage or loose connections; see terminal block 5304409888.
4. Run a temperature check: compare set temp vs. actual using an oven thermometer after preheat.
5. Listen for the cooling fan after baking; if it is not running when it should, check range oven cooling fan assembly 318073028.

Symptom-to-part guide

Symptom	Most common part to check	What it affects
Oven temp inaccurate	Range oven temperature sensor	Temperature regulation
No bake heat	Oven element	Baking performance
Burner not heating	Radiant element or relay/control	Cooktop heating
Intermittent shutdown	High-limit thermostat	Overheat protection

Why it matters

Accurate temperature control and reliable heating protect cooking results and help prevent overheating damage to wiring, controls, and insulation. Catching a weak sensor, element, or connection early often prevents bigger electrical failures.

Last updated: March 2026

On Kenmore Elite electric range model 79097503002, the F3 error code (sometimes shown as F30 or F31) points to an oven temperature sensing problem, most often a failed temperature sensor probe or a wiring issue between the sensor and the control. Use the steps in the 79097503002 owner's manual to confirm the exact meaning for your display.

What F3 usually means on this range

In most cases, F3 indicates the control is reading an out-of-range temperature signal.

Common causes include:

• A failed oven temperature sensor (sensor resistance out of spec)
• Loose, corroded, or burned wiring/connectors at the sensor or control
• A damaged harness (pinched or heat-damaged insulation)
• A problem on the oven relay control board (less common)

Quick checks you can do safely

Before testing parts, turn off power at the breaker (ranges use 240 volts).

• Power the range off for 1 minute, then restore power and see if F3 returns
• Inspect the sensor connector inside the oven cavity (look for discoloration or looseness)
• Check the harness routing for melted spots near the back of the oven
• If you have a multimeter, test the sensor circuit for continuity and stable readings

If you suspect the sensor itself, the model-compatible part is the range oven temperature sensor 5304504897.

What to test (typical values)

Most electric range oven temperature sensors read about 1,080 ohms at room temperature (around 70°F). A reading that is open (infinite), shorted (near 0), or wildly off often triggers F3/F30/F31.

Test result	What it suggests	Next step
Open circuit	Broken sensor or wire	Inspect wiring; replace sensor if wiring is good
Near 0 ohms	Shorted sensor or wire	Inspect harness; replace sensor if wiring is good
Far from ~1,080 ohms	Sensor out of range	Replace sensor
Normal ohms but F3 persists	Intermittent wiring or control issue	Recheck connectors; consider control diagnosis

Why it matters

When the control cannot trust the temperature signal, it may stop heating or heat unpredictably. Fixing an F3 error protects baking performance and helps prevent overheating conditions.

Last updated: January 2026
