Flotec FP4205 deep well pump Parts

Most water pumps share the same core components that move water, seal the rotating shaft, and connect the pump to the plumbing. On the Flotec FP4205 deep well pump, you will commonly see parts like the impeller, pump body, shaft seal, and pressure switch listed in the owner's manual.

The 7 major parts (and what they do)

• Impeller: Spins to move water through the pump.
• Shaft: Transfers motor rotation to the impeller.
• Casing (pump body): The housing that contains water flow and supports internal parts.
• Seal (shaft seal): Prevents water from leaking along the rotating shaft.
• Bearings: Support the shaft and keep rotation smooth.
• Coupling (or direct motor connection): Connects the motor to the pump shaft (some pumps are direct-drive).
• Suction and discharge connections: The inlet (suction) and outlet (discharge) ports/nozzles that tie into the piping.

How this maps to the Flotec FP4205 parts list

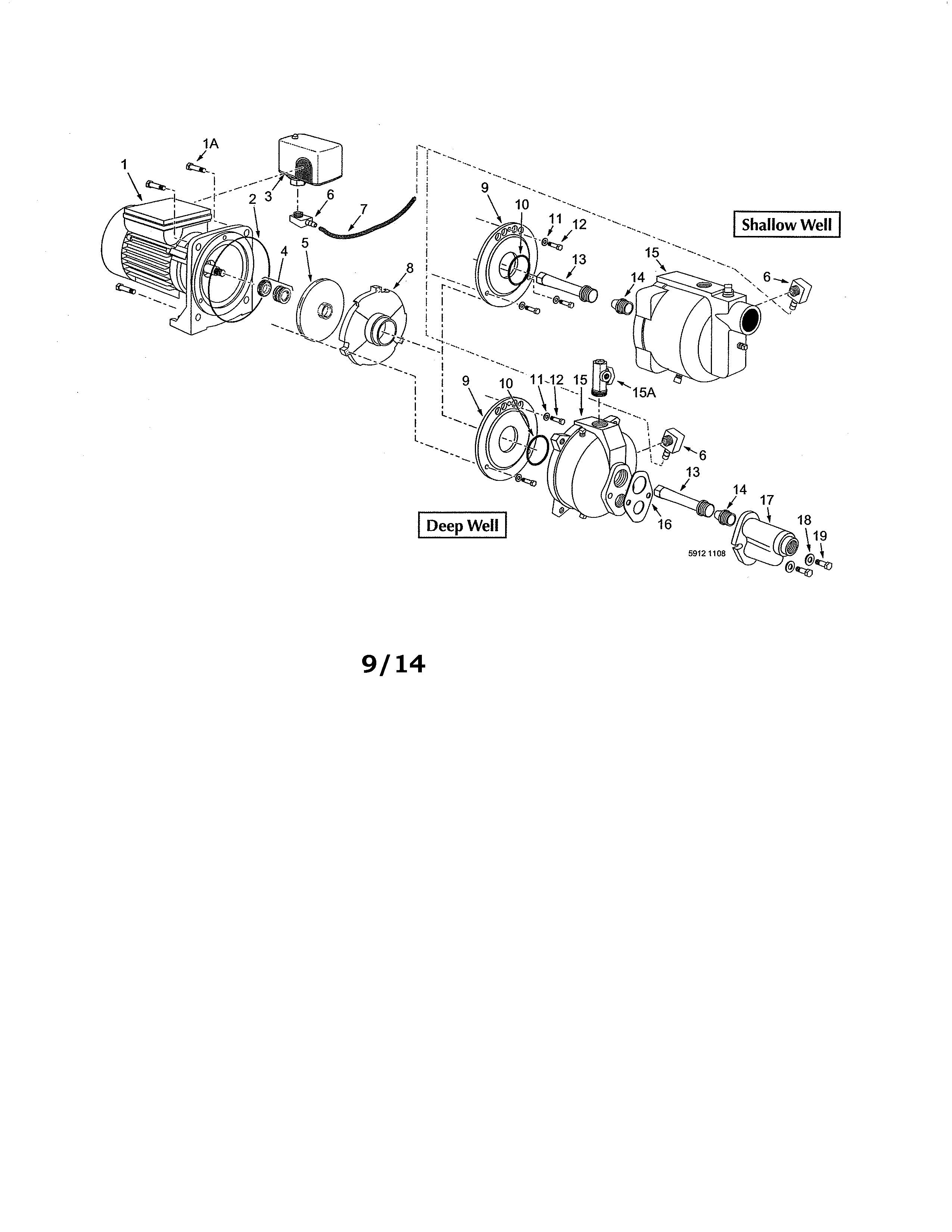

The FP4205 parts breakdown in the manual includes several of these “major parts” by name, plus jet-pump specific flow parts:

Major pump function	Common name	Example FP4205 part names you may see
Moves water	Impeller	Impeller, diffuser, diffuser plate
Seals rotating shaft	Seal	Shaft seal, seal plate O-ring
Controls pressure	Control	Pressure switch, pressure regulator
Creates jet action (deep well)	Jet components	Venturi, nozzle, ejector body, ejector gasket

Why it matters

Knowing the major parts helps you troubleshoot symptoms faster. For example, low pressure often points to a clogged nozzle/venturi/impeller, while water leaking at the motor end often points to a worn shaft seal.

Quick troubleshooting clues by part

• Impeller/diffuser: Low flow, noisy operation, poor pressure.
• Nozzle/venturi/ejector: Weak draw from the well, hard priming, pressure that will not build.
• Shaft seal: Water leaking near the motor or seal plate.
• Pressure switch/regulator: Pump short-cycles, will not shut off, or will not start.
• Suction connection/foot valve: Loses prime, air in lines, slow or no water delivery.

Last updated: February 2026

For the Flotec FP4205 deep well pump, the most common problem is an air leak in the well assembly or suction piping. Even a tiny pinhole leak can keep the pump from priming or delivering water, and it often shows up as air spurts at faucets, loss of prime, or “motor runs but no water.” See the owner's manual for the airtight piping requirements and troubleshooting steps.

Most common symptoms you will notice

• Pump runs but no water is delivered
• Pump won’t pick up prime after installation
• Pump loses prime after it previously worked
• Air spurts from faucets, then water flow becomes inconsistent
• Frequent cycling (short on, short off) when demand is low

Quick checks we recommend first (FP4205)

1. Confirm the pump is fully primed: remove the priming plug and verify water is present; re-prime if needed.
2. Check every suction-side joint for air leaks: use a soapy-water test on threaded joints and fittings.
3. Verify all well assembly connections are airtight: use thread compound on threaded joints where appropriate.
4. Inspect the foot valve or check valve: a leaking or stuck valve can prevent prime and cause no-water symptoms.
5. Look for restrictions: plugged strainer, plugged ejector/impeller, or frozen piping can mimic an air-leak problem.

Common problems vs. what they look like

Problem	What you see	What to do next
Air leak on suction side (most common)	Air spurts, loss of prime, no water	Soap-test joints; reseal fittings; tighten clamps
Improper priming	Motor runs, no water right after install	Re-prime until water overflows from pump opening
Leaking foot valve/check valve	Prime won’t hold	Clean/replace valve; confirm it is not stuck shut
Plugged strainer/ejector/impeller	Low or no flow	Inspect and clear blockage

Why it matters

A deep well pump like the Flotec FP4205 relies on a sealed suction path to create the vacuum needed to move water. If air gets in anywhere on the suction side, the pump cannot build the pressure and flow it needs, even if the motor is running normally.

Last updated: February 2026

A jet pump uses an impeller and diffuser to create flow and a jet (ejector) assembly to create suction and lift water. On the Flotec FP4205 convertible jet pump, the jet components commonly include a nozzle, venturi tube, gasket, and mounting bolts (see the FP4205 owner's manual).

Main jet pump components (what they do)

• Motor: drives the pump.
• Impeller: spins to move water and create velocity.
• Diffuser: converts velocity into pressure.
• Jet (ejector) assembly: creates suction using a nozzle and venturi.
• Nozzle: accelerates water into the venturi to create a low-pressure area.
• Venturi tube: increases suction and helps lift water.
• Pump casing and ports: houses the hydraulics and provides suction and discharge connections.

FP4205-SPECIFIC jet (ejector) parts you will see during setup

The FP4205 instructions call out these ejector-kit items during priming and setup:

• Nozzle (the manual references swapping nozzle sizes in the kit)
• Venturi tube (shorter tube for shallow-well setup; longer tube for deep-well setup)
• Gasket (openings must line up with ejector openings)
• Bolts (used to fasten the ejector to the front of the pump)

Shallow-well vs. deep-well: what changes

Setup	Jet location	Typical components added/used
Shallow well	At the pump (front-mounted ejector)	Nozzle, shorter venturi tube, gasket, bolts
Deep well	Down in the well (deep-well ejector)	Foot valve, ejector, longer venturi tube, pressure pipe and fittings

Why it matters

Knowing which parts make up the jet (nozzle, venturi, gasket, ejector) helps you diagnose common symptoms like loss of prime, low pressure, or air leaks. For jet pumps, airtight suction-side joints are critical; even a small air leak can prevent proper pumping.

Last updated: February 2026

For a Flotec FP4205 deep well (convertible jet) pump, a “water pump replacement” usually means replacing the pump and renewing the sealing and piping connections so the system can prime and hold pressure. We follow the materials list and airtight-joint guidance in the FP4205 owner's manual.

Parts and materials you typically replace with the pump

These are the most common items needed when swapping a jet pump like the FP4205 (sizes shown are typical for this setup):

• Pump (complete assembly) matched to model FP4205
• Thread sealant for threaded joints (PTFE tape or PTFE-based pipe joint compound approved for PVC)
• PVC cement (for solvent-weld PVC joints)
• Foot valve (commonly 1-1/4 inch) for the suction line
• Male PVC adapters (commonly 1-1/4 inch on suction side; 1 inch on discharge side)
• Discharge tee and a pressure gauge

If your FP4205 is set up for a deep well

Convertible pumps can use an ejector setup for certain installations. If your system uses an ejector, plan on renewing the ejector kit components when they are worn or leaking.

• Ejector kit (ejector, venturi tube, gasket, bolts, plug, tubing, fittings)

Quick checklist by connection point

Connection area	What you usually renew	Why it’s important
Suction line (well to pump)	Foot valve, adapters, pipe/couplings	Prevents drain-back and air leaks that stop priming
Pump case ports	Drain plug and priming/plug seals (as applicable)	Helps prevent leaks after servicing and during winterizing
Discharge (pump to tank/house)	Discharge tee, pressure gauge, adapters	Lets you monitor pressure and seal the discharge plumbing

Why it matters

Jet pumps are extremely sensitive to air leaks. The manual notes that all joints and connections must be airtight; even a small leak can prevent proper operation and priming. Replacing the pump without renewing leaking fittings, a bad foot valve, or ejector gaskets often leads to “won’t prime” or short-cycling problems.

Before you start (safe, practical steps)

• Disconnect electrical power before servicing.
• Drain the pump by removing the drain plug at the bottom of the pump case.
• Plan to re-prime after installation (fill the pump and piping with water until it overflows at the priming opening, then reseal).
• Use thread compound on threaded connections unless instructions specify otherwise.

Last updated: February 2026
