GE
Electric Cooktop

Model # JP340BV1BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP340BV1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |

Cooktop Element Control Switch, 1,900-watts WB23M09
#19B

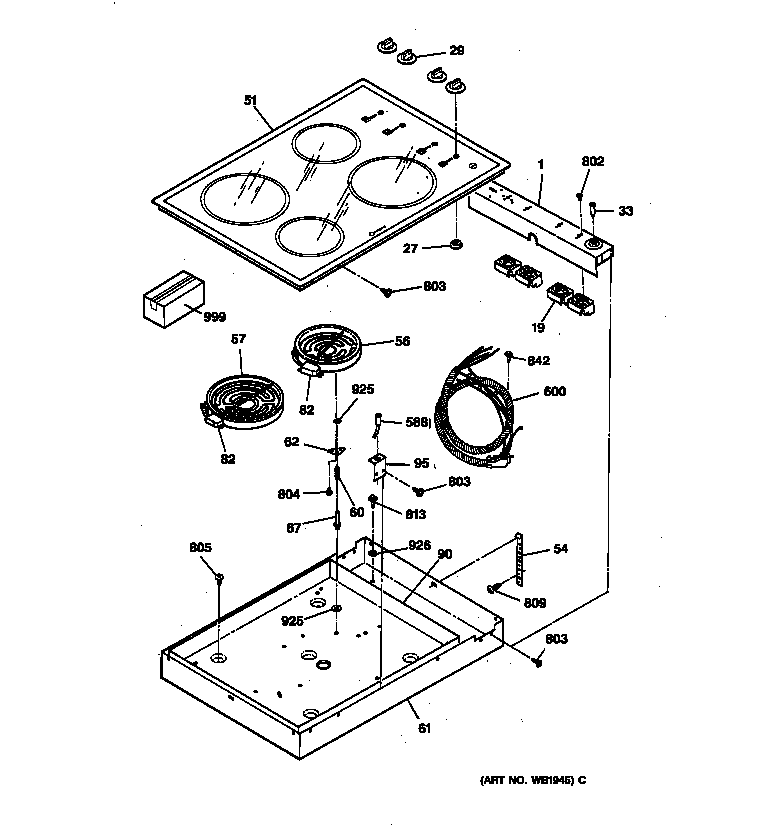

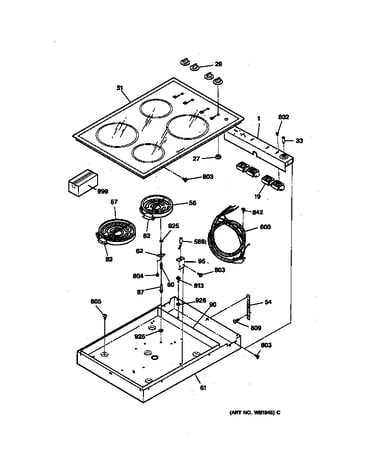

Cooktop diagram

Cooktop element control switch, 1,900-watts

Part #WB23M09

$26.39
16% OFF Phone Price : $31.39
In Stock
Scw 8abx. WB1X1425
#804

Cooktop diagram

Scw 8abx.

Part #WB1X1425

This item is not returnable
$6.21
14% OFF Phone Price : $7.21
In Stock
Range Screw WB1X1137
#809

Cooktop diagram

Range screw

Part #WB1X1137

$7.88
11% OFF Phone Price : $8.88
In Stock
Range Surface Element Support WB2K5318
#62

Cooktop diagram

Range surface element support

Part #WB2K5318

In Stock
Screw WB1K5123
#802

Cooktop diagram

Screw

Part #WB1K5123

In Stock
Cooktop Burner Box Support WB2K5328
#54

Cooktop diagram

Cooktop burner box support

Part #WB2K5328

$6.51
13% OFF Phone Price : $7.51
In Stock
Screw WB1X1297
#842

Cooktop diagram

Screw

Part #WB1X1297

This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Range Screw WB1X1261
#813

Cooktop diagram

Range screw

Part #WB1X1261

$7.88
11% OFF Phone Price : $8.88
In Stock
Washer WB1K5117
#925

Cooktop diagram

Washer

Part #WB1K5117

In Stock
Range Screw WB1X1149
#803

Cooktop diagram

Range screw

Part #WB1X1149

$6.51
13% OFF Phone Price : $7.51
In Stock
