Maytag
Electric Range

Model #MER5750AAB Maytag electric range

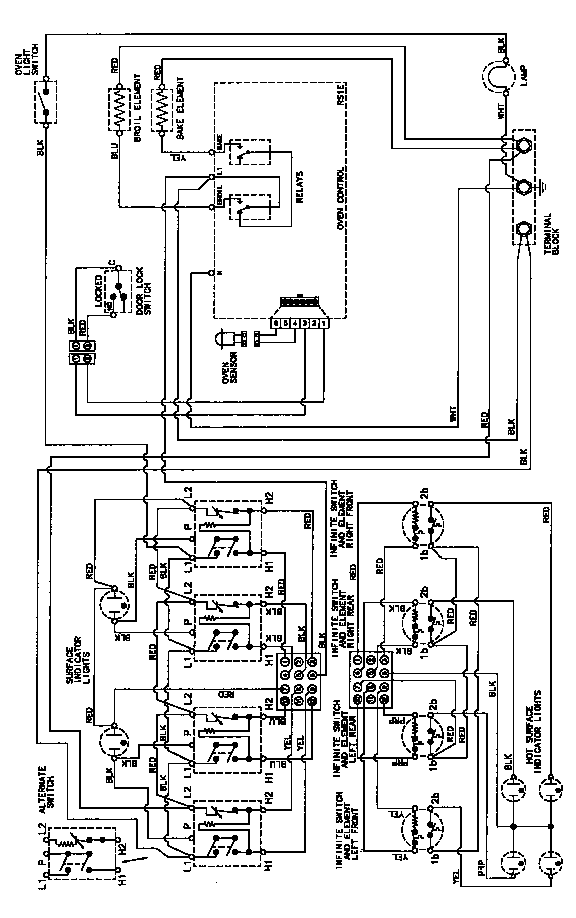

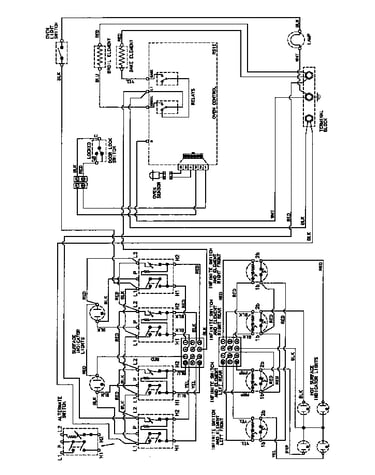

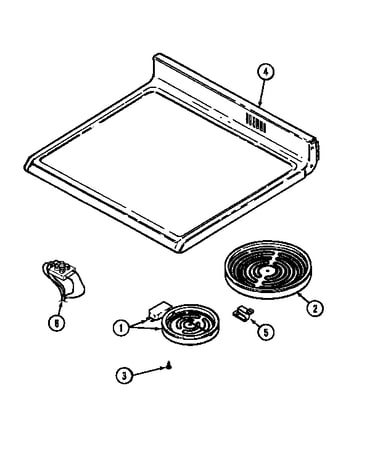

Here are the diagrams and repair parts for Maytag MER5750AAB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 169 parts

    Range Control Panel End Cap, Left

    #9C

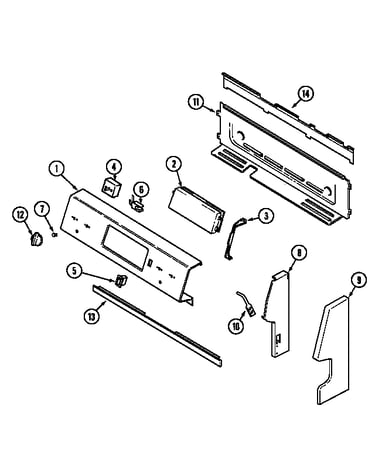

    Control panel Diagram

    $27.50

    In Stock

    Range Control Panel End Cap, Right

    #9B

    Control panel Diagram

    $20.26 |
    28% OFF
    MSRP: $28.00

    In Stock

    Range Screw

    #3A

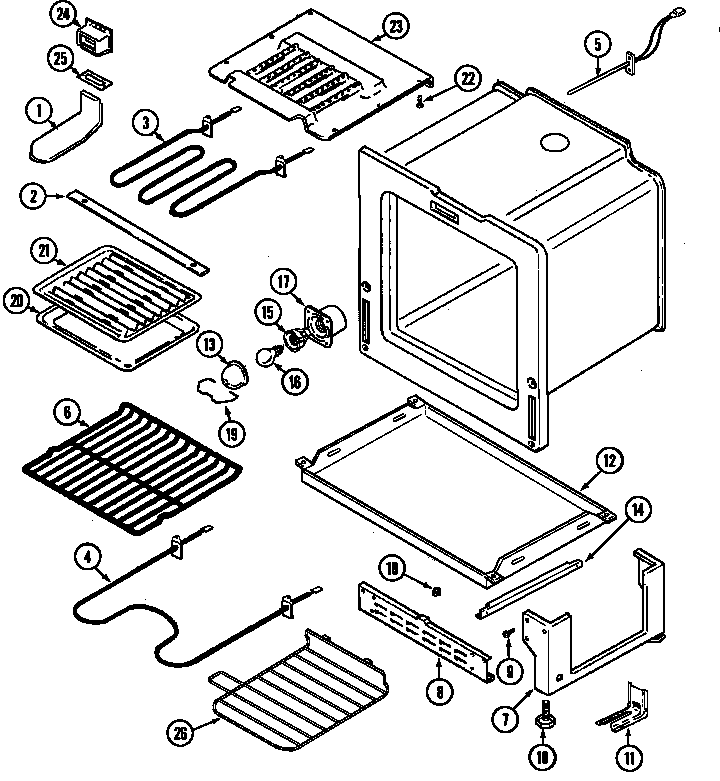

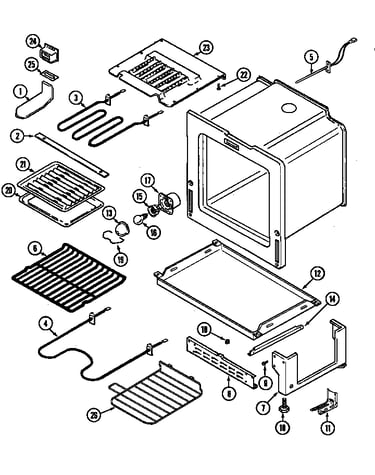

    Oven/base Diagram

    Range screw

    Part #7101P345-60
    $12.49

    In Stock

    Range Oven Door Inner Glass

    #7

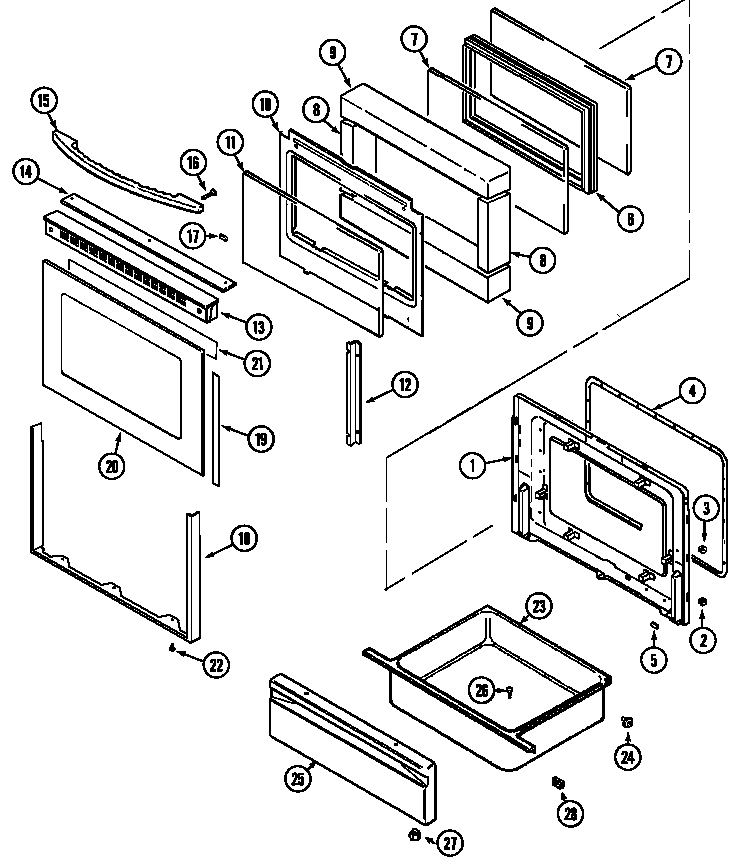

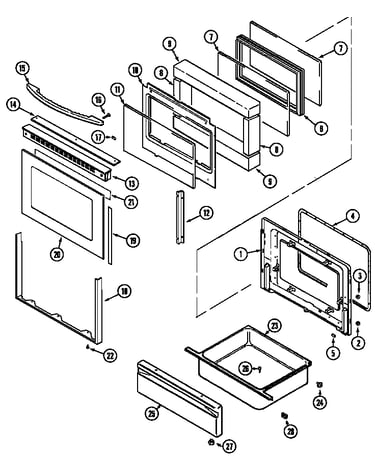

    Door/drawer Diagram

    $55.99 |
    37% OFF
    MSRP: $89.00

    Back Order

    Stand Mixer Screw, #10-24 x 1/4-in

    #17

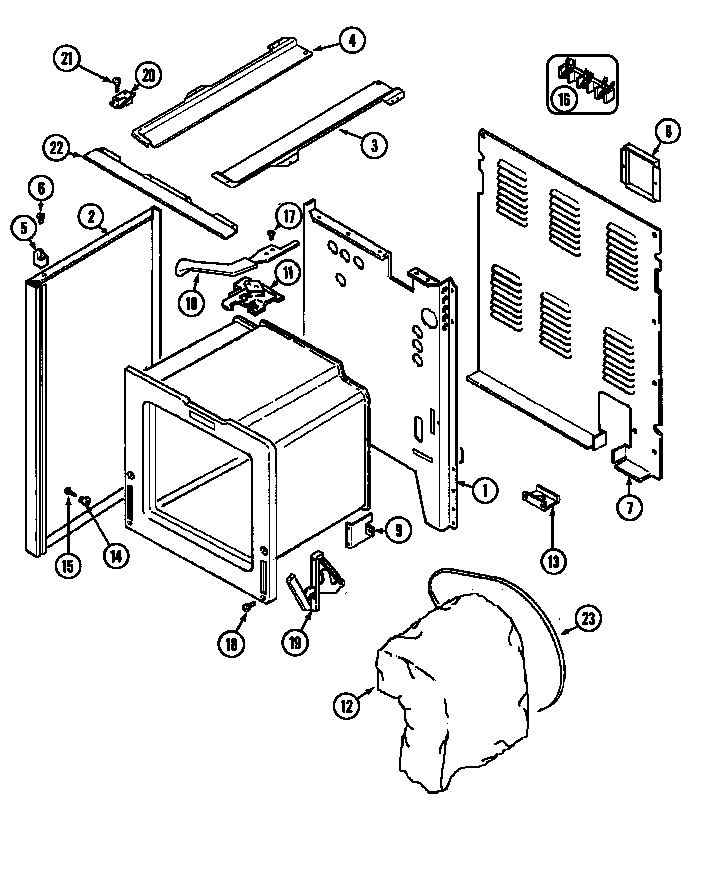

    Body Diagram

    Stand mixer screw, #10-24 x 1/4-in

    Part #WP4159193
    ?
    Manufacturer substitution
    This part replaces 7101P112-60. Substitute parts can look different from the original.
    This part replaces 7101P112-60
    This item is not returnable
    $3.39 |
    11% OFF
    MSRP: $3.79

    In Stock

    Range Oven Temperature Sensor

    #5

    Oven/base Diagram

    Range oven temperature sensor

    Part #12001656
    ?
    Manufacturer substitution
    This part replaces 74003390. Substitute parts can look different from the original.
    This part replaces 74003390
    $46.99

    Back Order

    Nut

    #18A

    Oven/base Diagram

    Nut

    Part #7103P082-60

    The manufacturer no longer makes this part, and there's no substitute part

    Range Oven Light Lens

    #13

    Oven/base Diagram

    Range oven light lens

    Part #WP9781049
    ?
    Manufacturer substitution
    This part replaces 7724P047-60. Substitute parts can look different from the original.
    This part replaces 7724P047-60
    $28.99 |
    31% OFF
    MSRP: $42.00

    In Stock

    Range Screw

    #16

    Door/drawer Diagram

    Range screw

    Part #WP74002059
    ?
    Manufacturer substitution
    This part replaces 74002059. Substitute parts can look different from the original.
    This part replaces 74002059
    This item is not returnable
    $3.29

    In Stock

    Range Surface Element Control Switch

    #4

    Control panel Diagram

    Range surface element control switch

    Part #WP7403P238-60
    ?
    Manufacturer substitution
    This part replaces 7403P238-60. Substitute parts can look different from the original.
    This part replaces 7403P238-60
    $27.99 |
    44% OFF
    MSRP: $49.98

    In Stock
