Whirlpool WFG535S0JV1 gas range

Whirlpool WFG535S0JV1 gas range Parts

Here are the diagrams and repair parts for Whirlpool WFG535S0JV1 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

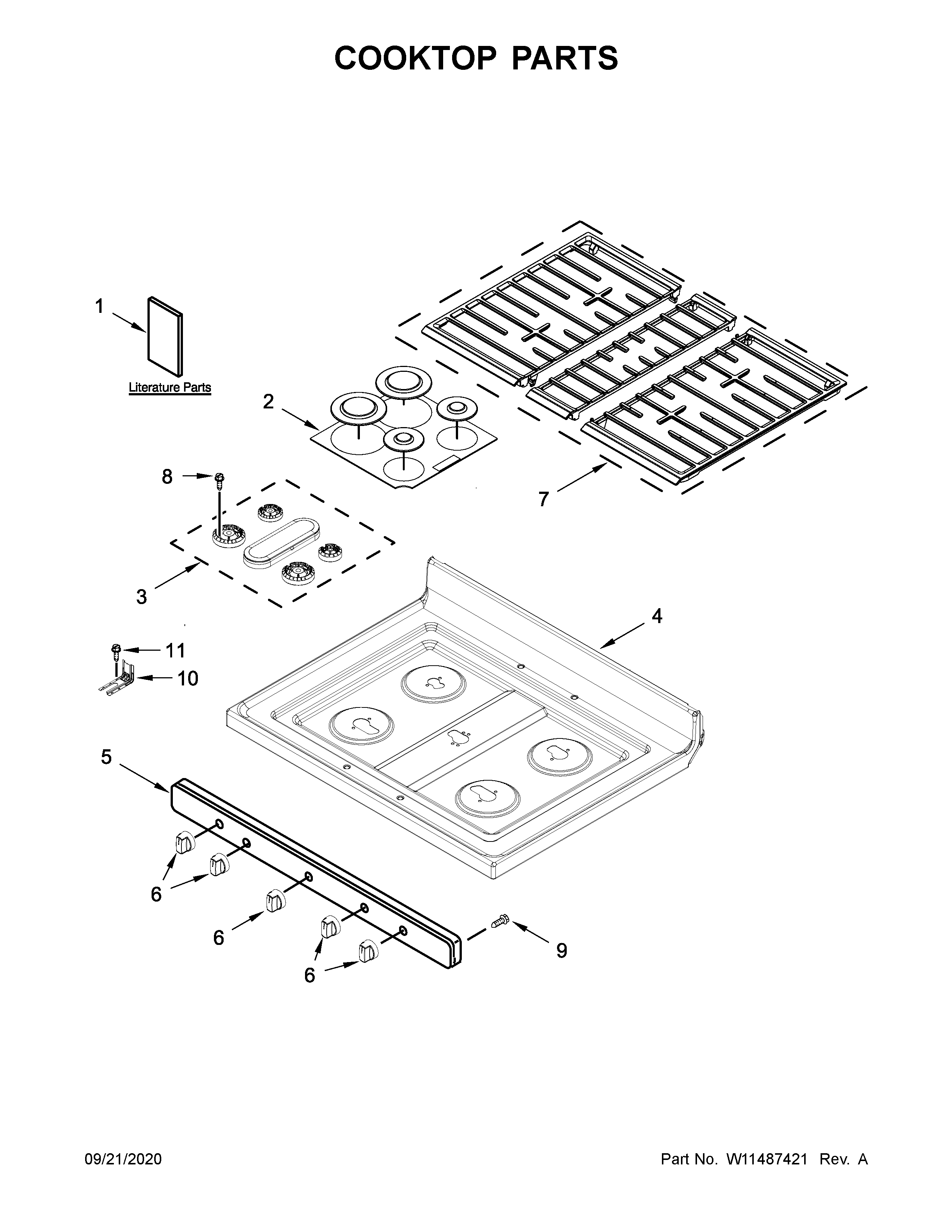

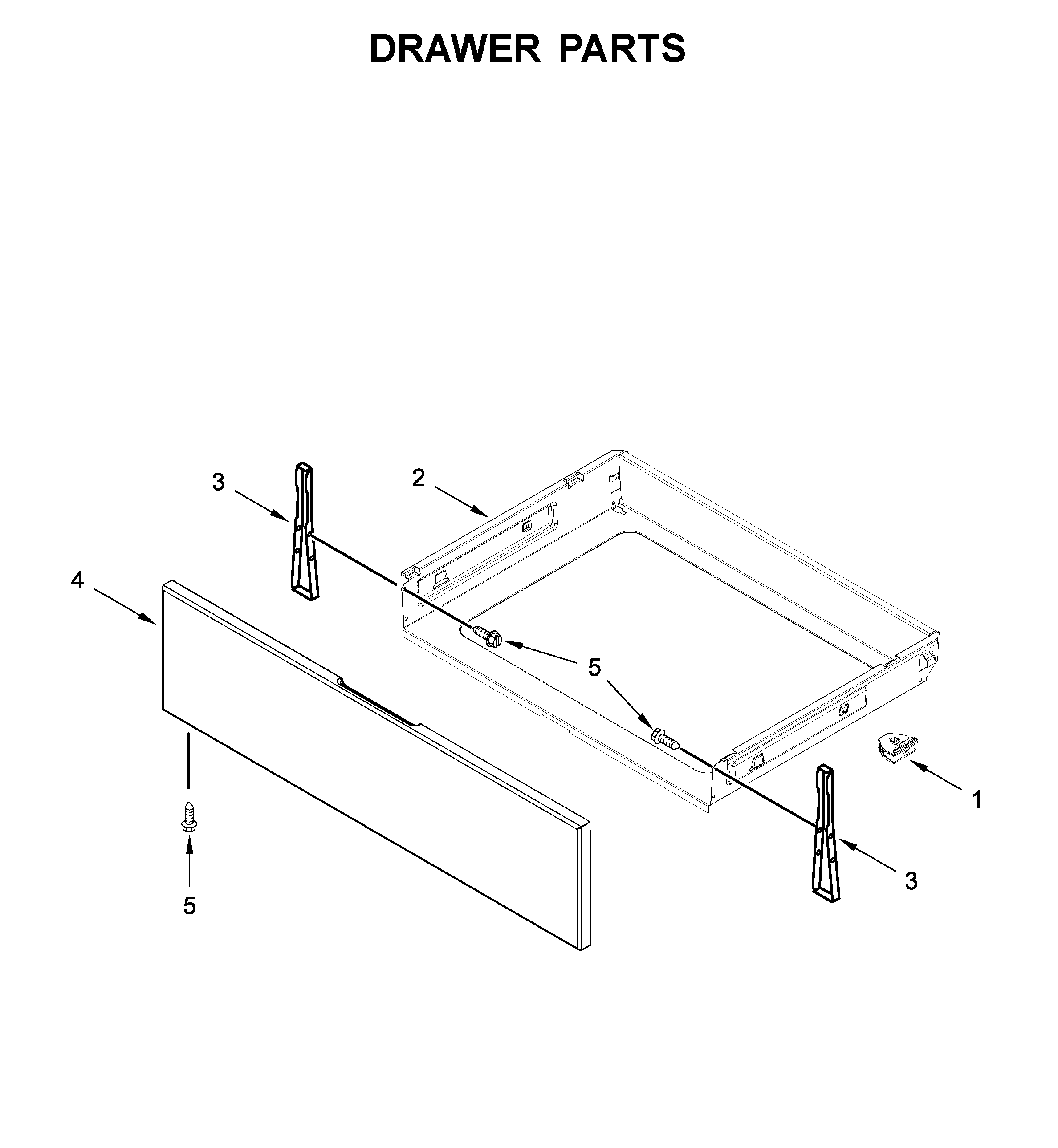

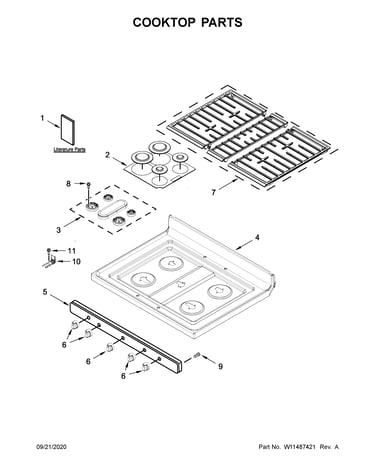

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WFG535S0JV1 Ranges

  • Whirlpool Range Bake Igniter for Whirlpool WFG535S0JV1 - Part WP9758079

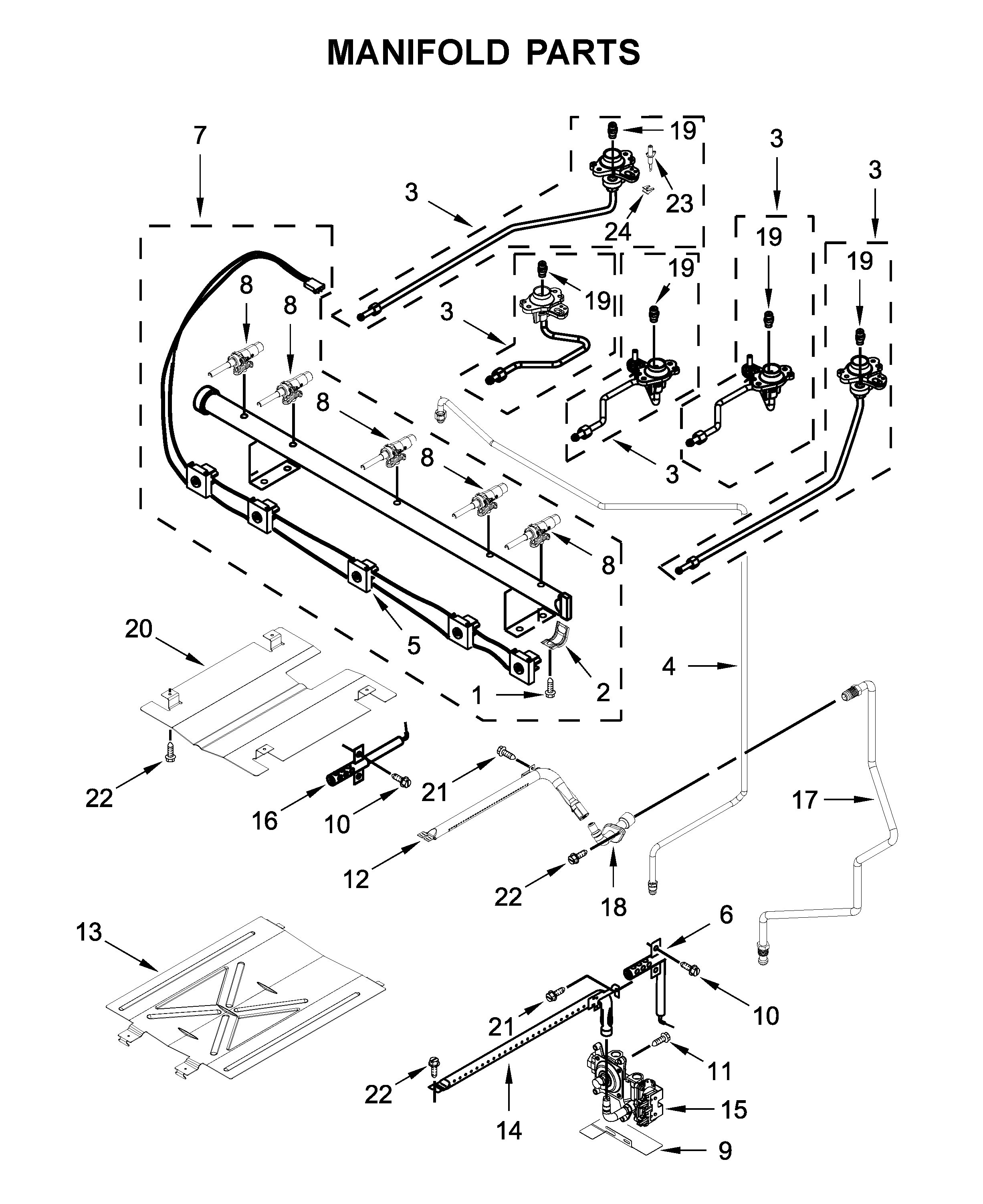

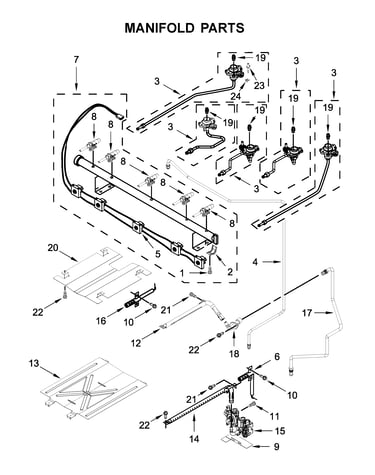

    Manifold parts diagram

    Range Oven Igniter

    Part #9758079

    Replaced by #WP9758079

    Info Icon
    Manufacturer substitution
    This part replaces 9758079. Substitute parts can look different from the original.
    In Stock
    $32.60
    16% OFF Phone Price : $38.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Hinge for Whirlpool WFG535S0JV1 - Part WPW10299227

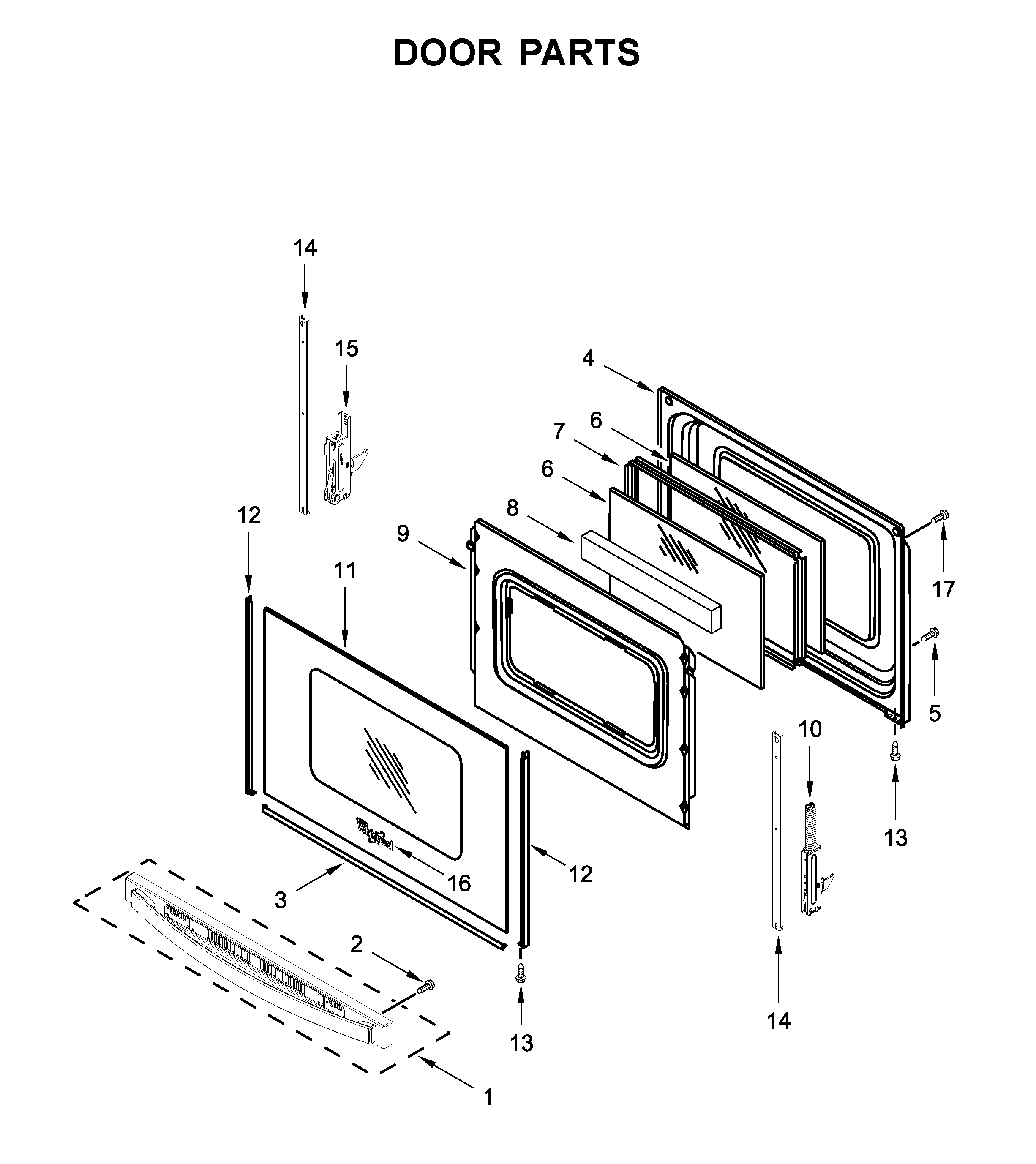

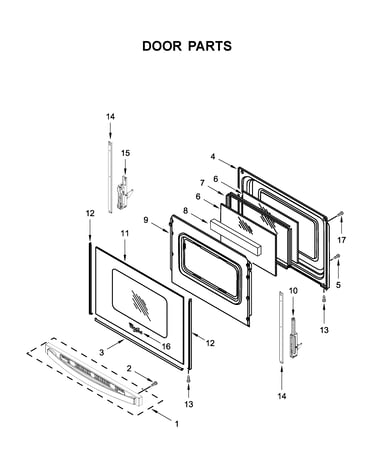

    Door parts diagram

    Range Oven Door Hinge

    Part #W10299227

    Replaced by #WPW10299227

    Info Icon
    Manufacturer substitution
    This part replaces W10299227. Substitute parts can look different from the original.
    In Stock
    $47.11
    11% OFF Phone Price : $53.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Burner Spark Module for Whirlpool WFG535S0JV1 - Part W11162730

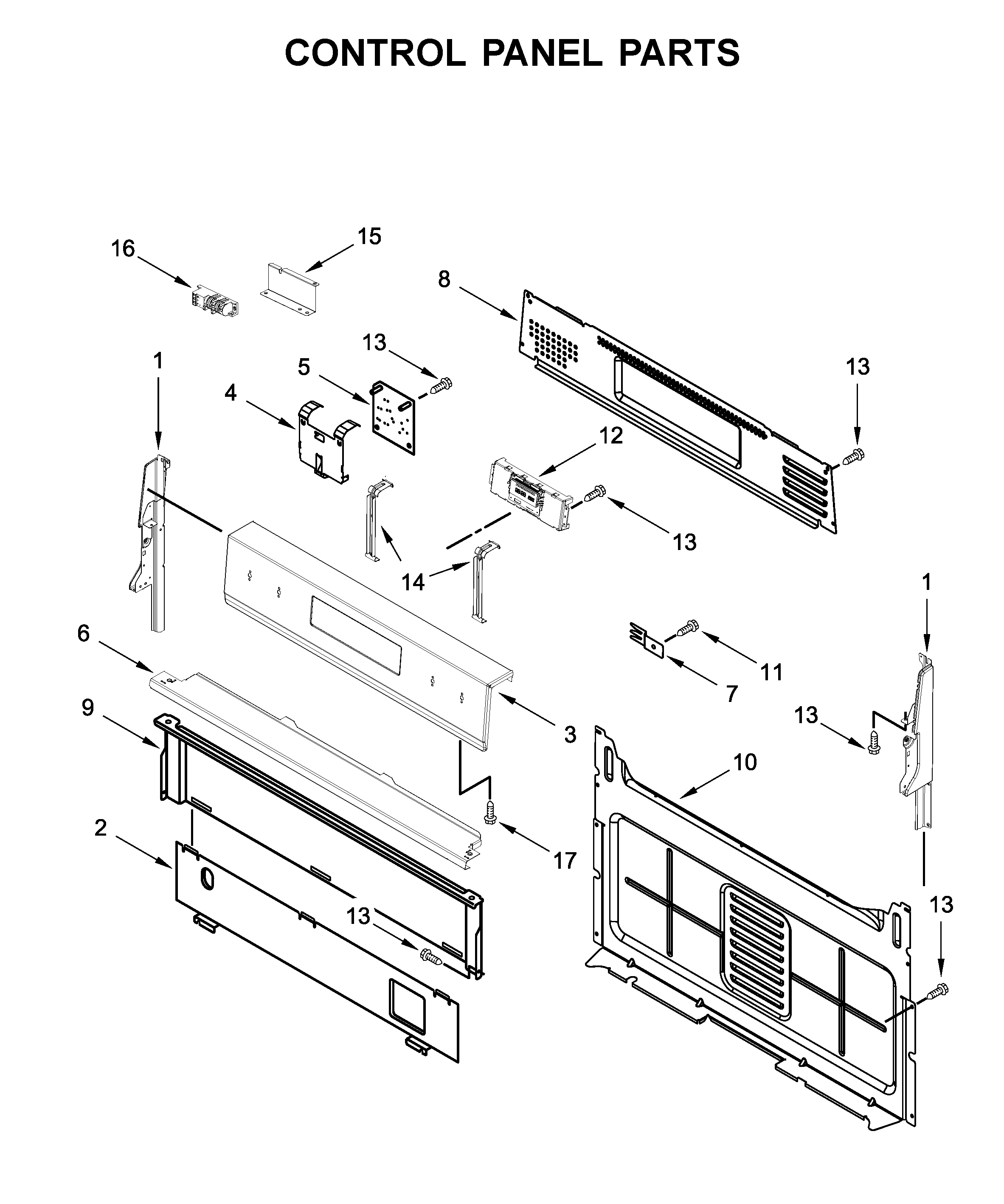

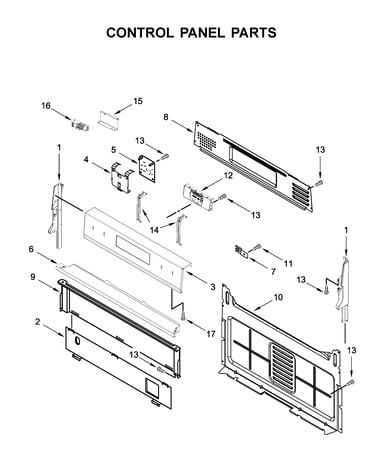

    Control panel parts diagram

    Module-spark

    Part #W10920631

    Replaced by #W11162730

    Info Icon
    Manufacturer substitution
    This part replaces W10920631. Substitute parts can look different from the original.
    In Stock
    $146.81
    8% OFF Phone Price : $158.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Range Oven Control Board for Whirlpool WFG535S0JV1 - Part W11258611

    Control panel parts diagram

    Electronic Control (black)

    Part #W11204531

    Replaced by #W11258611

    Info Icon
    Manufacturer substitution
    This part replaces W11204531. Substitute parts can look different from the original.
    In Stock
    $274.96
    $12.00 OFF Phone Price : $286.96Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Gas Valve And Regulator Assembly for Whirlpool WFG535S0JV1 - Part W11449506

    Manifold parts diagram

    Valve-gas,ae

    Part #W11370883

    Replaced by #W11449506

    Info Icon
    Manufacturer substitution
    This part replaces W11370883. Substitute parts can look different from the original.
    In Stock
    $152.41
    7% OFF Phone Price : $164.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Burner for Whirlpool WFG535S0JV1 - Part WP9758078

    Manifold parts diagram

    Range Oven Burner

    Part #9758078

    Replaced by #WP9758078

    Info Icon
    Manufacturer substitution
    This part replaces 9758078. Substitute parts can look different from the original.
    In Stock
    $120.44
    9% OFF Phone Price : $132.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Nameplate for Whirlpool WFG535S0JV1 - Part W11178521

    Door parts diagram

    Badge, Whirl

    Part #W10884775

    Replaced by #W11178521

    Info Icon
    Manufacturer substitution
    This part replaces W10884775. Substitute parts can look different from the original.
    In Stock
    $41.21
    13% OFF Phone Price : $47.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Door Outer Panel (black) for Whirlpool WFG535S0JV1 - Part W11702167

    Door parts diagram

    Door Glass

    Part #W10884159

    Replaced by #W11702167

    Info Icon
    Manufacturer substitution
    This part replaces W10884159. Substitute parts can look different from the original.
    In Stock
    $159.39
    7% OFF Phone Price : $171.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Whirlpool WFG535S0JV1 - Part WPW10031790

    Door parts diagram

    Range Screw

    Part #W10031790

    Replaced by #WPW10031790

    Info Icon
    Manufacturer substitution
    This part replaces W10031790. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Light Bulb for Whirlpool WFG535S0JV1 - Part WPW10571723

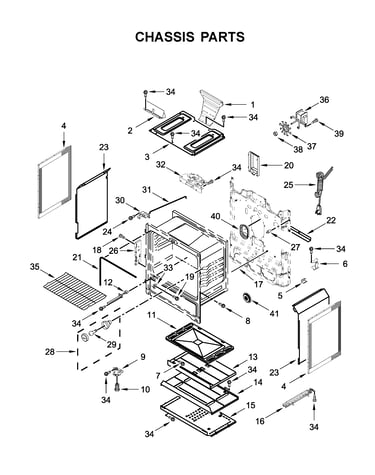

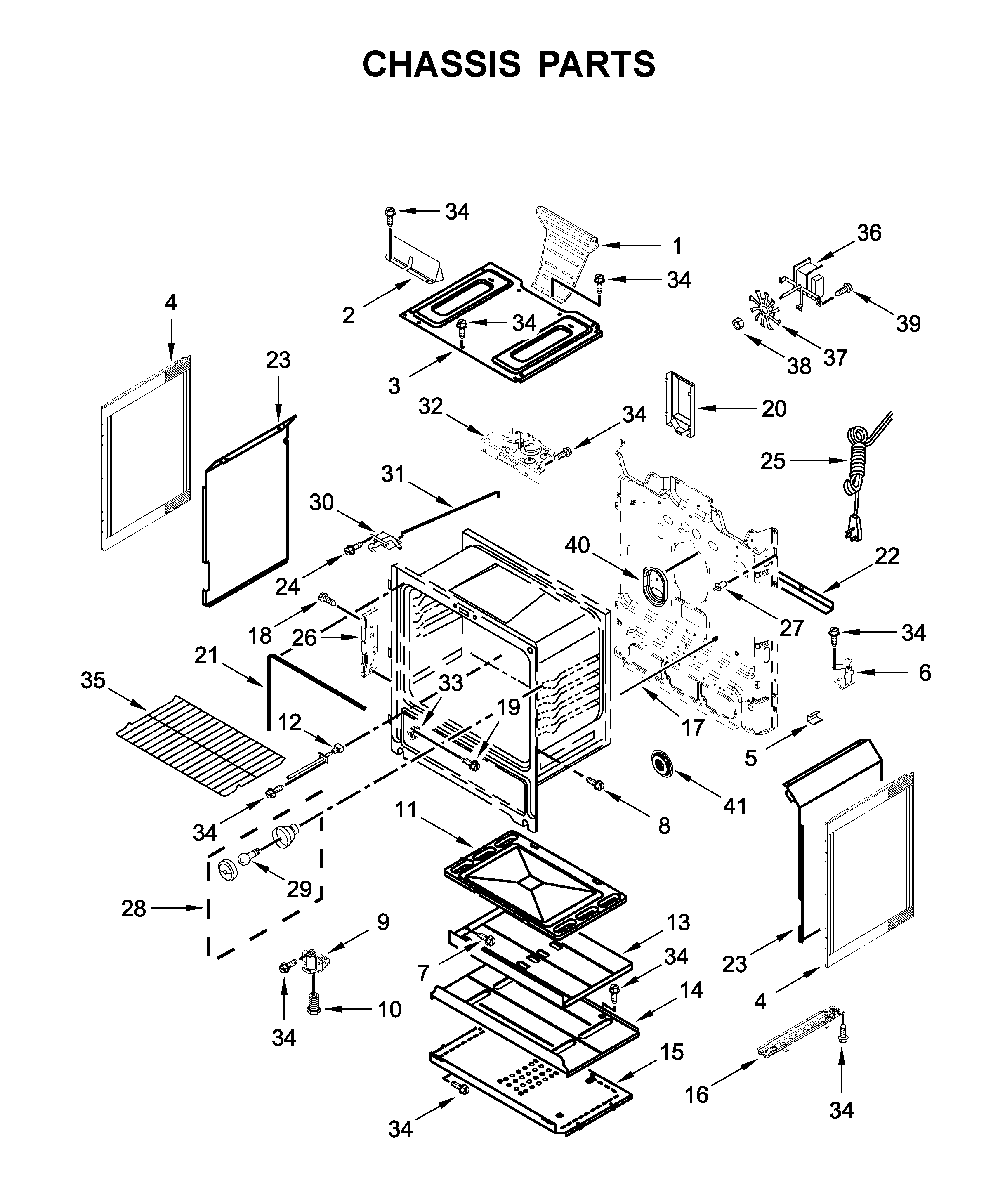

    Chassis parts diagram

    Range Hood Light Bulb

    Part #W10571723

    Replaced by #WPW10571723

    Info Icon
    Manufacturer substitution
    This part replaces W10571723. Substitute parts can look different from the original.
    In Stock
    $16.14
    11% OFF Phone Price : $18.14Info Icon
    Minus Item
    Qty
    Plus Item
