Model #CBG5010AAW Maytag gas freestanding range

Here are the diagrams and repair parts for Maytag CBG5010AAW gas freestanding range, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 150 parts

Range Oven Door Hinge Channel Pin

#14

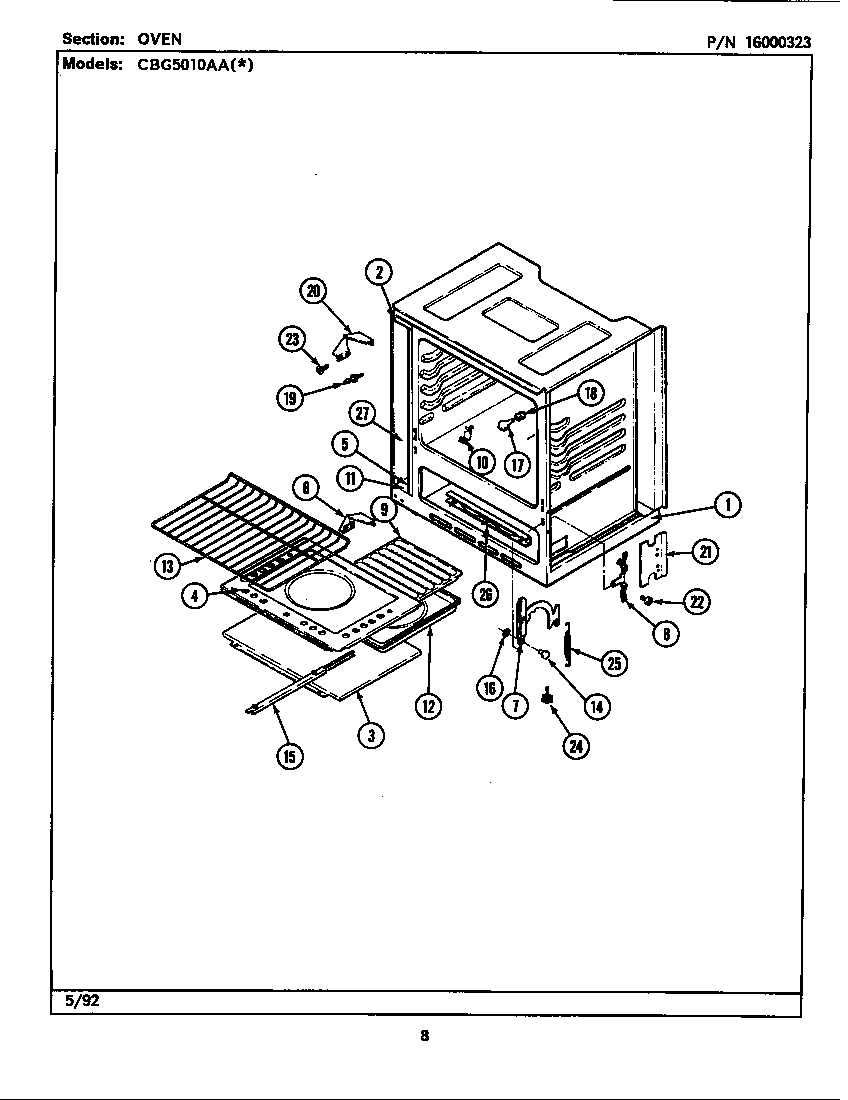

Oven Diagram

$8.29

In Stock

Range Wing Nut

#11

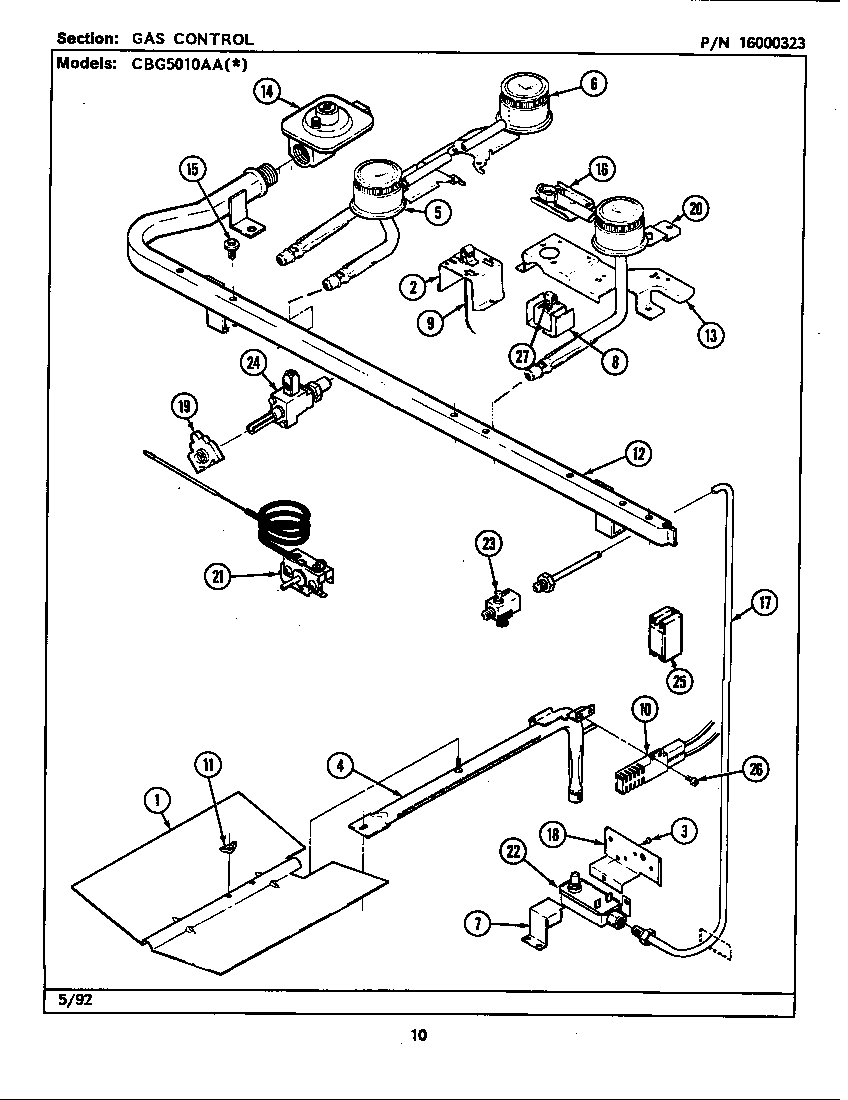

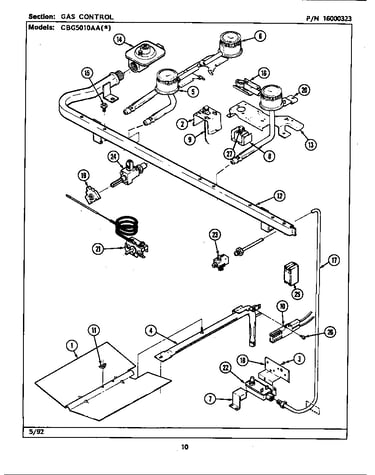

Gas controls Diagram

Range wing nut

Part #7103P030-60
This item is not returnable
$4.99

In Stock

Range Surface Burner Grate, 4-pack

#4A

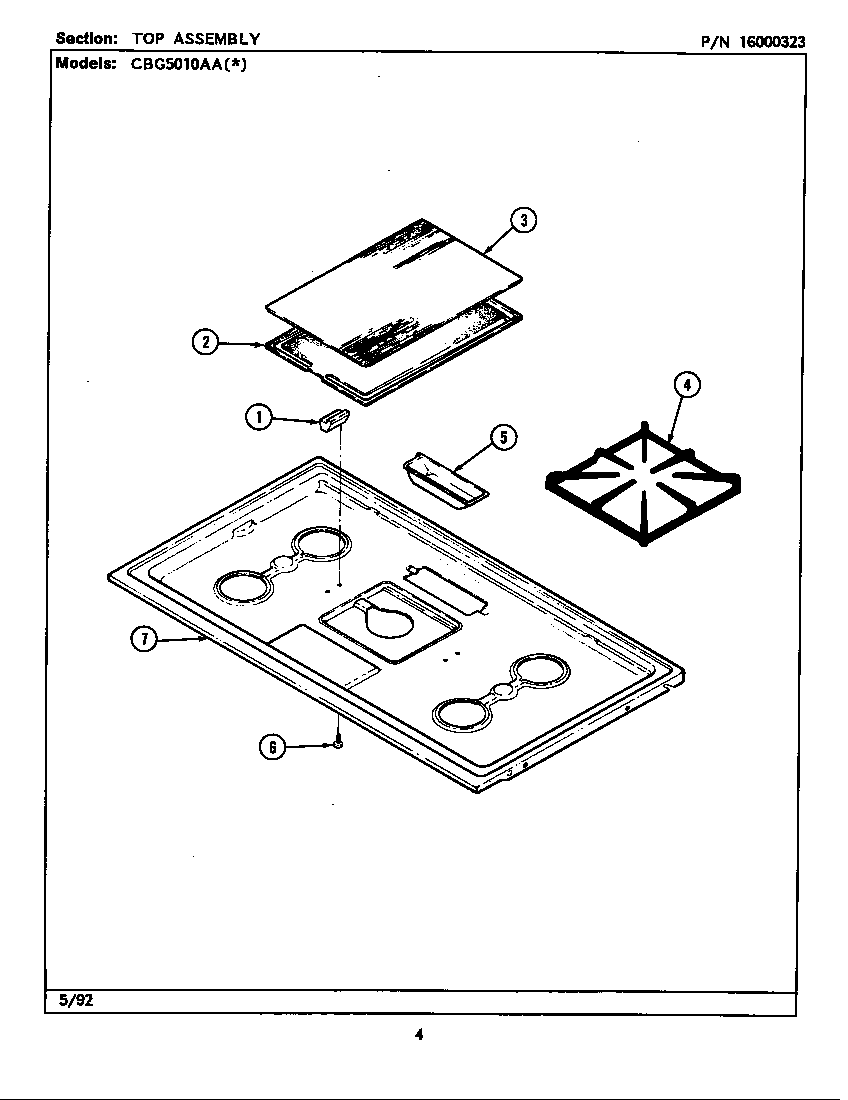

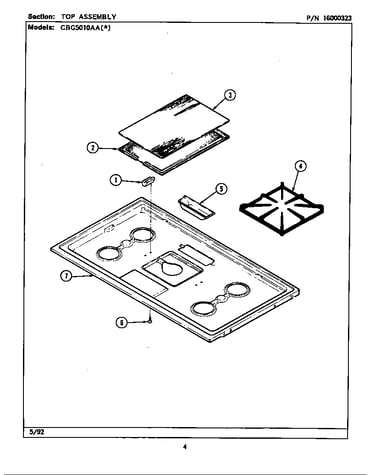

Top assembly Diagram

Range surface burner grate, 4-pack

Part #W11400301
?
Manufacturer substitution
This part replaces 2003W027-00. Substitute parts can look different from the original.
This part replaces 2003W027-00
$103.14

In Stock

Range Screw

#1A

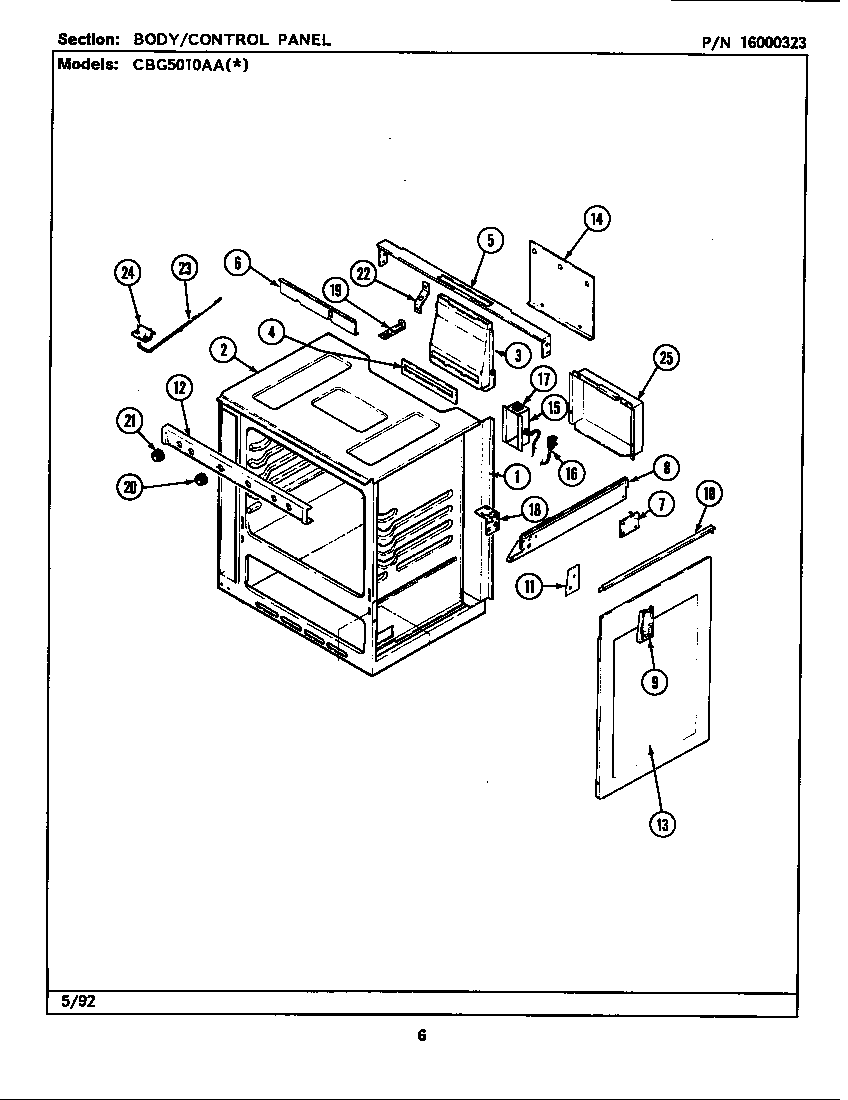

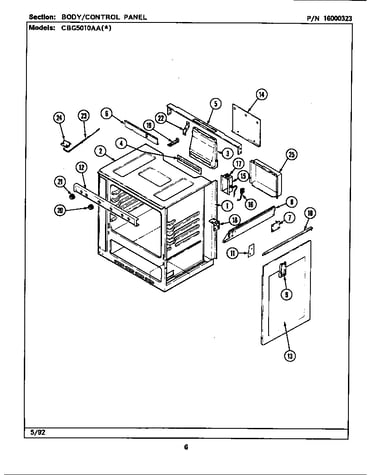

Body/control panel Diagram

Range screw

Part #WP7101P126-60
?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This part replaces 7101P061-60
This item is not returnable
$4.34

In Stock

Appliance Screw

#14

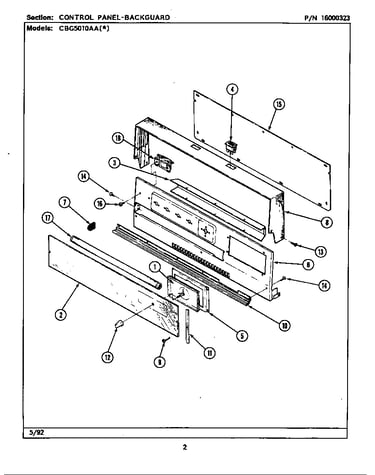

Control panel Diagram

Appliance screw

Part #WP59002061
?
Manufacturer substitution
This part replaces 7101P077-60. Substitute parts can look different from the original.
This part replaces 7101P077-60
This item is not returnable
$3.33

In Stock

Nut

#6B

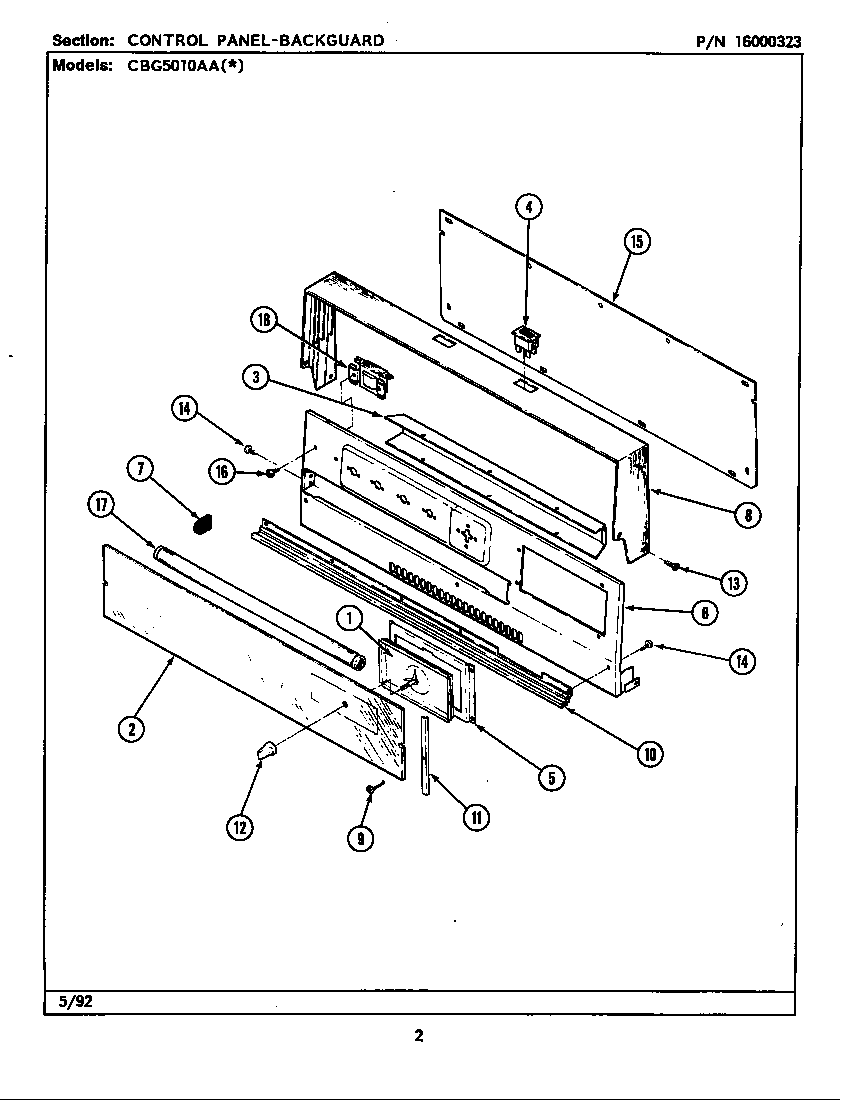

Control panel Diagram

Nut

Part #M0282009
?
Manufacturer substitution
This part replaces 7103P064-60. Substitute parts can look different from the original.
This part replaces 7103P064-60
$12.49

In Stock

Range Spark Module

#25

Gas controls Diagram

Range spark module

Part #12001596
?
Manufacturer substitution
This part replaces 7431P017-60. Substitute parts can look different from the original.
This part replaces 7431P017-60
$43.53

In Stock

Wall Oven Door Inner Glass

#1

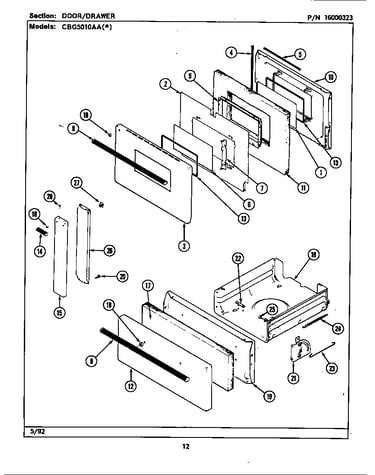

Door/drawer Diagram

Wall oven door inner glass

Part #WP7902P715-60
?
Manufacturer substitution
This part replaces 7902P035-60. Substitute parts can look different from the original.
This part replaces 7902P035-60
$31.54 |
43% OFF MSRP:$55.00

Back Order

Range Broil Pan Insert

#9

Oven Diagram

Range broil pan insert

Part #WP3413F018-19
?
Manufacturer substitution
This part replaces 3413F015-23. Substitute parts can look different from the original.
This part replaces 3413F015-23
$32.05 |
20% OFF MSRP:$40.00

In Stock

Dryer Screw

#8A

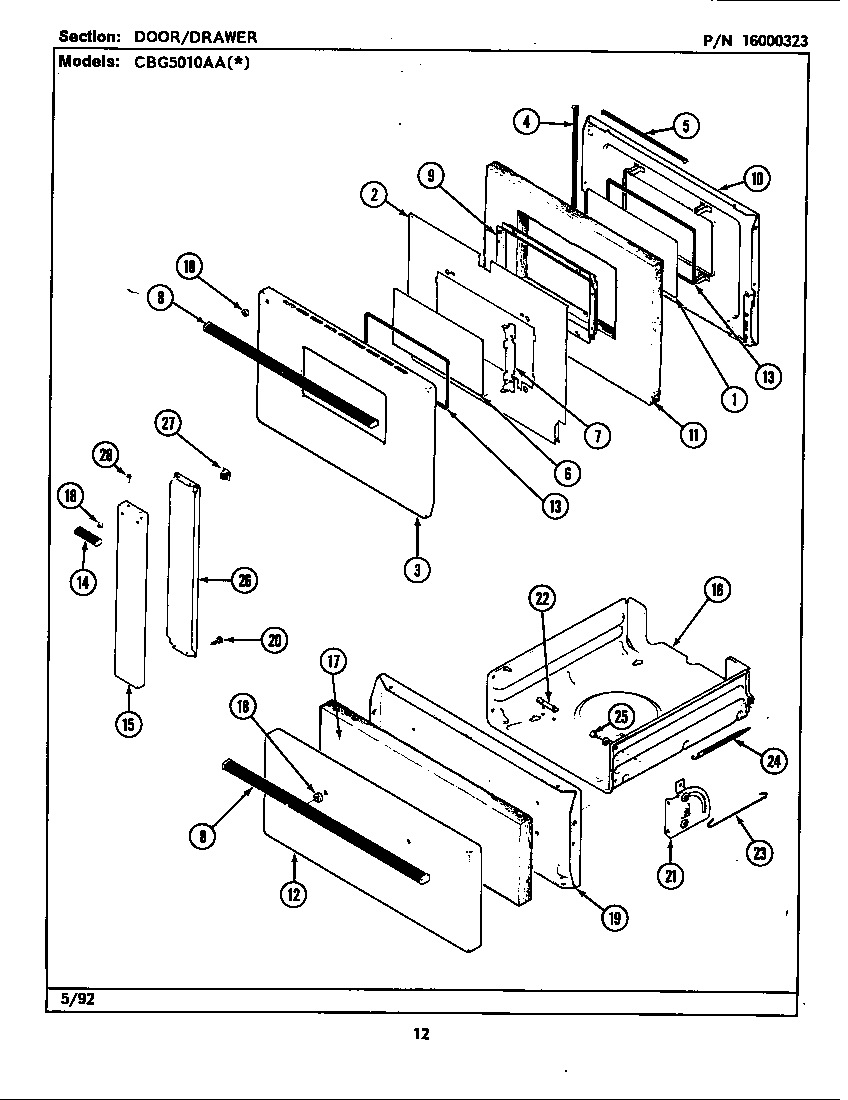

Door/drawer Diagram

Dryer screw

Part #WP3387230
?
Manufacturer substitution
This part replaces 7101P080-60. Substitute parts can look different from the original.
This part replaces 7101P080-60
This item is not returnable
$3.21

In Stock
