Model # LGA90AW-PLGA90AW Official Amana dryer

Here are the diagrams and repair parts for Official Amana LGA90AW-PLGA90AW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

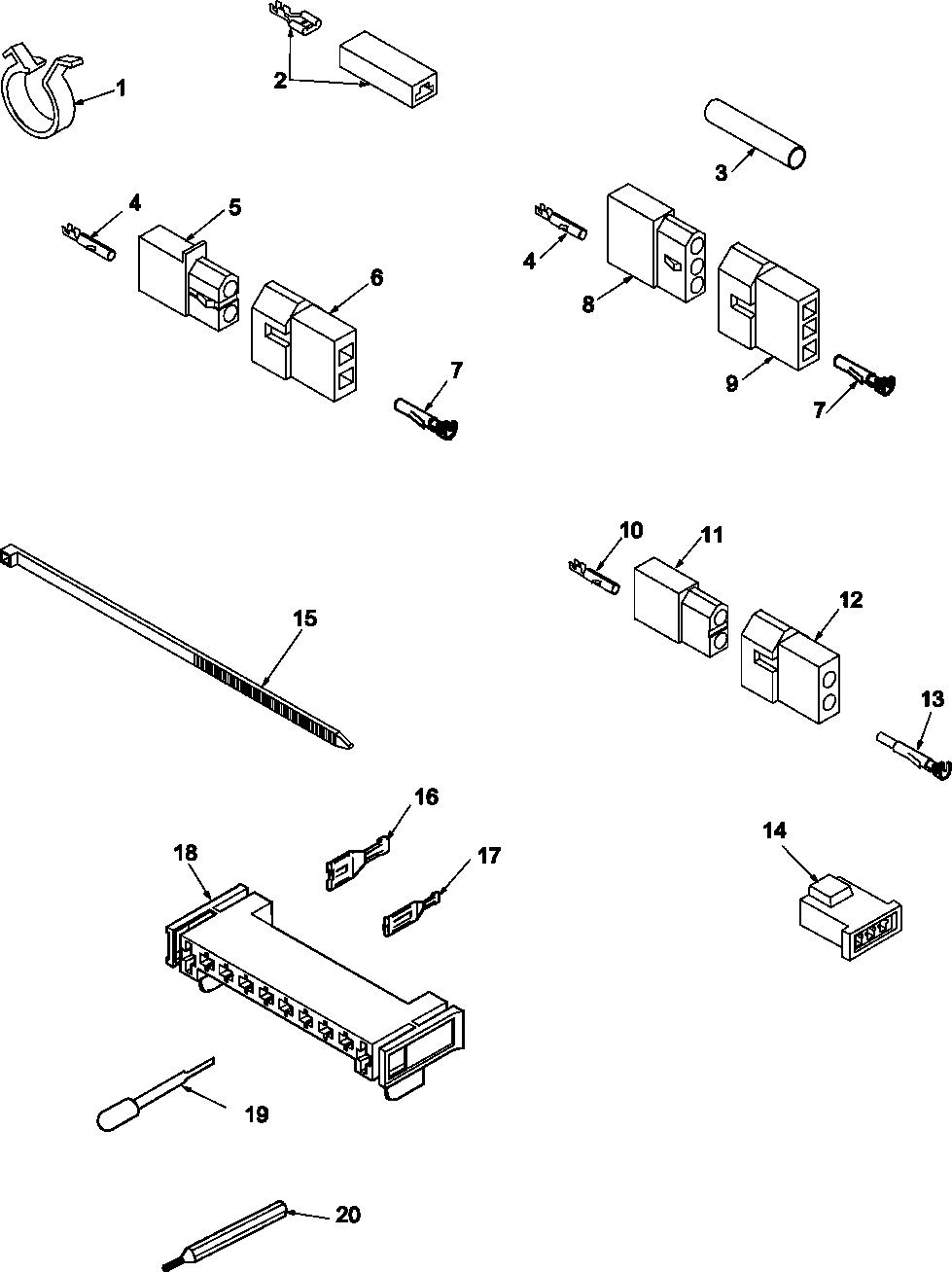

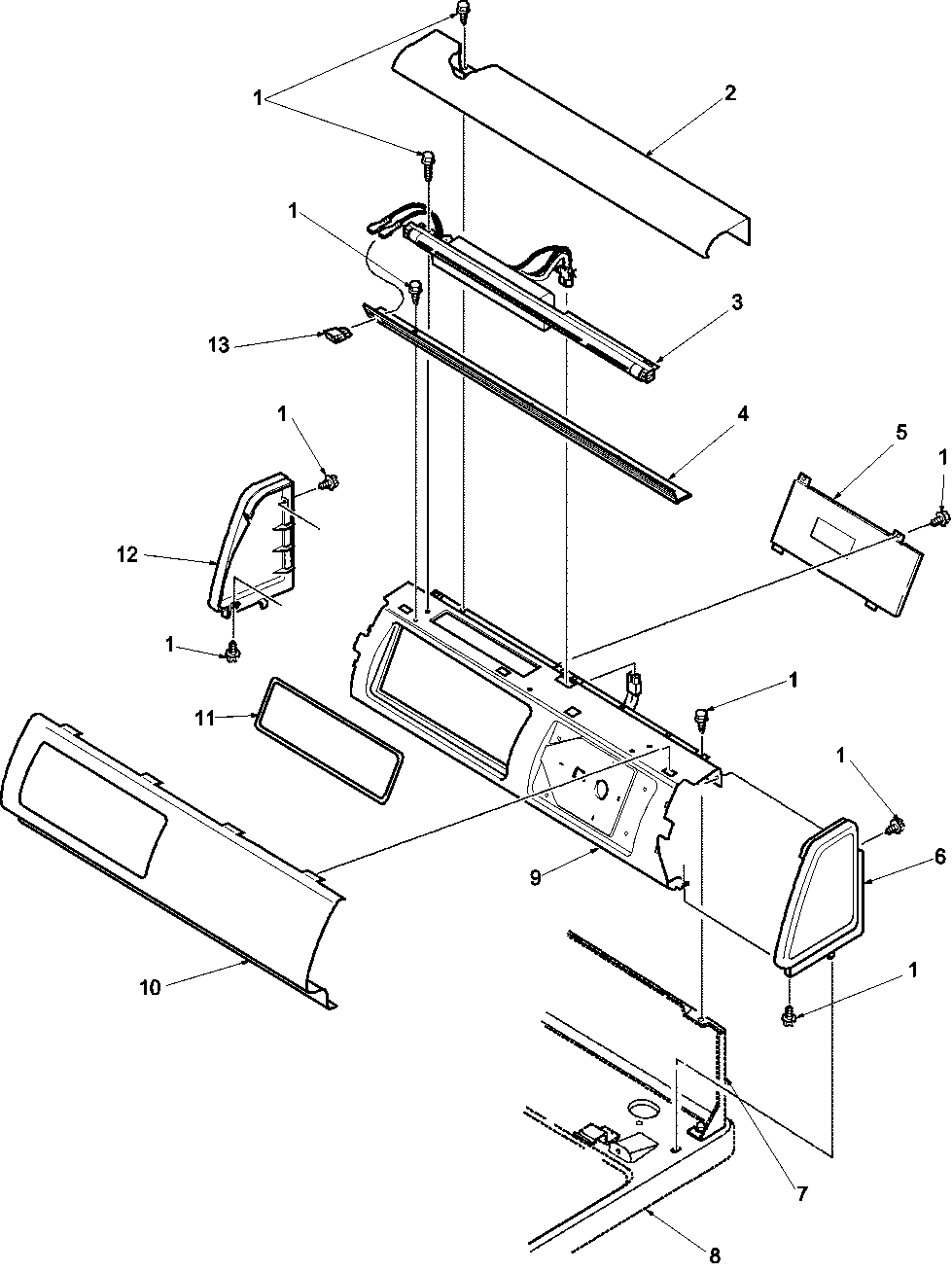

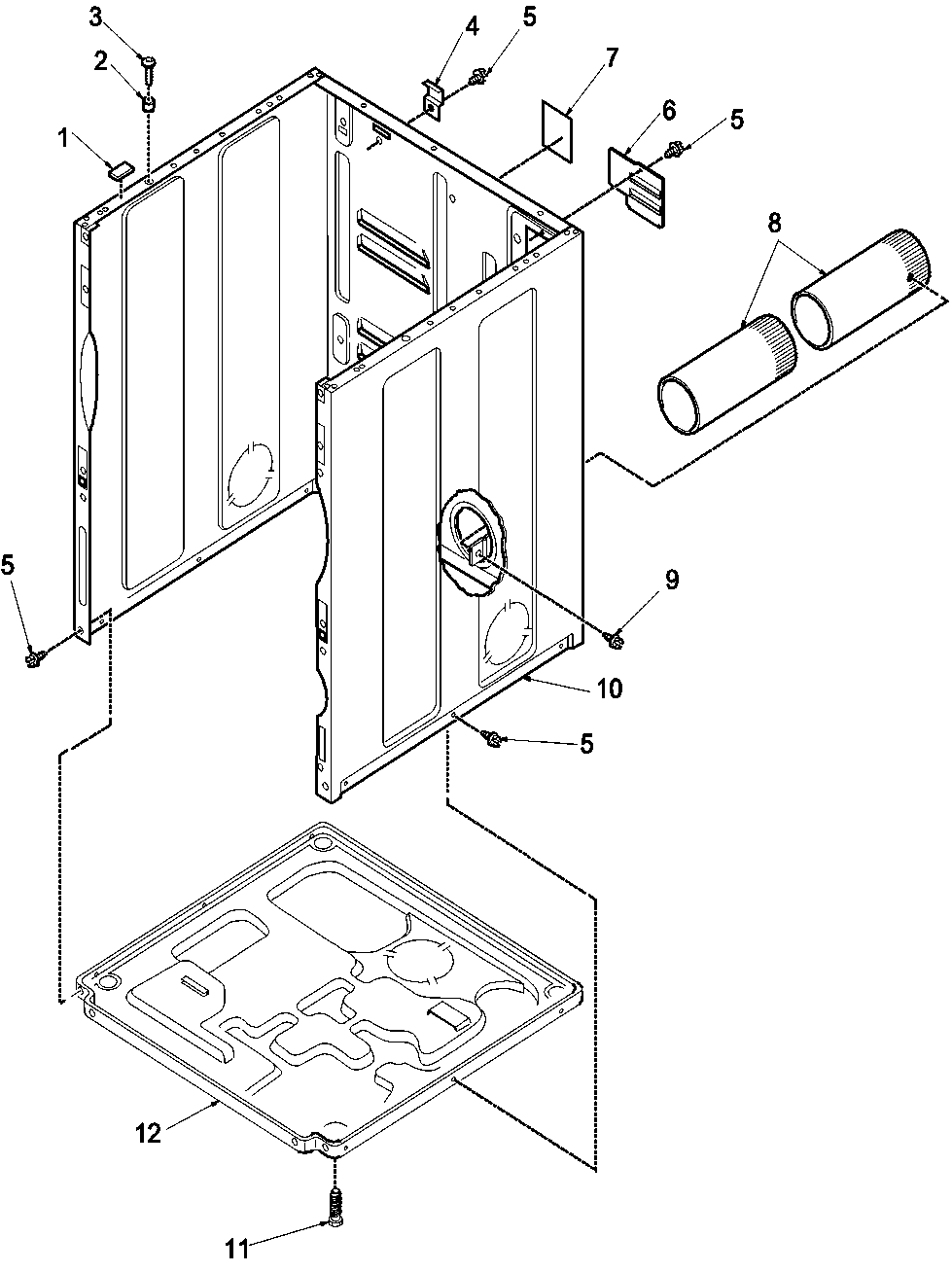

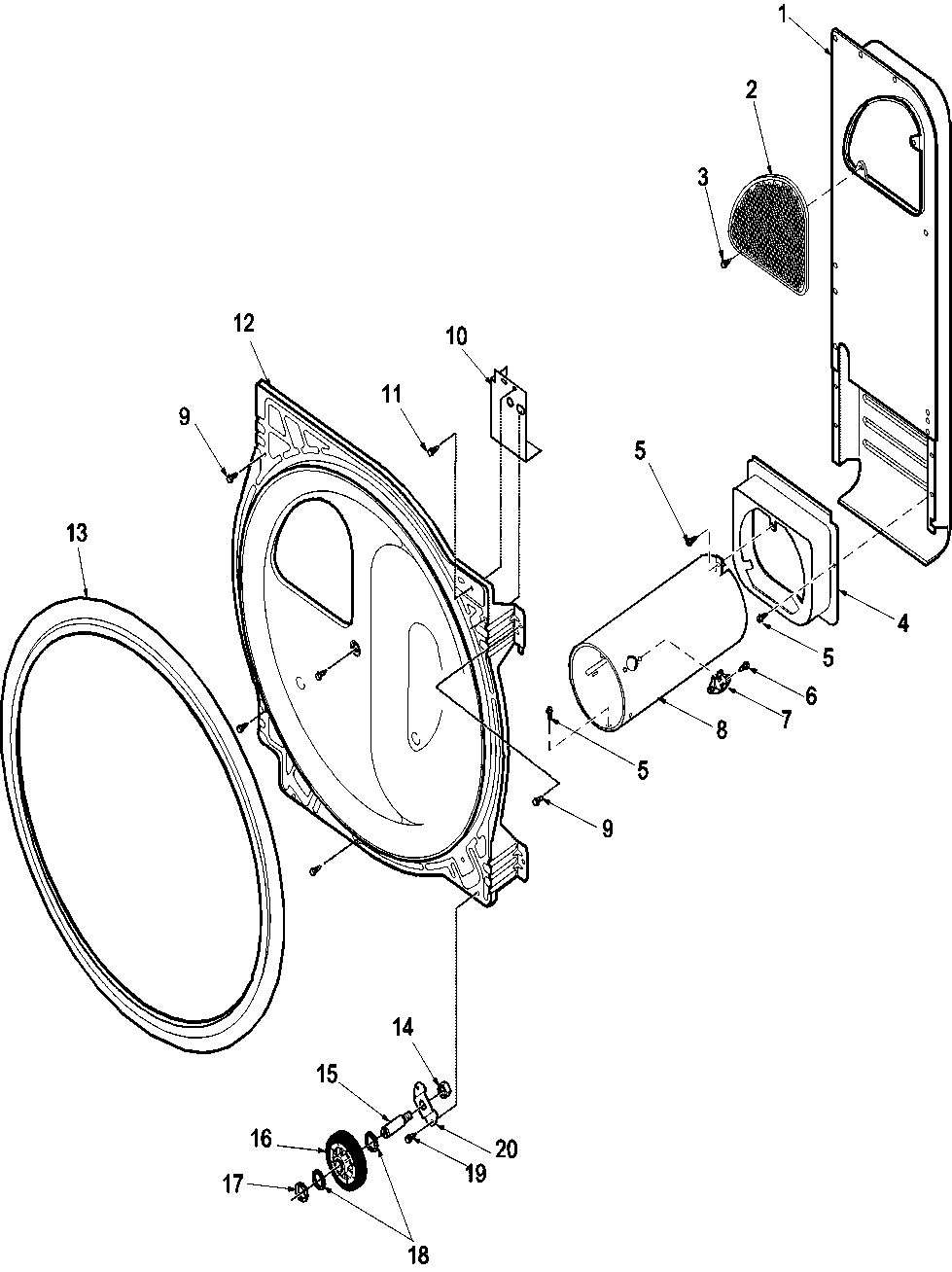

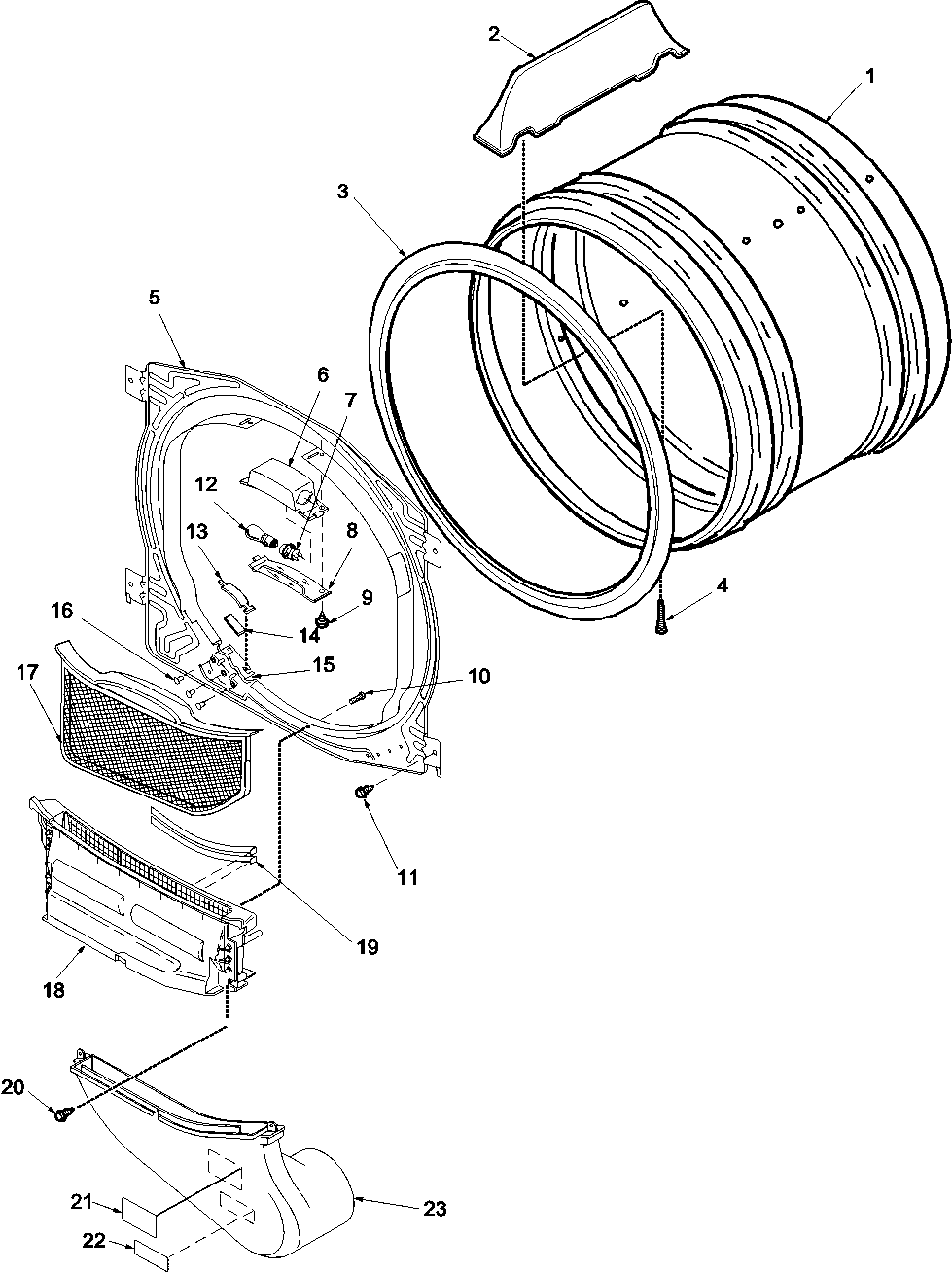

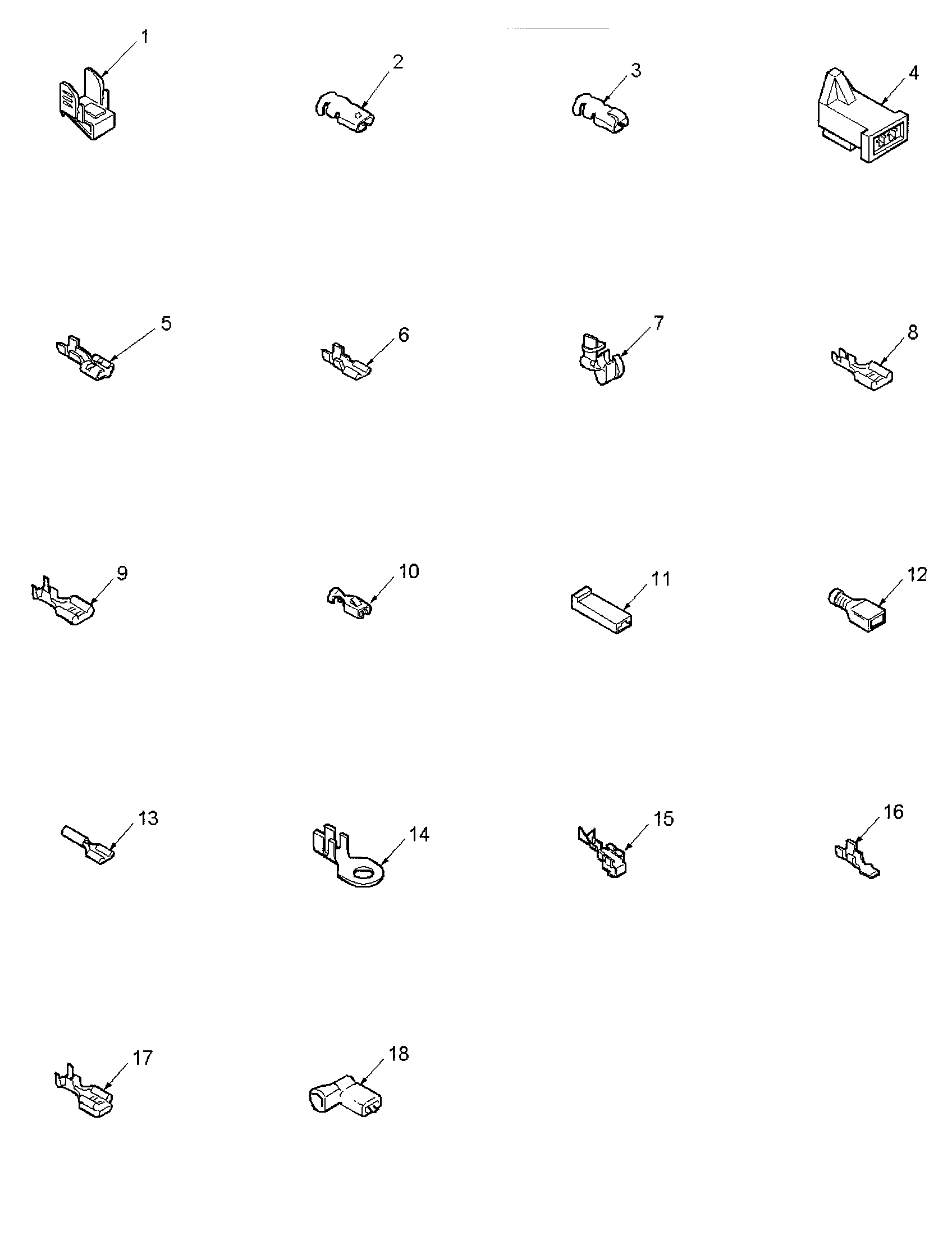

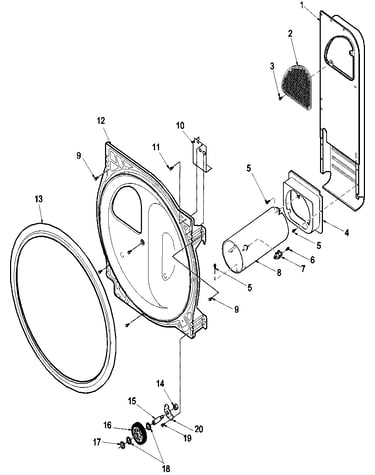

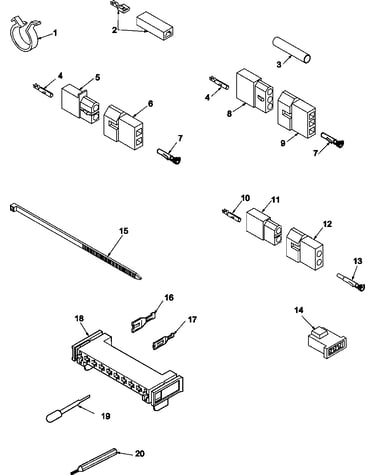

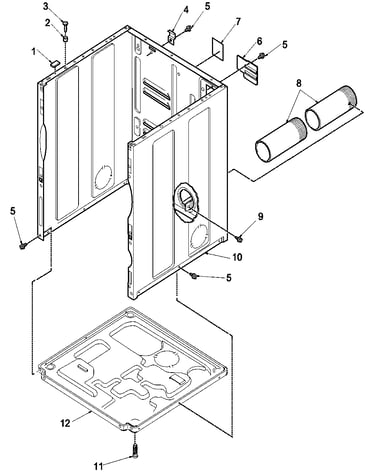

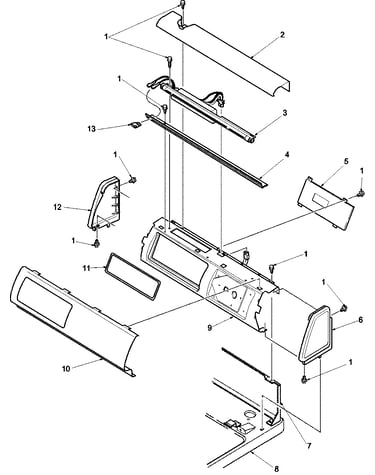

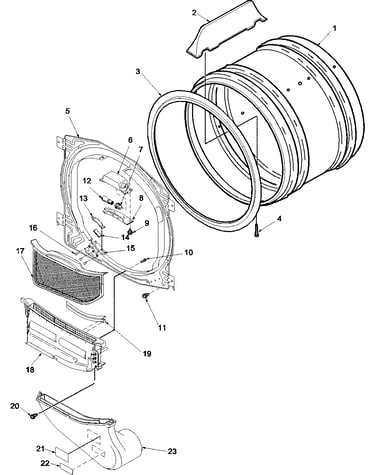

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Second Coil 58804B
#8

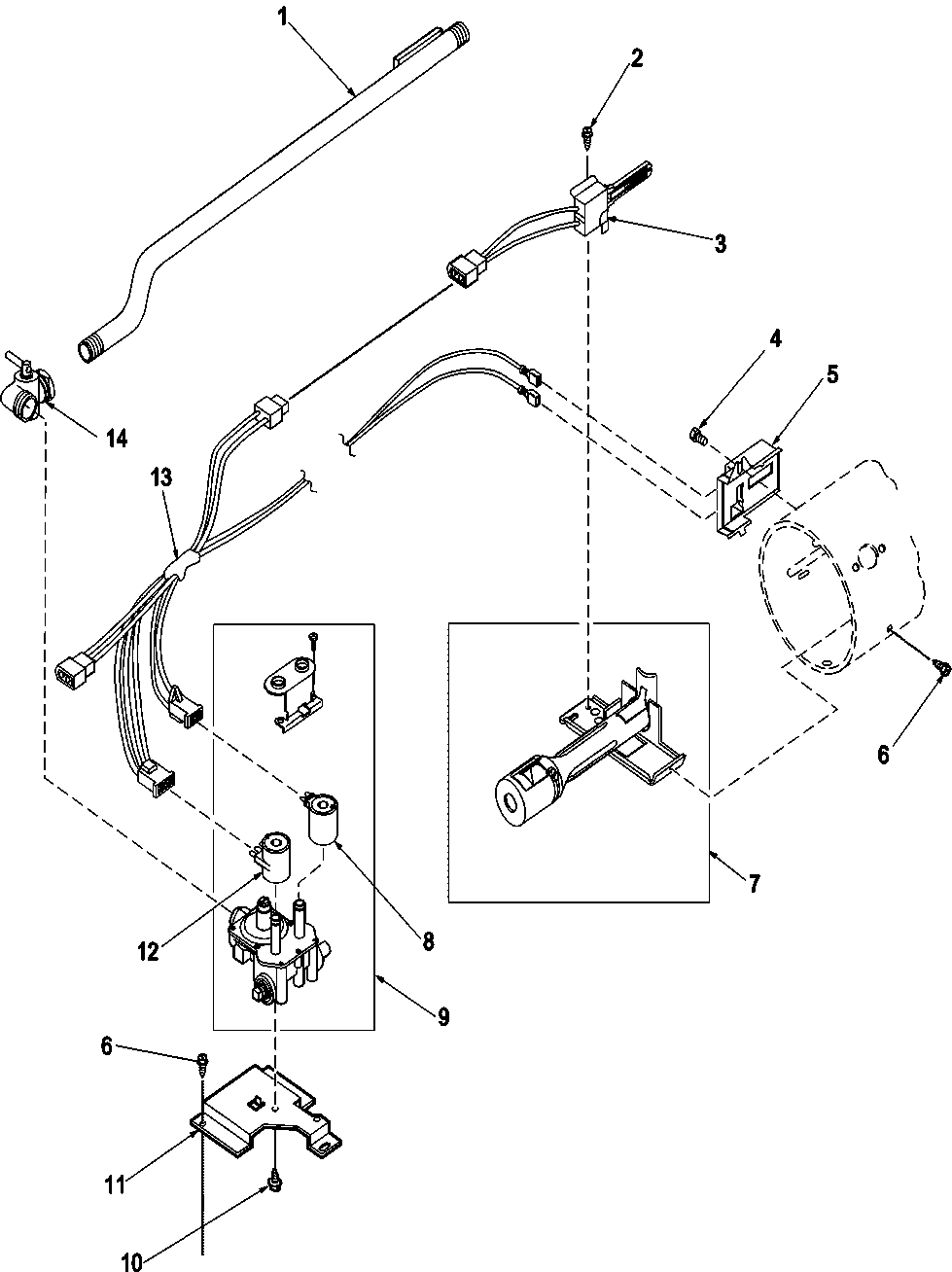

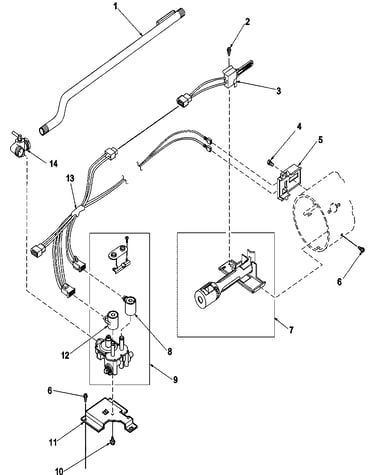

Gas valve, igniter and conversion kits diagram

Second coil

Part #58804B

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804B. Substitute parts can look different from the original.
BEST SELLER
$27.88 |
15% OFF Phone Price : $32.88
In Stock
Coil 58804A
#12

Gas valve, igniter and conversion kits diagram

Coil

Part #58804A

Replaced by #279834

?
Manufacturer substitution
This part replaces 58804A. Substitute parts can look different from the original.
BEST SELLER
$27.88 |
15% OFF Phone Price : $32.88
In Stock
Belt, Cylind 59174
#1

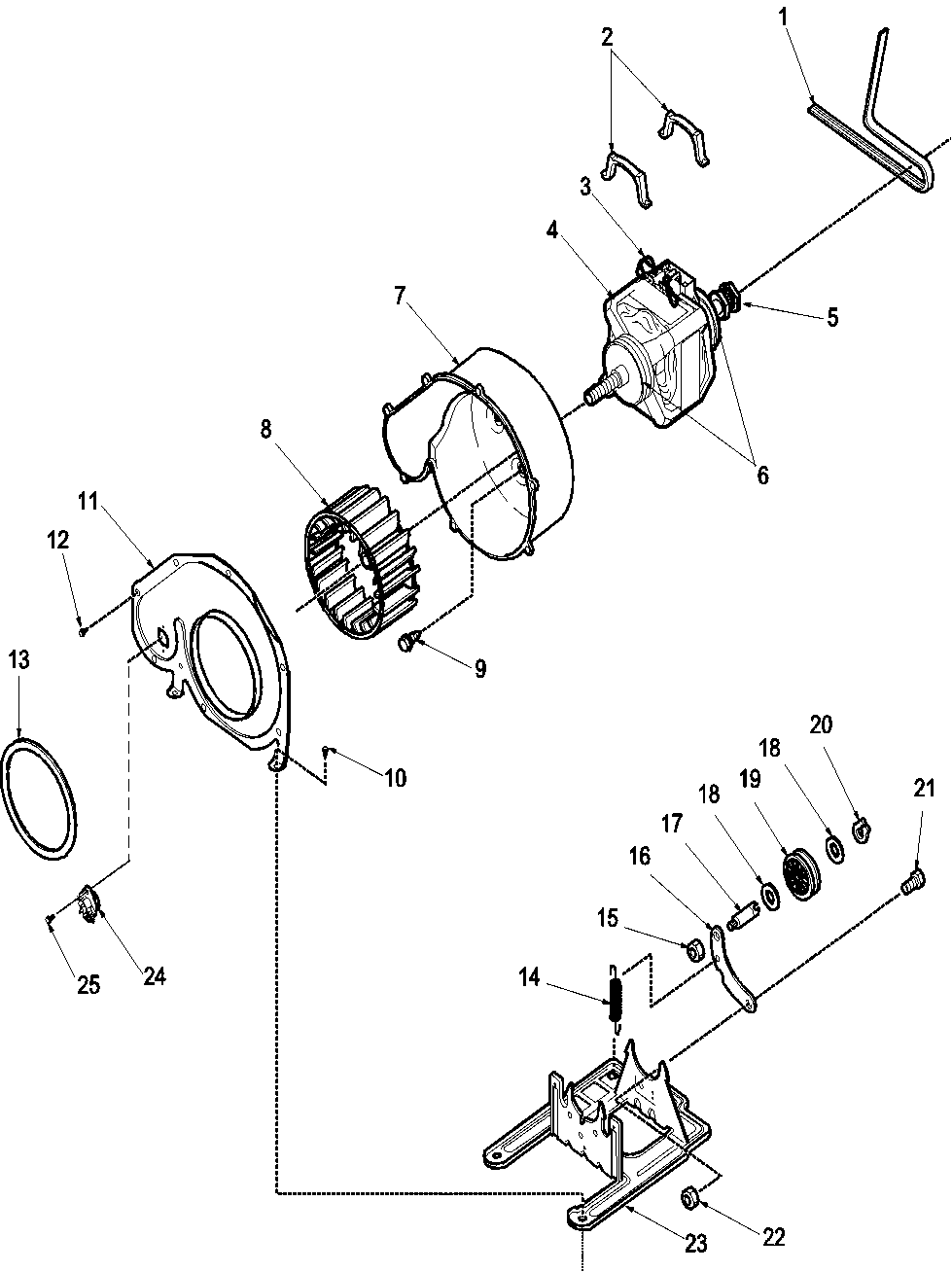

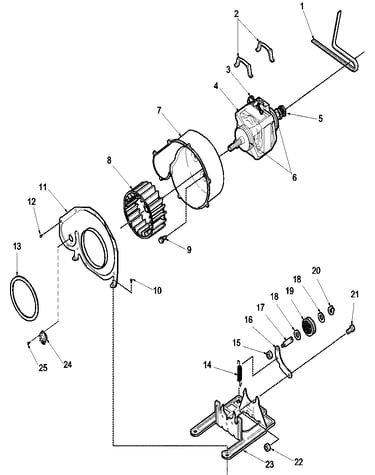

Motor and fan assemblies diagram

Belt, cylind

Part #59174

Replaced by #WP40111201

?
Manufacturer substitution
This part replaces 59174. Substitute parts can look different from the original.
BEST SELLER
$15.11 |
42% OFF MSRP : $26.00
In Stock
Idler Assembly 500269
#999

Motor and fan assemblies diagram

Idler assembly

Part #500269

Replaced by #WP37001287

?
Manufacturer substitution
This part replaces 500269. Substitute parts can look different from the original.
BEST SELLER
$32.66 |
18% OFF MSRP : $40.00
In Stock
Motor 502368
#4

Motor and fan assemblies diagram

Motor

Part #502368

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 502368. Substitute parts can look different from the original.
BEST SELLER
$132.49 |
7% OFF Phone Price : $142.49
In Stock
Dryer Blower Wheel (replaces 510139p, 56000p) 56000
#8

Motor and fan assemblies diagram

Dryer blower wheel (replaces 510139p, 56000p)

Part #56000

BEST SELLER
$44.86 |
23% OFF MSRP : $58.00
In Stock
White Assm 54414
#19

Motor and fan assemblies diagram

White assm

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
16% OFF MSRP : $22.00
In Stock
Laundry Appliance Washer 52549
Laundry appliance washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Catch 54660
#18

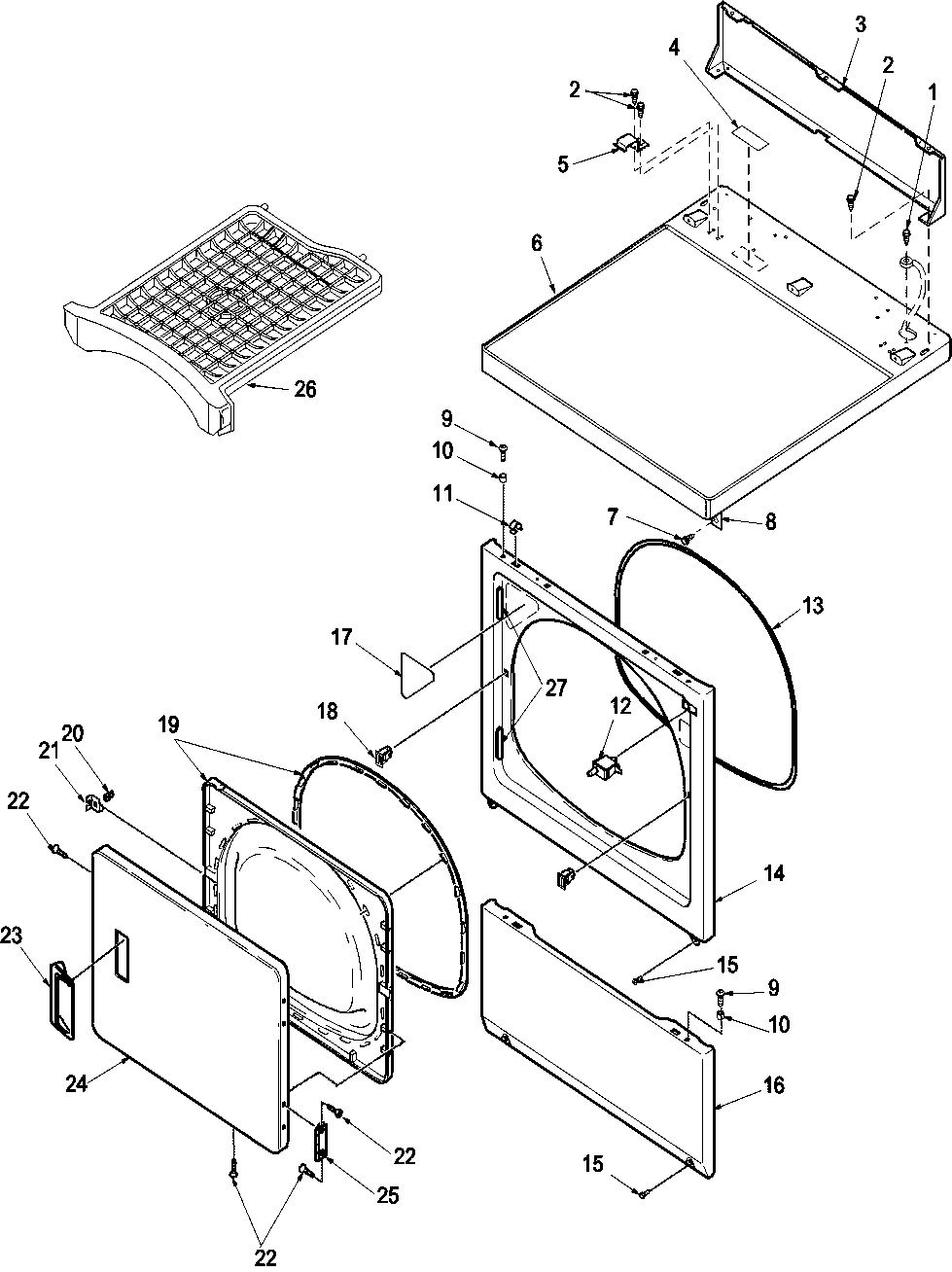

Door and front, access, and top panels diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
19% OFF Phone Price : $25.69
In Stock
Door Strike 500039
#20

Door and front, access, and top panels diagram

Door strike

Part #500039

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 500039. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
19% OFF Phone Price : $25.69
In Stock
