Model # 113213722 Official Craftsman 8" bench model drill press

Here are the diagrams and repair parts for Official Craftsman 113213722 8" bench model drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Flat Head Screw 60523
#38

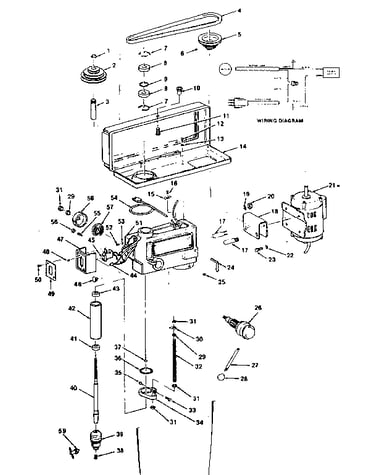

Unit diagram

Flat head screw

Part #60523

The manufacturer no longer makes this part, and there's no substitute part

Screw 805517
#12

Unit diagram

Screw

Part #805517

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Spring And Seat 71292
#57

Unit diagram

Drill press spring and seat

Part #71292

The manufacturer no longer makes this part, and there's no substitute part

Washer STD551025
#22

Unit diagram

Washer

Part #STD551025

The manufacturer no longer makes this part, and there's no substitute part

Cap Spring 71246
#58

Unit diagram

Cap spring

Part #71246

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 71267
#59

Unit diagram

Chuck key

Part #71267

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing STD315245
#8

Unit diagram

Ball bearing

Part #STD315245

The manufacturer no longer makes this part, and there's no substitute part

Column Tube 71304
#3

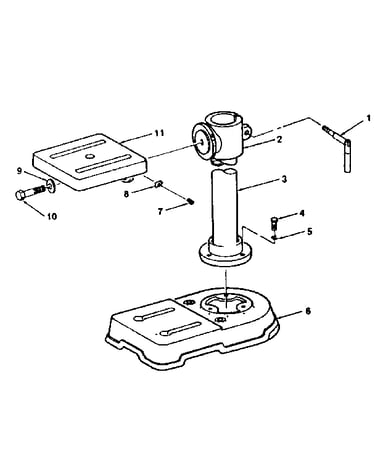

Base assembly diagram

Column tube

Part #71304

The manufacturer no longer makes this part, and there's no substitute part

Stop Rod 71284
Stop rod

Part #71284

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 71303
#1

Base assembly diagram

Handle assembly

Part #71303

The manufacturer no longer makes this part, and there's no substitute part
