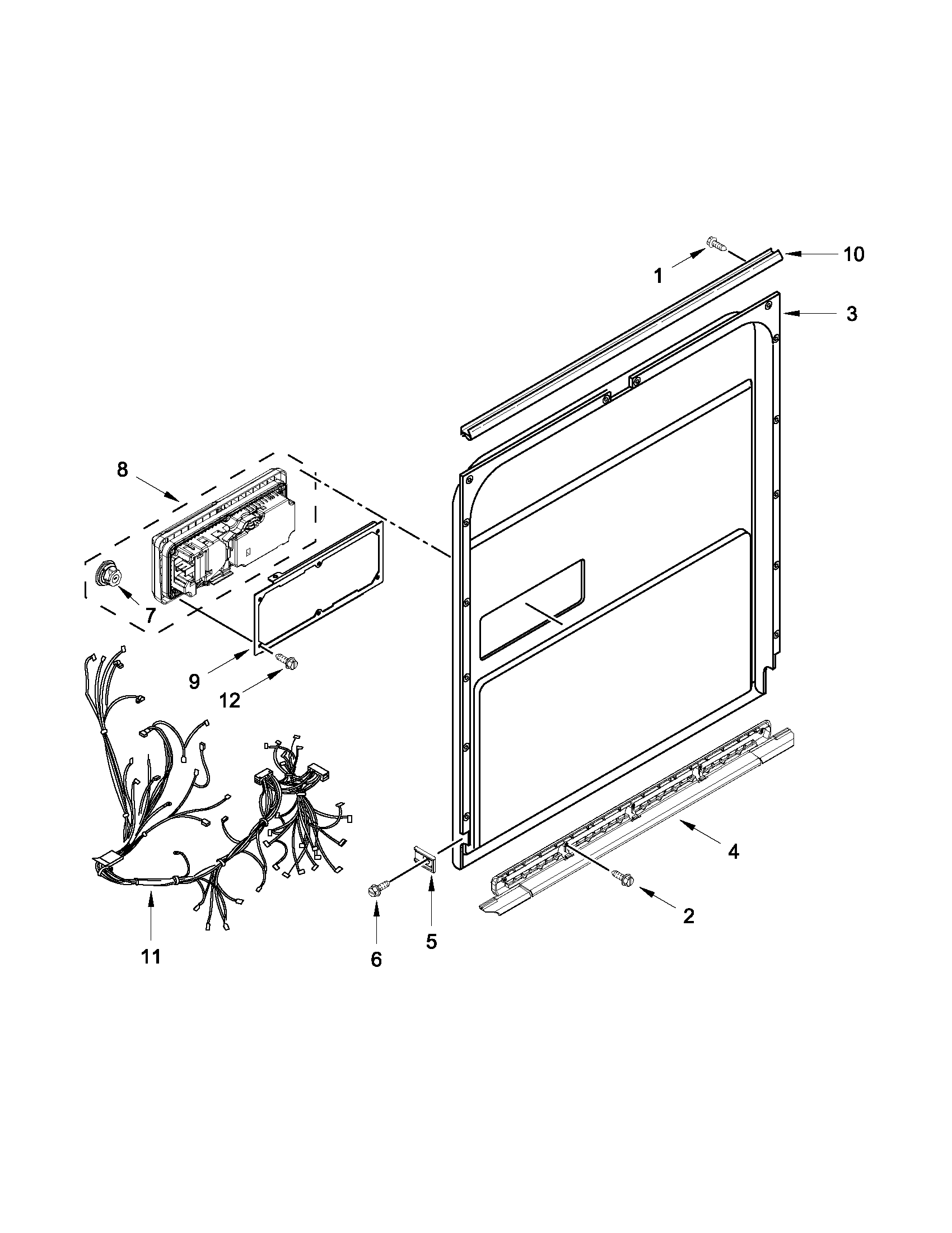

How to fix rubber seal on KitchenAid dishwasher?

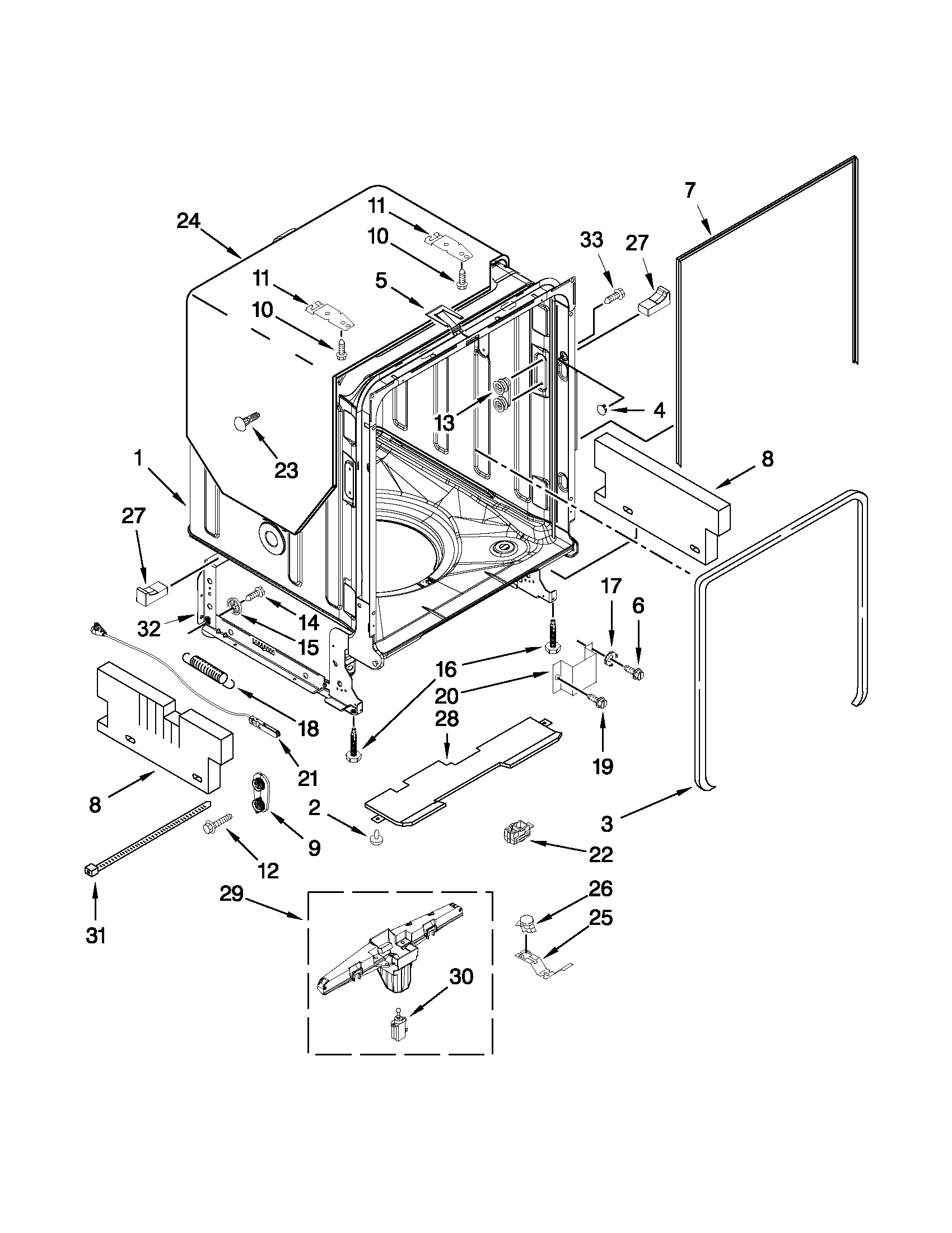

On the KitchenAid KUDS30IXBT9 dishwasher, fixing a rubber door seal usually means reseating the gasket evenly into its channel and making sure the door closes squarely. After the seal is fully pressed in, keep the door closed for several hours so the gasket relaxes into position.
- Turn off power to the dishwasher at the breaker.
- Open the door and wipe the seal channel and gasket with a damp cloth; remove detergent film and debris.
- Starting at the top center, press the gasket into the channel a few inches at a time.
- Work down both sides evenly; avoid stretching the rubber.
- Close and latch the door; keep it closed for several hours.
- Run a short cycle and check for drips along the bottom corners.
A seal can look fine but still leak if the door is misaligned or the tub is not centered in the cabinet opening.
| What you notice | Most likely cause | What to do |
|---|---|---|
| Leak at bottom corners | Door not closing squarely, gasket not fully seated | Re-press gasket into channel; verify latch closes firmly |
| Door rubs cabinet or screw heads | Dishwasher not centered | Re-center the unit and recheck door clearance per the installation guide |
| Leak starts after moving the dishwasher | Tub shifted during install | Check equal spacing on both sides and adjust leveling legs |
A properly seated door gasket keeps wash water inside the tub, protects the toe panel area from moisture, and helps the dishwasher maintain correct wash pressure for better cleaning.
Use the gasket and door alignment guidance in the KUDS30IXBT9 owner's manual to confirm the correct seal placement and any model-specific notes.
Last updated: February 2026
What is the most common problem with a KitchenAid dishwasher?
The most common KitchenAid dishwasher issue we see is poor cleaning or standing water caused by restricted water flow or drainage. On the KitchenAid KUDS30IXBT9, that usually traces back to a clogged filter or spray path, or a drain restriction that prevents the unit from emptying fully.

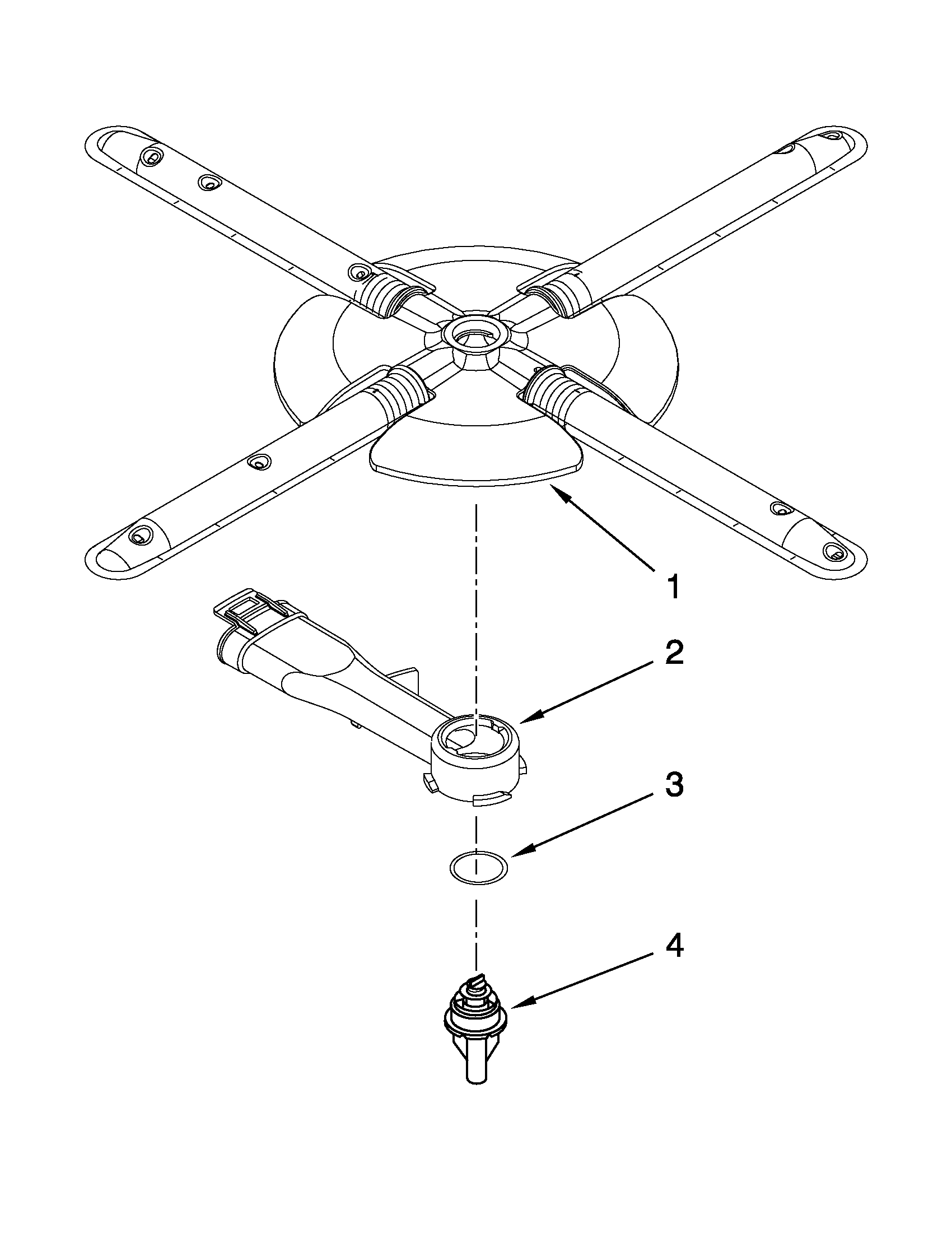

- Dishes come out dirty: spray arms not spinning freely, filter area restricted, or low water fill
- Water left in the bottom: drain path blocked, drain hose routing issue, or a weak drain pump
- Leaks at the door: door seal worn, misalignment, or door not latching squarely
- Long cycles: normal on many newer designs, but worse when water is not heating or draining correctly
- No start: door not latched, power issue, or control problem
Before replacing parts, we follow these basics from the setup and operation checks in the KUDS30IXBT9 installation guide.
- Confirm the door closes tightly and latches
- Confirm the water supply is turned on
- Check the breaker or house fuse
- Start a short cycle; after about 2 minutes, open the door and verify water is in the tub
- If there is standing water, inspect the drain hose for kinks, clogs, or an improper high loop
If the checks above point to a drain or wash performance problem, these model-matched parts are common fixes:
| Problem you notice | Most likely area | Example part for KUDS30IXBT9 |
|---|---|---|

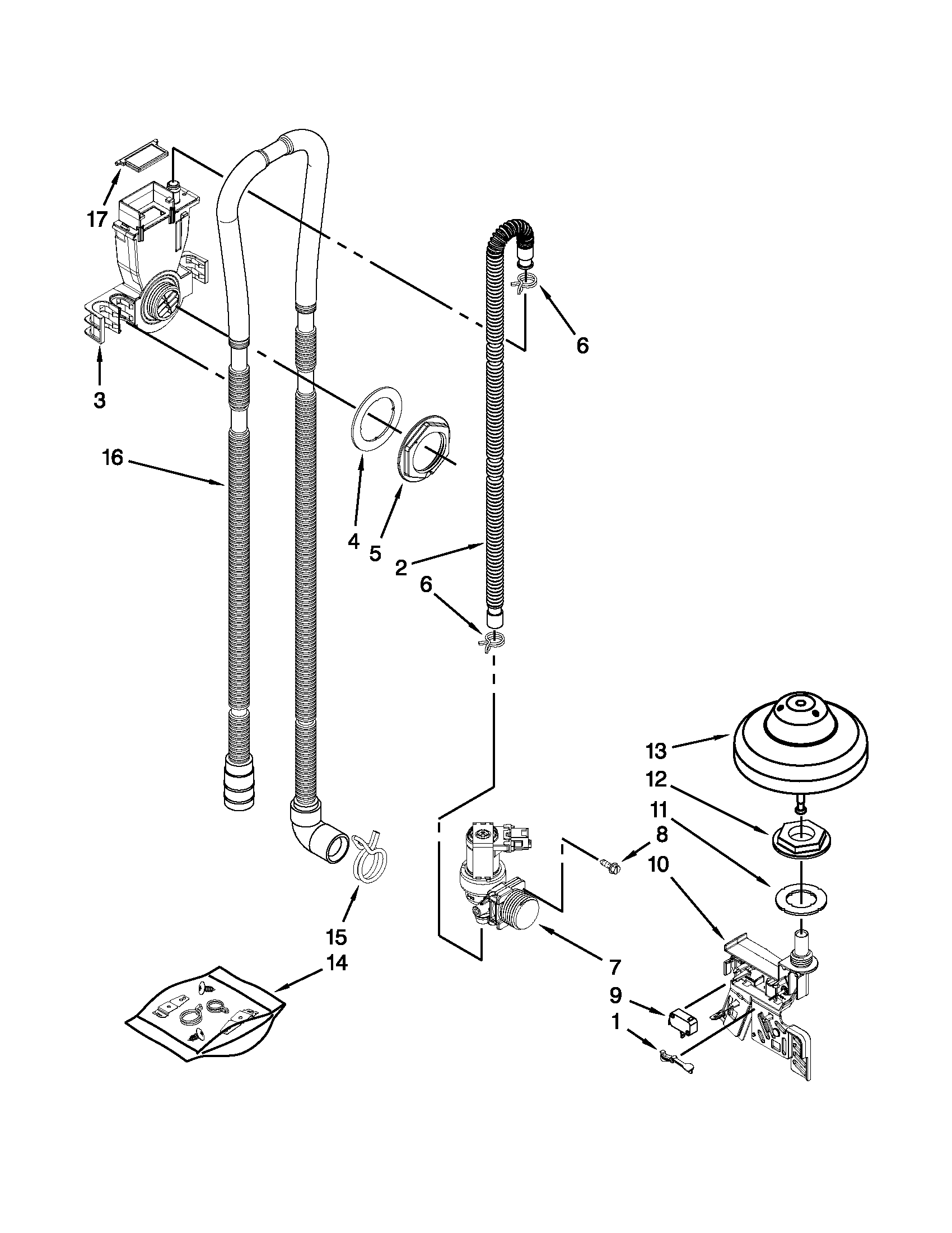

| Standing water after cycle | Drain system | Dishwasher drain pump WPW10348269 |
| Slow drain or leaks under sink | Drain hose connection/routing | Dishwasher drain hose 8269144A |

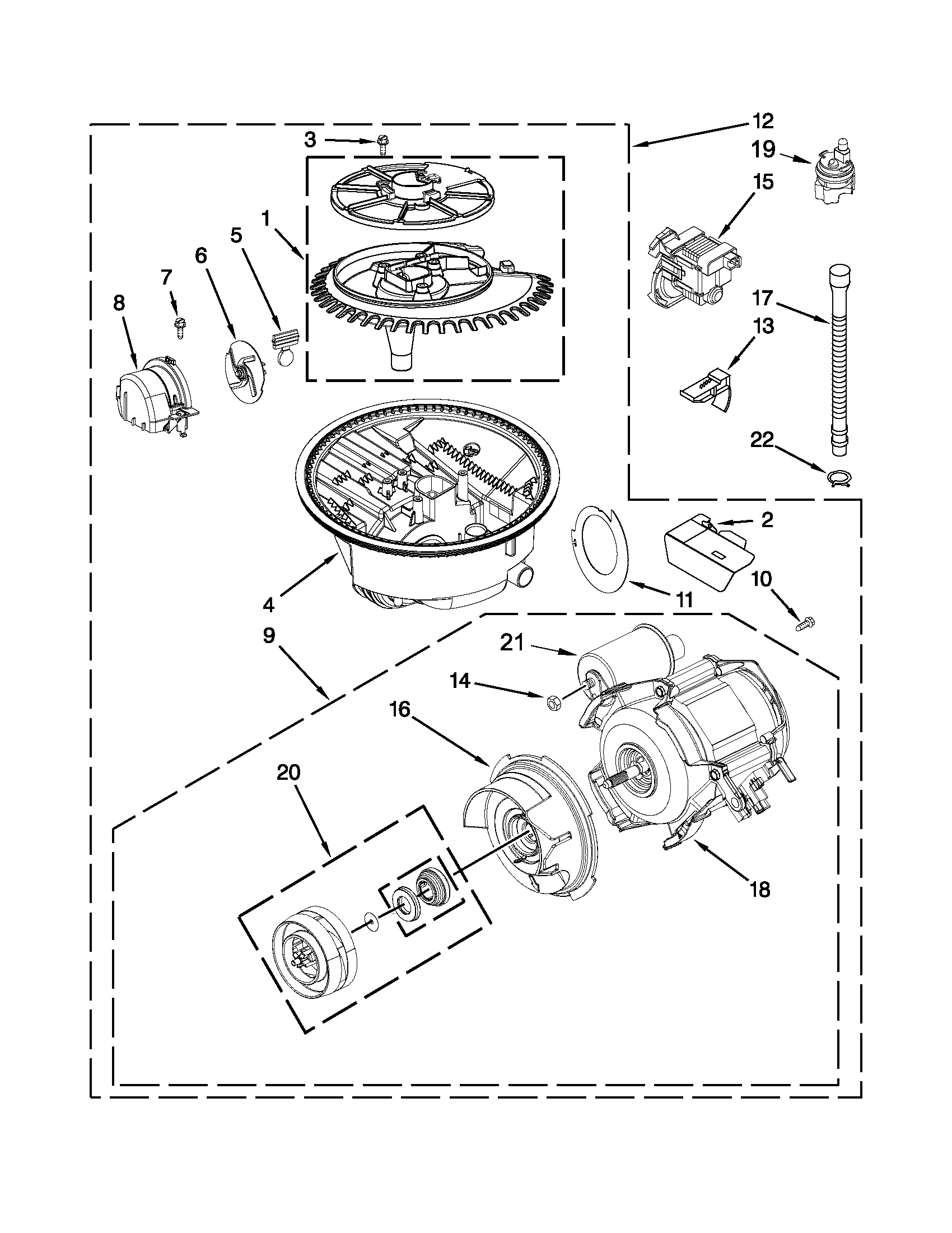

| Poor wash, weak spray | Wash motor/sump | Dishwasher sump and motor assembly WPW10780877 |
| Leaks at bottom of door | Door sealing surface | Dishwasher door seal, lower WPW10497235 |
A dishwasher that does not drain or fill correctly will recirculate dirty water, extend cycle times, and can lead to odors and leaks. Fixing the restriction first (filter, hose routing, clogs) prevents unnecessary replacement of higher-cost parts like the sump and motor.
Last updated: February 2026
What's the average lifespan of a KitchenAid dishwasher?
Most KitchenAid dishwashers, including the KitchenAid KUDS30IXBT9 undercounter dishwasher, typically last 10 to 14 years. Lifespan depends most on how often you run it, water quality (hard water scale), and whether routine care like cleaning and proper loading is done.
- Wash frequency: multiple loads per day wears pumps, seals, and racks faster
- Water quality: hard water speeds up mineral buildup on the heater and internal parts
- Drying habits: consistent rinse aid use improves drying and reduces deposits
- Drain performance: slow draining strains the drain pump and can leave standing water
- Door and rack wear: worn rack wheels, adjusters, and door balance parts add stress over time
| Component area | Common symptom | Typical fix |
|---|---|---|
| Drain system | Water left in tub | Clear blockage or replace drain pump |

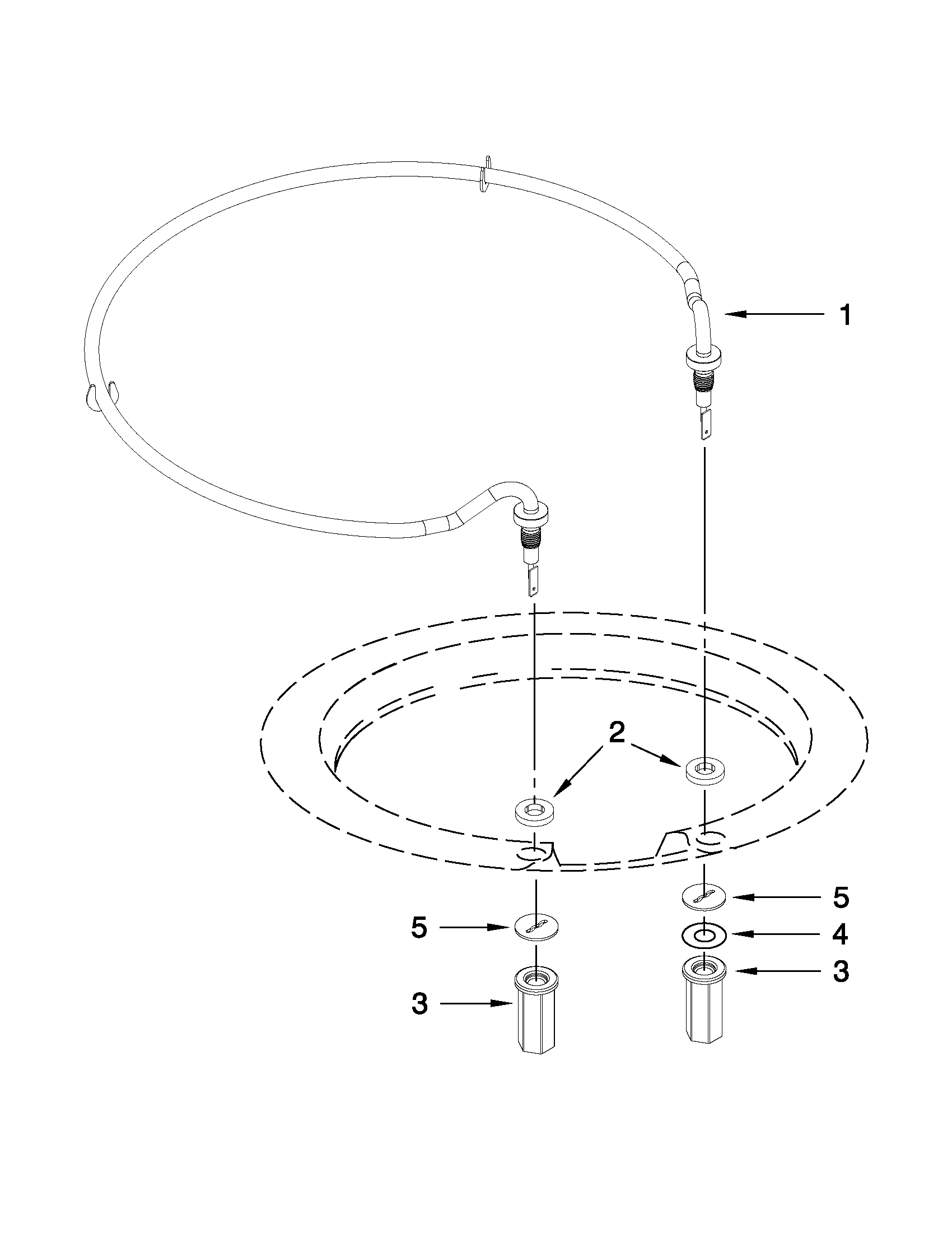

| Heating/drying | Poor drying, cool water | Check heater circuit, replace heater if failed |
| Wash/circulation | Weak spray, noisy wash | Service sump/motor or circulation pump |
| Door sealing | Leaks at bottom/edges | Replace door seal, check alignment |
- Use rinse aid as recommended in the KUDS30IXBT9 owner’s manual
- Run hot water at the sink before starting a cycle to improve cleaning
- Keep the tub and racks clear so spray arms can rotate freely
- Address slow draining early (food debris, kinked hose, or pump issues)
- If the door doesn’t close smoothly, correct alignment and avoid slamming
A dishwasher that is maintained and draining correctly runs more efficiently and puts less strain on high-wear parts like the motor, heater, and seals. That directly improves cleaning results and helps the KUDS30IXBT9 reach its expected service life.
